TecnoGen Enermax Series 39kW 50kVA KL50TSX Generator

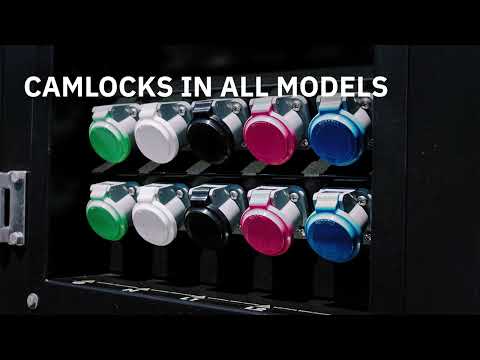

TecnoGen’s 50kVA generator uses the Kohler engine coupled to an industry standard Leroy Somer alternator producing 39kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 69dBA rating.
The internal fuel capacity is 71 gallons allowing for a run time of up to 35 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.
SPECIFICATION
- PRIME POWER: 39 kW
- SOUND LEVEL @ 23': 69 DBA
- CONTROLLER: Deep Sea
- ALTERNATOR: Leroy Somer
- ENGINE MODEL: Kohler KDI2504TCR
- EPA LEVEL: Tier 4
- HORSEPOWER: 59
- FUEL CAPACITY: 71 Gallons
- RUN TIME @ 75%: 35 Hours
- LENGTH: 91"
- WIDTH: 44"
- HEIGHT: 67"
- WEIGHT: 3421 lbs
GENERATOR SPECS
- Prime Power (PRP) kW : 39,0
- Prime Power (PRP) kVA : 48,8
- Standby Power (LTP) kW : 43,0
- Standby Power (LTP) kVA : 53,8
- Rated Power Factor(cos φ) : 0,8
- RPM : 1800
- Voltage 1PH V : 240/120V
- Voltage 3PH V : 480/277V , 208/120V
- Rated frequency Hz : 60
- Controller Brand : Deep Sea
- Controller Model : DSE7310
- Sound Level @23 Feet (no load) dB : 69
AMPS
- Single Phase 120V zz : 125x2 zz
- Single Phase 240V : 125
- Three Phase 208V : 135
- Three Phase 480V : 59
ENGINE SPECS
- MAKE: Kohler
- MODEL: KDI2504TCR
- EPA LEVEL: TIER4 FINAL
- No. Cylinders: 4
- Gross HP: 59,4
- EXTERNAL FUEL VALVE: YES
- FUEL CONTAINMENT: 110%
FUEL CONSUMPTION
- Fuel Type : Diesel
- FUEL CAPACITY (Gallons): 71
- Fuel Cons. at 75% (P.R.P.) gal/h : 2,01
- Run Time @ 75% gal/h : 35,32
WEIGHTS AND DIMENSIONS
SKID W/O TRAILER
- Dry WEIGHT (lbs.): 3025
- Wet WEIGHT (lbs.): 3421
- LENGTH (in.): 91
- WIDTH (in.): 44
- HEIGHT (in.): 67,3
