TecnoGen Enermax Series 560kW 700kVA VO700TSX Generator

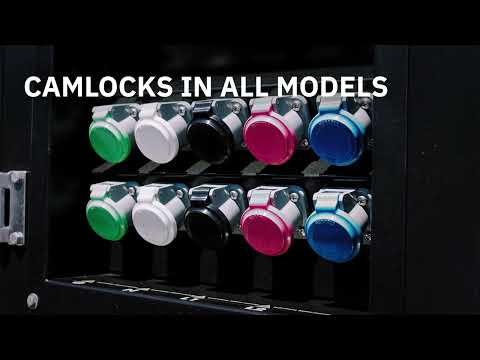

TecnoGen’s 700kVA generator uses the Volvo engine coupled to an industry standard Leroy Somer alternator producing 560kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels, run time and start logs easy and the sealed doors and 2″ thick insulation throughout gives this gen a 71dBA rating.

The internal fuel capacity is 465 gallons allowing for a run time of up to 17 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Enermax series is built for reliability and is ideal for continuous heavy-duty applications. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 560 kW
• SOUND LEVEL @ 23': 71 DBA
• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: Volvo TWD1673GE
• EPA LEVEL: Tier 4F
• HORSEPOWER: 891
• FUEL CAPACITY: 465 Gallons
• RUN TIME @ 75%: 17 Hours
• LENGTH: 189"
• WIDTH: 76"
• HEIGHT: 94"
• WEIGHT: 21,092 lbs

GENERATOR SPECS

• PRIME (kW): 560
• STANDBY (kW): 617
• RPM: 1800
• VOLTAGE 1PH: N/A
• VOLTAGE 3PH: 480/277V 208/120V
• FREQUENCY (Hz): 60
• CONTROLLER BRAND: Deep Sea
• CONTROLLER MODEL: DSE8610
• ALTERNATOR MAKE: Leroy Somer
• ALTERNATOR MODEL: LSA 49.3S4
• SYSTEM VOLTAGE: 24V
• SOUND LEVEL @ 23 FEET: 71

AMPS

• SINGLE PHASE 120V zz (P.F. 0,8): N/A
• SINGLE PHASE 240V (P.F. 0,8): N/A
• THREE PHASE 208V (P.F. 0,8): 1943
• THREE PHASE 240V (P.F. 0,8): 1684
• THREE PHASE 480V (P.F. 0,8) 842

ENGINE SPECS

• MAKE: Volvo
• MODEL: TWD1673GE
• EPA LEVEL: TIer 4F
• CYLINDERS: 6
• GROSS HP: 891
• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• FUEL CAPACITY (Gallons): 465
• 75%: 27.54 gal/h
• RUN TIME @ 75%: 17

DEF

• DEF Tank Capacity gal.: 42

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 17483
• Wet WEIGHT (lbs.): 21083
• LENGTH (in.): 189
• WIDTH (in.): 76
• HEIGHT (in.): 94

SUPERIOR PERFORMANCE

The Enermax Series has the features you want standard with the largest range of prime power in its class.

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

OVERBUILT BY TECNOGEN

Perfect for the construction, industrial and rental sectors, TecnoGen designed the Enermax Series to make it the most innovative, reliable and rugged power machine on the market.
