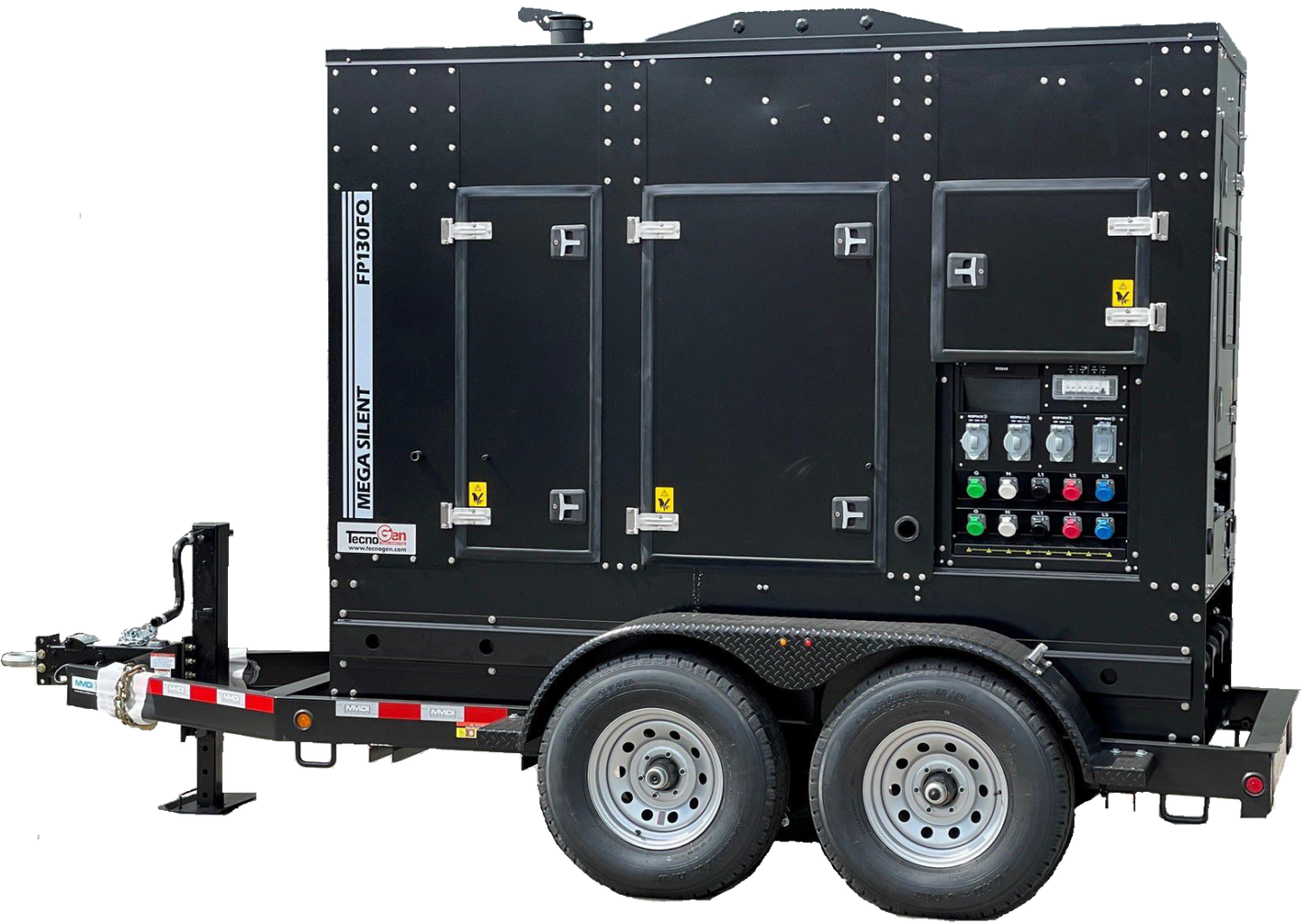

TecnoGen Mega Silent Series 104kW 130kVA FP130FQ Generator

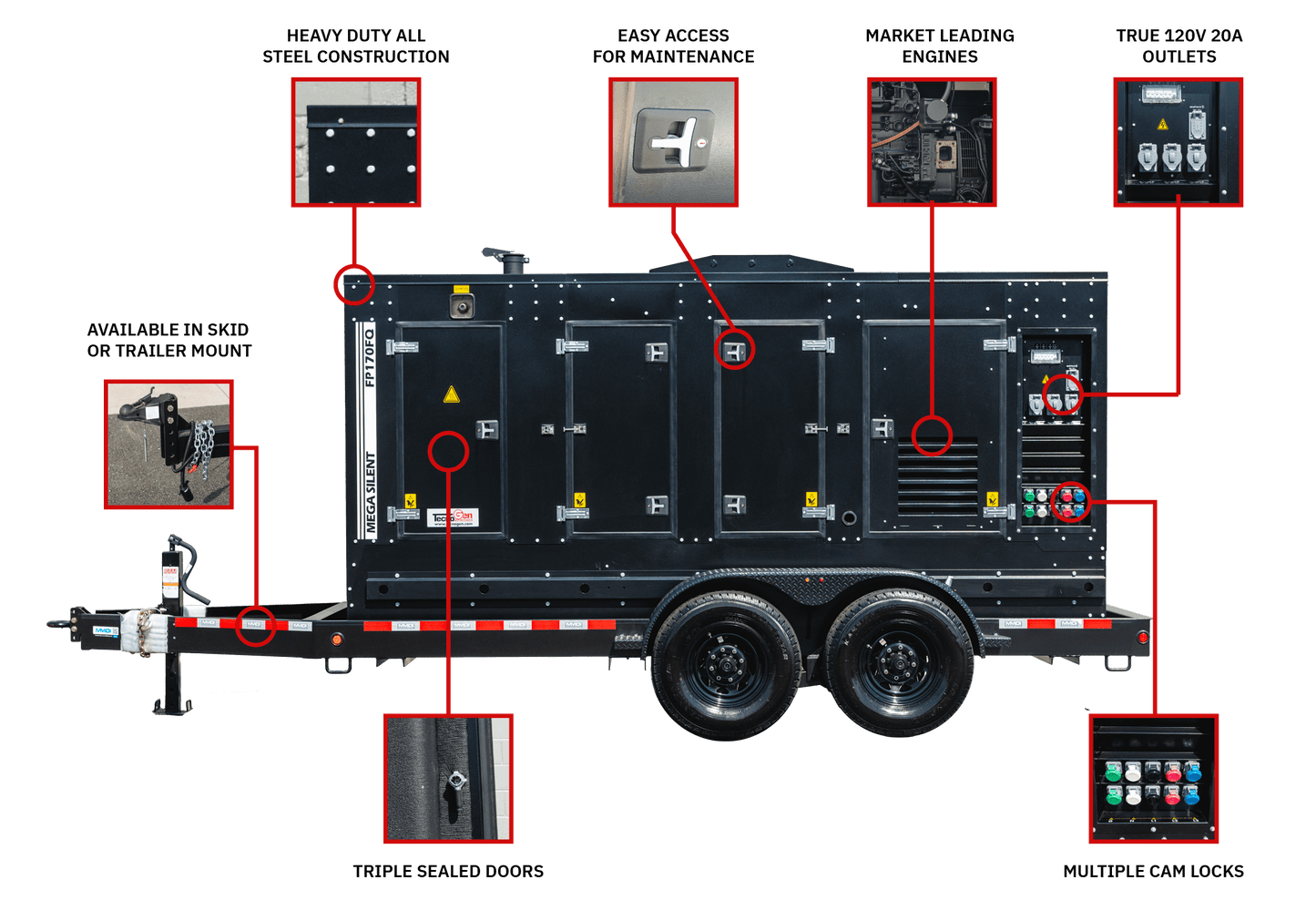

TecnoGen’s 130kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 104kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 57dBA rating.

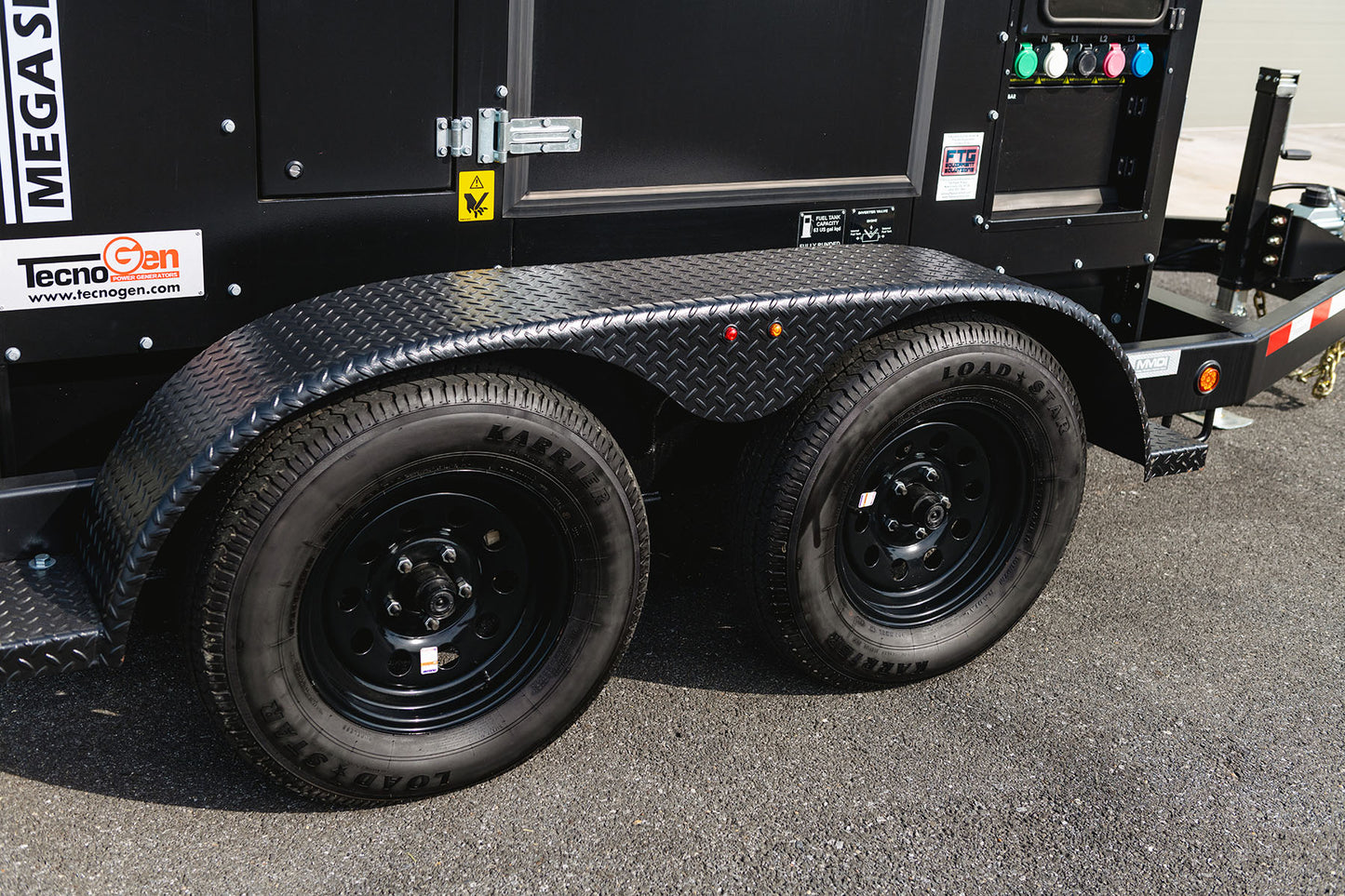

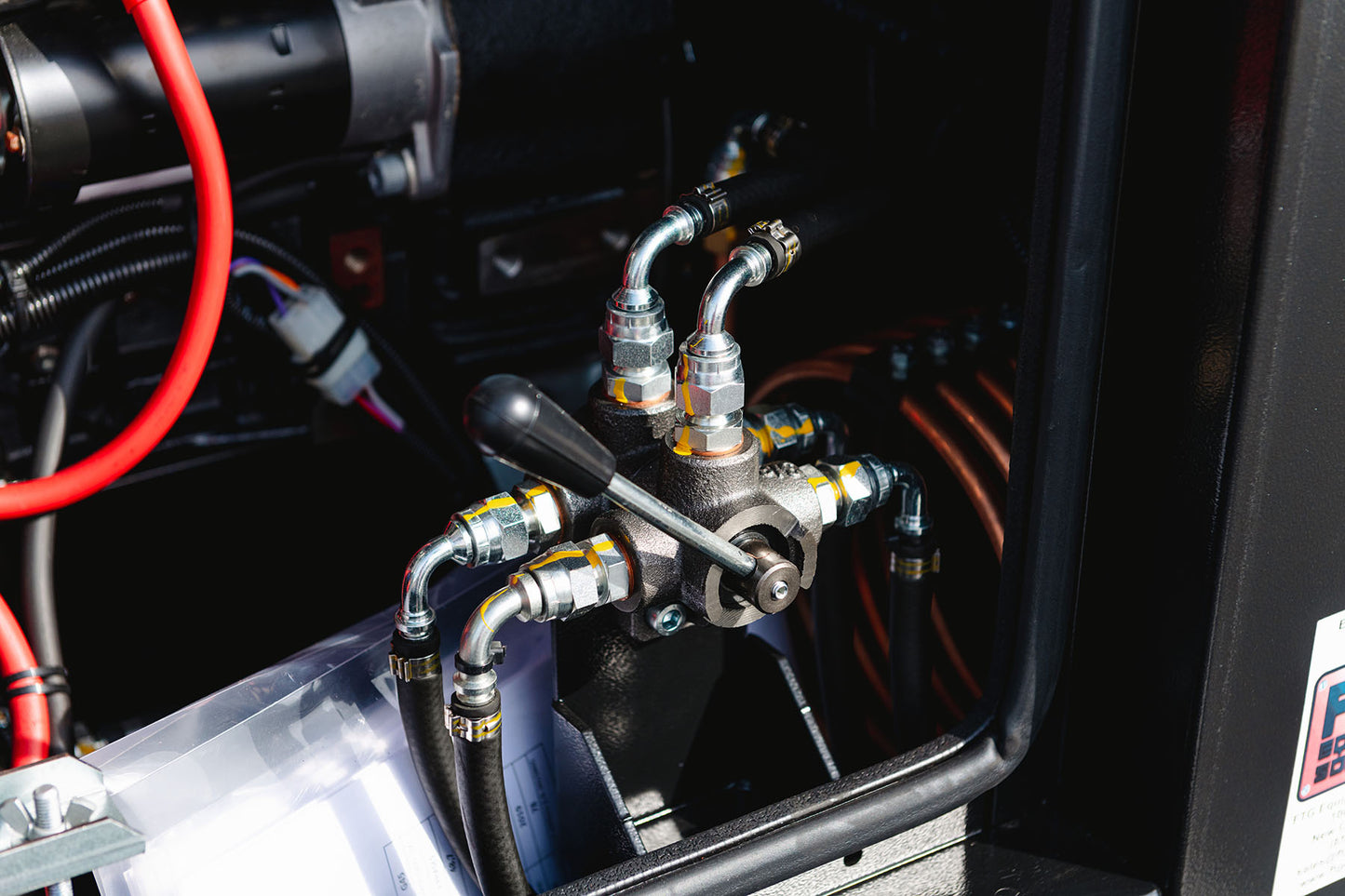

The internal fuel capacity is 132 gallons allowing for a run time of up to 24 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 104 kW
• SOUND LEVEL @ 23': 57 DBA

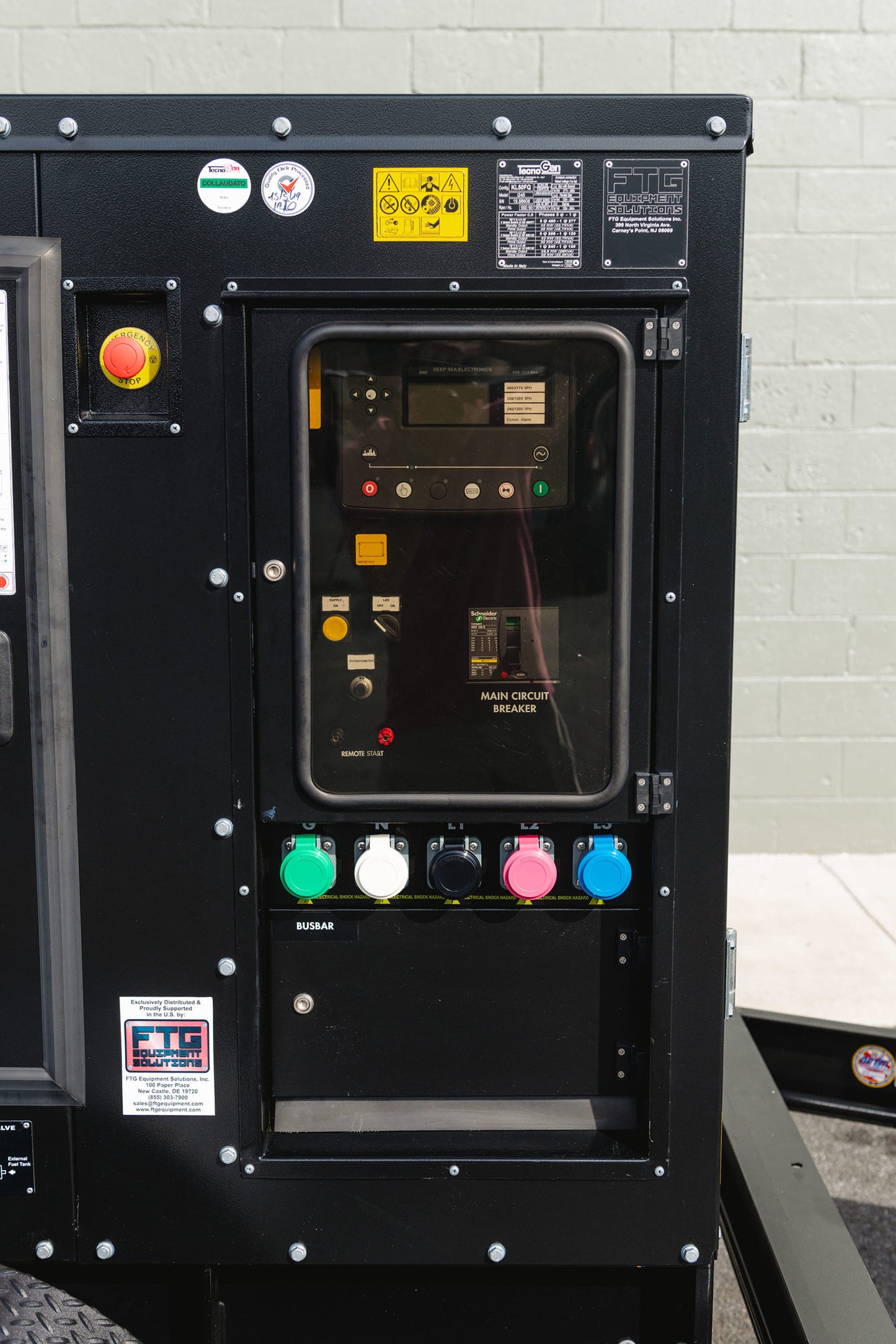

• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: FPT NEF 45
• EPA LEVEL: Tier 4F
• HORSEPOWER: 154
• FUEL CAPACITY: 98 Gallons
• RUN TIME @ 75%: 18 Hours
• LENGTH: 111"
• WIDTH: 44"
• HEIGHT: 87"
• WEIGHT: 7,297 lbs

GENERATOR SPECS

• Prime Power (PRP) kW: 104,0
• Prime Power (PRP) kVA: 130,0
• Standby Power (LTP) kW: 114,4
• Standby Power (LTP) kVA: 143,0
• Rated Power Factor (cos φ): 0,8
• RPM: 1800
• Voltage 1PH V: 120/240
• Voltage 3PH V: 480/277V 208/120V
• Rated frequency Hz: 60
• Controller brand: Deep Sea

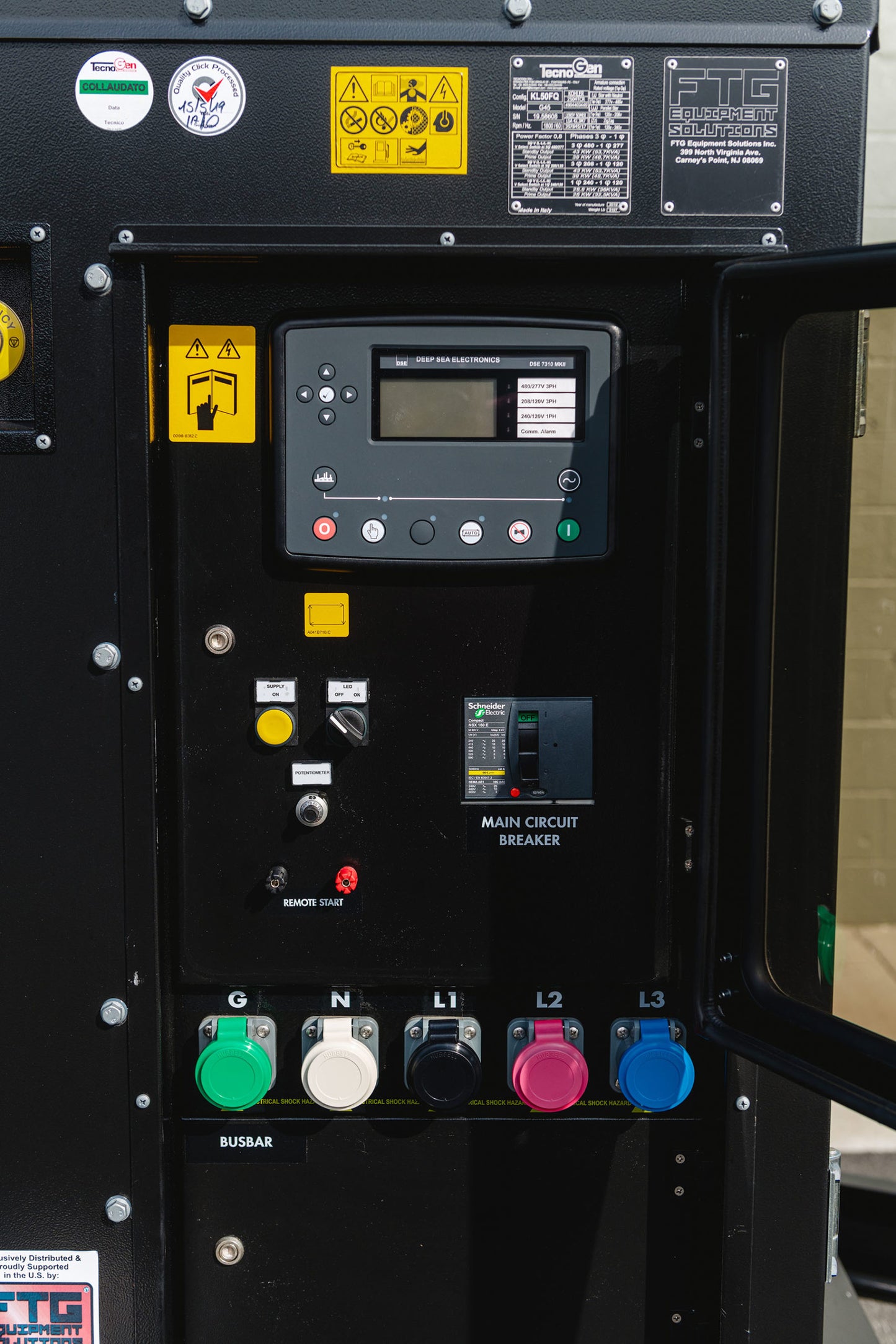

• Controller model: DSE7310
• Sound Level @23 Feet (no load) dB: 57

AMPS

• Single Phase 120V zz: 316x7 zz
• Single Phase 240V: 316
• Three Phase 208V: 361
• Three Phase 480V: 157

ENGINE SPECS

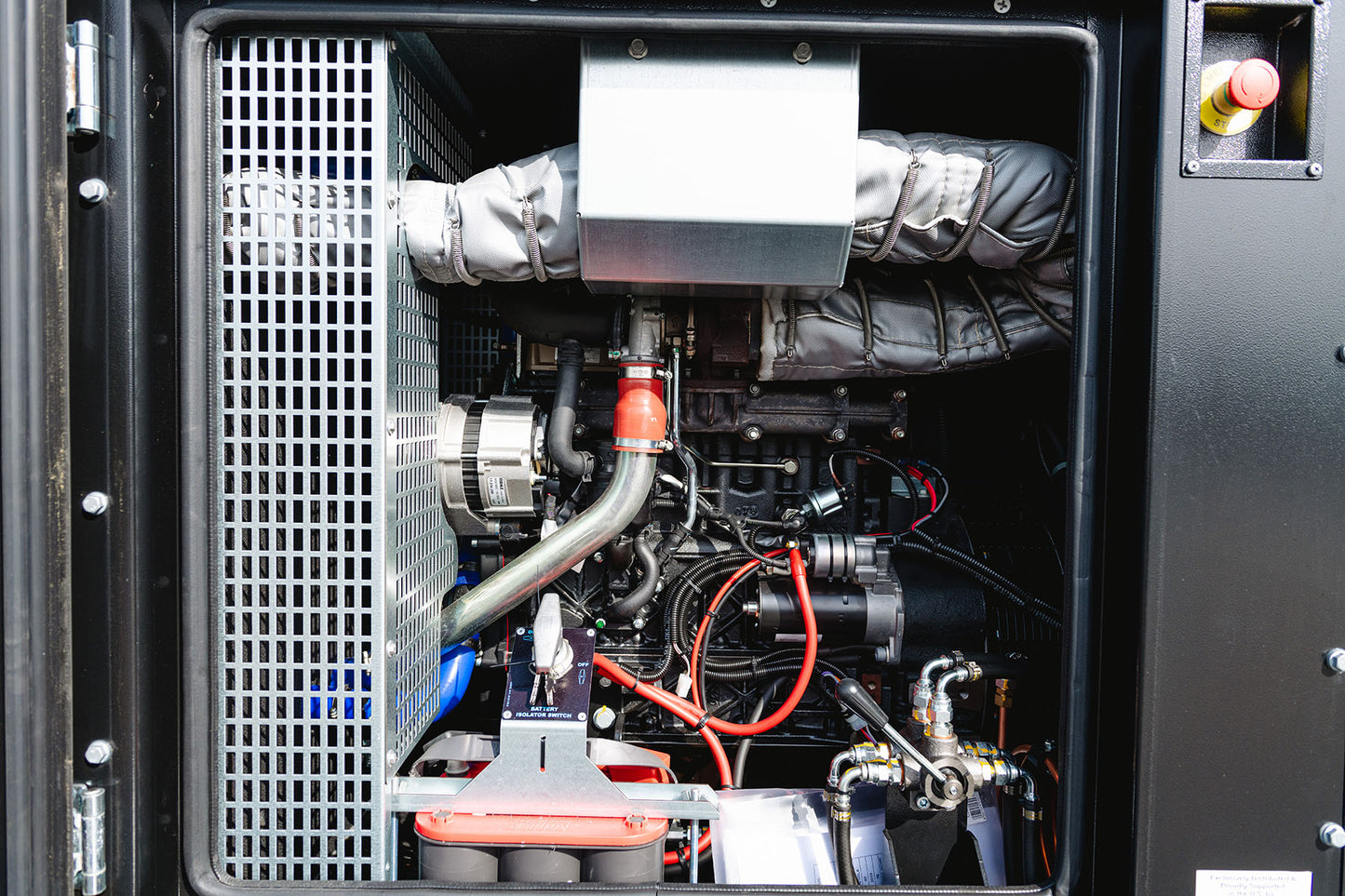

• MAKE: FPT
• MODEL: NEF45
• EPA LEVEL: Tier 4F
• No. Cylinders: 4
• GROSS HP: 154
• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• Fuel type: Diesel
• Fuel capacity gal.: 97,7
• Fuel cons. at 75% (P.R.P.) gal/h: 5,5
• Run time @ 75% gal/h: 17,8

DEF

• DEF tank capacity gal.: 11

ALTERNATOR DATA

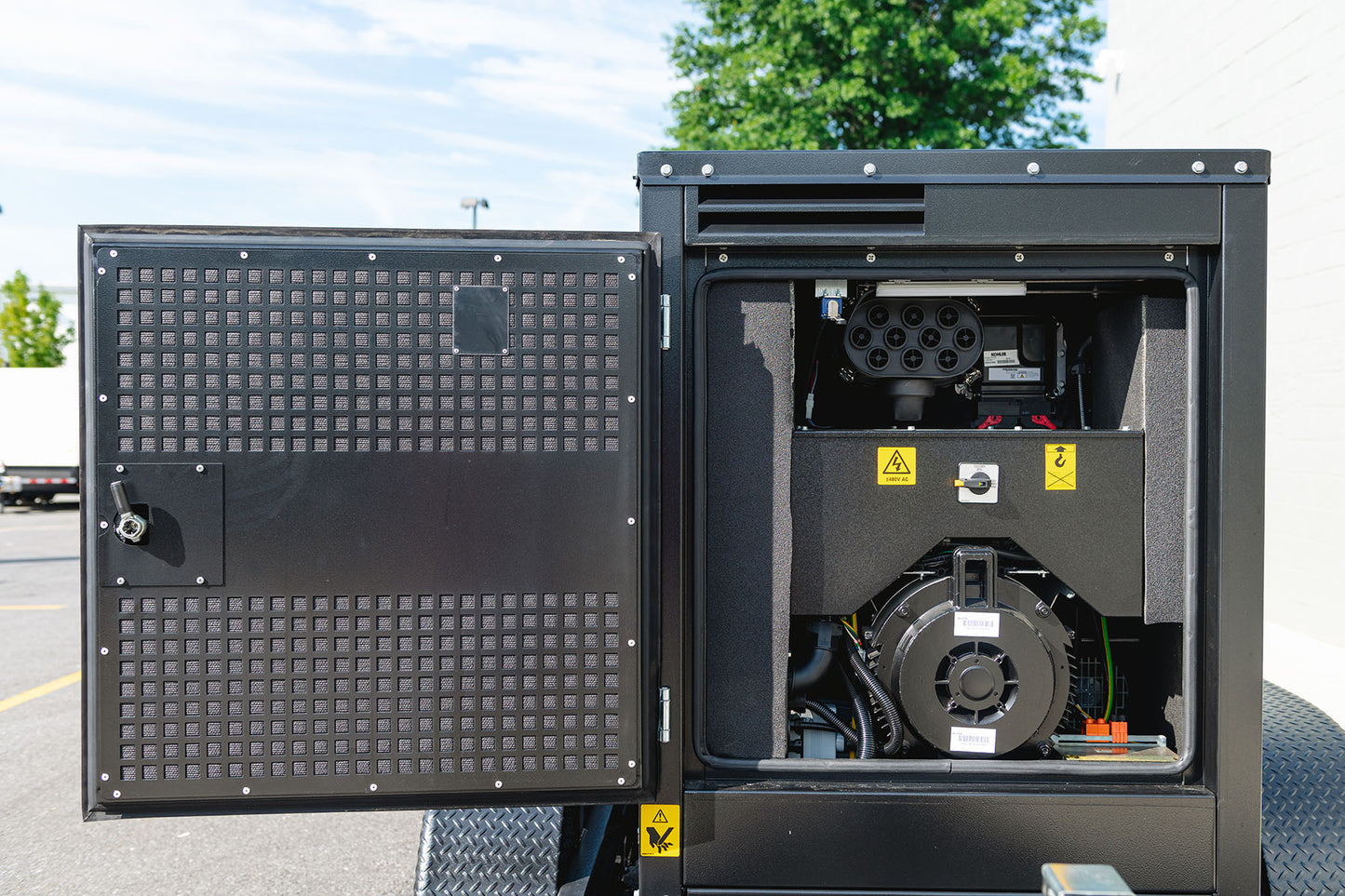

• Alternator brand: Leroy Somer
• Alternator model: LSA 44.3M6
• P.R.P. Power kVA: 135
• L.T.P. Power kVA: 149
• IP protection: 23
• Voltage regulator: ±0,25% AREP
• Short-circuit current: 300 %:10s

WEIGHTS AND DIMENSIONS
SKID W TRAILER

• Dry WEIGHT (lbs.): 7472
• Wet WEIGHT (lbs.): 8409
• LENGTH (in.): 170
• WIDTH (in.): 74
• HEIGHT (in.): 98

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 6614
• Wet WEIGHT (lbs.): 7297
• LENGTH (in.): 111,3
• WIDTH (in.): 44
• HEIGHT (in.): 87

MEGA SILENT SERIES

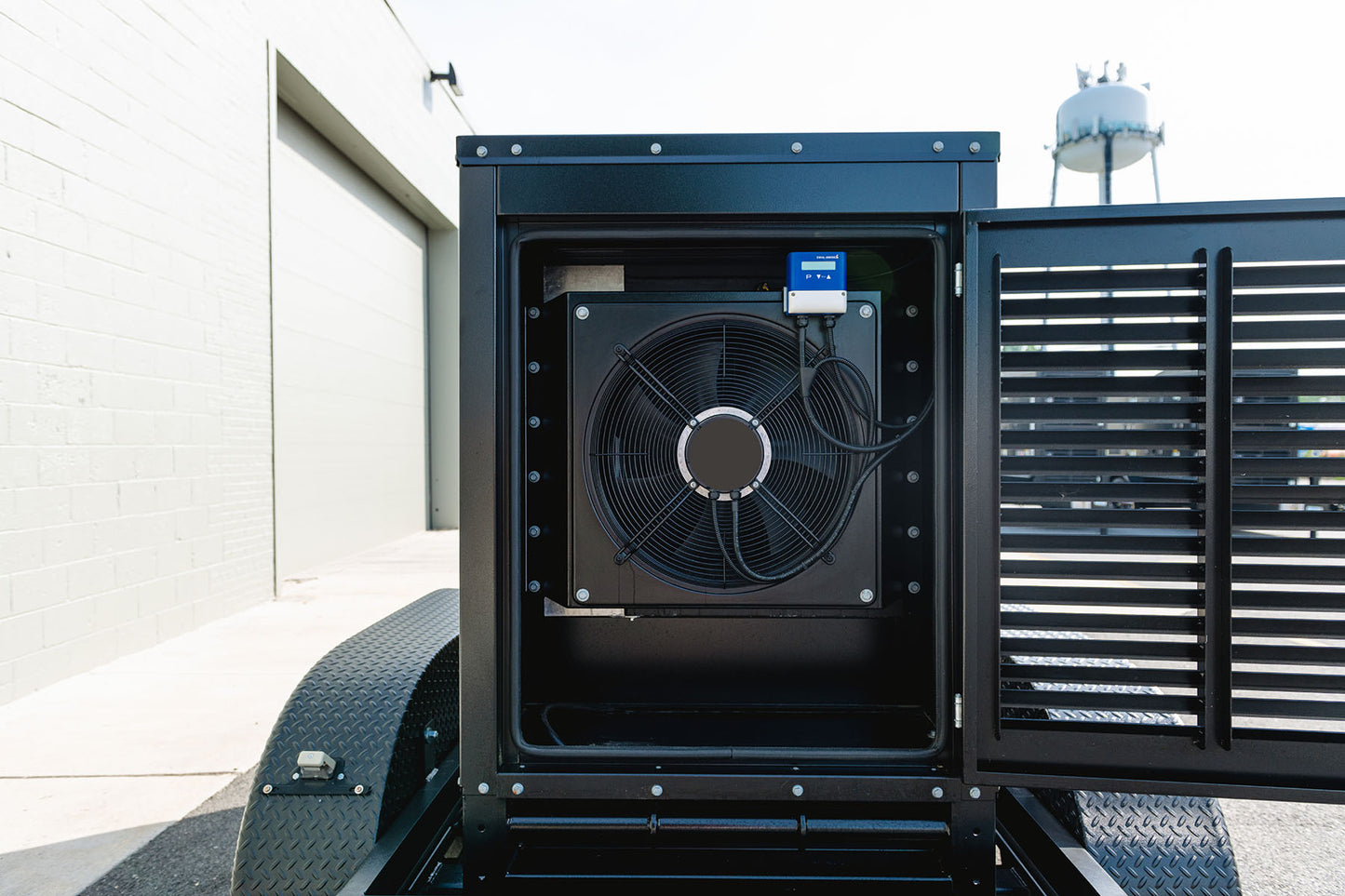

By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

FOR THE ENTERTAINMENT WORLD

Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
