TecnoGen Mega Silent Series 185kW 230kVA FP230FQ Generator
DESCRIPTION

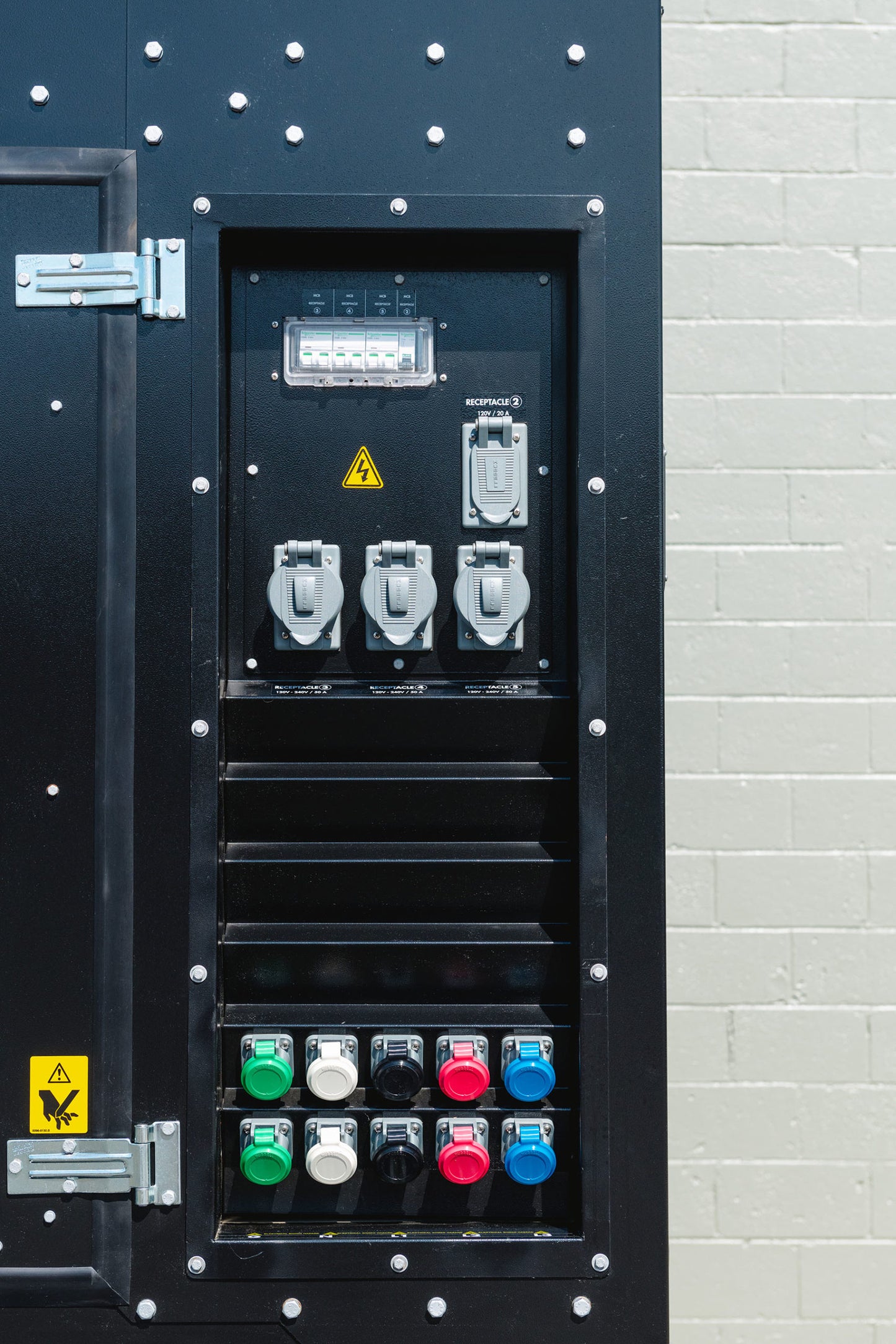

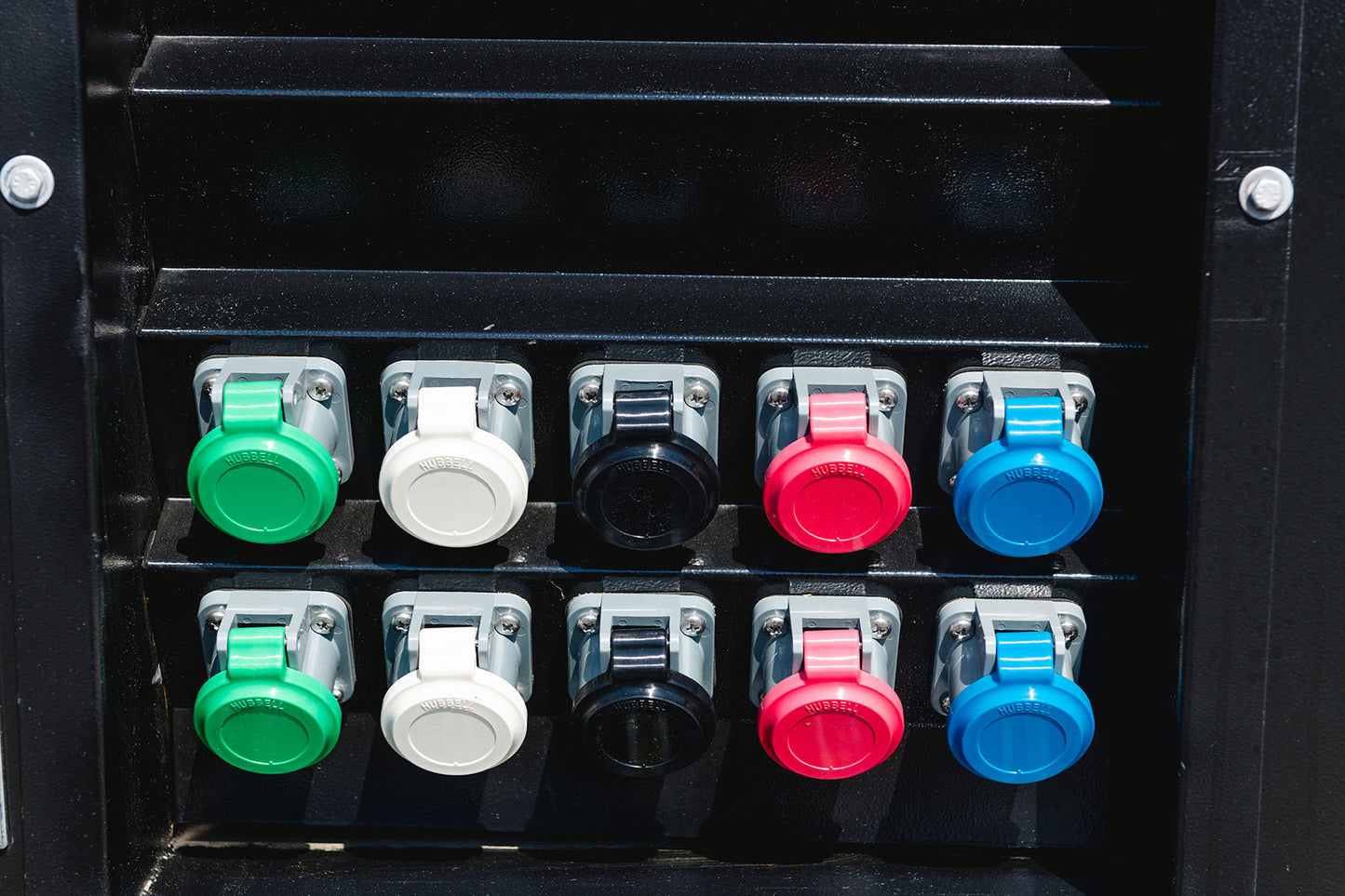

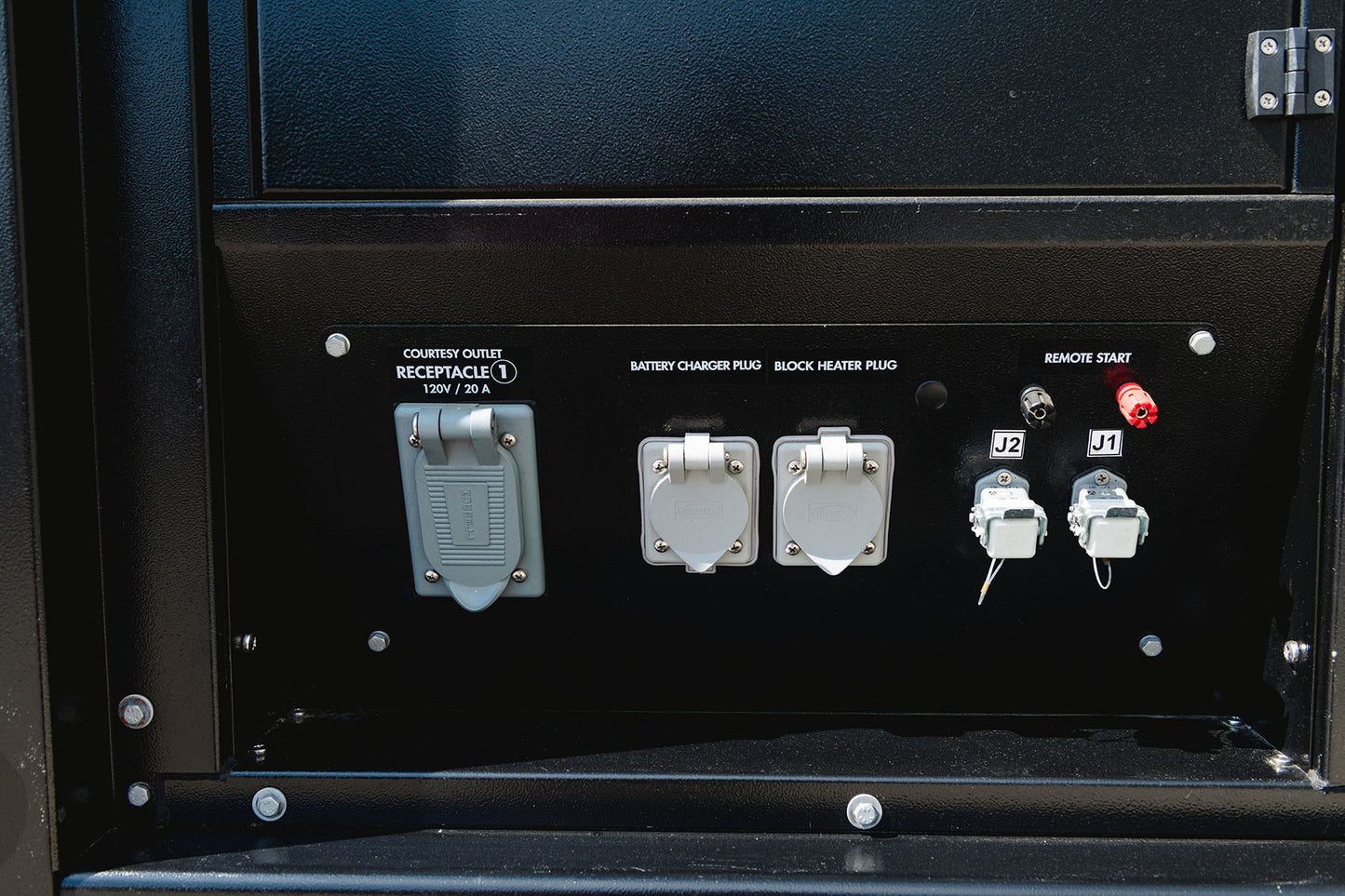

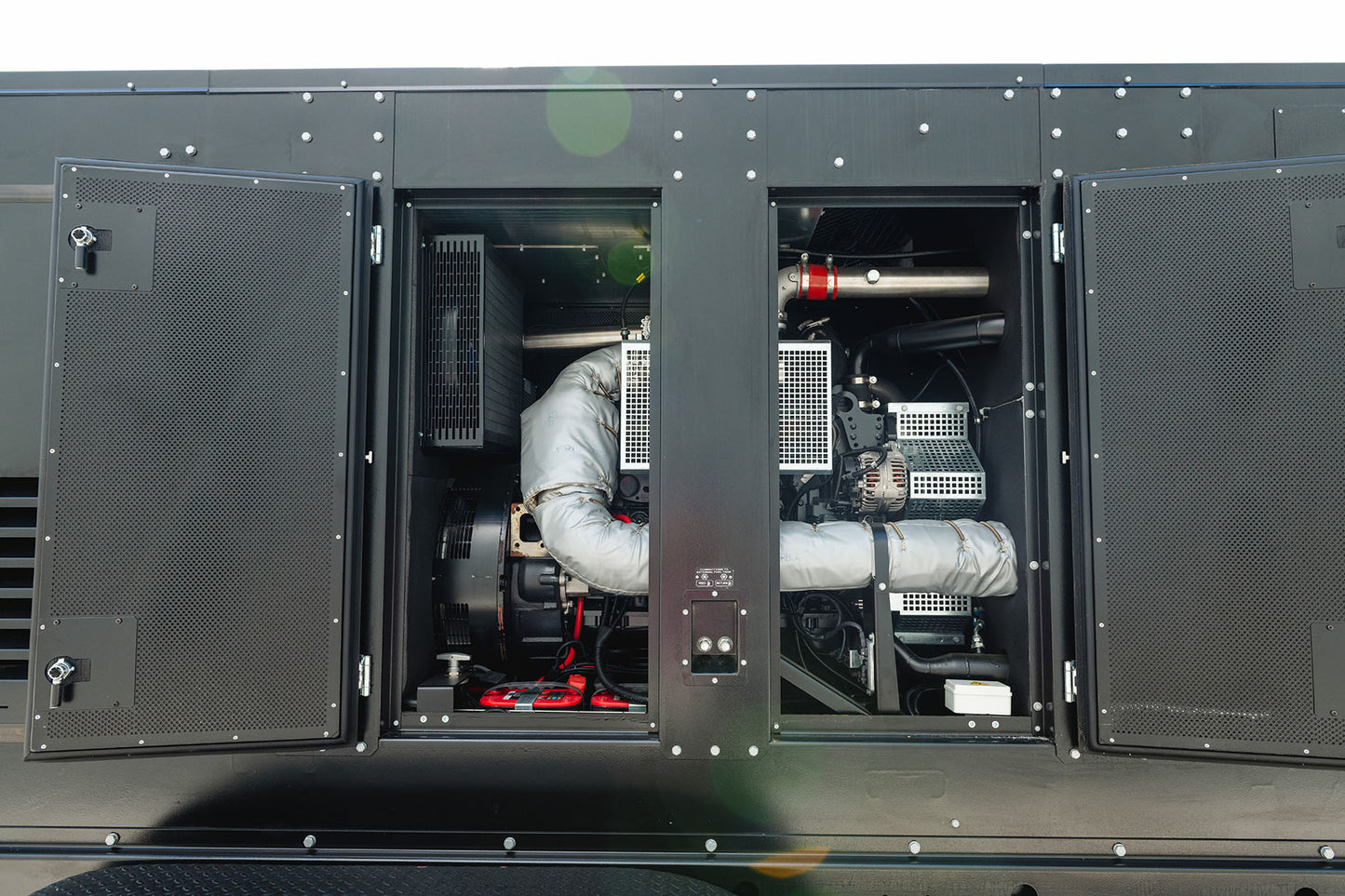

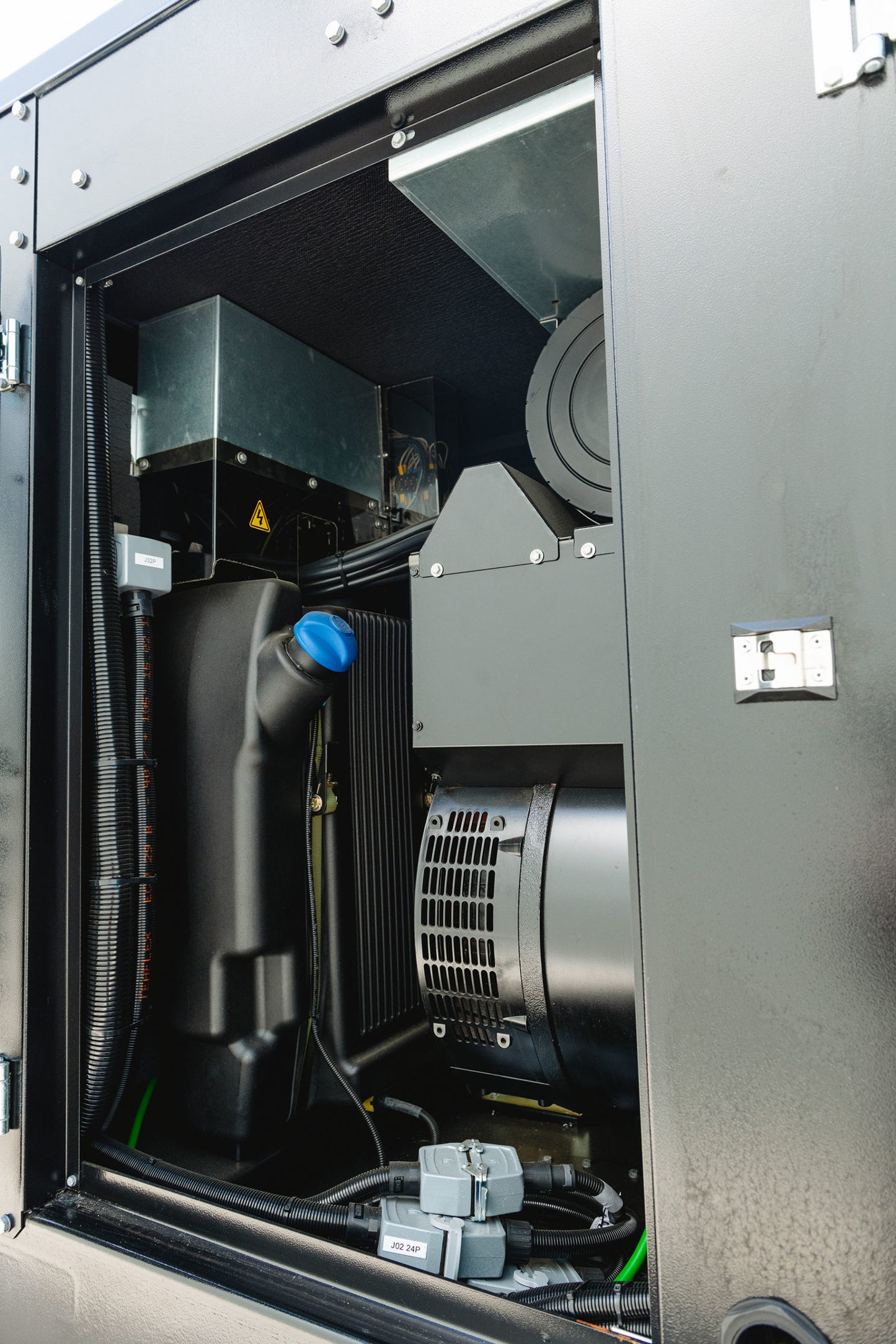

TecnoGen’s 230kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 185kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 58dBA rating.

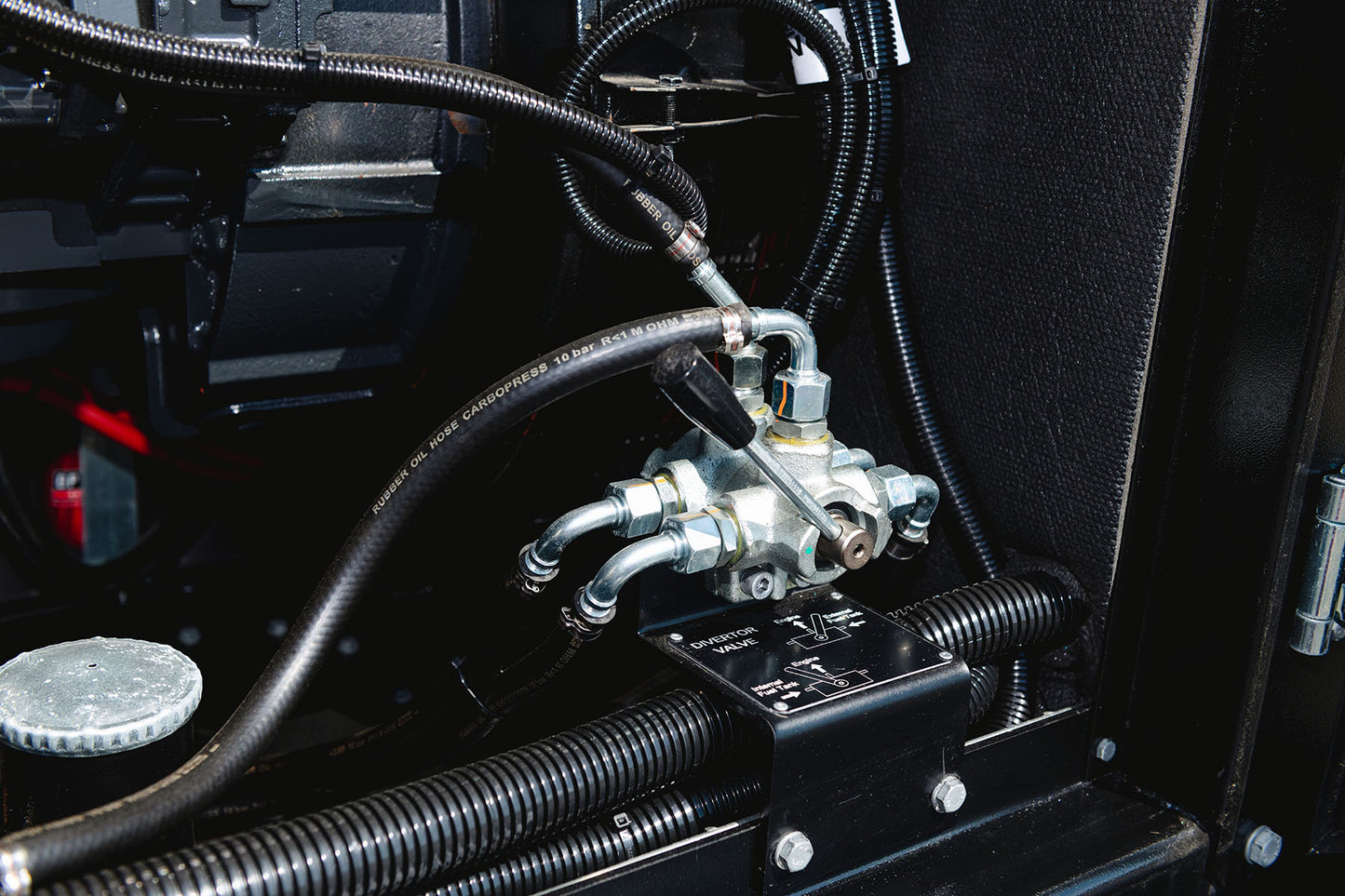

The internal fuel capacity is 231 gallons allowing for a run time of up to 25 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.
Key Features
- Prime Power: 185 kW of prime power output, suitable for diverse applications.
- Sound Level: Quiet operation at 58 dBA, ideal for sensitive environments.
- Fuel Efficiency: 231-gallon fuel tank providing long runtime.

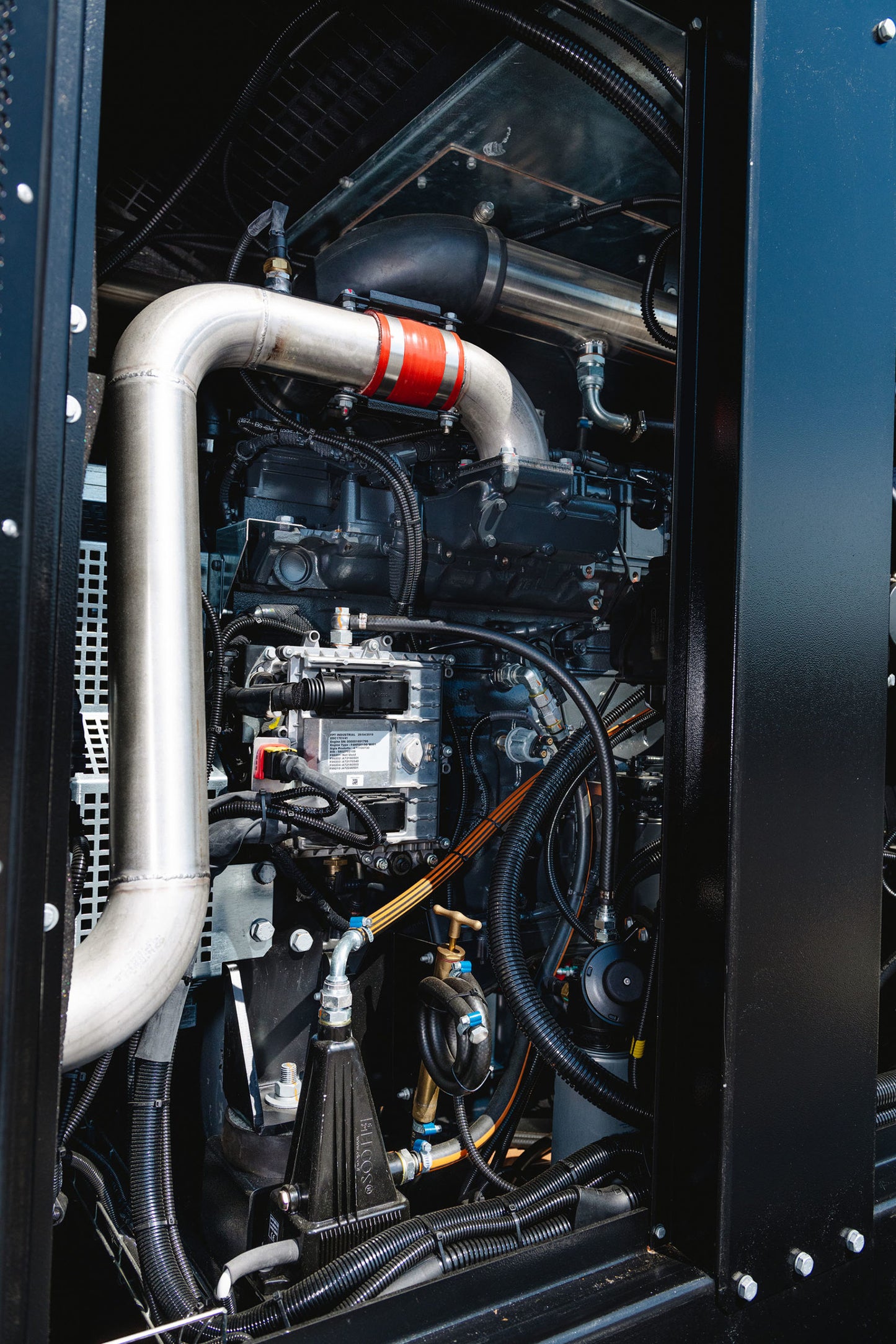

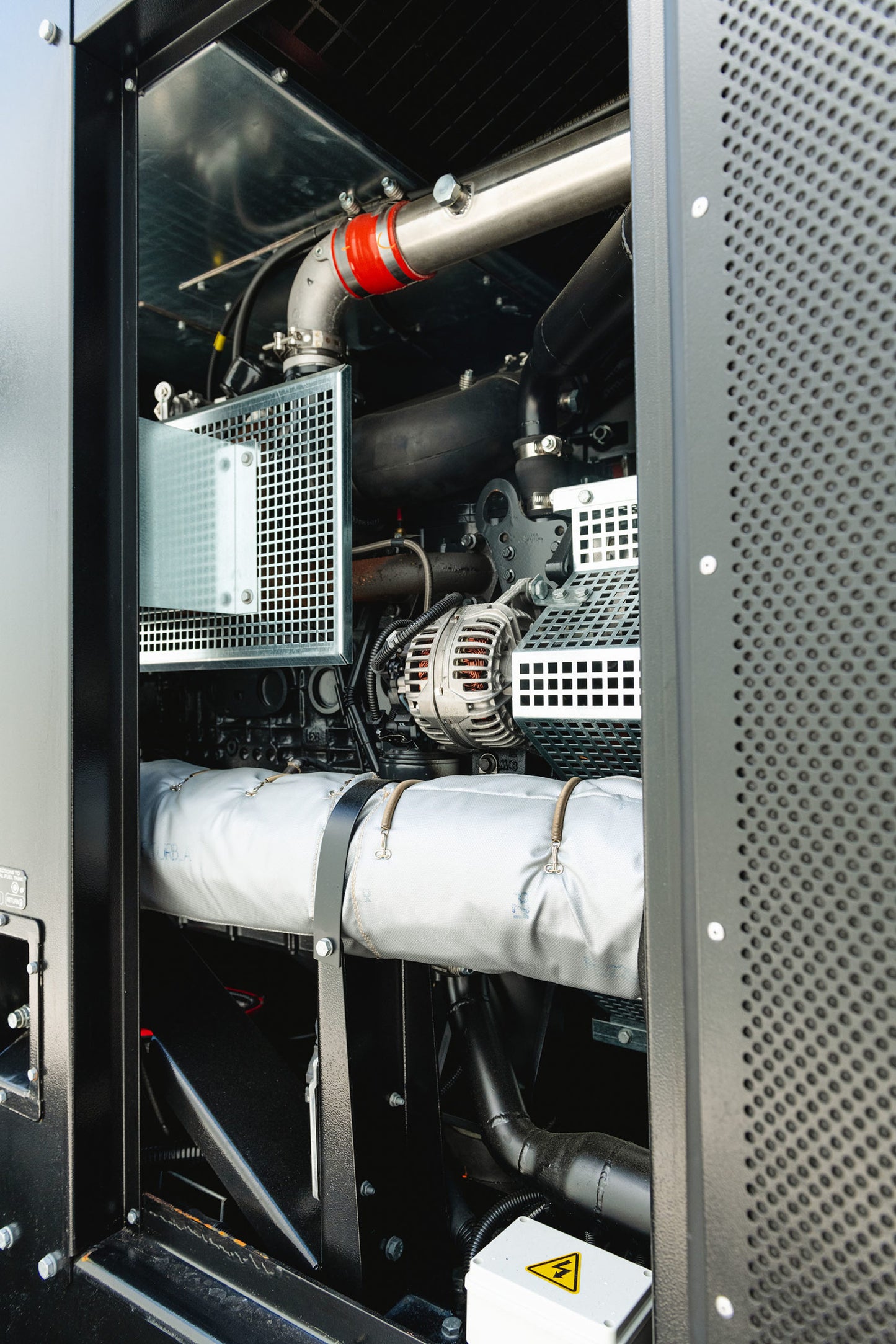

- Engine Specification: FPT NEF 67 engine with 272 HP, compliant with EPA Tier 4F standards.

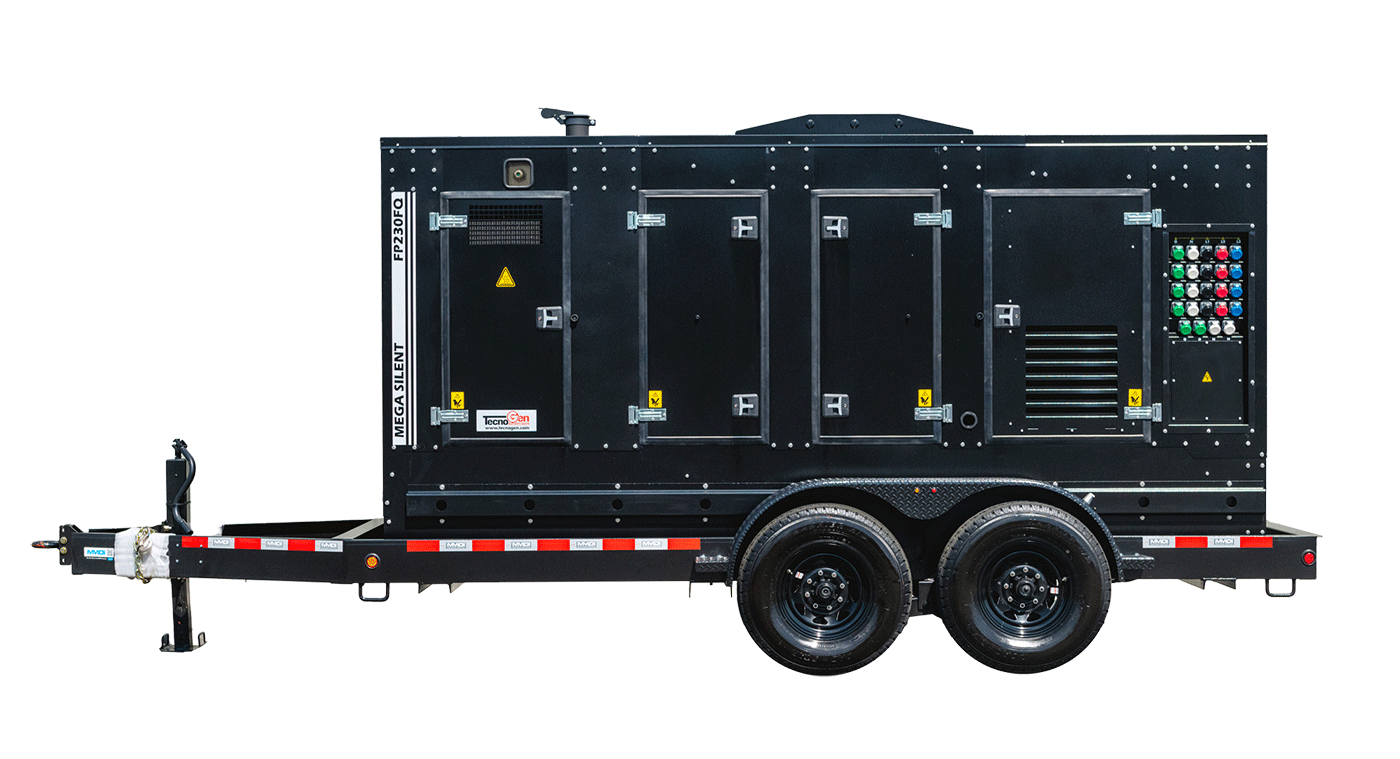

- Versatile Mounting: Available in both trailer and skid-mounted configurations.
Detailed Specification
General Specifications
| Specification | Details |
|---|---|
| Prime Power | 185 kW |
| Standby Power | 203 kW |
| Noise Level @ 23' | 58 dBA |

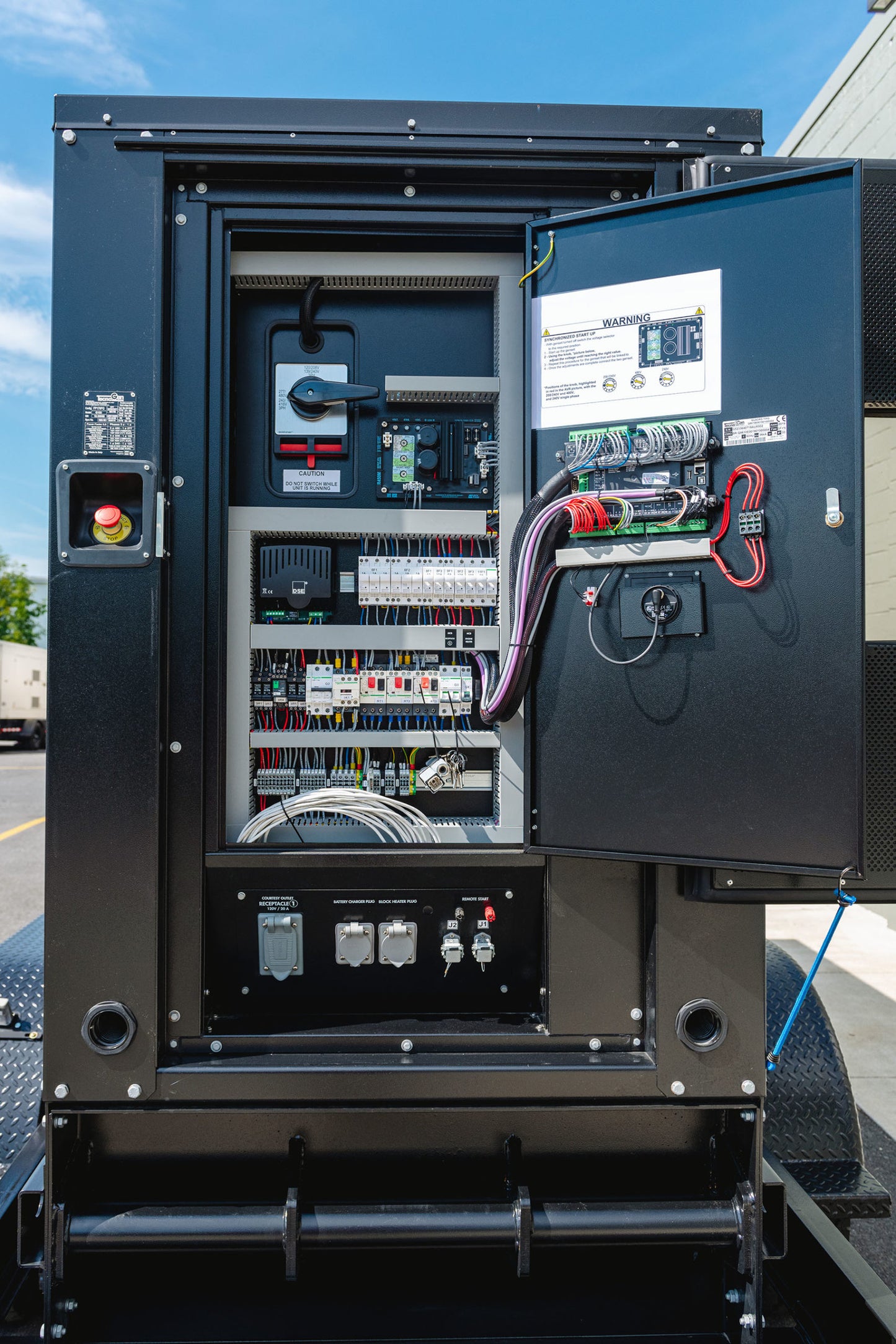

| Controller | Deep Sea DSE8610 |
| Engine Model | FPT NEF 67 |
| Alternator Model | Leroy Somer LSA46.3S4 |
| Fuel Consumption (75%) | 9.34 gal/h |
| DEF Tank Capacity | 20 gallons |
Electrical Specifications
| Voltage | Amps |
|---|---|
| Three Phase 208V (PF 0.8) | 643 |
| Three Phase 240V (PF 0.8) | 557 |
| Three Phase 480V (PF 0.8) | 278 |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Make | FPT |
| Engine Model | NEF67 |
| Horsepower | 272 HP |
| Cylinders | 6 |
| EPA Compliance | Tier 4F |
Fuel Specifications
| Specification | Details |
|---|---|
| Fuel Capacity | 231 gallons |
| Run Time (75% Load) | 25 hours |
| External Fuel Valve | Yes |
Dimensions and Weight
| Specification | Skid Without Trailer |
|---|---|
| Length | 167 in. |
| Width | 47 in. |
| Height | 83 in. |
| Dry Weight | 9,480 lbs |
| Wet Weight | 11,262 lbs |
In Package
- TecnoGen Mega Silent Generator
- FPT NEF 67 Engine
- Leroy Somer Alternator
- Deep Sea DSE8610 Controller
- Installation and Maintenance Manual

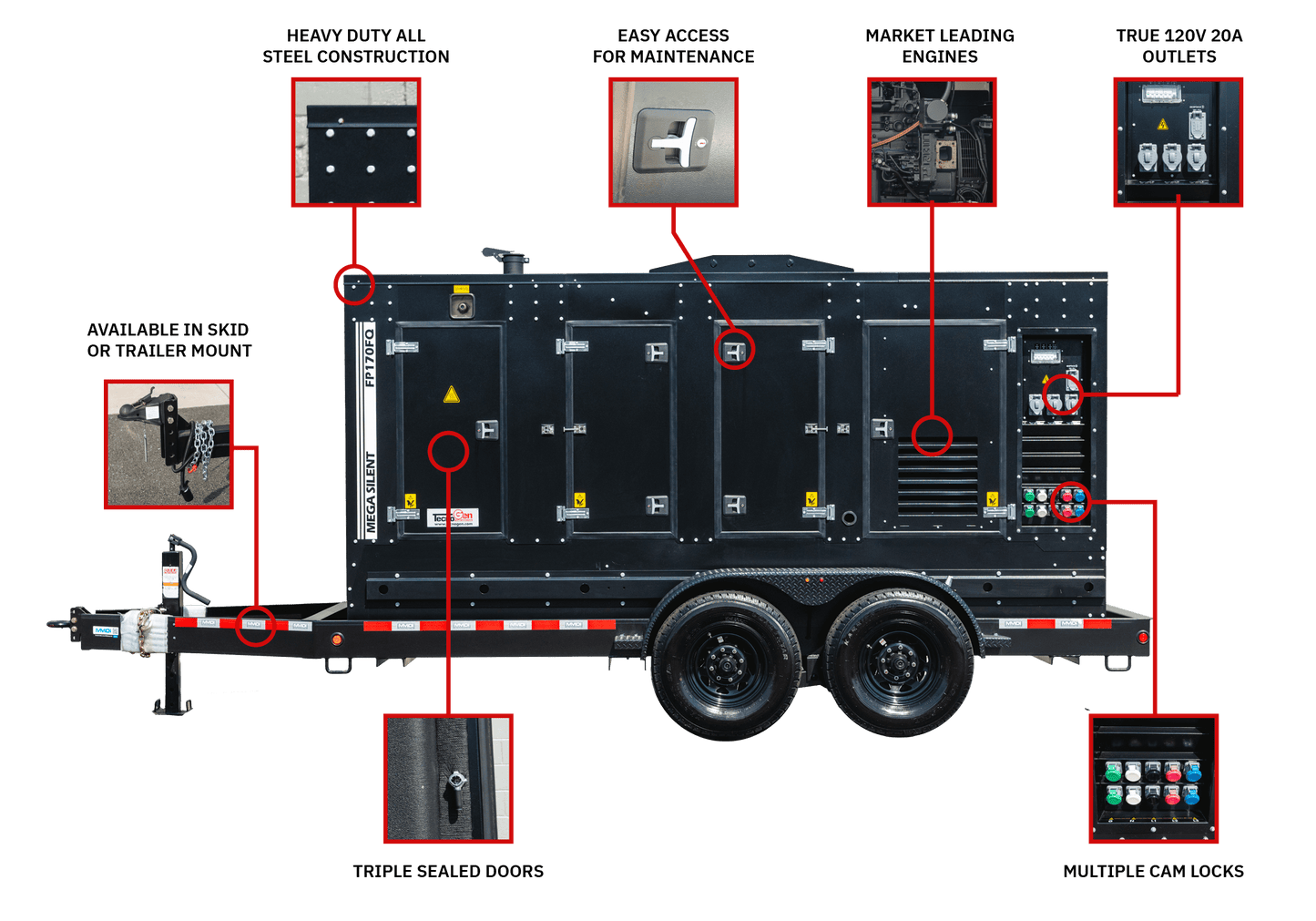

MEGA SILENT SERIES
By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!
CUSTOMER FOCUSED
With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.
FOR THE ENTERTAINMENT WORLD
Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
