TecnoGen Mega Silent Series 25kW 30kVA KL30FQ Generator
DESCRIPTION

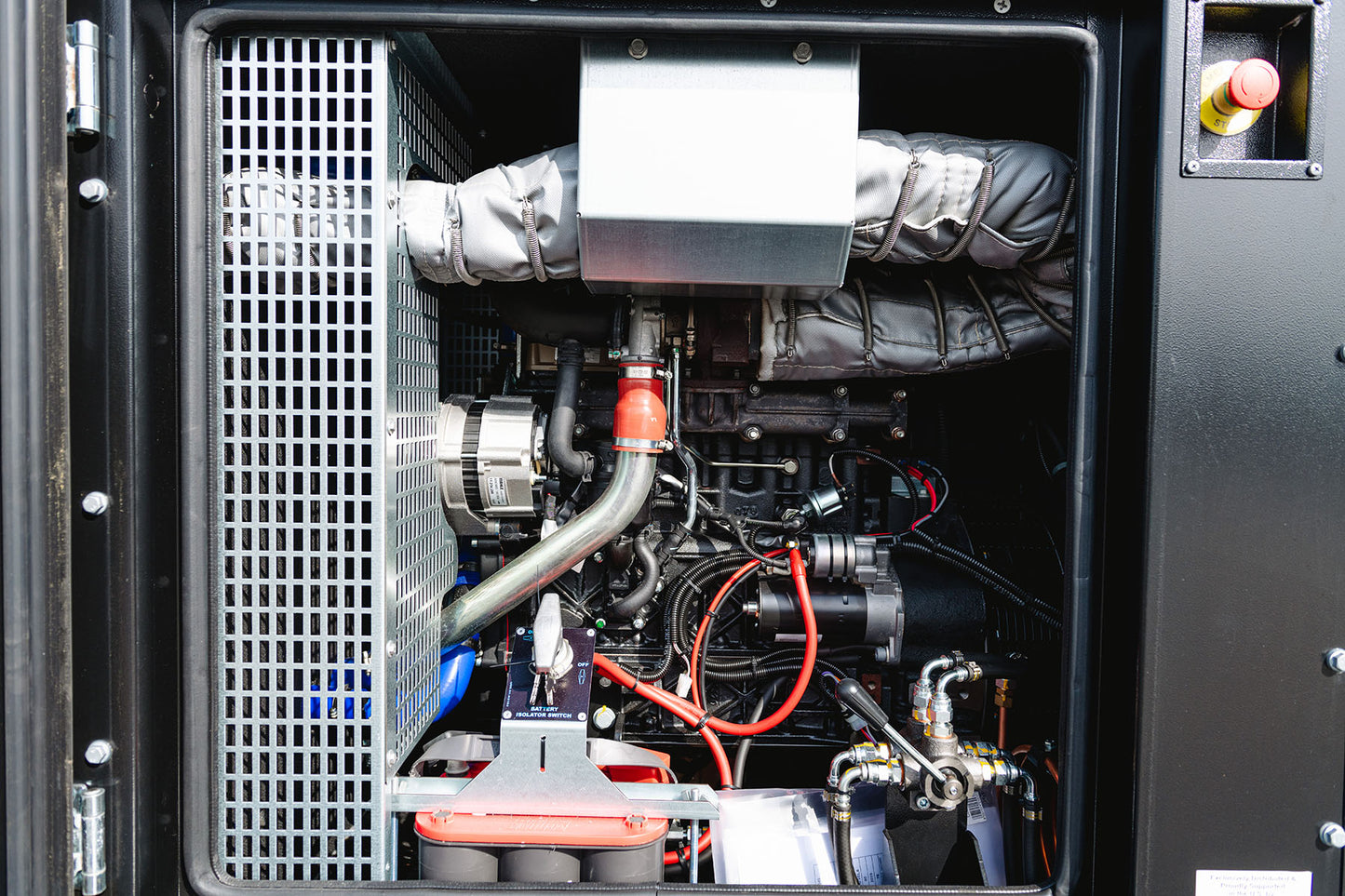

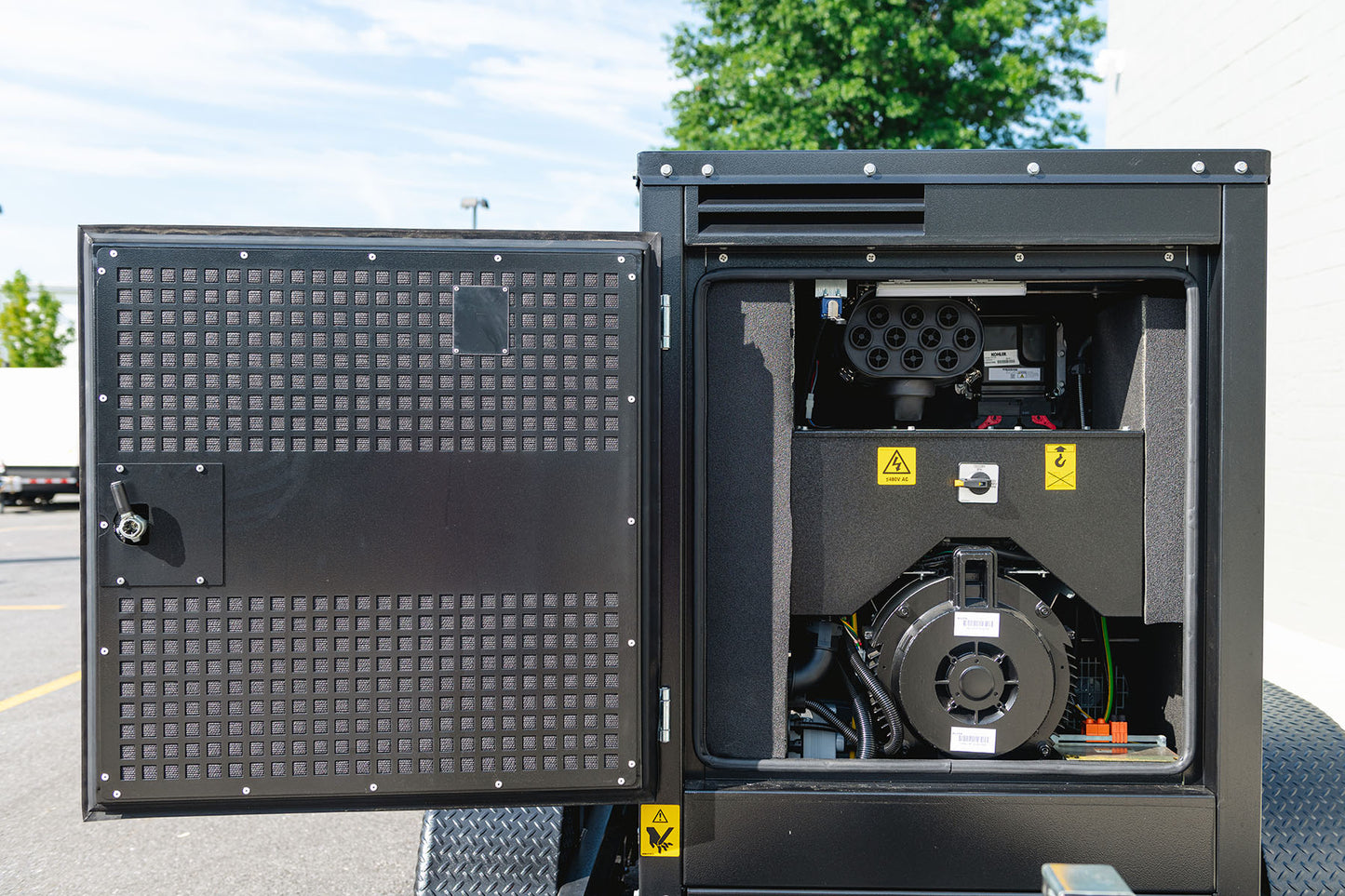

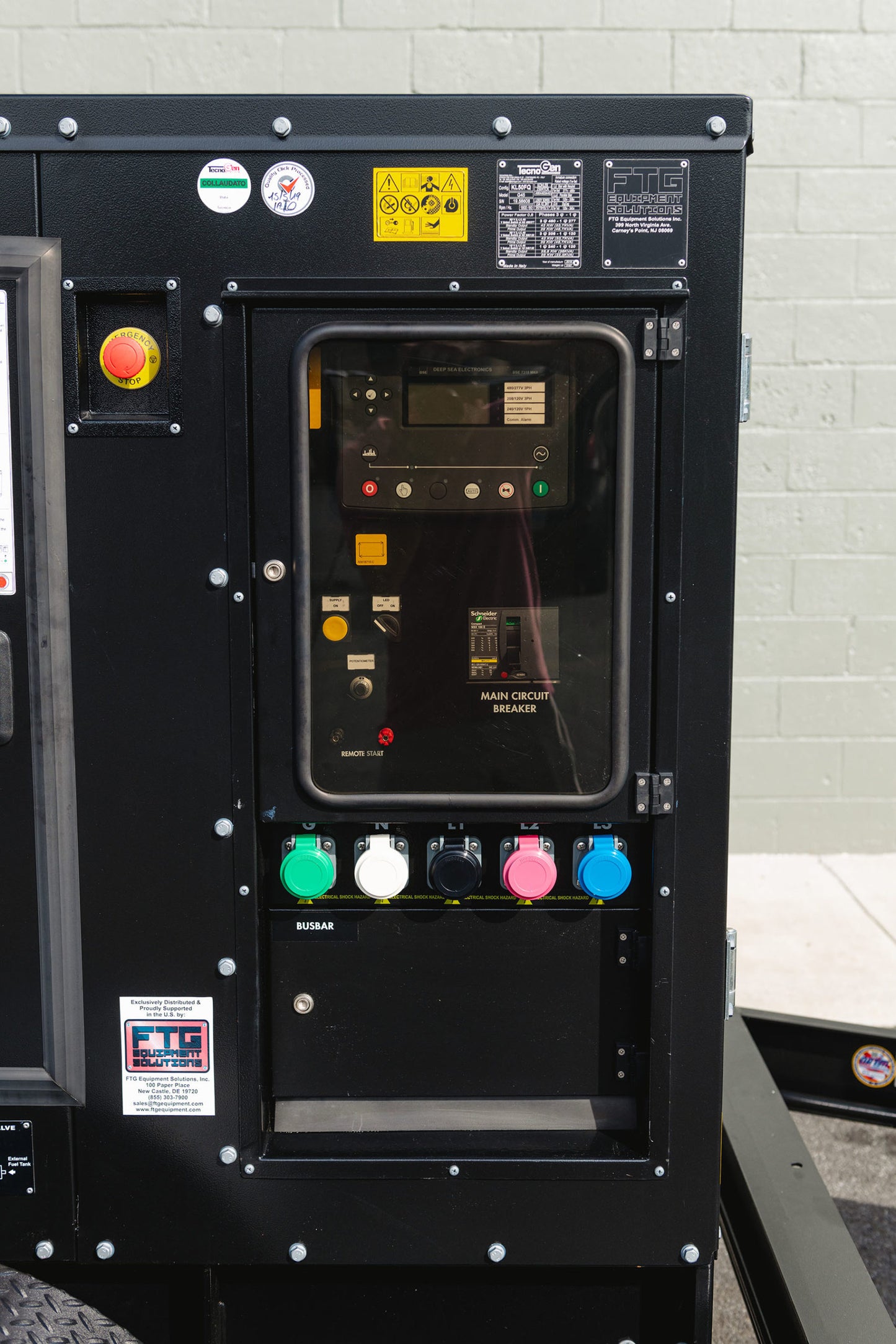

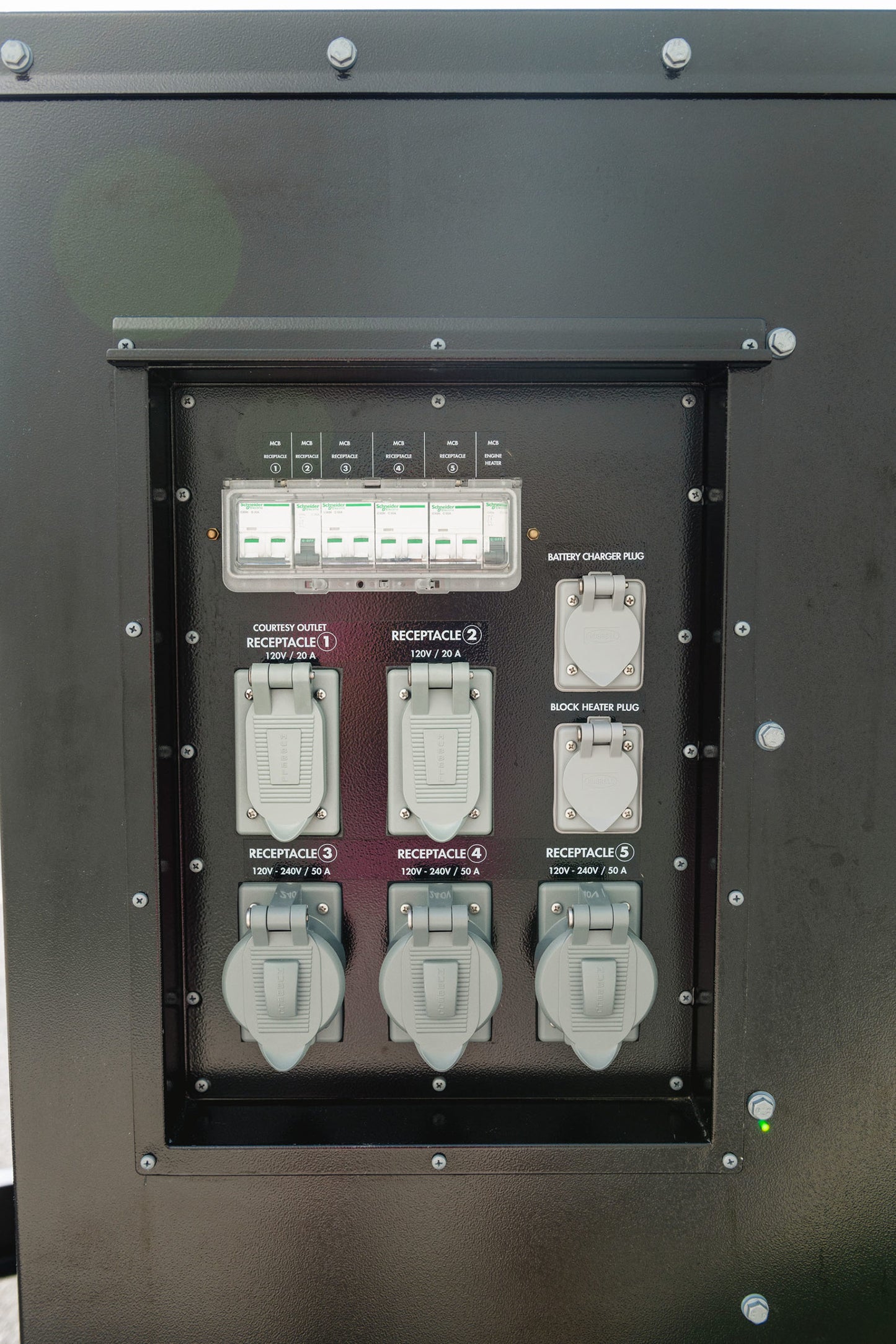

TecnoGen’s 30kVA generator uses the Kohler engine coupled to an industry standard Leroy Somer alternator producing 25kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 54dBA rating.

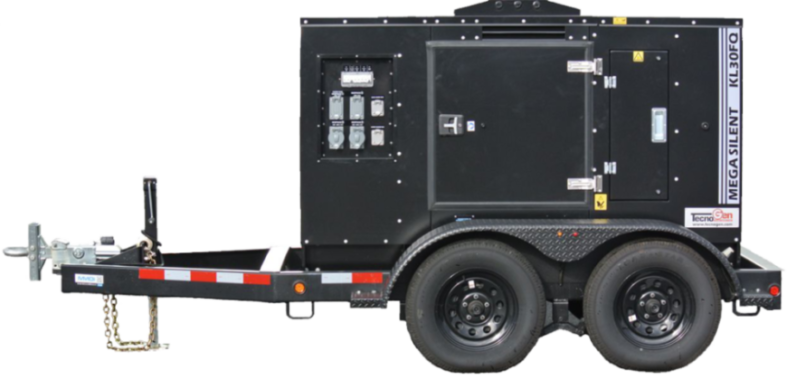

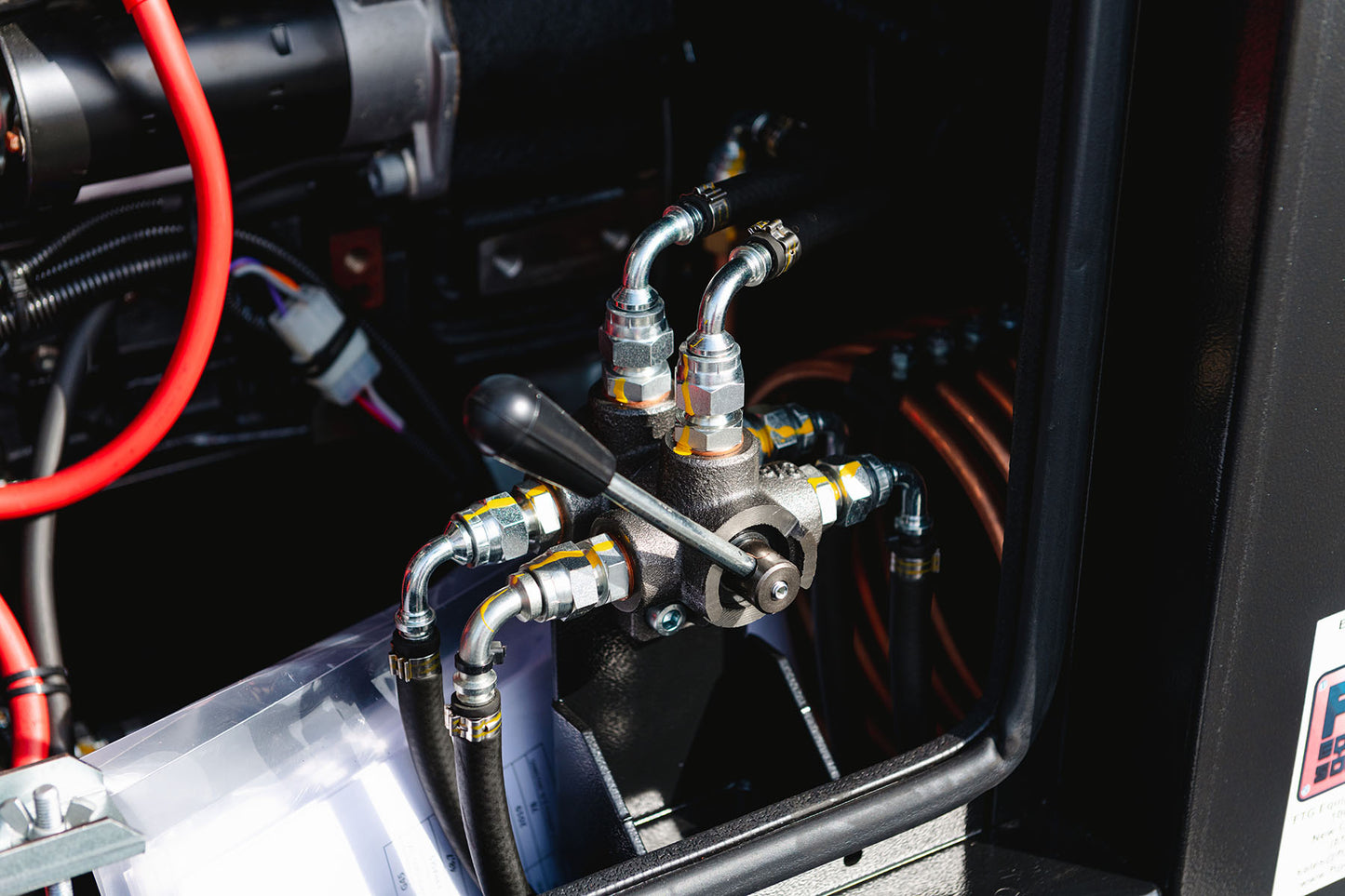

The internal fuel capacity is 63 gallons allowing for a run time of up to 48 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.
Key Features
- Prime Power: 25 kW
- Standby Power: 27.5 kW
- Fuel Capacity: 63 Gallons
- Run Time: Up to 48 Hours at 75% load
- Sound Level: 54 dBA @ 23 feet
- Dimensions: 91" L x 38" W x 60" H
- Weight: 3,421 lbs
Detailed Specifications
General Specifications
| Specification | Details |
|---|---|
| Prime Power (kW) | 25 |
| Standby Power (kW) | 27.5 |
| Sound Level @ 23' | 54 dBA |
| Controller | Deep Sea DSE7310 |
| Alternator | Leroy Somer LSA 42.3VS3 |
| Fuel Consumption (75%) | 1.32 gal/h |
| Run Time (75%) | 48 hours |
Electrical Specifications
| Voltage | Amps |
|---|---|
| Single Phase 120V | 79 x 2 |
| Single Phase 240V | 79 |
| Three Phase 208V | 86 |
| Three Phase 240V | 76 |
| Three Phase 480V | 38 |
Engine Specifications
| Specification | Details |
|---|---|

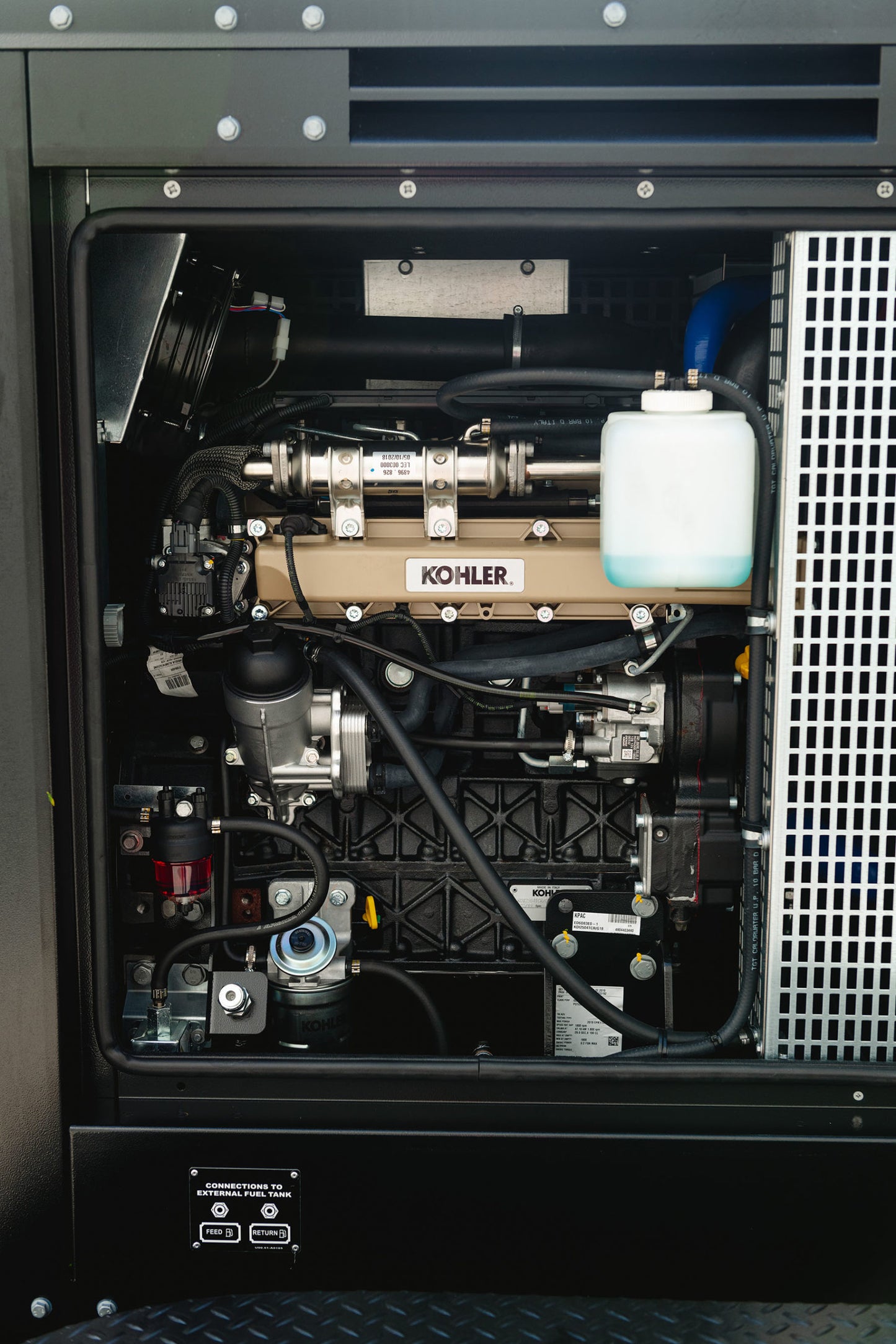

| Engine Make | Kohler |
| Engine Model | KDI1903TCR |
| Horsepower | 47 HP |
| Cylinders | 3 |
| EPA Compliance | Tier 4F |
Fuel Specifications
| Specification | Details |
|---|---|
| Fuel Type | Diesel |
| Fuel Capacity | 63 gallons |
| Run Time (75% Load) | 48 hours |
| External Fuel Valve | Yes |
Dimensions and Weight
| Specification | Skid Without Trailer |
|---|---|
| Length | 91 in. |
| Width | 38 in. |
| Height | 60 in. |
| Dry Weight | 2,974 lbs |
| Wet Weight | 3,421 lbs |

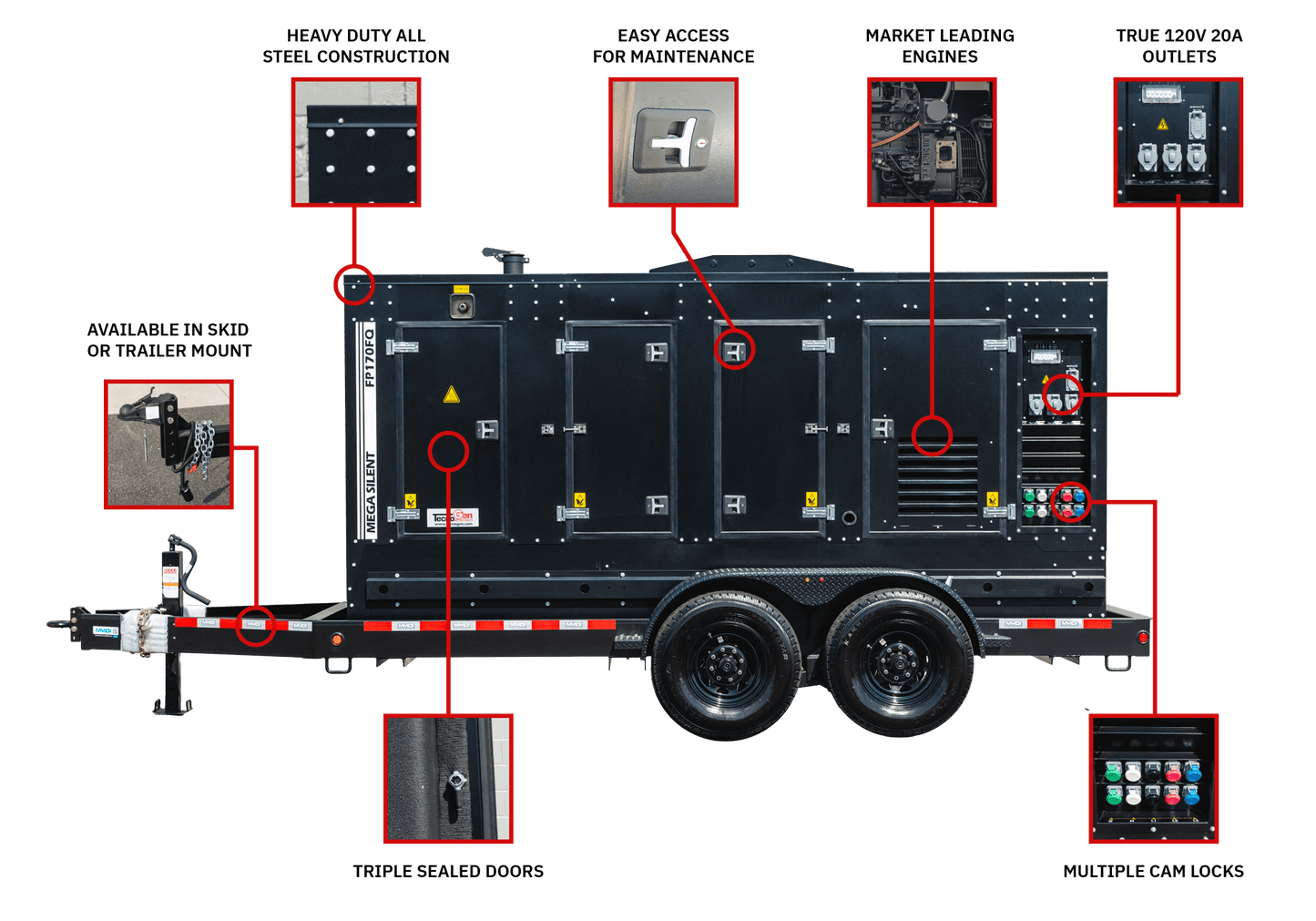

MEGA SILENT SERIES

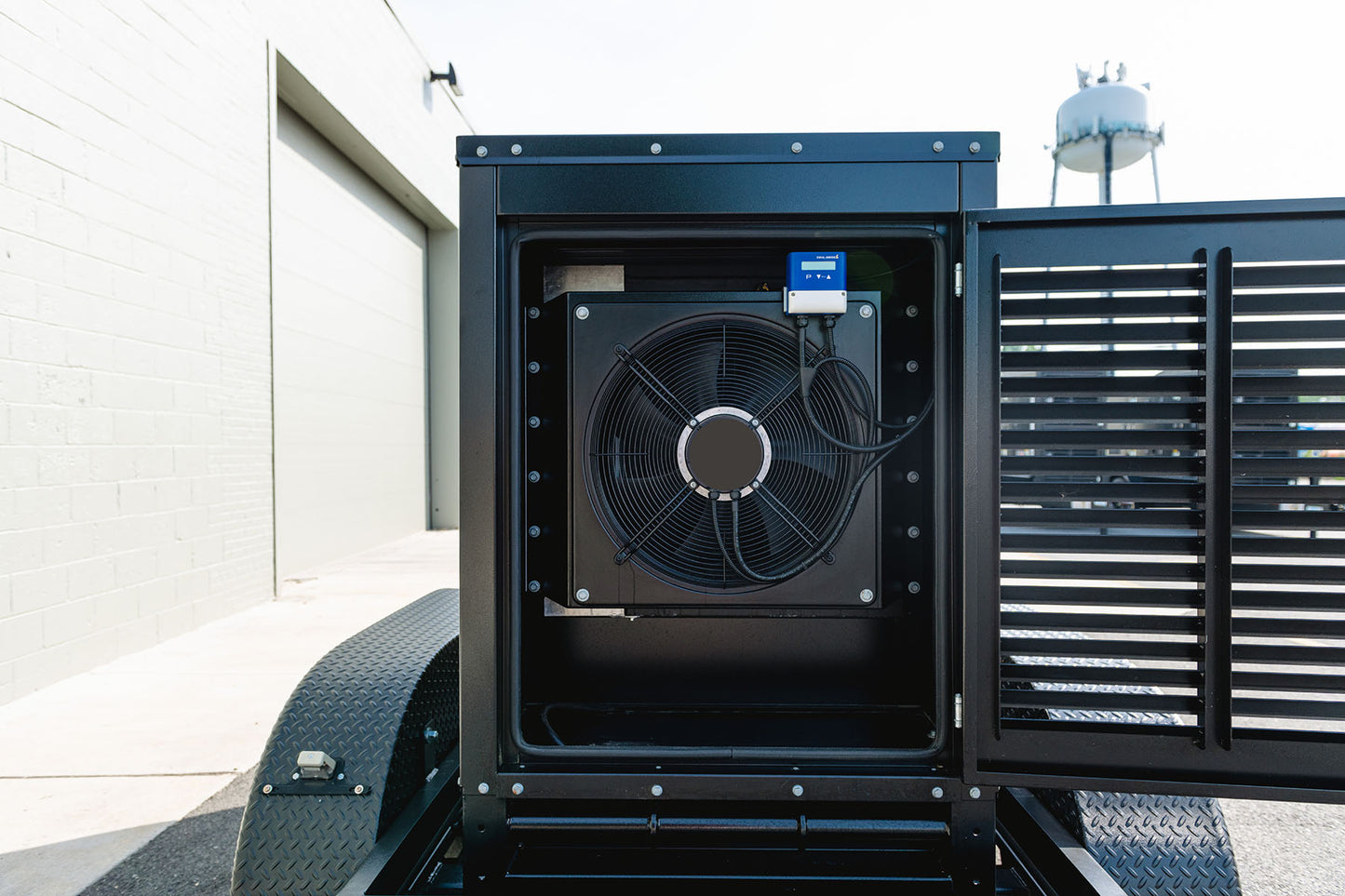

By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!
CUSTOMER FOCUSED
With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.
FOR THE ENTERTAINMENT WORLD
Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
In Package
- TecnoGen Mega Silent Generator
- Kohler KDI1903TCR Engine
- Leroy Somer Alternator
- Deep Sea DSE7310 Controller

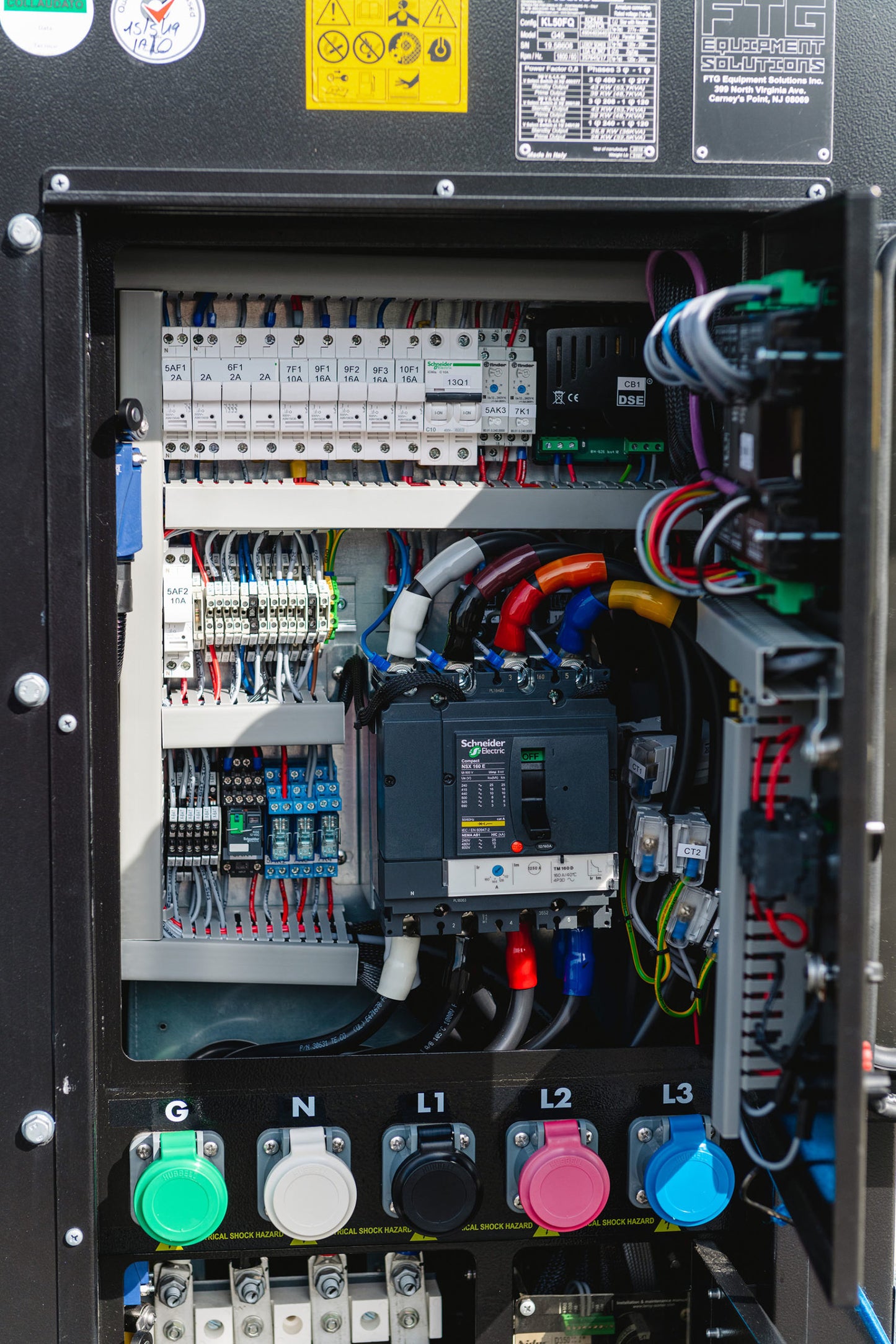

- Camlocks, Block Heater, and Battery Charger
- User Manual for Installation and Maintenance
