TecnoGen Mega Silent Series 276kW 350kVA FP350FQ Generator
DESCRIPTION

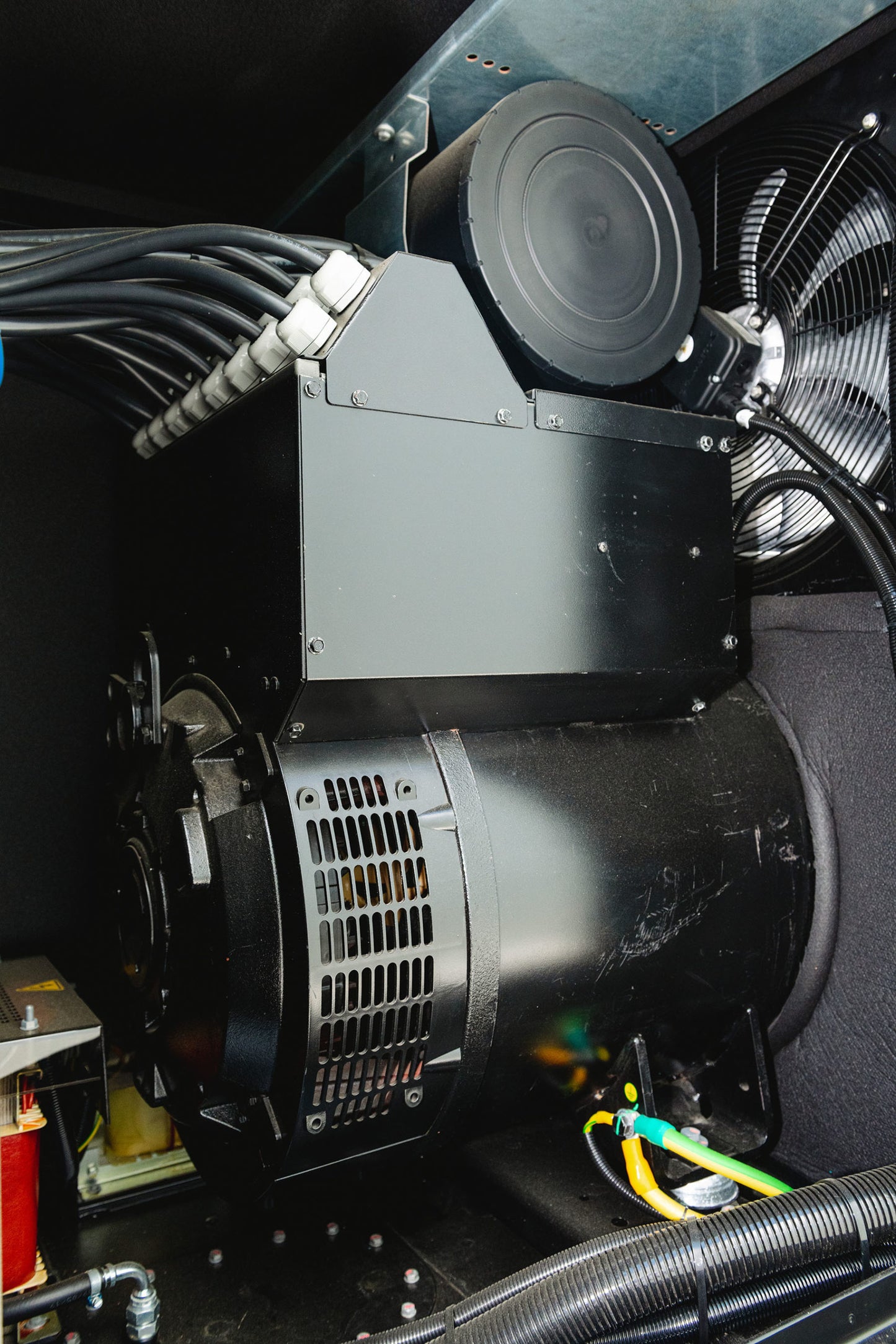

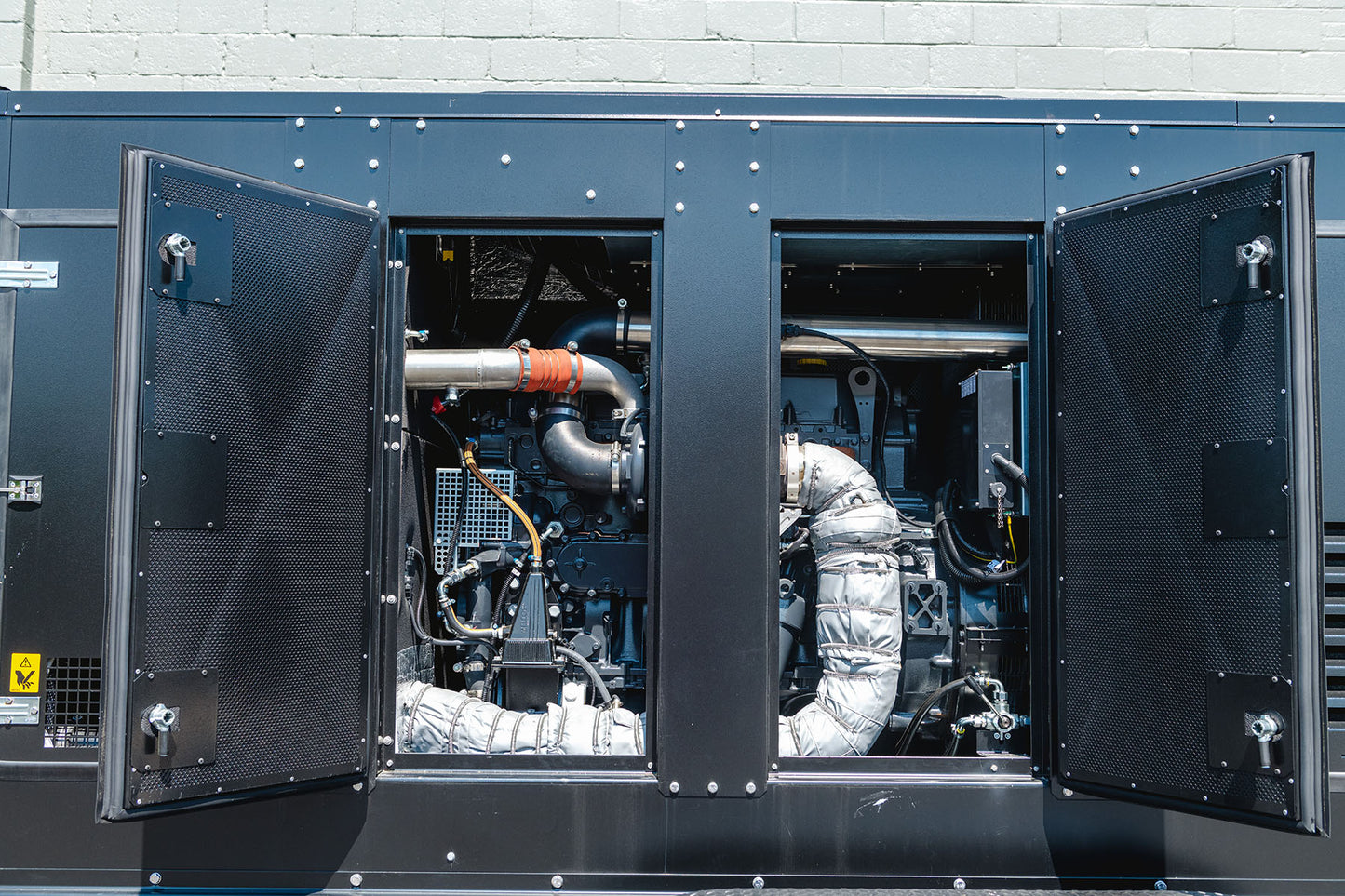

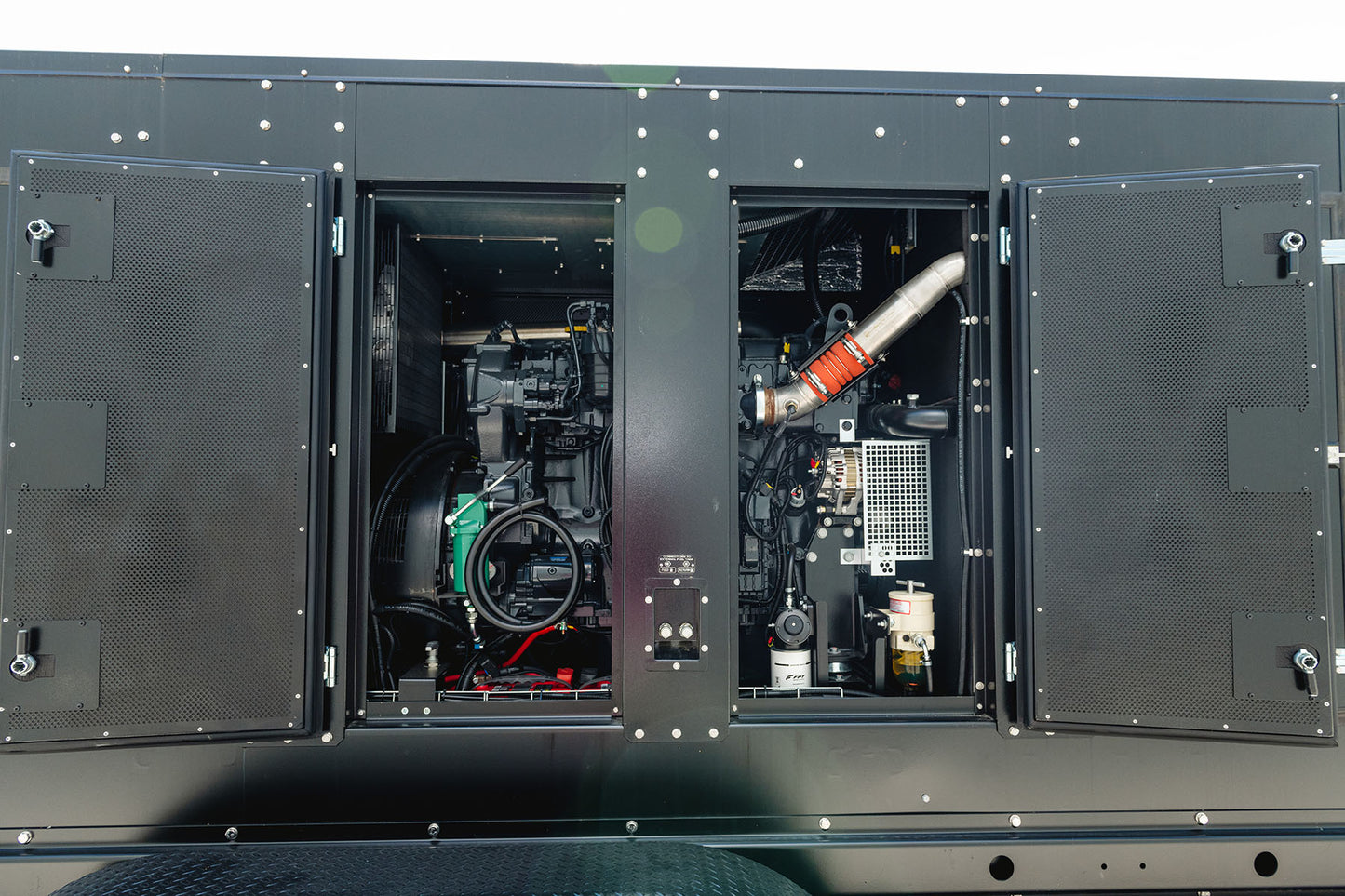

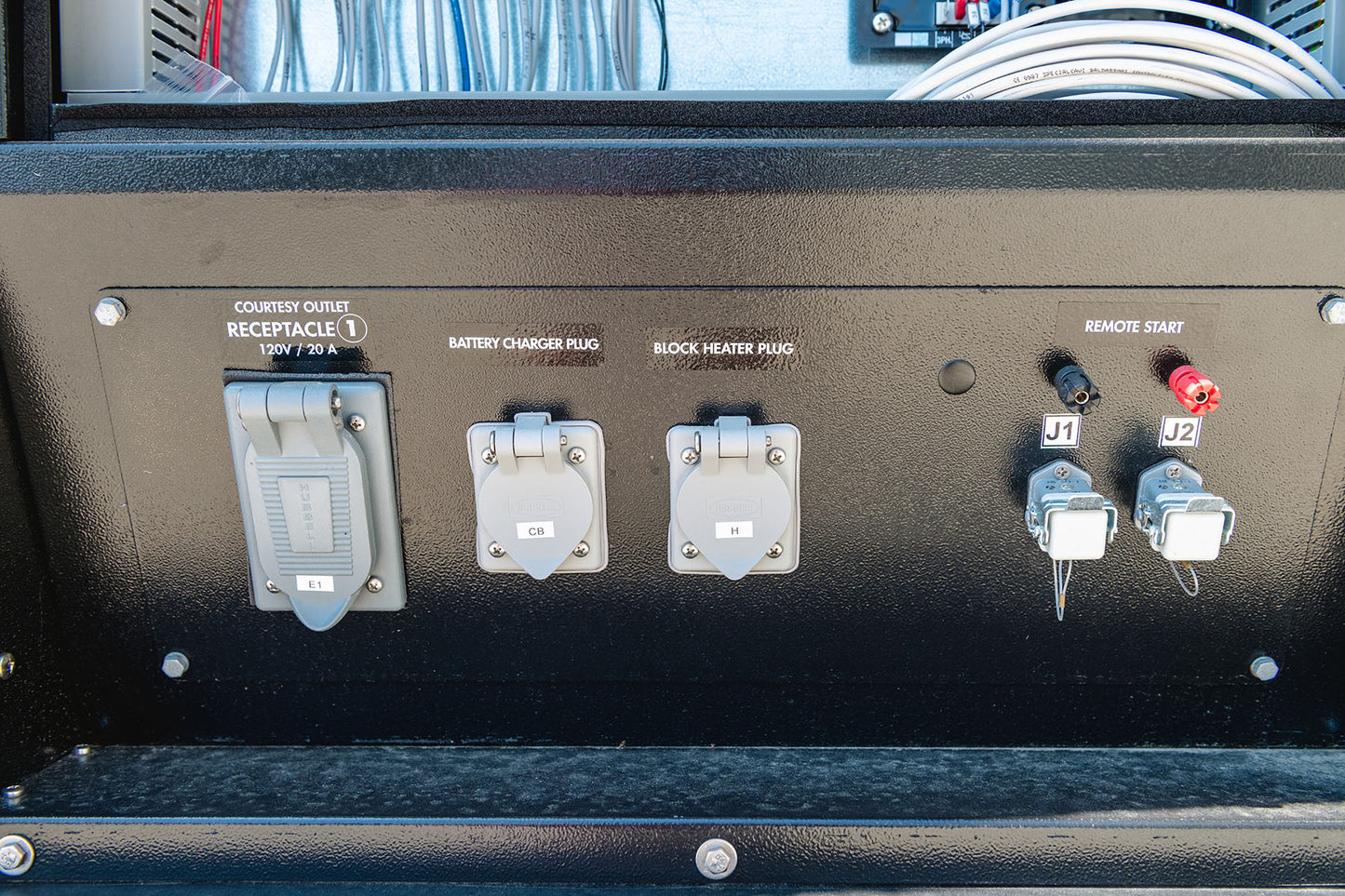

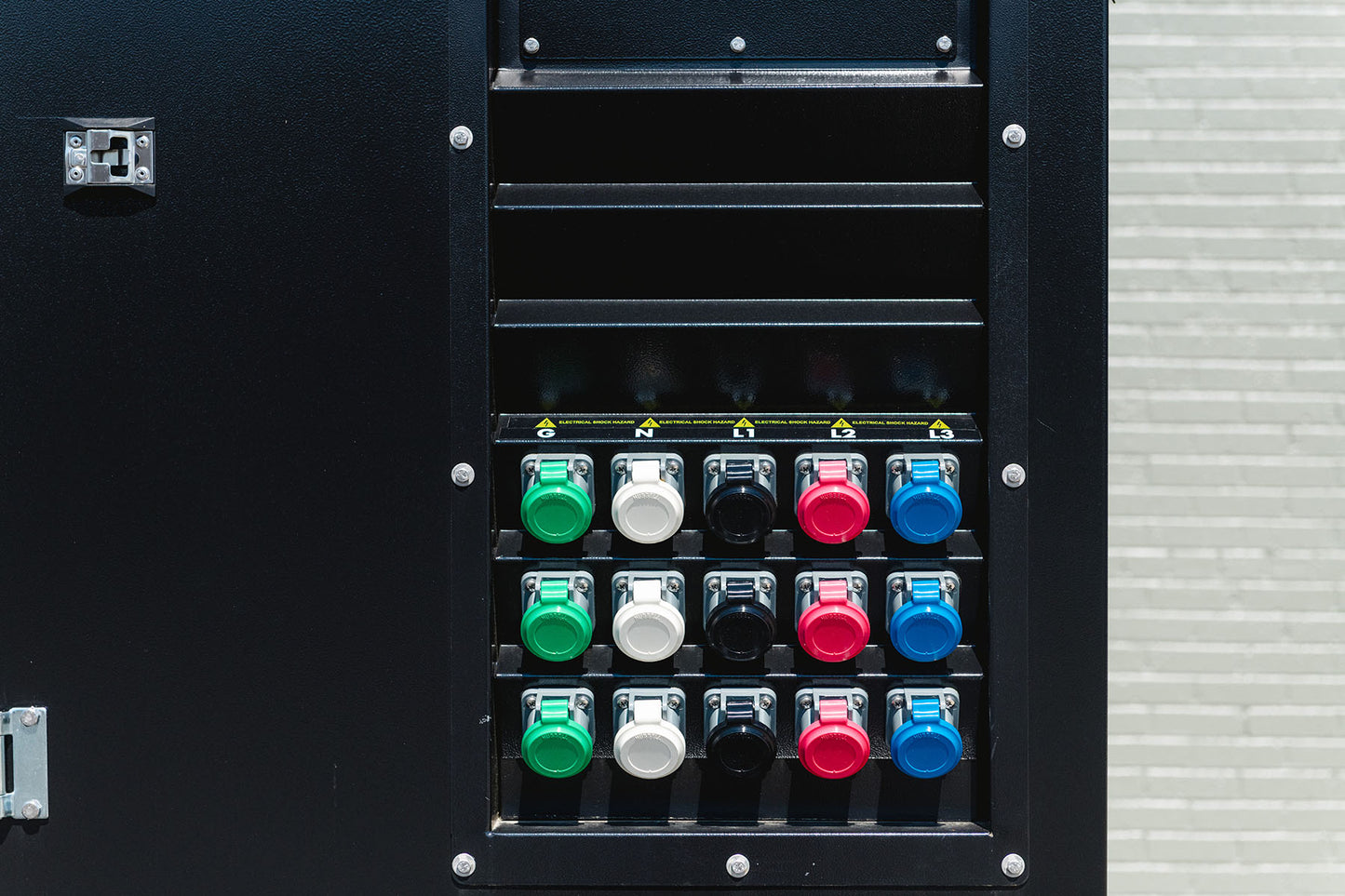

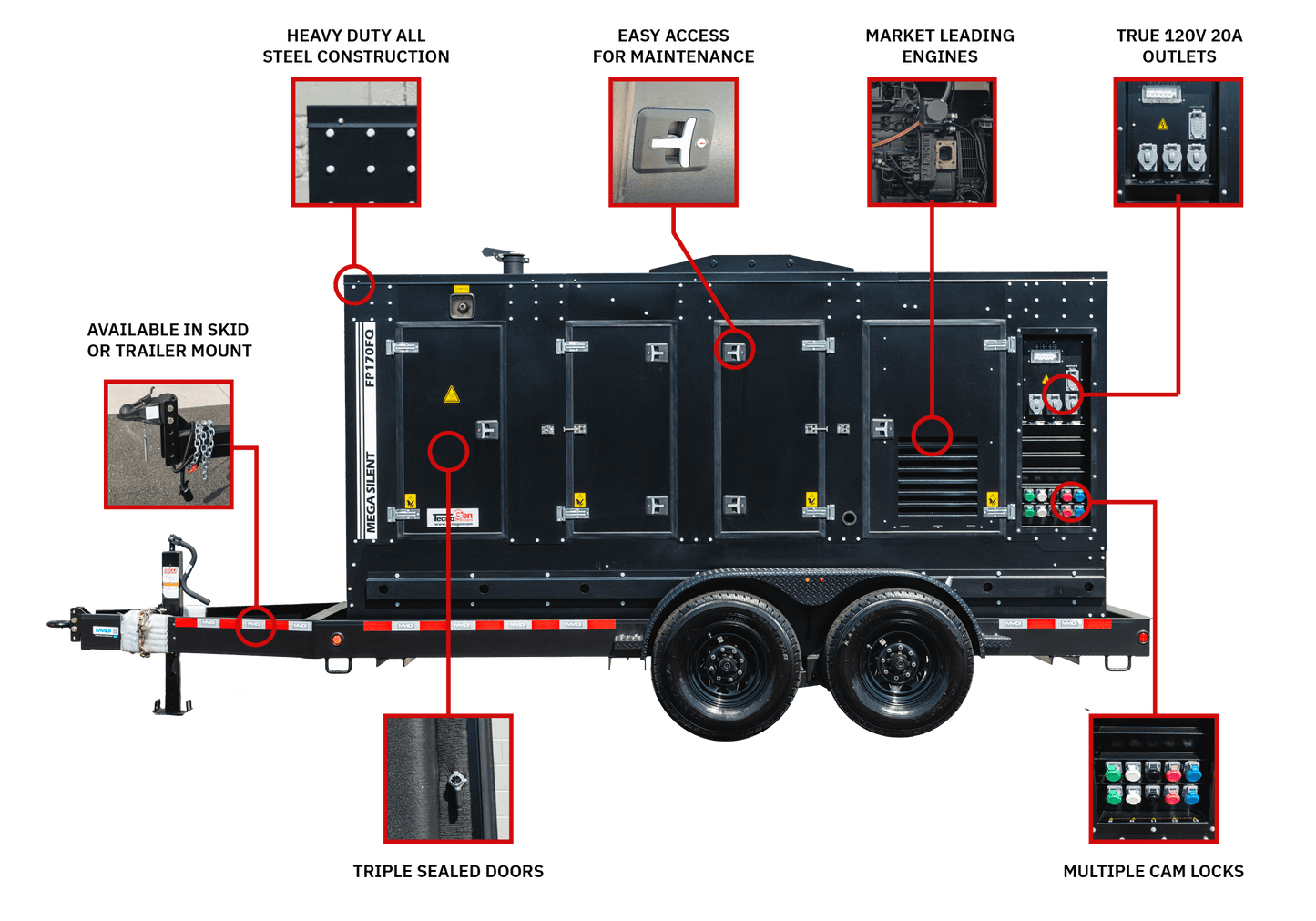

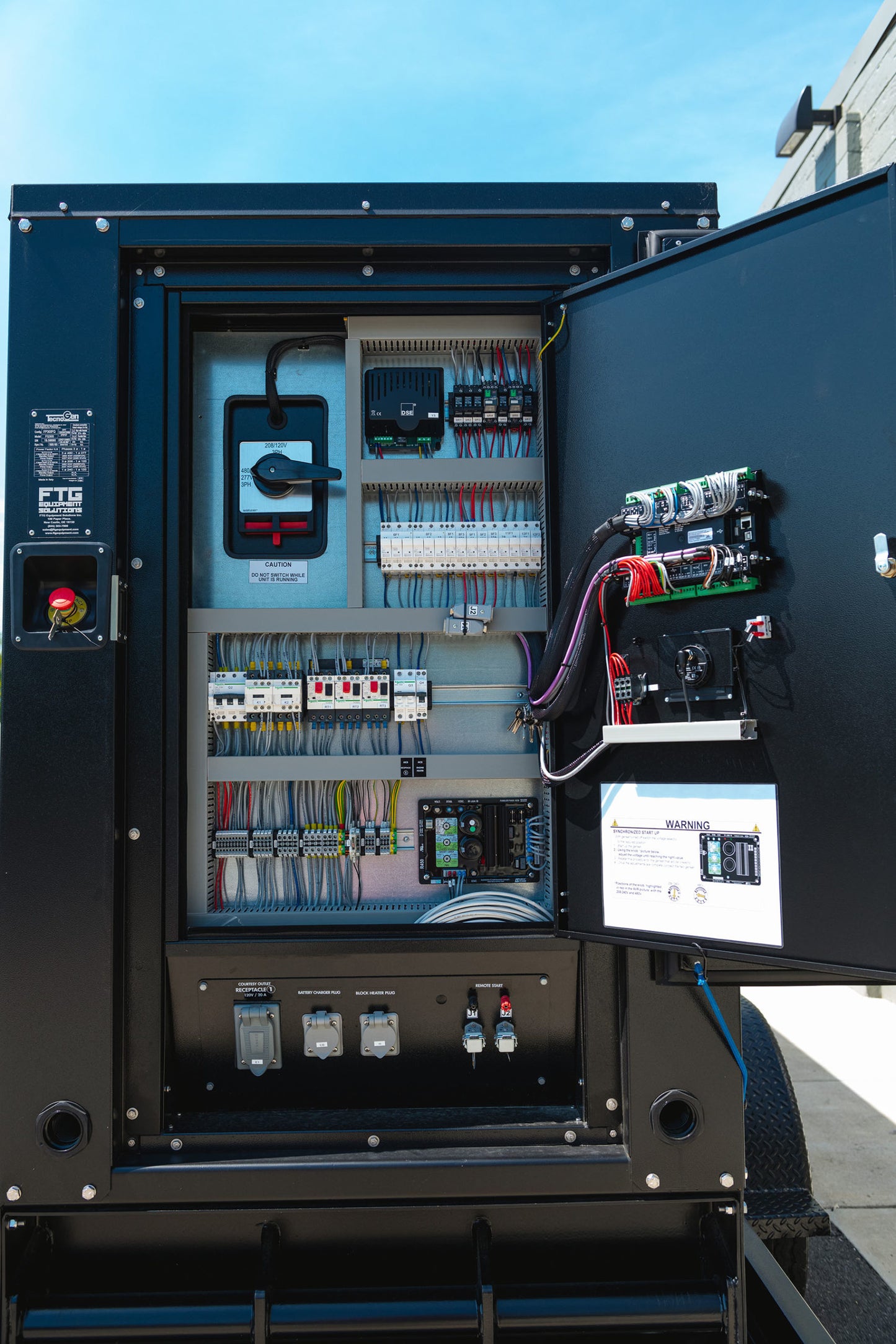

TecnoGen’s 350kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 276kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 62dBA rating.

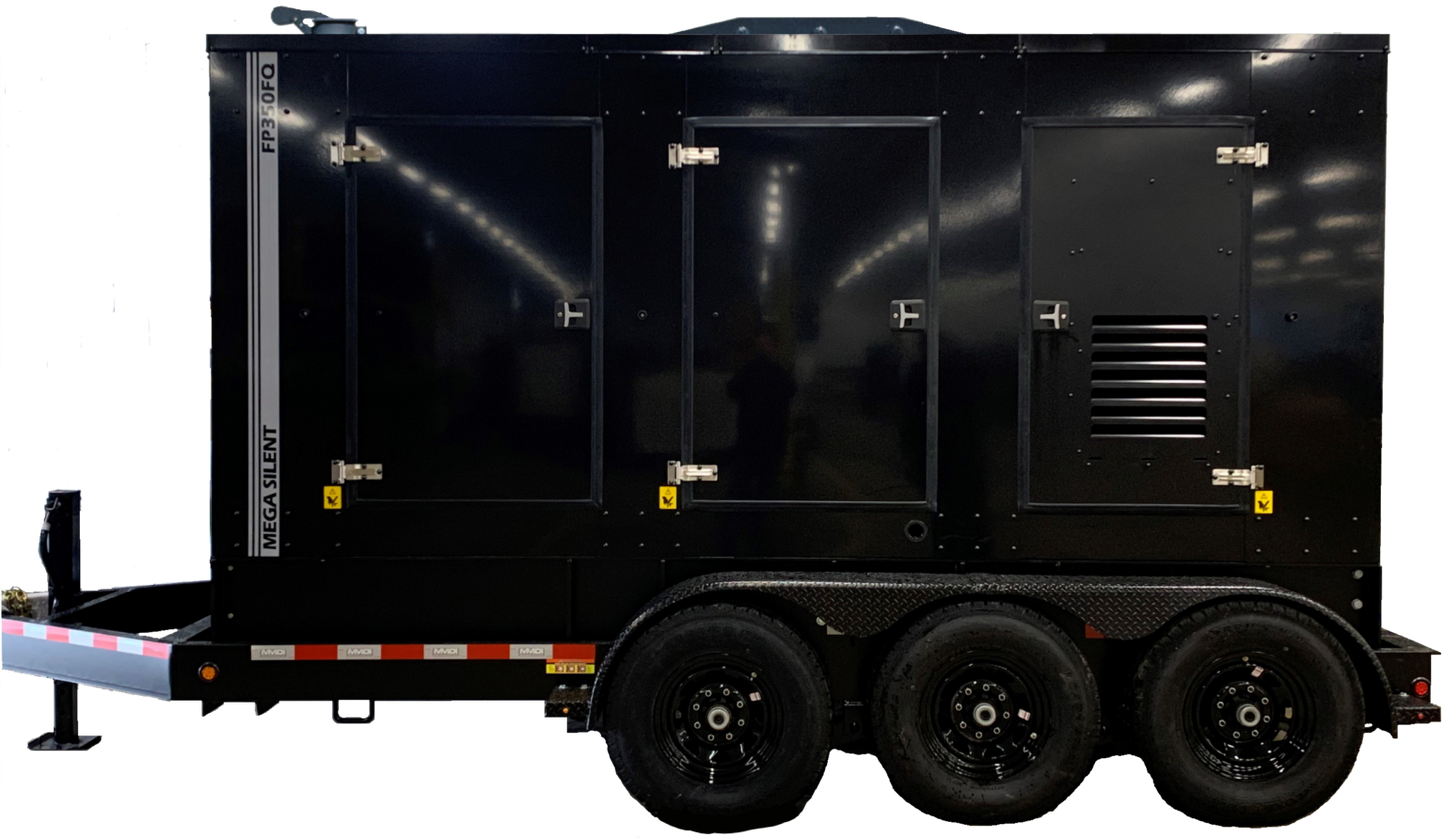

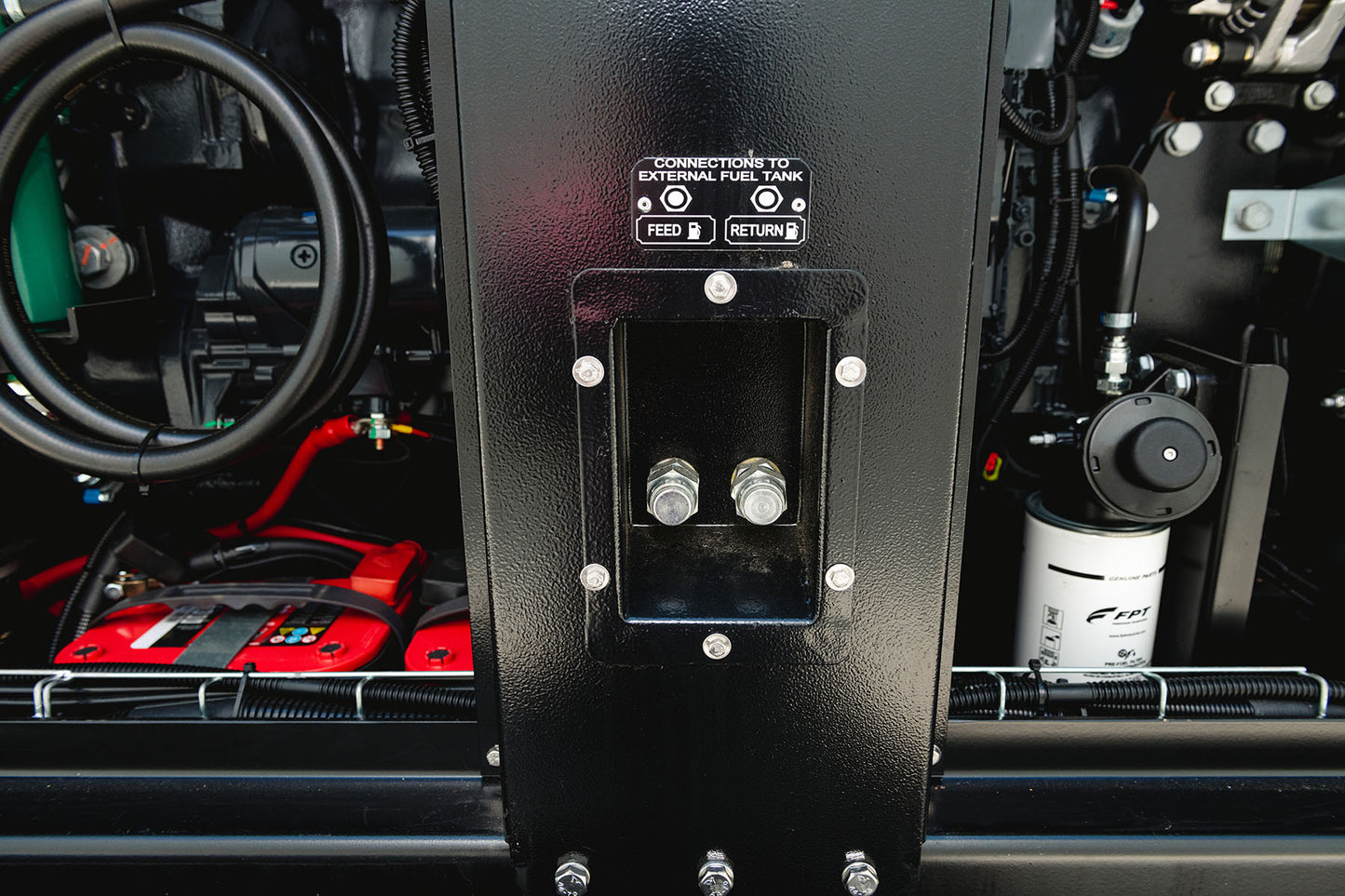

The internal fuel capacity is 283 gallons allowing for a run time of up to 20 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.
Key Features
- Prime Power: 572 kW prime power and 630 kW standby power for large-scale applications.
- Noise Reduction: Operates at just 64 dBA at 23 feet, ideal for sound-sensitive settings.
- High Fuel Capacity: 528-gallon fuel tank offers up to 19 hours of runtime at 75% load.
- Volvo Engine: Powered by the Volvo TWD1673GE engine with 809 HP, Tier 4F compliant.
- Efficient Cooling: VSi Technology adjusts fan operation based on cooling needs, improving fuel efficiency.
Detailed Specifications
General Specifications
| Specification | Details |
|---|---|
| Prime Power | 276 kW |
| Standby Power | 306 kW |
| Noise Level @ 23' | 62 dBA |
| Controller | Deep Sea DSE8610 |
| Engine Model | FPT Cursor9 |
| Alternator Model | Leroy Somer LSA 46.3L10 |
| Fuel Consumption (75%) | 14.00 gal/h |
| DEF Tank Capacity | 31 gallons |
Electrical Specifications
| Voltage | Amps |
|---|---|
| Three Phase 208V (PF 0.8) | 972 |
| Three Phase 240V (PF 0.8) | 831 |
| Three Phase 480V (PF 0.8) | 415 |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Make | FPT |
| Engine Model | Cursor9 |
| Horsepower | 402 HP |
| Cylinders | 6 |
| EPA Compliance | Tier 4F |
Fuel Specifications
| Specification | Details |
|---|---|
| Fuel Capacity | 283 gallons |
| Run Time (75% Load) | 20 hours |
| External Fuel Valve | Yes |
Dimensions and Weight
| Specification | Skid Without Trailer |
|---|---|
| Length | 166 in. |
| Width | 75 in. |
| Height | 97 in. |
| Dry Weight | 14,285 lbs |
| Wet Weight | 16,924 lbs |
In Package
- TecnoGen Mega Silent Generator
- FPT Cursor9 Engine
- Leroy Somer Alternator
- Deep Sea DSE8610 Controller
- Installation and Maintenance Manual
MEGA SILENT SERIES
By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!
CUSTOMER FOCUSED
With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.
FOR THE ENTERTAINMENT WORLD
Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
