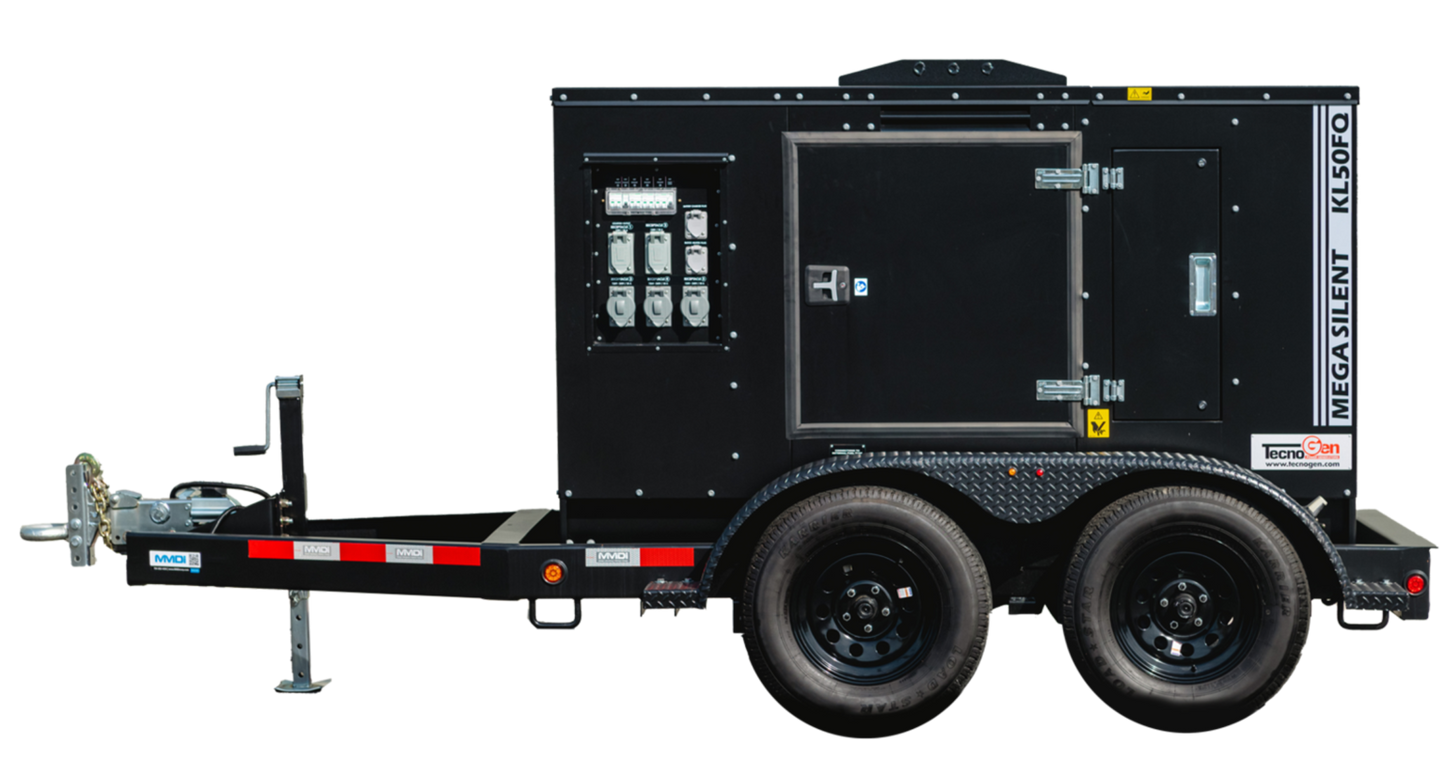

TecnoGen Mega Silent Series 39kW 50kVA KL50FQ Generator

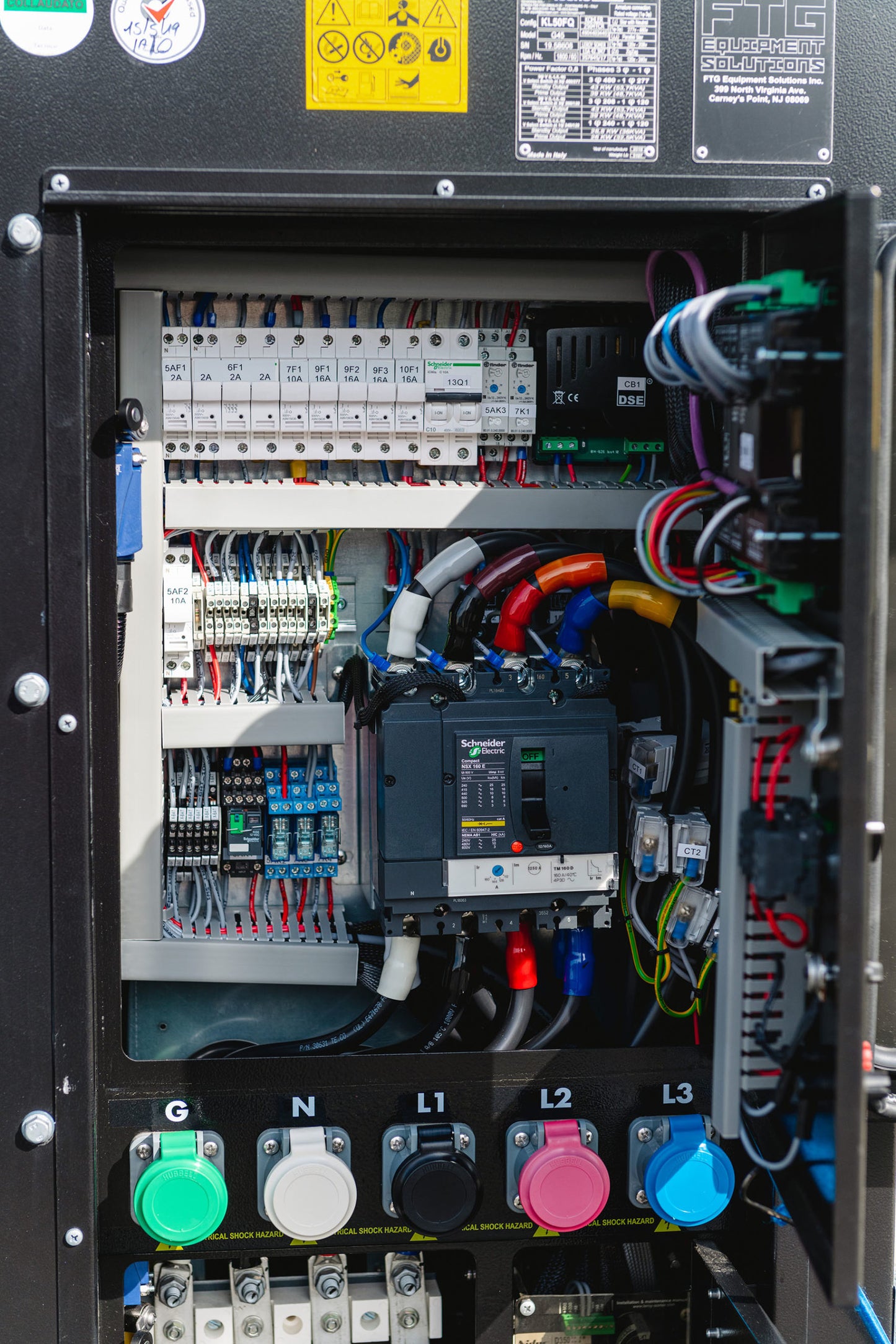

TecnoGen’s 50kVA generator uses the Kohler engine coupled to an industry standard Leroy Somer alternator producing 39kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 55dBA rating.

The internal fuel capacity is 63 gallons allowing for a run time of up to 29 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 39 kW
• SOUND LEVEL @ 23': 55 DBA
• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: Kohler KDI2504TCR
• EPA LEVEL: Tier 4F
• HORSEPOWER: 60
• FUEL CAPACITY: 63 Gallons
• RUN TIME @ 75%: 29 Hours
• LENGTH: 91"
• WIDTH: 38"
• HEIGHT: 60"
• WEIGHT: 4018 lbs

GENERATOR SPECS

• Prime Power (PRP) kW: 39,0
• Prime Power (PRP) kVA: 48,8
• Standby Power (LTP) kW: 43,0
• Standby Power (LTP) kVA: 53,8
• Rated Power Factor (cos φ): 0,8
• RPM: 1800
• Voltage 1PH V: 240/120V
• Voltage 3PH V: 480/277V 208/120V
• Rated frequency Hz: 60

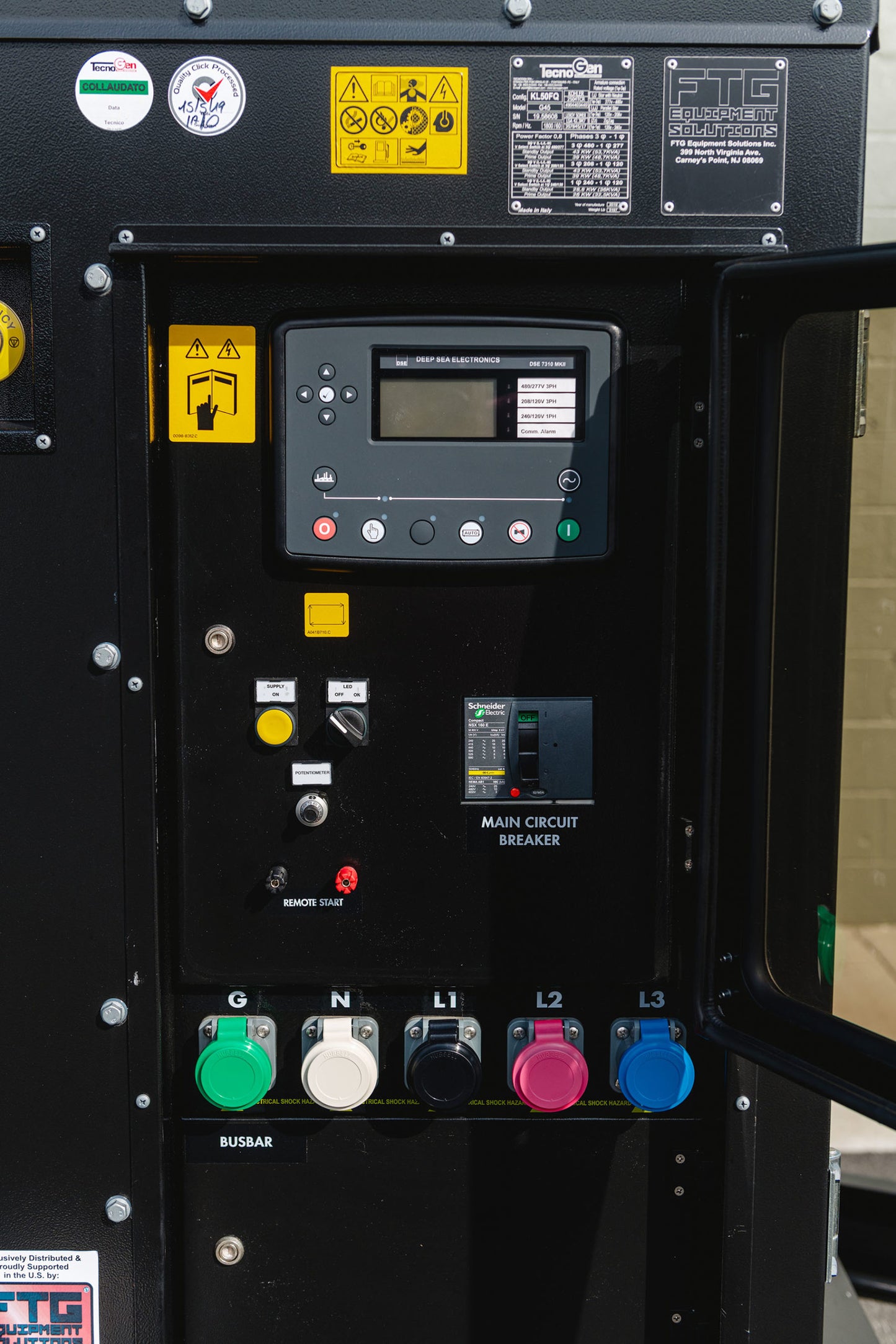

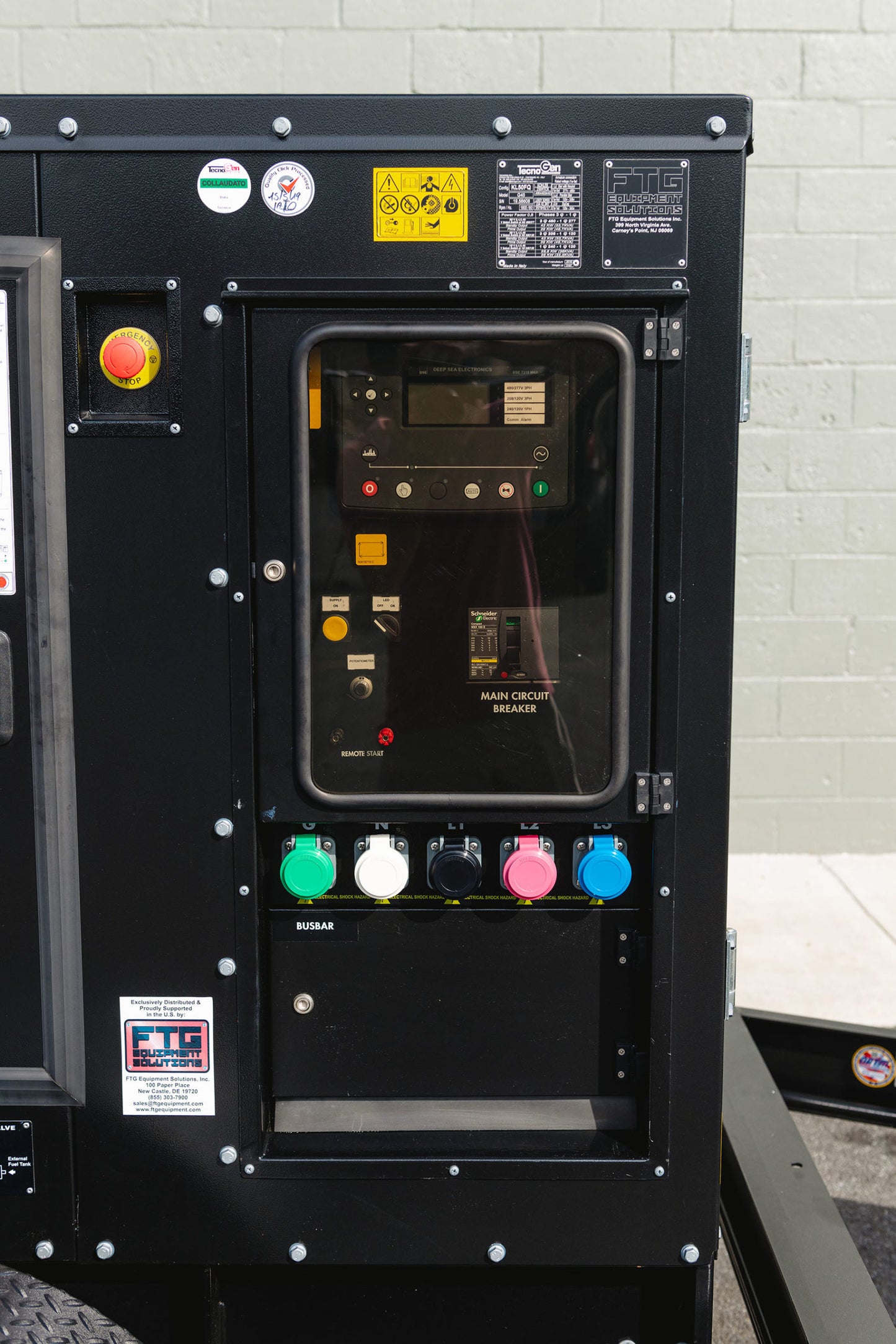

• Controller brand: Deep Sea
• Controller model: DSE7310
• Sound Level @23 Feet (no load) dB: 55

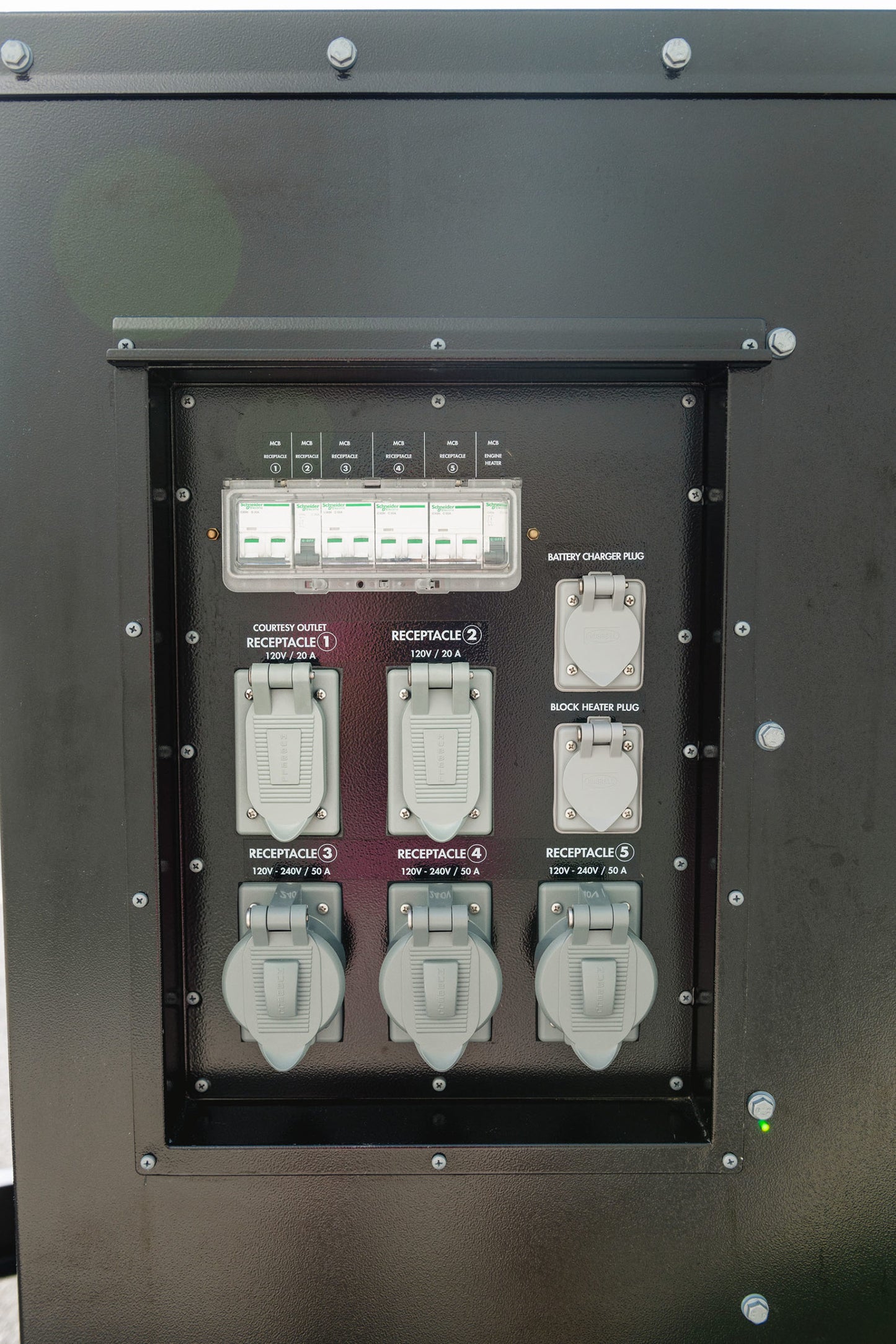

AMPS

• Single Phase 120V zz: 125x2 zz
• Single Phase 240V: 125
• Three Phase 208V: 135
• Three Phase 480V: 59

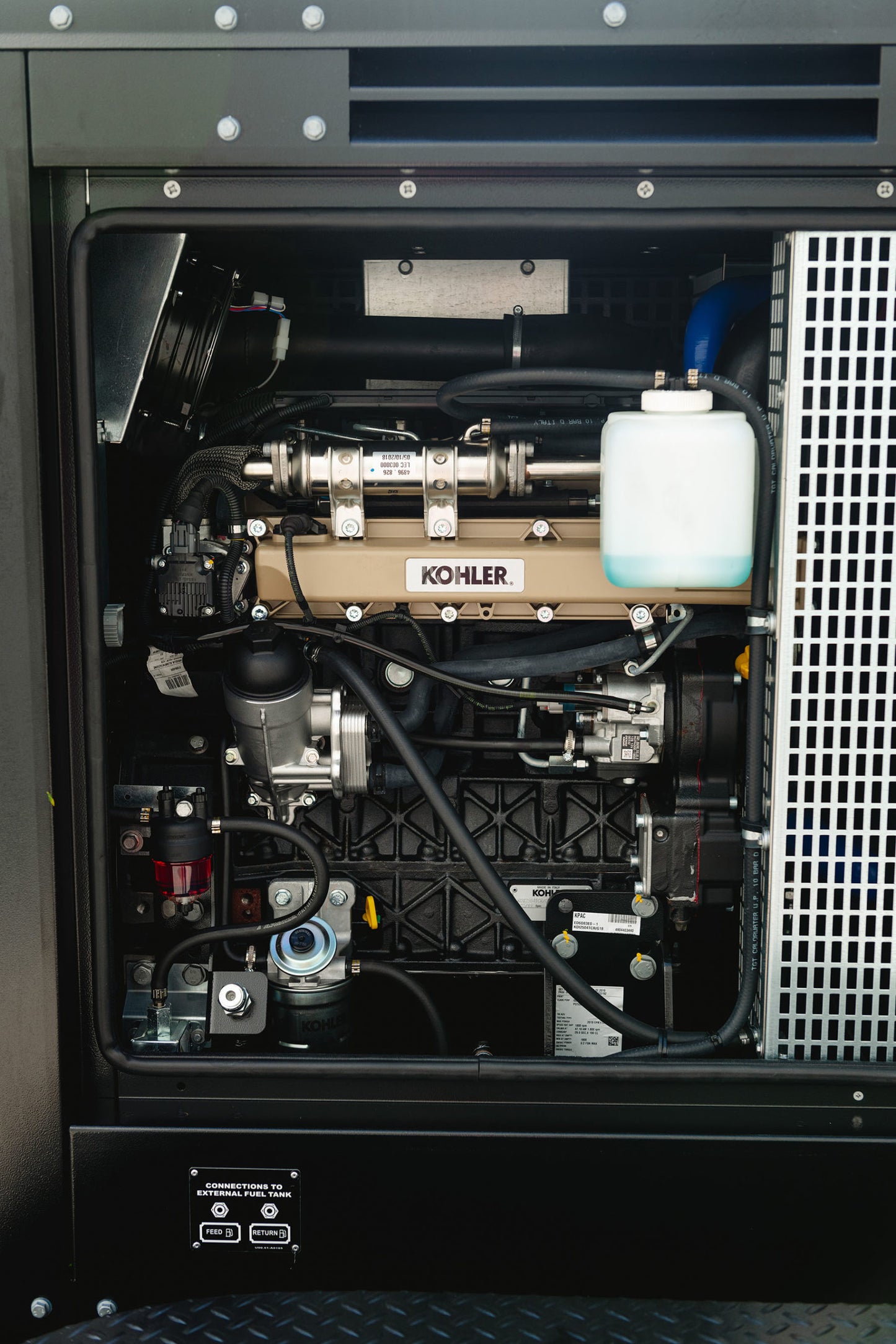

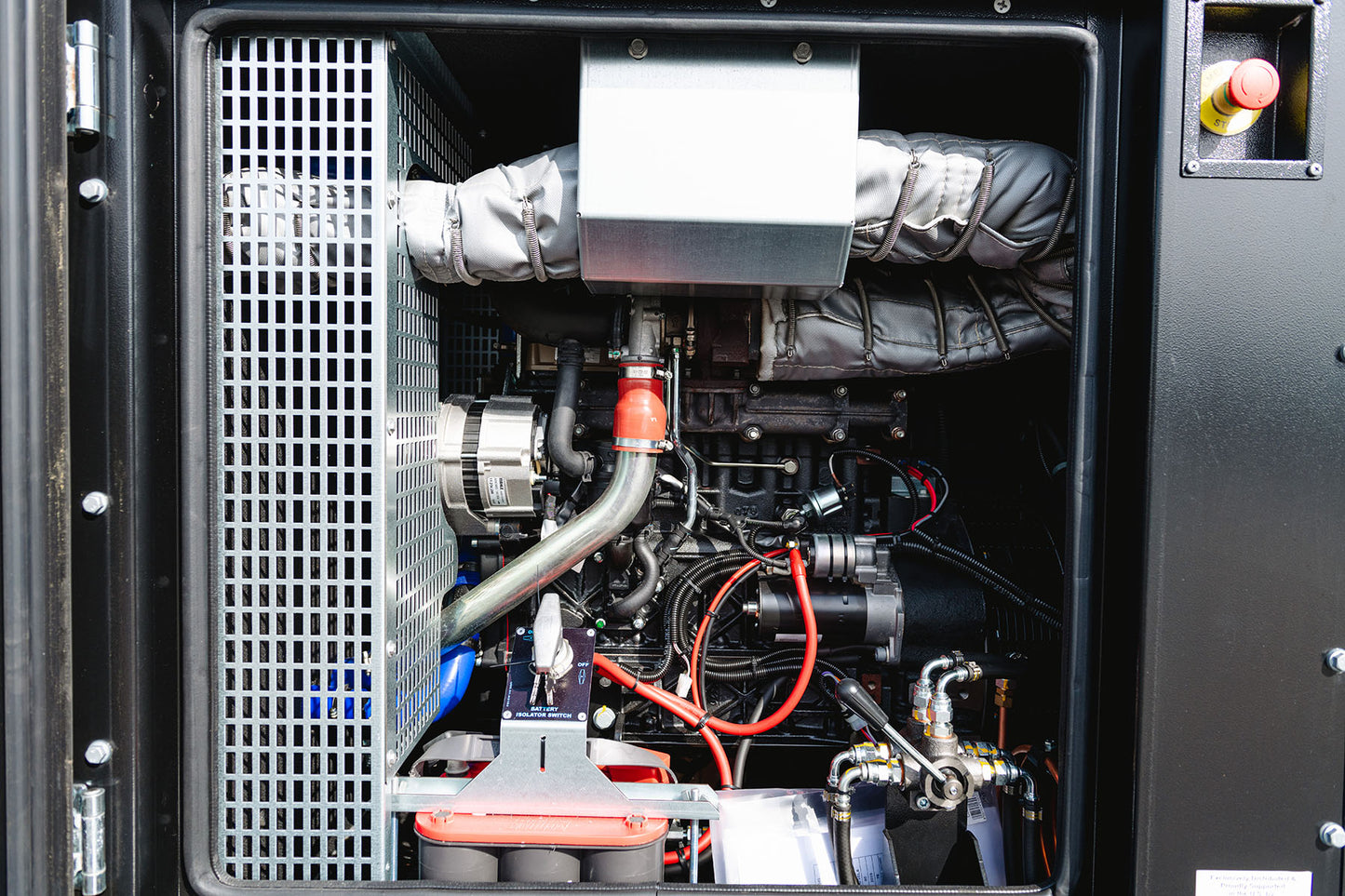

ENGINE SPECS

• MAKE: Kohler
• MODEL: KDI2504TCR
• EPA LEVEL: TIER4 FINAL
• No. Cylinders: 4
• GROSS HP: 59,4

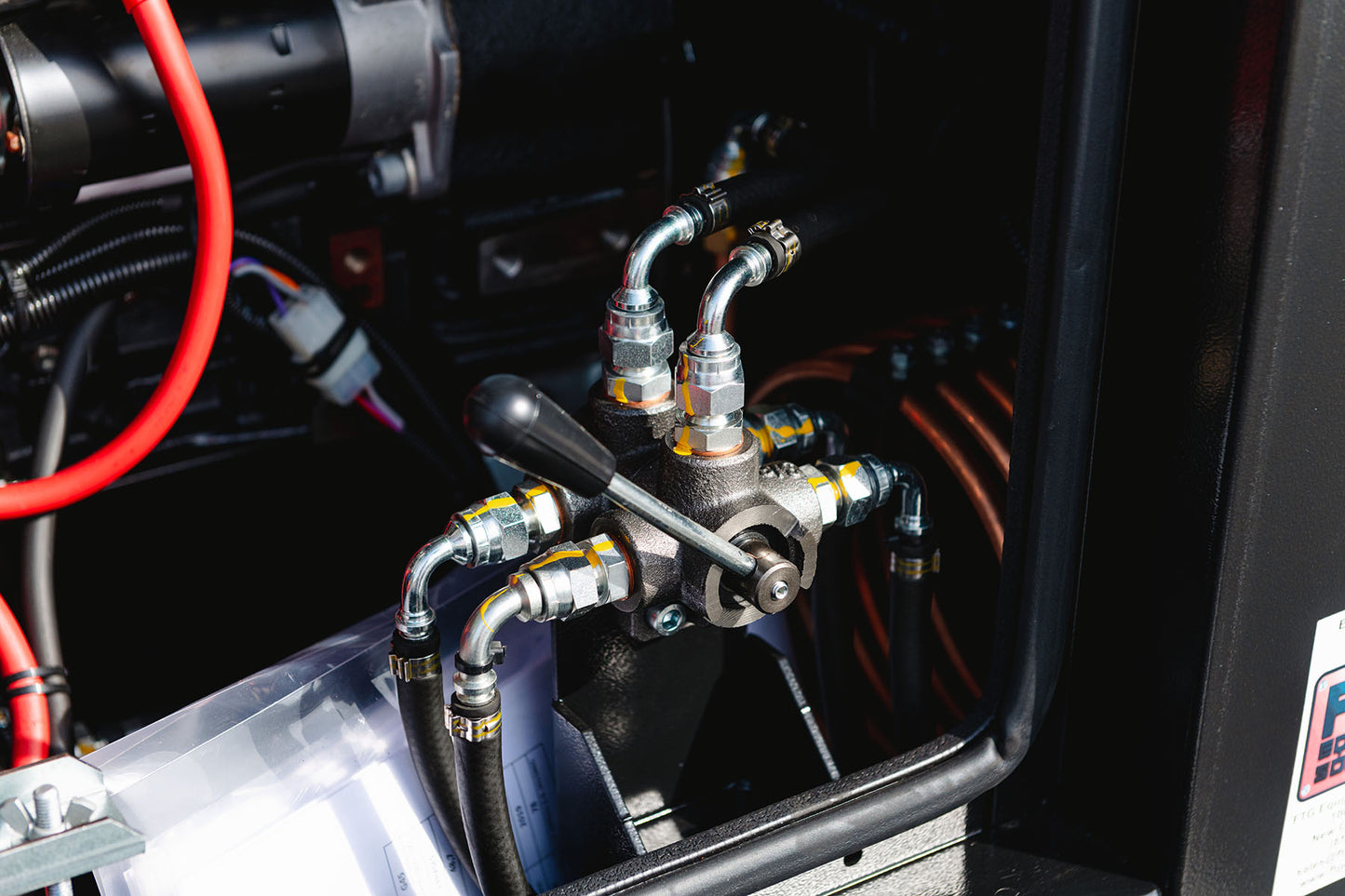

• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• Fuel type: Diesel
• Fuel capacity gal.: 63
• Fuel cons. at 75% (P.R.P.) gal/h: 2,14
• Run time @ 75% gal/h: 29,4

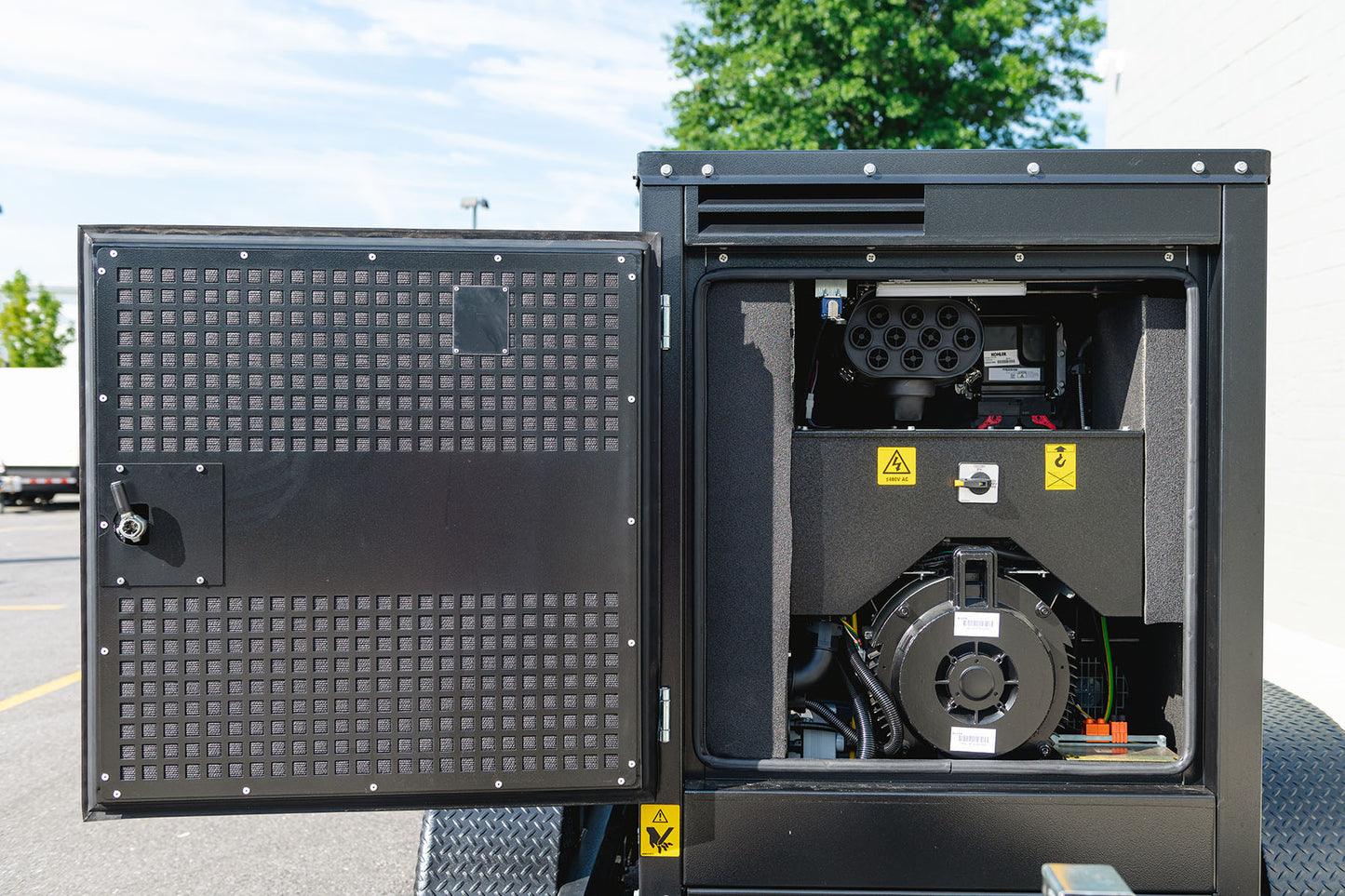

ALTERNATOR DATA

• Alternator brand: Leroy Somer
• Alternator model: LSA 42.3M7
• P.R.P. Power kVA: 50
• L.T.P. Power kVA: 55
• IP Protection: 23
• Voltage regulator: ±0,25% AREP
• Short-circuit current: 300 %:10s

WEIGHTS AND DIMENSIONS

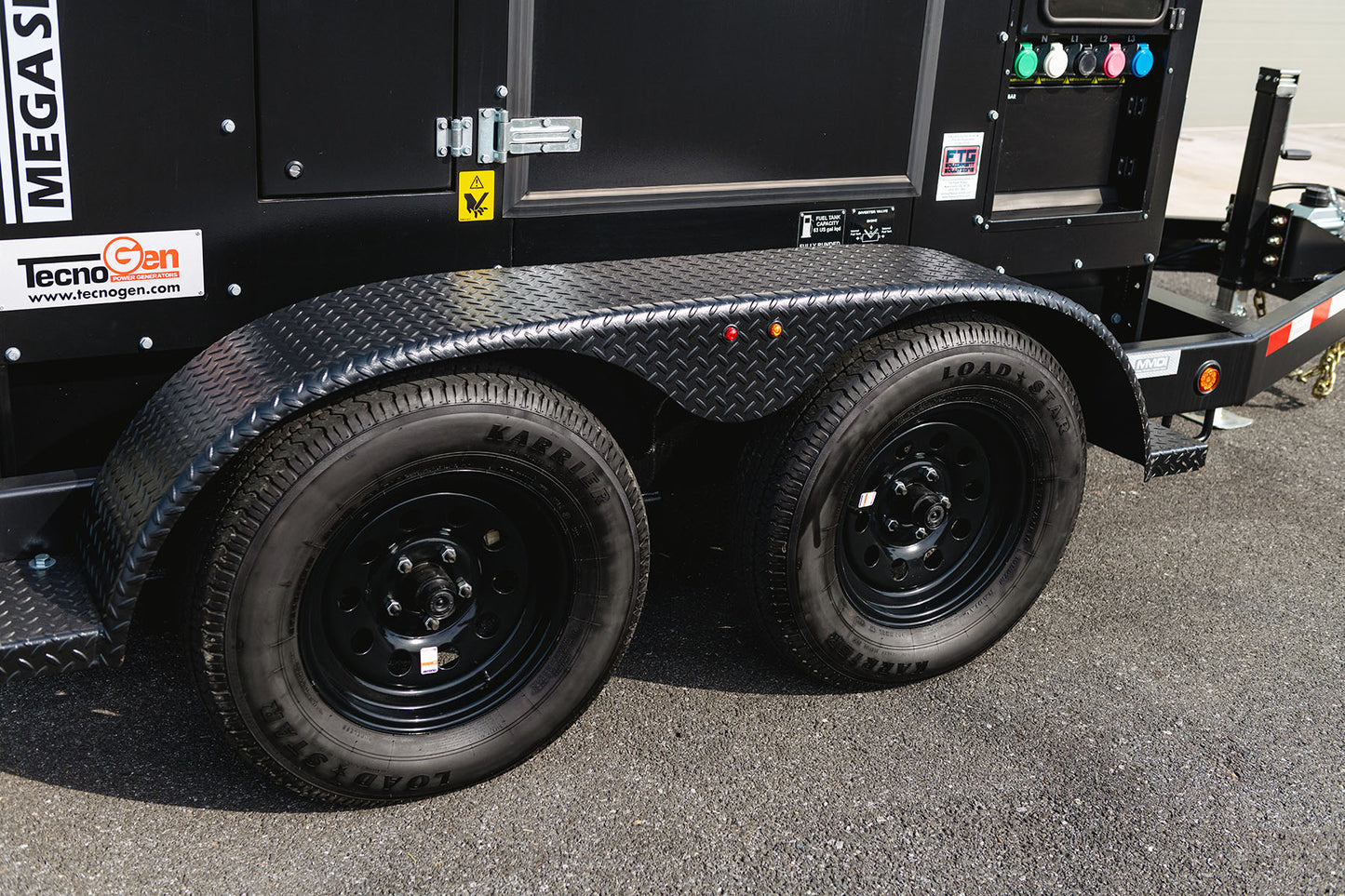

SKID W TRAILER

• Dry WEIGHT (lbs.): 4241
• Wet WEIGHT (lbs.): 4688
• LENGTH (in.): 160
• WIDTH (in.): 74
• HEIGHT (in.): 75

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 3197
• Wet WEIGHT (lbs.): 4018
• LENGTH (in.): 91
• WIDTH (in.): 37,5
• HEIGHT (in.): 60,2

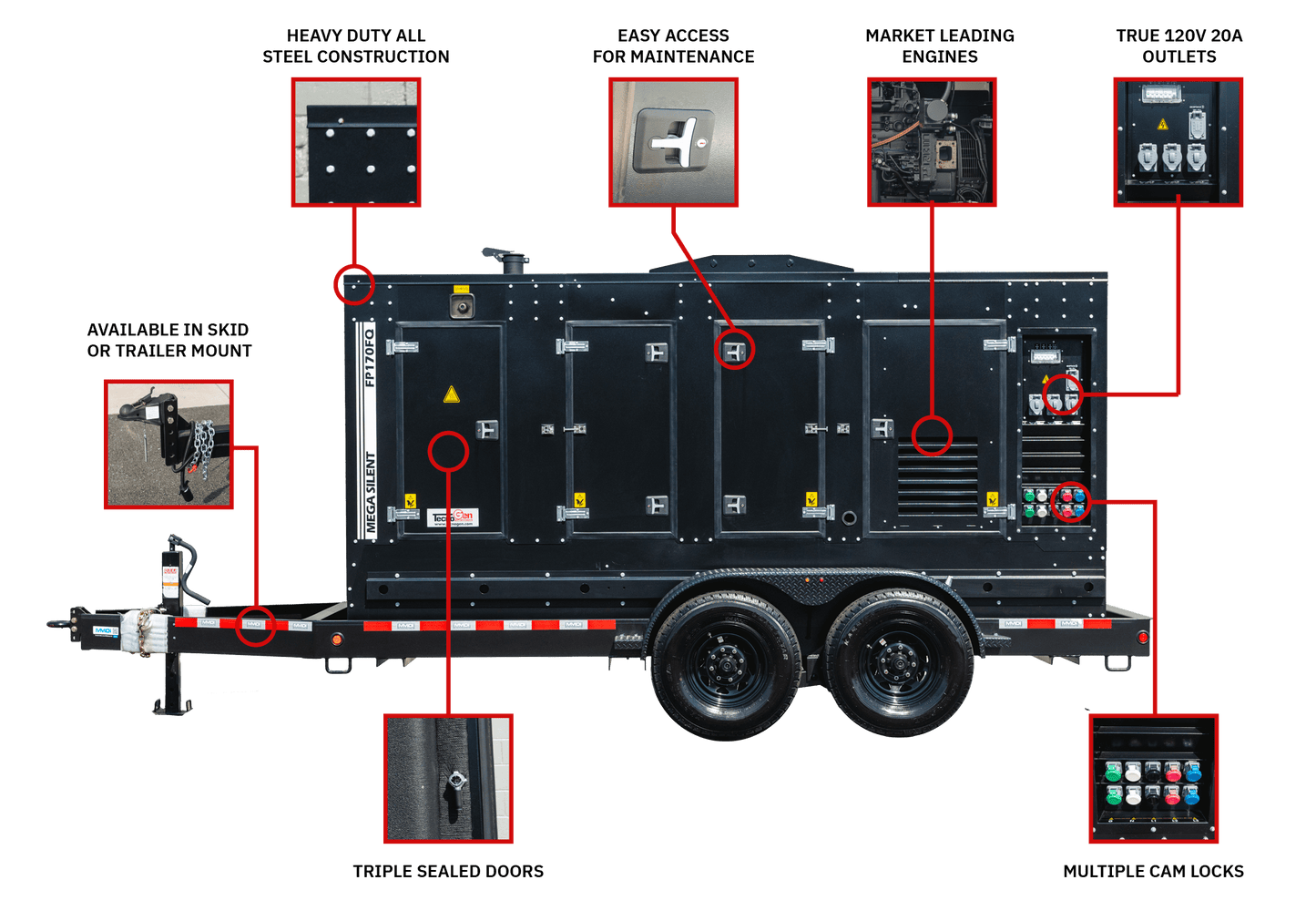

MEGA SILENT SERIES

By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

FOR THE ENTERTAINMENT WORLD

Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
