TecnoGen Mega Silent Series 572kW 725kVA VO725FQ Generator

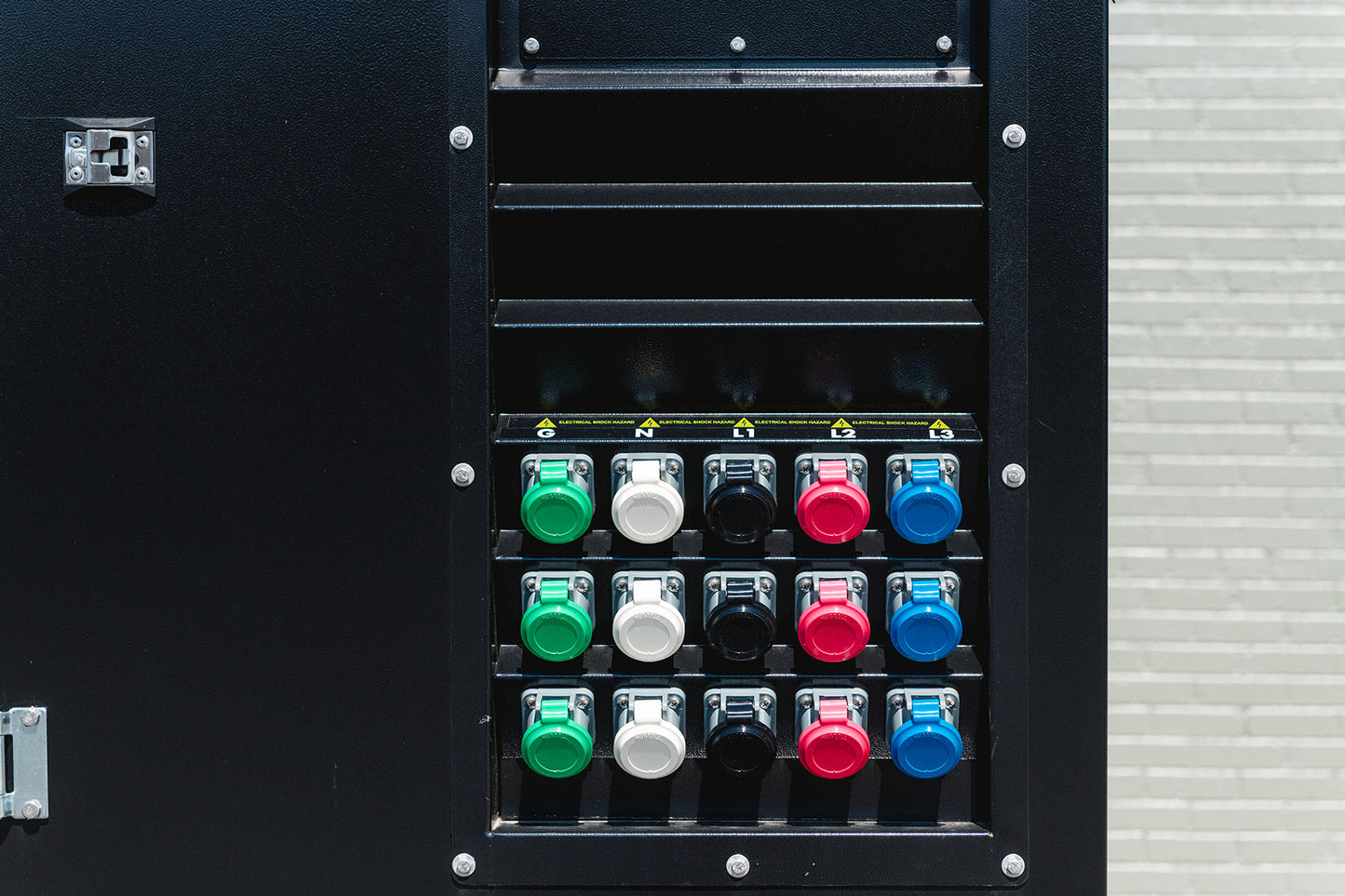

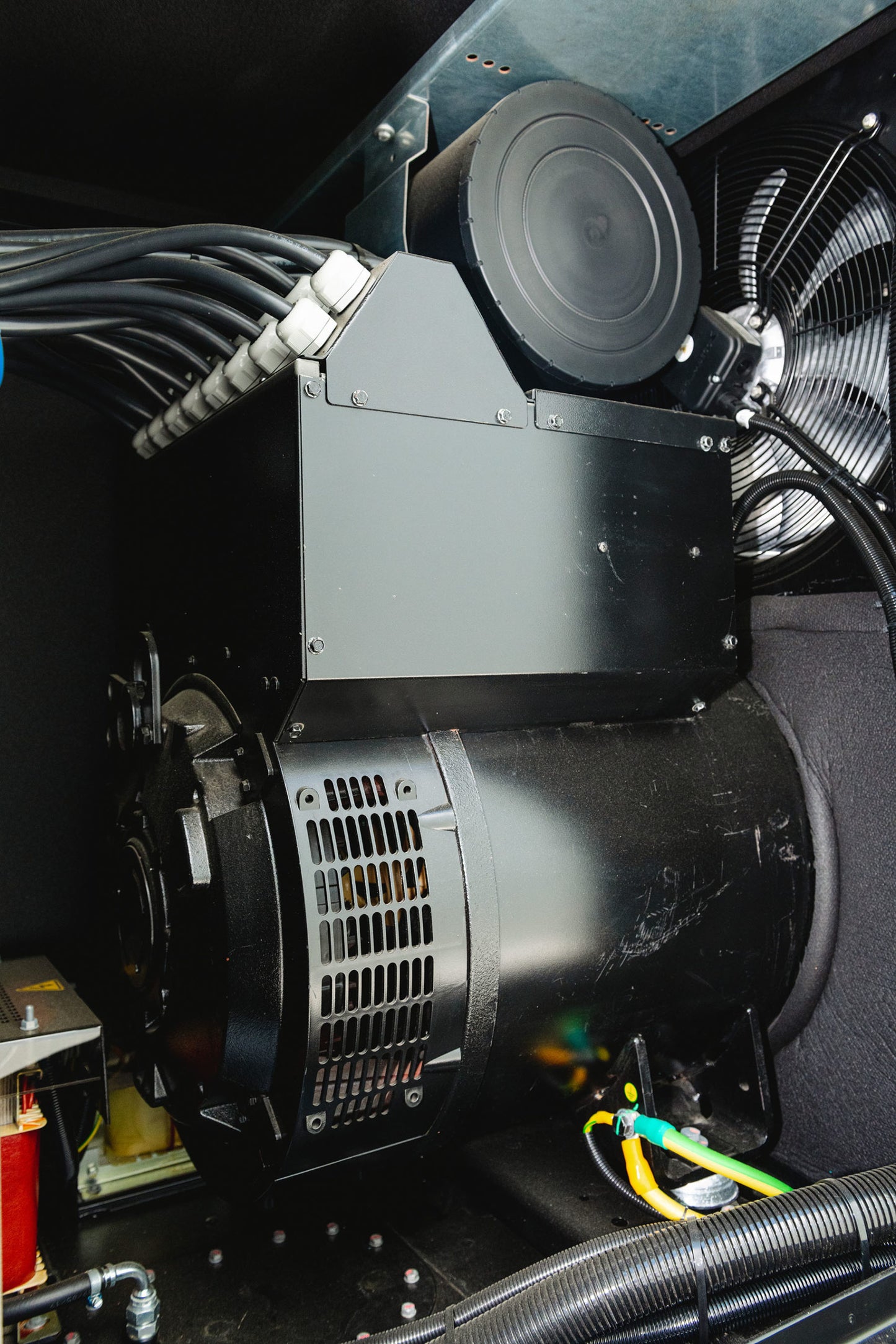

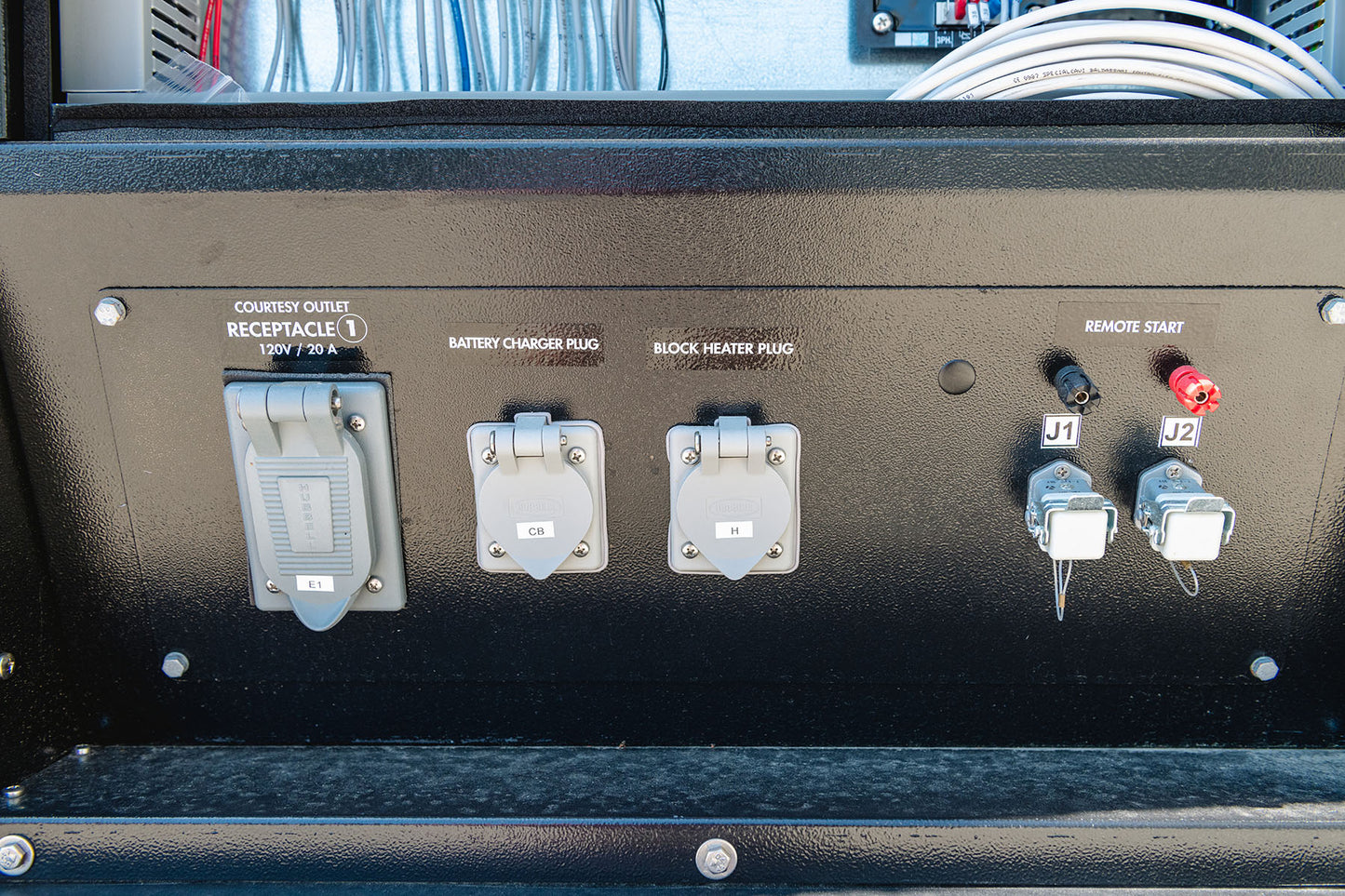

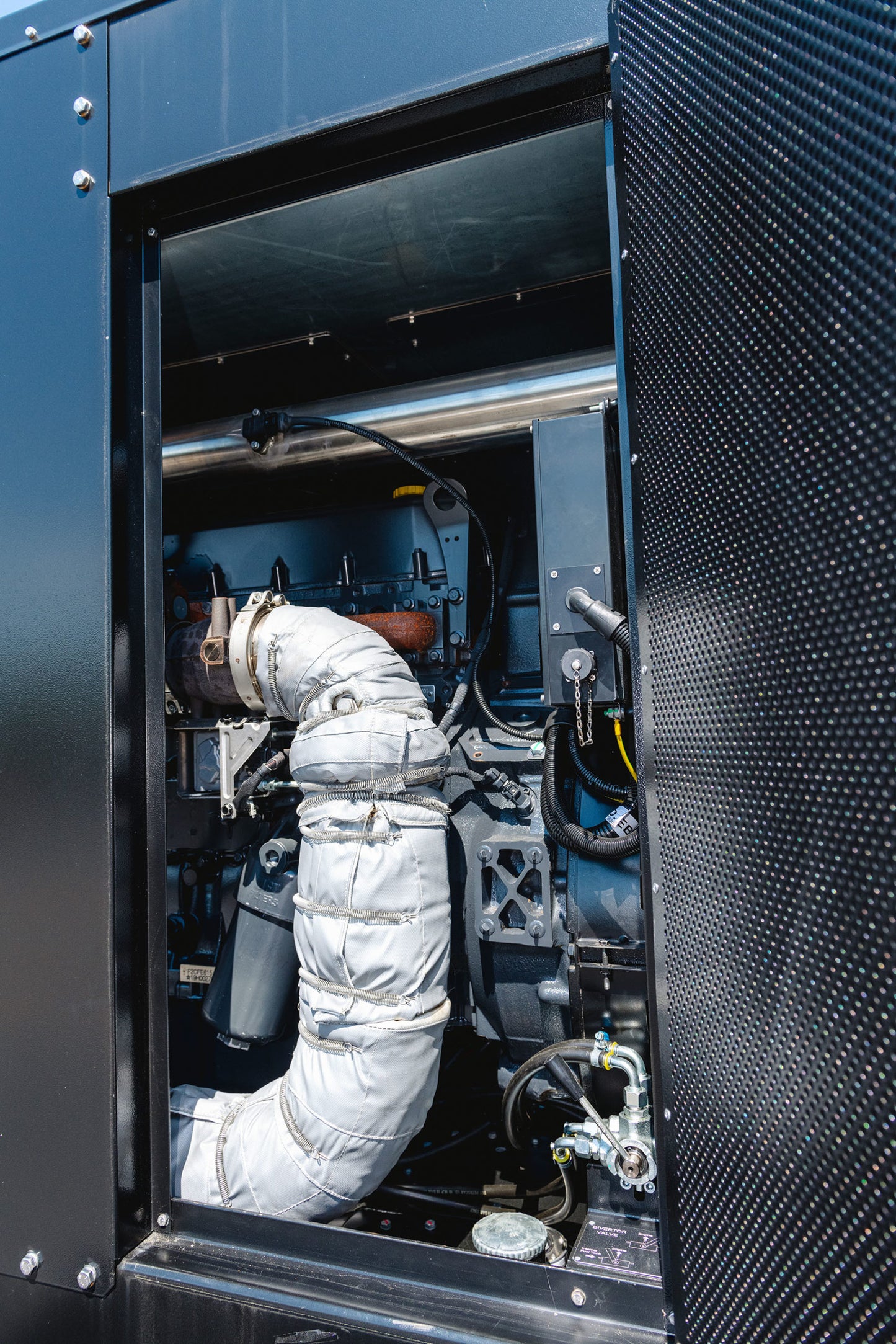

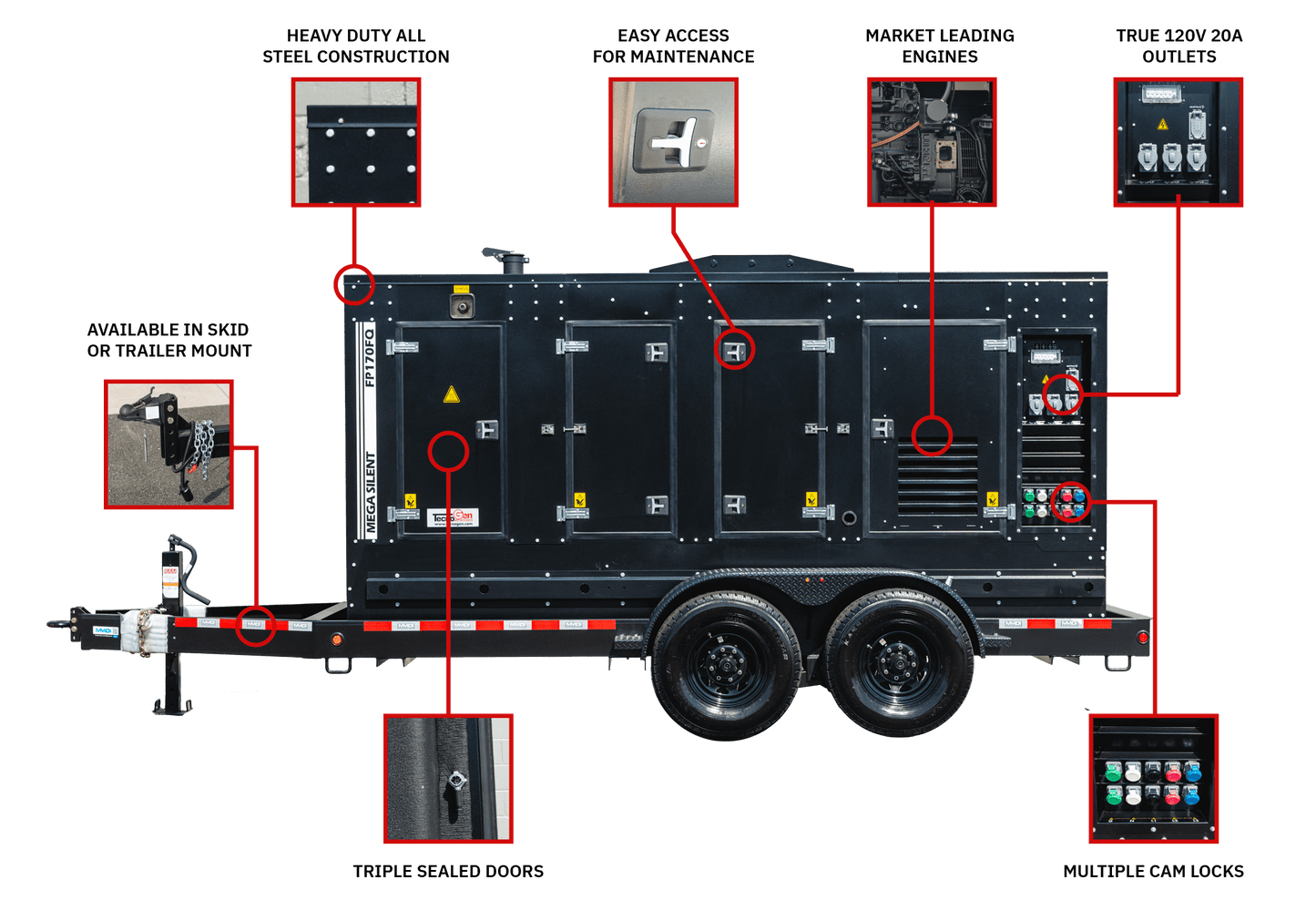

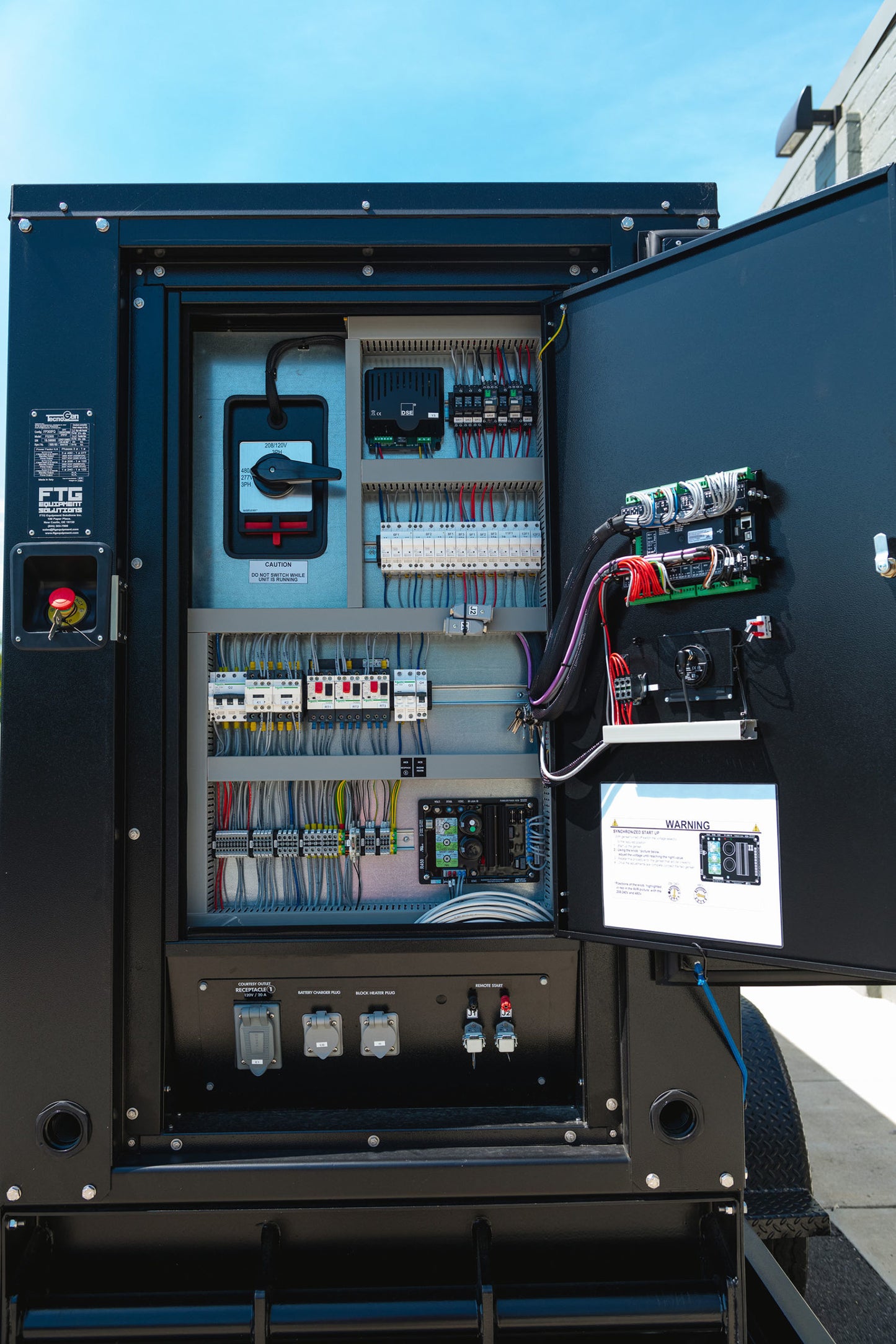

TecnoGen’s 725kVA generator uses the Volvo engine coupled to an industry standard Leroy Somer alternator producing 572kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 64dBA rating.

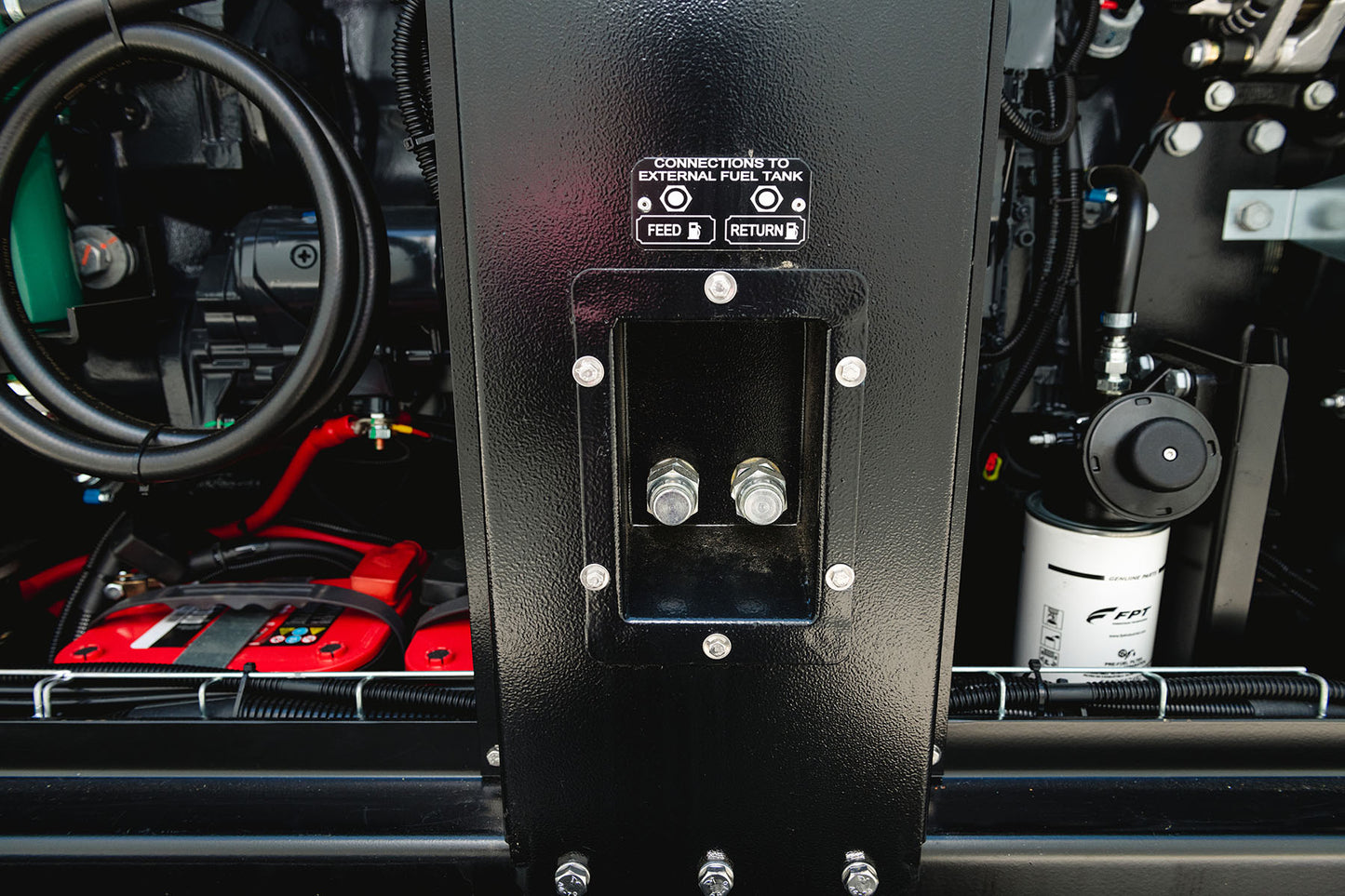

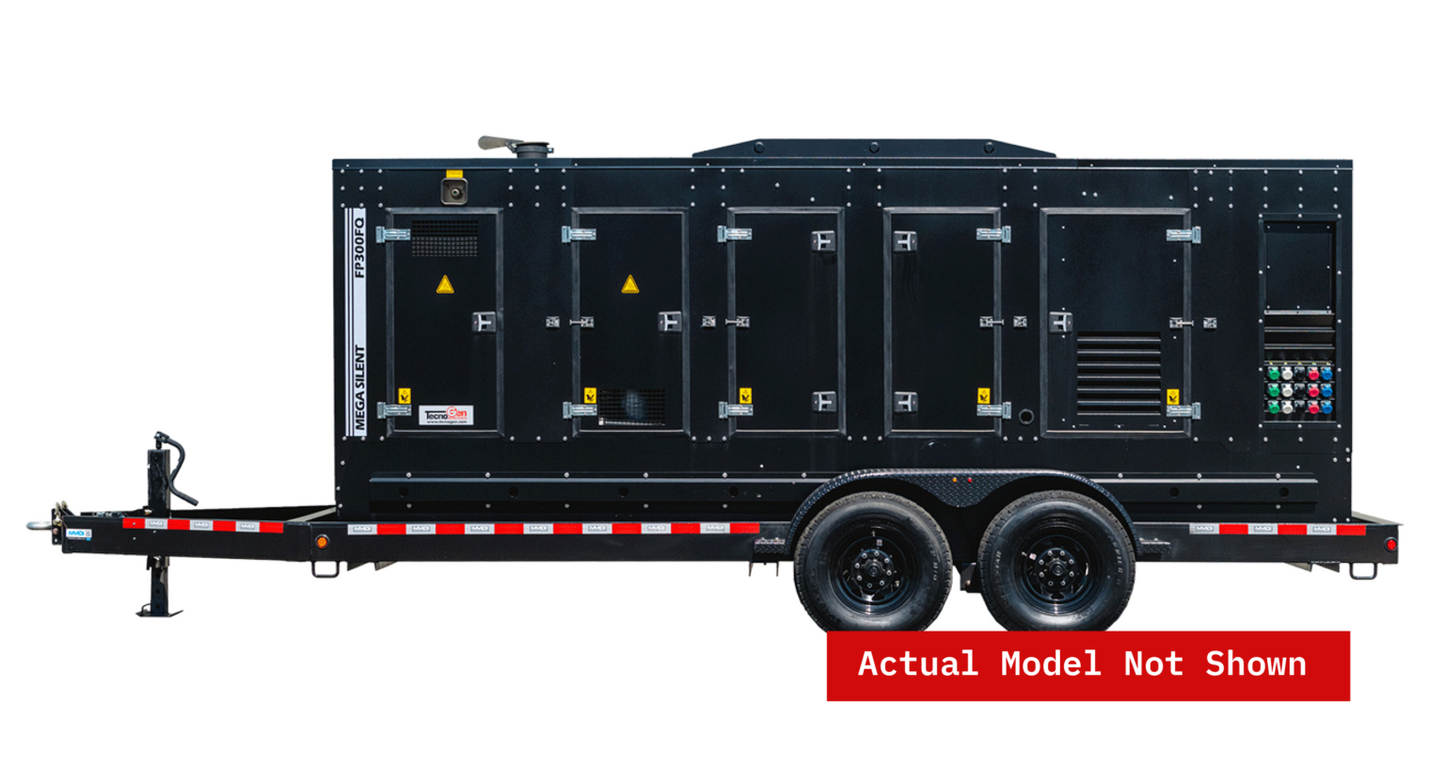

The internal fuel capacity is 528 gallons allowing for a run time of up to 19 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.

SPECIFICATION

• PRIME POWER: 572 kW
• SOUND LEVEL @ 23': 64 DBA
• CONTROLLER: Deep Sea
• ALTERNATOR: Leroy Somer
• ENGINE MODEL: Volvo TWD1673GE
• EPA LEVEL: Tier 4F
• HORSEPOWER: 809
• FUEL CAPACITY: 528 Gallons
• RUN TIME @ 75%: 19 Hours
• LENGTH: 197"
• WIDTH: 83"
• HEIGHT: 101"
• WEIGHT: 24,991 lbs

GENERATOR SPECS

• PRIME (kW): 572
• STANDBY (kW): 630
• RPM: 1800
• VOLTAGE 1PH: N/A
• VOLTAGE 3PH: 480/277V 208/120V
• FREQUENCY (Hz): 60
• CONTROLLER BRAND: Deep Sea
• CONTROLLER MODEL: DSE8610
• ALTERNATOR MAKE: Leroy Somer
• ALTERNATOR MODEL: LSA 49.3S4
• SYSTEM VOLTAGE: 24V
• SOUND LEVEL @ 23 FEET: 64

AMPS

• SINGLE PHASE 120V zz (P.F. 0,8): N/A
• SINGLE PHASE 240V (P.F. 0,8): N/A
• THREE PHASE 208V (P.F. 0,8): 1987
• THREE PHASE 240V (P.F. 0,8): 1722
• THREE PHASE 480V (P.F. 0,8): 861

ENGINE SPECS

• MAKE: Volvo
• MODEL: TWD1673GE
• EPA LEVEL: Tier 4F
• No. Cylinders: 6
• GROSS HP: 809
• EXTERNAL FUEL VALVE: YES
• FUEL CONTAINMENT: 110%

FUEL CONSUMPTION

• FUEL CAPACITY (Gallons): 528
• 75%: 28.13 gal/h
• RUN TIME @ 75%: 19

DEF

• DEF tank capacity gal.: 42

WEIGHTS AND DIMENSIONS
SKID W/O TRAILER

• Dry WEIGHT (lbs.): 20944
• Wet WEIGHT (lbs.): 24991
• LENGTH (in.): 197
• WIDTH (in.): 83
• HEIGHT (in.): 101

MEGA SILENT SERIES

By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

FOR THE ENTERTAINMENT WORLD

Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
