TecnoGen Movie Master Series 160 kW FP1400FQ-S Generator
DESCRIPTION
TecnoGen’s Movie Master generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 160 kW of prime power. The Movie Master series has the same canopy with standard design for your current trailer and replacement of current units. Other standard features include 3 position voltage selector switch, battery charger, 6 rows of cams (female), 2 additional neutral (male) and 2 additional ground (male).

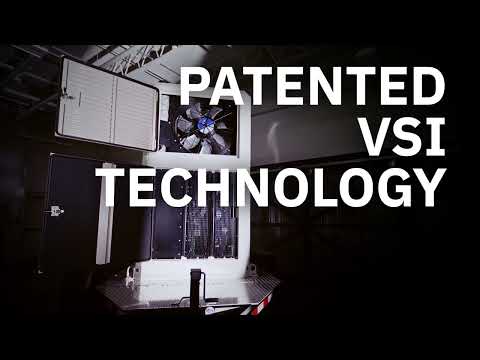

The specially designed FQ canopies and containers are designed to meet max operating ambient temperature of 120°F at continuous load. By using the VSi technology to adjust the fans to only cool as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient and quietest generators on the market.
Key Features
- Prime Power: 160 kW, with 176 kW standby, perfect for high-power demand.
- Low Noise: Operates at just 50 dBA at 23 feet, ideal for sensitive locations.
- Versatile Voltage Selection: Easily switch between single-phase and three-phase outputs.
- Fuel Efficiency: VSi fan technology optimizes cooling, reducing fuel usage.
- High-Performance Engine: FPT NEF 67 engine with 241 HP, EPA Tier 4F compliant.
Detailed Specifications
General Specifications
| Specification | Details |
|---|---|
| Prime Power | 160 kW |
| Standby Power | 176 kW |
| Noise Level @ 23' | 50 dBA |
| Controller | Deep Sea DSE8610 |
| Engine Model | FPT NEF 67 |
| Alternator Model | Leroy Somer LSA 44.3L12 |
| Fuel Consumption (75%) | 8.09 gal/h |
| DEF Tank Capacity | 20 gallons |
Electrical Specifications
| Voltage | Amps |
|---|---|
| Single Phase 120V | 604 x 2 |
| Single Phase 240V | 604 |
| Three Phase 208V | 555 |
| Three Phase 240V | 482 |
| Three Phase 480V | 241 |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Make | FPT |
| Engine Model | NEF 67 |
| Horsepower | 237 HP |
| Cylinders | 6 |
| EPA Compliance | Tier 4F |
Fuel Specifications
| Specification | Details |
|---|---|
| Fuel Capacity | 1,109 gallons |
| Run Time (75% Load) | 20 hours |
| External Fuel Valve | Yes |
Dimensions and Weight
With Trailer
| Specification | Details |
|---|---|
| Length | 102 in. |
| Width | 49 in. |
| Height | 89 in. |
| Dry Weight | 7,165 lbs |
Without Trailer
| Specification | Details |
|---|---|
| Length | 176 in. |
| Width | 72 in. |
| Height | 121 in. |
| Dry Weight | 10,365 lbs |
| Wet Weight | 11,998 lbs |
In Package
- TecnoGen Movie Master Generator
- FPT NEF 67 Engine
- Leroy Somer Alternator
- Deep Sea DSE8610 Controller
- Installation and Maintenance Manual
