DESCRIPTION
The radiometric FLIR Duo camera series, designated with the letter “R” in the model name, produces the line’s highest temperature accuracy and detail yet. The FLIR Duo R senses and records highly accurate, calibrated non-contact temperature measurements in every single pixel.

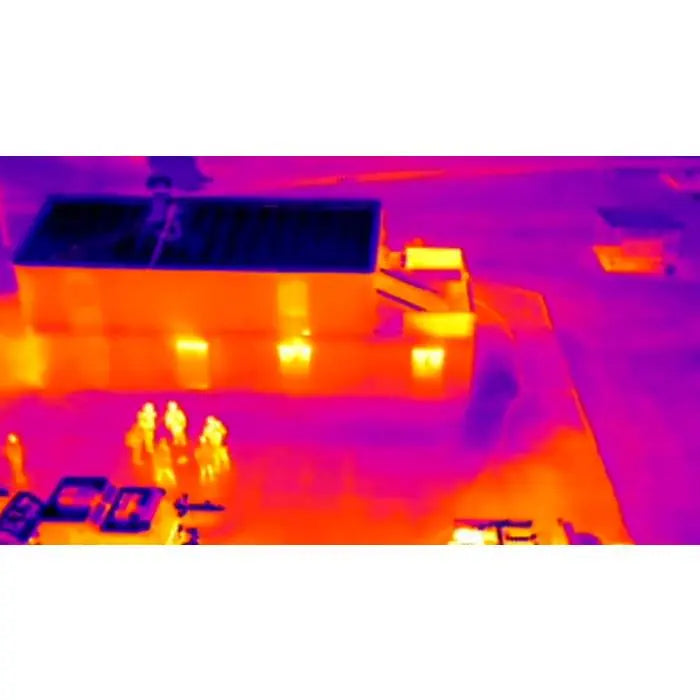

Aerial temperature mapping has never been as precise or as quick. That all translates to an unsurpassed ability to read even minute temperature differentials. In the FLIR tradition, setup and calibration are extremely simple and fast, in spite of the camera’s sophistication.
FEATURES
DUAL-SENSOR IMAGING IN A COMPACT PACKAGE
Duo combines thermal imaging with color video in a compact, lightweight package. Its analog and HDMI outputs let you view thermal, visible or Picture-in-Picture imagery.
EASY CAMERA CONTROL AND ON-BOARD RECORDING
Not only does Duo capture digital video files, it can also capture still images for later analysis in FLIR Tools software.
POWERFUL CAMERA CONTROL & CONFIGURATION
Remotely control up to two camera functions with PWM inputs and configure your camera's recording and control settings over Bluetooth with the intuitive FLIR app.
SPECIFICATIONS
- Dimensions 41 × 59 × 29.6 mm
- Spectral Band 7.5 – 13.5 µm
- Thermal Frame Rate 7.5 Hz (NTSC); 8.3 Hz (PAL)
- Thermal Imager Uncooled VOx Microbolometer
- Thermal Measurement Accuracy +/-5°C
CONNECTIONS & COMMUNICATIONS
- Digital Video Output Micro-HDMI; HDMI video at 1080p
- MAVLink Interface Yes
- Mini-USB Connector Power in, Analog video out, PWM connections, MAVLink control
- Remote Control Two PWM Controls (assigned in App)
- Storage Media Micro-SD card
ENVIRONMENTAL & APPROVALS
- Operating Temperature Range 0°C to +50°C
- Operational Altitude +12,000 feet
- Storage Temperature Range -20°C to +60°C
IMAGING & OPTICAL
- Image Optimization for sUAS Yes
- Lens 57° × 44°
- MSX Enhancement Yes
- Multiple Color Palettes Yes – Adjustable in App and via PWM
- Picture-in-Picture Yes
- Sensor Resolution 160 × 120
- Visible Camera FOV 90°
- Visible Camera Resolution 1920 × 1080
POWER
- Input Voltage 5.0 - 26.0 VDC
- Power Dissipation [peak] 2.2 W (3.3 W)
IN THE BOX
- 1x FLIR Duo R
