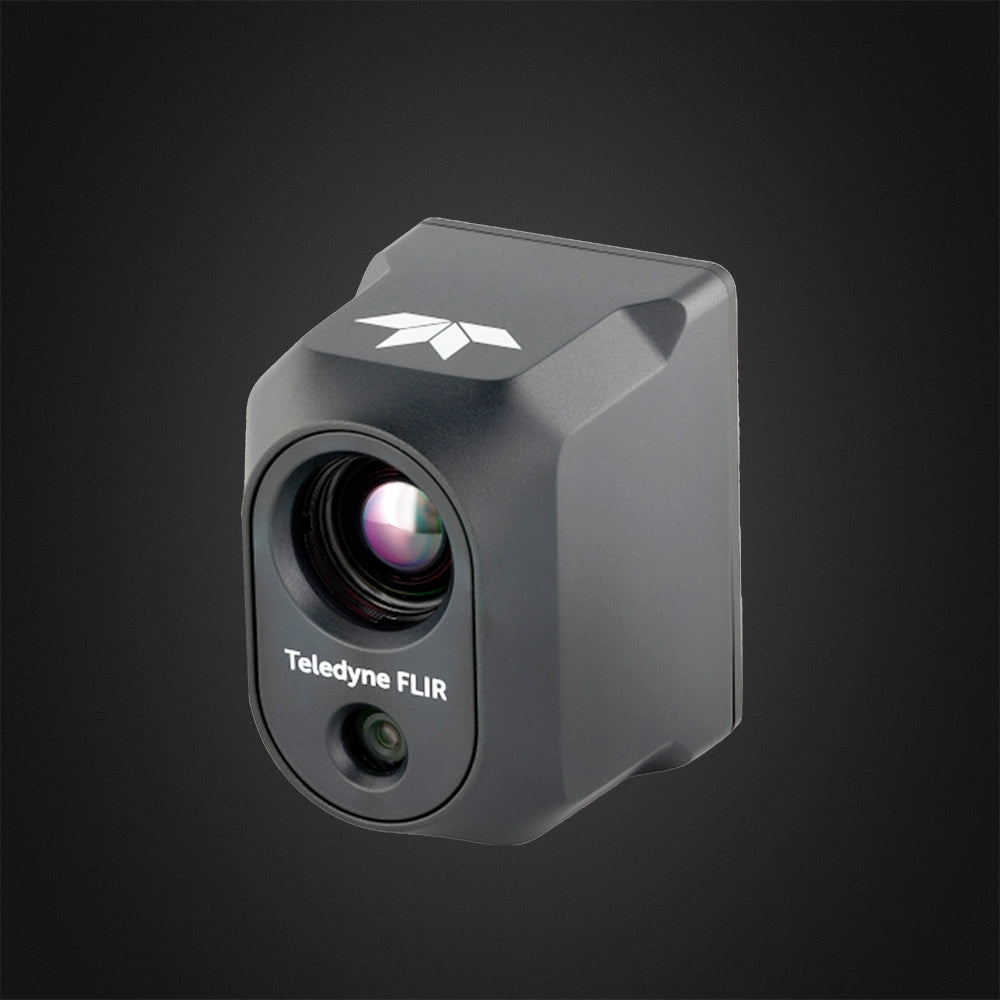

Teledyne FLIR Hadron™ 640R Thermal Camera

Teledyne FLIR Hadron™ 640R Thermal Camera

Regular price $1.00 USD
Regular price Sale price $1.00 USD
Sale Sold out
Shipping calculated at checkout.

Teledyne FLIR Hadron™ 640R Thermal Camera


DESCRIPTION

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

    SPECIFICATIONS

    Thermal Imaging Detector: Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI
    Temperature Accuracy: ±5°C less, over 0°C to 100°C range.
    RADIOMETRY
    Temperature Accuracy: ±5°C less, over 0°C to 100°C range.
    IMAGING & OPTICAL
    EO Camera Optics: Effective Focal Length (EFL) 4.8 mm, 67° HFOV, F/# 1/2.3
    EO Camera Sensor: 9248 x 6944 pixels (64.2 MP), 0.7 µm pitch, 4-lane MIPI
    EO Camera Video: Full resolution @ 60 Hz
    IMU: ICM20602, I2C or SPI (selectable)
    IR Camera Optics: Effective Focal Length (EFL) 13.6mm, 32° HFOV, F/# 1.0
    IR Camera Video: Full resolution @ 60Hz
    Thermal Imaging Detector: Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI

    CONNECTIONS & COMMUNICATIONS

    Software Drivers:
    NVIDIA Jetson Nano
    Qualcomm Snapdragon rb5
    Qualcomm Snapdragon 865
    *Contact Teledyne FLIR for latest software drivers

    ELECTRICAL

    Electrical Interface
    Hirose DF40C-50DP-0.4V (51)
    Example of mating connector: DF40HC(2.5)-50DS-0.4V (51)
    Power: 5V, typical power dissipation <1800 mW, Max <2900 mW

    MECHANICAL

    Mechanical Interface: Screw mount to back plate
    Size (w/o lens): 35 x 49 x 45 mm (1.38” x 1.93” x 1.77”)
    Weight: 56 g

    ENVIRONMENTAL & APPROVALS

    Environmental Sealing: IP54 (with the rear interfaces sealed)
    Operational & Storage Temperature: -20°C to +60°C
    Tested EMI Performance: FCC part 15 Class B

    EXPORT DESIGNATIONS

    ECCN Code
    6A003.b.4.b (Fast Video, 60Hz)
    6A993.A (Slow Video, 9Hz)
