FLIR Systems

Teledyne FLIR SIRAS

Teledyne FLIR SIRAS

$9,695.00
$9,695.00
Sale Sold out
Customizable
Fast
24/7 Support
  • No Geofencing: Fly unrestricted in any environment, enabling flexible operations for varied mission requirements.
  • Dual Thermal and Visible Imaging: Features a Vue® TV128 thermal camera and a 16MP visible camera with 128x zoom for versatile imaging capabilities.
  • Quick Deployment: Achieve takeoff in under 60 seconds, streamlining rapid response.
  • Extended Flight Duration: 31-minute flight time with hot-swappable batteries for uninterrupted operation.
  • Enhanced Data Security: Securely stores imagery on a microSD card with no cloud connectivity, ensuring data integrity and privacy.
View full details

Products Description

Teledyne FLIR SIRAS

DESCRIPTION

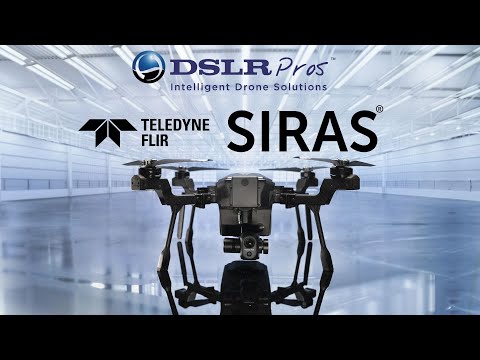

The Teledyne FLIR SIRAS is a professional UAV designed for demanding industrial, law enforcement, and search and rescue missions. This IP54-rated drone features a rugged, all-weather construction with an interchangeable payload system, making it ideal for use in diverse environments. The dual thermal and visible camera payload, including the Vue® TV128 with MSX® technology, provides high-resolution thermal and visual imagery for real-time situational awareness and post-processing. A 16MP visible camera with 128x zoom captures detailed images, while the FLIR Boson® thermal camera offers radiometric imaging for precise temperature measurement and compatibility with FLIR Thermal Studio™ software.

Built with data security in mind, SIRAS keeps all data stored on an internal microSD card and does not require an online profile or cloud connection, ensuring a secure data chain of custody. The SIRAS drone is quick to deploy, with a takeoff readiness time of less than one minute, and has a maximum flight duration of 31 minutes, providing professionals with reliable aerial support when and where they need it.

Key Features

  • Flexible and Secure Operations: No geofencing restrictions, with secure data storage on an internal microSD card.
  • Dual Camera Capabilities: Vue® TV128 thermal camera with MSX® technology and 16MP visible camera with 128x zoom for comprehensive imaging.
  • Rugged and Quick to Deploy: IP54-rated with a 60-second readiness time, enabling rapid response in various field conditions.
  • Extended Flight Time: 31-minute maximum flight duration with hot-swappable batteries, ensuring minimal downtime.
  • Future-Ready: Features a quick-connect, swappable gimbal for easy payload customization in future missions.

Detailed Specifications

Aircraft Specifications

Feature Details
Takeoff Readiness <1 minute after power-on
Flight Time 31 minutes max, 28 minutes hovering
Ground Speed Max 18 m/s (40 mph), Default 6 m/s (13.4 mph)
Wind Resistance 5 m/s (11.1 mph)
Ingress Protection IP54
Geo-Fencing None
Collision Avoidance Front radar up to 30m, HFOV 100°, VFOV 38°

Imaging & Optical

Feature Details
EO Camera Resolution 16MP, 20MP mapping mode, 2MP at 32x zoom
IR Camera Resolution 640 x 512 radiometric, 60 Hz
FLIR MSX® Yes, real-time visible-light overlay on thermal
Digital Zoom 20x for both EO and IR

Gimbal

Feature Details
Control Speed Max 120°/sec
Control Range -90° to 15°
Control Accuracy +/- 0.02°

Remote Controller & Transmission

Feature Details
Operating Frequency Dual Band: 2.4 GHz / 5.8 GHz
Operating Distance Up to 9 km (6 miles)
Transmission Quality 720P, 30 fps
Display Brightness 1,000 lumens

Battery

Feature Details
Type LiPo 4S, 6,000 mAh
Hot Swappable Yes
Charging Time 45 minutes
Flight Warning 20% visual/audio alert, 10% return-to-home

Storage

Feature Details
SD Storage 64 GB microSD card
Internal Storage 1 GB

In Package

  • 1x SIRAS Drone: Complete with IP54-rated body, dual cameras, and quick-connect gimbal.
  • 1x Remote Controller: With built-in screen and dual-band connectivity.
  • 2x Intelligent Batteries: 6,000 mAh capacity, hot-swappable for continuous operation.
  • 1x Battery Charger: Rapid charger with a 45-minute charging time.
  • 1x Soft Case: For secure and convenient transport and storage.
