Product Description

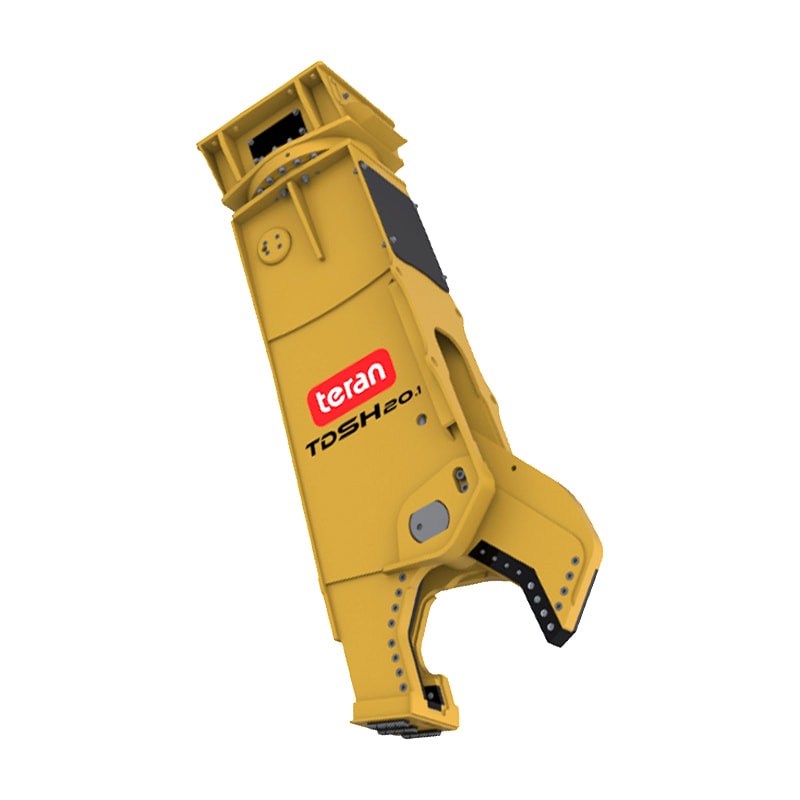

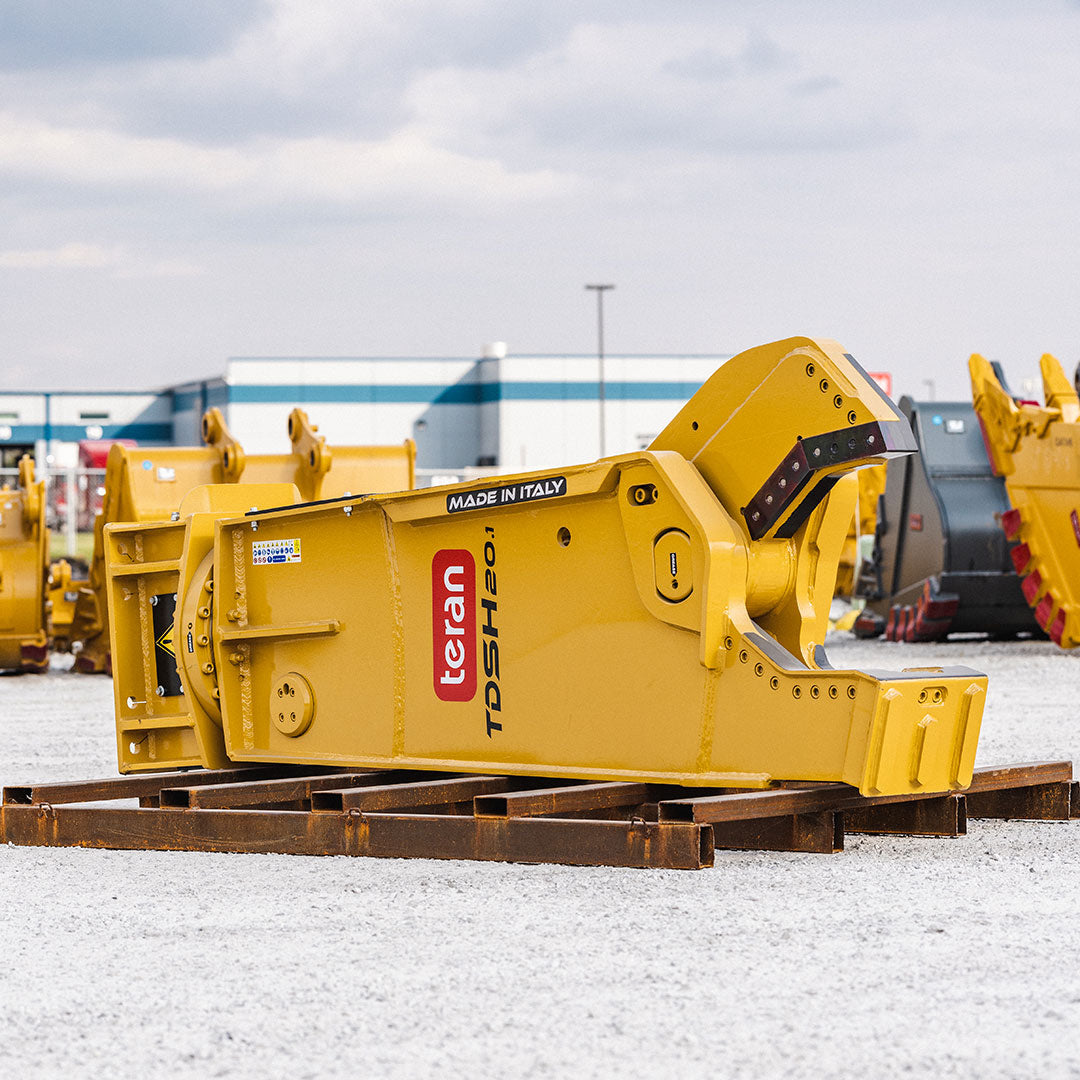

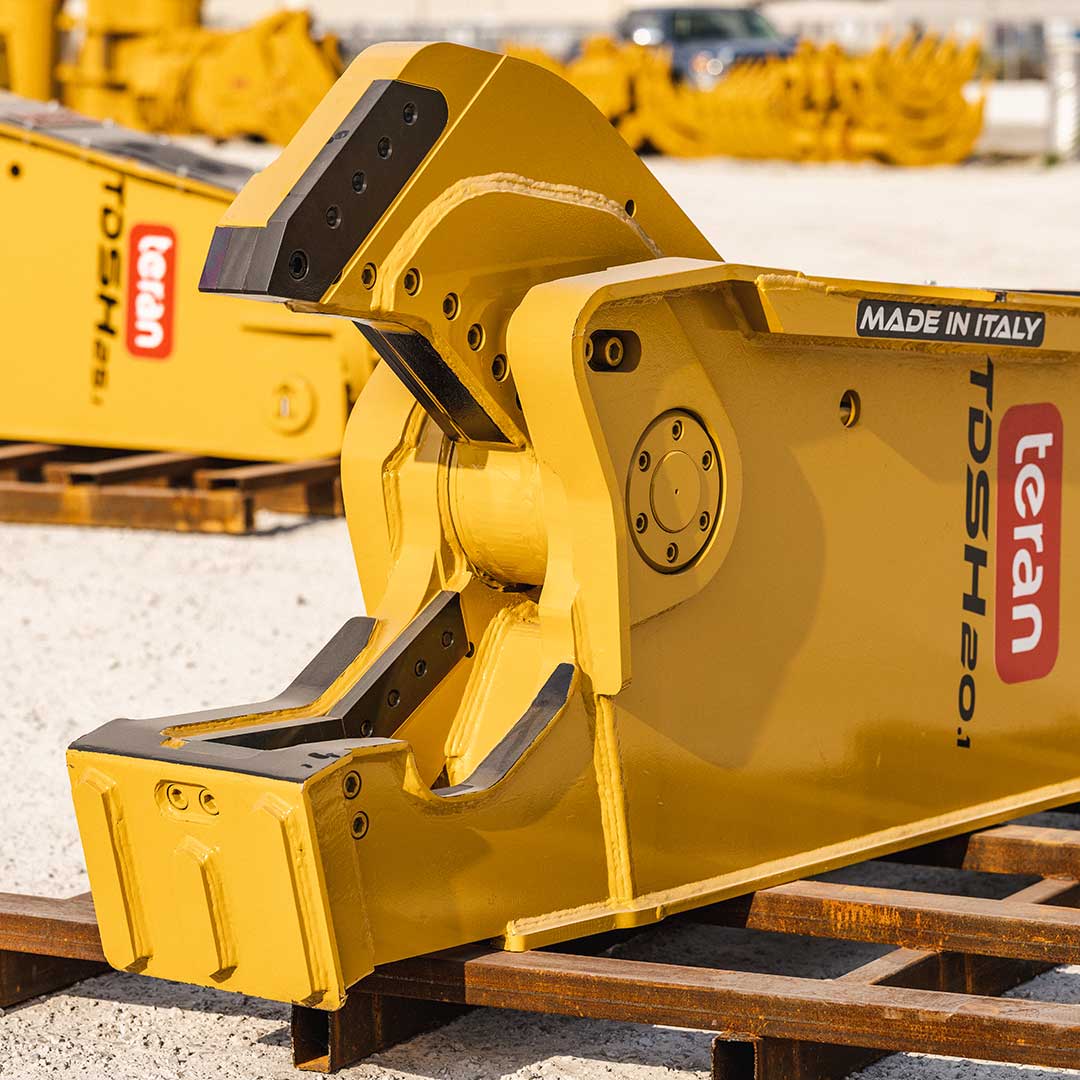

TERAN 4475 lbs TDSH20 Rotating Shear, Excavator Attach
DESCRIPTION
The Teran TDSH20 Rotating Shear combines a compact design with robust performance to handle demanding demolition and material-handling tasks. With a 530mm cutting opening and a 495mm depth, this shear efficiently processes concrete, steel, and scrap. Its 2785mm length strikes the perfect balance between reach and maneuverability, making it suitable for confined or complex job sites.
Designed for excavators weighing between 25,000 and 61,700 lbs, the TDSH20 delivers precise cutting action, supported by a high-pressure hydraulic system and an integrated rotation mechanism. Whether demolishing structures or processing materials, this shear ensures reliable and efficient operation for any project.
Key Features
- Efficient Cutting Power: 530mm opening and 495mm depth for effective demolition and material processing.
- Compact & Versatile Design: 2785mm length ensures maneuverability in tight spaces and optimal reach.
- Durable Performance: Built to handle heavy-duty use with excavators weighing 20-28 tons.
- Hydraulic Precision: High oil pressure (340 Bar) and capacity (200/220 L/min) for reliable operation.
- Wide Compatibility: Fits major excavator brands and models, including Caterpillar, Komatsu, Volvo, and more.
Detailed Specification
| Specification | Details |
|---|---|
| Cutting Opening | 530 mm |
| Length | 2785 mm |
| Cutting Depth | 495 mm |
| Weight | 5,578 lbs |
| Oil Pressure | 340 Bar |
| Oil Capacity | 200/220 L/min |
| Rotation Oil Pressure | 120/130 Bar |
| Rotation Oil Capacity | 20/30 L/min |
| Excavator Compatibility | 25,000 - 61,700 lbs |
| Supported Models | 320D, 321D, 323F, 325F, and all 20-28 ton excavators |
Compatible Attachments
| Attribute | Details |
|---|---|
| Excavator Models | 319D, 320D, 323F, and all 20-28 ton excavators. |
| Supported Brands | Caterpillar, Komatsu, Volvo, Doosan, Hyundai, JCB, John Deere, and more. |
In Package
- Teran TDSH20 Rotating Shear Attachment
- Integrated Hydraulic Rotation Mechanism
- Owner’s Manual and Installation Guide
