TERAN

TERAN 550" Width TDFPV20 Fixed Pulverizer, Excavator Attach

TERAN 550" Width TDFPV20 Fixed Pulverizer, Excavator Attach

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Wide Opening: 850 mm for efficient concrete and debris pulverizing.
  • Optimal Length: 2300 mm for stability and maneuverability.
  • Compact Width: 550 mm for confined space operations.
  • Heavy-Duty: Designed for 46,000–64,000 lb excavators.
  • Hydraulic Power: Operates at 340 Bar with 220/300 L/min capacity.
View full details

How to get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Products Description

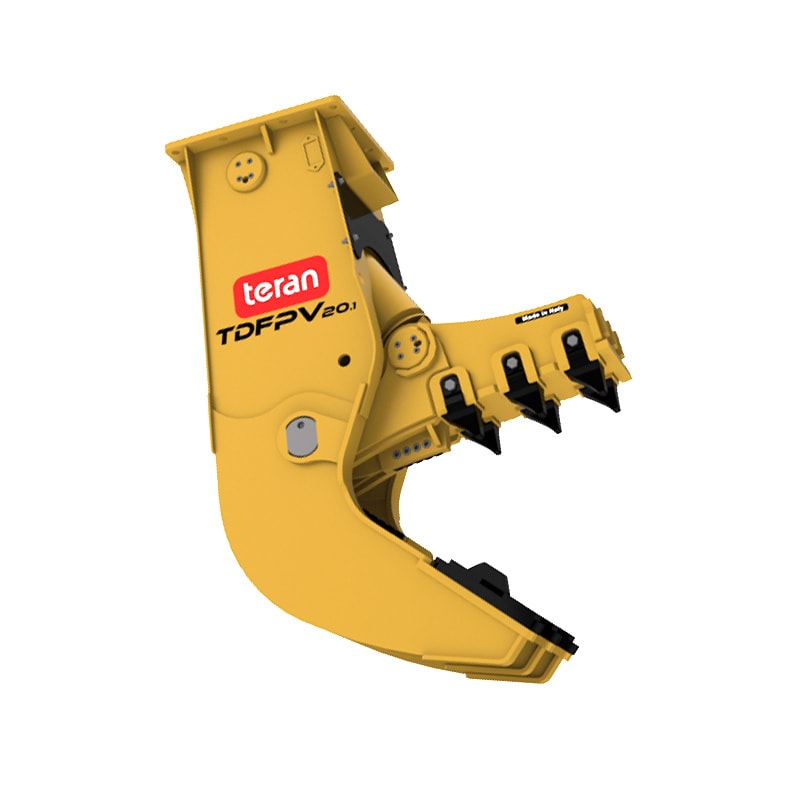

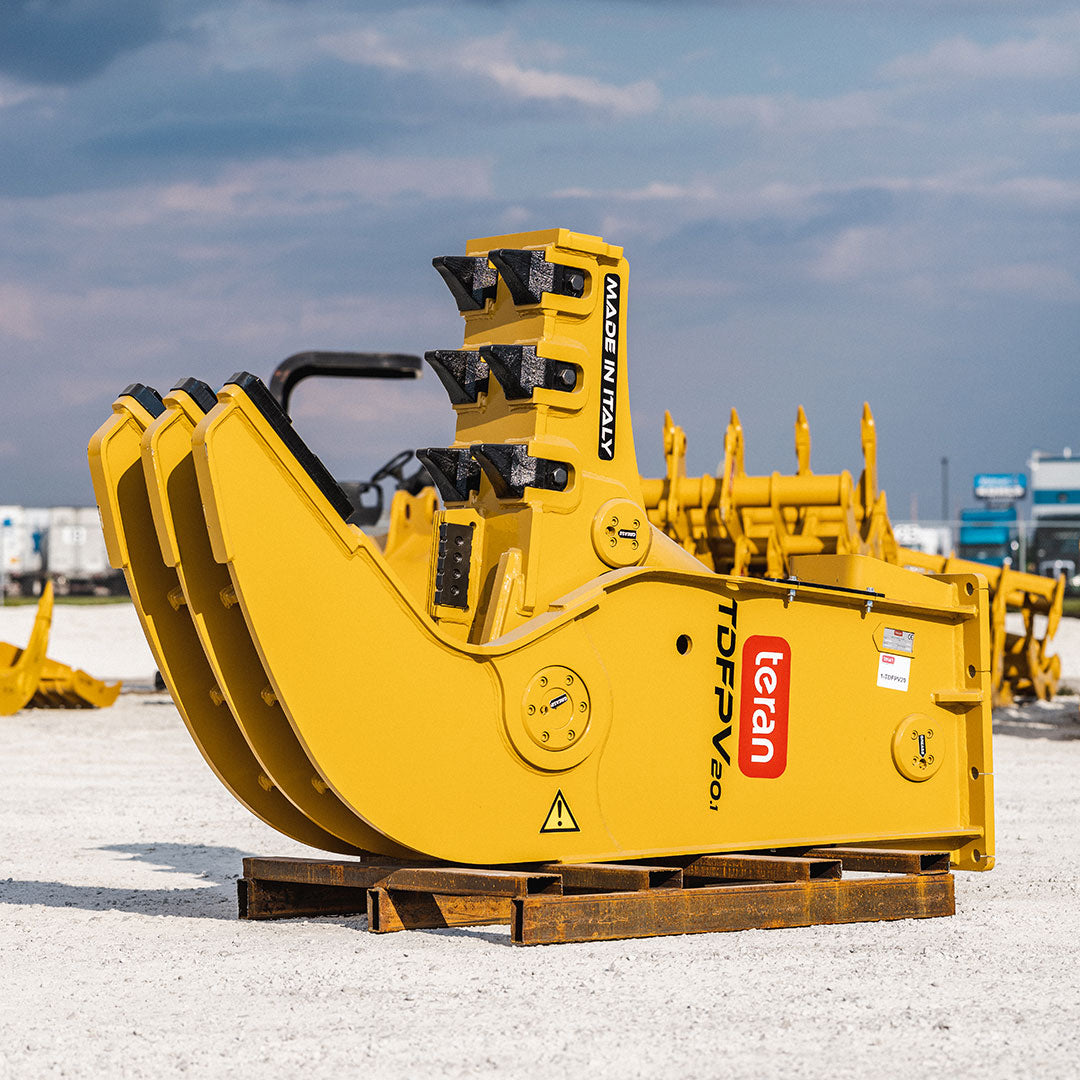

TERAN 550" Width TDFPV20 Fixed Pulverizer, Excavator Attach

DESCRIPTION

The TERAN TDFPV20 Fixed Pulverizer is a robust and efficient attachment designed for demanding demolition and construction projects. With an 850 mm opening, this pulverizer excels in breaking down concrete, rocks, and other materials, ensuring faster and more effective material reduction.

Measuring 2300 mm in length, it provides the perfect balance between stability and reach, while the 550 mm narrow width makes it ideal for operations in confined spaces. Designed for excavators weighing between 46,000 and 64,000 lbs, this heavy-duty attachment ensures reliability and precision in every task.

The TDFPV20 is equipped to handle intense workloads with its 340 Bar oil pressure and 220/300 L/min oil capacity, delivering consistent and powerful hydraulic performance. Its rugged construction and compatibility with a wide range of excavator models make it a versatile addition to any heavy machinery fleet.

Key Features

  • Wide Opening: The 850 mm jaw opening allows for efficient handling of various materials.
  • Compact Width: Narrow 550 mm design facilitates operation in tight and confined spaces.
  • Heavy-Duty Build: Engineered for excavators in the 46,000–64,000 lbs weight range, ensuring exceptional durability and performance.
  • Hydraulic Efficiency: Operates seamlessly with high oil pressure and flow rates.
  • Versatile Compatibility: Suitable for use with leading excavator brands like Caterpillar, Bobcat, Komatsu, and others.
  • Precision Engineering: Perfect for material reduction in demolition and construction projects.

Detailed Specifications

Specification Details
Opening 850 mm
Length 2300 mm
Width 550 mm
Equipment Weight 4520 lbs
Excavator Weight 46,000–64,000 lbs
Oil Pressure 340 Bar
Oil Capacity 220–300 L/min

Applications

  • Demolition: Effective in breaking down large concrete and rock structures.
  • Material Recycling: Processes debris for reuse in construction projects.
  • Heavy Construction: Ideal for large-scale excavation and material handling tasks.

In Package

  • TERAN TDFPV20 Fixed Pulverizer Attachment
  • Installation Manual
  • Maintenance Guide

Manual & Documents
