TERAN 665" Width TDRS1800 Rotating Crusher, Excavator Attach

TERAN 665" Width TDRS1800 Rotating Crusher, Excavator Attach

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High-Capacity Crushing: 825mm opening and 665mm width for efficient processing of concrete, rock, and debris.
  • Compact and Effective Design: 2180mm length ensures maneuverability and optimal performance.
  • Heavy-Duty Performance: Designed for 22-30 ton excavators weighing 48,500 to 66,000 lbs.
  • Hydraulic Precision: Operates at 340 Bar oil pressure with 200/230 L/min capacity for continuous operation.
  • Rotational Flexibility: Integrated mechanism with 120/130 Bar pressure and 20/30 L/min capacity for precise material handling.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

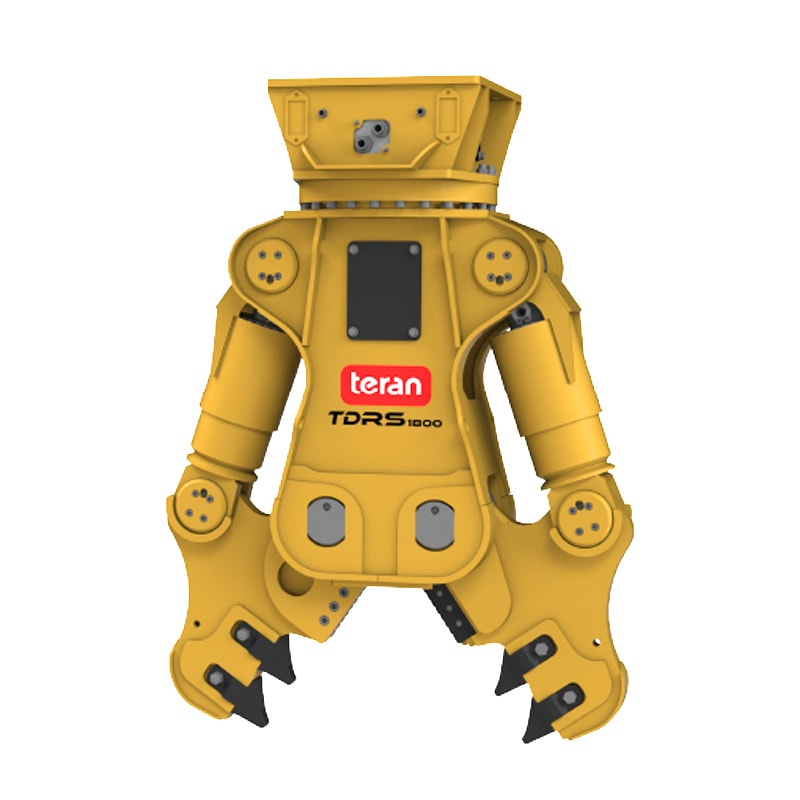

TERAN 665" Width TDRS1800 Rotating Crusher, Excavator Attach

DESCRIPTION

The Teran TDRS1800 Rotating Crusher is a robust excavator attachment engineered for efficient material processing in demolition and recycling applications. With an 825mm cutting opening and a width of 665mm, this crusher is ideal for handling large chunks of concrete, rock, and other debris.

Its 2180mm length provides excellent maneuverability and reach for various tasks. Designed for 22-30 ton excavators weighing between 48,500 and 66,000 lbs, the TDRS1800 delivers reliable and precise performance. Supported by a high-pressure hydraulic system and an integrated rotation mechanism, this attachment ensures optimal crushing and material handling for any project.

Key Features

  • Generous Crushing Capacity: Handles large debris with an 825mm opening and 665mm width.
  • Compact and Versatile: 2180mm length for efficient operation in confined or complex job sites.
  • Durable Hydraulic System: High oil pressure (340 Bar) and 200/230 L/min capacity for continuous performance.
  • Rotational Precision: Integrated rotation mechanism for precise material positioning and handling.
  • Wide Compatibility: Fits major 22-30 ton excavator brands, including Caterpillar, Komatsu, Volvo, and more.

Detailed Specification

Specification Details
Crushing Opening 825 mm
Length 2180 mm
Width 665 mm
Weight 4,189 lbs
Oil Pressure 340 Bar
Oil Capacity 200/230 L/min
Rotation Oil Pressure 120/130 Bar
Rotation Oil Capacity 20/30 L/min
Excavator Compatibility 48,500 - 66,000 lbs (22-30 ton)

Compatible Attachments

Attribute Details
Excavator Models 320D, 323F, 325F, and all 22-30 ton excavators.
Supported Brands Caterpillar, Komatsu, Volvo, Doosan, Hyundai, JCB, John Deere, and more.

In Package

  • Teran TDRS1800 Rotating Crusher Attachment
  • Integrated Hydraulic Rotation Mechanism
  • Owner’s Manual and Installation Guide
