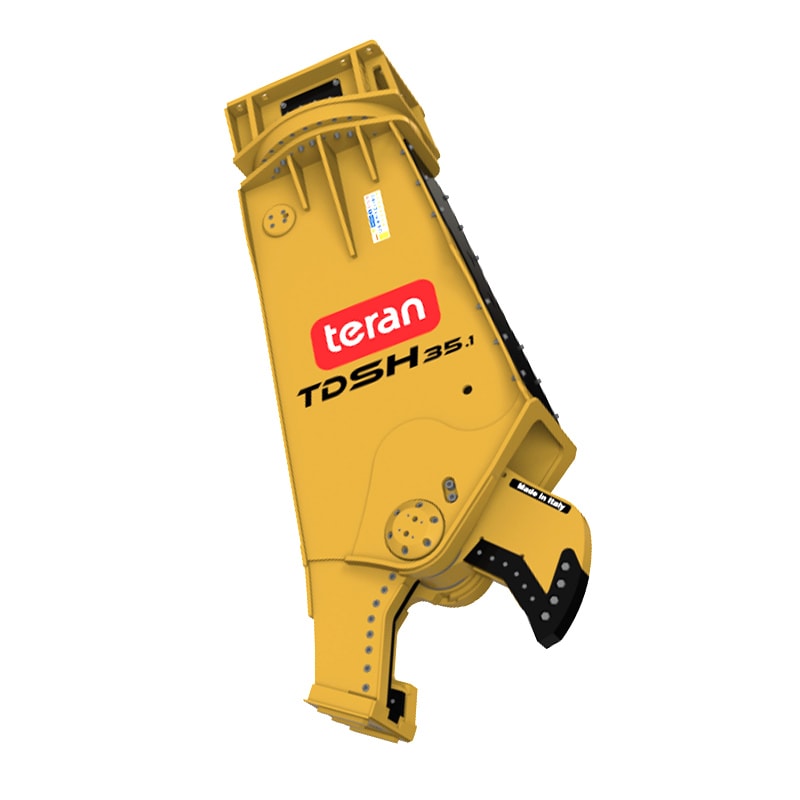

• The TERAN TDSH35 Rotating Shear combines power and precision for efficient demolition tasks.
• With a 690 mm opening, it can cut through various materials, including concrete, steel, and scrap.
• Its 3170 mm length ensures extended reach, allowing operators to work effectively in tight spaces.
• The 570 mm depth provides ample cutting capacity, making it suitable for demolishing structures.
• Designed for excavators weighing between 48500 and 88000 lbs, this shear delivers reliable performance.
• High oil pressure (340 Bar) ensures precise cutting action, even in demanding conditions.
• The generous oil capacity (240/300 L/min) supports continuous operation without overheating.

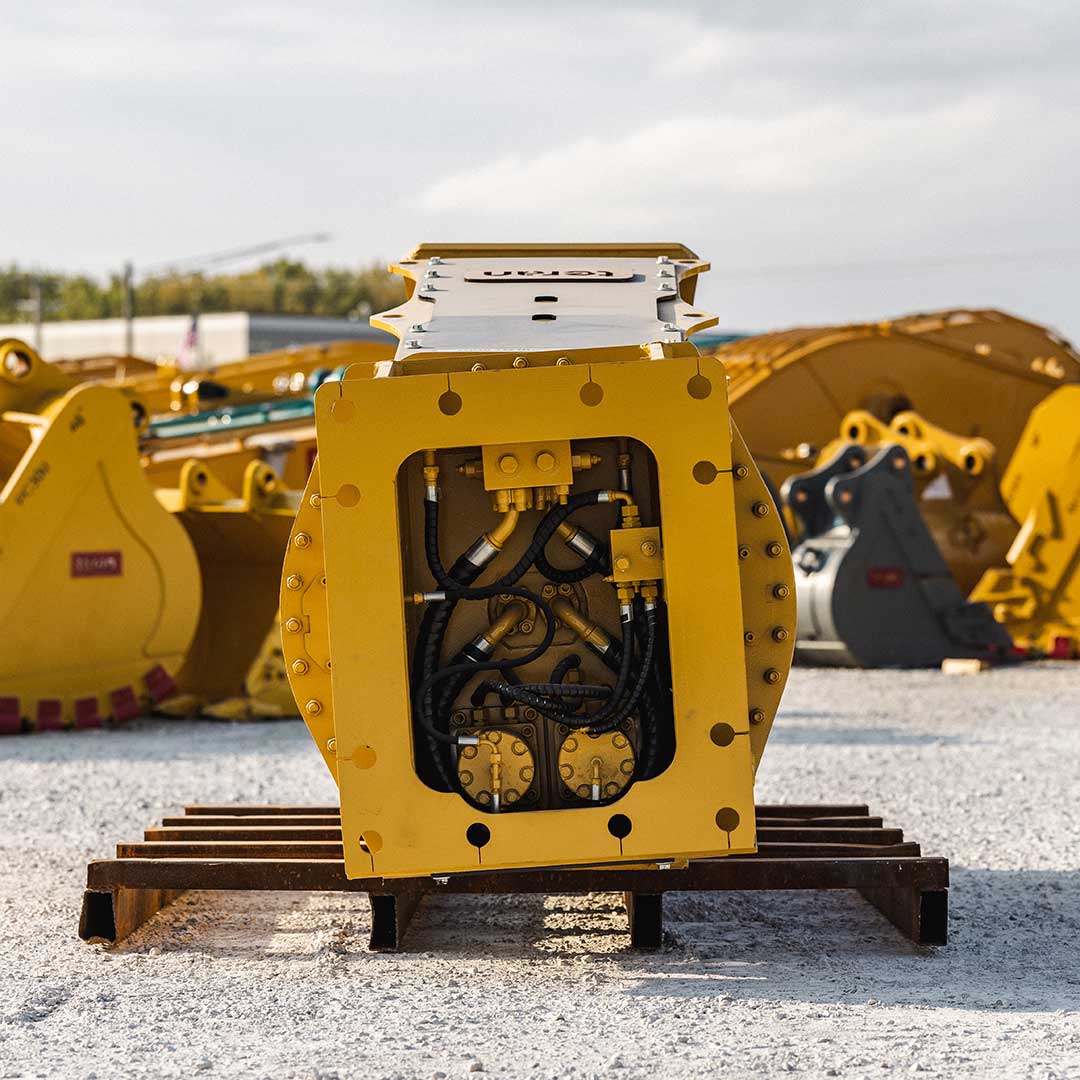

• The integrated rotation mechanism (120/130 Bar, 50/60 L/min) allows precise positioning for material handling.

SPECIFICATIONS

• Opening: 690mm
• Length: 3170mm
• Depth: 570mm
• Excavator Weight at Bucket place: 75000/88000 lbs
• Excavator at Boom place: 48500/66000 lbs
• Weight: 7055 lbs
• Oil Pressure: 340 Bar
• Oil Capacity: 240/300 L/min
• Rotation Oil Pressure: 120/130 Bar
• Rotation Oil Capacity: 50/60 L/min

ATTACHMENT

• 336D
• 336D2
• 336E
• 336F
• 340D2
• 340F
• 345
• 345D
• 349
• 349D
• 349D2
• 349E
• 349F
• 352
• 352F
• ALL 34-40 TON EXCAVATORS
