Product Description
Titan Attachments Arena Spin Harrow | 3 Point Hitch | 75" Width | 35 Hardened Teeth | 273–380 lbs | Horsepower 30 HP | For Tractors
DESCRIPTION

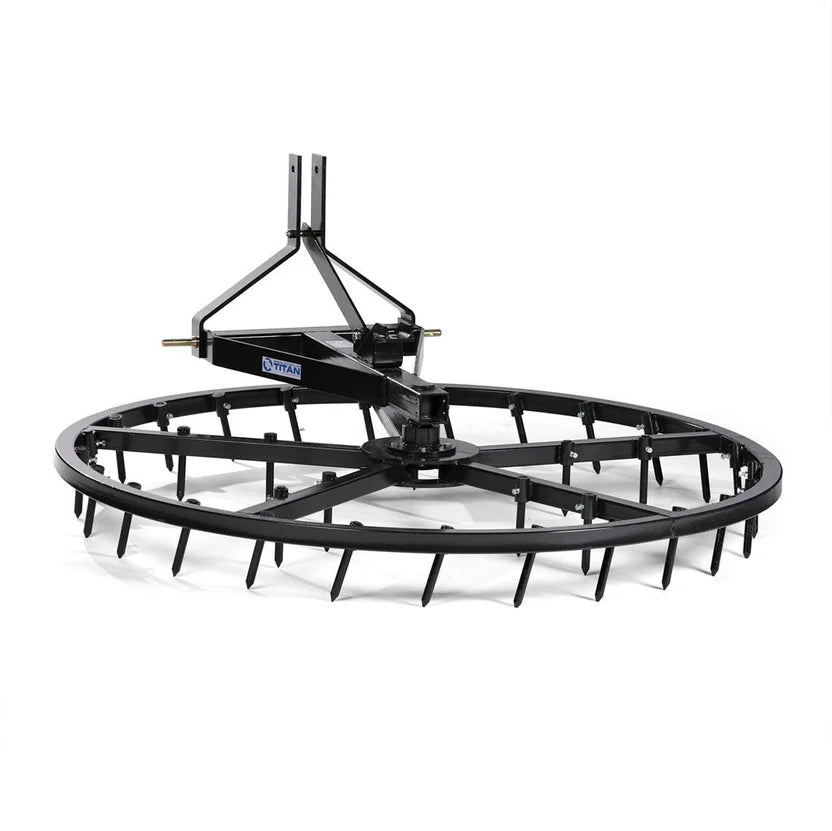

Level and condition your riding arena with precision using the 72" Arena Spin Harrow Groomer, designed for Category 1 tractors and compatible with Titan quick hitches. This self-driven rotary harrow requires no PTO, relying instead on the tractor’s forward motion to activate its rotating base, which mixes and redistributes soil in a circular motion for a smooth, even surface. The 35 hardened steel teeth loosen compacted ground and flatten uneven terrain, improving footing for horses and enhancing water absorption. The optional Rake Kit attaches either directly to your tractor’s 3-point hitch or to the harrow itself, offering 2.5" depth adjustability via a spring-loaded lever for precise grooming in a single pass. Built from 2" square steel tubing and finished in powder-coated black, this durable implement is ideal for equestrian arenas, training rings, and show grounds.
Key Features

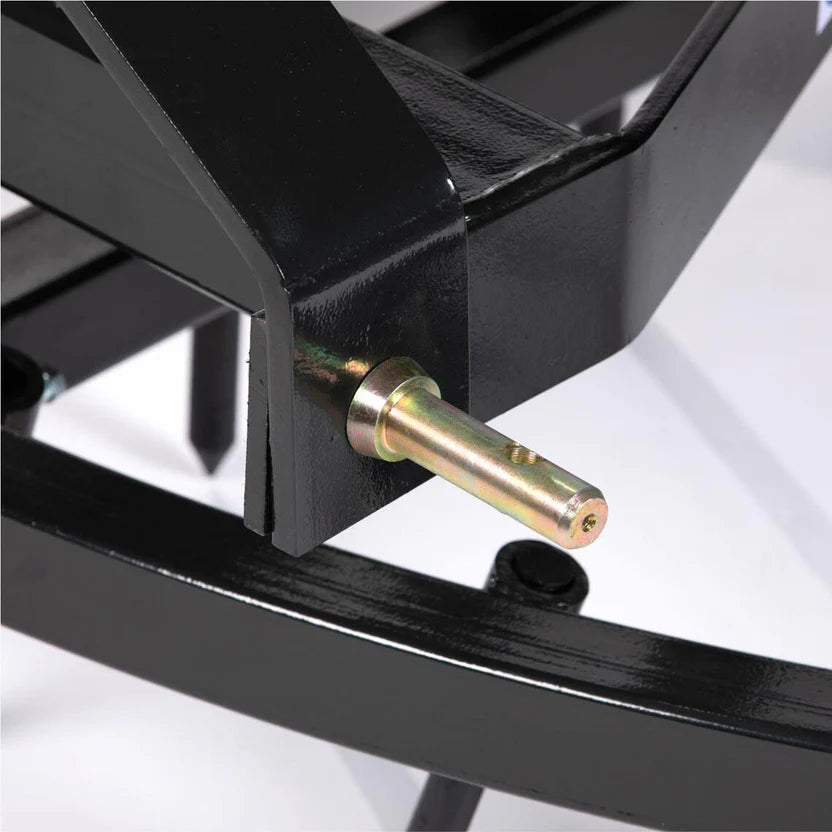

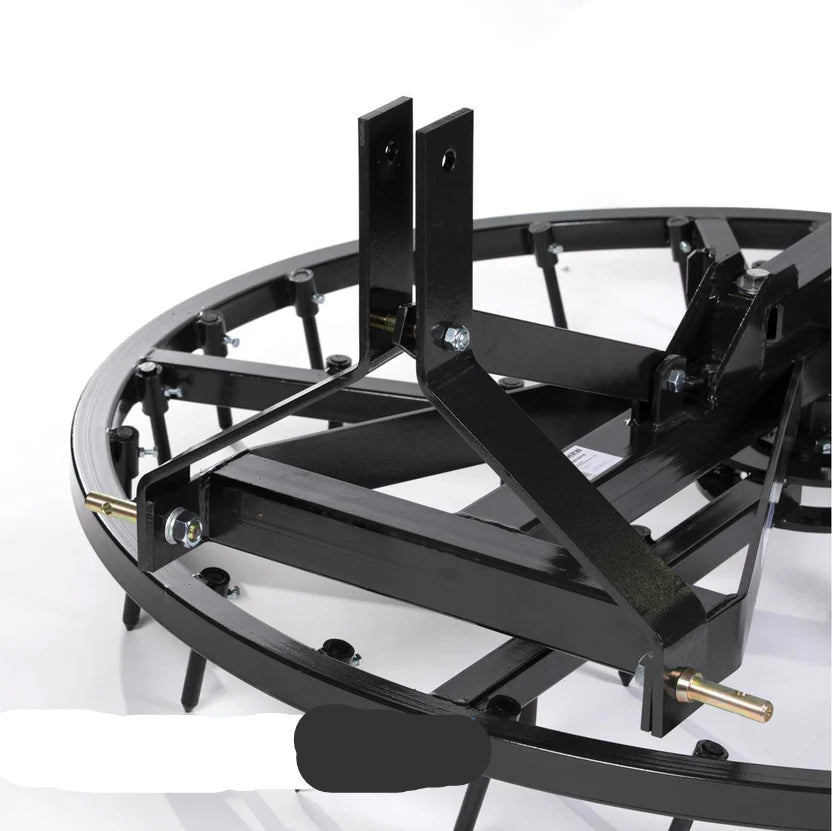

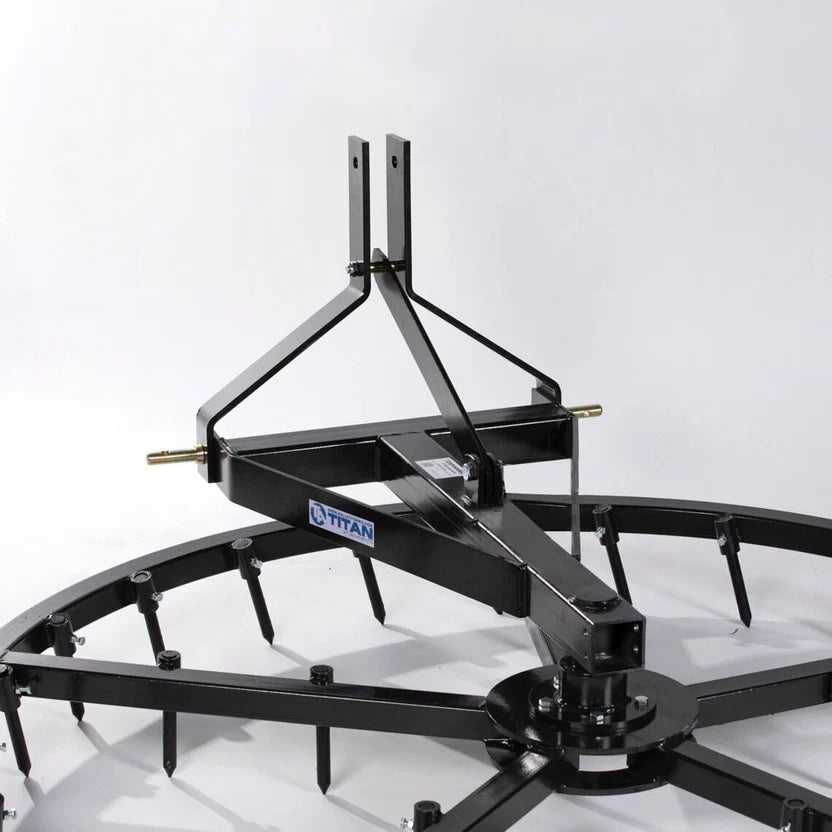

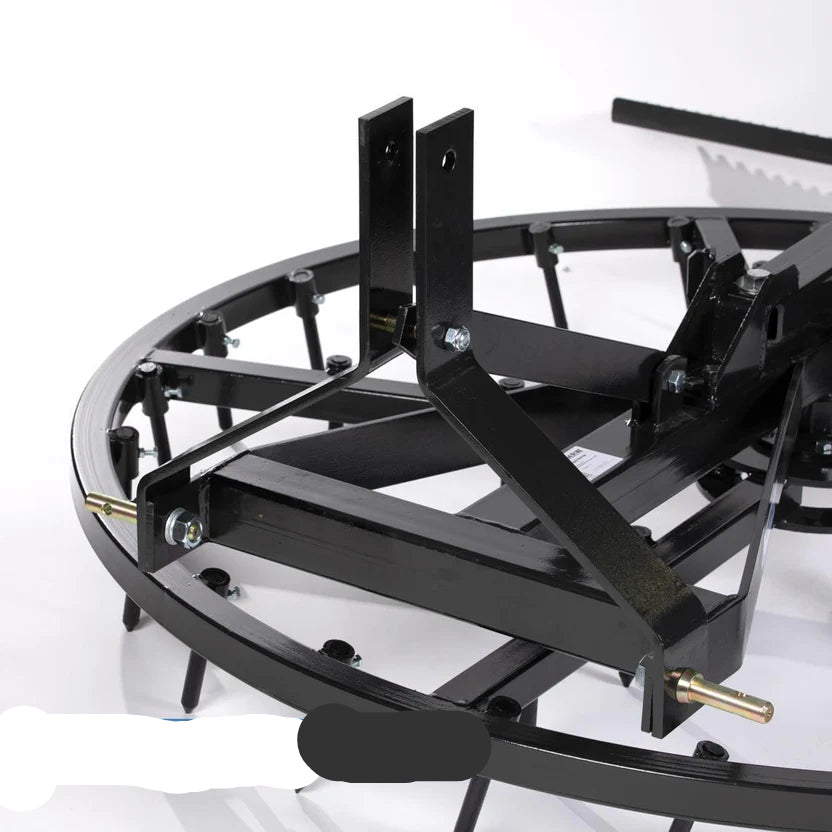

- Fits Category 1 Tractors (30 HP Recommended) Compatible with standard 3-point hitch systems and Titan quick hitches.
- Self-Driven Rotary Harrow (No PTO Required) Rotates via tractor motion to mix and level soil.

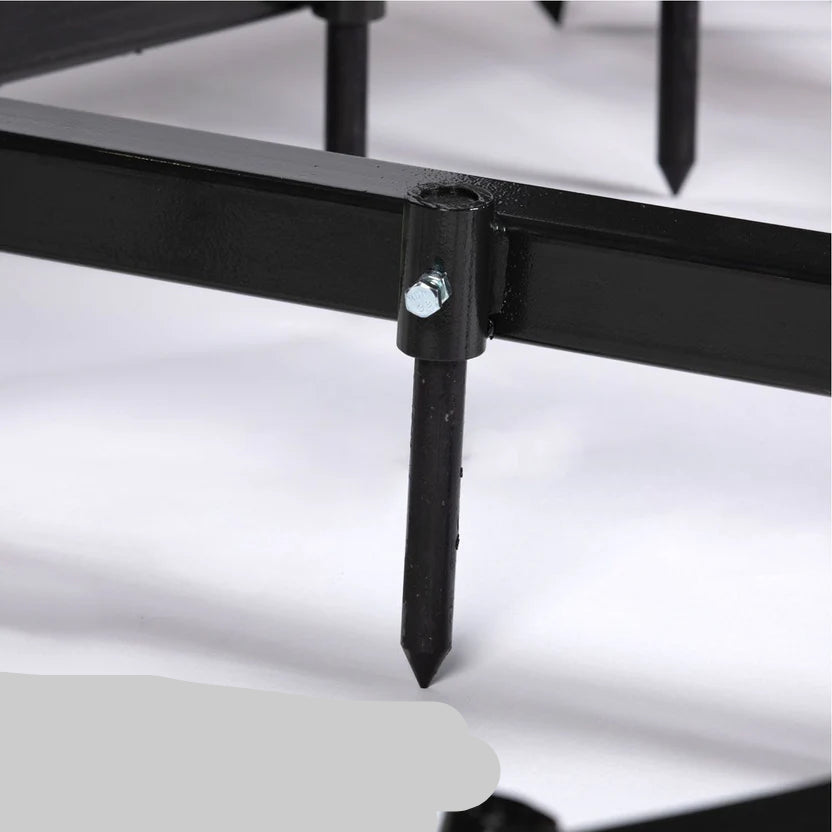

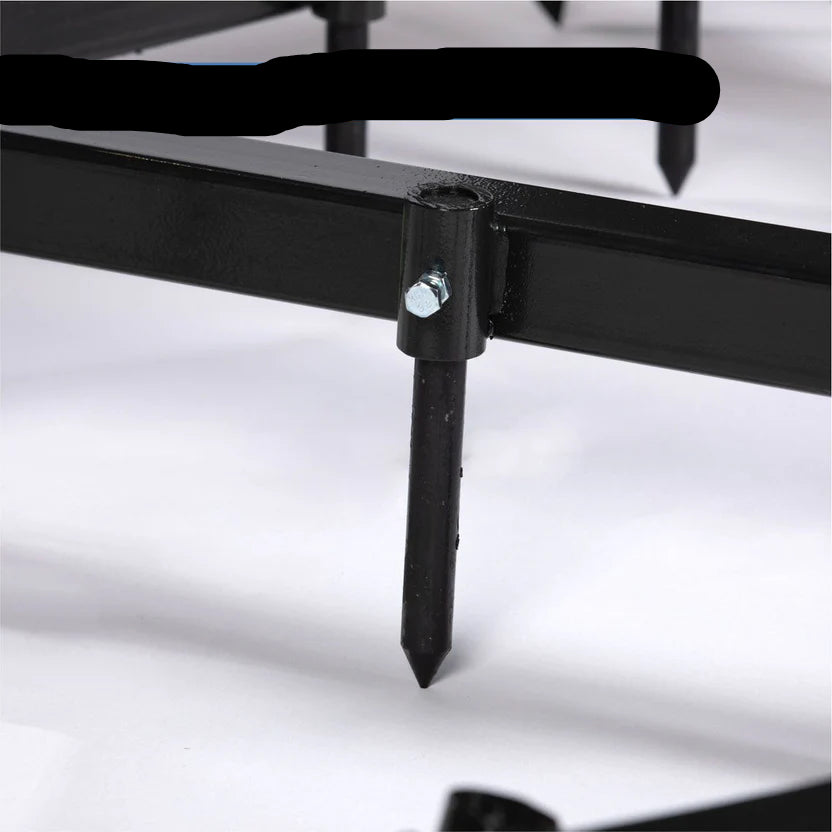

- 35 Hardened Steel Teeth Loosens compacted ground and redistributes surface material.
- 72" Harrow Diameter Covers large areas efficiently with consistent grooming.

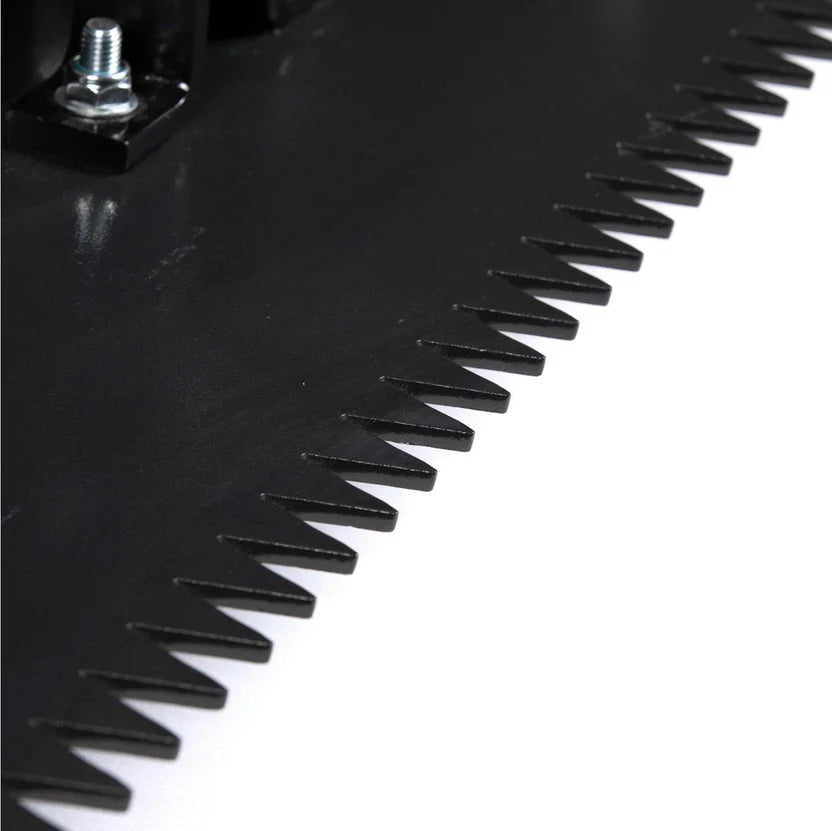

- Optional Rake Kit Attachment Connects to tractor or harrow with 2.5" depth adjustability.

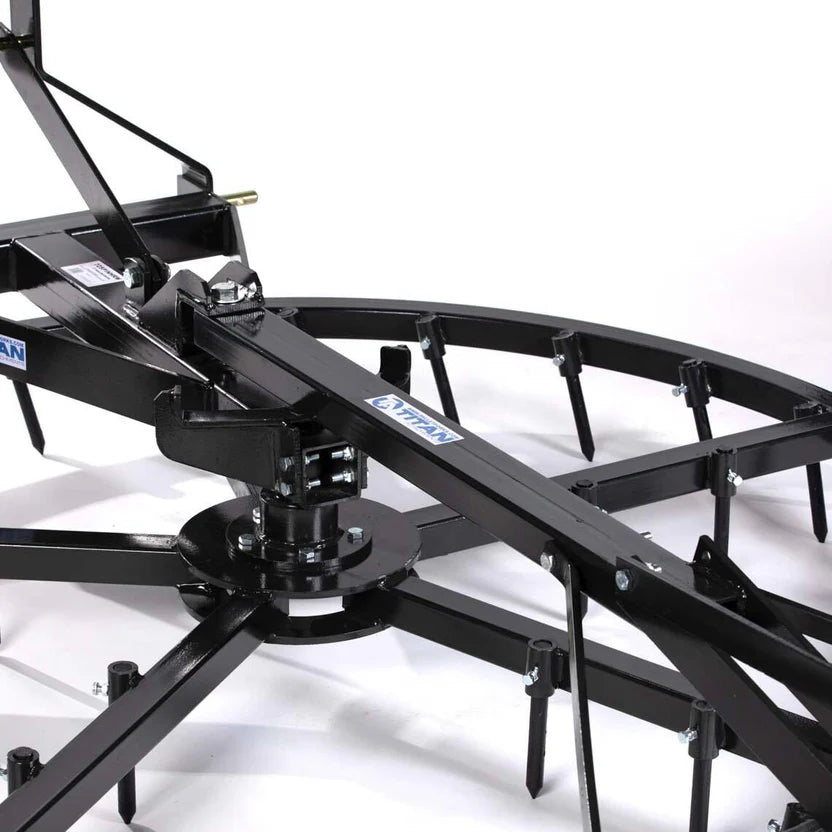

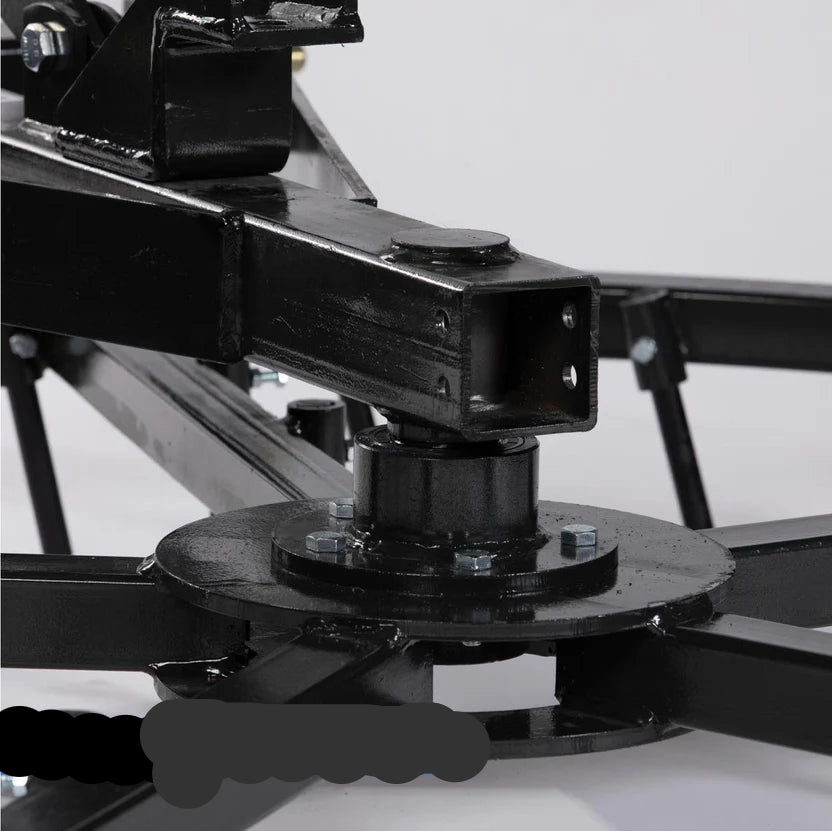

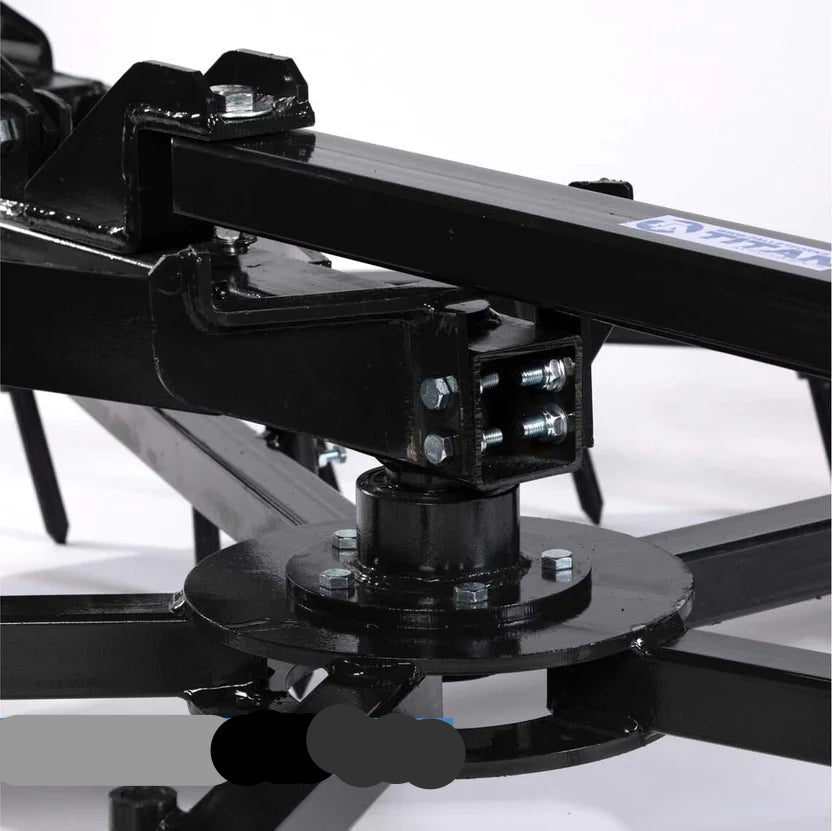

- Bearing Assembly for Smooth Rotation Ensures consistent performance and reduced wear.

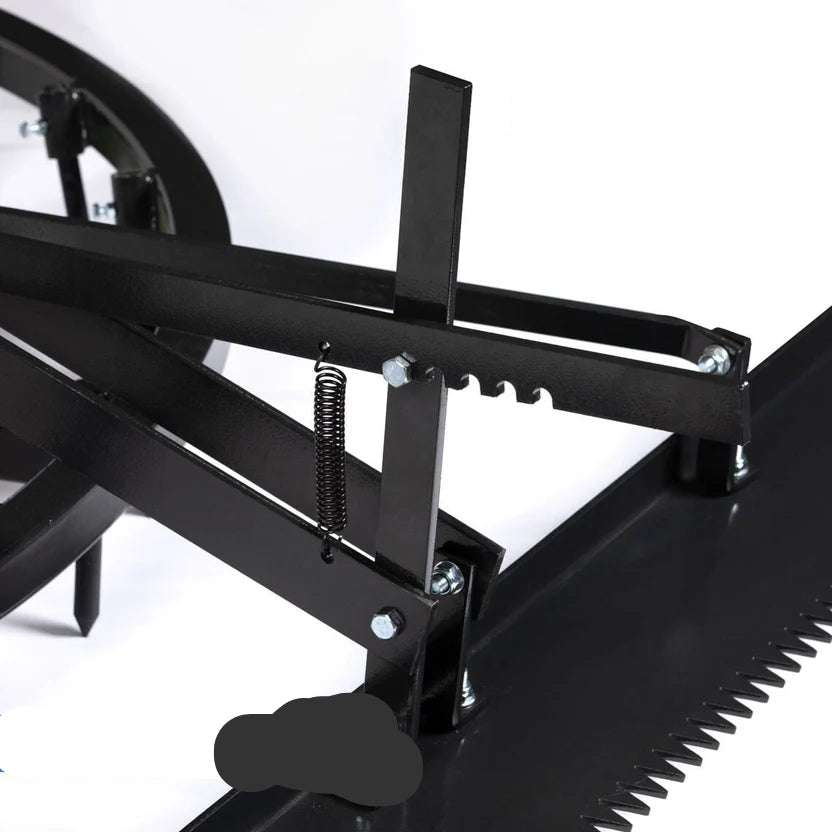

- Spring-Loaded Lever for Rake Adjustment Easy angle and depth control for tailored grooming.
- Powder-Coated Finish Resists rust and wear in outdoor environments.
-
Heavy-Duty Steel Frame (2" x 2" Tubing) Built for long-term durability and rugged use.
Detailed Specifications

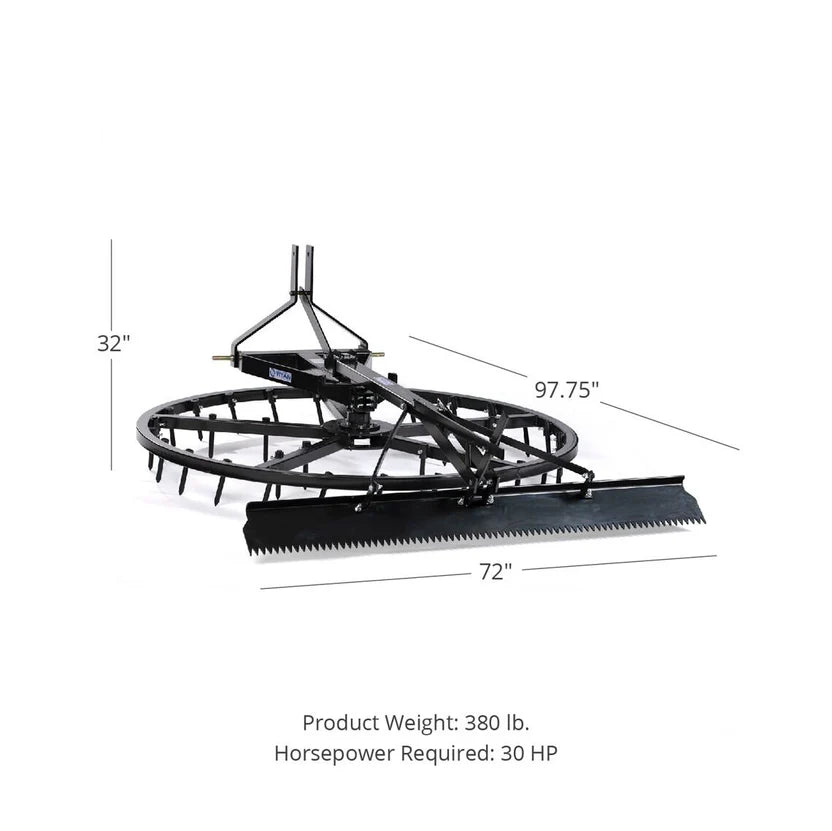

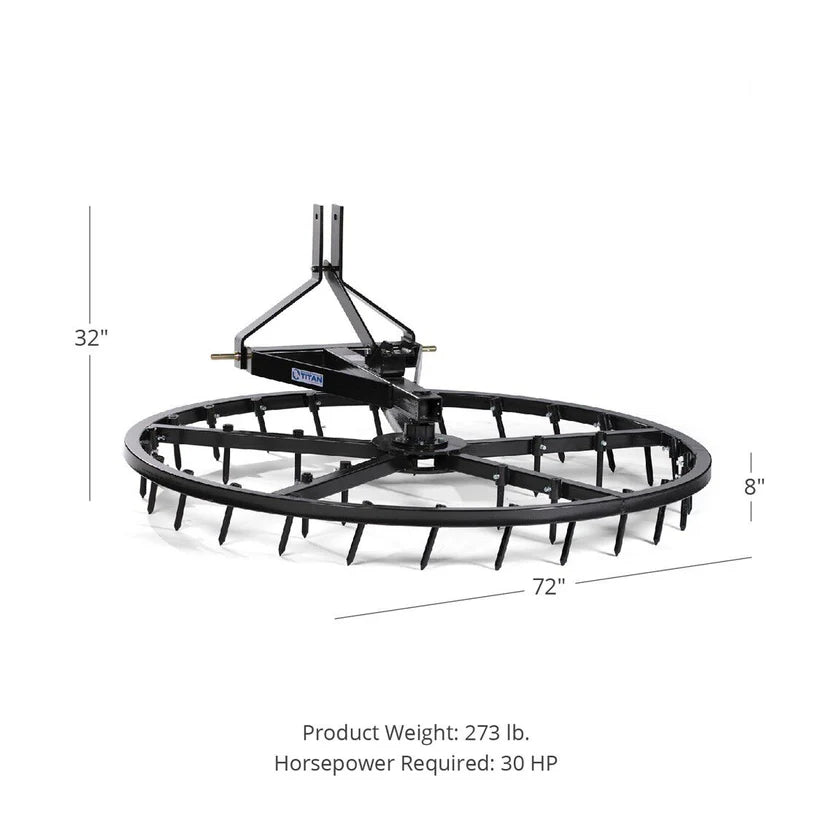

72" Arena Spin Harrow & Rake Kit
| Feature | Harrow | Rake Kit |
|---|---|---|
| Base Diameter | 72 in | 72 in |
| Base Height w/ Teeth | 8 in | — |
| Overall Height | 32 in | — |
| Overall Width | 75 in | 8 in |
| Overall Length | 97.75 in | — |
| No. of Teeth | 35 | — |
| Tooth Dimensions | 7.75 in × 0.8 in | 1.2 in Length |
| Rake Thickness | — | 0.2 in |
| HP Requirement | 30 HP | 30 HP |
| Finish | Powder-Coated Black | Powder-Coated Black |
| Material | Steel (2" × 2" Tubing) | Steel |
| Product Weight | 273 lb | 107 lb |
| Mounting Compatibility | Cat 1, 3-Point Hitch | Cat 1, 3-Point or Harrow-Mounted |
| Rotation Mechanism | Bearing Assembly (Self-Driven) | — |
| Depth Adjustability | — | 2.5 in via Spring-Loaded Lever |
