Titan Attachments Class 3 Hay Frame | 7,500 lb Rated | 32″–49″ C2 Main Spear + Dual 24″ Stabilizers | 45–100 HP | For Tractors
Titan Attachments Class 3 Hay Frame | 7,500 lb Rated | 32″–49″ C2 Main Spear + Dual 24″ Stabilizers | 45–100 HP | For Tractors
Regular price
$2,469.74
Regular price
Sale price
$2,469.74
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Titan Attachments Class 3 Hay Frame | 7,500 lb Rated | 32″–49″ C2 Main Spear + Dual 24″ Stabilizers | 45–100 HP | For Tractors
DESCRIPTION

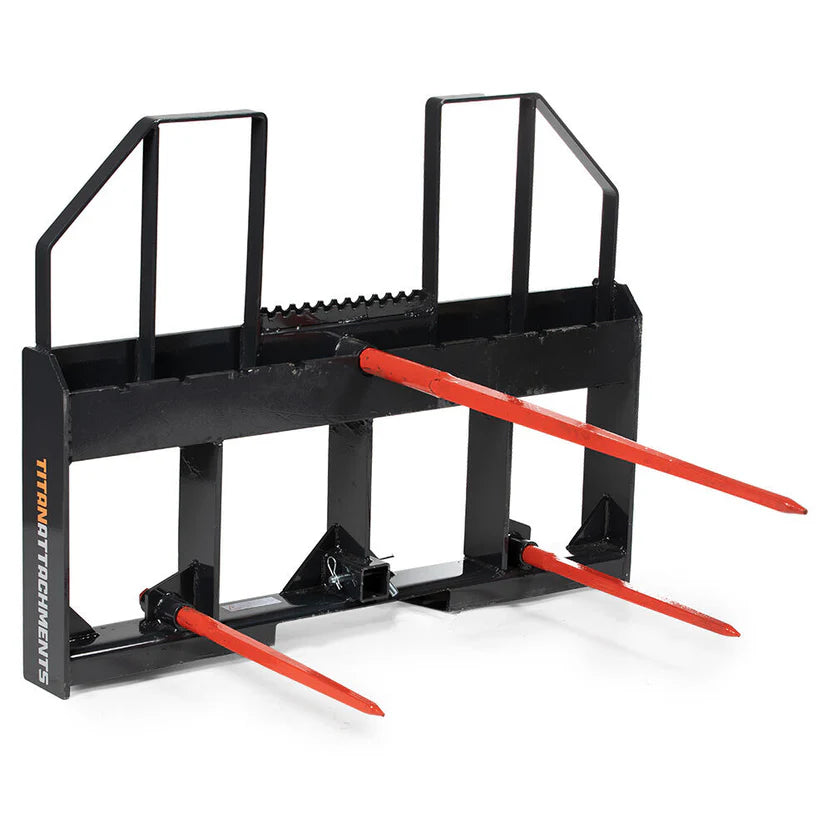

The Class 3 Step-Through Hay Frame Attachment is an all-in-one heavy-duty solution engineered for agricultural hauling, pallet handling, and towing — combining multi-function versatility with safety-first design. Built with a step-through headache rack for easier cab access and clearer forward visibility, this frame supports Class III pallet forks, Conus 2 hay bale spears, and Conus 1 stabilizers, all mounted to a rugged slotted carriage bar. Designed to connect seamlessly to tractors and skid steers using a Universal SSQA quick attach system, each setup comes with one C2 main spear (available in 32″, 39″, 43″, or 49″ lengths) and two 24″ Conus 1 stabilizer spears. With a 7,500 lb rated frame, 3,000 lb C2 spear capacity, and 1,350 lb stabilizer capacity, it’s capable of handling demanding field loads with ease. To top it off, the welded 2″ receiver hitch transforms your loader into a trailer-hauling workhorse. Say goodbye to switching attachments — this frame tackles pallets, bales, and trailers in a single install.
Key Features

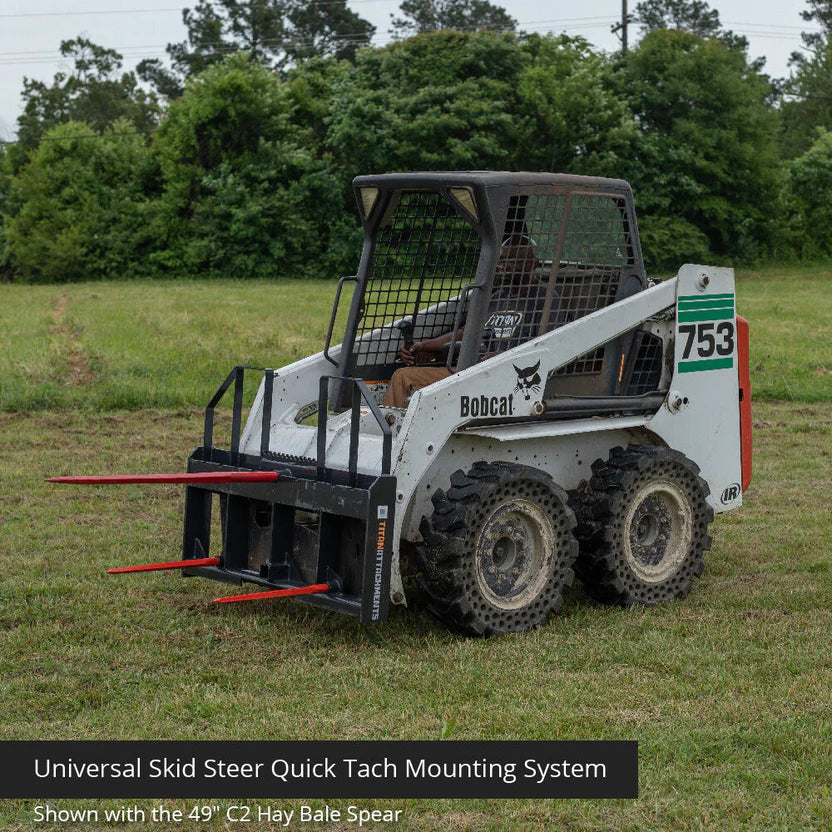

- Universal SSQA Compatibility Fits most skid steers and tractors with quick attach plates.
- 7,500 lb Frame Capacity Engineered for severe-duty agricultural tasks.

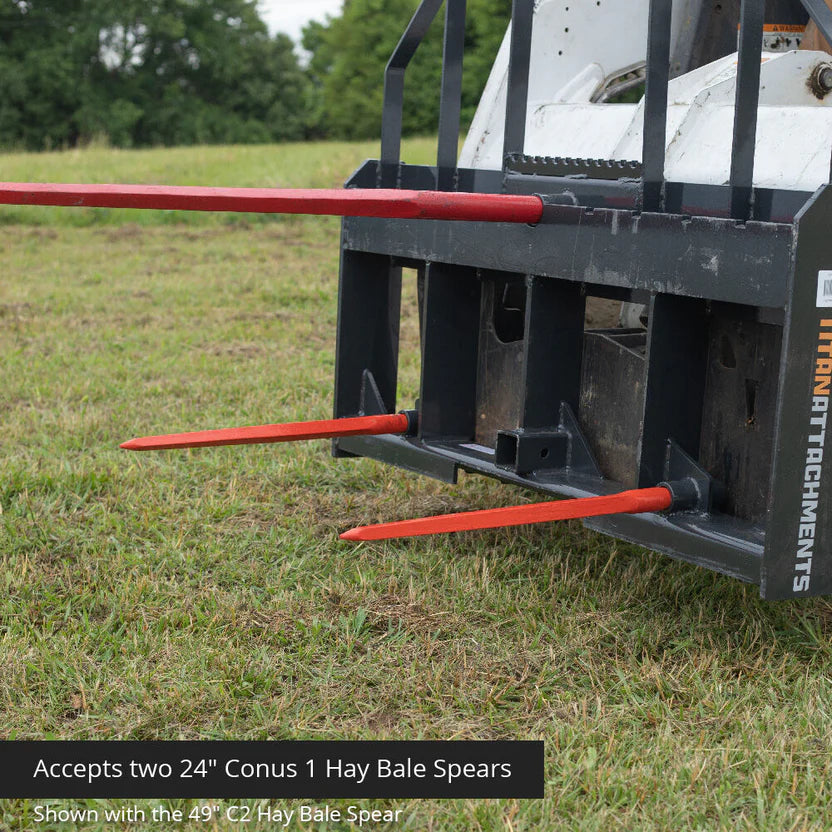

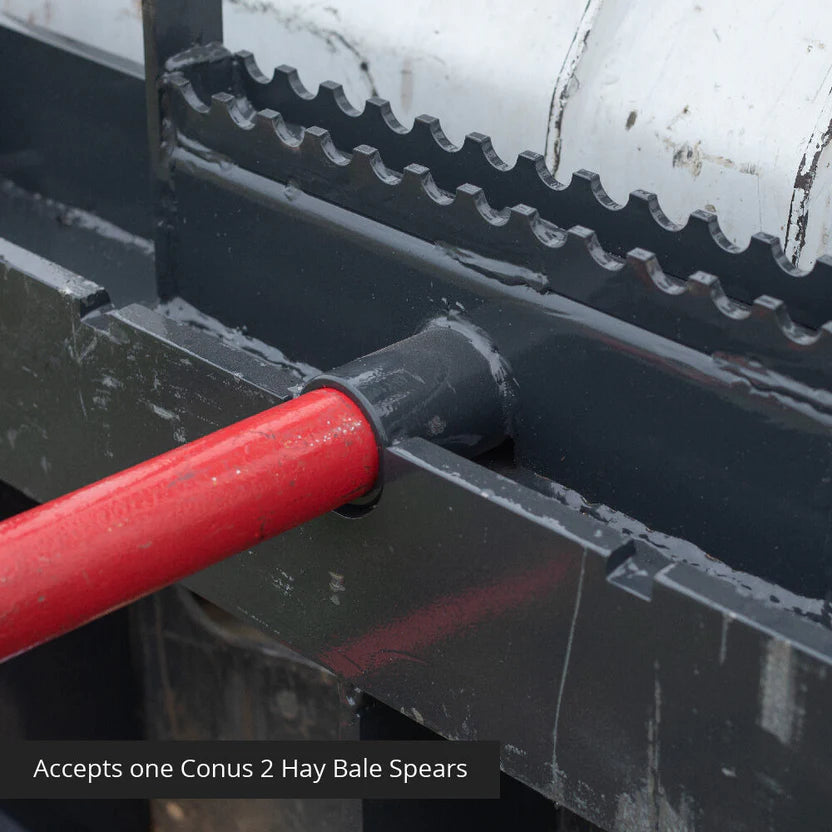

- Conus 2 & Conus 1 Sleeves Welded mounts for one main and two stabilizer hay spears.

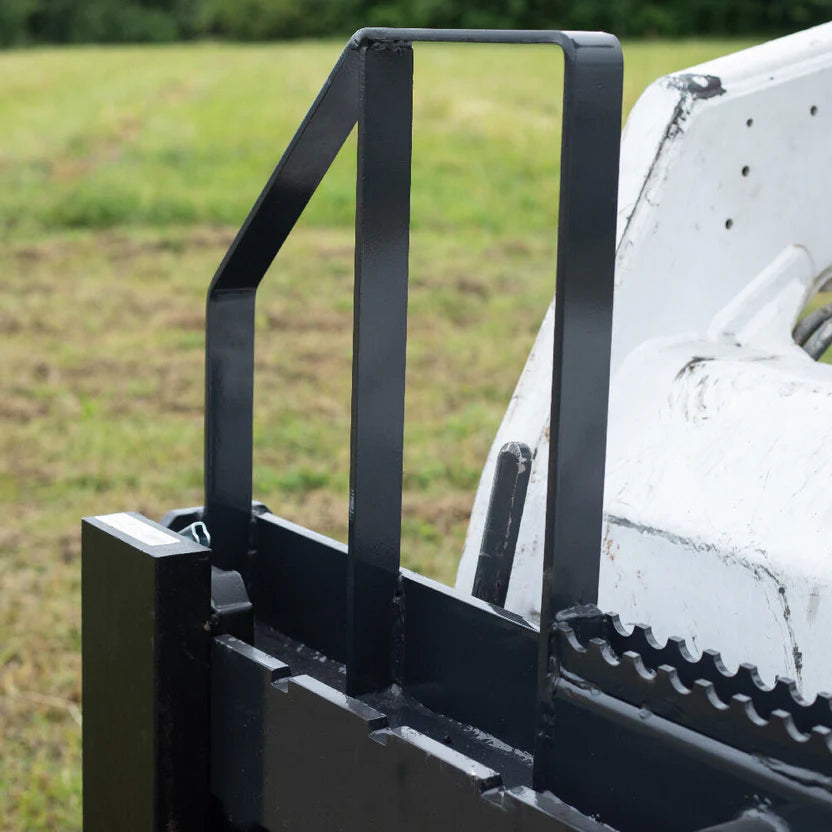

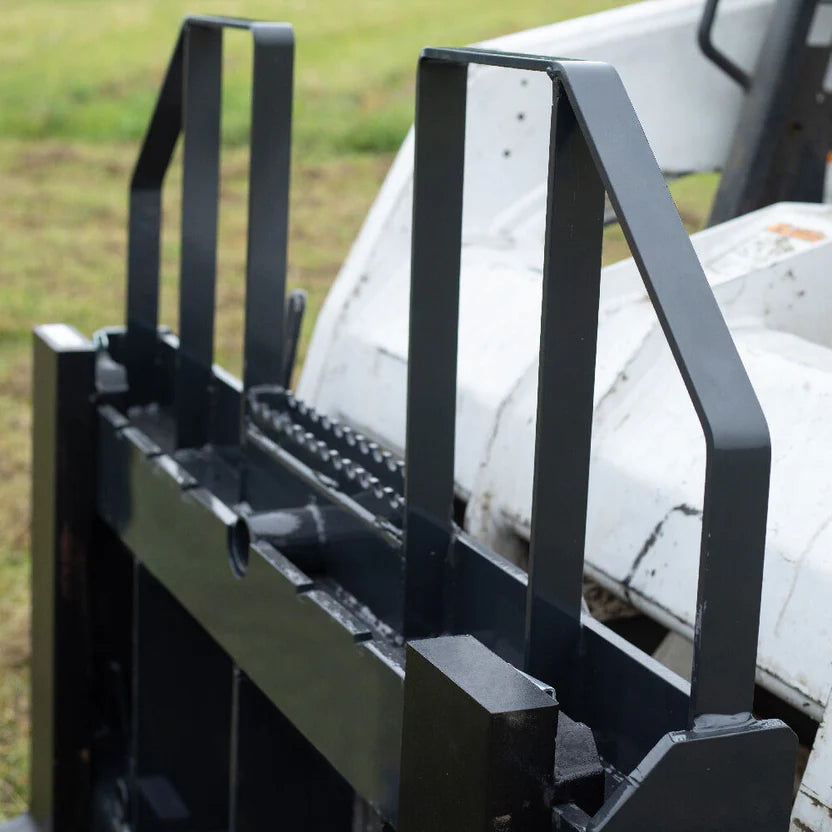

- Step-Through Headache Rack Improves visibility and allows safe cab entry during loading.

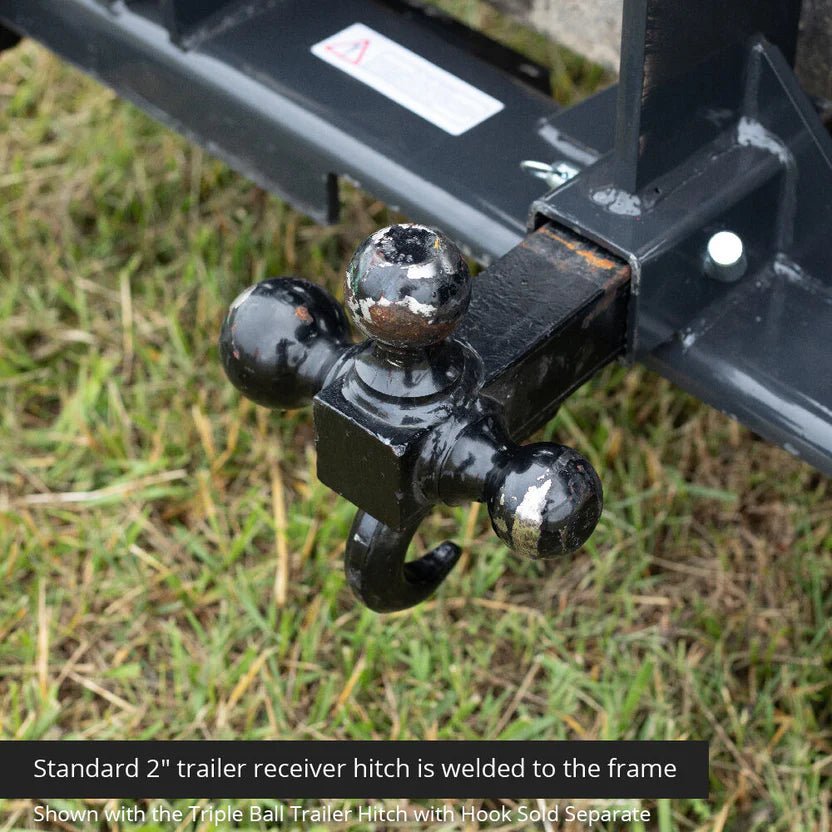

- Integrated 2″ Trailer Hitch Welded square receiver enables towing utility trailers or feed wagons.
- Multi-Mount Versatility Accepts Class III pallet fork blades (sold separately).
- Powder-Coated Finish Charcoal coating resists rust, UV wear, and field abrasion.
-

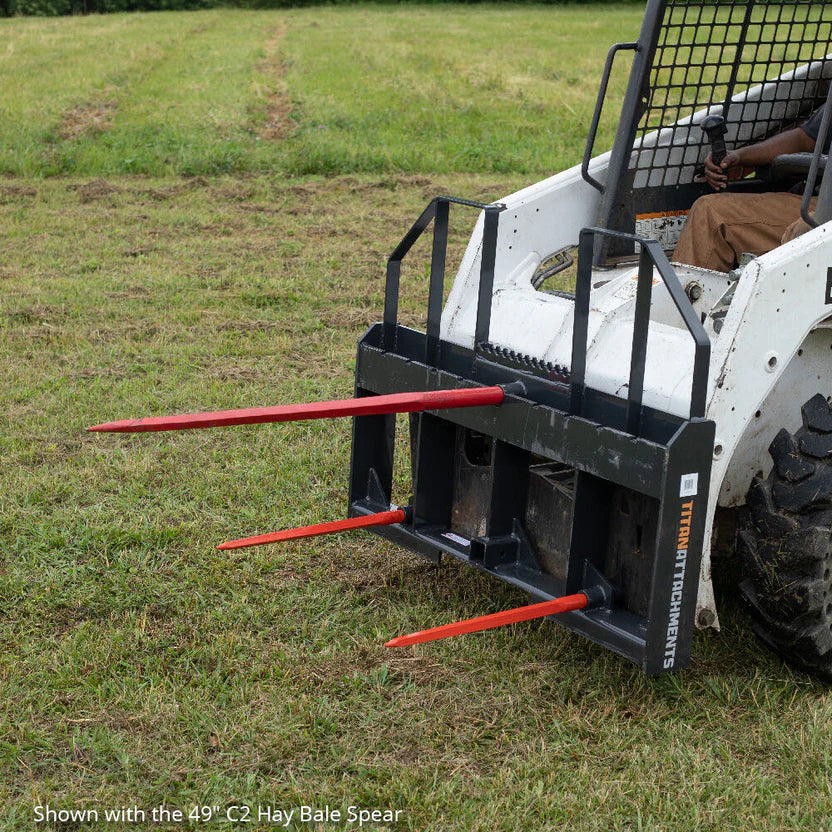

C2 Spear Options Choose from 32″, 39″, 43″, or 49″ main tapered spears depending on bale depth.
Detailed Specifications
Class 3 Step-Through Hay Frame Comparison — 32″ vs. 39″ C2 Spear

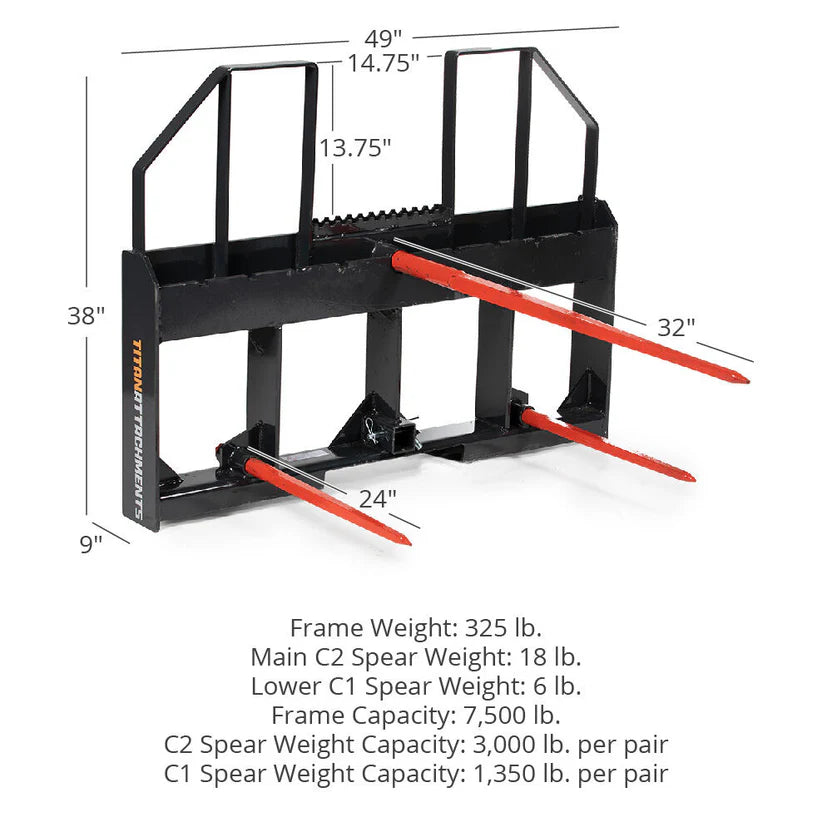

| Attribute | 32″ C2 Spear | 39″ C2 Spear |
|---|---|---|
| Frame Height | 38″ | 38″ |
| Frame Width | 49″ | 49″ |
| Frame Depth | 9″ | 9″ |
| Walk-Through Opening | 14.75″ × 13.75″ | 14.75″ × 13.75″ |
| Main Spear Sleeve Type | Conus 2 | Conus 2 |
| Stabilizer Sleeve Type | Conus 1 (×2) | Conus 1 (×2) |
| Main Spear Length × Diameter | 32″ × 1.75″ | 39″ × 1.75″ |
| Stabilizer Spear Length × Dia. | 24″ × 1.375″ | 24″ × 1.375″ |
| Frame Weight Capacity | 7,500 lb | 7,500 lb |
| Main Spear Weight Capacity | 3,000 lb / pair | 3,000 lb / pair |
| Stabilizer Weight Capacity | 1,350 lb / pair | 1,350 lb / pair |
| Main Spear Weight | 18 lb | 20 lb |
| Stabilizer Spear Weight (each) | 6 lb | 6 lb |
| Receiver Hitch | 2″ × 2″ Welded | 2″ × 2″ Welded |
| Finish | Powder-Coated Charcoal | Powder-Coated Charcoal |
| Frame Material | Structural Steel | Structural Steel |
| Fork Width Adjustment | 6″–48″ | 6″–48″ |
| Fork Rail Height | 20″ | 20″ |
| Mounting System | SSQA | SSQA |
| Recommended HP Range | 45–100 HP | 45–100 HP |
Class 3 Step-Through Hay Frame Comparison — 43″ vs. 49″ C2 Spear
| Attribute | 43″ C2 Spear | 49″ C2 Spear |
|---|---|---|
| Frame Height | 38″ | 38″ |
| Frame Width | 49″ | 49″ |
| Frame Depth | 9″ | 9″ |
| Walk-Through Opening | 14.75″ × 13.75″ | 14.75″ × 13.75″ |
| Main Spear Sleeve Type | Conus 2 | Conus 2 |
| Stabilizer Sleeve Type | Conus 1 (×2) | Conus 1 (×2) |
| Main Spear Length × Diameter | 43″ × 1.75″ | 49″ × 1.75″ |
| Stabilizer Spear Length × Dia. | 24″ × 1.375″ | 24″ × 1.375″ |
| Frame Weight Capacity | 7,500 lb | 7,500 lb |
| Main Spear Weight Capacity | 3,000 lb / pair | 3,000 lb / pair |
| Stabilizer Weight Capacity | 1,350 lb / pair | 1,350 lb / pair |
| Main Spear Weight | 20 lb | 23 lb |
| Stabilizer Spear Weight (each) | 6 lb | 6 lb |
| Receiver Hitch | 2″ × 2″ Welded | 2″ × 2″ Welded |
| Finish | Powder-Coated Charcoal | Powder-Coated Charcoal |
| Frame Material | Structural Steel | Structural Steel |
| Fork Width Adjustment | 6″–48″ | 6″–48″ |
| Fork Rail Height | 20″ | 20″ |
| Mounting System | SSQA | SSQA |
| Recommended HP Range | 45–100 HP | 45–100 HP |
