Product Description
Titan Attachments Class 3 Step-Through Pallet Fork | 7,500 lb Frame | 48″–72″ Fork Blades | Oil Flow 10–25 GPM | For SSQA Skid Steers
DESCRIPTION

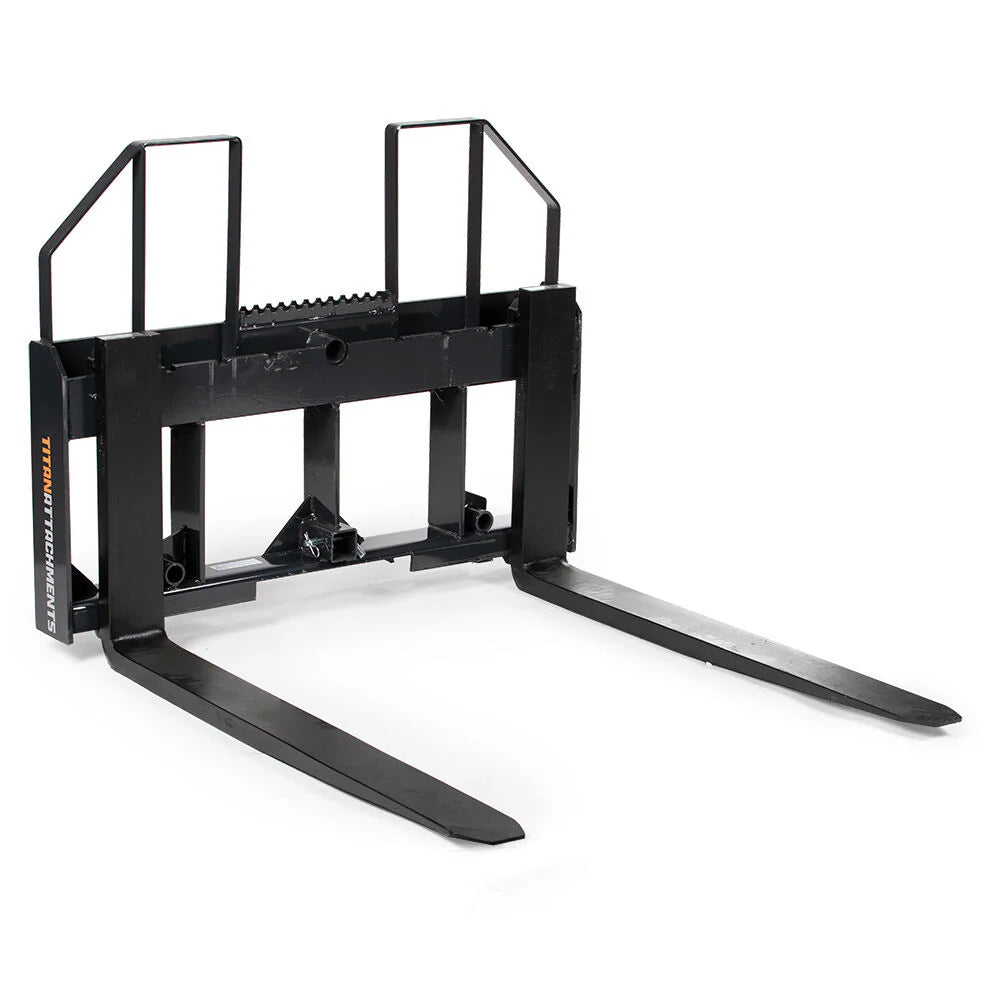

The Class 3 Step-Through Pallet Fork Attachment is a versatile all-in-one frame solution for demanding agricultural, industrial, and demolition environments. Crafted from powder-coated steel and built for 7,500 lb rated frame capacity, this unit is compatible with Universal Skid Steer Quick Attach (SSQA) systems and includes the step-through headache rack, trailer receiver hitch, and hay bale spear sleeves, all integrated into one rugged frame. Choose between 48″, 60″, or 72″ Class III fork blades to suit your lifting, loading, and transporting needs. With its slotted carriage bar, you can mount and adjust fork width from 6″ to 48″ on center, offering superior flexibility in handling pallets, hay bales, fencing materials, and trailers. This attachment is ideal for users seeking one durable frame to replace multiple single-purpose implements.
Key Features

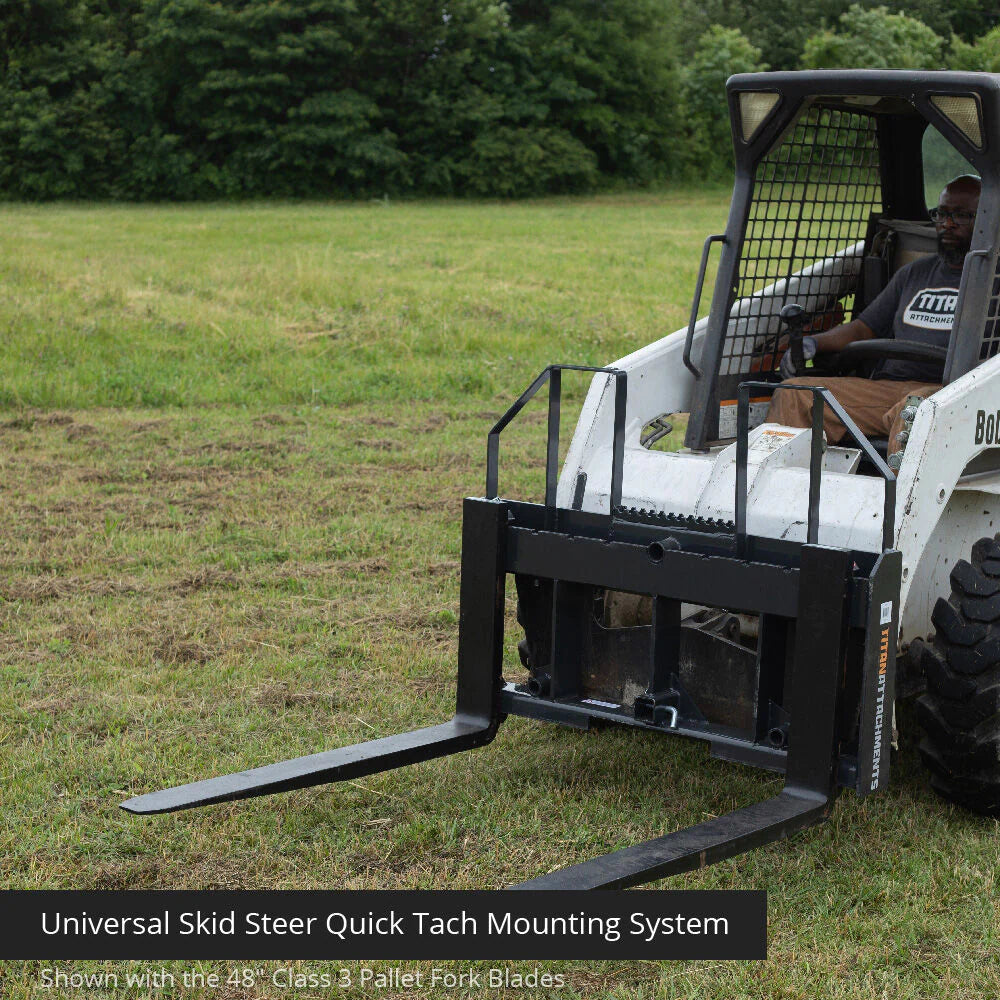

- SSQA Mounting System Easily connects to skid steers and tractors with a universal quick attach interface

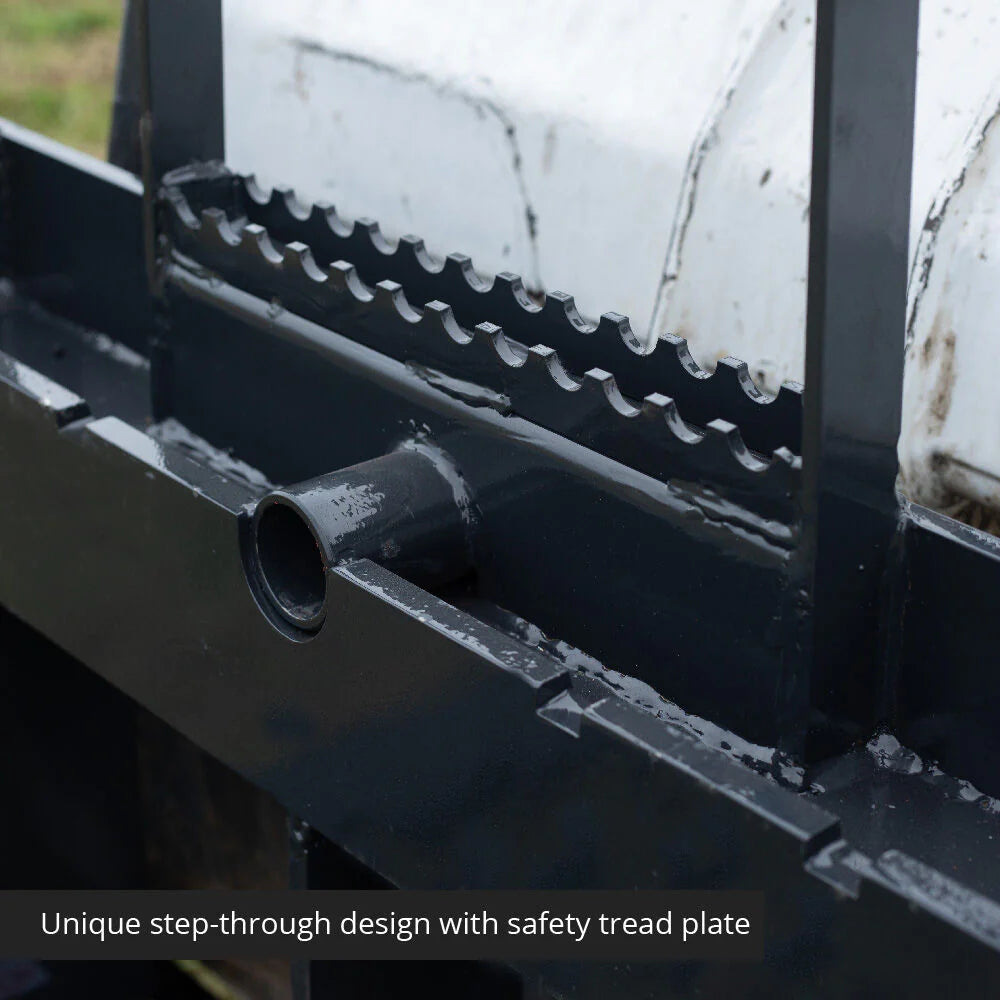

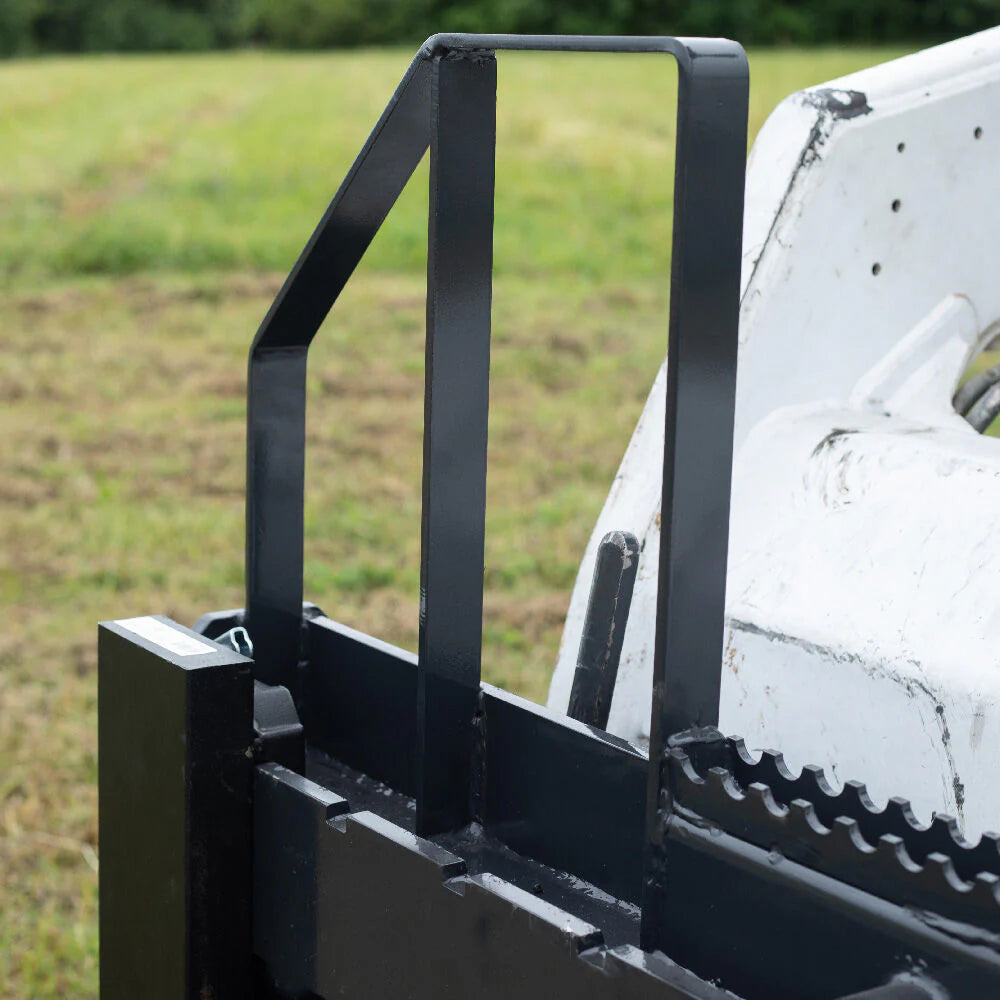

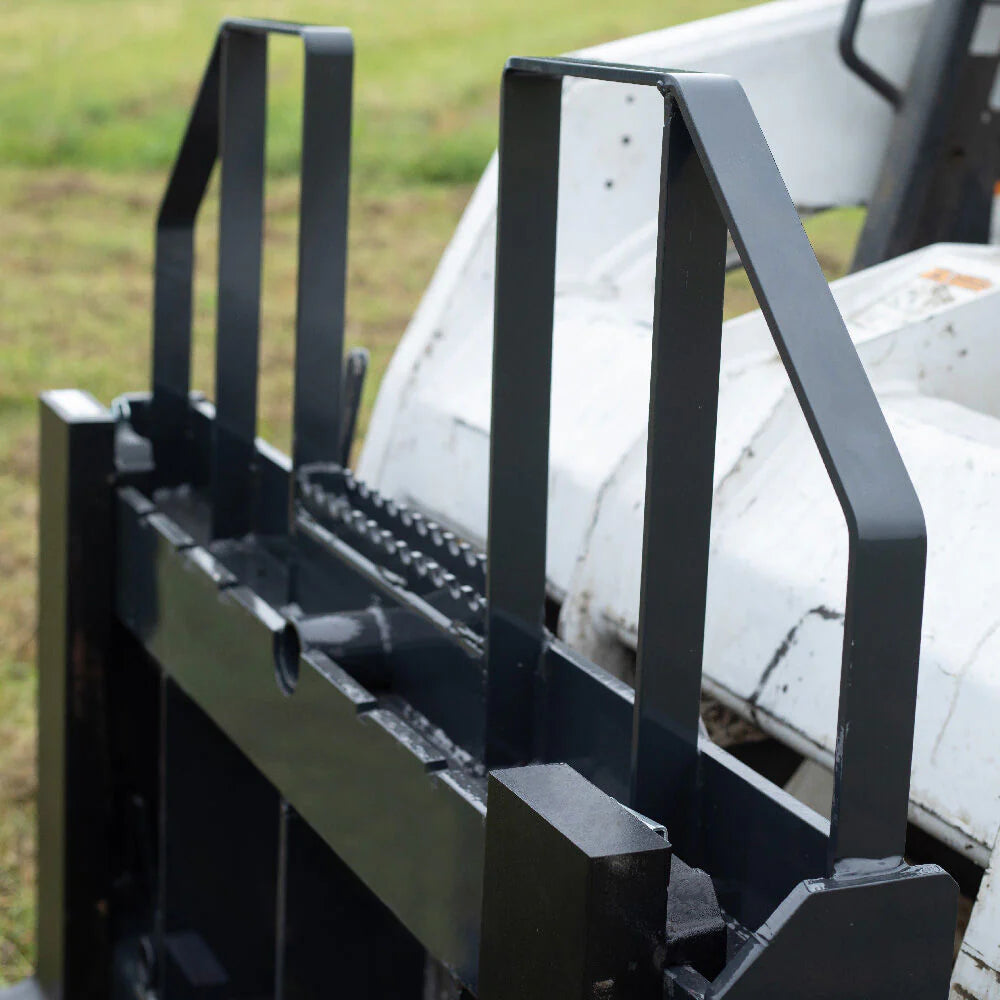

- Step-Through Headache Rack Designed for safe cab access and improved visibility of forks and payload.
- 7,500 lb Frame Capacity Heavy-duty steel frame optimized for large bales, pallets, and bulk materials.

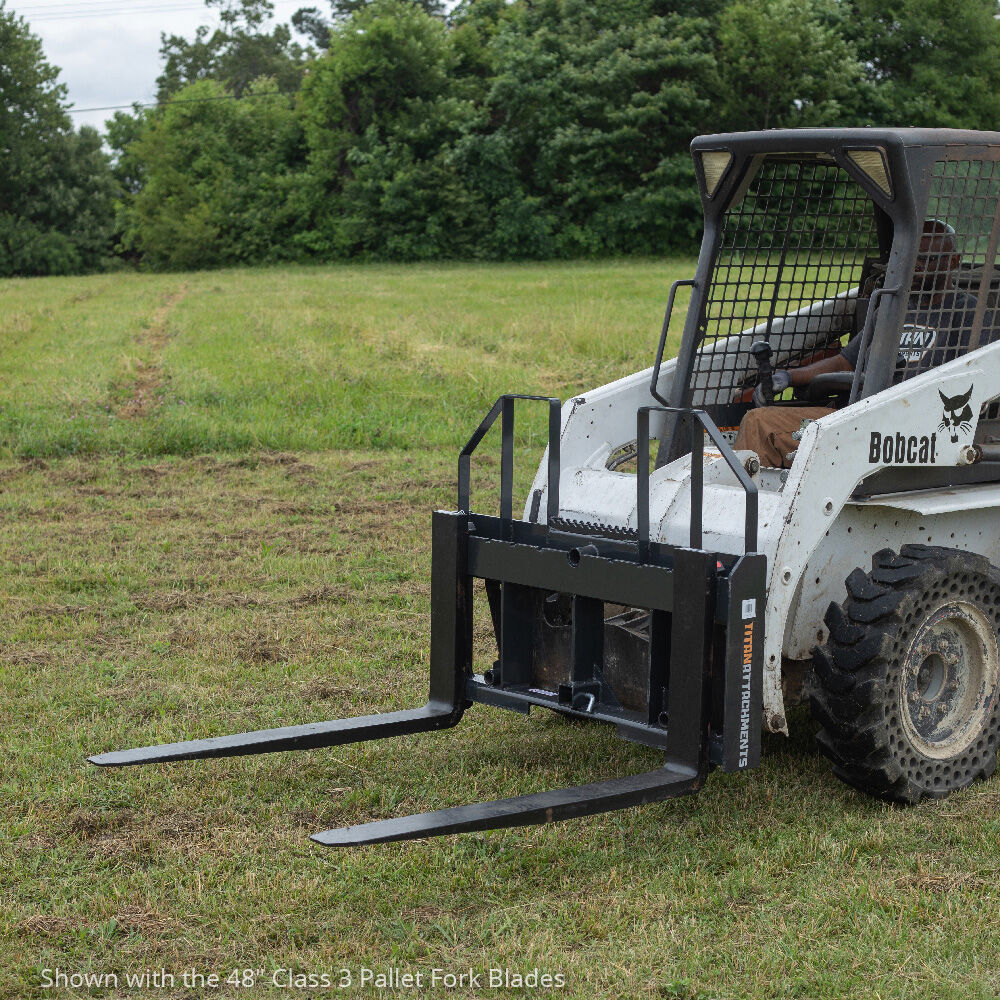

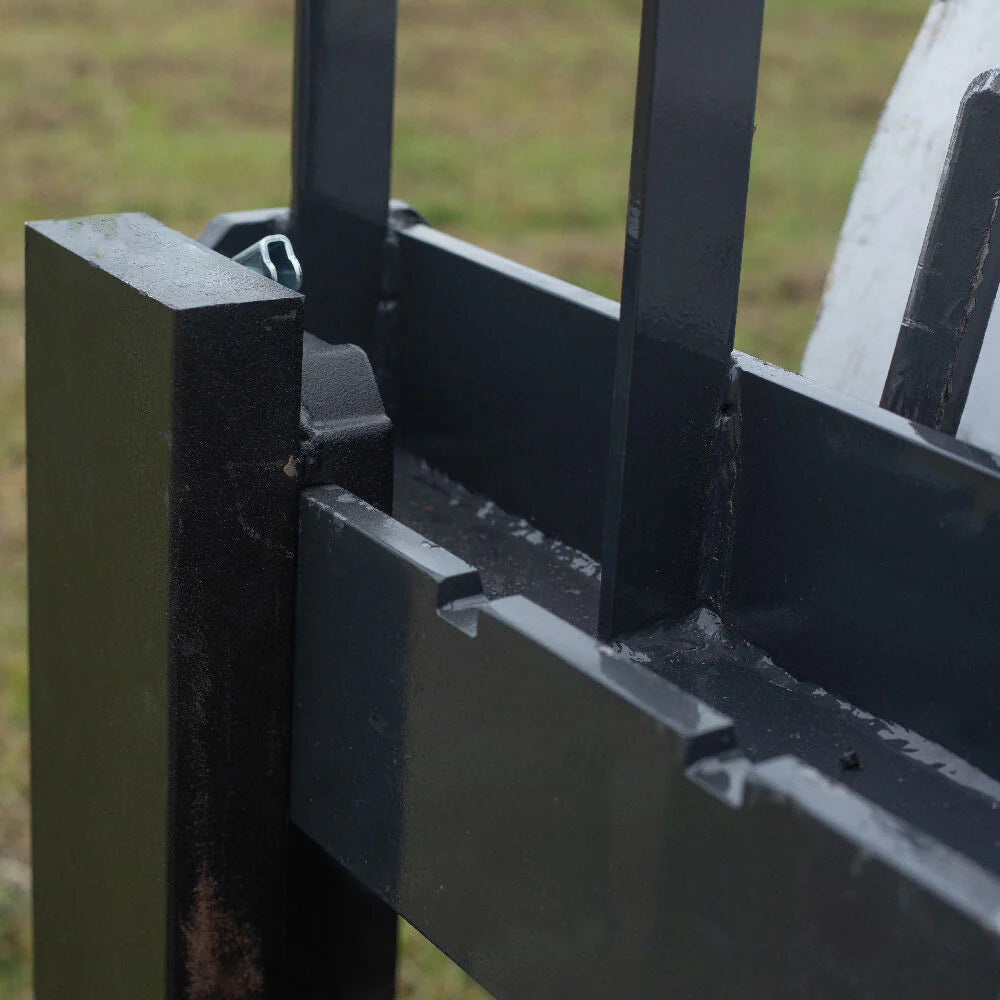

- Class III Fork Mounting System Slotted carriage bar accepts 48″, 60″, or 72″ fork blades (sold separately).

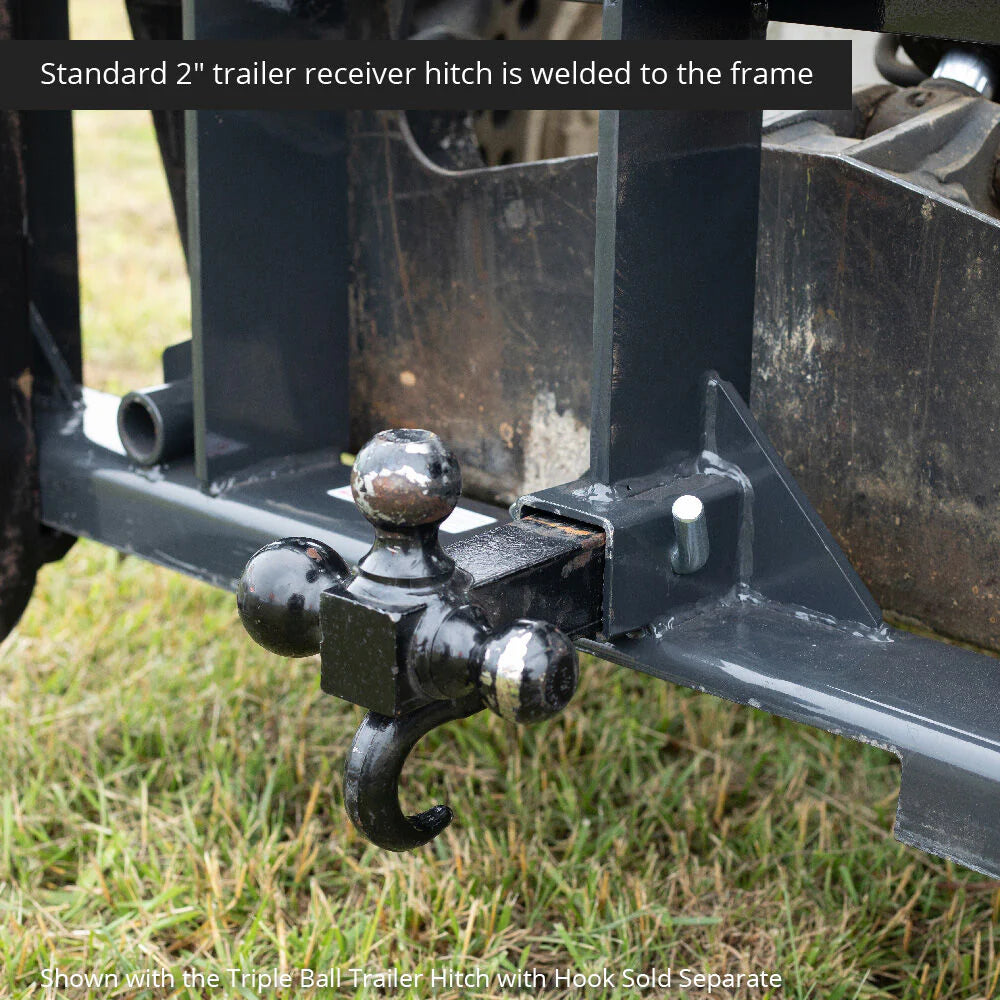

- Trailer Receiver Hitch (2″) Welded receiver adds towing capability for utility and flatbed trailers.
- Hay Bale Spear Sleeves Accepts Conus 2 (main) and Conus 1 (lower) spears for multi-purpose use.
- Fork Width Adjustment Blades adjust from 6″ to 48″ on center to handle narrow or wide loads.
- Powder-Coated Finish Durable charcoal coating protects against rust, chips, and harsh elements.
Detailed Specifications

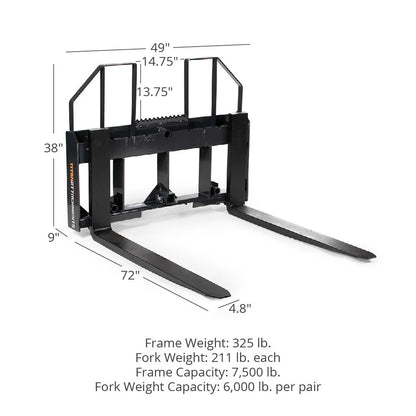

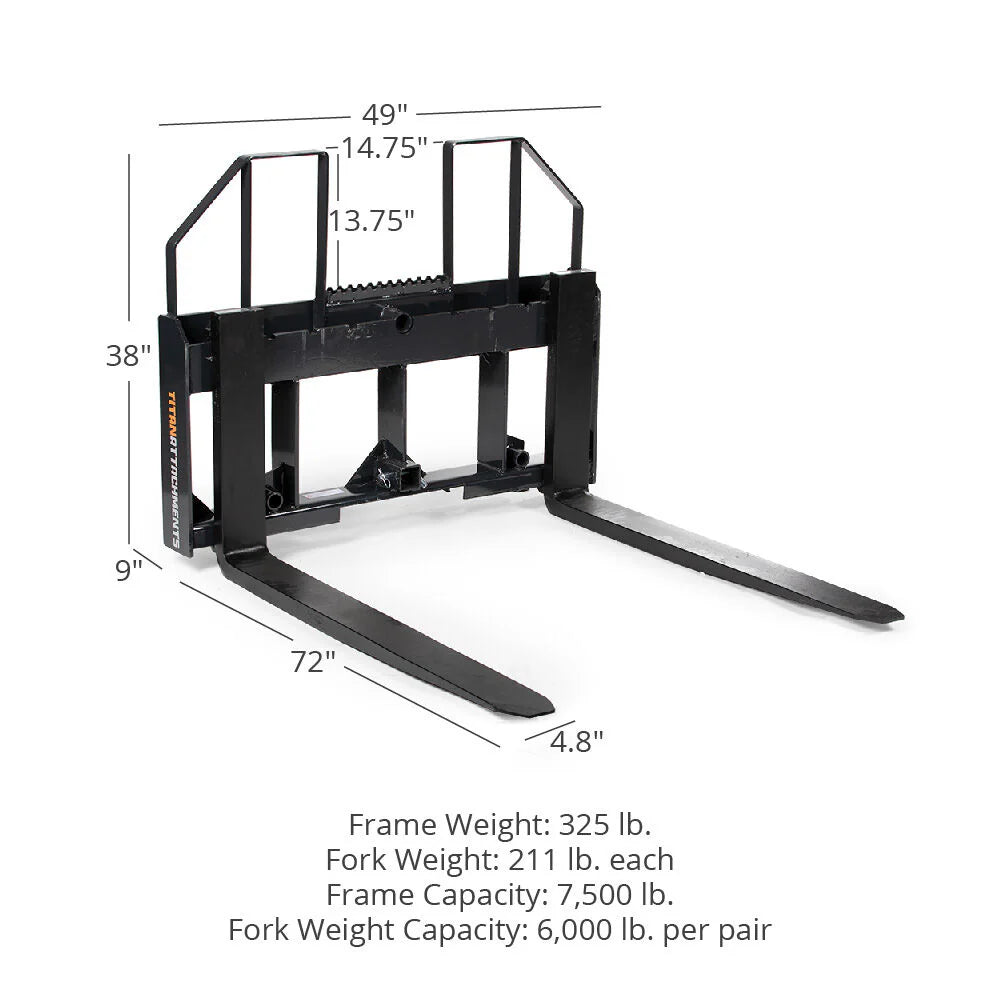

| Component | Specification |
|---|---|
| Overall Height | 38″ |
| Overall Width | 49″ |
| Overall Depth | 9″ |
| Walk-Through Dimensions | 14.75″ × 13.75″ |
| Upper to Lower Rail | 20″ |
| Fork Width Adjusts | 6″–48″ on center |
| Frame Capacity | 7,500 lb |
| Finish | Powder-Coated Charcoal |
| Material | Heavy-Duty Steel |
| Main Spear Sleeve | Conus 2 |
| Lower Spear Sleeve | Conus 1 |
| Trailer Hitch | 2″ Receiver Welded |
| Mounting Style | SSQA (Skid Steer Quick Attach) |
| Compatible Fork Sizes | 48″ / 60″ / 72″ Class III Blades |
| Fork Width | 4.8″ |
| Fork Thickness | 1.75″ |
| Fork Weight Capacity | 6,000 lb per pair |
| Fork Weight | 153 lb (48″) / 183 lb (60″) / 211 lb (72″) |
| Frame Weight | 325 lb |
| Recommended Tractor Power | 45–100 HP |
