Product Description
Titan Attachments Disc Harrow | 3 Point Hitch | 4'–6' Working Width | 16" Notched Discs | 425–661 lbs | For Tractors
DESCRIPTION

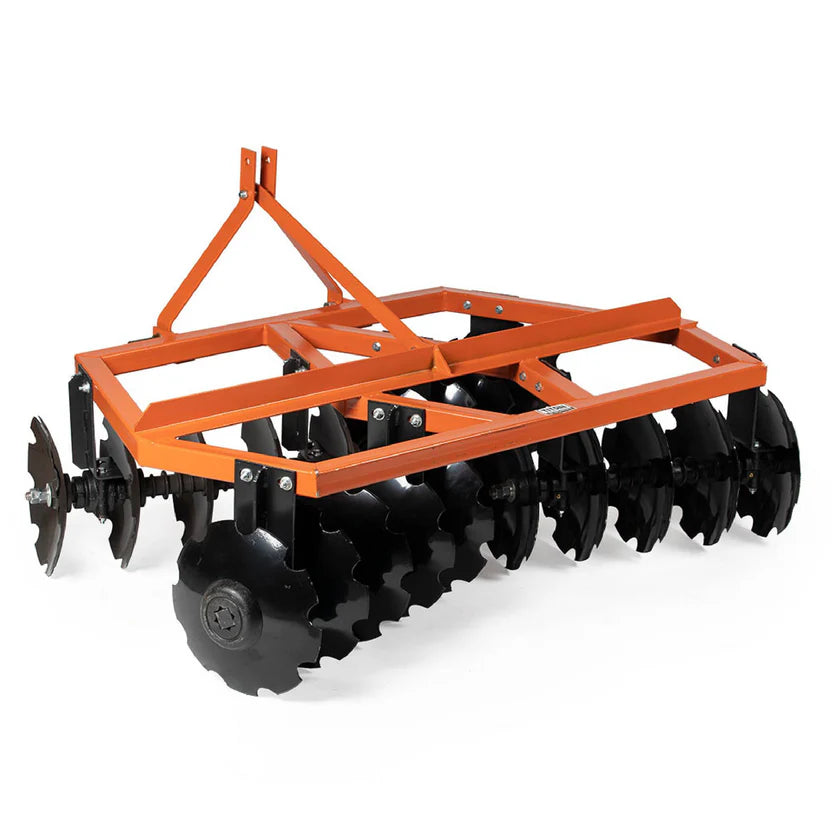

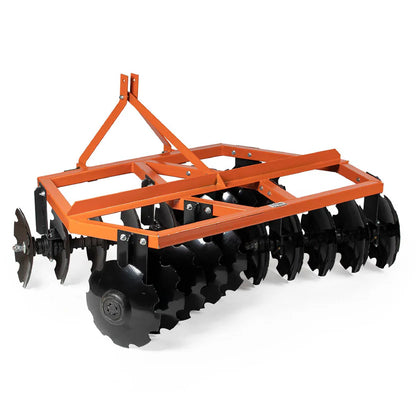

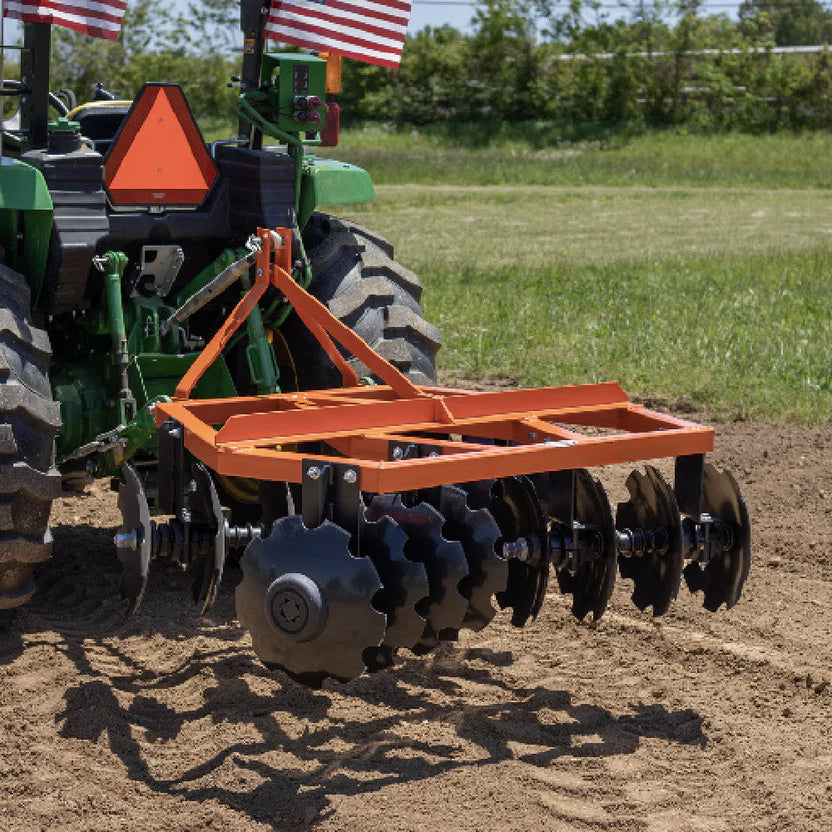

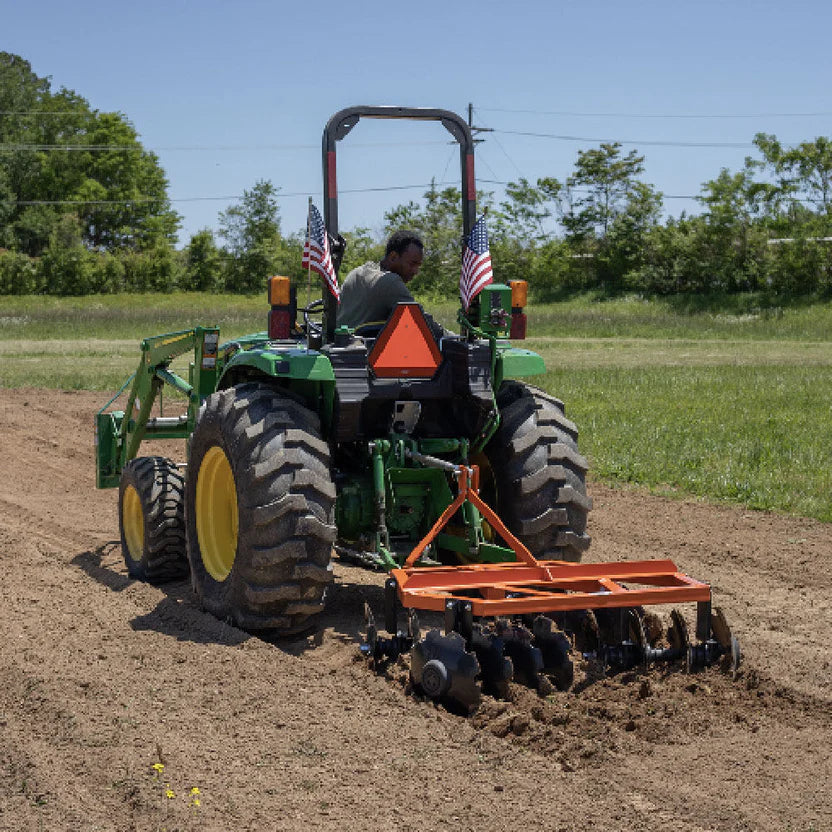

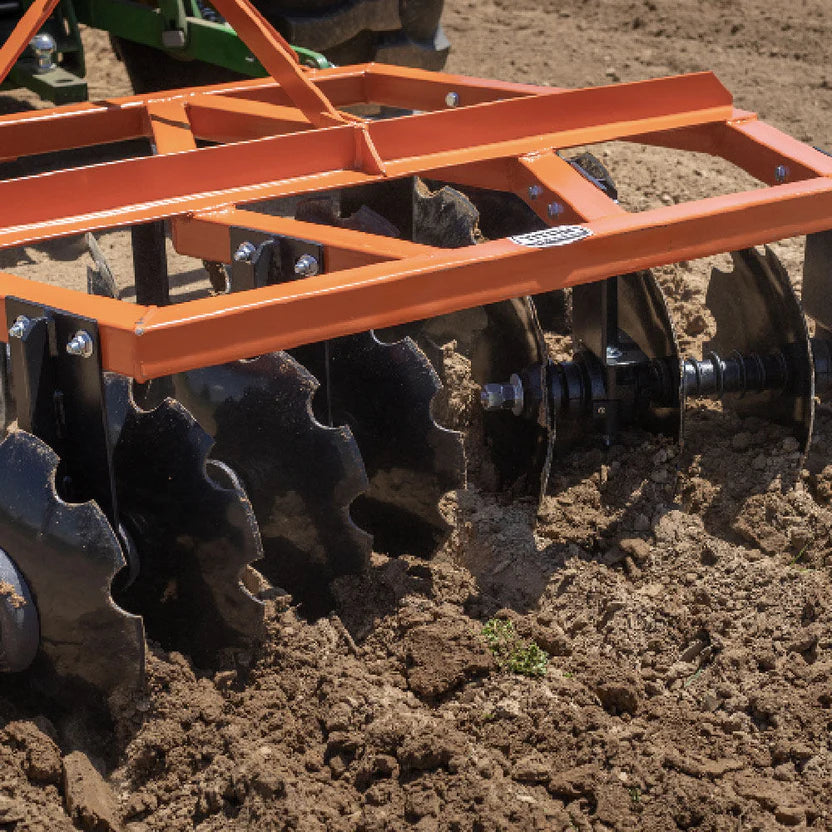

The 3 Point Notched Disc Harrow Series offers a rugged and affordable solution for soil preparation, weed control, and ground conditioning across small-acreage farms, gardens, and food plots. Available in 4 FT, 5 FT, and 6 FT working widths, each model is designed to fit Category 1 tractors using a standard 3-point hitch. Equipped with 16" concaved, notched hardened steel discs mounted on four axles, these harrows break up soil clumps and crusted ground with ease. The sealed, greaseable cast iron caps and spools ensure smooth disc rotation and long-term reliability. Built with a 2.5" x 2.5" powder-coated steel tubing frame, the harrow resists rust, corrosion, and wear in tough field conditions. Whether you're prepping for spring planting or conditioning soil in the fall, this disc harrow delivers consistent performance and clean results.
Key Features
- Available in 4', 5', and 6' Working Widths Choose the size that fits your tractor and field dimensions.

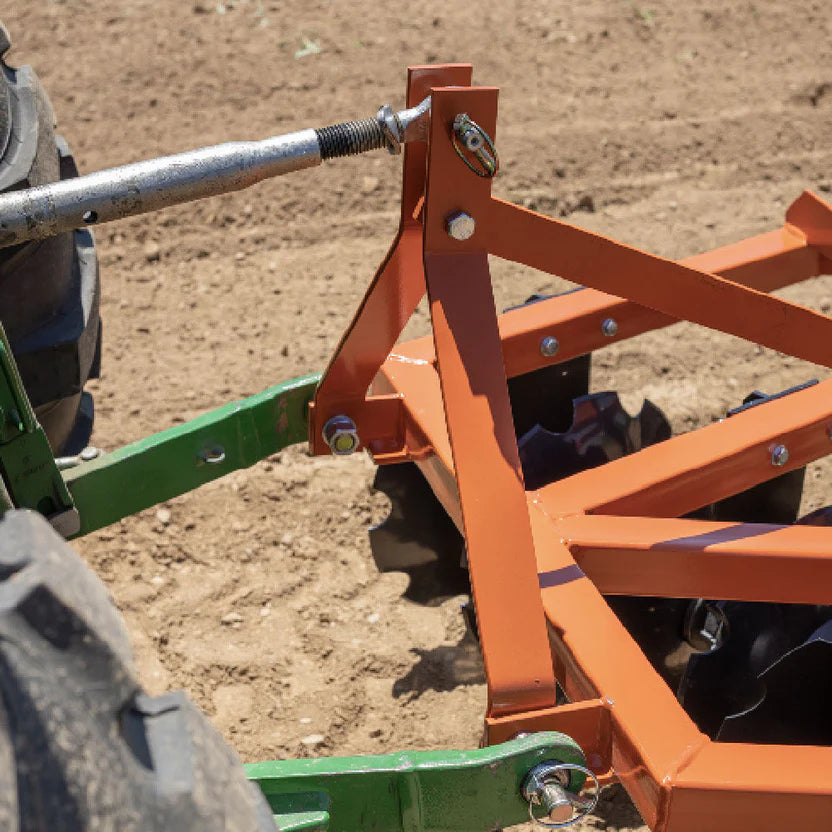

- Fits Category 1 Tractors Standard 3-point hitch with 28" center-to-center lift pin spacing.

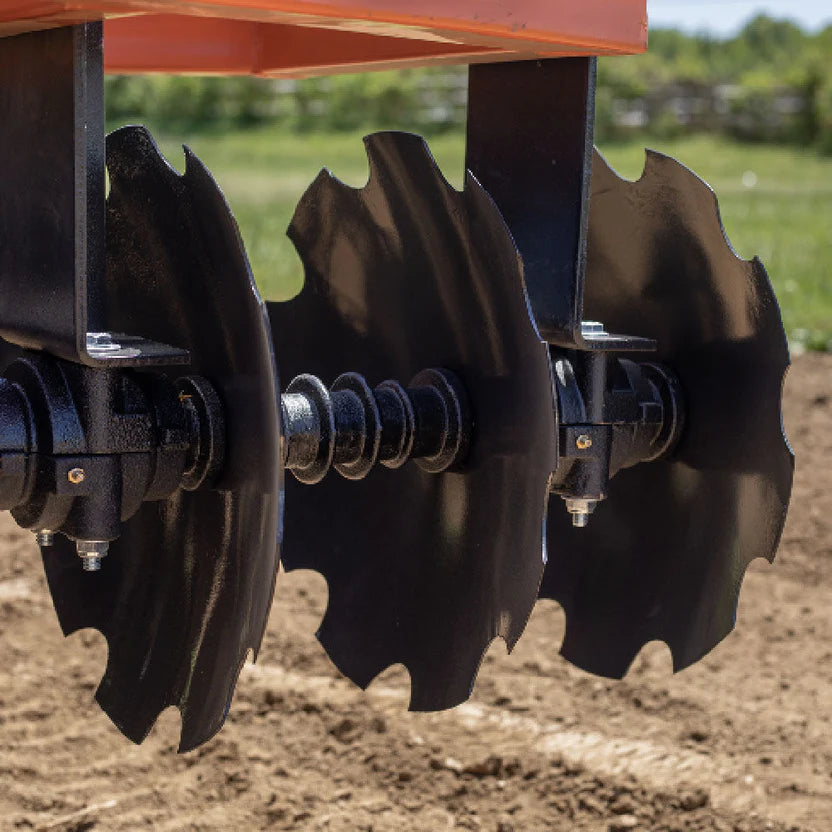

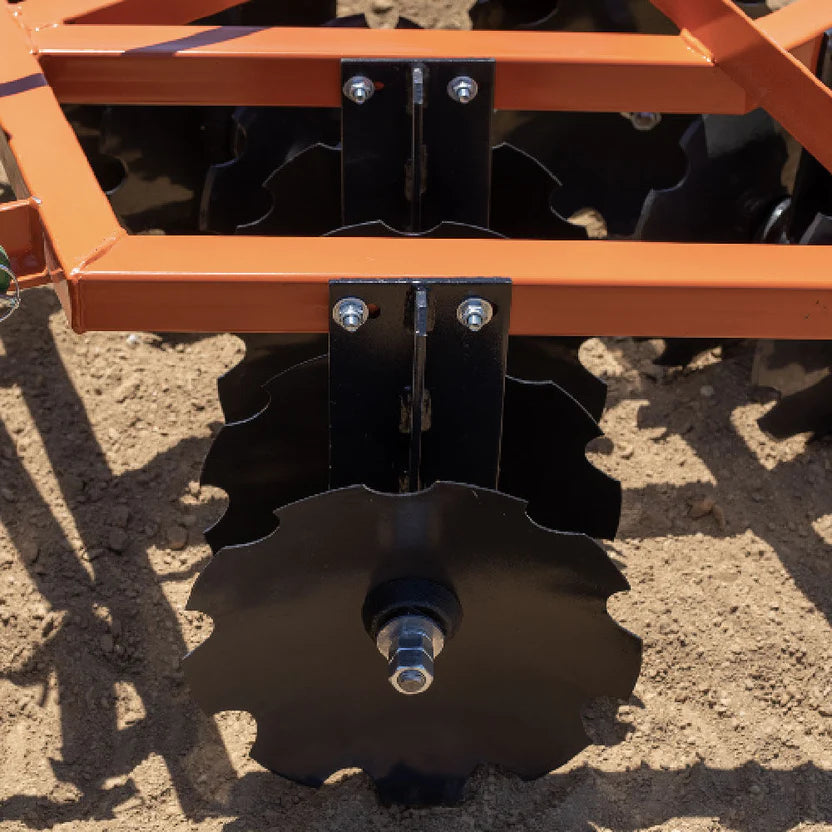

- 16" Notched Hardened Steel Discs Concaved design breaks up clods and crusted soil efficiently.
- Four Axles with Greaseable Cast Iron Caps Smooth disc rotation and easy maintenance.

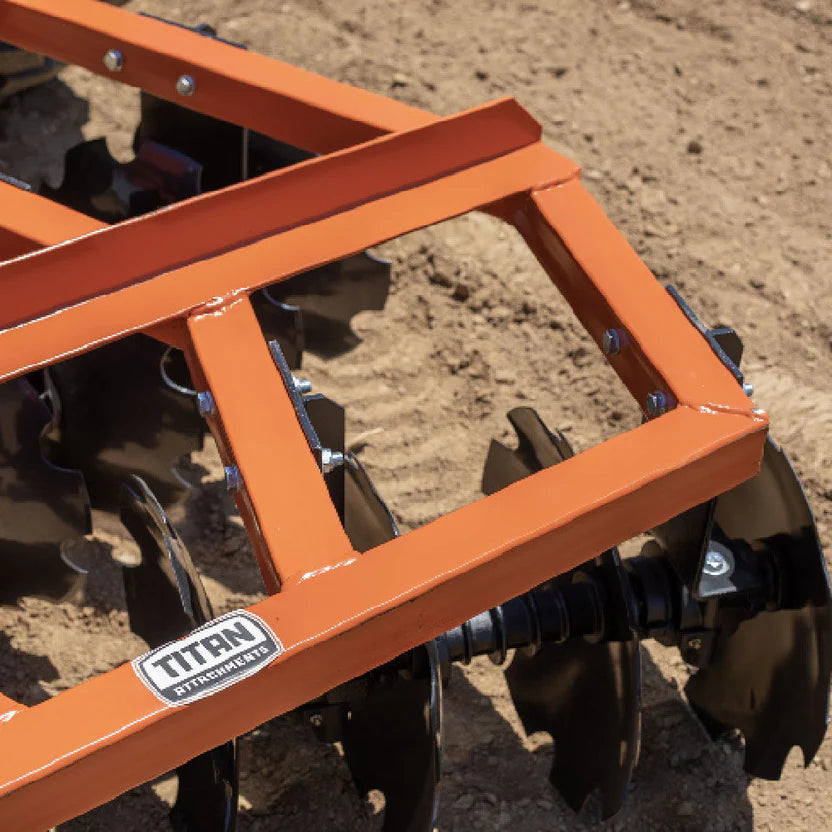

- Heavy-Duty Steel Frame (2.5" x 2.5") Powder-coated for rust resistance and durability.
- Lower Lift Pins Included 3.5" wide pins for secure and stable attachment.
-
Ideal for Food Plots, Gardens & Small Farms Perfect for seasonal tillage and weed suppression.
Detailed Specifications
4 FT Disc Harrow
| Specification | Details |
|---|---|
| Working Width | 4 ft |
| Overall Width | 42 in |
| Overall Height | 29 in |
| Overall Depth | 49.5 in |
| Disc Diameter | 16 in |
| Lift Pin Spacing | 28 in Center to Center |
| Lift Pin Width | 3.5 in |
| Frame Material | 2.5" x 2.5" Steel Tubing |
| Finish | Powder-Coated Orange |
| Product Weight | 425 lb |
| Hitch Type | Category 1, 3-Point |
5 FT Disc Harrow
| Specification | Details |
|---|---|
| Working Width | 5 ft |
| Overall Width | 60 in |
| Overall Height | 30.5 in |
| Overall Depth | 45 in |
| Disc Diameter | 16 in |
| Lift Pin Spacing | 28 in Center to Center |
| Lift Pin Width | 3.5 in |
| Frame Material | 2.5" x 2.5" Steel Tubing |
| Finish | Powder-Coated Orange |
| Product Weight | 555 lb |
| Hitch Type | Category 1, 3-Point |

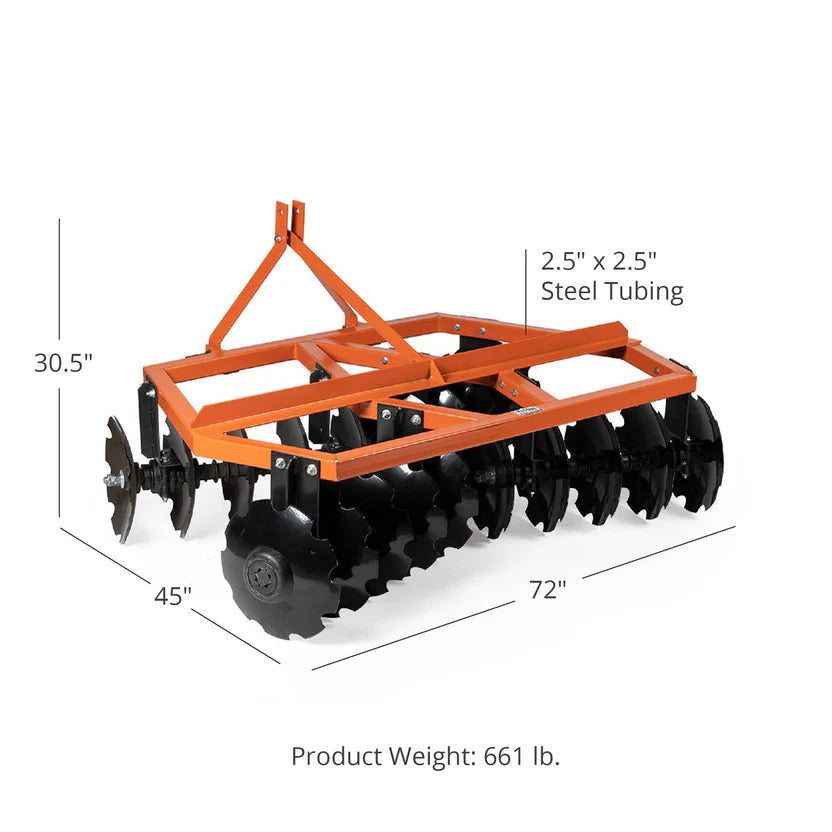

6 FT Disc Harrow
| Specification | Details |
|---|---|
| Working Width | 6 ft |
| Overall Width | 72 in |
| Overall Height | 30.5 in |
| Overall Depth | 45 in |
| Disc Diameter | 16 in |
| Lift Pin Spacing | 28 in Center to Center |
| Lift Pin Width | 3.5 in |
| Frame Material | 2.5" x 2.5" Steel Tubing |
| Finish | Powder-Coated Orange |
| Product Weight | 661 lb |
| Hitch Type | Category 1, 3-Point |
