Titan Attachments Disc Harrow | 4' Working Width | 16" Notched Discs | 2" Ball Hitch | Min. 18 HP / 350cc ATV Required | For ATV Tow-Behind

Titan Attachments Disc Harrow | 4' Working Width | 16" Notched Discs | 2" Ball Hitch | Min. 18 HP / 350cc ATV Required | For ATV Tow-Behind

Regular price $1,534.09
Regular price Sale price $1,534.09
Sale Sold out
Customizable
Fast
24/7 Support
  • Tow-Behind Design for ATVs & UTVs Compatible with any 2" ball receiver; perfect for Honda, Polaris, Yamaha, Cub Cadet, and more.
  • 4 FT Working Width Covers wide ground efficiently while remaining maneuverable.
  • 6 Hardened Steel Discs (16") Notched and concaved for aggressive soil penetration and lift.
View full details

Product Description

Titan Attachments Log Splitter | 30 Ton Force | 208cc Briggs & Stratton | 47" Width | 502 lb | 6.5 HP | For ATV/UTV

DESCRIPTION

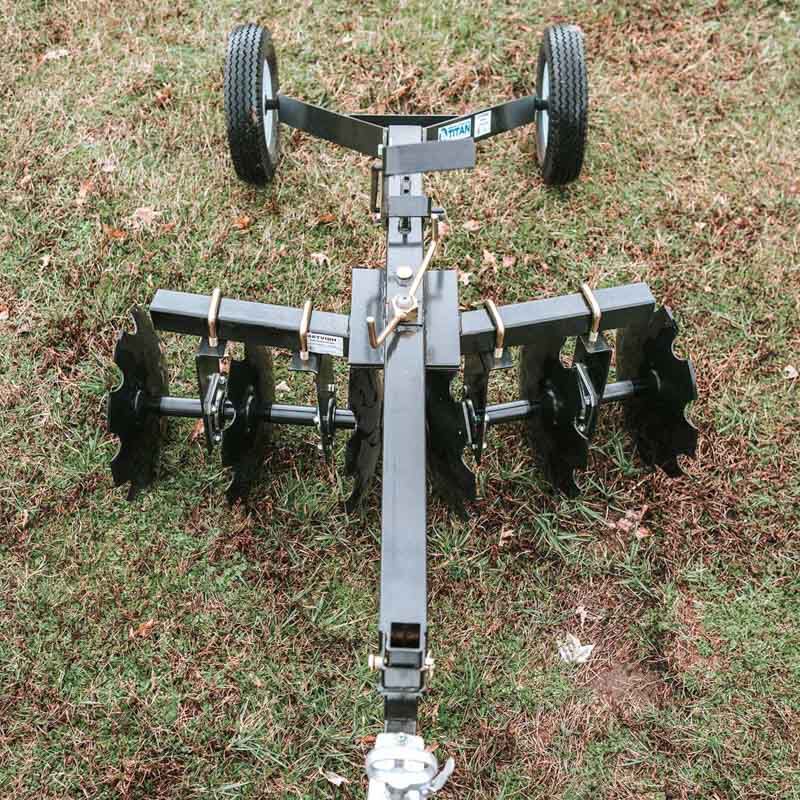

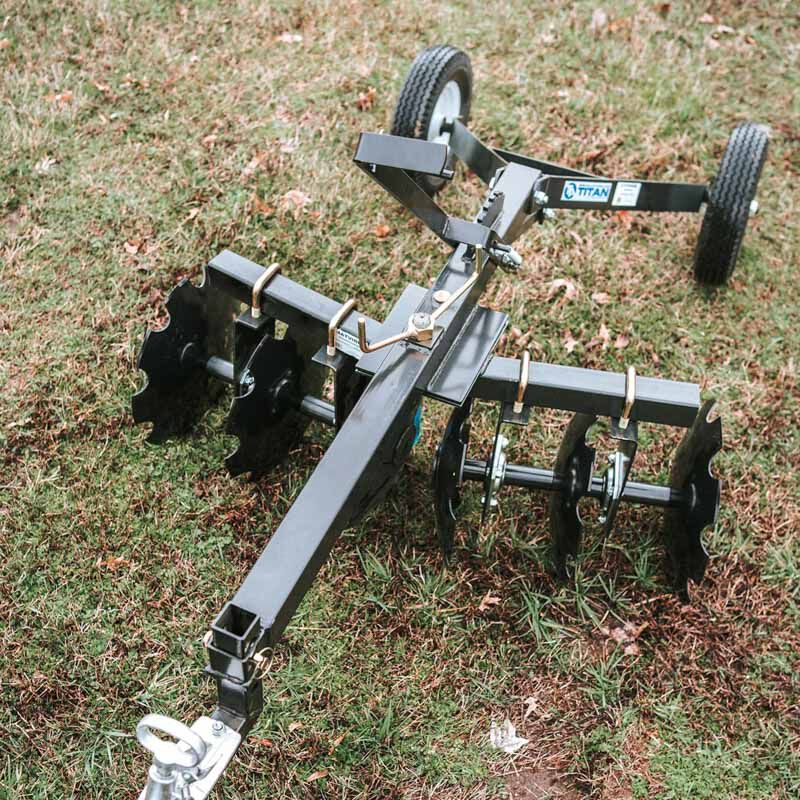

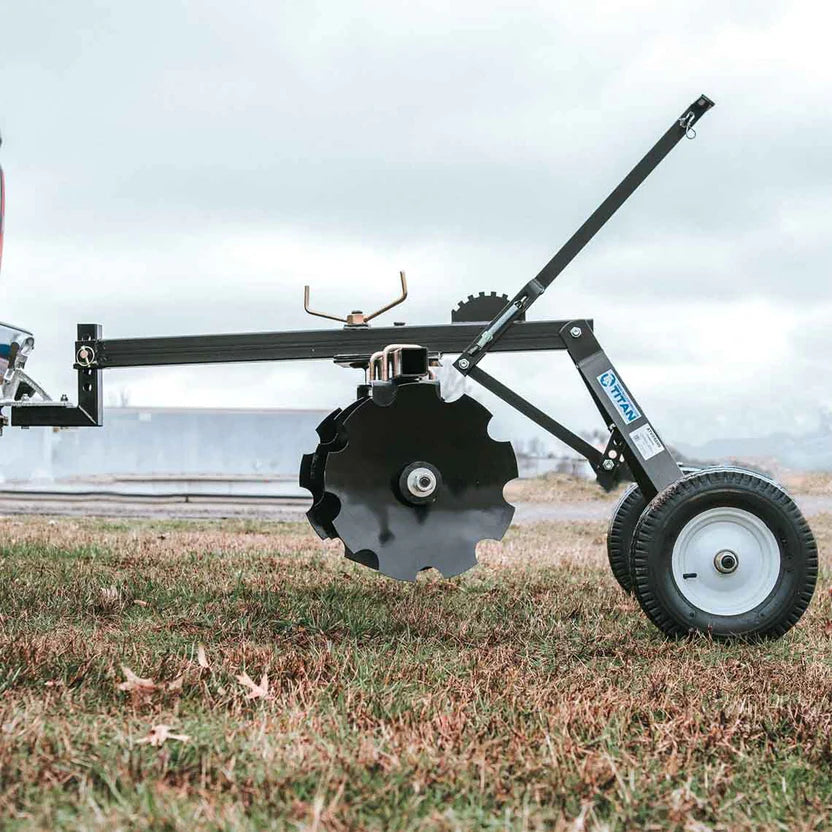

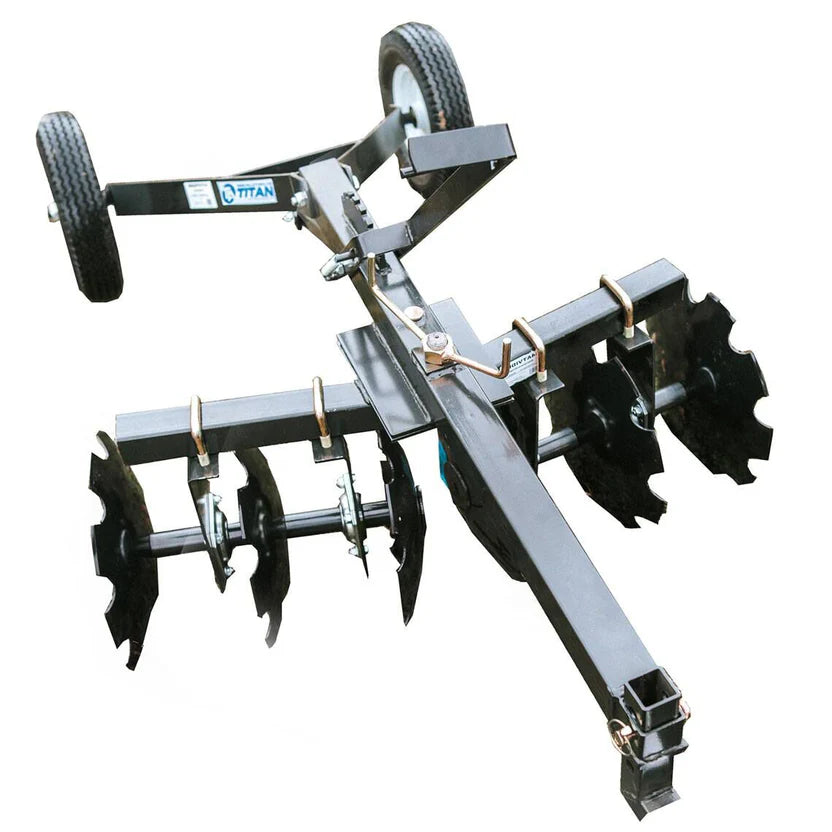

Prepare your land for planting with precision and ease using the 4 FT ATV Transformer Tow Frame with Notched Disc Harrow Attachment, part of the Titan Transformer Series. Designed to connect to any ATV or UTV equipped with a 2" ball receiver, this tow-behind implement is ideal for breaking up soil, clearing weeds, and loosening crop debris. The six concaved, notched 16" discs slice through tough terrain, lifting and aerating the soil for optimal seedbed preparation. Mounted on the Titan Transformer Tow Frame, the disc harrow offers 7 adjustable height positions and 4 hitch height settings, allowing you to control tilling depth and angle with a spring-loaded hand lever. Built from powder-coated steel for durability, the quick-release frame system lets you swap attachments—rake, grader blade, or harrow—in seconds, saving time, space, and money. Whether you're managing a hobby farm, food plot, or rural property, this compact disc harrow delivers big results with ATV-level convenience.

Key Features

  • Tow-Behind Design for ATVs & UTVs Compatible with any 2" ball receiver; perfect for Honda, Polaris, Yamaha, Cub Cadet, and more.
  • 4 FT Working Width Covers wide ground efficiently while remaining maneuverable.

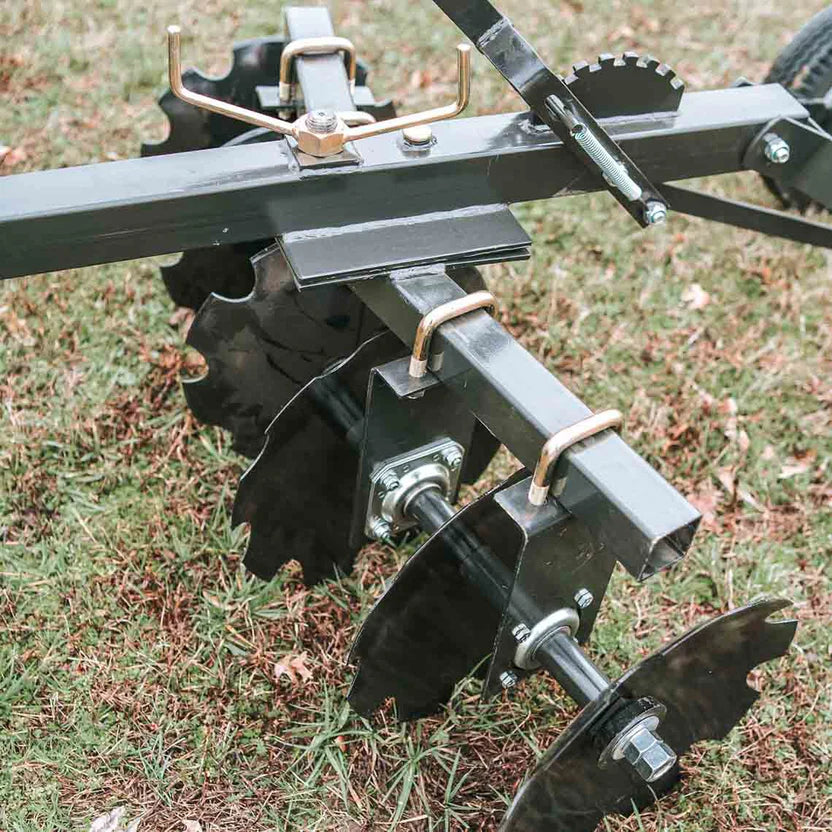

  • 6 Hardened Steel Discs (16") Notched and concaved for aggressive soil penetration and lift.

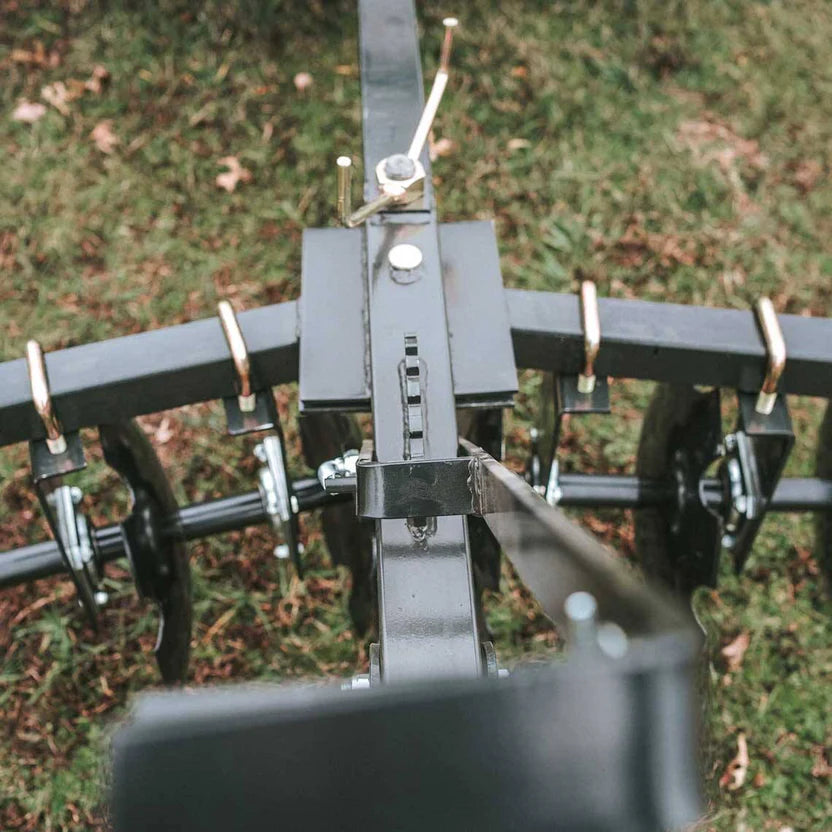

  • Adjustable Depth & Angle 7 height positions and 4 hitch settings via spring hand lever.

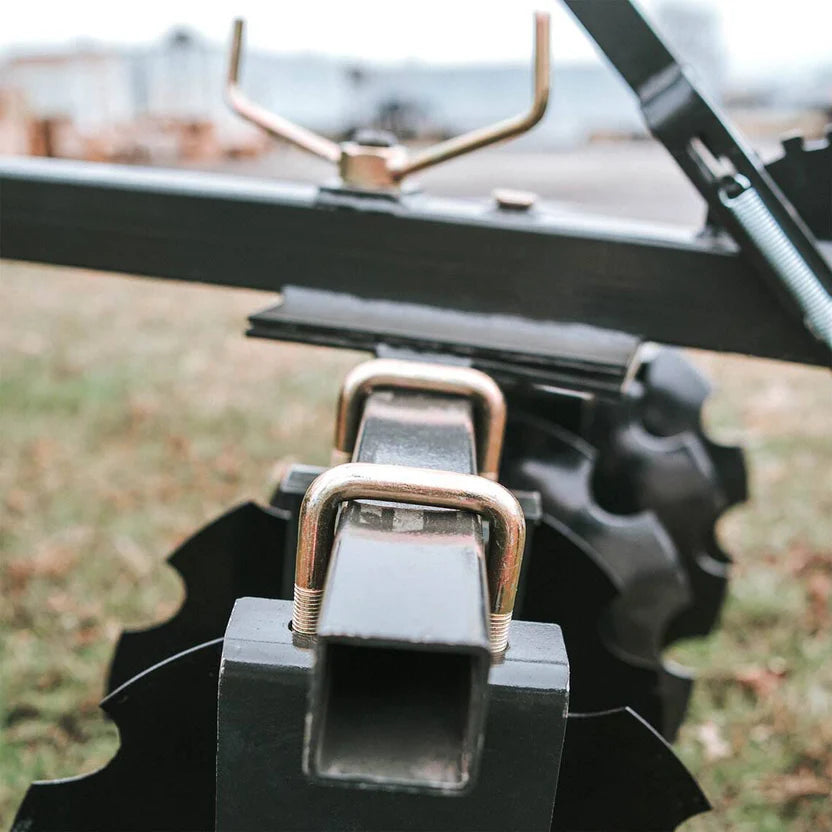

  • Quick-Swap Transformer Frame System Easily switch between disc harrow, rake, and grader blade attachments.
  • Powder-Coated Steel Construction Resists rust and wear in rugged outdoor conditions.
  • Easy Hitching & Release Quick-release ball hitch for fast setup and breakdown.
  • Ideal for Soil Prep & Weed Control Breaks up roots, crop residue, and compacted ground.

Detailed Specifications

Specification Details
Working Width 48 in
Disc Diameter 16 in
Disc Type Notched & Concaved
Disc Quantity 6
Transformer Frame Length 50 in
Mount Type 2" Ball Hitch
Height Adjustments 7 Positions via Spring Lever
Hitch Height Settings 4
Disc Harrow Weight 165 lb
Transformer Frame Weight 105 lb
Combined Weight 270 lb
Finish Powder-Coated Black
Material Steel
Compatibility Titan Transformer Tow Frame System
Applications Soil Prep, Weed Control, Debris Clearing
