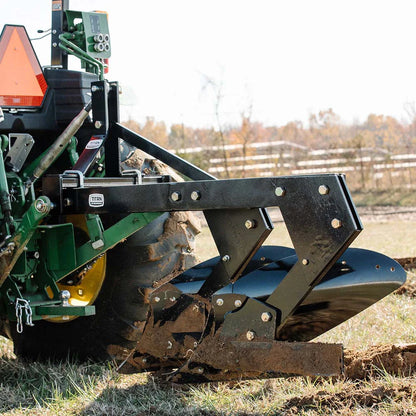

Titan Attachments Double Bottom Turn Plow | 3 Point Hitch | 15.75" Width | 35–50 HP | For Tractors
Titan Attachments Double Bottom Turn Plow | 3 Point Hitch | 15.75" Width | 35–50 HP | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Titan Attachments Log Splitter | 3 Point Hitch | 32" Width | 430 lbs | 1,500–2,500 PSI | Horsepower 20–60 HP | For Tractors
DESCRIPTION

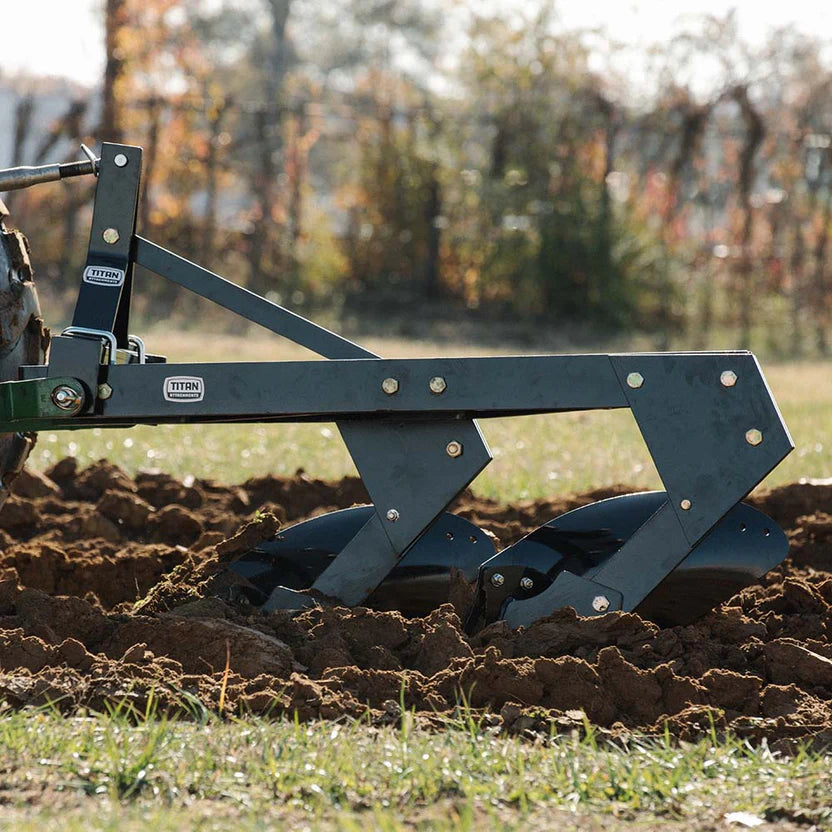

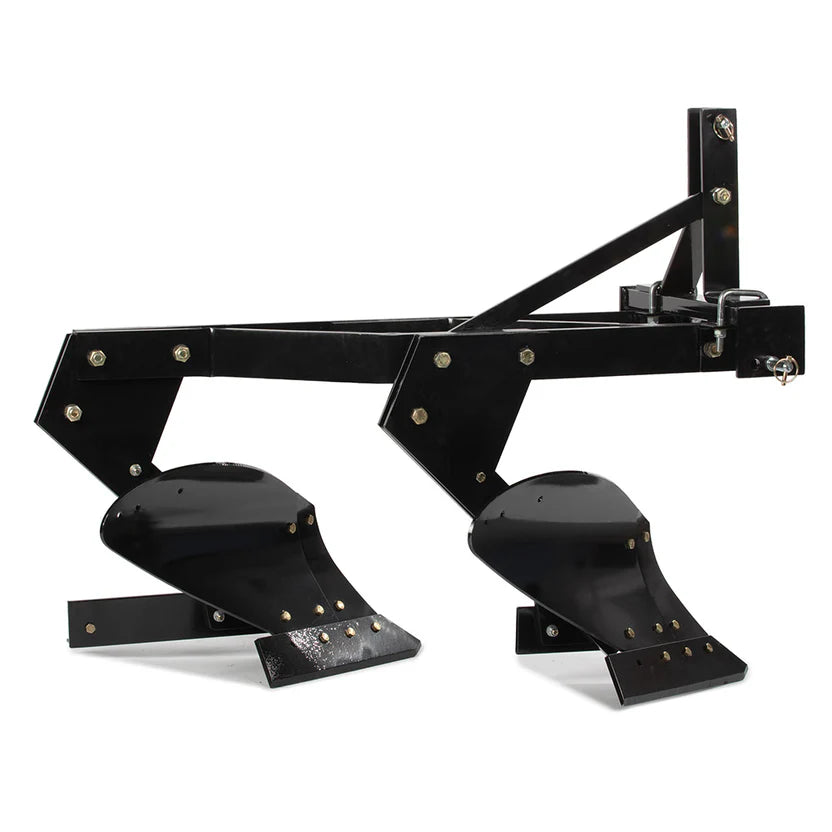

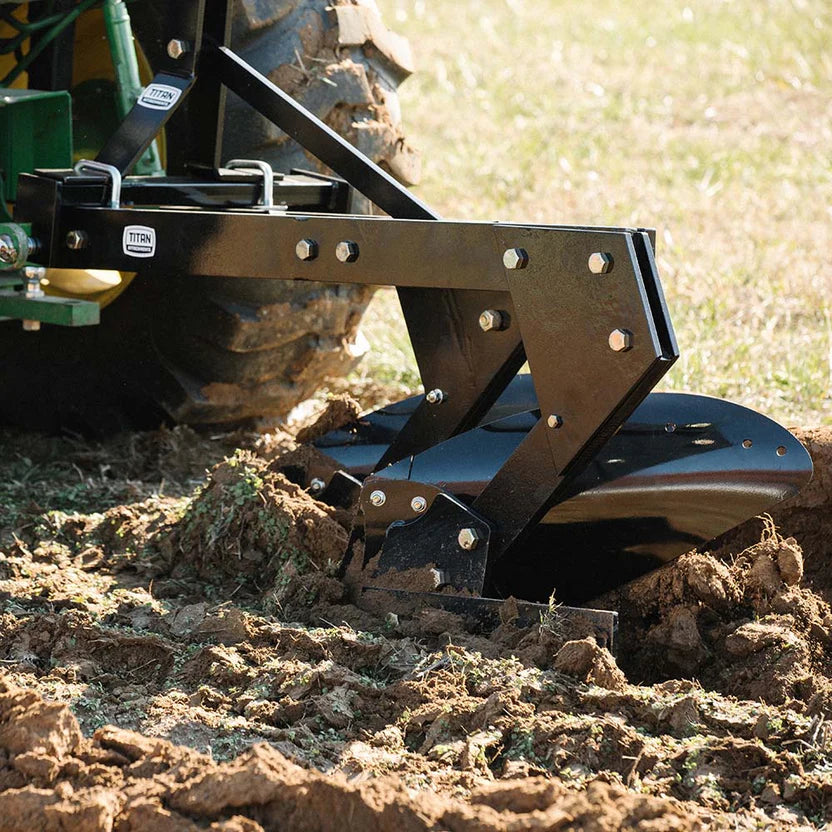

Break through compacted soil and flip over vegetation with the 3 Point Double Bottom Turn Plow, engineered for Category 1 tractors with 35–50 HP. This heavy-duty implement is ideal for deep plowing, sod busting, and primary tillage, making it a must-have for preparing fields for planting. Featuring dual moldboards, each with a 5/16" thick curved steel face, this plow slices through dense soil while turning over old vegetation to expose fresh ground. The 21" steel shares cut deep into the earth, while the adjustable lower pin settings, lift pins, and top link ensure a secure and customizable fit to your tractor. Built with a 1" thick frame and finished in powder-coated charcoal, this plow is designed to withstand rugged field conditions and deliver consistent results season after season.
Key Features
- Fits Category 1 Tractors (35–50 HP) Standard 3-point hitch compatibility for compact and utility tractors.

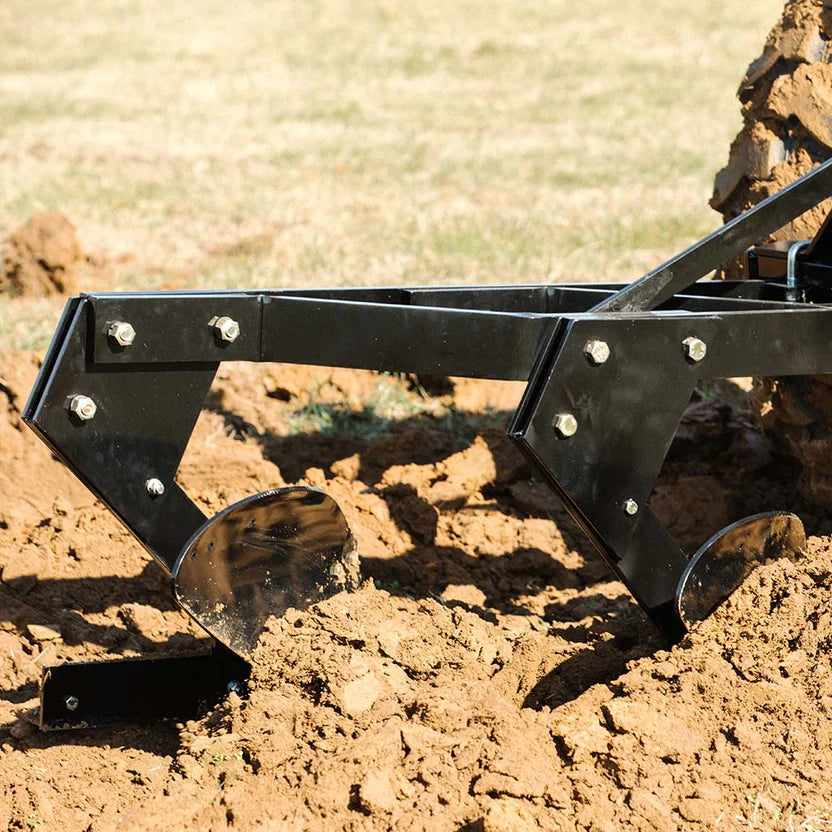

- Dual Moldboard Design Turns over soil and vegetation for clean, deep plowing.

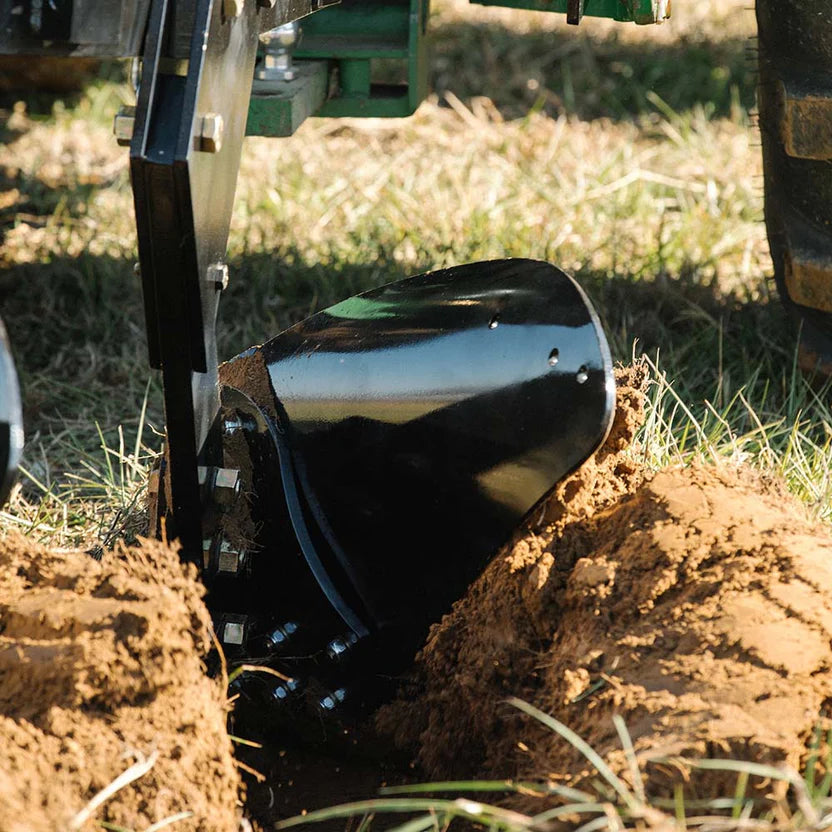

- 21" Steel Shares Penetrate compacted ground and slice through sod with ease.
- Heavy-Duty 1" Thick Frame Built for durability and long-term field use.
- Adjustable Lower Pin Settings Customize hitch height for optimal ground engagement.
- Lift Pins and Top Link Included Ready to mount—no extra hardware needed.
- Powder-Coated Charcoal Finish Resists corrosion and adds visibility in the field.
-
Ideal for Crop Prep & Sod Breaking Perfect for primary tillage and turning over old fields.

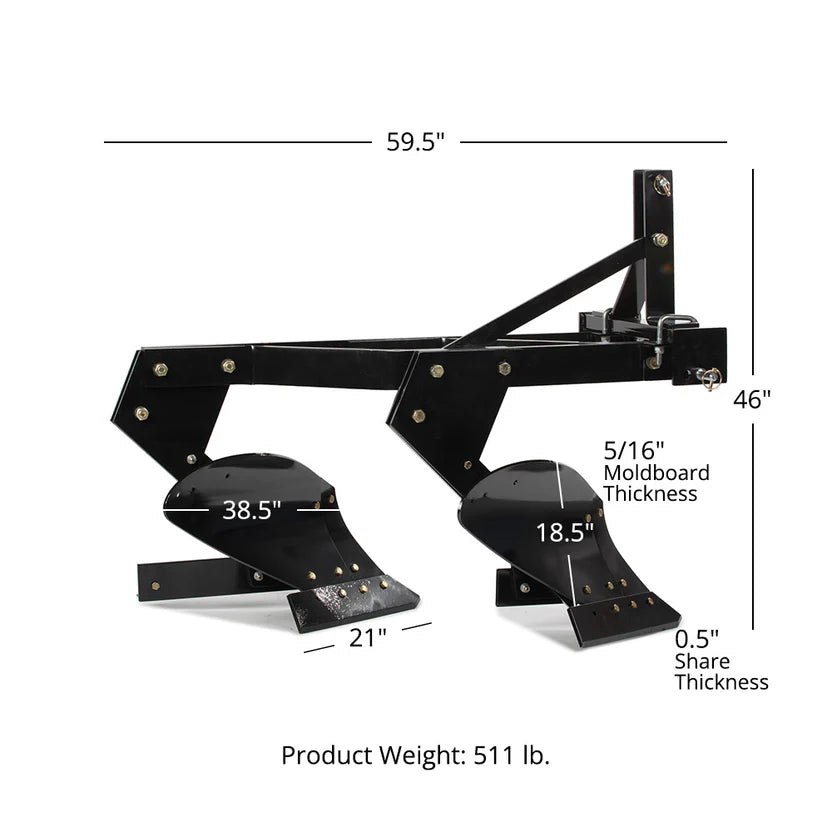

Detailed Specifications
| Specification | Details |
|---|---|
| Overall Height | 46 in |
| Overall Length | 59.5 in |
| Overall Width | 15.75 in |
| Moldboard Height | 18.5 in |
| Moldboard Length | 38.5 in |
| Moldboard Thickness | 5/16 in |
| Share Length | 21 in |
| Share Thickness | 0.5 in |
| Frame Thickness | 1 in |
| PTO HP Rating | 35–50 HP |
| Finish | Powder-Coated Charcoal |
| Material | Steel |
| Product Weight | 511 lb |
| Hitch Type | Category 1, 3-Point |
| Included Hardware | Lift Pins, Top Link |
| Configuration | Double Bottom (Single Available) |
