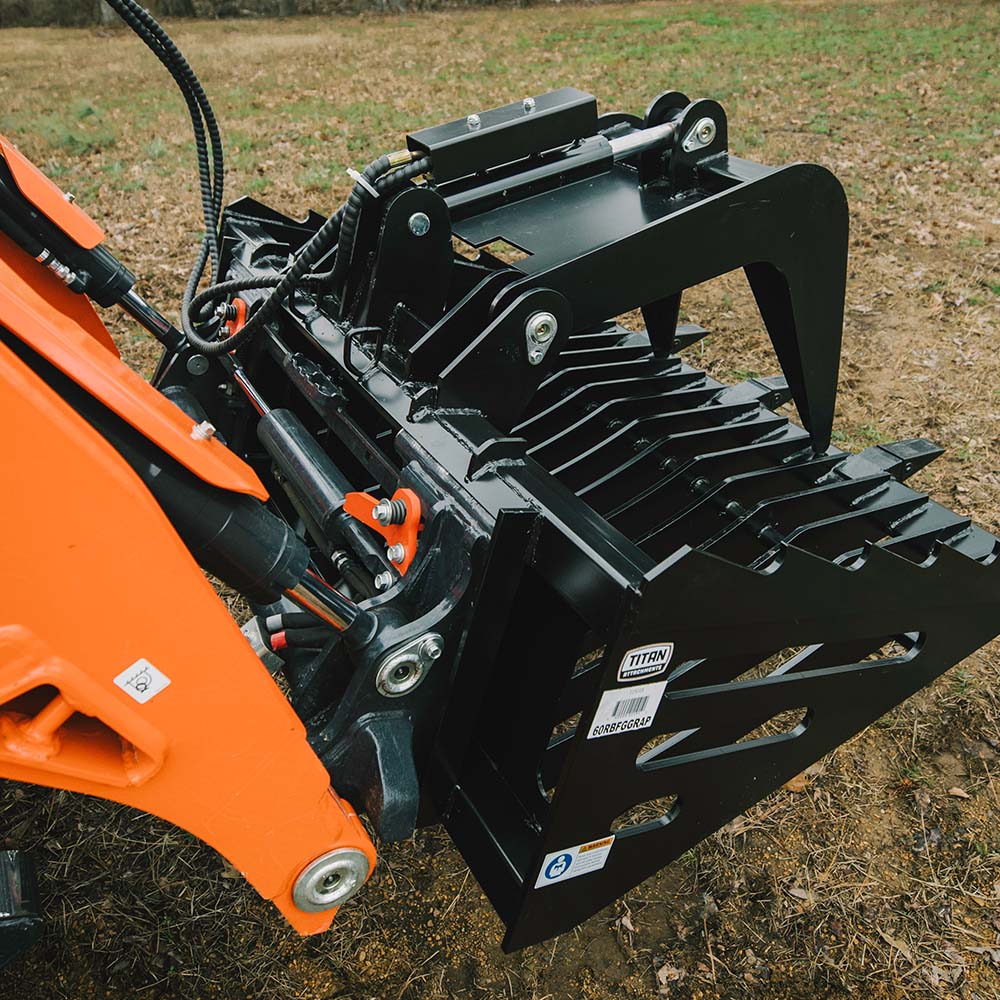

Titan Attachments Fine Grade Skeleton Rock Grapple Rake | Width 60"-82" inches | Horsepower 50-75 HP | For Tractor

Titan Attachments Fine Grade Skeleton Rock Grapple Rake | Width 60"-82" inches | Horsepower 50-75 HP | For Tractor

Regular price $4,001.99
Regular price Sale price $4,001.99
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Width 60"-82" inches & Hydraulic Flow 11-20 GPM For Skid Steers.
  • Heavy-Duty Performance Built with reinforced steel construction, ensuring long-lasting durability and strength.
  • Efficient Sifting Design 3-inch tine spacing allows dirt to fall through while securely holding rocks and debris.
  • High-Pressure Hydraulic Cylinders Powered by 3,000 PSI cylinders with 2.5" bore x 8" stroke, delivering strong clamping force.
View full details

Product Description

Titan Attachments Fine Grade Skeleton Rock Grapple Rake | Width 60"-82" inches | Horsepower 50-75 HP | For Tractor

DESCRIPTION

The Titan Attachments Fine Grade Skeleton Rock Grapple Rake is a rugged and versatile attachment designed for clearing rocks, debris, and other materials while allowing valuable soil to sift through the tines. Whether you're working on landscaping, construction, or land clearing, this grapple rake is built to handle tough jobs with ease.

Featuring a universal skid steer quick-attach (SSQA) system, this grapple rake is compatible with a wide range of skid steers and tractors. Its open tine design ensures efficient sifting of dirt and debris, while the replaceable cast bucket teeth and reinforced side cutters provide long-lasting durability.

Powered by two 2.5-inch bore x 8-inch stroke hydraulic cylinders, this grapple rake delivers exceptional gripping and lifting power, making it ideal for moving rocks, pipes, and other heavy materials.

Key Features

  • Heavy-Duty Performance Built with reinforced steel construction, ensuring long-lasting durability and strength.
  • Efficient Sifting Design 3-inch tine spacing allows dirt to fall through while securely holding rocks and debris.
  • High-Pressure Hydraulic Cylinders Powered by 3,000 PSI cylinders with 2.5" bore x 8" stroke, delivering strong clamping force.
  • Universal Compatibility Fits most skid steers and tractors with a universal quick tach mounting system.
  • Enhanced Protection Includes cylinder covers to shield components from debris and harsh environments.
  • Replaceable Teeth Equipped with bolt-on bucket teeth for superior ground penetration and easy maintenance.
  • Reinforced Cutting Edge Side cutters and serrated edges enhance digging and material handling efficiency.
  • Hydraulic Flow (GPM): 60" Model Requires 11-16 GPM. & 72" Model Requires 13-18 GPM. & 82" Model Requires 16-20 GPM.
  • Horsepower (HP): 60" Model Recommended for 50-60 HP. & 72" Model Recommended for 60-75 HP. & 82" Model Recommended for 70-75 HP.
  • Deep-Well Rock Dam Ensures secure material handling without spillage.
  • Flat-Faced Couplers & Hoses Included Comes with high-quality hydraulic hoses and couplers for easy installation and use.

Detailed Specifications

Feature 60" Model 72" Model 82" Model
Jaw Opening 35.5 in 35.5 in 35.5 in
Overall Width 61 in 73 in 83 in
Overall Depth 51.5 in 51.5 in 51.5 in
Inside Width 60 in 72 in 82 in
Inside Depth 38 in 38 in 38 in
Top Teeth Thickness 0.375 in 0.375 in 0.375 in
Spacing Between Tines 3 in 3 in 3 in
Bottom Tine Thickness 0.5 in 0.5 in 0.5 in
Side Cutting Edge Thickness 0.5 in 0.5 in 0.5 in
Material Steel Steel Steel
Finish Powder-Coated Black Powder-Coated Black Powder-Coated Black
Min Loader Rated Capacity 1,698 LB 2,100 LB 2,436 LB
Max Loader Rated Capacity 3,500 LB 3,500 LB 3,500 LB
Product Weight 849 LB 1,050 LB 1,218 LB
Hydraulic Flow (GPM) 11-16 GPM 13-18 GPM 16-20 GPM
Horsepower (HP) 50-60 HP 60-75 HP 70-75 HP
