Product Description
Titan Attachments Land Planer | Heavy-Duty Landscape Leveler | 72"–84" Width | 4" Rip Depth | Oil Flow Range 13–25 GPM | For Skid Steers
DESCRIPTION

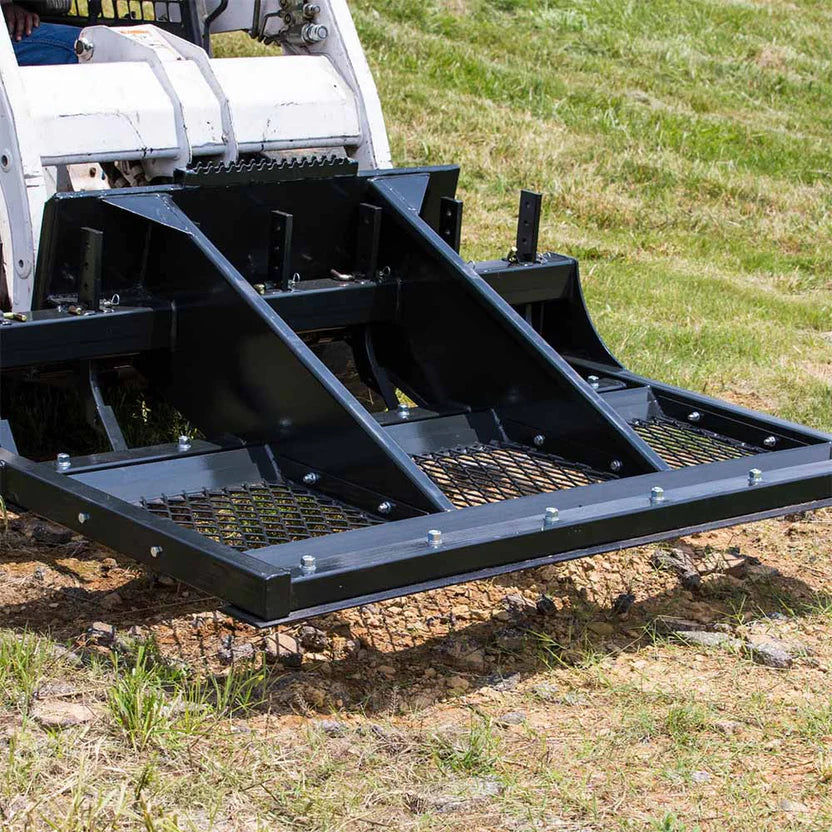

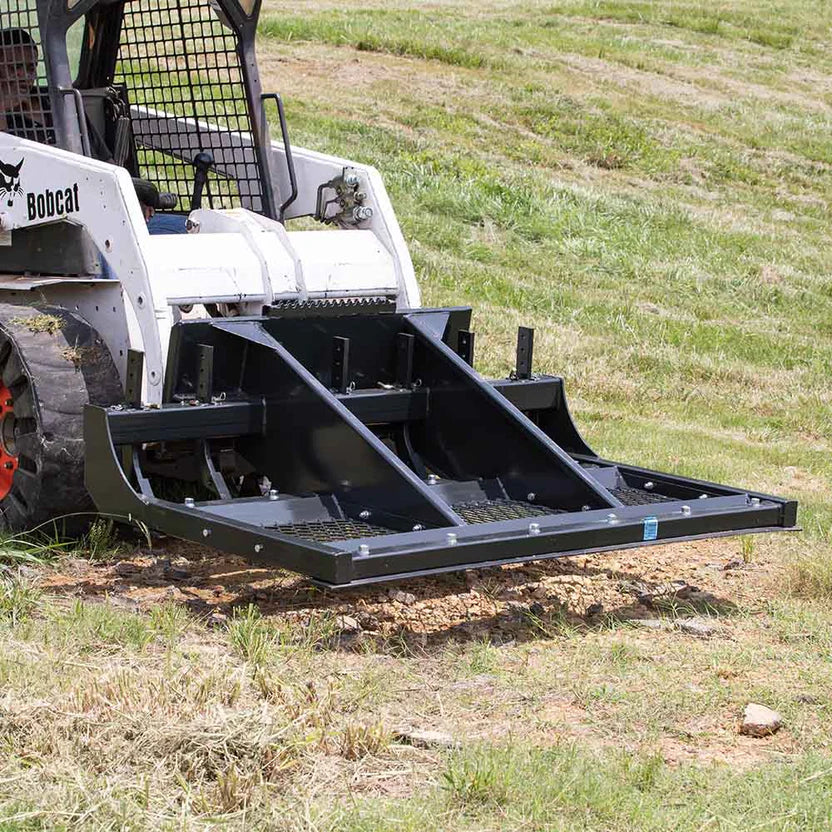

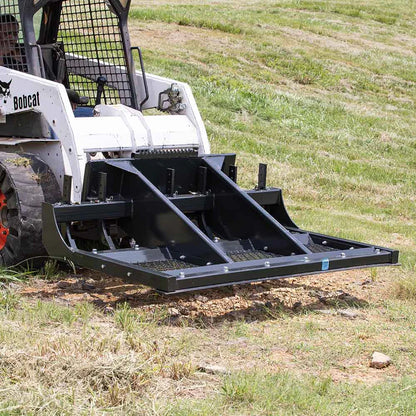

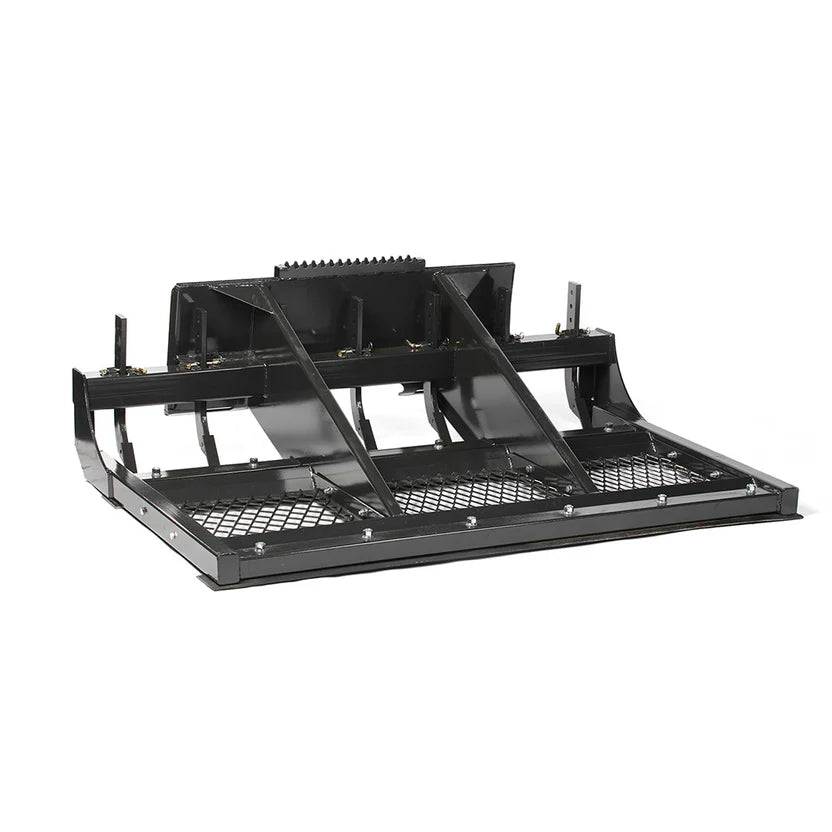

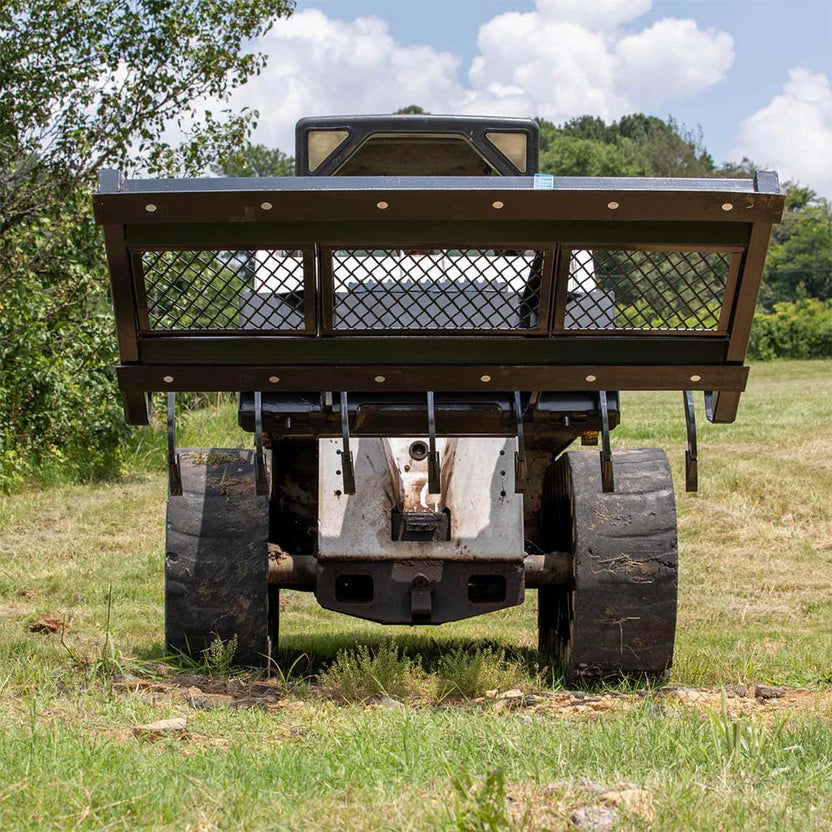

The Titan Skid Steer Land Planer is built to tackle tough terrain and deliver precision grading for gravel roads, driveways, and construction sites. Engineered with a rugged steel frame and reinforced gussets, this attachment resists twisting and pulling under heavy use. Whether you're resurfacing a parking lot or prepping a job site, the Land Planer’s adjustable scarifier teeth and optional bolt-on comb give you full control over soil conditioning and leveling. Designed for versatility and longevity, it features removable bolt-on sift screens, a replaceable cutting edge, and a universal quick attach mount compatible with most skid steers, loaders, and tractors. With two size options—72" and 84" widths—you can choose the perfect fit for your machine and project scale.
Key Features

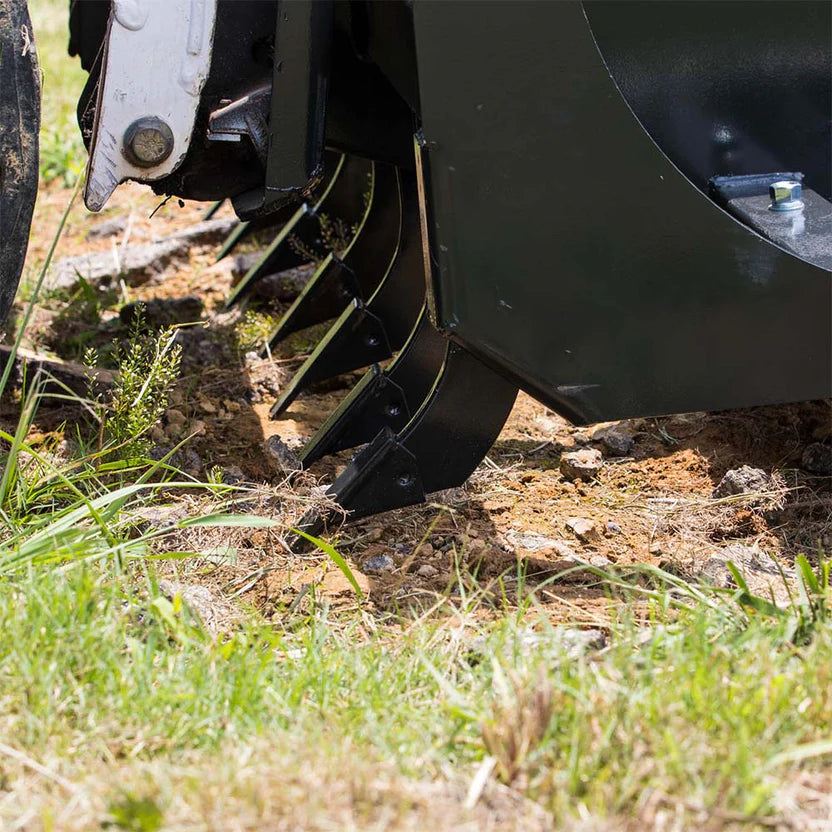

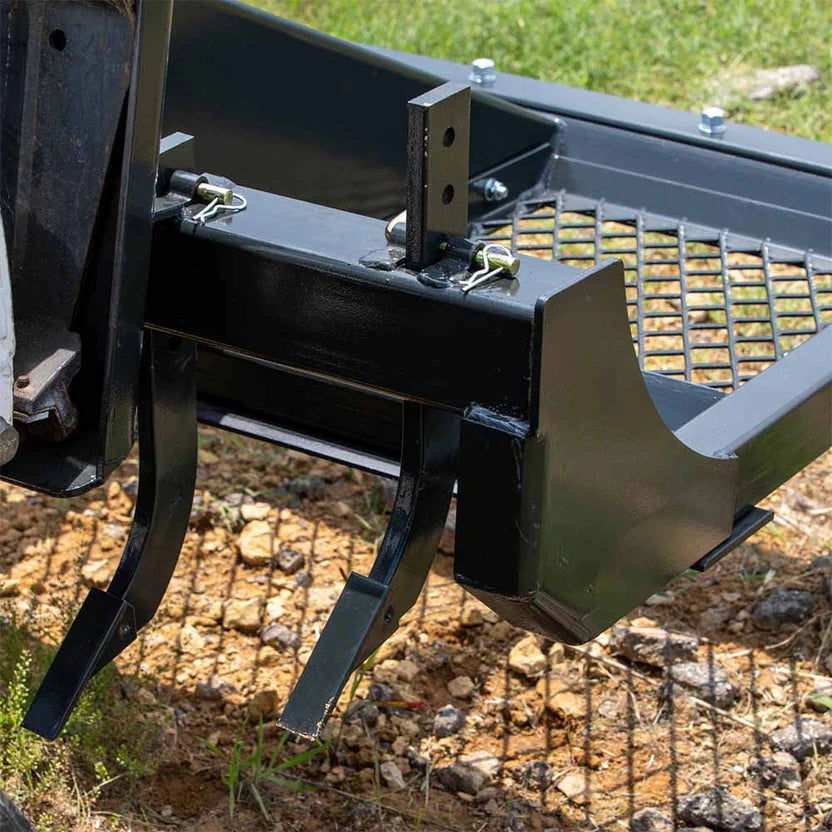

- Adjustable & Reversible Scarifier Teeth Break up compacted soil and gravel with customizable depth and direction.

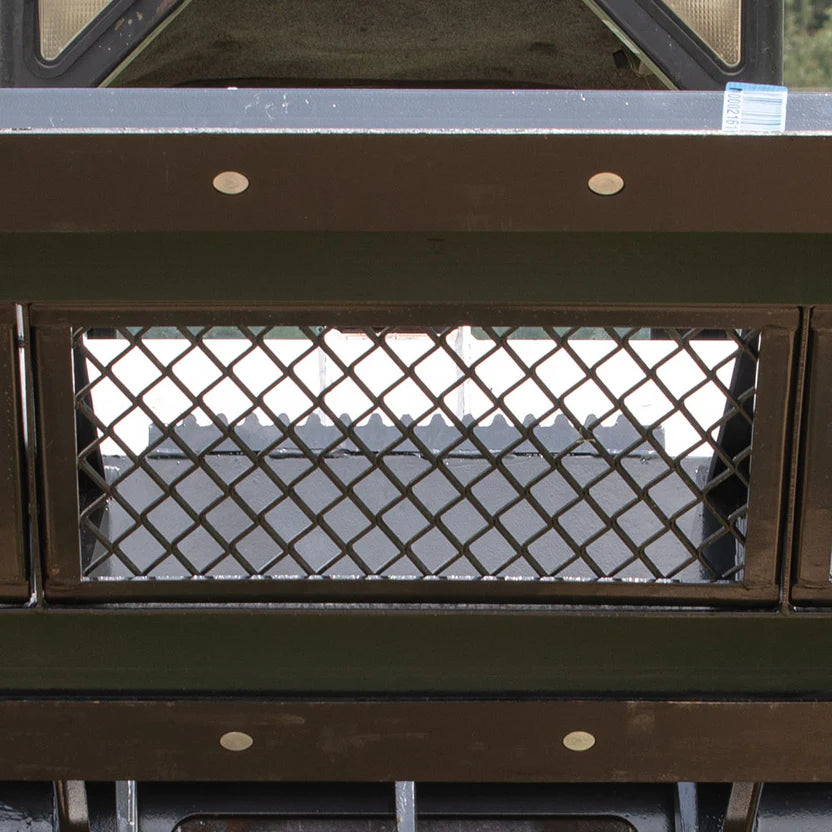

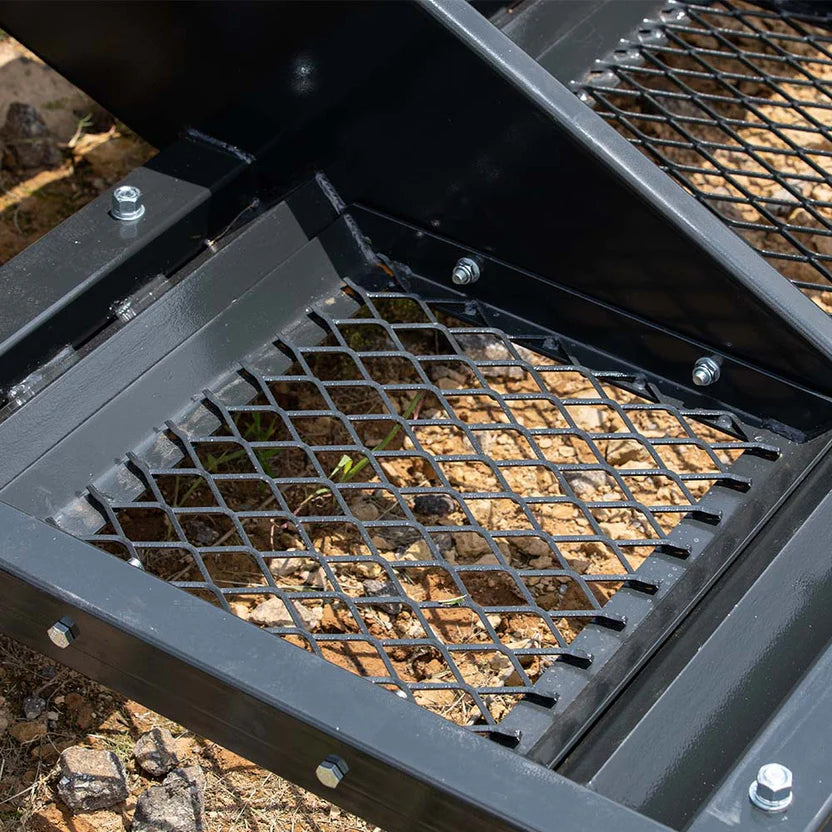

- Removable Bolt-On Sift Screens Filter out large debris for a smoother finish and cleaner grading.

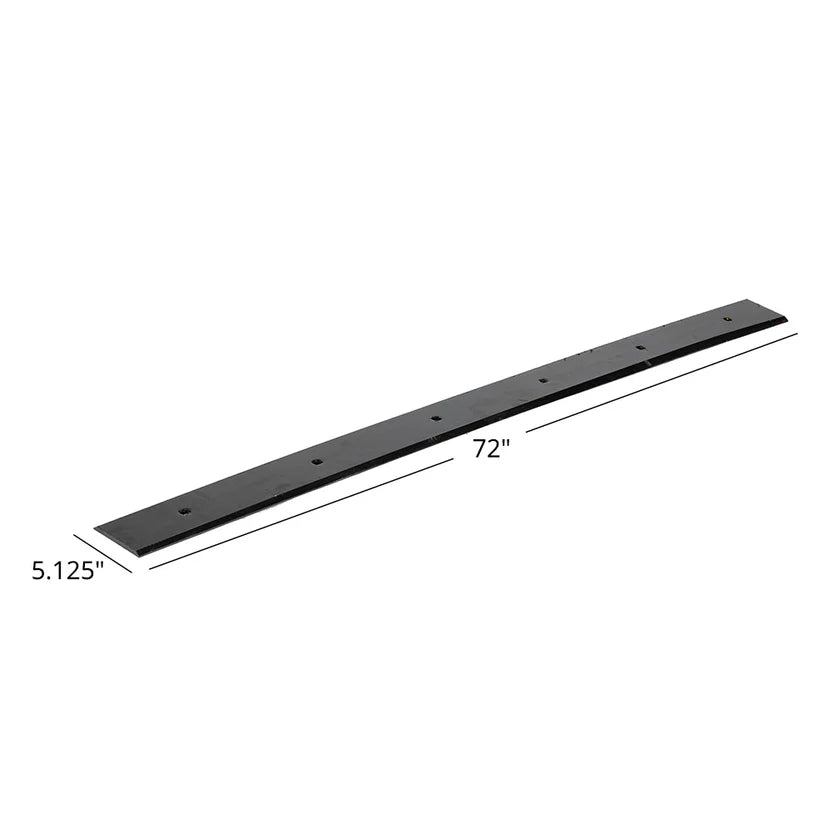

- Replaceable 0.5" Cutting Edge Durable edge slices through tough terrain and can be replaced when worn.
- Optional 0.375" Planner Comb Bolt-on comb helps refine the surface for final grading and contouring.
- Heavy-Duty Gusseted Frame Reinforced with dual front gussets to prevent twisting and maintain structural integrity.
- Universal Skid Steer Quick Attach Compatible with most skid steers, loaders, and tractors for easy hookup.
-
Powder-Coated Finish Black powder coating resists rust and wear for long-term durability.
Detailed Specifications

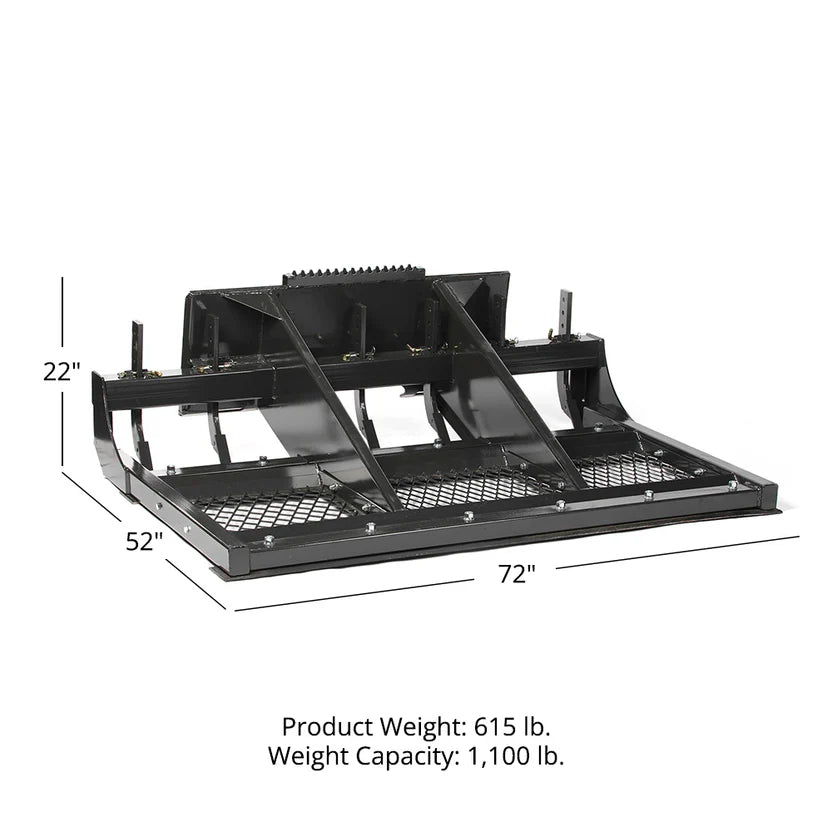

| Feature | 72" Model | 84" Model |
|---|---|---|
| Overall Width | 72 in. | 84 in. |
| Overall Height | 22 in. | 22 in. |
| Overall Depth | 52 in. | 52 in. |
| Max Rip Depth | 4 in. | 4 in. |
| Cutting Edge Thickness | 0.5 in. | 0.5 in. |
| Optional Planner Comb | 0.375 in. (bolt-on) | 0.375 in. (bolt-on) |
| Material | Heavy-Duty Steel | Heavy-Duty Steel |
| Finish | Powder-Coated Black | Powder-Coated Black |
| Product Weight | 615 lb | 685 lb |
| Weight Capacity | 1,100 lb | 1,100 lb |
| Mounting System | Universal Skid Steer Quick Attach | Universal Skid Steer Quick Attach |
| Sift Screens | Removable bolt-on trays | Removable bolt-on trays |
| Scarifier Teeth | Adjustable & reversible | Adjustable & reversible |
