Titan Attachments Log Splitter | 30 Ton Force | 208cc Briggs & Stratton | 47" Width | 502 lb | 6.5 HP | For ATV/UTV

Titan Attachments Log Splitter | 30 Ton Force | 208cc Briggs & Stratton | 47" Width | 502 lb | 6.5 HP | For ATV/UTV

Regular price $3,375.01
Regular price Sale price $3,375.01
Sale Sold out
Customizable
Fast
24/7 Support
  • 30 Ton Splitting Force Handles tough hardwoods and large-diameter logs with ease.

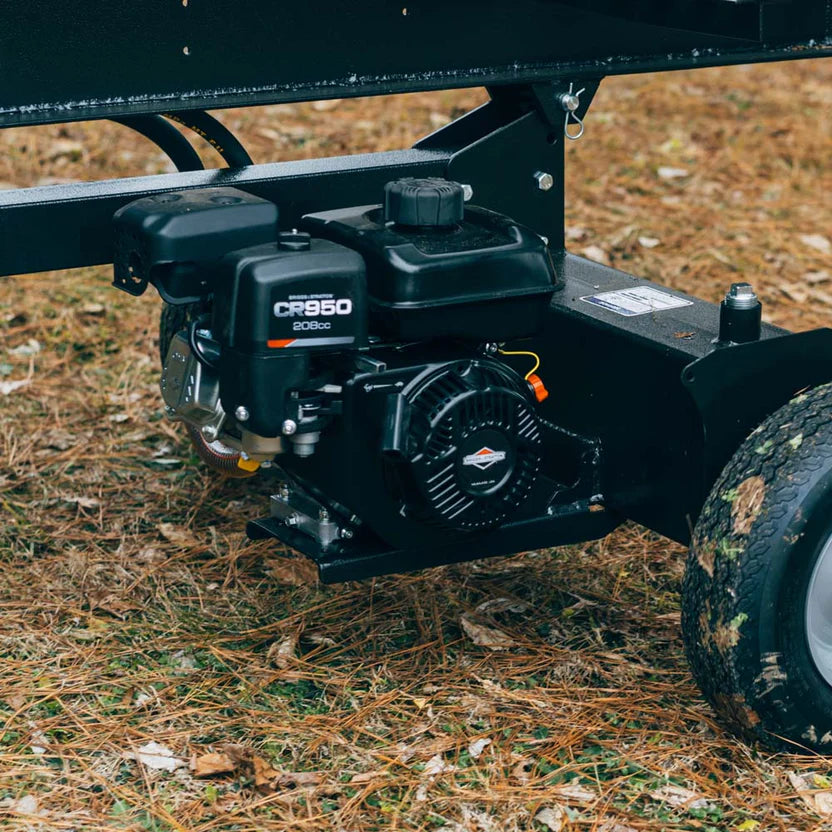

  • 208cc Briggs & Stratton Engine Reliable power source with efficient fuel consumption.

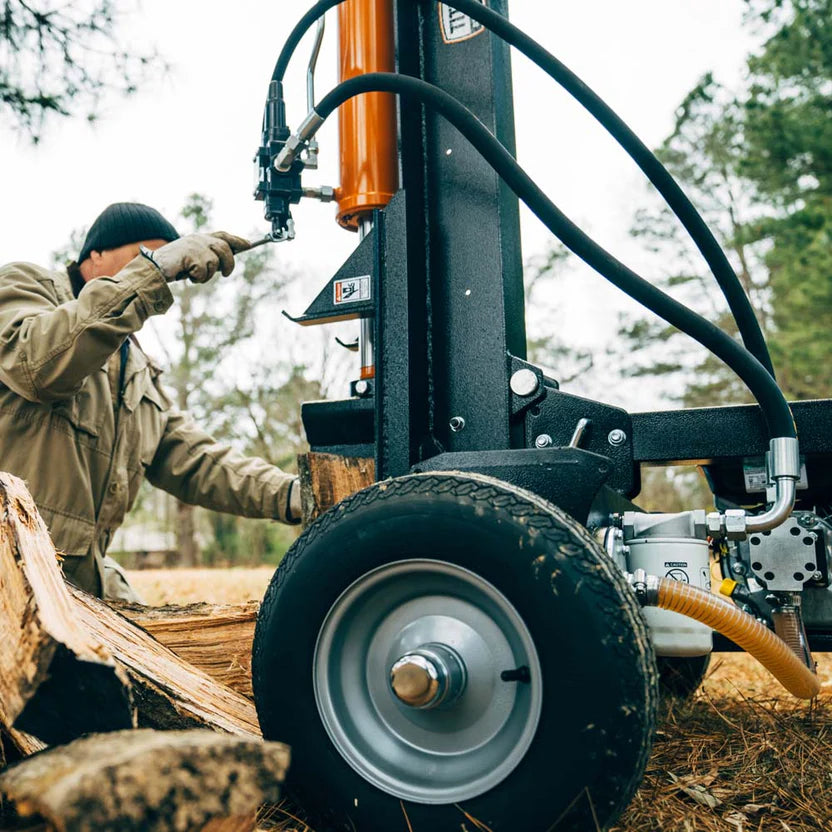

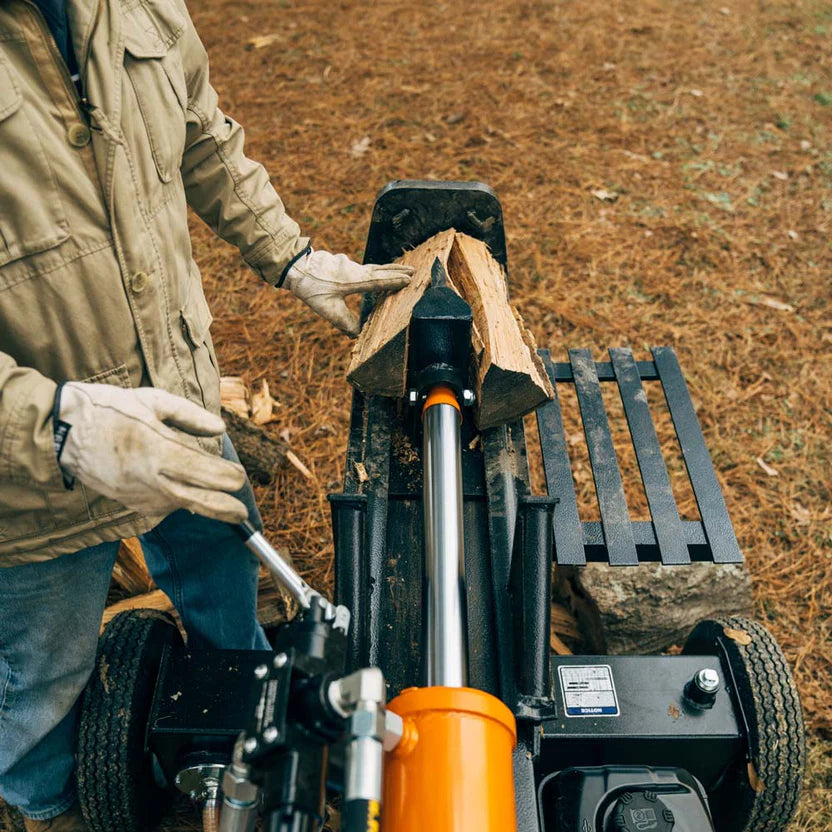

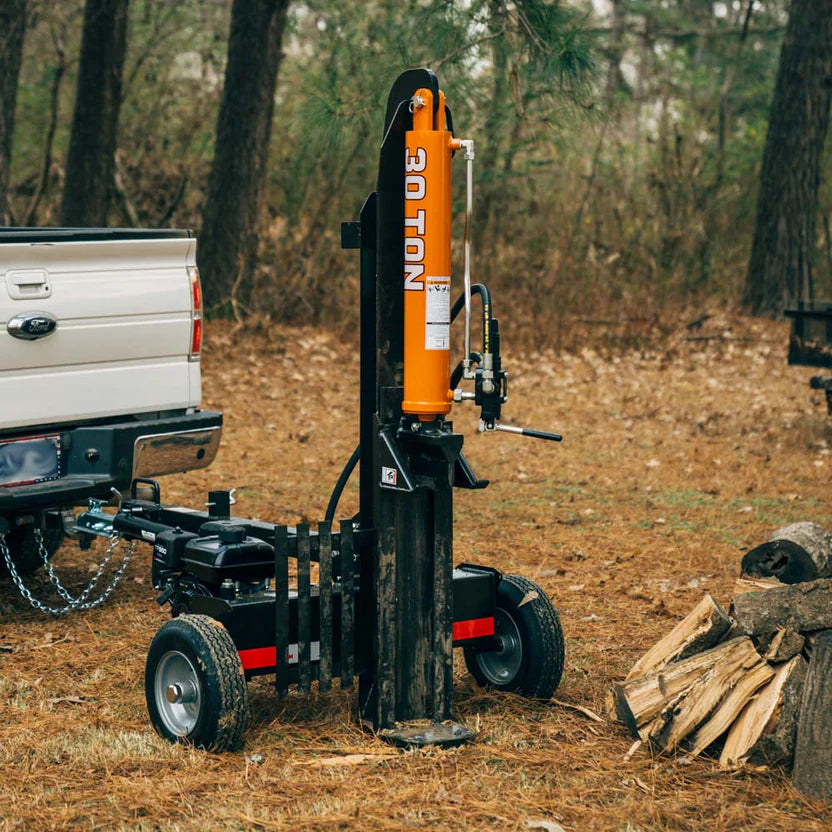

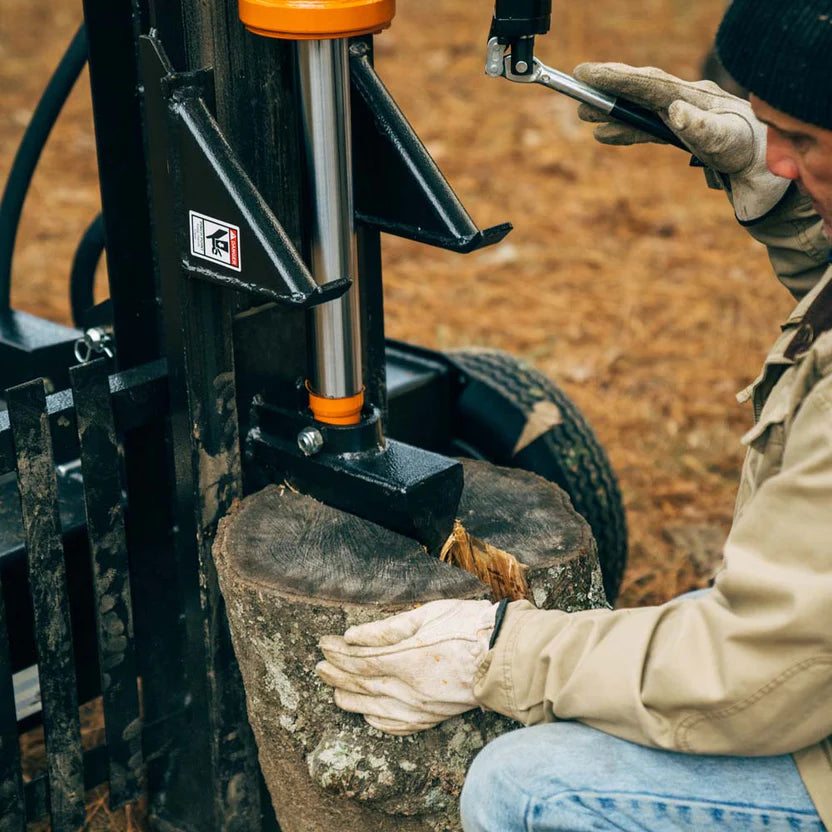

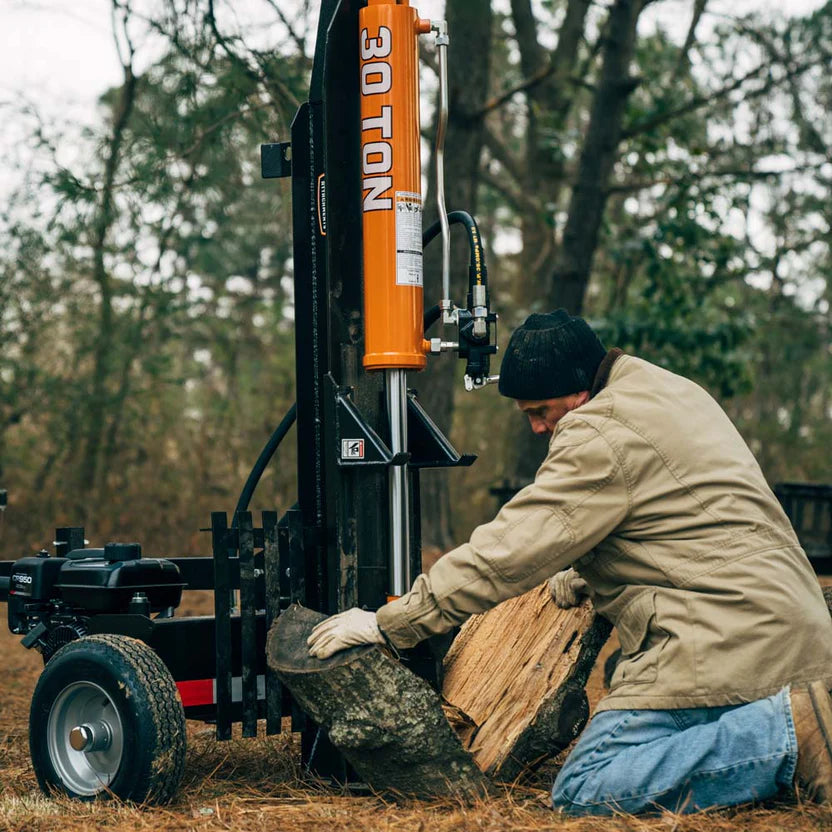

  • Horizontal & Vertical Operation Split small logs at waist height or roll large logs into vertical position.
View full details

Product Description

Titan Attachments Log Splitter | 30 Ton Force | 208cc Briggs & Stratton | 47" Width | 502 lb | 6.5 HP | For ATV/UTV

DESCRIPTION

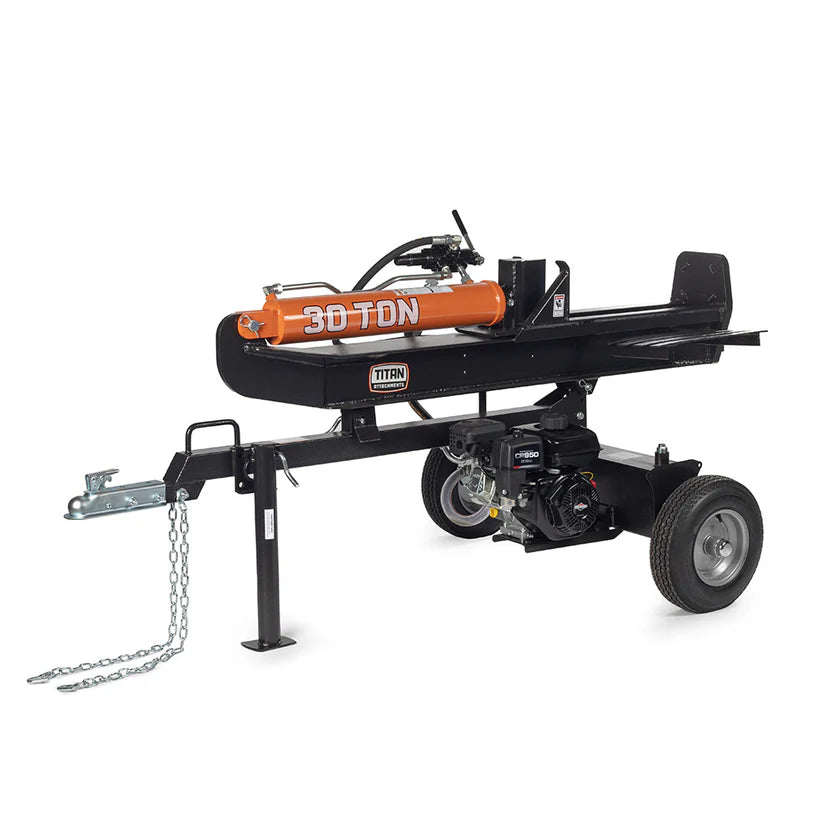

The Titan 30 Ton Tow-Behind Log Splitter is a heavy-duty, high-performance solution for serious woodcutting tasks. Designed for both horizontal and vertical operation, this splitter handles logs up to 24" long and 16" in diameter—including dense hardwoods like oak, walnut, and elm—with ease. Powered by a 208cc Briggs & Stratton engine, its single-cylinder hydraulic system delivers up to 30 tons of splitting force with a fast 13.5-second cycle time. The industrial-strength I-beam frame and reinforced steel construction ensure long-term durability, while the integrated log cradle and catcher improve safety and efficiency. Easily towable behind any ATV, UTV, or small tractor with a 2" ball hitch, this splitter is ideal for cabins, lodges, farms, and rural properties.

Key Features

  • 30 Ton Splitting Force Handles tough hardwoods and large-diameter logs with ease.
  • 208cc Briggs & Stratton Engine Reliable power source with efficient fuel consumption.
  • Horizontal & Vertical Operation Split small logs at waist height or roll large logs into vertical position.
  • Fast 13.5 Second Cycle Time Speeds up log processing for higher productivity.

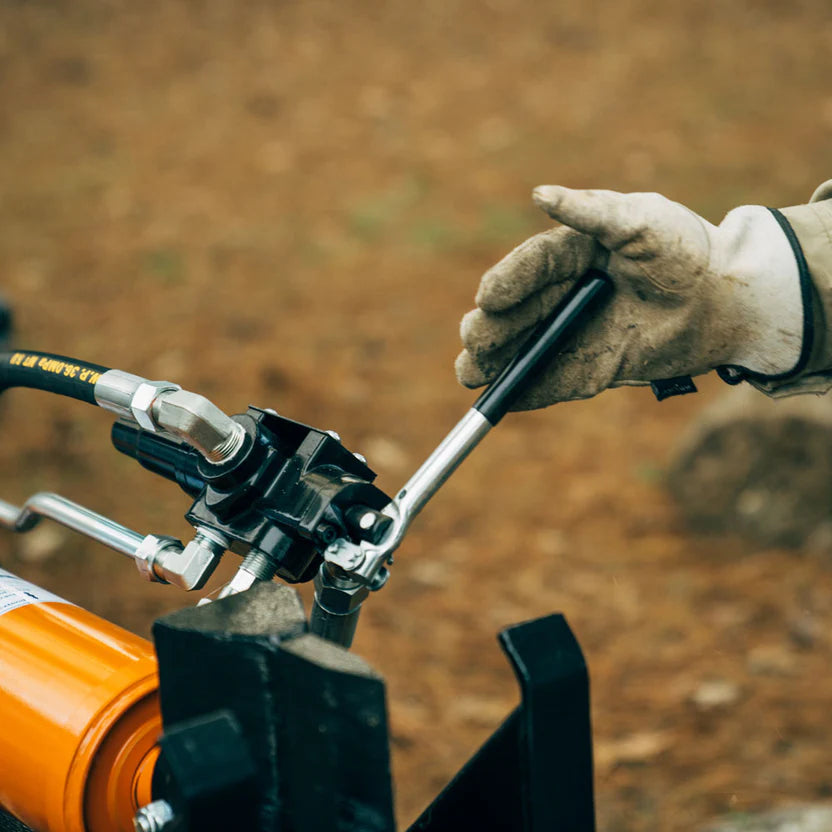

  • Single Cylinder Hydraulic System Includes auto-return valve with adjustable detent for smooth operation.
  • Accepts Logs Up to 24" Long & 16" Diameter Ideal for firewood, timber prep, and rural land management.
  • Heavy-Duty I-Beam Frame Built from industrial-grade steel for long-lasting strength.
  • Integrated Log Cradle & Catcher Improves safety and handling during splitting.

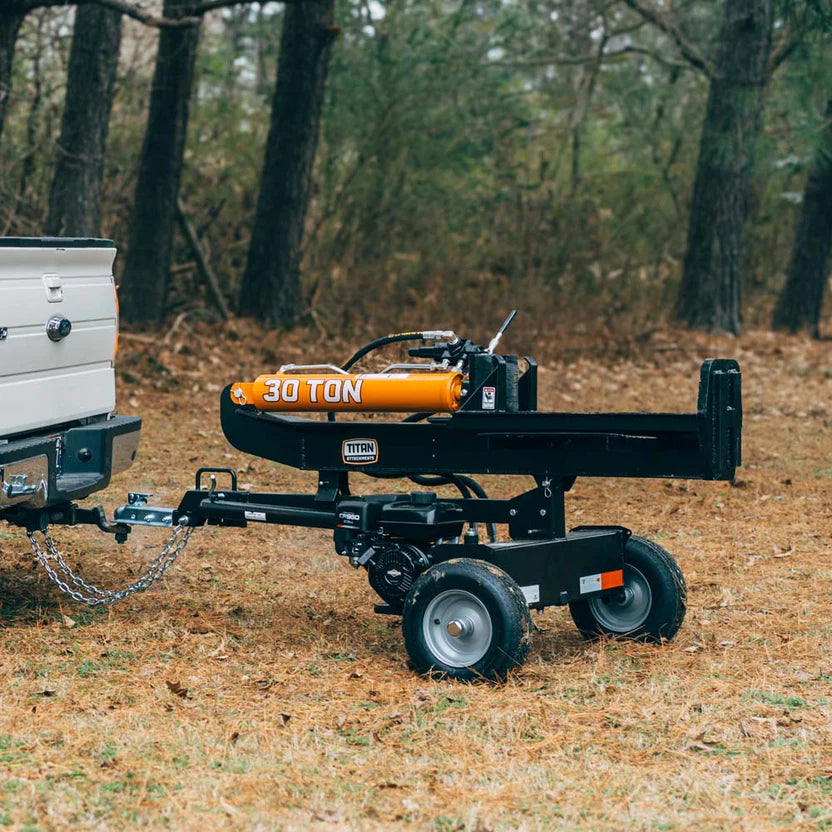

  • Towable Design Attaches to any ATV, UTV, or small tractor with a 2" ball hitch.
  • Powder-Coated Finish Black and orange coating resists corrosion and wear.
  • Kickstand Included Keeps the unit level and stable during operation or storage.

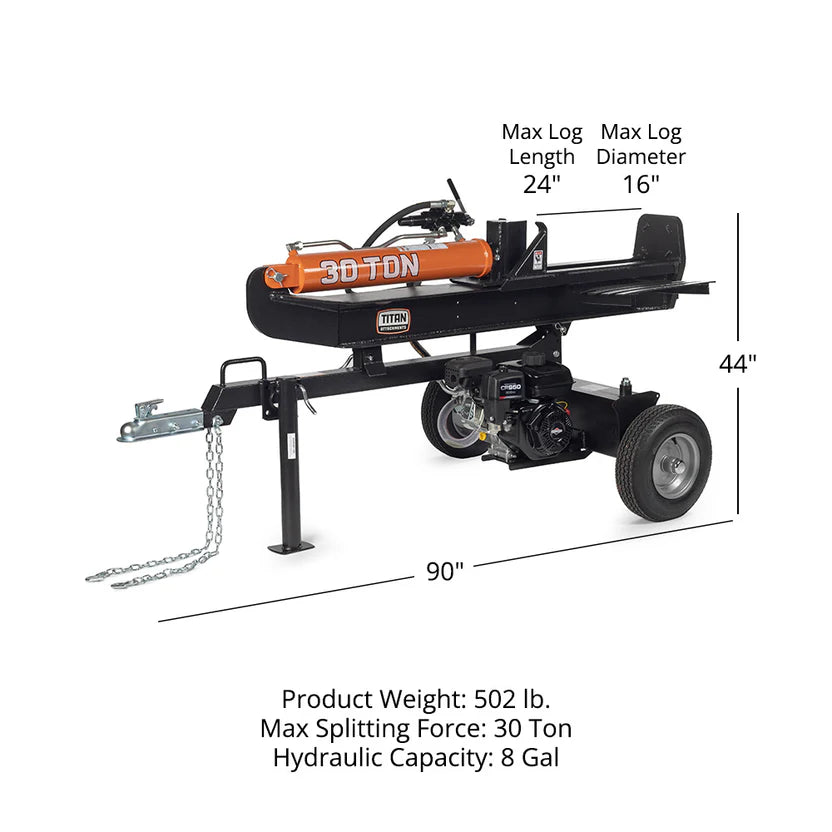

Detailed Specifications

Specification Details
Overall Height 44 in
Overall Length 90 in
Overall Width 47 in
Max Log Length 24 in
Max Log Diameter 16 in
Log Catcher Dimensions 18 in x 11.5 in
Log Cradle Dimensions 25 in x 10 in
Cylinder Length 29.75 in
Cylinder Diameter 4.25 in

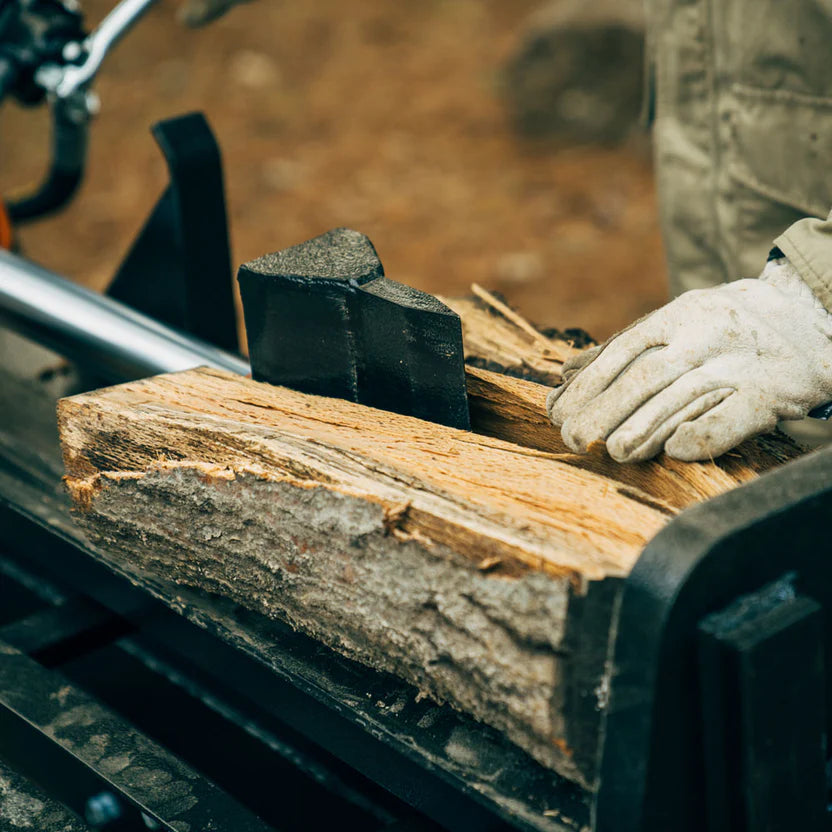

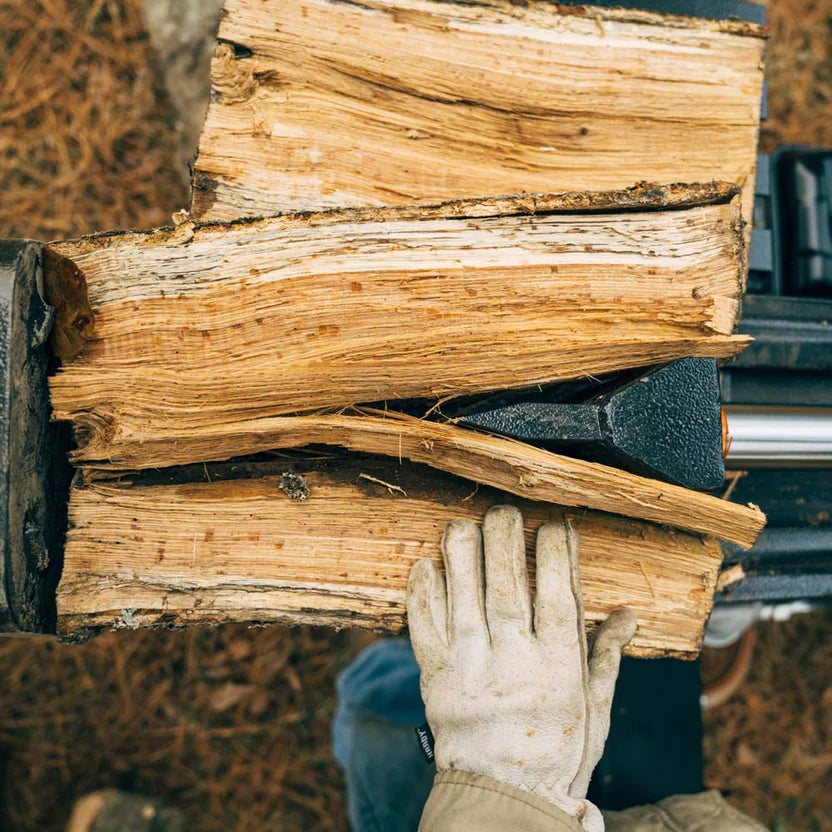

Wedge Height 8 in
Wedge Length 3.5 in
Wedge Width 0.75 in
Engine Size 208cc
Engine Type Briggs & Stratton
Cycle Time 13.5 Sec
Hydraulic Capacity 8 Gal
Max Splitting Force 30 Ton
Material Steel
Finish Powder-Coated Black/Orange
Product Weight 502 lb
Mounting Style 2" Ball Tow Hitch
Orientation Horizontal / Vertical
Transport Features Rear Tires, Kickstand
