Titan Attachments Log Splitter | Dual-Way 20 Ton Forward / 15 Ton Reverse | 208cc Briggs & Stratton | 39.5" Width | Horsepower 6.5 HP | For ATV/UTV

Titan Attachments Log Splitter | Dual-Way 20 Ton Forward / 15 Ton Reverse | 208cc Briggs & Stratton | 39.5" Width | Horsepower 6.5 HP | For ATV/UTV

Regular price $2,427.87
Regular price Sale price $2,427.87
Sale Sold out
Customizable
Fast
24/7 Support
  • Dual-Way Splitting Action Splits logs in both directions—forward and reverse—for faster cycle times.
  • 20 Ton Forward / 15 Ton Reverse Force Handles tough green logs and hardwoods with ease.
  • 208cc Briggs & Stratton Engine (6.5 HP) Reliable and efficient power source for consistent performance.
View full details

Product Description

Titan Attachments Log Splitter | Dual-Way 20 Ton Forward / 15 Ton Reverse | 208cc Briggs & Stratton | 39.5" Width | Horsepower 6.5 HP | For ATV/UTV

DESCRIPTION

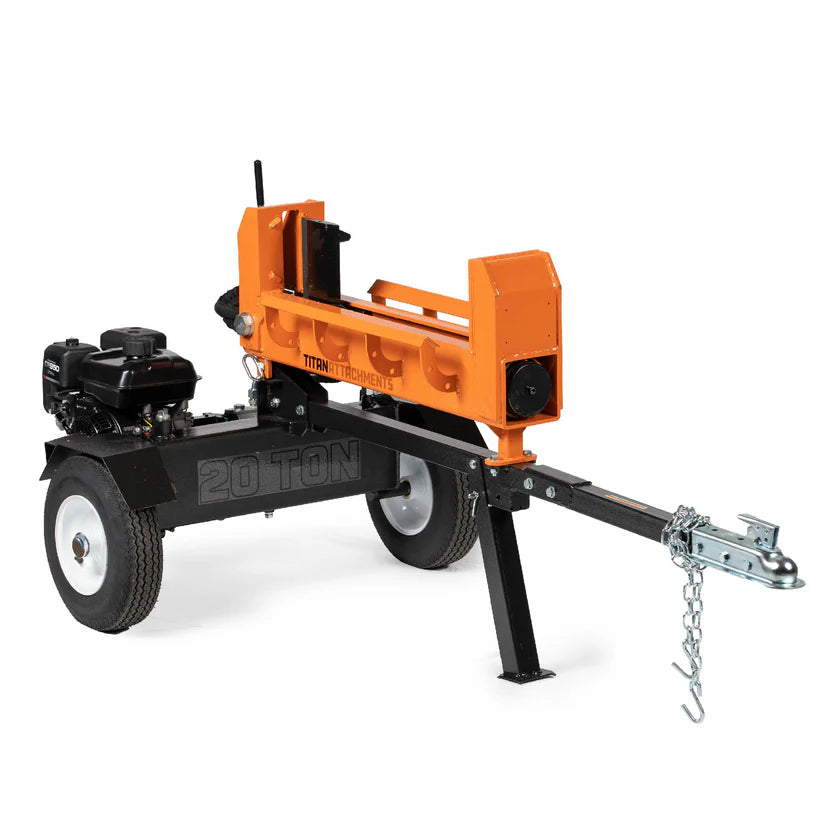

The Tag 20 Ton Dual-Way Tow-Behind Log Splitter is engineered for speed, power, and portability—perfect for homeowners, cabin owners, and firewood producers who need reliable performance in rugged conditions. Featuring a dual-action hydraulic system, this splitter cuts logs on both the forward and return stroke, effectively doubling productivity and reducing cycle time. Powered by a 208cc Briggs & Stratton engine delivering 6.5 HP, it generates up to 20 tons of forward splitting force and 15 tons in reverse, making short work of dense hardwoods like oak, walnut, and cherry. The horizontal design allows waist-height operation, while the square log cradle and hardened steel wedge ensure safe, clean, and consistent splits. Towable behind any lawn tractor, ATV, or UTV with a 2" ball hitch, this splitter is built from heavy-gauge steel and reinforced with an industrial-grade frame for long-term durability.

Key Features

  • Dual-Way Splitting Action Splits logs in both directions—forward and reverse—for faster cycle times.
  • 20 Ton Forward / 15 Ton Reverse Force Handles tough green logs and hardwoods with ease.

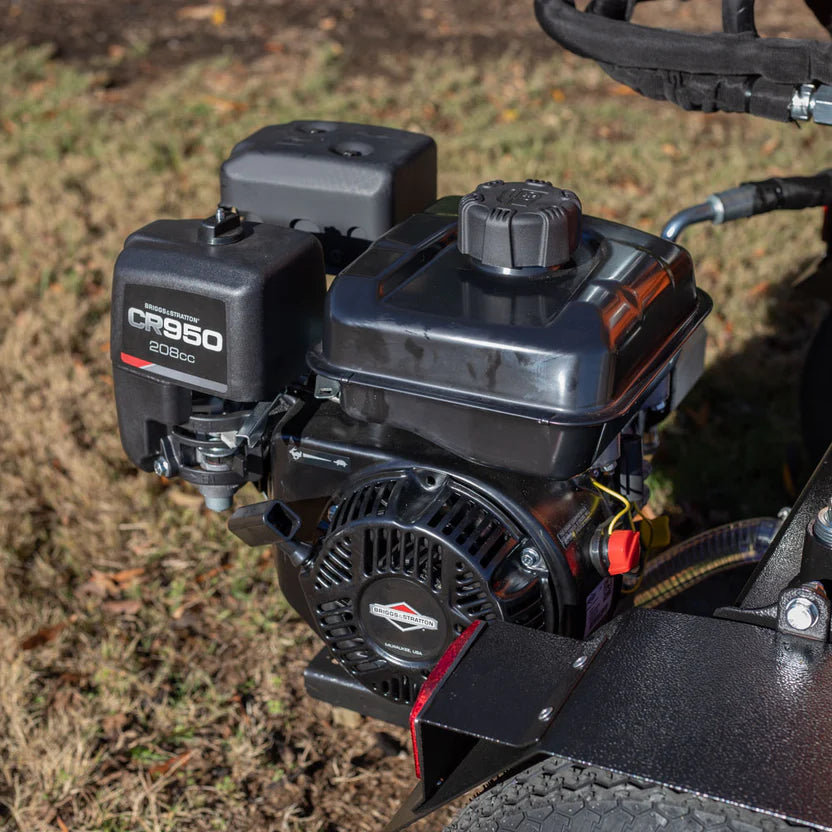

  • 208cc Briggs & Stratton Engine (6.5 HP) Reliable and efficient power source for consistent performance.
  • Accepts Logs Up to 23" Long & 16" Diameter Ideal for firewood prep and seasonal woodcutting.

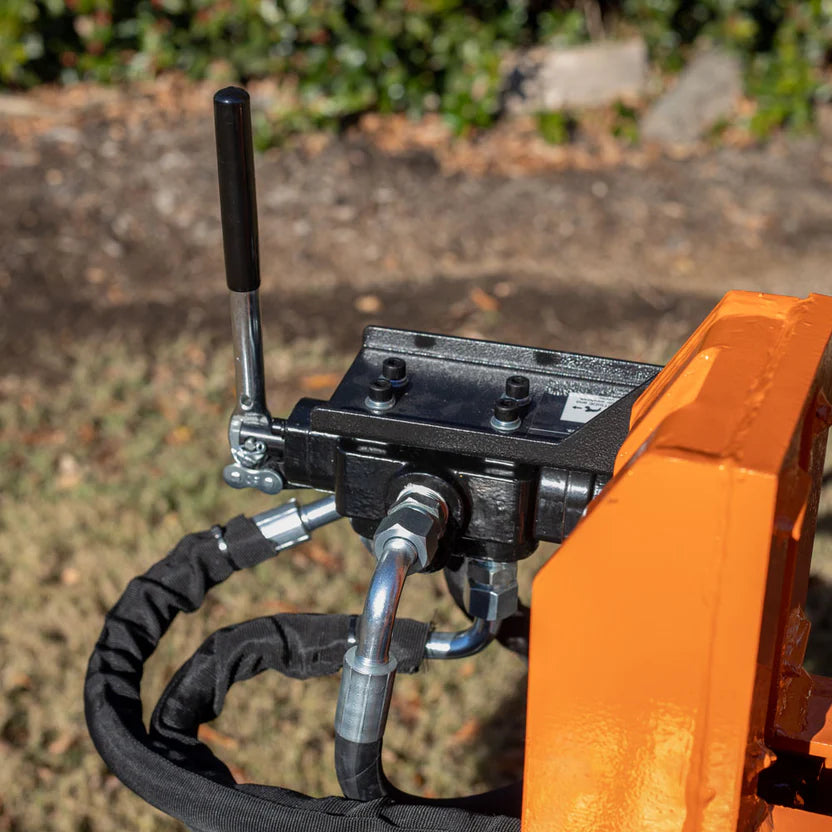

  • Auto Return Valve with Adjustable Detent Simplifies operation and improves workflow.

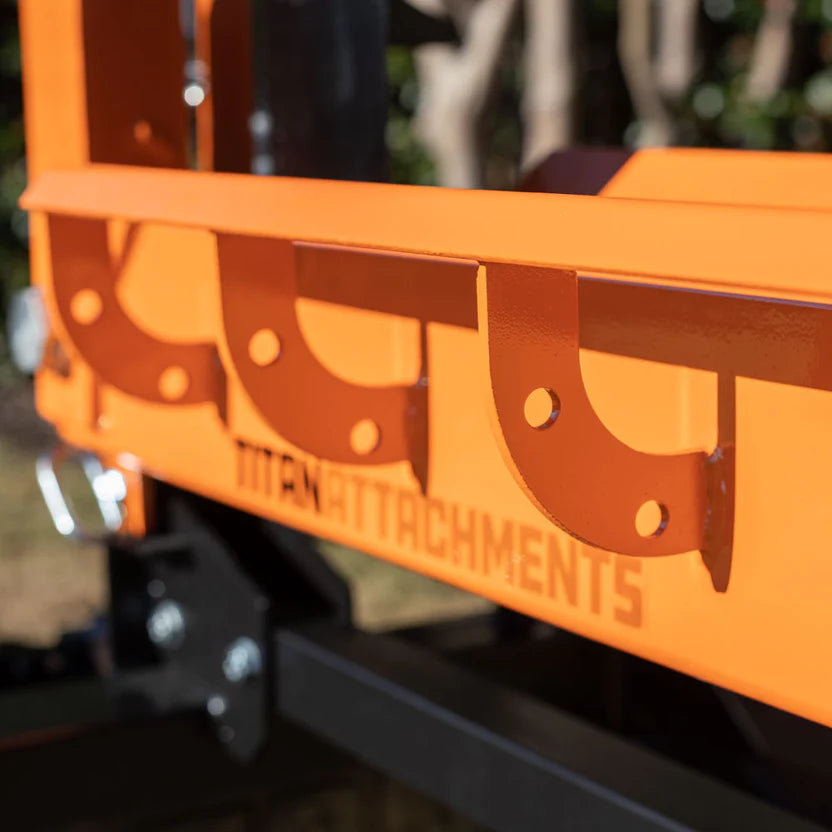

  • Square Log Cradle & Tray Enhances safety and stability during splitting.

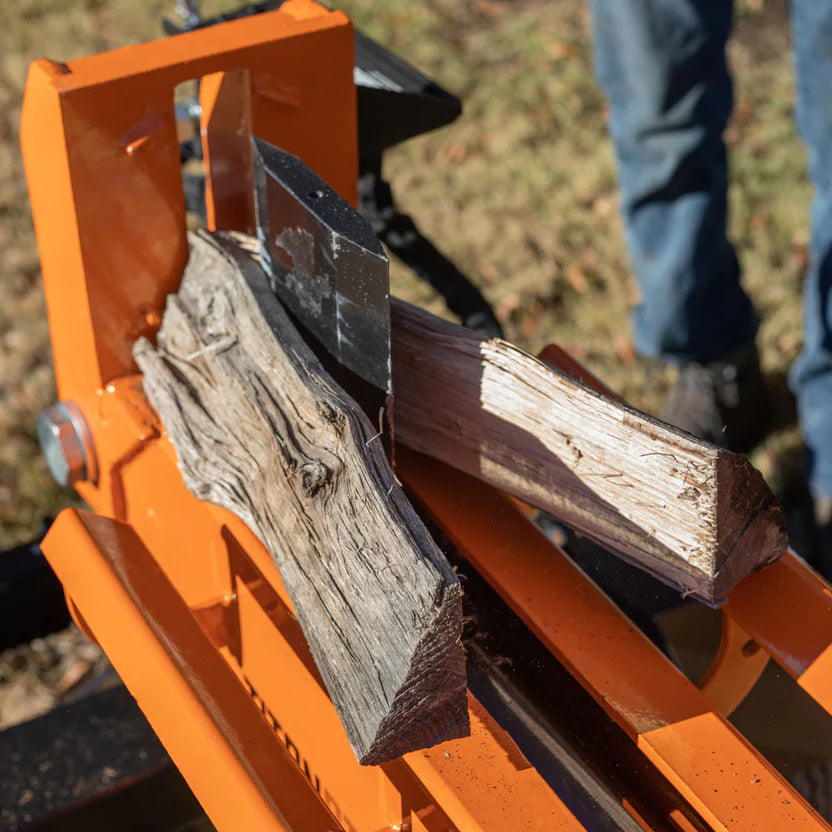

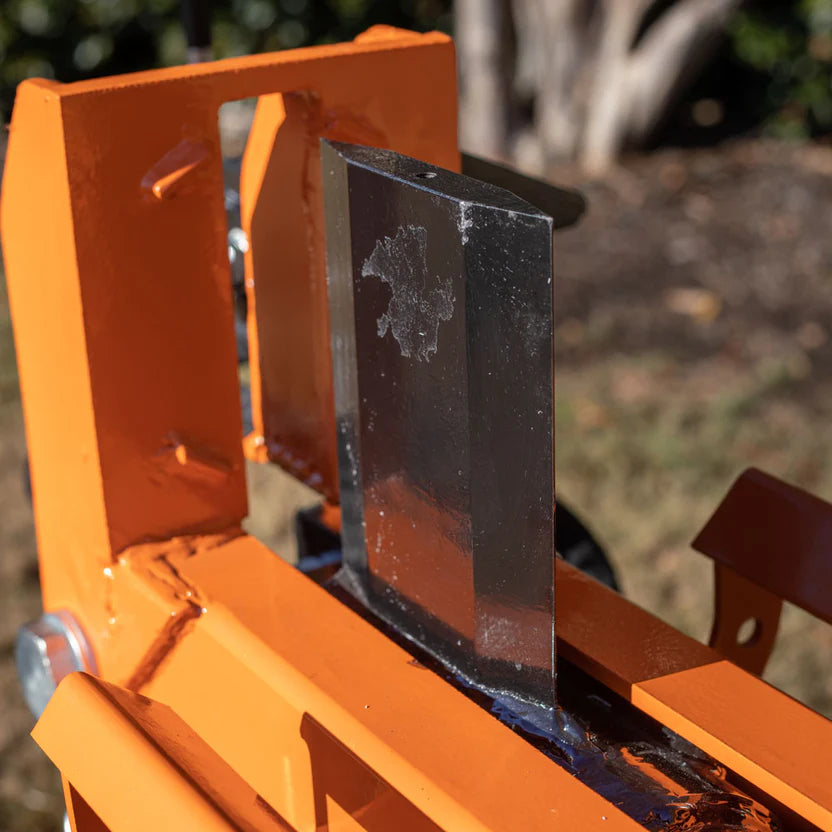

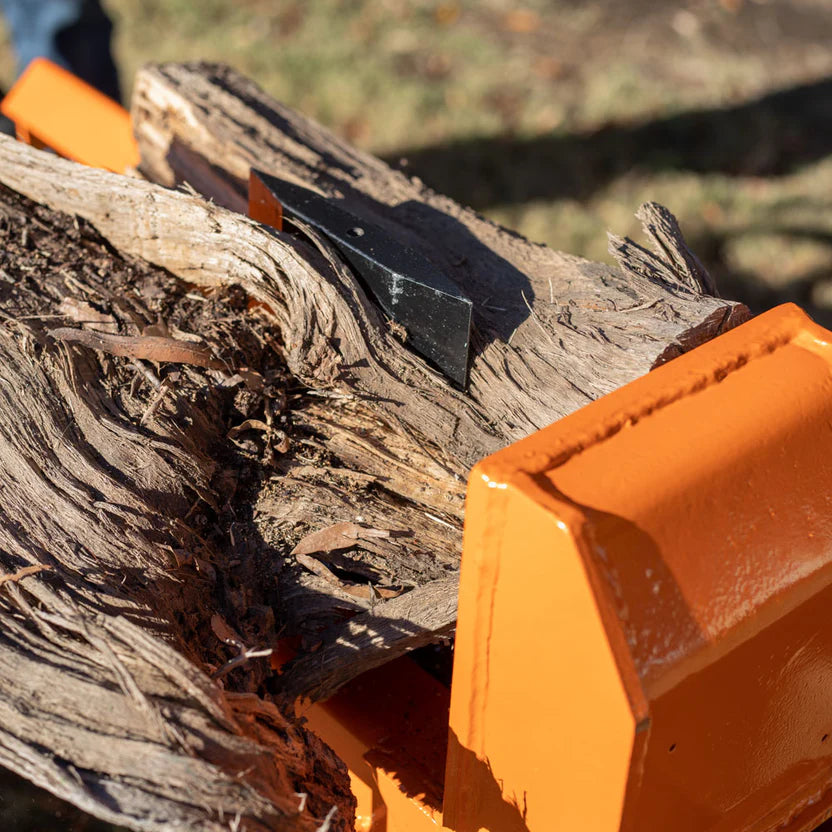

  • Hardened Steel Wedge Built to withstand repeated impact on dense wood.

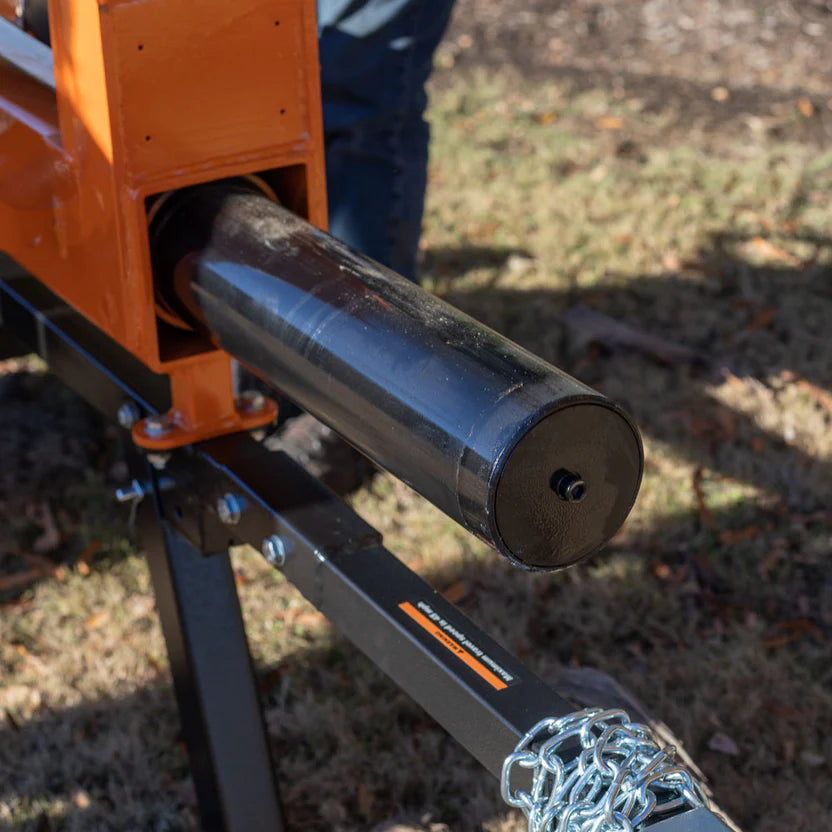

  • Single Hydraulic Cylinder 4" bore and 21.875" stroke for consistent performance.

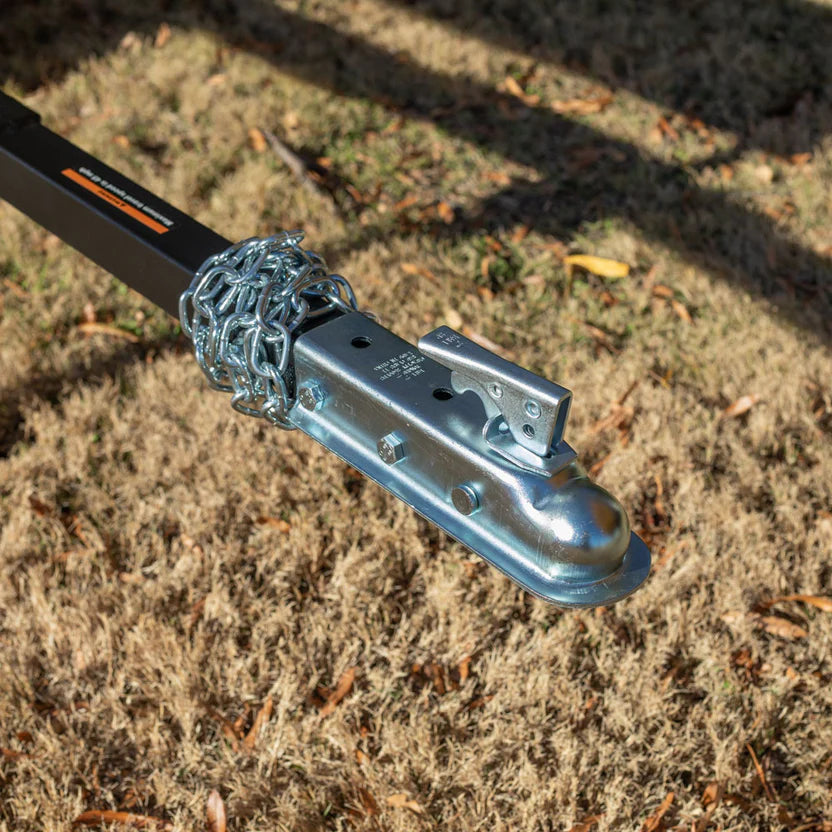

  • Towable Design Attaches to 2" ball hitch; rated for towing up to 45 MPH.
  • Powder-Coated Finish Black and orange coating resists corrosion and wear.

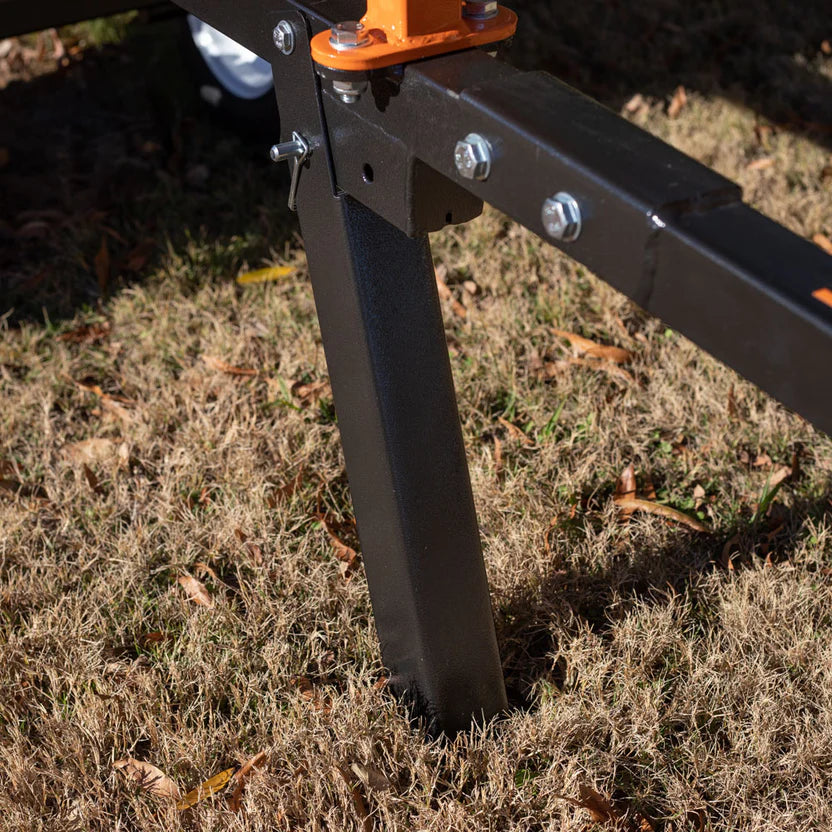

  • Kickstand Included Keeps the unit level while in use or parked.
  • Includes Hoses & Couplers Ready to connect to your tow vehicle.

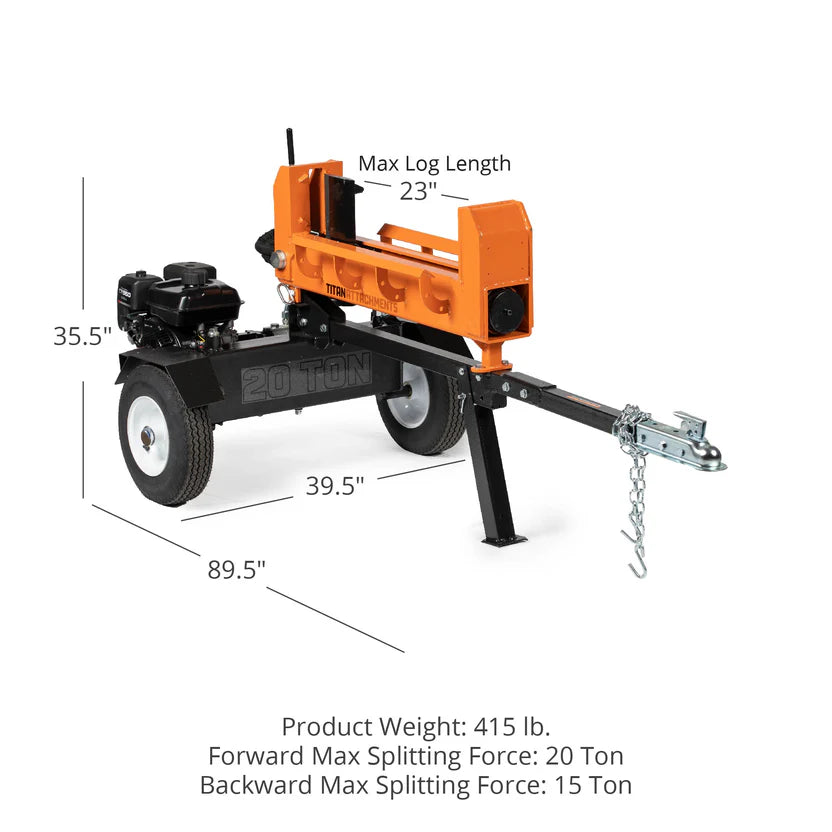

Detailed Specifications

Specification Details
Overall Height 35.5 in
Overall Length 89.5 in
Overall Width 39.5 in
Max Log Length 23 in
Max Log Diameter 16 in
Tray Cradle Dimensions 24 in x 12 in
Wedge Height 7 in
Wedge Length 6 in
Wedge Width 0.75 in
Engine Size 208cc
Engine Horsepower 6.5 HP
Cycle Time 14 Sec
Hydraulic Oil Type 10W AW32, ASHLE H-150, ISO32
Hydraulic Oil Required 2.5 Gal (9.5 L)
Hydraulic Tank Capacity 3.17 Gal (12 L)
Max Hydraulic Pressure 3,500 PSI
Max Hydraulic Flow 11 GPM
Max Towing Speed 45 MPH
Forward Splitting Force 20 Ton
Reverse Splitting Force 15 Ton
Cylinder Specs 4" Bore x 21.875" Stroke
Material Steel
Finish Powder-Coated Black/Orange
Product Weight 415 lb
Mounting Style 2" Ball Tow Hitch
Transport Features Rear Tires, Kickstand
Included Components Hose, 2" Couplers, Control Lever
