Titan Attachments Logging Winch | 7.5 Ton Pull Capacity | 93' Cable | 51" Width | Oil Flow 10–25 GPM | For Skid Steer
DESCRIPTION

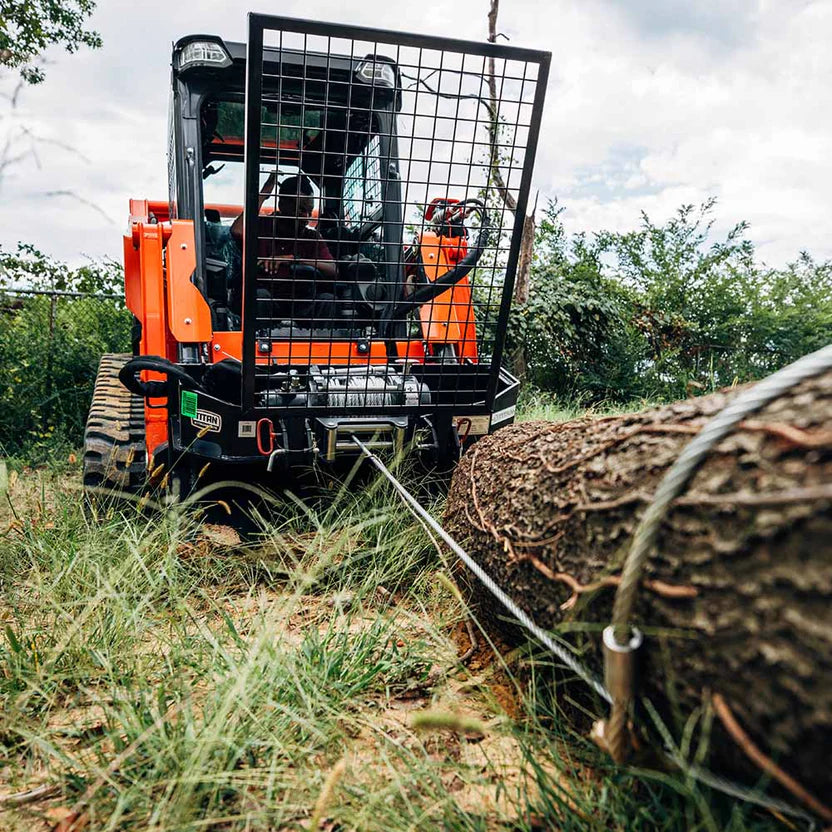

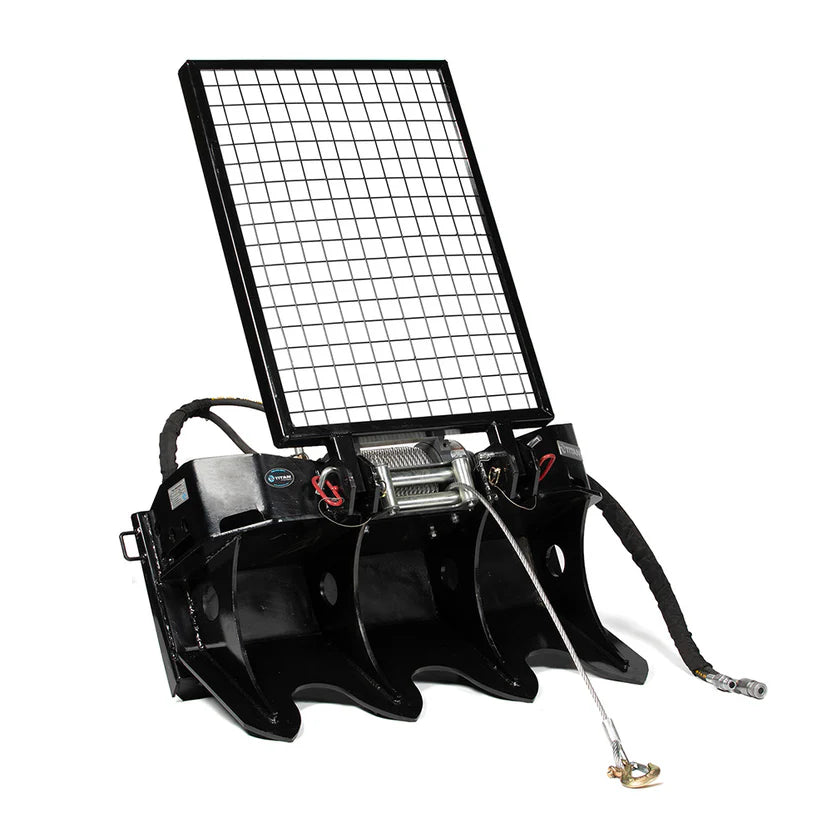

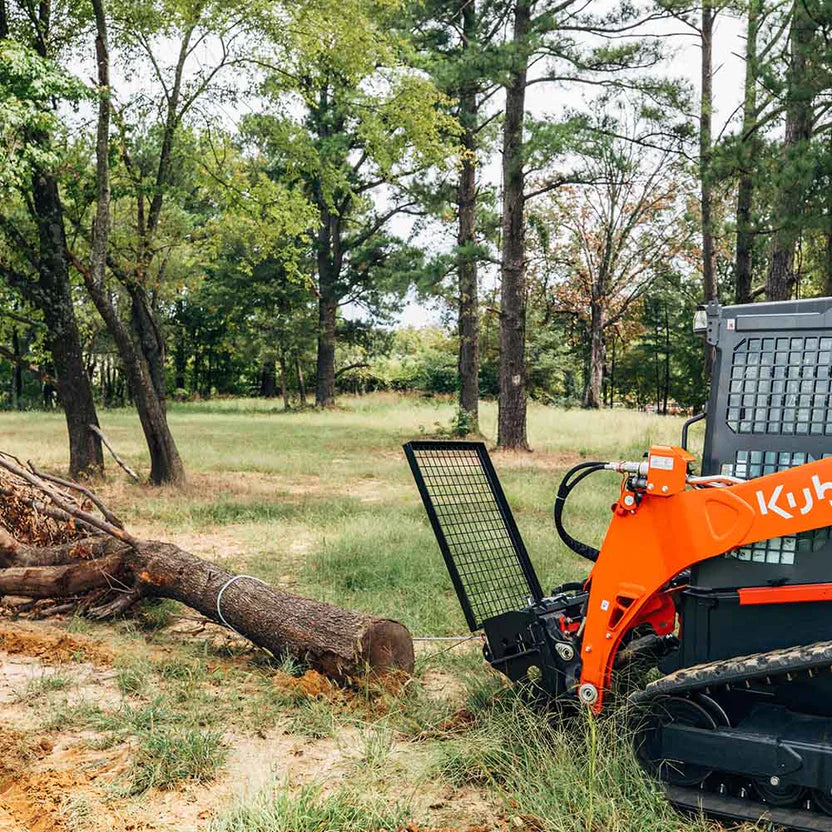

The 7.5 Ton Skid Steer Skidding Winch is the ultimate attachment for logging, construction, and recovery operations in rugged terrain. Designed to harness the full hydraulic force of your skid steer, loader, or tractor via standard SSQA, it delivers unmatched precision and pulling power for even the toughest jobs. Its 93-foot cable gives you an extended reach, while the gear-driven motor, built-in pressure relief, and manual clutch system ensure smooth, controlled operation under pressure. The included safety screen and stabilizer jaw reinforce safety and stability so you can focus on power, not the problems.
Key Features
- 7.5 Ton Pulling Power: Ideal for moving logs, vehicles, and debris on demanding terrain.
- SSQA Universal Connection: Fits most skid steers, loaders, and tractors for quick setup.
- Gear-Driven Hydraulic Motor: Boosts pulling force and line speed using existing hydraulics.
- Built-In Pressure Relief: Prevents motor overload and enhances system longevity.

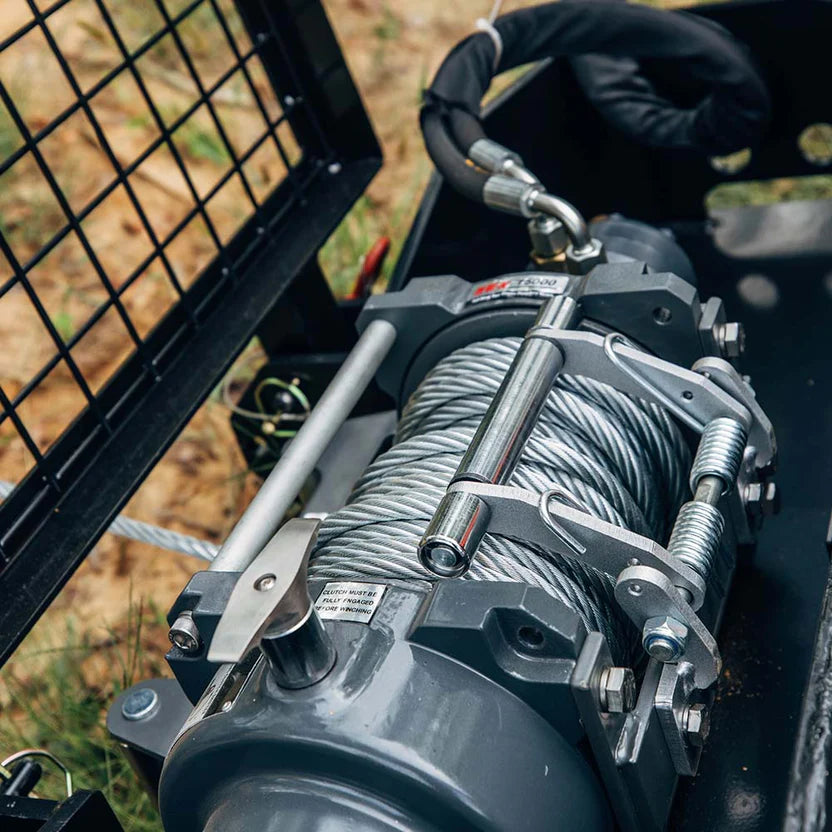

- Manual Clutch System: Enables precision control for cable positioning and retrieval.

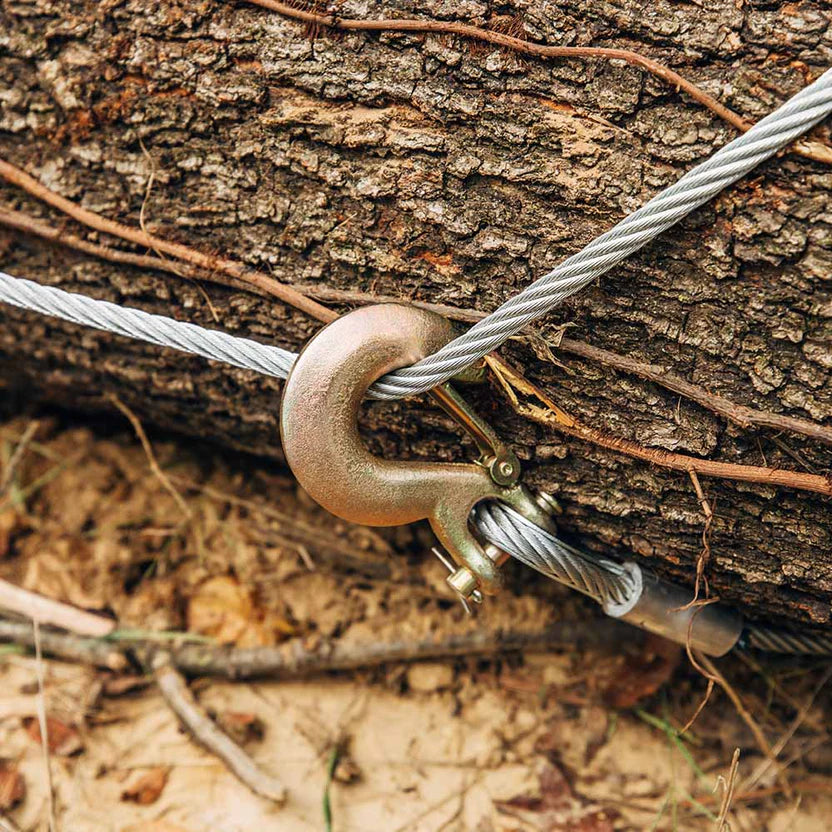

- 93 Ft 6-In Cable Length: Covers large work zones with robust reach and performance.
- 0.5-In Thick Wire Rope: Built to handle extreme stress and resistance.

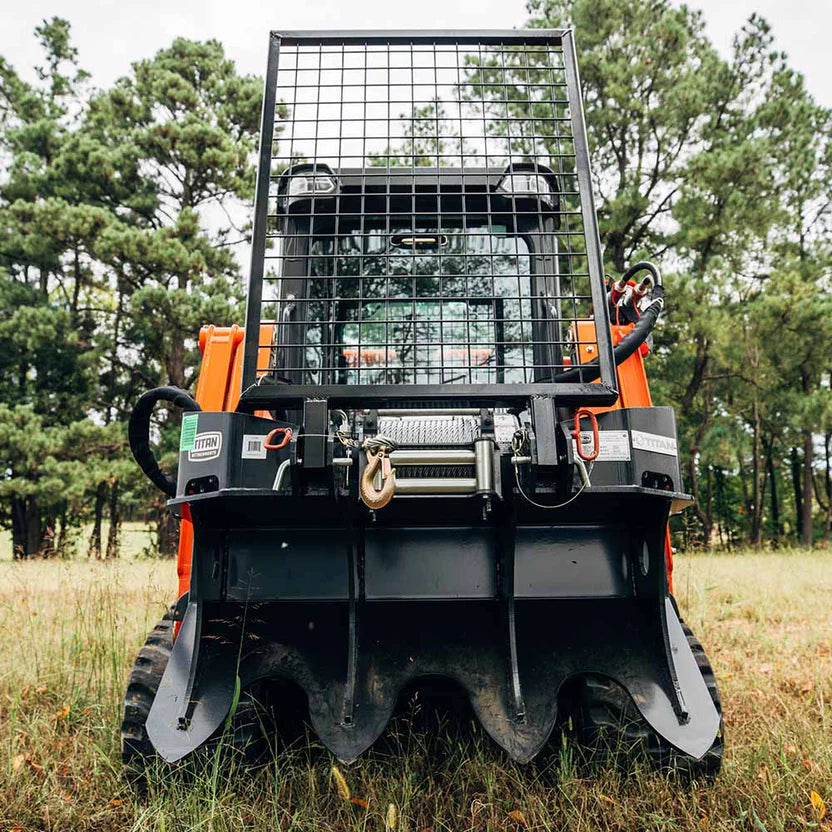

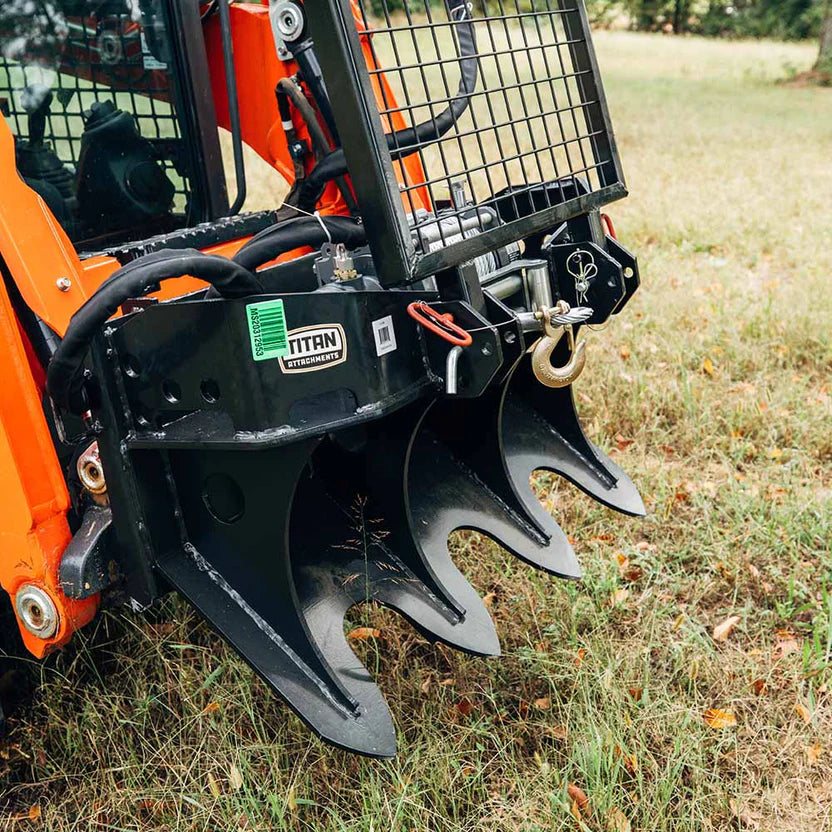

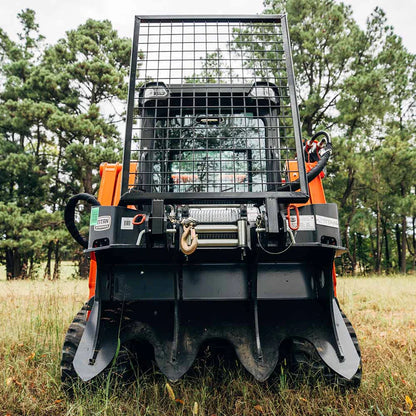

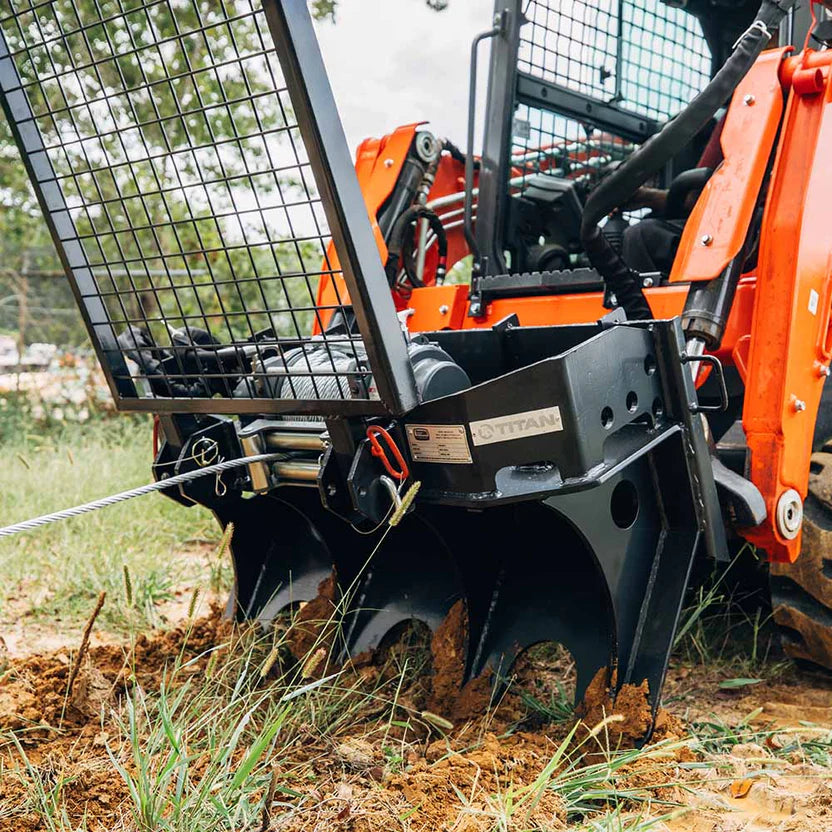

- Stabilizer Jaw with Teeth: Four steel teeth anchor unit firmly during high-tension pulls.

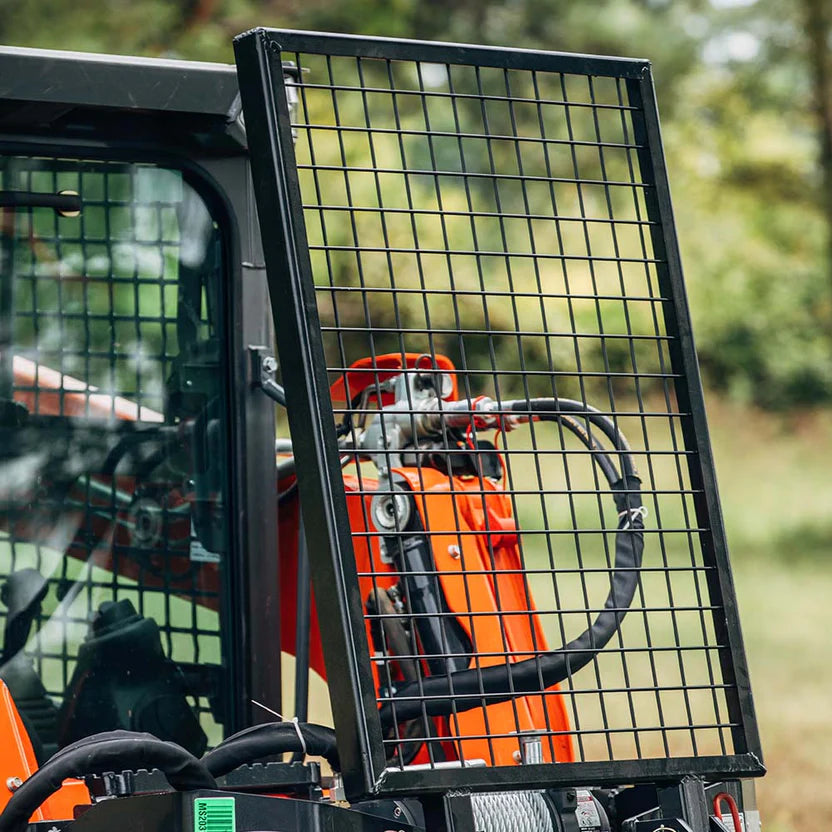

- Safety Screen: Shields the operator from cable recoil and debris during operation.
-
Powder-Coated Finish: Corrosion-resistant black coating ensures long-term durability.
Detailed Specifications
| Specification | Details |
|---|---|
| Pulling Capacity | 15,000 lb (7.5 Ton) |
| Cable Length | 93 Ft 6-In |
| Cable Diameter | 0.5 In |
| Line Speed | 16.7 Ft/Min |
| Oil Flow Range | 10–25 GPM |
| Overall Width | 51 In |
| Overall Height (with screen) | 67 In |
| Overall Depth | 21 In |
| Product Weight | 596 lb |
| Finish | Powder-Coated (Black) |
| Material | Steel |
| Hydraulic Hose Rating | 3,000 PSI |
| Connection Type | SSQA Universal |
| Clutch Type | Manual |
| Motor Type | Gear-Driven Hydraulic |
| Safety Features | Pressure Relief, Steel Screen |
| Stabilizer Jaw | 4 Tooth (0.5 In Thick) |
