Product Description
Titan Attachments Over-the-Bucket Fork Kit | 3″ Width x 1.5″ Thick | 4,000 lb Rated | 48″ x 48″ Forks | Fits 42″ Bucket Opening | 45–90 HP | For Tractor Loaders
DESCRIPTION

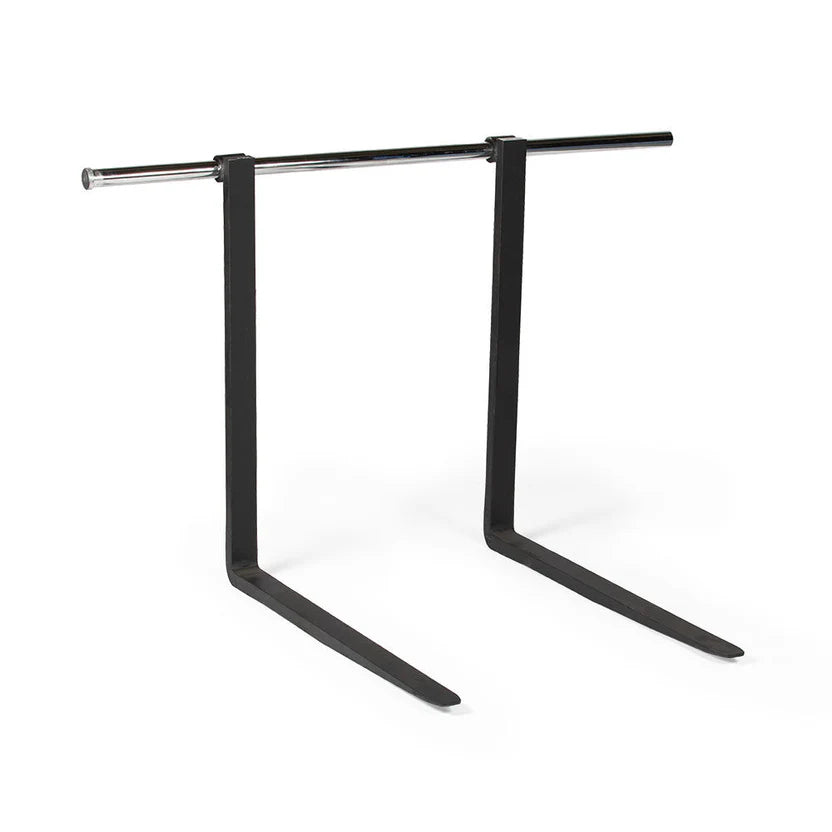

The 48″ x 48″ Over-the-Bucket Fork Kit is engineered to turn standard tractor loader buckets into versatile, heavy-lifting fork assemblies. Ideal for industrial yards, farms, and construction sites, this attachment is forged from premium steel alloy and offers quick, tool-free mounting and fork adjustability—allowing operators to move fork spacing based on load dimensions, all from the seat.
A set of four ¾" weld-on brackets paired with a 2" diameter steel bar form the core of this rugged system. Just tilt the bucket forward to lock the forks in position. With each fork forged for 4,000 lb lifting capacity and adjustable across the shaft, the setup combines safety, flexibility, and brute strength in a compact footprint.
Key Features
- Tool-Free Installation & Removal Tilt forward to engage or disengage the forks—no need to leave your seat or use additional tools.

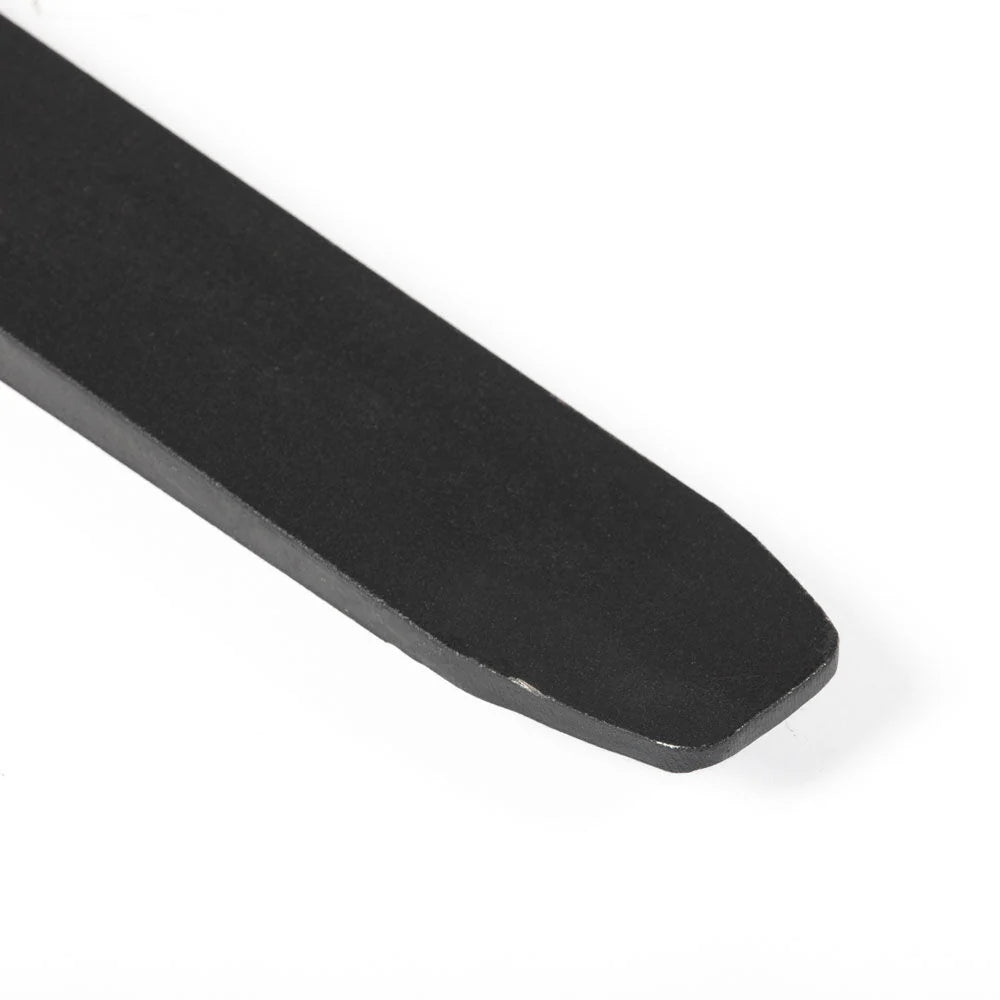

- Fully Forged Fork Construction Each fork is built from solid steel alloy, designed to endure repetitive heavy loads without warping.

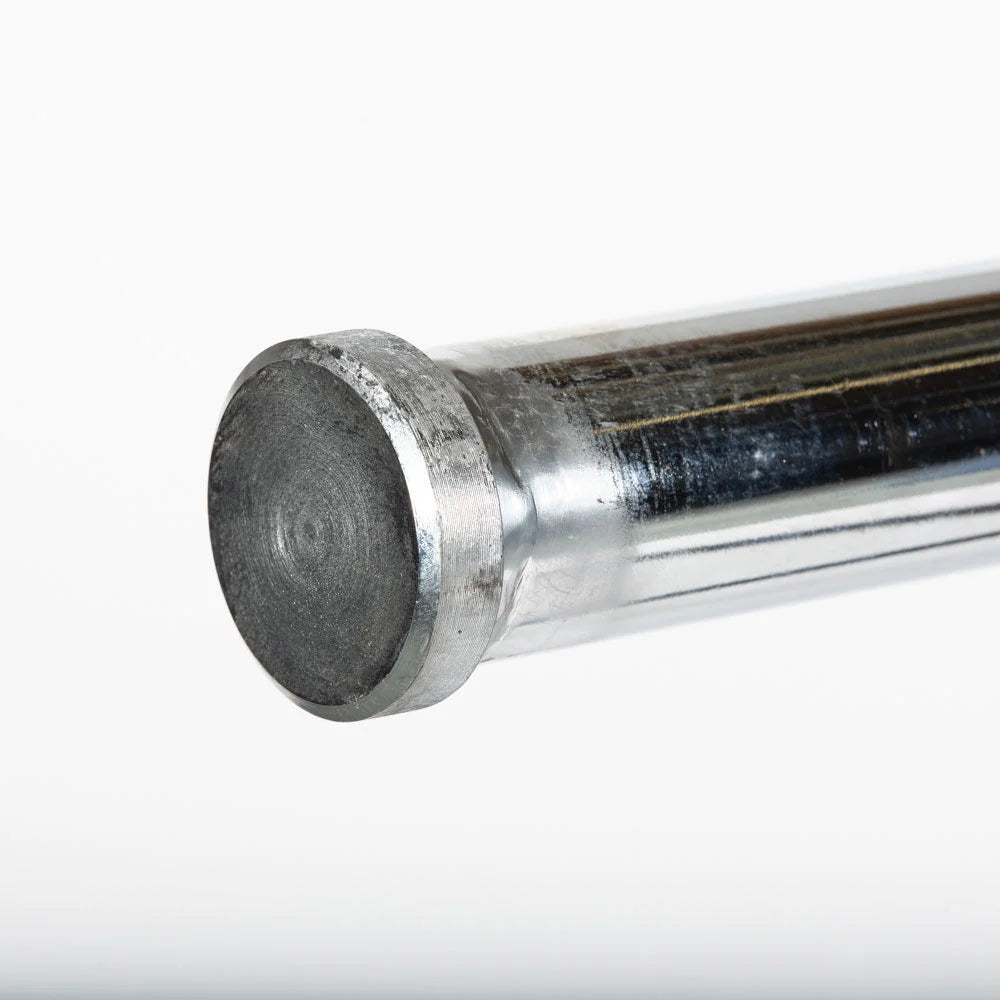

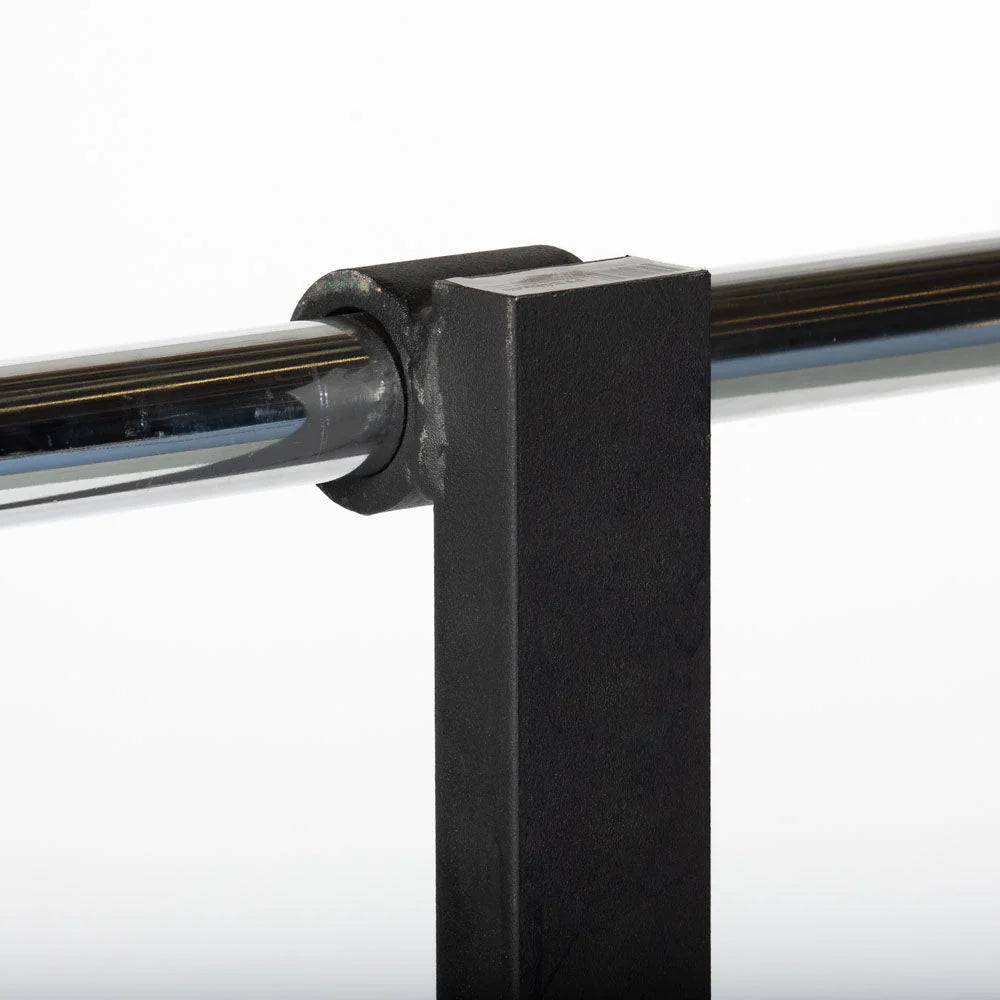

- Adjustable Spacing Forks slide smoothly along the 2" bar shaft to accommodate varying load widths.

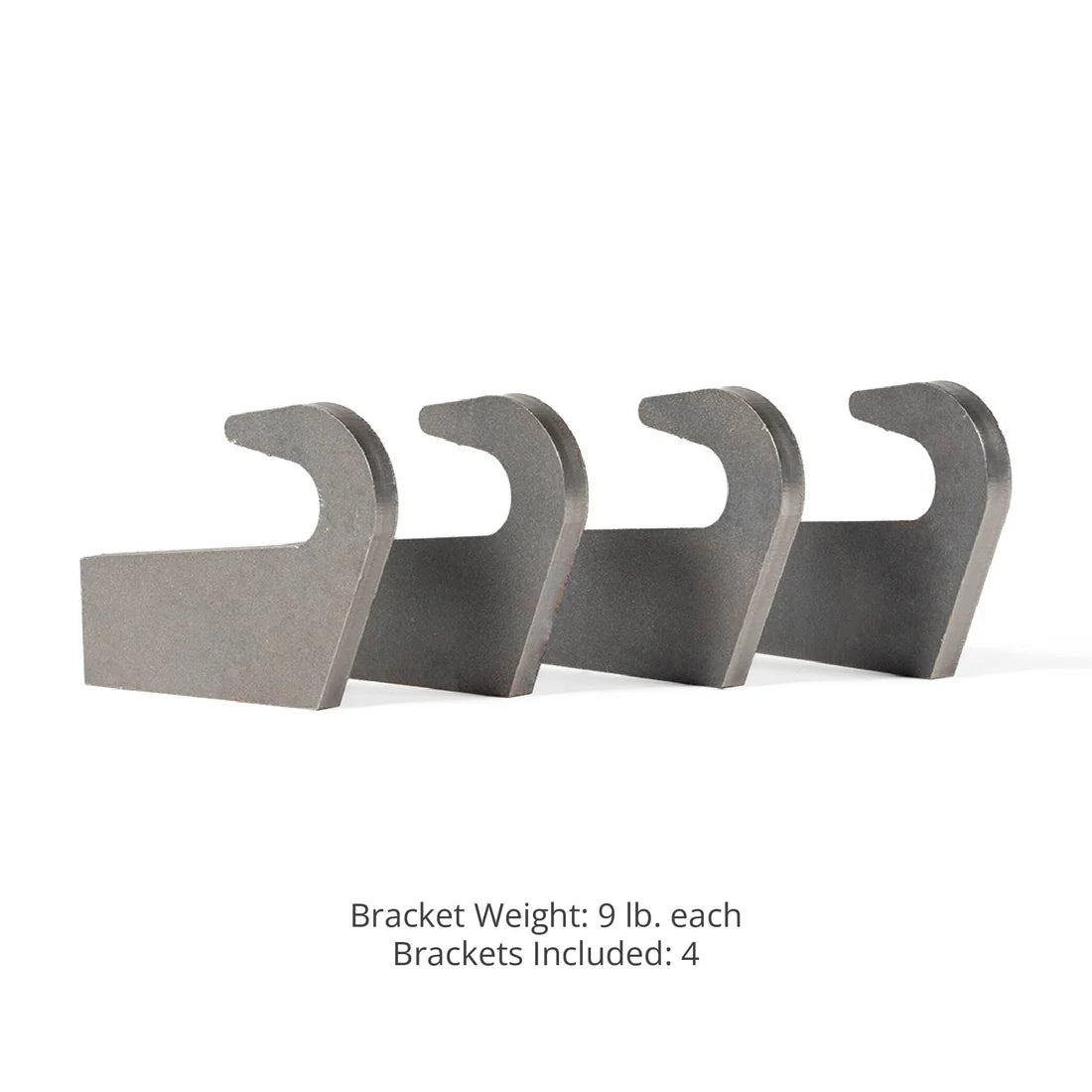

- Heavy-Duty Brackets Kit includes four ¾" thick weld-on hooks designed for long-term structural support.
- Optimized for 42" Bucket Openings Ensures secure mounting with bucket compatibility built into the design.
-
High Safety Factor Rated for 4,000 lbs per pair with a 3-to-1 safety ratio for peace of mind during operation.

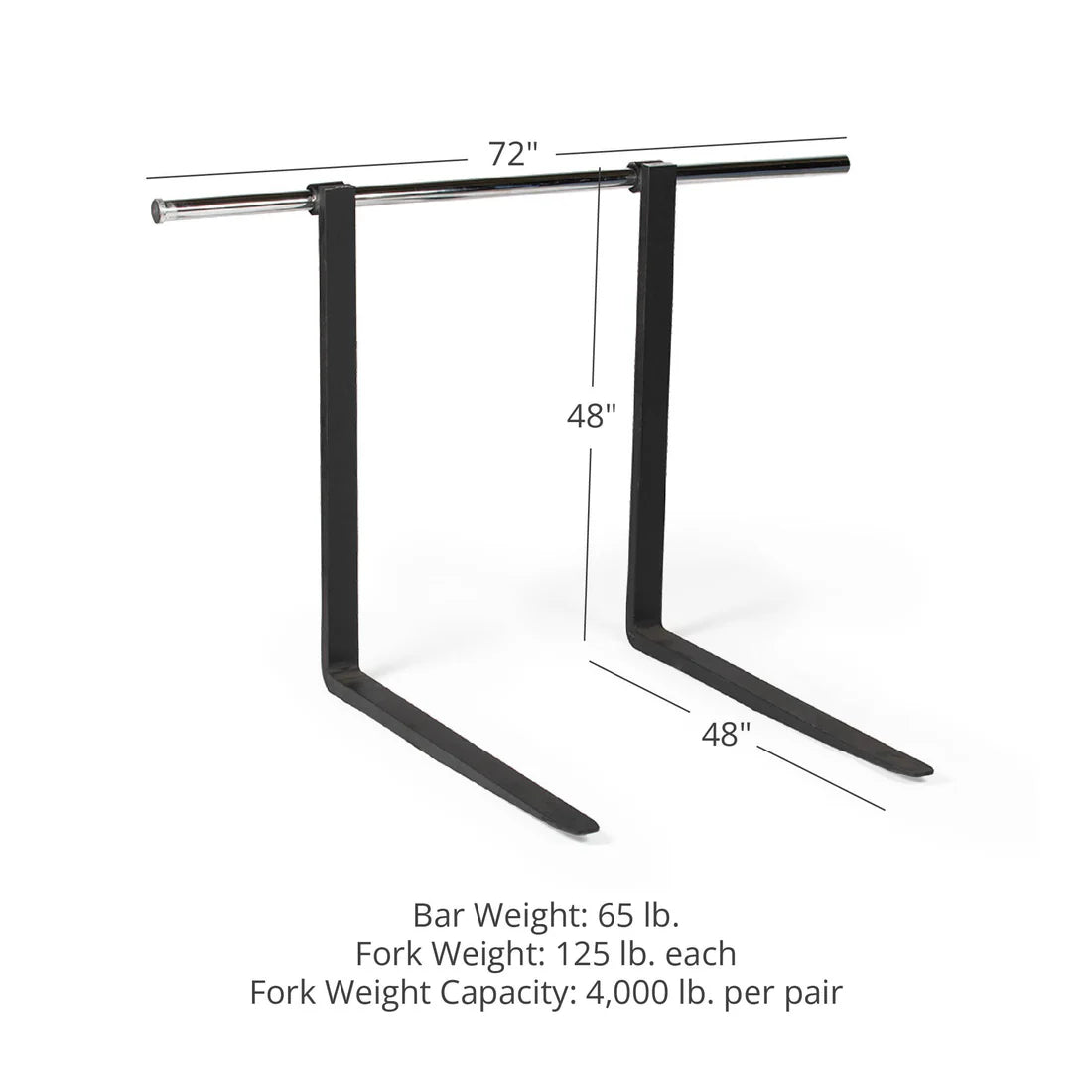

Detailed Specifications
| Component | Specification |
|---|---|
| Fork Dimensions | 48" (H) × 3" (W) × 1.5" (T) |
| Fork Capacity (Pair) | 4,000 lb |
| Fork Weight (Each) | 125 lb |
| Fork Depth | 48" |
| Bar Length | 72" |
| Bar Diameter | 2" |
| Bar Weight | 65 lb |

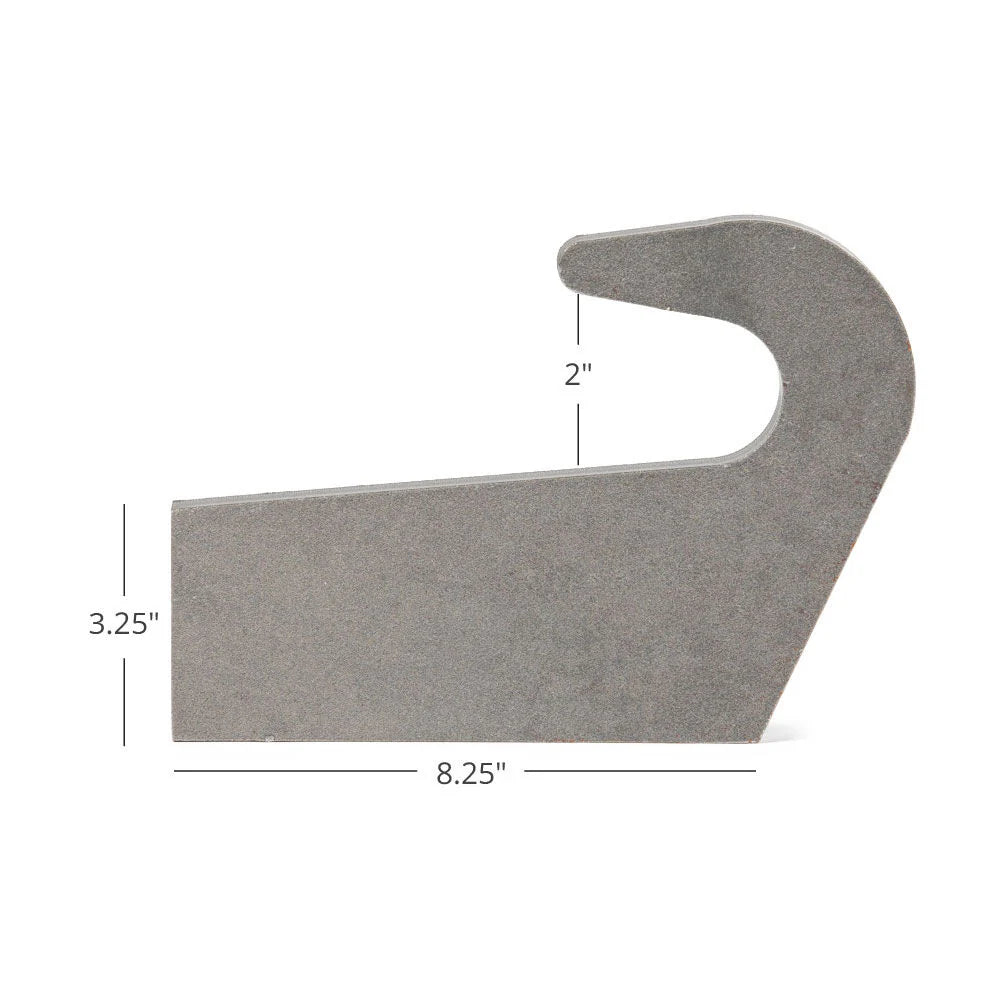

| Mounting Brackets | Four brackets, ¾" thick |
| Bar Material | High-Grade Steel Alloy |
| Safety Rating | 3-to-1 Load Safety Factor |
| Bucket Compatibility | 42" Vertical Opening |
| Manual Access | Product Manual Link Available |
| Warning Compliance | California Prop 65 Warning |
