Titan Attachments Pro Series Pallet Fork | 6,000 lb Frame | 36″–60″ Class II Blades | Hay Spear Sleeves + 2″ Hitch | 10–25 GPM | For Skid Steers
DESCRIPTION

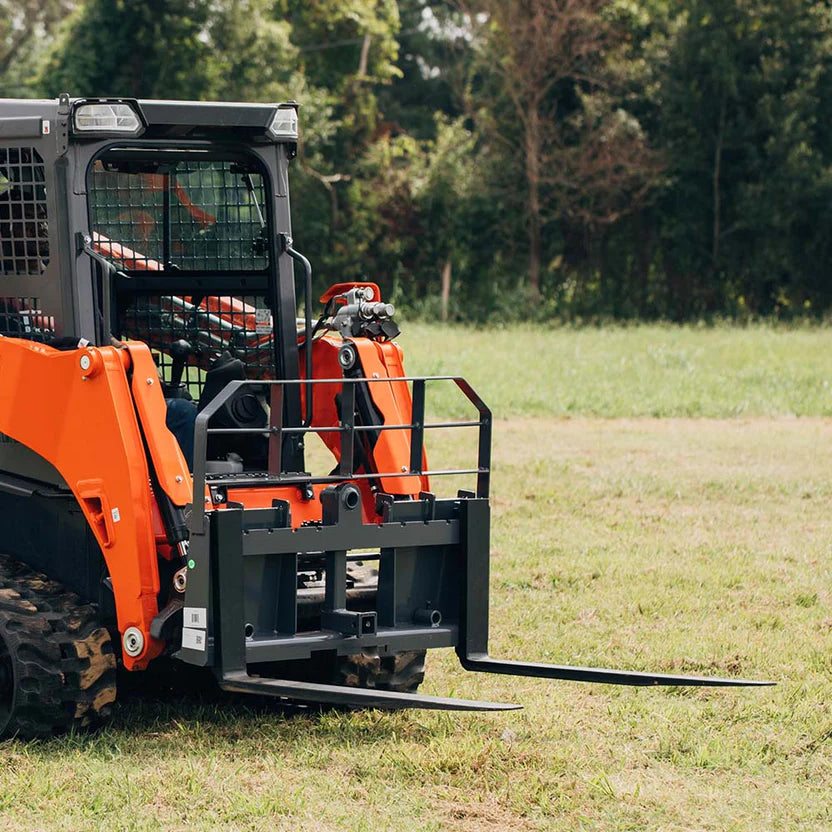

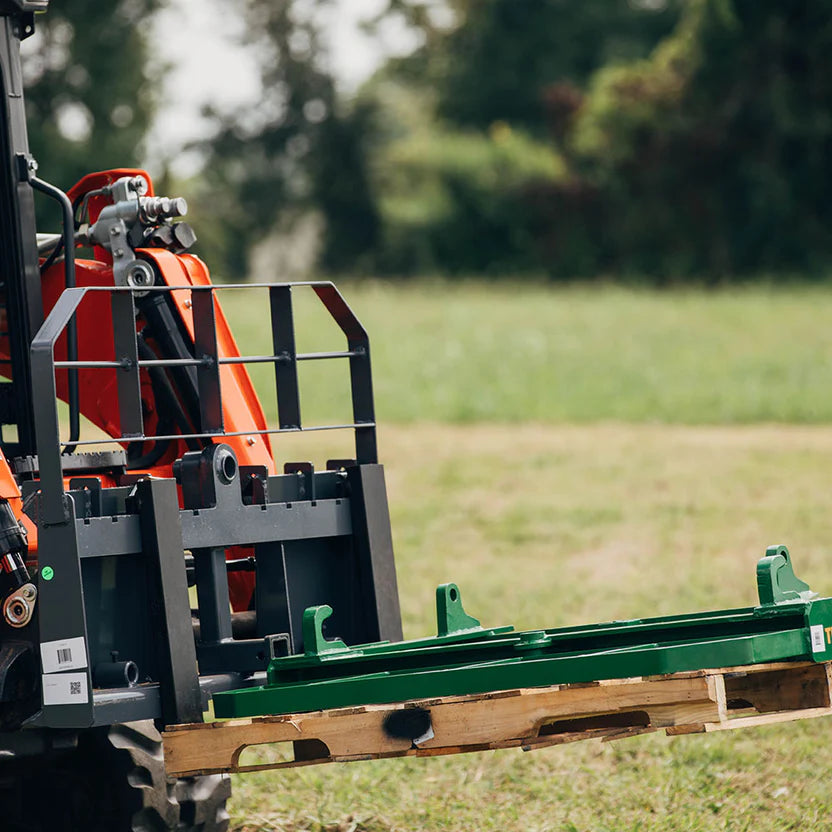

The Pro Series Pallet Fork Frame is a premium-grade material handling solution built to outperform the Standard Series with a higher 6,000 lb capacity. Engineered for versatile field and jobsite use, this all-in-one frame features a see-through headache rack, slotted carriage bar, and is compatible with Class II pallet fork blades ranging from 36″ to 60″.
Whether you're managing hay, timber, pallets, or trailers, the welded 2″ receiver hitch and integrated Conus spear sleeves make this frame an indispensable tool for agricultural and industrial operators. With a robust SSQA mount, it pairs seamlessly with any skid steer or compact tractor equipped with a universal quick-attach system.
Key Features

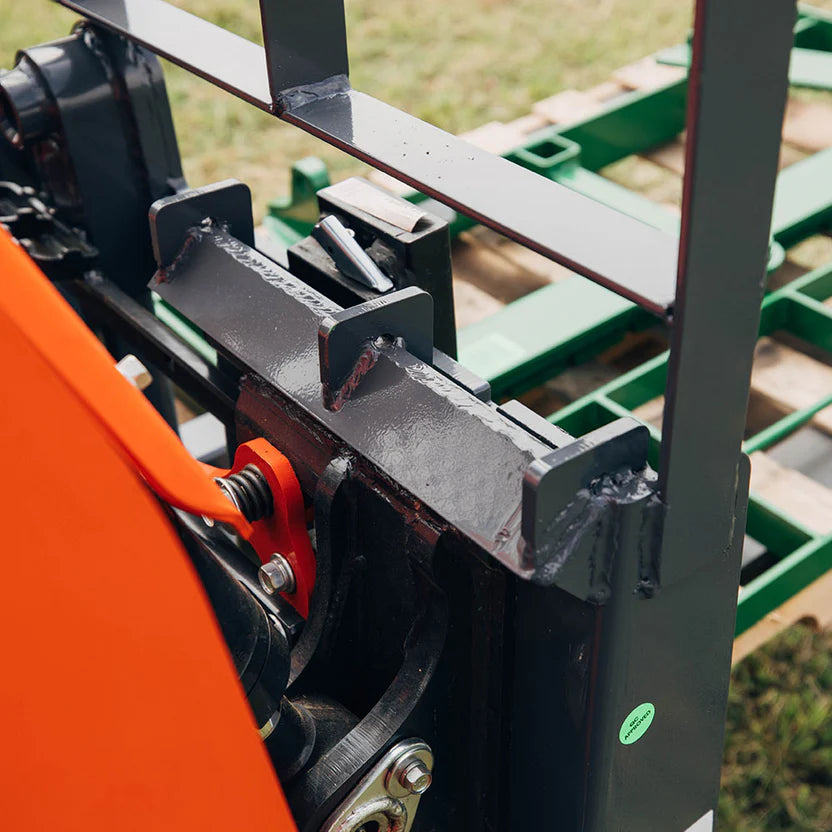

- Universal Skid Steer Quick Tach (SSQA) Compatible with all standard skid steers and tractors with SSQA mounts.
- USA-Built Heavy-Duty Steel Frame High-grade materials with precision welds for maximum durability.
- Fork Blade Compatibility Accepts Class II blades in 36″, 42″, 48″, and 60″ lengths.
- 6,000 lb Frame Capacity Handles demanding pallet loads and transport applications.

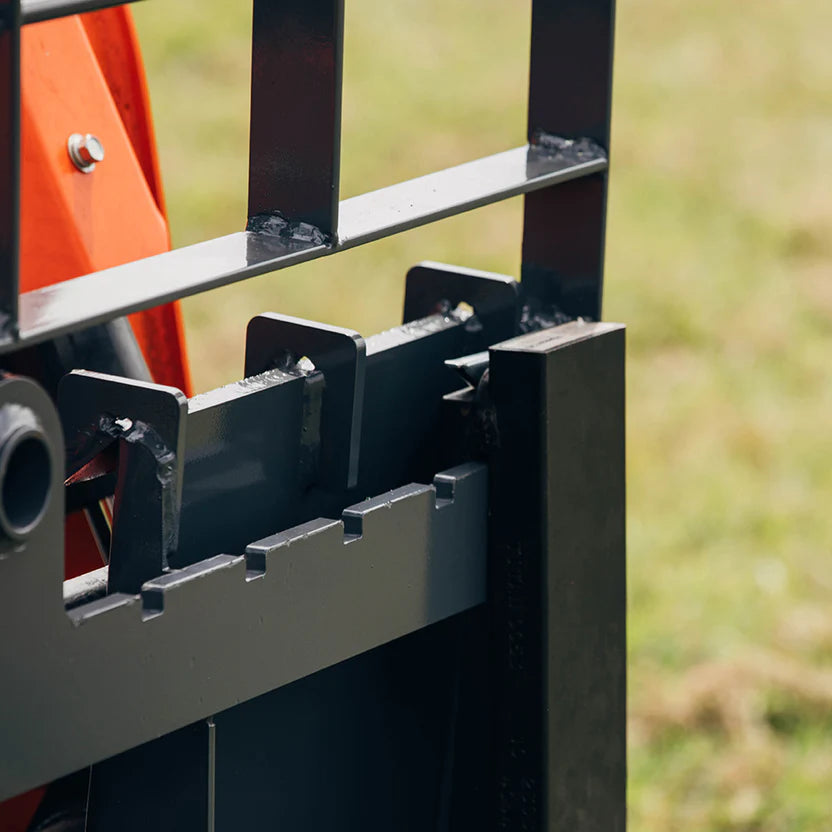

- Slotted Carriage Bar Secure fork mounting with adjustable blade spacing.

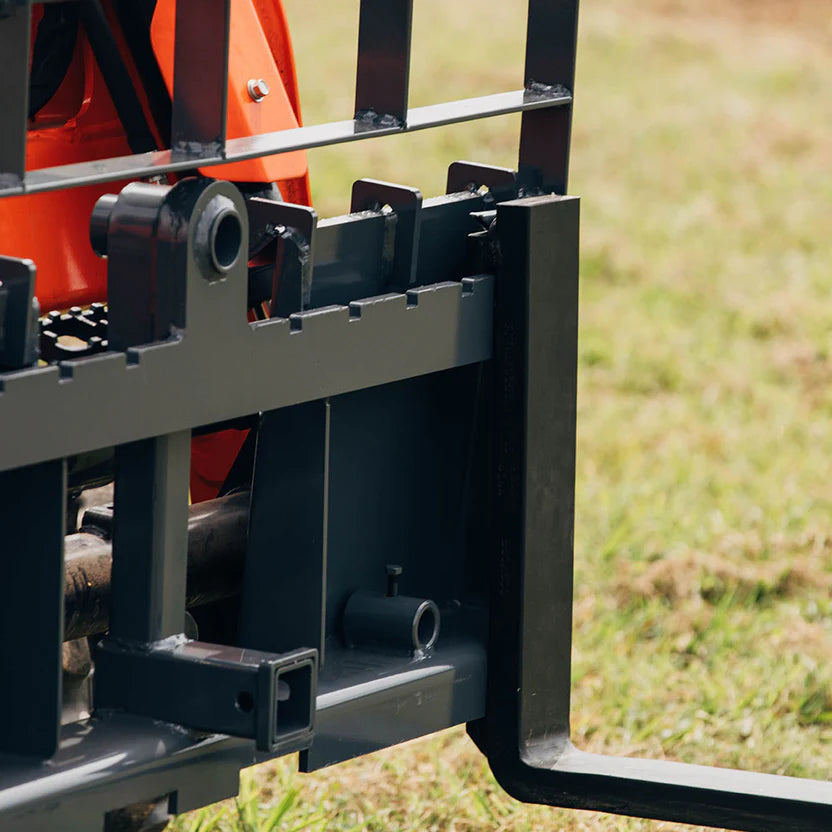

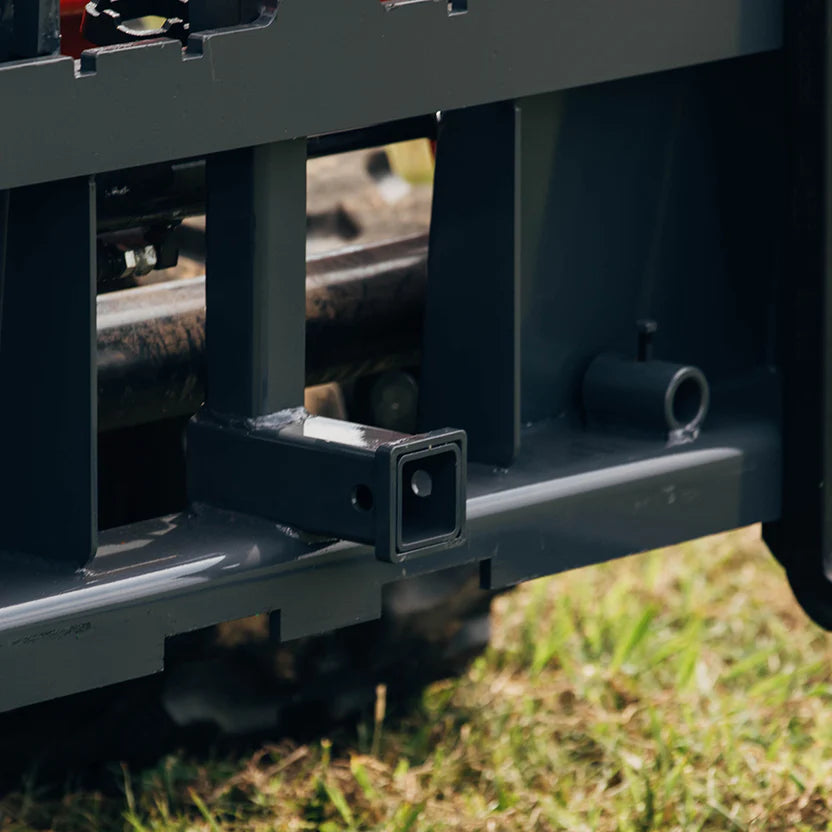

- Integrated 2″ Receiver Hitch Allows trailer towing directly from the fork frame.
- Conus Hay Spear Sleeves Welded Conus 2 (main) and pair of stabilizer sleeves for round bales.

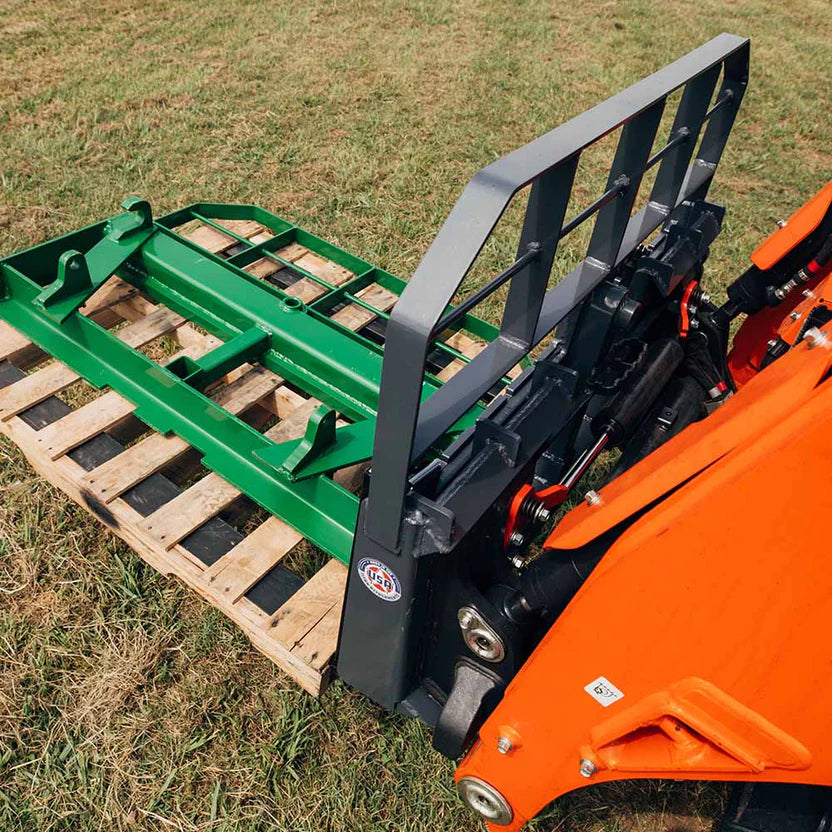

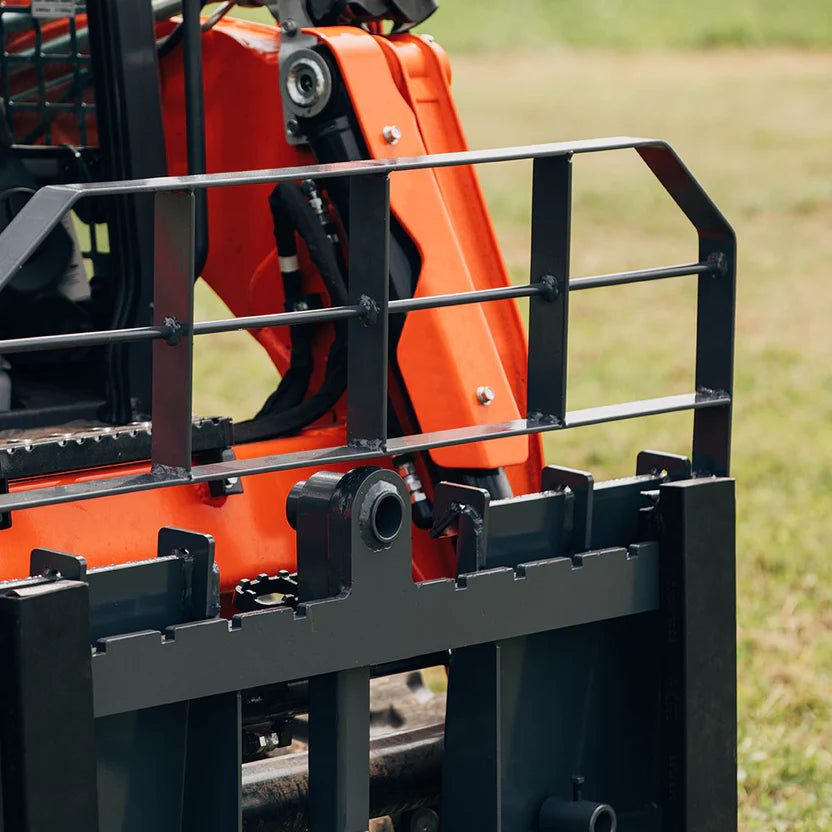

- See-Through Headache Rack Enhances forward visibility and safety during load positioning.
-
Powder-Coated Grey Finish Corrosion-resistant and professional in appearance.
Detailed Specifications
Pro Series Pallet Fork Frame — Frame Only vs. 36″ Forks
| Attribute | Frame Only | 36″ Forks |
|---|---|---|
| Overall Height | 34″ | 34″ |
| Overall Width | 48.5″ | 48.5″ |
| Overall Depth | 8″ | 8″ |
| Fork Length | — | 36″ |
| Fork Width | — | 4″ |
| Fork Thickness | — | 1.25″ |
| Upper to Lower Rail | 16″ | 16″ |
| Frame Capacity | 6,000 lb | 6,000 lb |
| Fork Capacity (per pair) | — | 4,000 lb |
| Fork Pair Weight | — | 160 lb |
| Frame Weight | 195 lb | 195 lb |
| Main Spear Sleeve | Conus 2 | Conus 2 |
| Stabilizer Sleeves | 2 × Welded | 2 × Welded |
| Hitch Receiver | 2″ Welded | 2″ Welded |
| Finish | Powder-Coated Grey | Powder-Coated Grey |
| Material | Steel | Steel |
| Mounting Style | SSQA | SSQA |
| Recommended HP | 45–90 HP | 45–90 HP |
Pro Series Pallet Fork Frame — 42″ vs. 48″ Forks
| Attribute | 42″ Forks | 48″ Forks |
|---|---|---|
| Overall Height | 34″ | 34″ |
| Overall Width | 48.5″ | 48.5″ |
| Overall Depth | 8″ | 8″ |
| Fork Length | 42″ | 48″ |
| Fork Width | 4″ | 4″ |
| Fork Thickness | 1.25″ | 1.25″ |
| Upper to Lower Rail | 16″ | 16″ |
| Frame Capacity | 6,000 lb | 6,000 lb |
| Fork Capacity (per pair) | 4,000 lb | 4,000 lb |
| Fork Pair Weight | 180 lb | 196 lb |
| Frame Weight | 195 lb | 195 lb |
| Main Spear Sleeve | Conus 2 | Conus 2 |
| Stabilizer Sleeves | 2 × Welded | 2 × Welded |
| Hitch Receiver | 2″ Welded | 2″ Welded |
| Finish | Powder-Coated Grey | Powder-Coated Grey |
| Material | Steel | Steel |
| Mounting Style | SSQA | SSQA |
| Recommended HP | 45–90 HP | 45–90 HP |

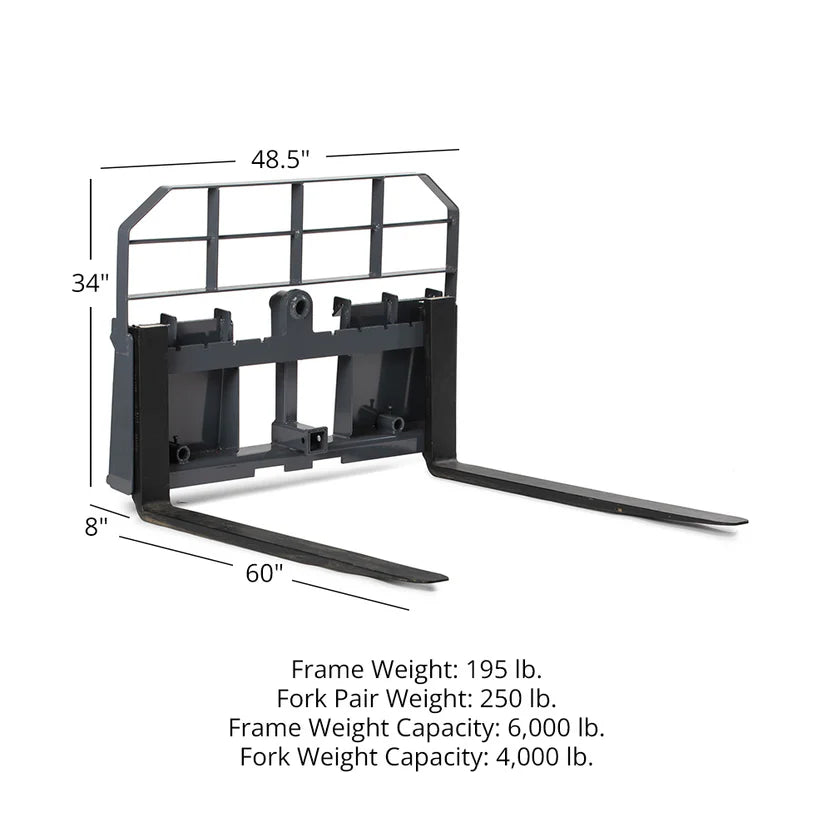

Pro Series Pallet Fork Frame — 60″ Forks Only
| Attribute | 60″ Forks |
|---|---|
| Overall Height | 34″ |
| Overall Width | 48.5″ |
| Overall Depth | 8″ |
| Fork Length | 60″ |
| Fork Width | 4″ |
| Fork Thickness | 1.25″ |
| Upper to Lower Rail | 16″ |
| Frame Capacity | 6,000 lb |
| Fork Capacity (per pair) | 4,000 lb |
| Fork Pair Weight | 226 lb |
| Frame Weight | 195 lb |
| Main Spear Sleeve | Conus 2 |
| Stabilizer Sleeves | 2 × Welded |
| Hitch Receiver | 2″ Welded |
| Finish | Powder-Coated Grey |
| Material | Steel |
| Mounting Style | SSQA |
| Recommended HP | 45–90 HP |
