Product Description
Titan Attachments Rotary Cutter | Standard Series | Cutting Width 48"–60" (4'& 5') | 1" Dia. Capacity | 11-Ga Steel | Horsepower 20–60 HP | For Tractors
DESCRIPTION

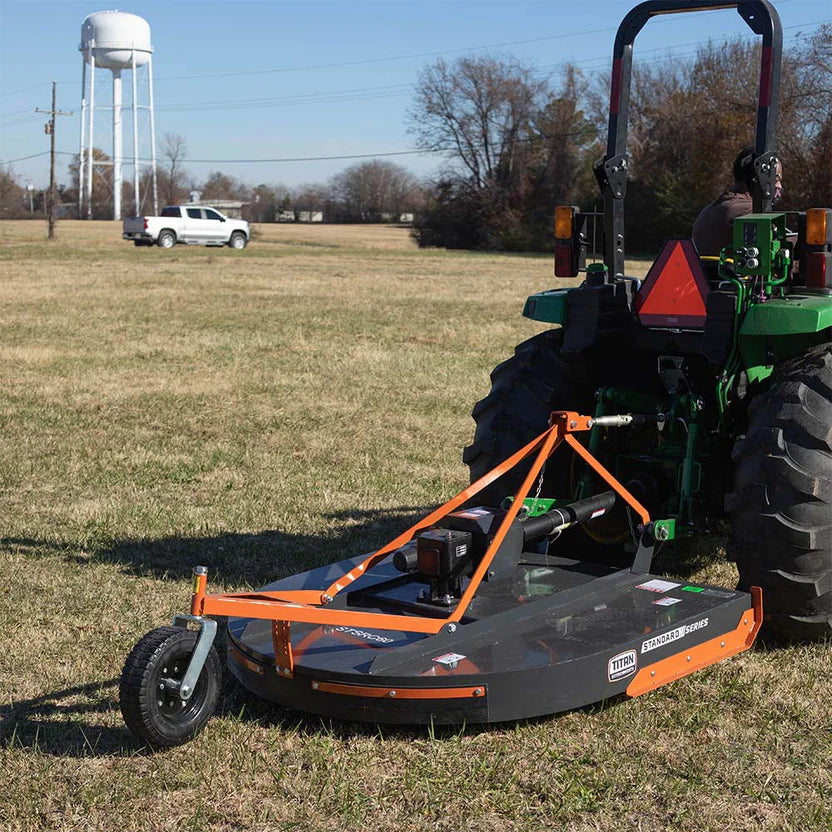

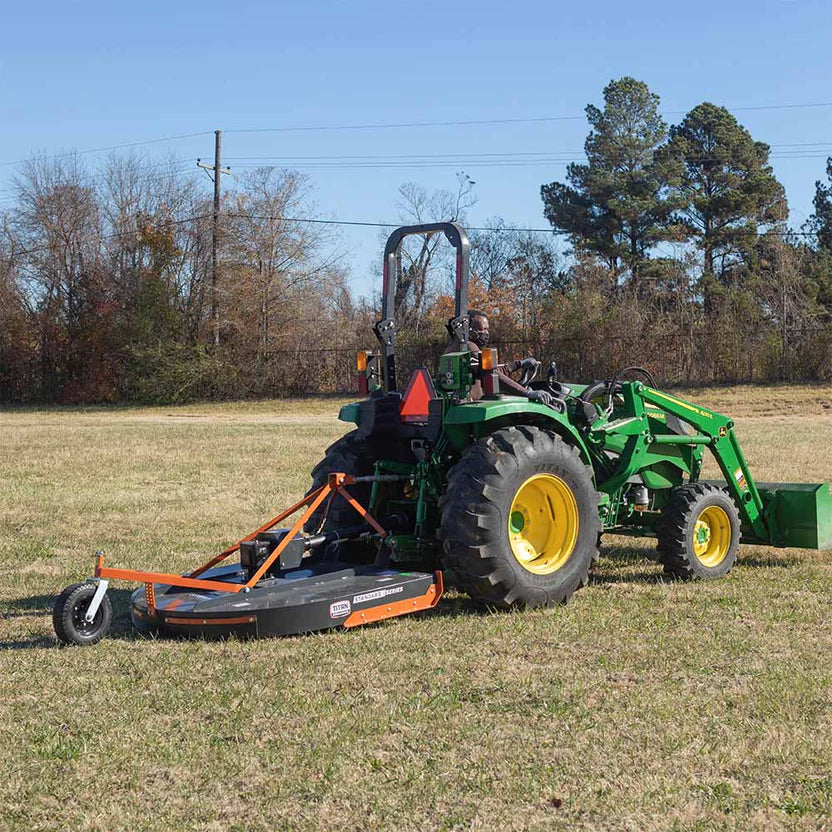

Clear dense brush, grass, and saplings with ease using the Standard Series Rotary Cutter, available in 4 FT and 5 FT cutting widths. Designed for Category 1 tractors with a 3-point hitch, these cutters are compatible with machines ranging from 20 to 60 HP and operate at 540 RPM PTO speed. Each cutter features a low-noise cast iron gearbox rated at 40 HP and a shock-absorbent slip clutch PTO shaft for smooth, reliable power transfer. The rear discharge system disperses mulched material behind the mower, leaving a clean finish while nourishing the land. Built from 11-gauge powder-coated steel, these cutters include replaceable heat-treated blades, adjustable tail wheels, and replaceable skid shoes for long-term durability and easy maintenance. With cutting height settings from 1.5" to 11", you can tailor your cut to any terrain or vegetation density.
Key Features
- Cutting Widths: 48" and 60" Choose the size that fits your tractor and land coverage needs.
- 1" Diameter Cutting Capacity Mulches grass, brush, and saplings in a single pass.

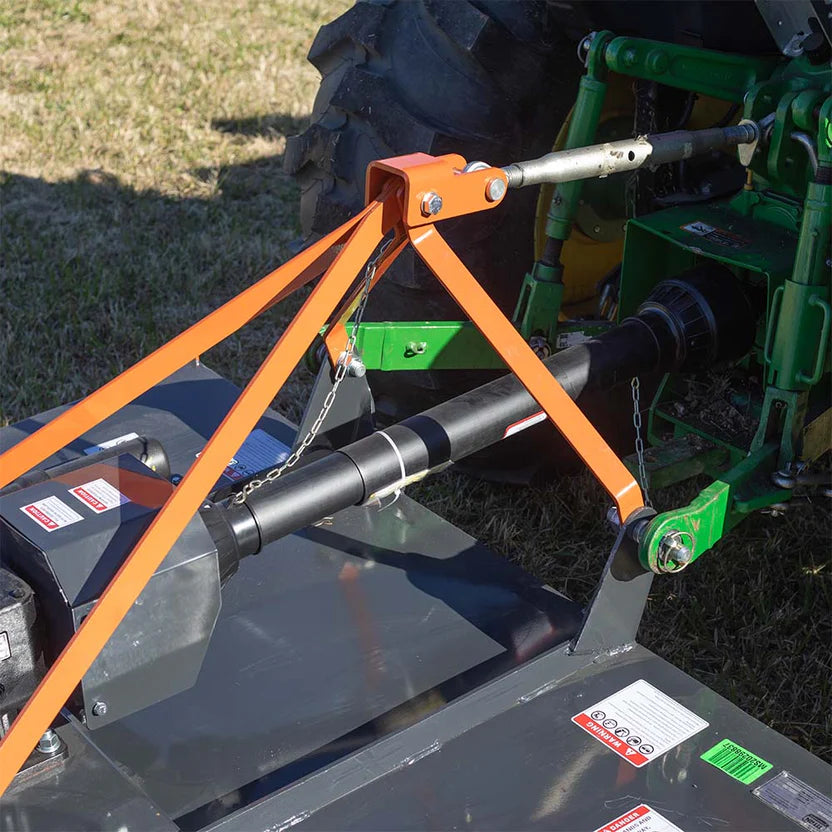

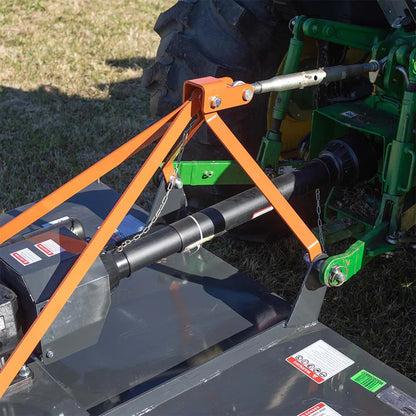

- Slip Clutch PTO Shaft Absorbs shock and protects drivetrain during operation.

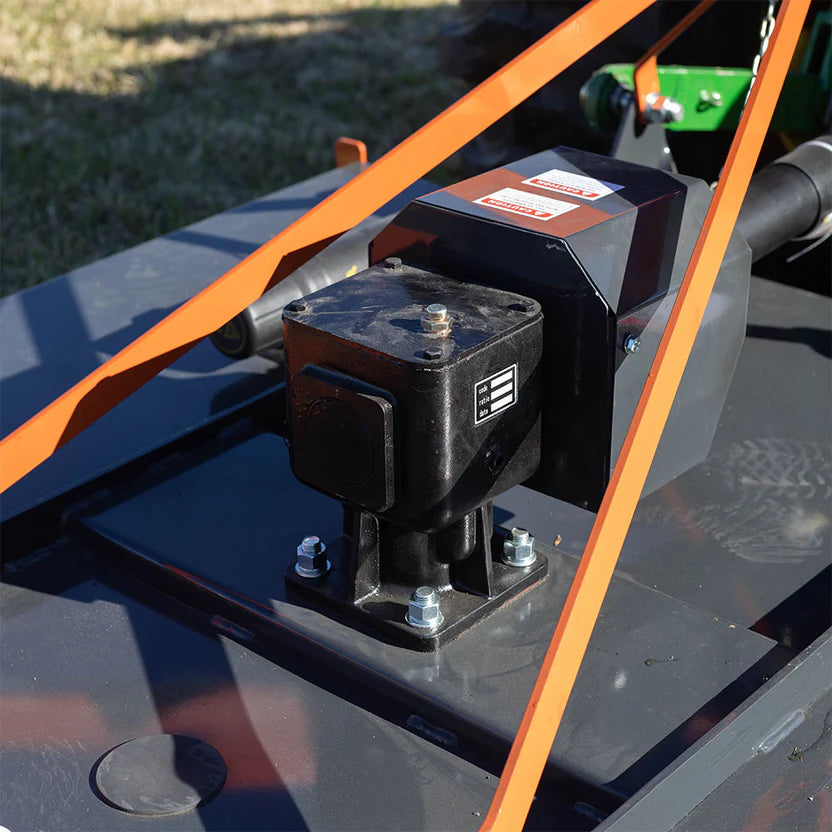

- Low-Noise Cast Iron Gearbox (40 HP Rated) Smooth and quiet performance under load.

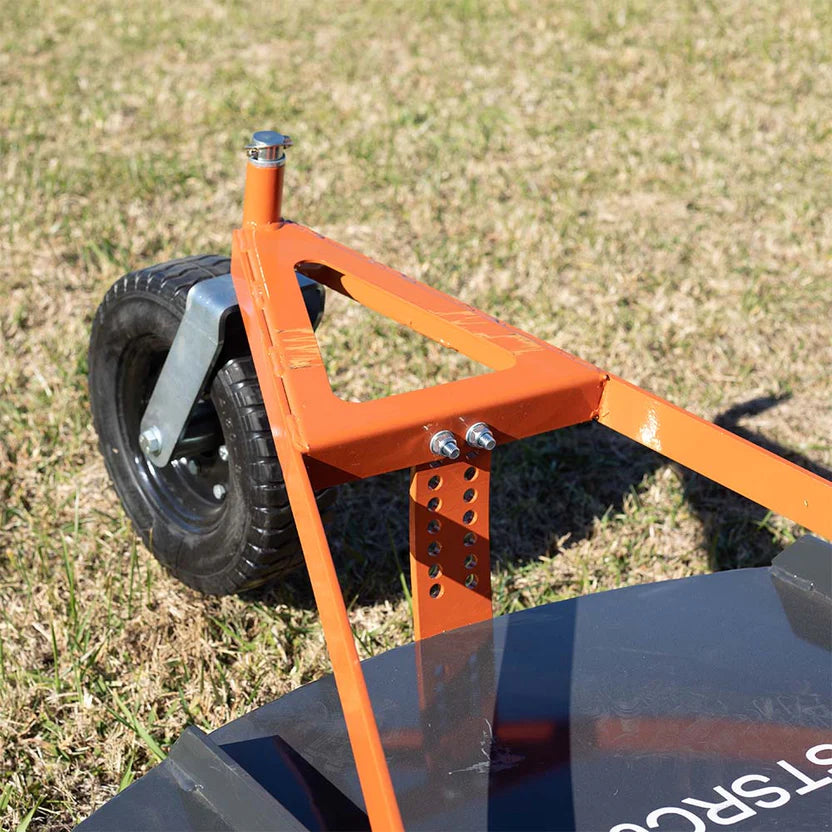

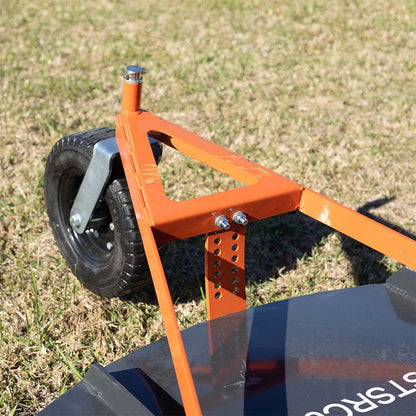

- Adjustable Tail Wheel Solid rubber wheel with height settings for tight turns and cut control.
- Heavy-Duty 11-Ga Steel Construction Powder-coated for corrosion resistance and long-term durability.
- Rear Discharge System Disperses clippings behind the mower for a clean finish.

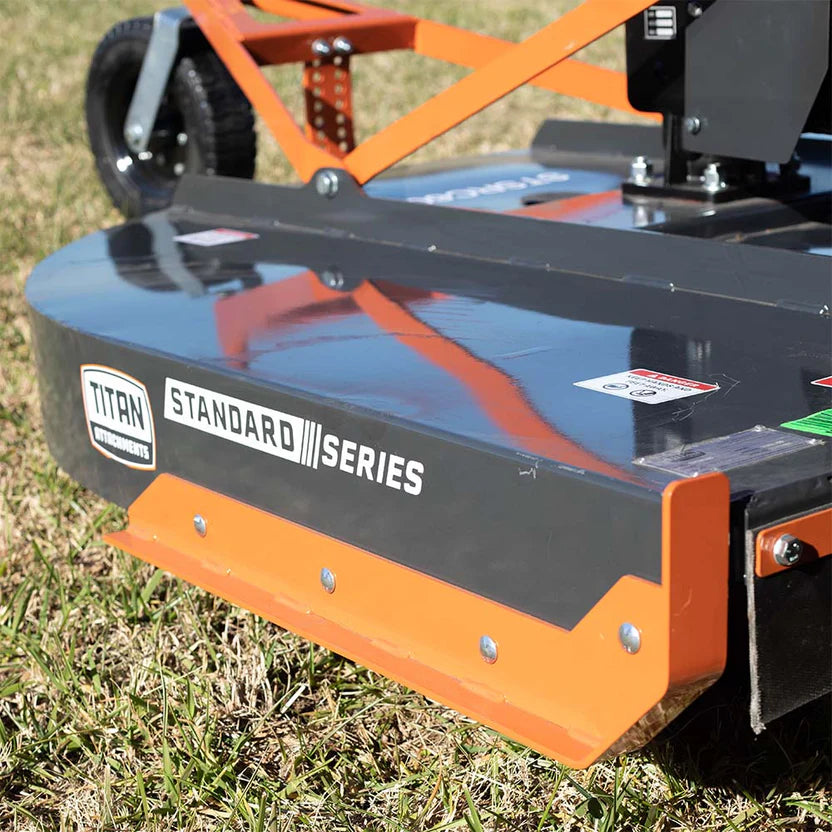

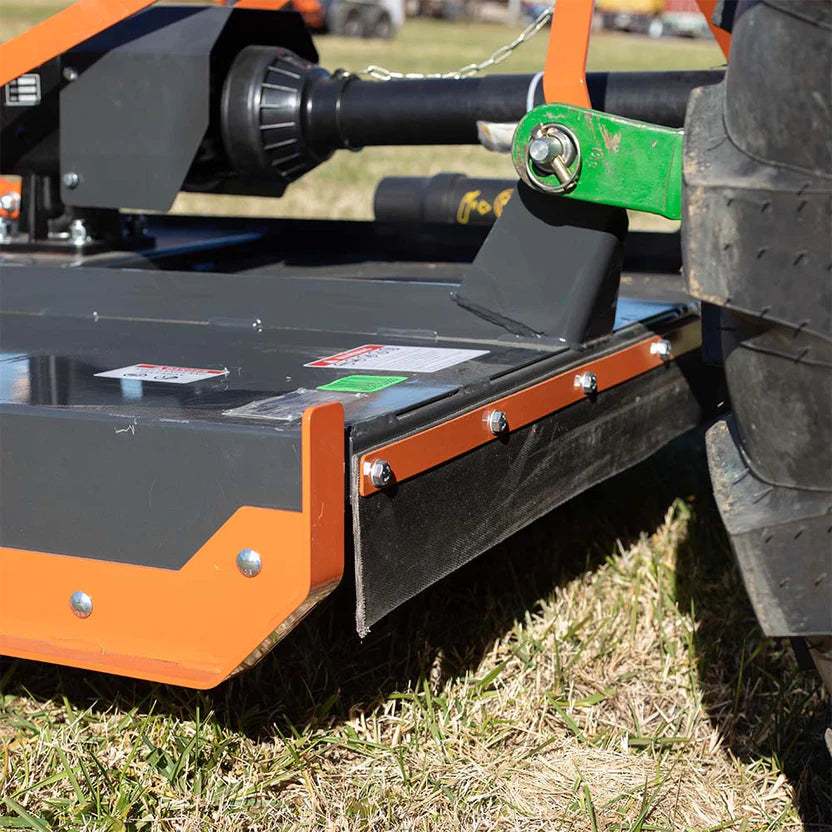

- Replaceable Components Includes heat-treated blades and skid shoes for easy upkeep.
-
Titan Quick Hitch Compatible Fast and secure connection to Cat 1 tractors.
Detailed Specifications

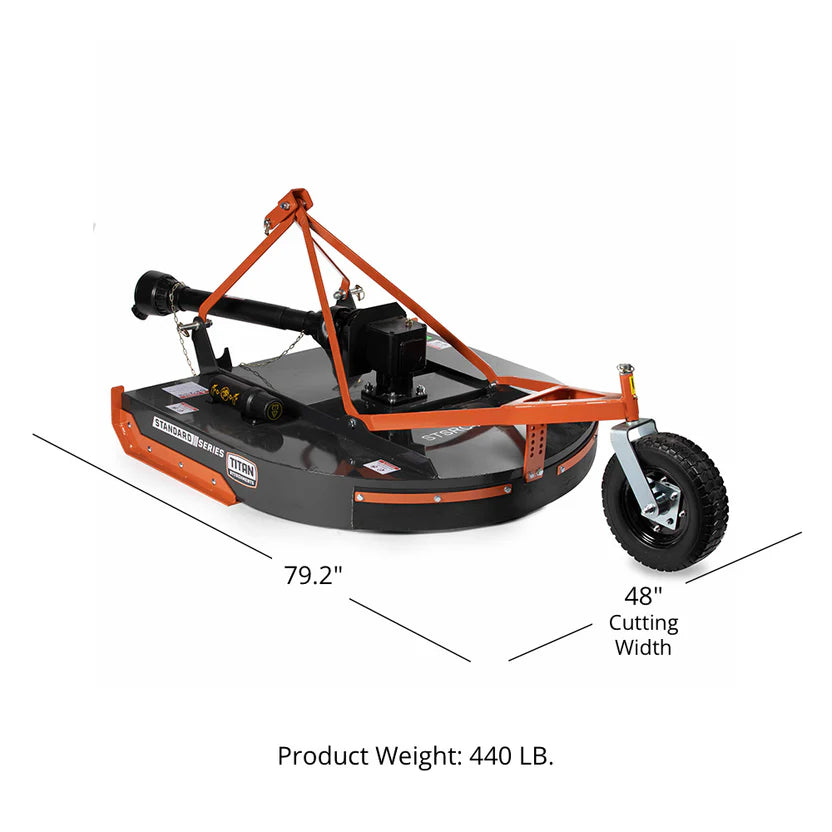

4 FT Rotary Cutter
| Specification | Details |
|---|---|
| Cutting Width | 48 in |
| Cutting Height Range | 1.5 in – 11 in |
| Cutting Capacity | 1 in Diameter |
| Overall Width | 53 in |
| Overall Depth | 79.2 in |
| Deck Height | 7.38 in |
| Blade Length | 18.35 in |
| Blade Width | 3 in |
| Blade Thickness | 0.5 in |
| Skid Thickness | 0.25 in |
| Gearbox Rating | 40 HP |
| Tractor Power Range | 20–60 HP |
| PTO Speed | 540 RPM |
| PTO Type | Slip Clutch PTO |
| Material | 11-Ga Steel |
| Finish | Powder-Coated Charcoal/Orange |
| Product Weight | 440 lb |
5 FT Rotary Cutter
| Specification | Details |
|---|---|
| Cutting Width | 60 in |
| Cutting Height Range | 1.5 in – 11 in |
| Cutting Capacity | 1 in Diameter |
| Overall Width | 65 in |
| Overall Depth | 91.2 in |
| Deck Height | 7.38 in |
| Blade Length | 20.7 in |
| Blade Width | 3 in |
| Blade Thickness | 0.5 in |
| Skid Thickness | 0.25 in |
| Gearbox Rating | 40 HP |
| Tractor Power Range | 20–60 HP |
| PTO Speed | 540 RPM |
| PTO Type | Slip Clutch PTO |
| Material | 11-Ga Steel |
| Finish | Powder-Coated Charcoal/Orange |
| Product Weight | 518 lb |
