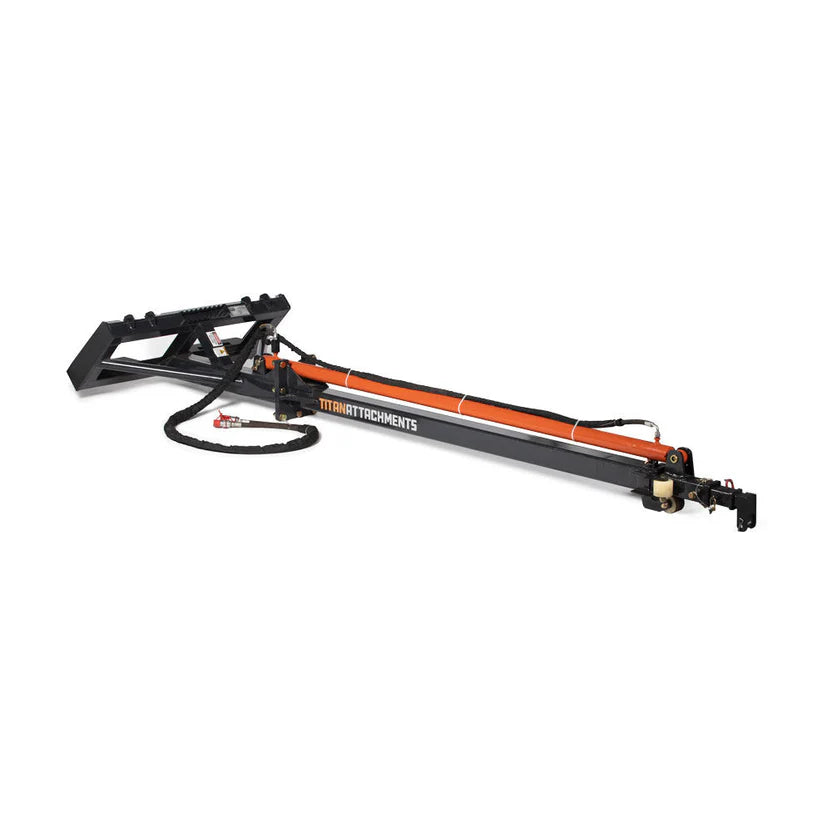

Titan Attachments Telescoping Truss Boom | 26 FT Reach | 3" Bore Cylinder | 330–850 lb Lift | 11–16 GPM Flow | For Skid Steers

Product Description

Titan Attachments Telescoping Truss Boom | 26 FT Reach | 3" Bore Cylinder | 330–850 lb Lift | 11–16 GPM Flow | For Skid Steers

DESCRIPTION

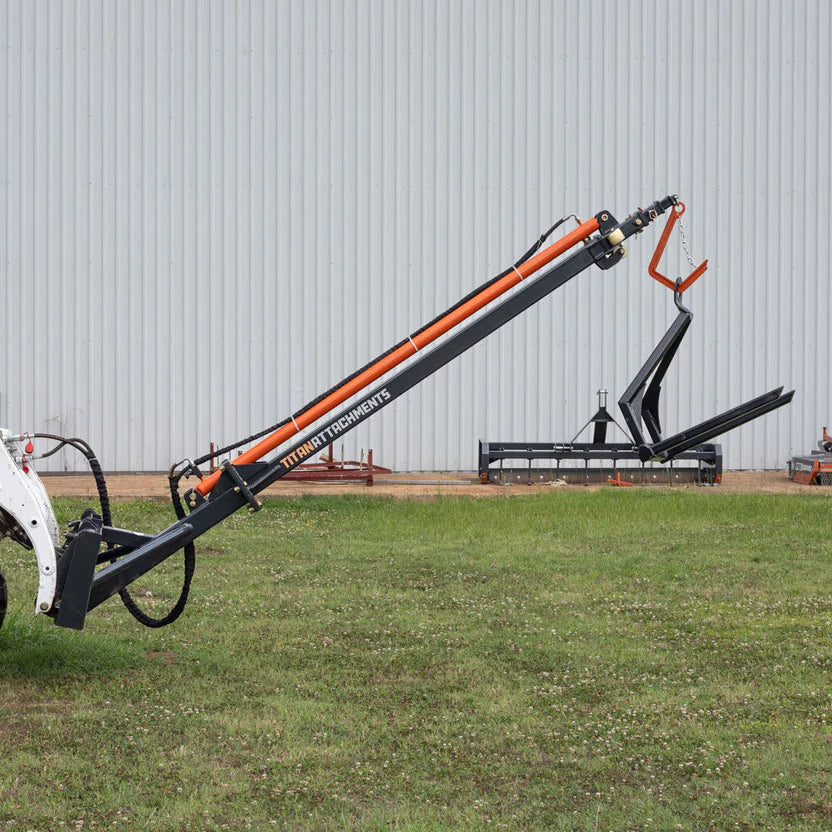

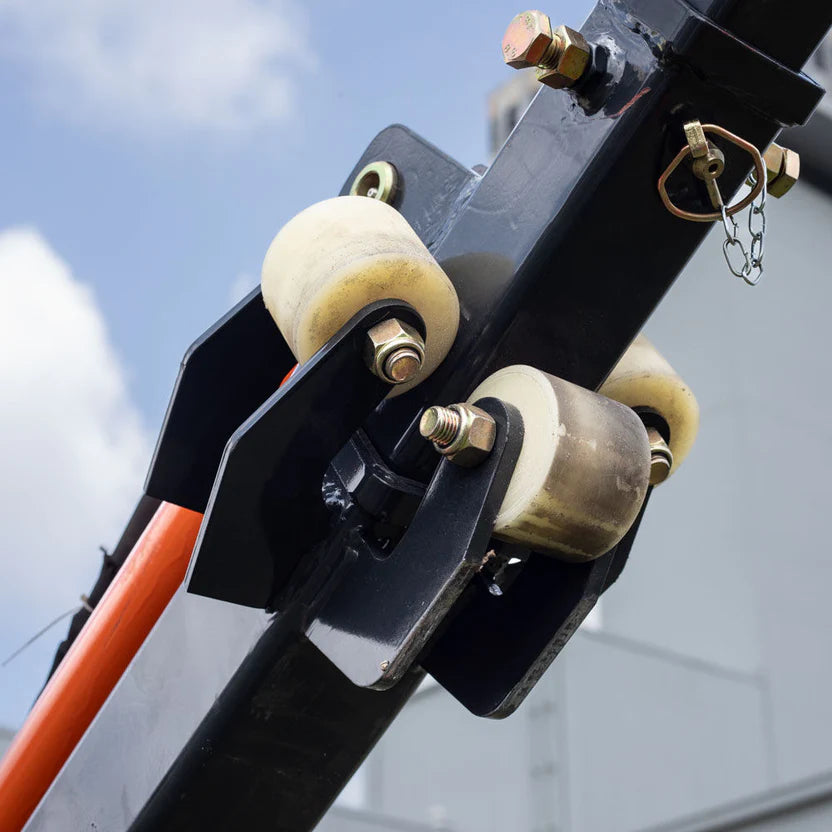

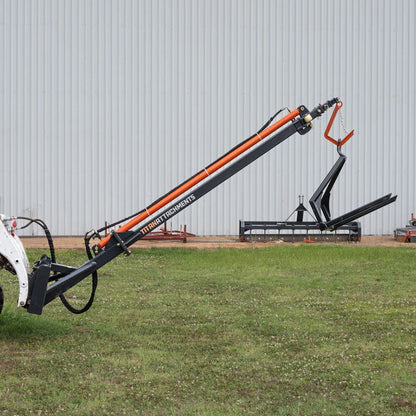

The 26 FT Reach Telescoping Hydraulic Truss Boom transforms your skid steer into a high-reach lifting solution for agricultural, construction, and industrial tasks. Designed to lift hay bales, drywall, trusses, and beams over fences, railings, or onto rooftops, this boom offers unmatched reach and control. Its 3-section hydraulic boom extends from 11.2 FT to 26 FT, powered by a 3" bore × 90.5" stroke hydraulic cylinder. Internal guide rollers ensure smooth extension and retraction, while lockout positions at 42" and 84" allow for controlled intermediate reach. Built from 6mm and 5mm thick structural steel, it supports up to 850 lb when retracted and 330 lb when fully extended. Compatible with any machine using the Universal Skid Steer Quick Attach (SSQA) system, this boom includes hydraulic hoses with flat-faced couplers for fast third-function valve hookup. Assembly is quick and secure with bolt-together construction.

Key Features

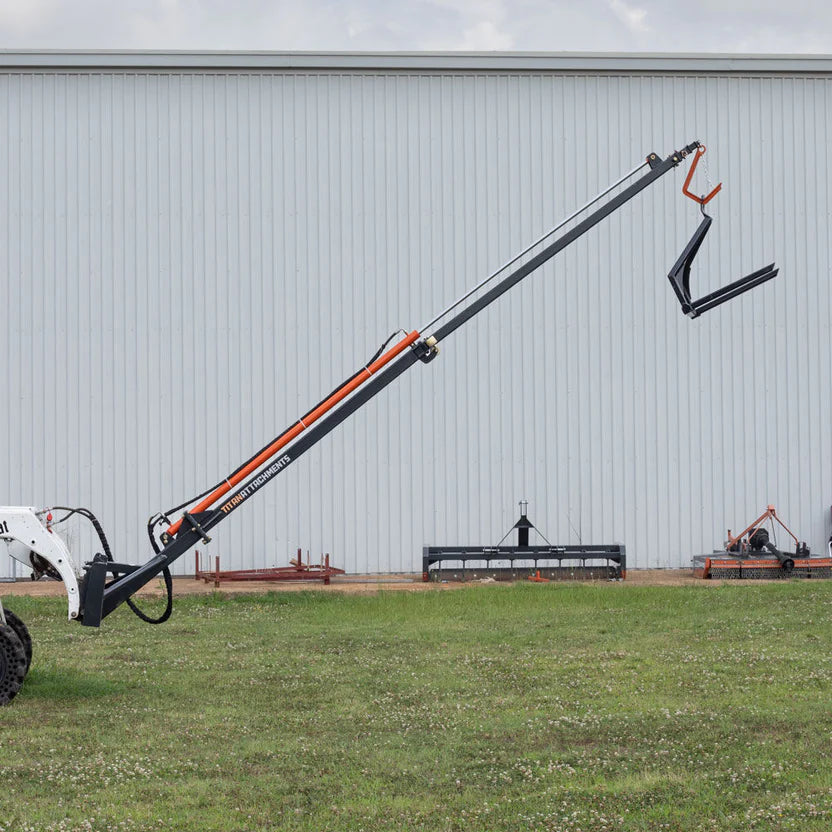

• Telescoping Reach: 11.2 FT to 26 FT Lift materials over obstacles or onto elevated surfaces with ease.

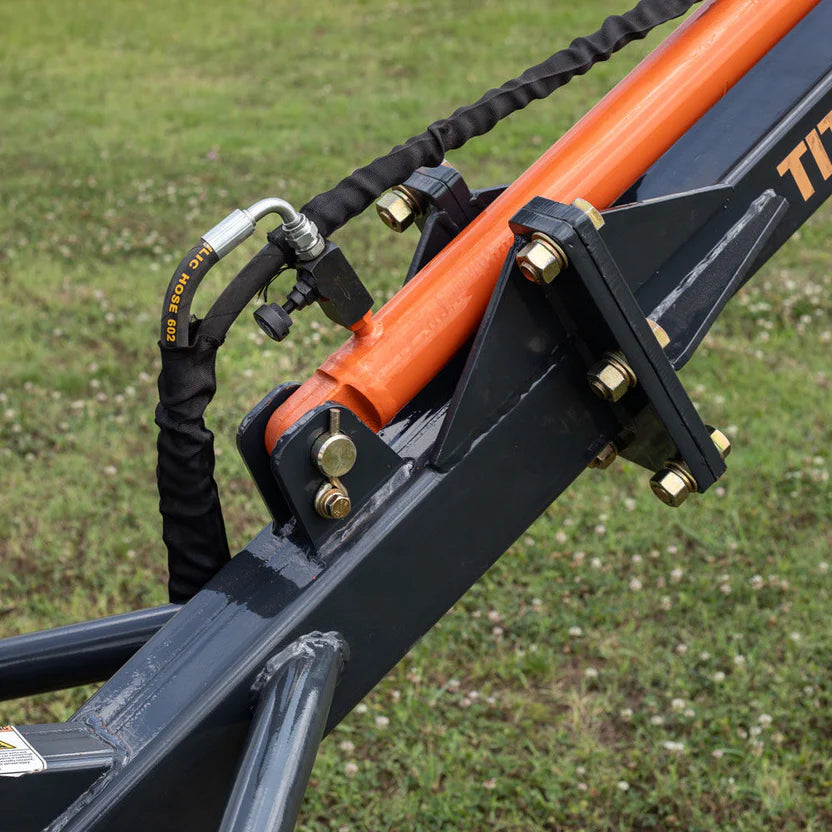

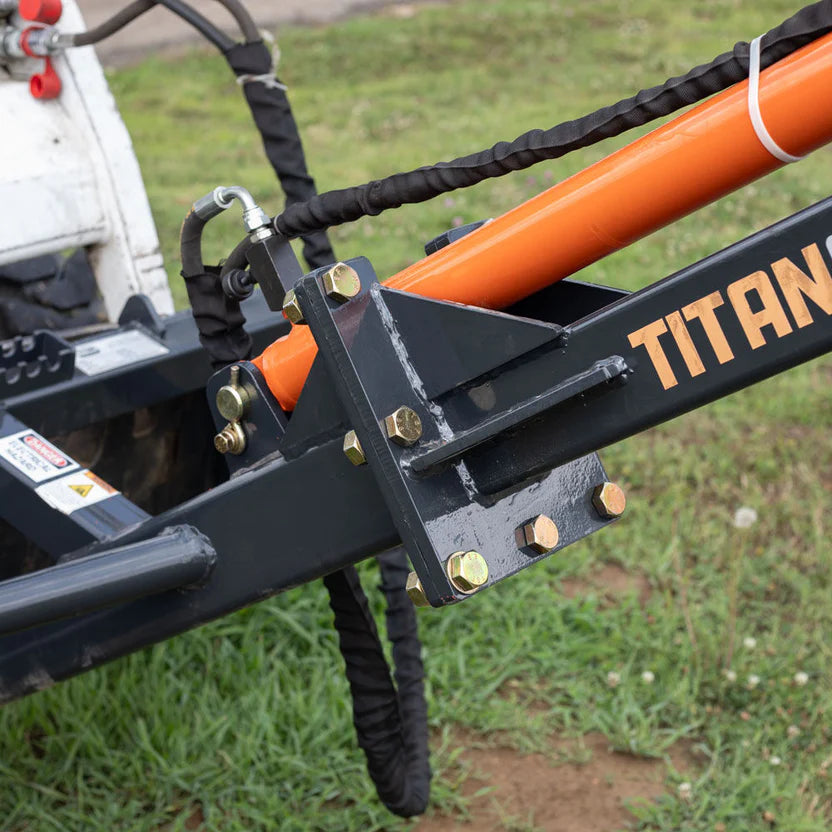

• Hydraulic Extension System Powered by a 3" bore × 90.5" stroke cylinder for smooth, controlled movement.
• Lockout Positions at 42" & 84" Offers fixed reach options for repeatable lifting tasks.
• Heavy-Duty Steel Construction 6mm base and 5mm extension sections for structural integrity.

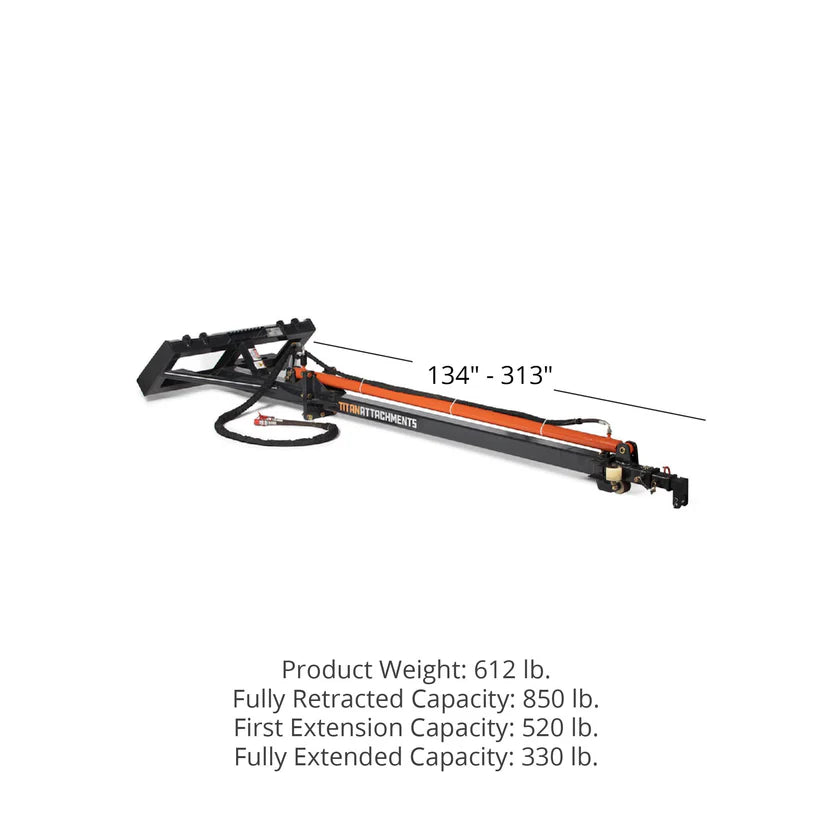

• Variable Lift Capacity 850 lb (retracted), 520 lb (mid-extension), 330 lb (fully extended).

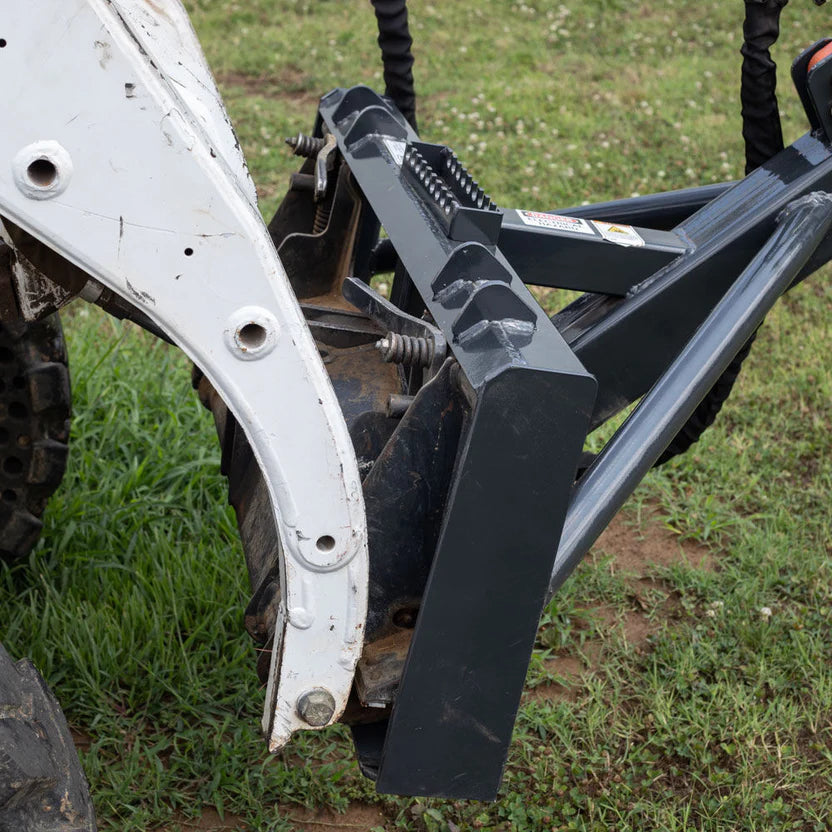

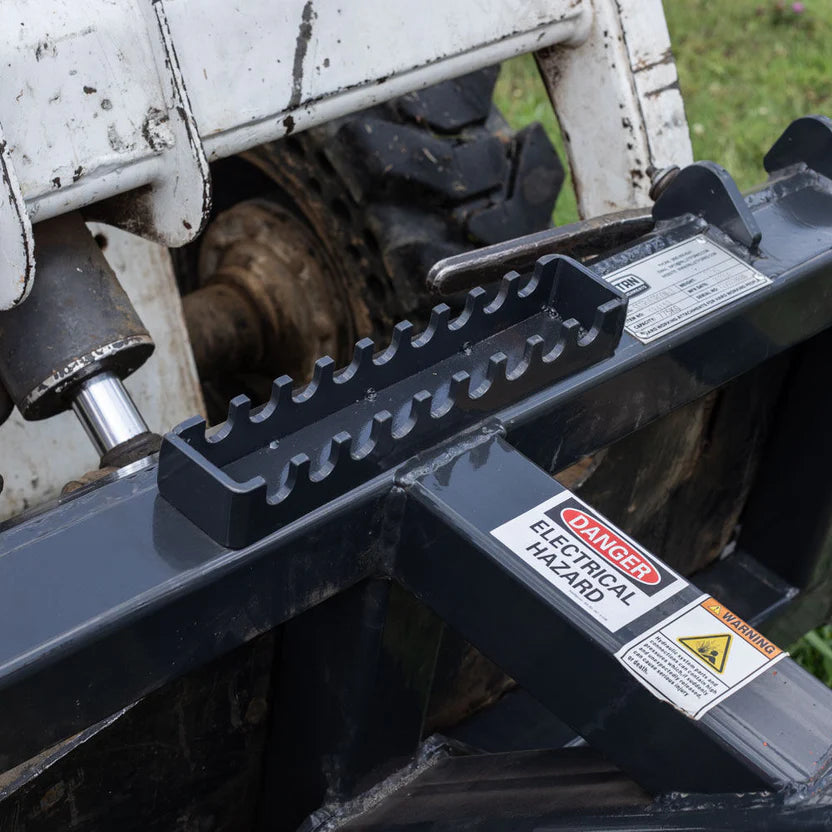

• SSQA Quick Attach Compatibility Fits skid steers, compact tractors, and loaders with universal mounting.

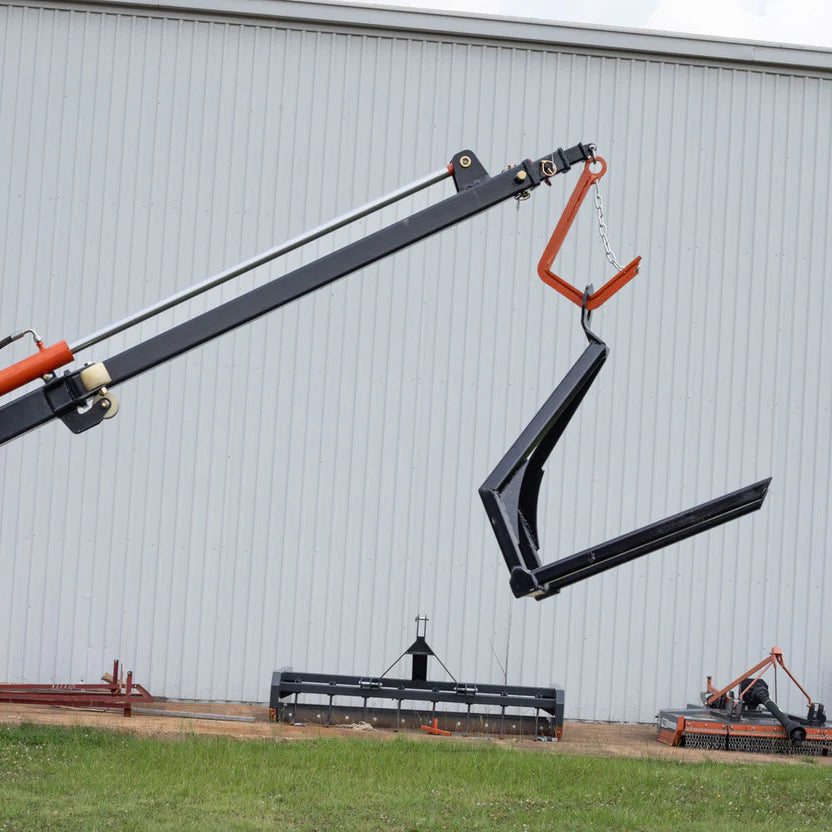

• Clevis Hitch Pin Attachment Located on the third section for secure load connection.
• Adjustable Safety Valve Prevents overextension and protects hydraulic components.
• Hydraulic Flow Requirement: 11 GPM Optimized for standard third-function hydraulic systems.
• Includes Hydraulic Hoses & Flat-Faced Couplers Plug-and-play setup for fast deployment.
