Product Description

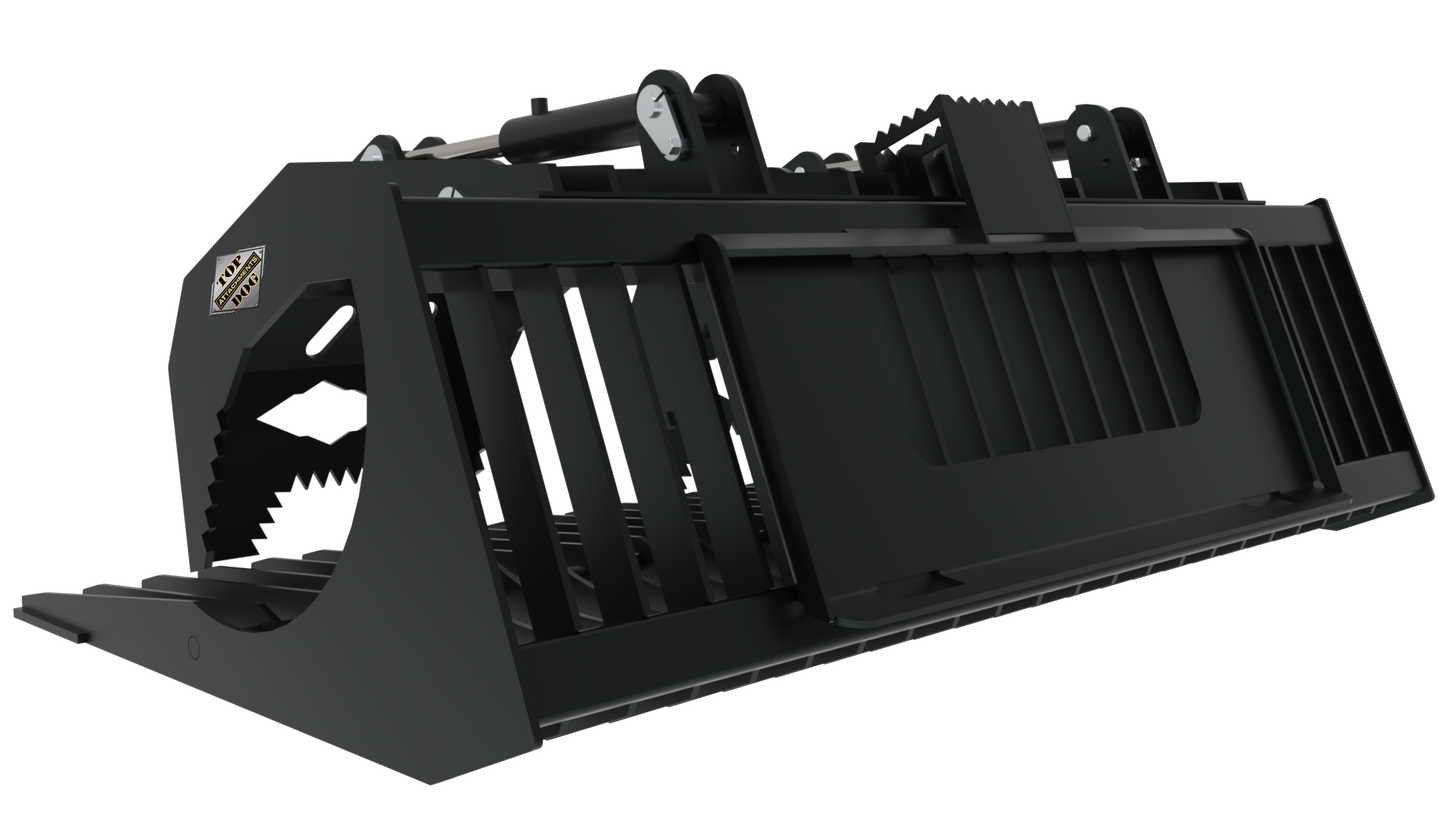

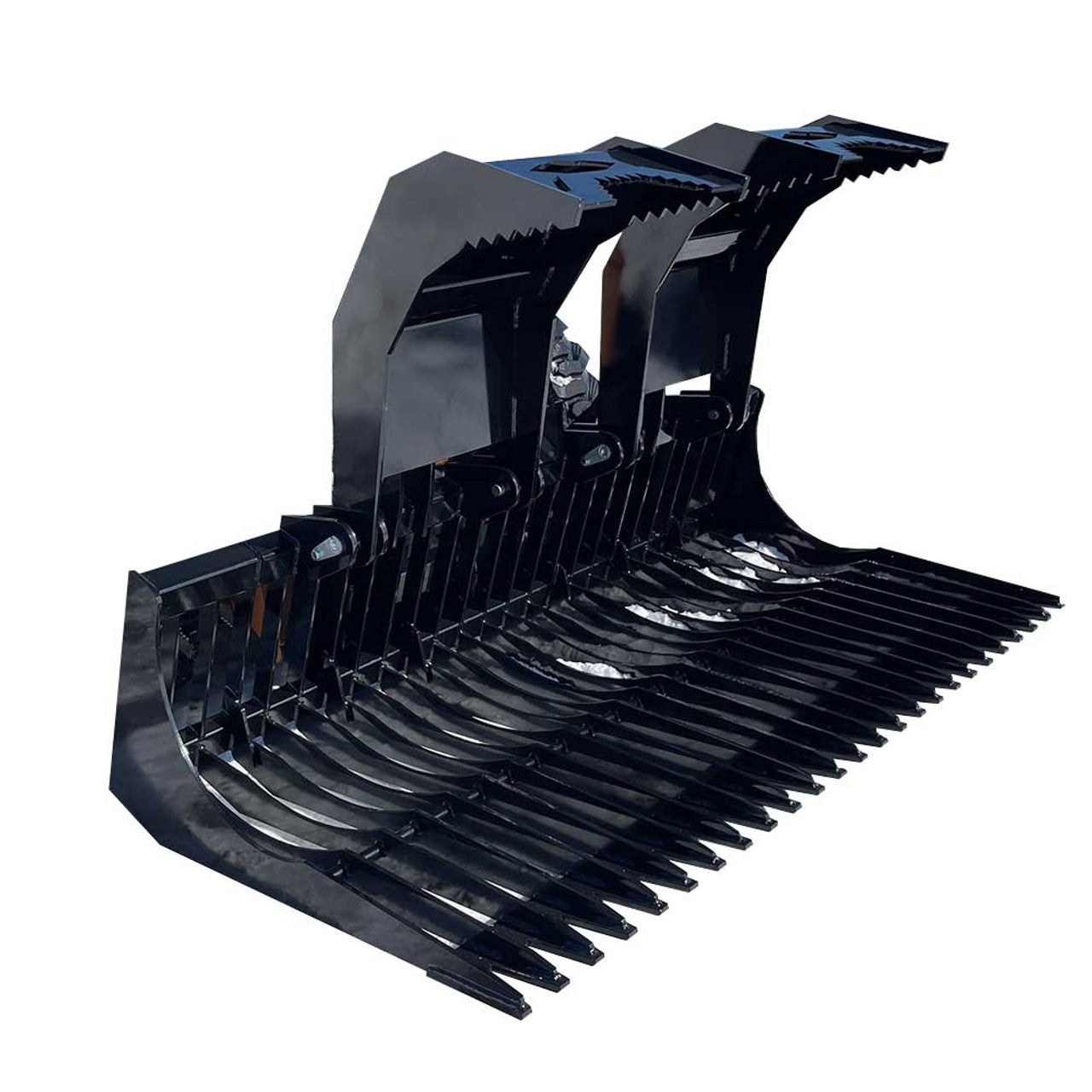

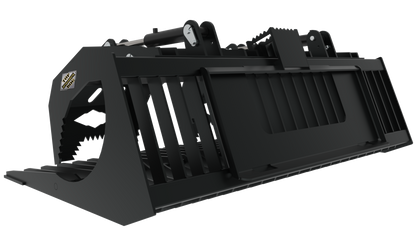

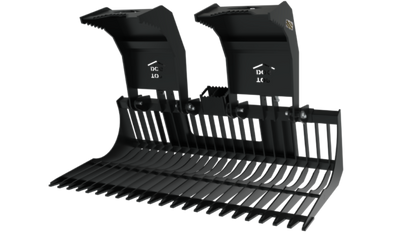

Top Dog Attachments HD Brush Bucket with Grapple | Width 68" to 82" | Weight 937 to 1065 lbs | Oil Flow Range 15 to 25 GPM | For Skid Steer
DESCRIPTION

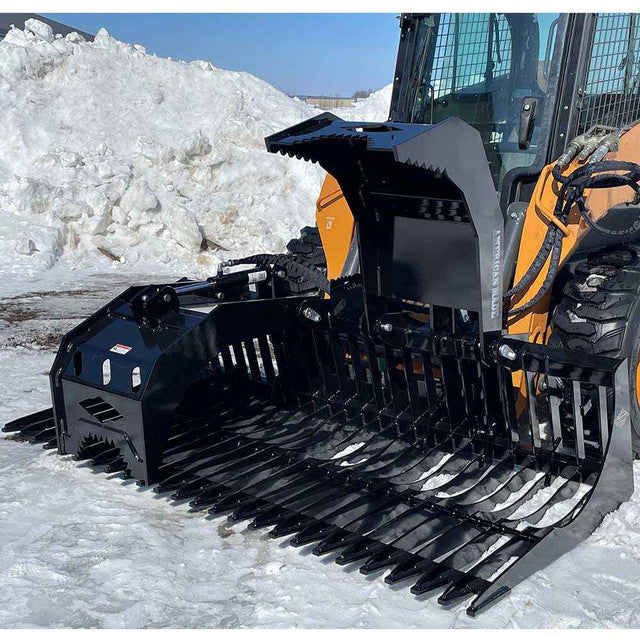

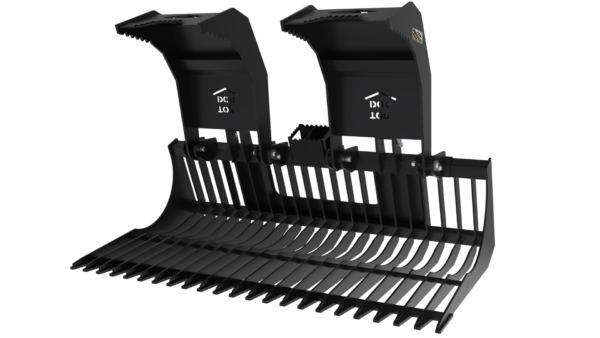

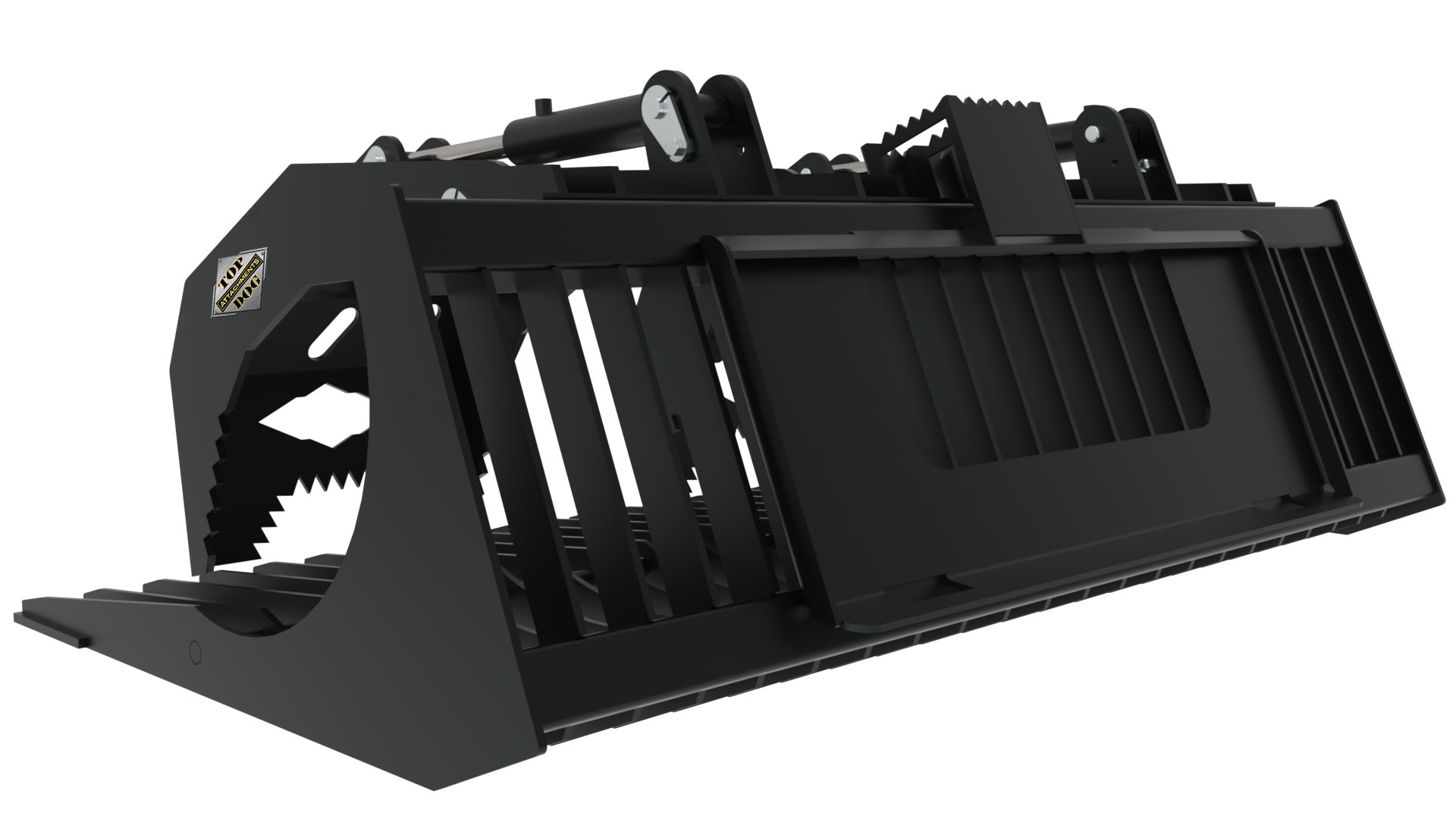

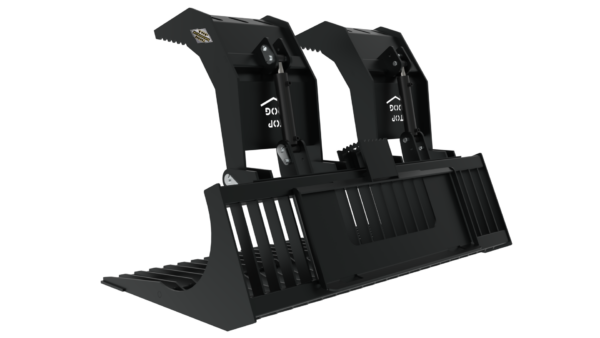

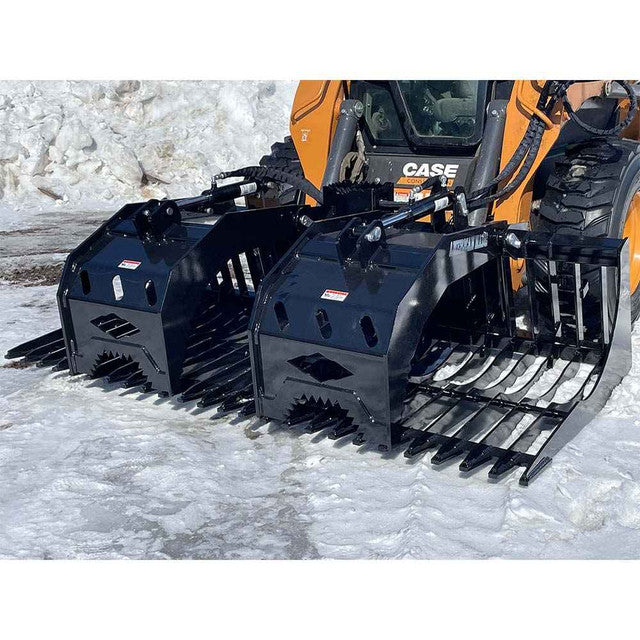

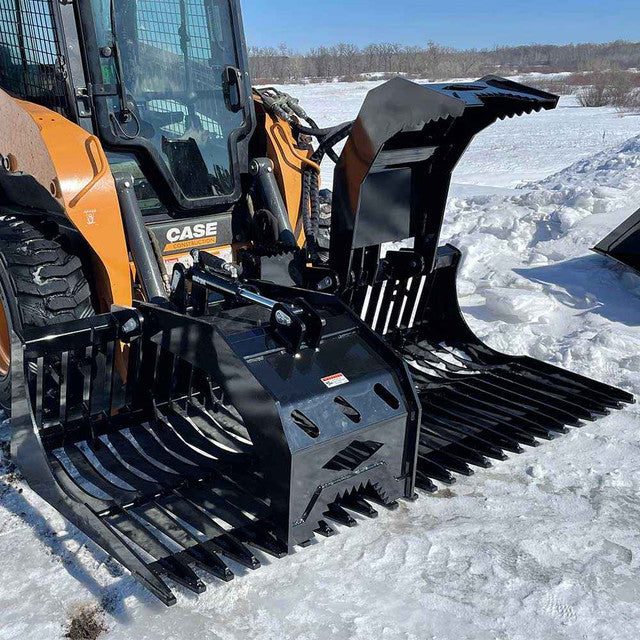

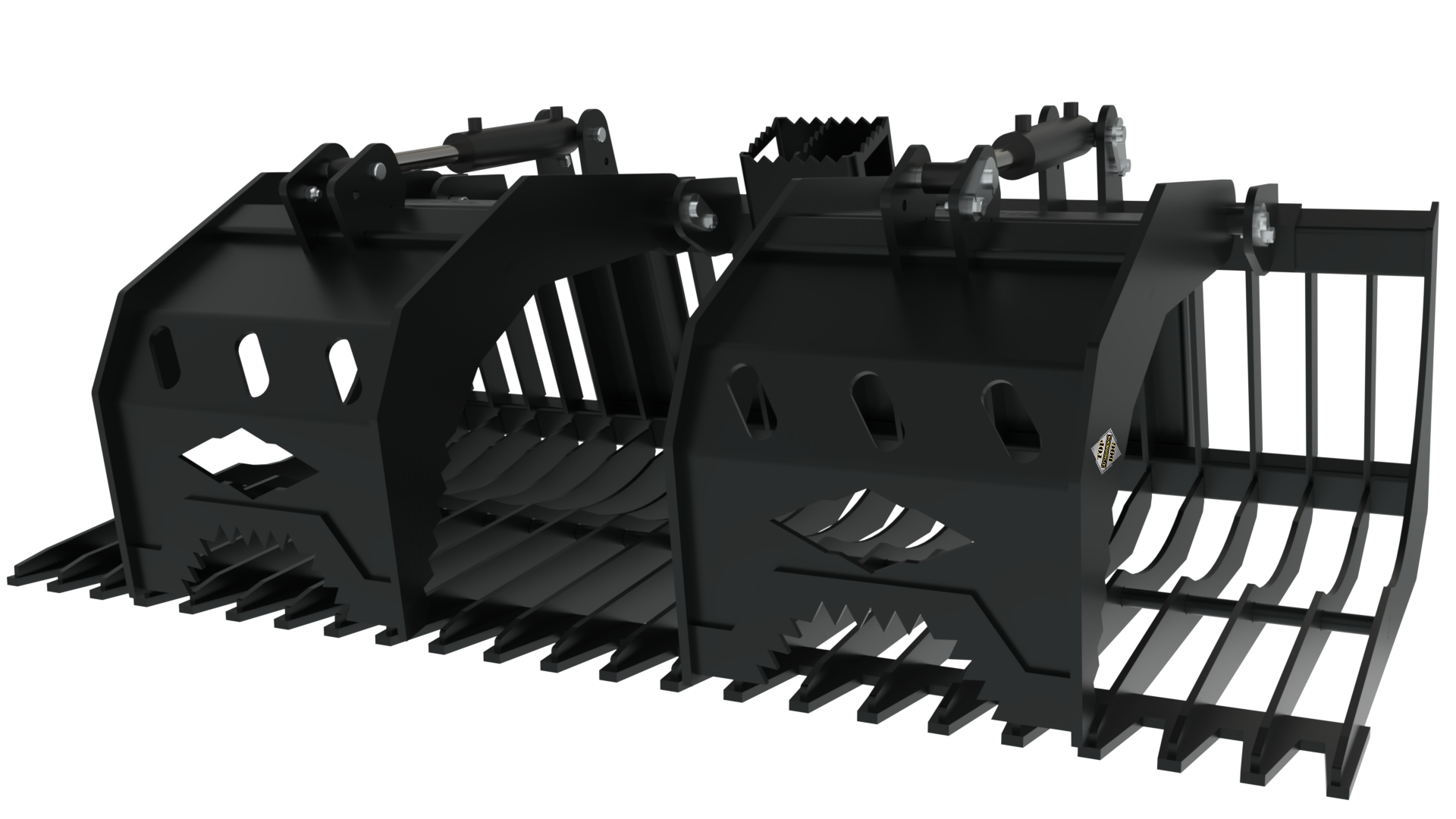

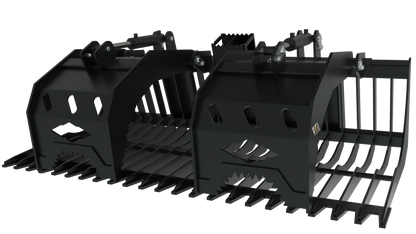

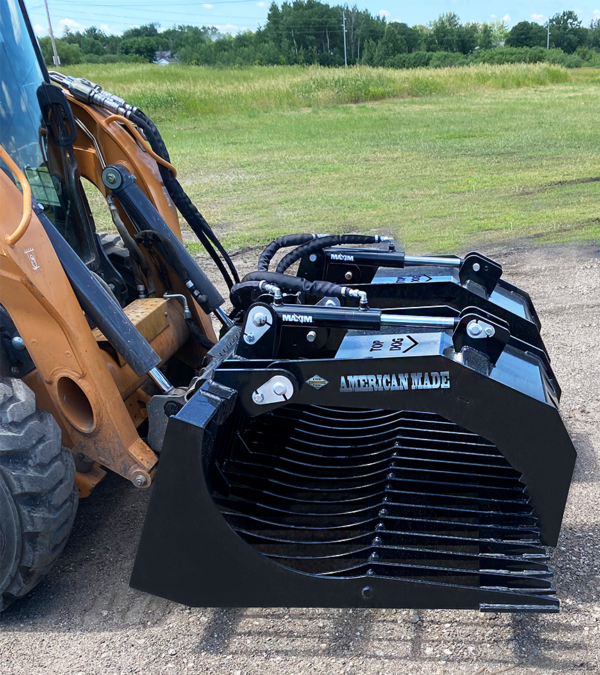

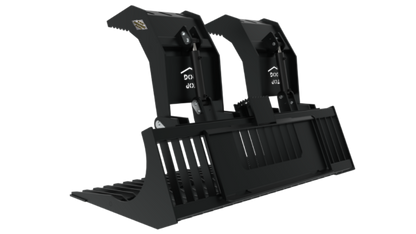

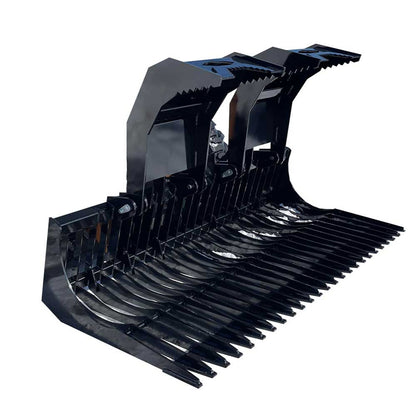

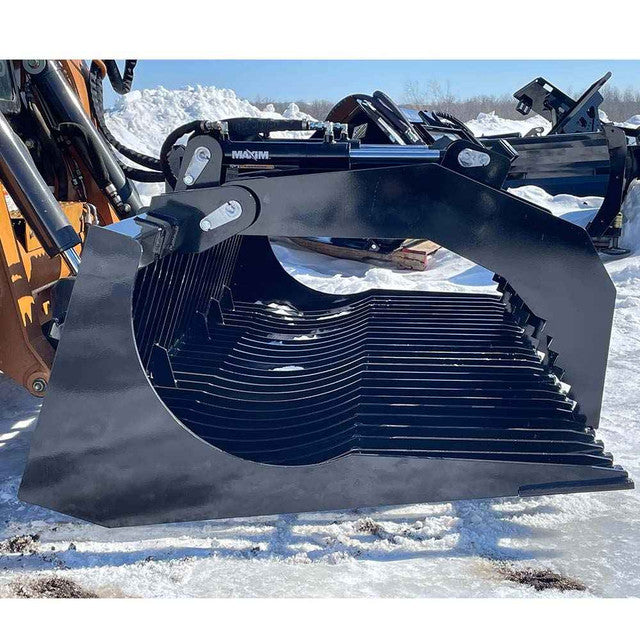

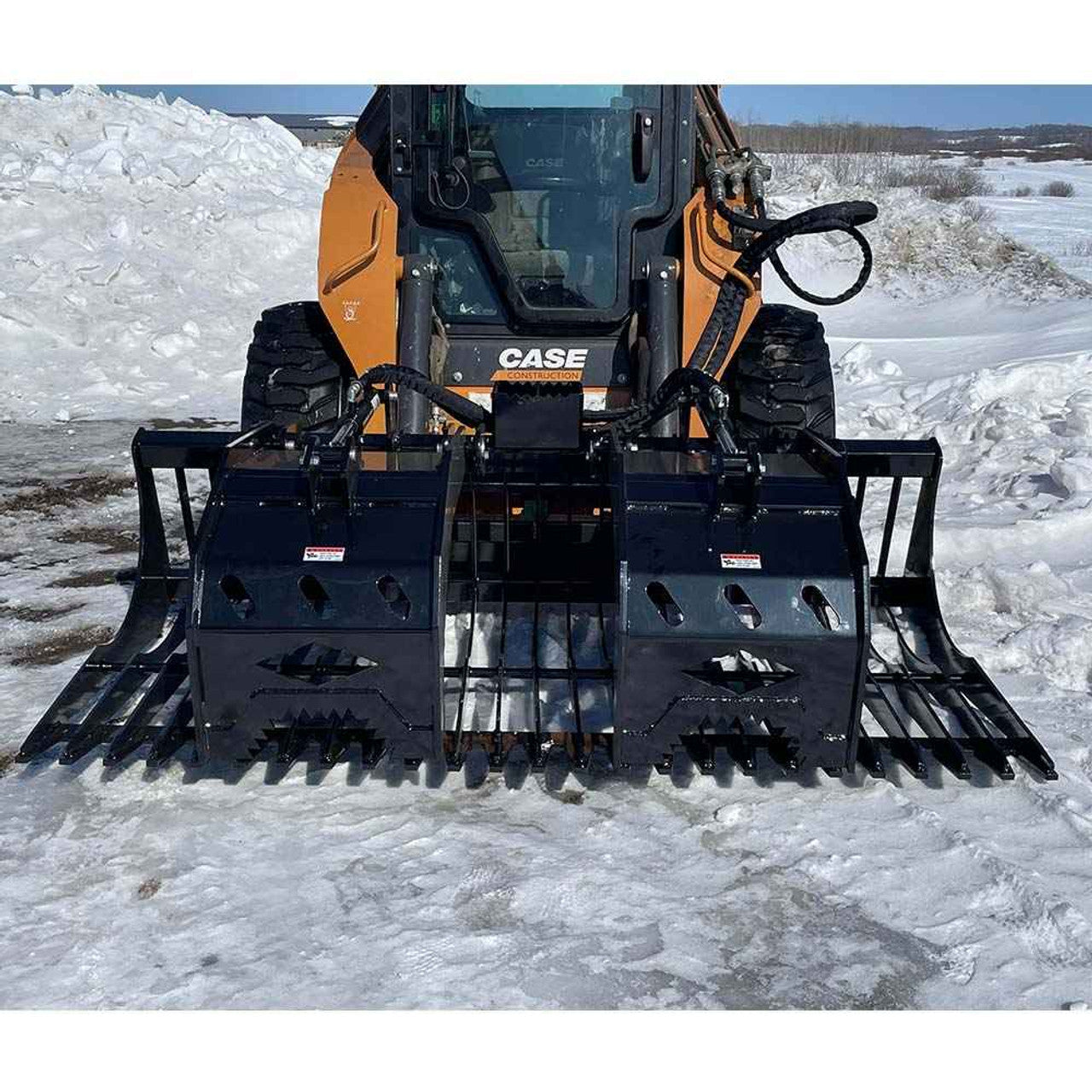

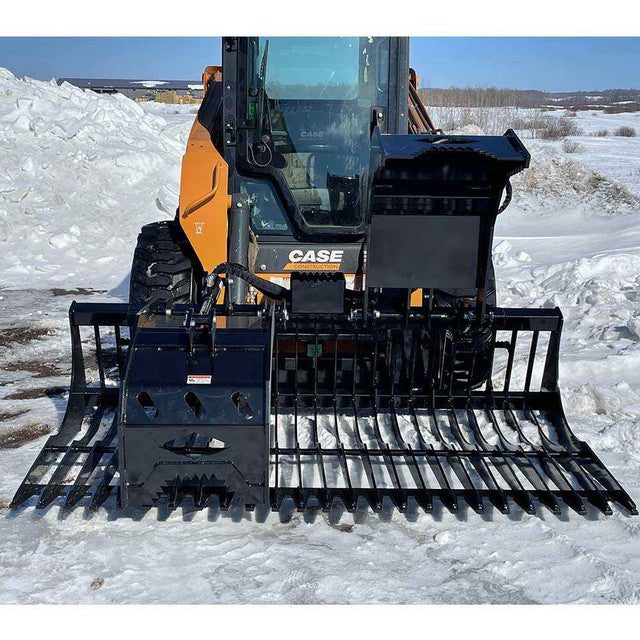

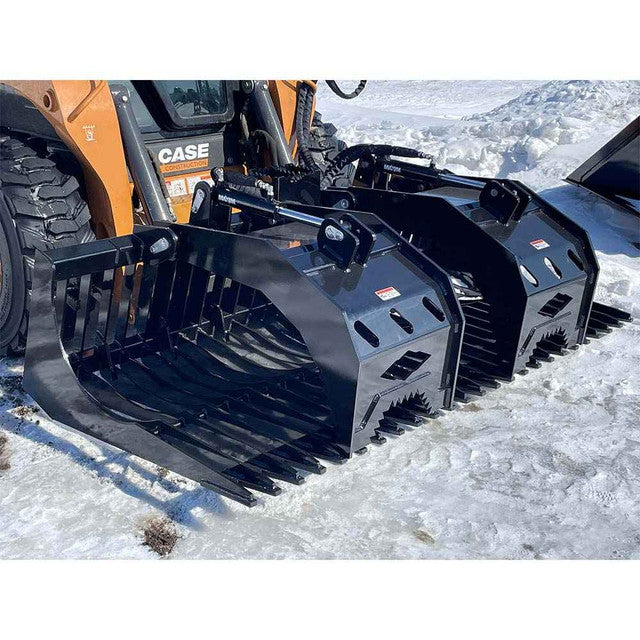

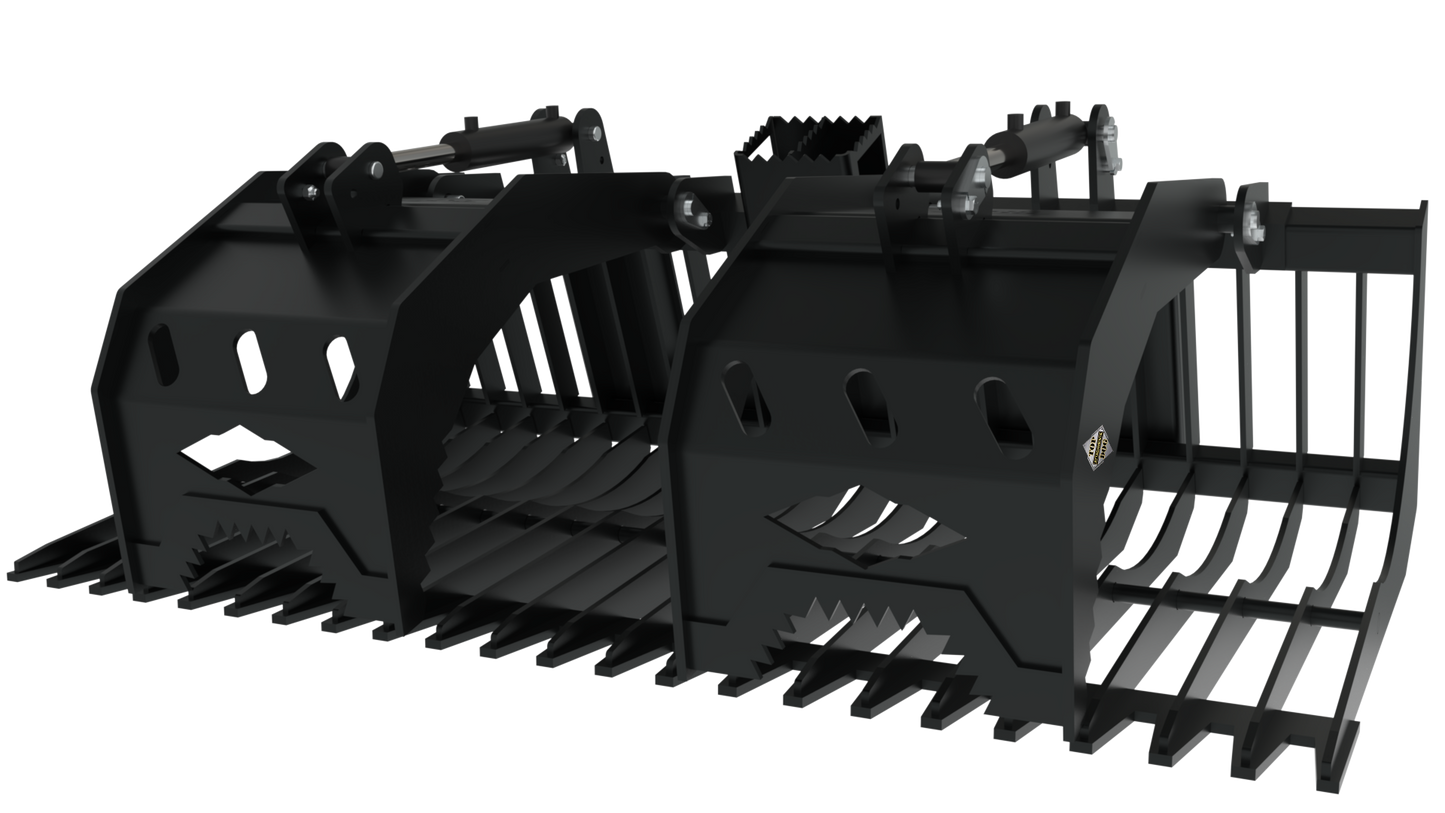

The Top Dog Attachments Skid Steer Heavy Duty Brush Bucket with Grapple is engineered for maximum strength and stability, featuring a fully enclosed grapple arm for superior control. Built for heavy-duty applications, this attachment excels at handling logs, rocks, and other tough materials. Unlike the Standard Brush Grapple Bucket, this HD version offers enhanced durability, with 4-inch thick steel grapple arms and a 3000 PSI operating pressure. The open sidewalls allow for carrying objects longer than the bucket itself, making it an ideal choice for construction, land clearing, and industrial applications. Proudly made in the USA, this attachment is crafted from high-quality A-50 grade steel for long-lasting performance.
Key Features
- Fully Enclosed Grapple Arm – Provides greater stability and control for heavy-duty applications.
- Heavy-Duty Construction – Built with A-50 grade steel for superior durability.
- 4" Thick Steel Grapple Arms – Designed for tough grappling tasks like logs and rocks.
- High Operating Pressure – 3000 PSI ensures maximum gripping power.
- Open Sidewalls – Allows for carrying oversized objects beyond the bucket width.
- Multiple Width Options – Available in 62", 75", and 82" to suit different job requirements.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Hydraulic System – Equipped with hydraulic hoses and flat-faced couplers for seamless operation.
- Oil Flow Range – 15-25 GPM, ensuring optimal hydraulic performance.
- Made in the USA – Manufactured with high-quality steel and expert welding for long-lasting reliability.
Detailed Specifications
| Specification | TD-901003-HD (68") | TD-9010032-HD (75") | TD-9010033-HD (82") |
|---|---|---|---|
| Weight (Lbs.) | 937 | 1029 | 1065 |
| Width (") | 62 | 75 | 82 |
| Inside Depth (") | N/A | N/A | N/A |
| Height (") | N/A | N/A | N/A |
| Pin on Arms (") | 1 1/4" | 1 1/4" | 1 1/4" |
| Operating Pressure (PSI) | 3000 PSI | 3000 PSI | 3000 PSI |
| Whole Pan Thickness (") | 3/8" Steel | 3/8" Steel | 3/8" Steel |
| Grapple Arm Thickness (") | 4" | 4" | 4" |
| Tines & Top Cross Bar | A-50 Grade Steel | A-50 Grade Steel | A-50 Grade Steel |
| Oil Flow Range (GPM) | 15-25 GPM | 15-25 GPM | 15-25 GPM |
