Top Dog Attachments Manure Fork Grapple | Width 66" to 78" | Weight 730 to 800 lbs | Oil Flow Range 12 to 18 GPM | For Skid Steer
Top Dog Attachments Manure Fork Grapple | Width 66" to 78" | Weight 730 to 800 lbs | Oil Flow Range 12 to 18 GPM | For Skid Steer
Regular price
$3,214.29
Regular price
Sale price
$3,214.29
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Top Dog Attachments Manure Fork Grapple | Width 66" to 78" | Weight 730 to 800 lbs | Oil Flow Range 12 to 18 GPM | For Skid Steer
DESCRIPTION

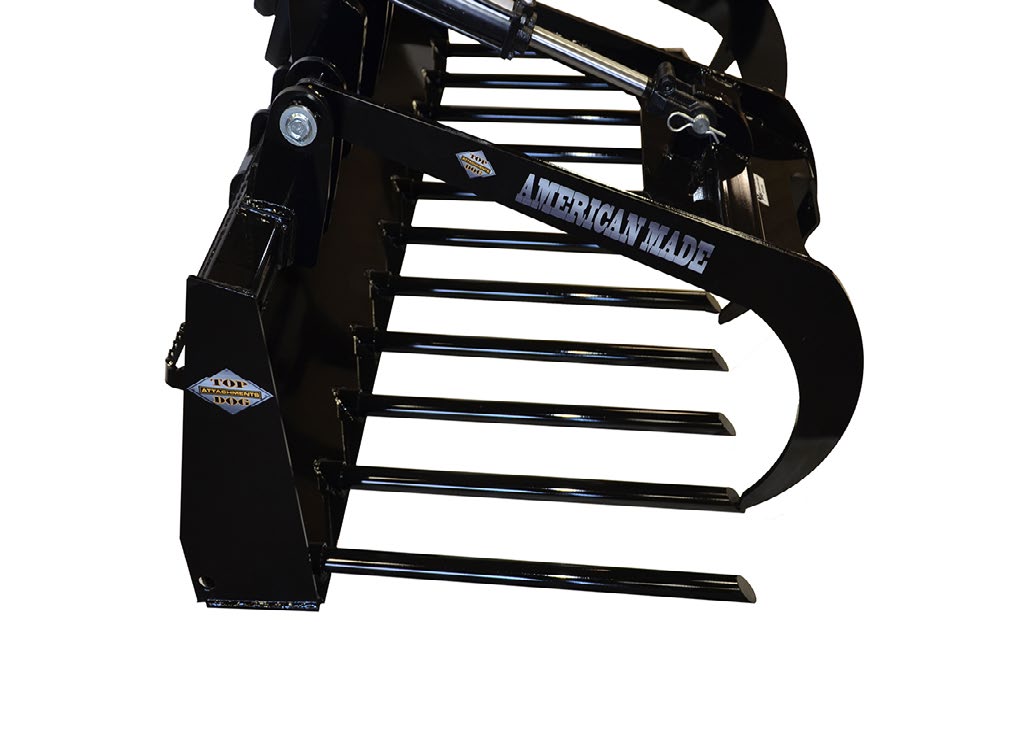

The Top Dog Attachments Skid Steer Manure Fork Grapple is a heavy-duty attachment designed for manure, hay, and straw cleanup. Its large round tine design ensures easy wash-down after use, making it an essential tool for farm operations. Built with A-50 grade steel, this grapple provides durability and strength, allowing for efficient lifting and carrying of loose materials.
Key Features
- Heavy-Duty Construction – Made with A-50 grade steel for superior durability and long-lasting performance.
- Replaceable Tines – Ensures extended usability and easy maintenance.
- Variety of Sizes – Available in 66", 72", and 78" widths to suit different operational needs.
- Optimized for Farm Work – Ideal for manure, hay, straw cleanup, and loose material handling.
- Round Tine Design – Allows for easy wash-down after use, maintaining cleanliness.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Hydraulic System – Equipped with hydraulic hoses and flat-faced couplers for seamless operation.
- Oil Flow Range – 12-18 GPM, ensuring optimal hydraulic performance.
- Made in the USA – Manufactured with high-quality steel and expert craftsmanship.
Detailed Specifications
| Model | 9010052 (66") | 9010053 (72") | 9010054 (78") |
|---|---|---|---|
| Overall Width (") | 66 | 72 | 78 |
| Overall Height - Closed (") | 33 | 33 | 33 |
| Overall Height - Open (") | 54 1/2 | 54 1/2 | 54 1/2 |
| Overall Depth (") | 45 1/4 | 45 1/4 | 45 1/4 |
| Grapple Opening (") | 45 1/2 | 45 1/2 | 45 1/2 |
| Depth of Bucket (") | 34 1/2 | 34 1/2 | 34 1/2 |
| Tines (Replaceable) | 1-1/2" 1144 Steel | 1-1/2" 1144 Steel | 2" 1144 Steel |
| Top Tube (") | 3 x 3 x 187 | 3 x 3 x 187 | 3 x 3 x 187 |
| Main Body (") | 1/4" A36 | 1/4" A36 | 1/4" A36 |
| Grapple Arms (") | 1/2" Gusseted | 1/2" Gusseted | 1/2" Gusseted |
| Cylinders (") | 2" Bore | 2" Bore | 2" Bore |
| Weight (Lbs.) | 730 | 765 | 800 |
| Oil Flow Range (GPM) | 12-18 GPM | 12-18 GPM | 12-18 GPM |
