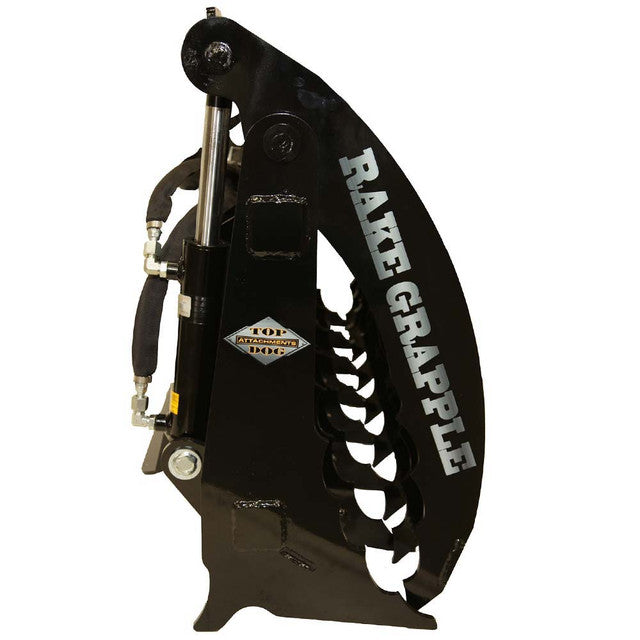

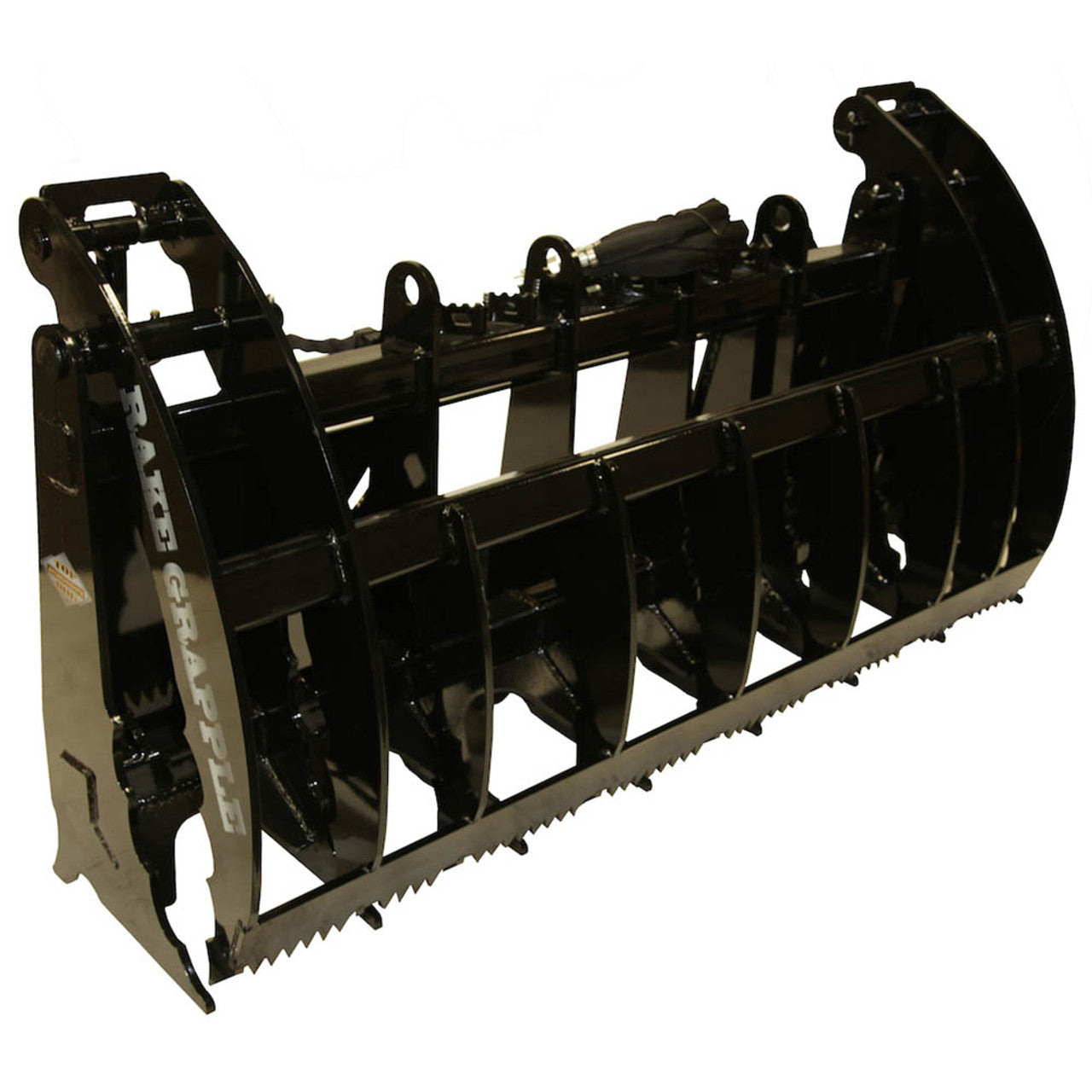

Top Dog Attachments Rake Grapple | Width 72" & 78" | Weight 820 & 865 lbs | For Skid Steer
DESCRIPTION
The Top Dog Skid Steer Rake Grapple is a versatile attachment designed for picking up brush, demolition debris, moving logs or large objects, construction cleanup, storm debris, recycling, landscaping, and industrial applications. The rake function is particularly useful for back-dragging after stump removal, ensuring a clean and level surface. Its heavy-duty teeth prevent dirt buildup while effectively digging up roots and removing small trees. Built with Grade 50 steel, this attachment delivers exceptional durability and strength, making it an essential tool for land clearing professionals and property owners.
Key Features
- Multi-Purpose Functionality – Ideal for brush handling, demolition cleanup, log moving, storm debris removal, landscaping, and industrial applications.
- Efficient Raking Capability – Perfect for back-dragging after stump removal, ensuring a smooth and clean surface.
- Heavy-Duty Teeth Design – Prevents dirt accumulation and excels at digging up roots and removing small trees.
- Robust Construction – Made with Grade 50 steel for superior durability and long-lasting performance.
- Two Width Options – Available in 72-inch and 78-inch models to accommodate different operational needs.
- Universal Skid Steer Mount – Compatible with most skid steer loaders for easy installation.
- Hydraulic System – Comes with hydraulic hoses and flat-faced couplers for seamless operation.
- Made in the USA – Manufactured with high-quality materials and craftsmanship.
Detailed Specifications
| Specification | TD-9033220 (72") | TD-9033221 (78") |
|---|---|---|
| Part # | 9002001 | N/A |
| Weight (lb) | 820 | 865 |
| Width (") | 72 | 78 |
| Overall Height (") | 35.5 | 49.5 |
| Inside Depth (") | 19.75 | 20.5 |
| Height - Closed (") | N/A | 31.25 |
| Height - Open (") | 35.5 | 49.5 |
| Grapple Opening (") | N/A | 47.5 |
| Grapple Arms | 1/2" Grade 50 | 1/2" Grade 50 |
| Tine Spacing (") | 9.5 | 9.5 |
| Tines & Top Cross Bar | Grade 50 | Grade 51 |
| Open Tine to Tine Height (") | 4.5 | N/A |
