Top Dog Attachments Side Flow Bucket- Heavy Material | HD Dual Side Discharge | Width: 72" & 84" | Oil Flow Range 15-20 GPM | For Skid Steers
Top Dog Attachments Side Flow Bucket- Heavy Material | HD Dual Side Discharge | Width: 72" & 84" | Oil Flow Range 15-20 GPM | For Skid Steers
Regular price
$11,520.00
Regular price
Sale price
$11,520.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Top Dog Attachments Side Flow Bucket- Heavy Material | HD Dual Side Discharge | Width: 72" & 84" | Oil Flow Range 15-20 GPM | For Skid Steers
DESCRIPTION

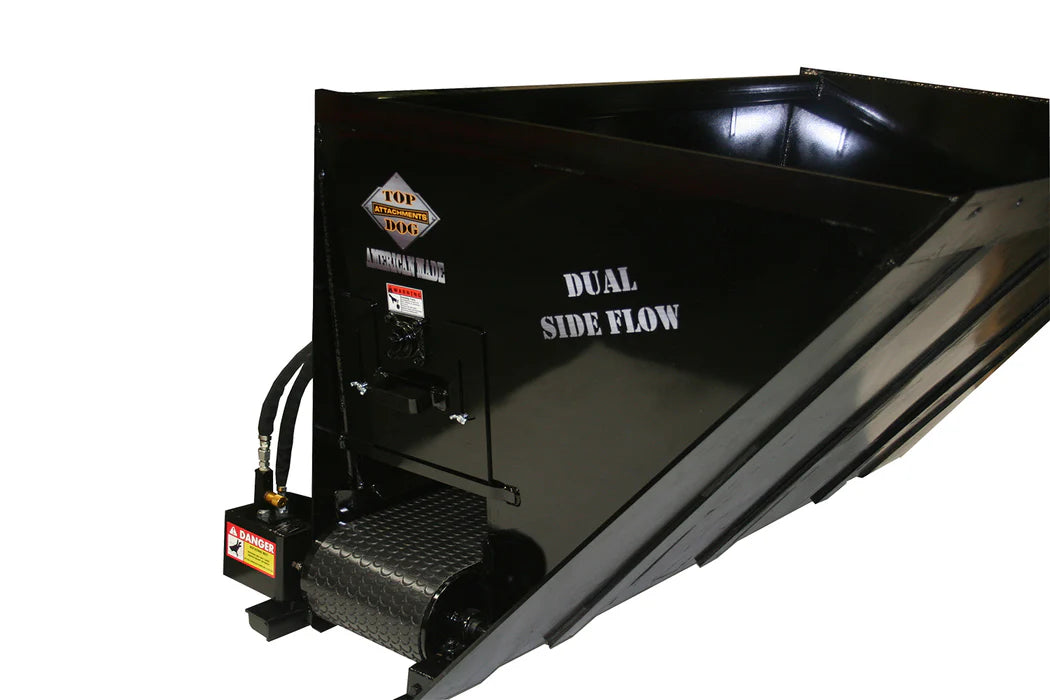

The Top Dog Attachments HD Side Flow Bucket is a heavy-duty, dual-side discharge attachment designed for efficient material handling. This bucket allows operators to scoop, transport, and spread materials with ease, thanks to its rotating mechanism that transitions between bucket mode and spreader/feeder mode. Equipped with three orbit motors, it ensures smooth material flow, preventing bridging and optimizing distribution. Ideal for construction, agriculture, and landscaping, this attachment enhances productivity and operational efficiency.
Key Features
- Dual-Side Discharge: Material can be scooped and discharged through two side openings for quick spreading.
- Convertible Functionality: Rotates and lowers to act as a standard bucket, then raises to become a spreader/feeder.
- Three Orbit Motors: Includes a Beater Bar Motor to prevent material bridging and clogging, along with Dual Belt Motors that operate the flexible track, allowing material to be discharged from the right or left side opening.
- Adjustable Belt Speed: Dual control valves provide precision control over speed and direction.
- Heavy-Duty Build: 3/16” bucket thickness, reinforced wear bars, and durable cutting edge ensure long-lasting performance.
- Custom Belt Options: Available in 2-Ply Asphalt Belt or Chevron V Style Belt for optimized material handling.
- Made in the USA: Designed and manufactured for industrial-grade durability.
Detailed Specifications
| Feature | 9000144 SD72 INCH HD Side Flow Bucket | 9000145 SD84 INCH HD Side Flow Bucket |
|---|---|---|
| Overall Width | 82" | 94" |
| Overall Height | 30" | 30" |
| Overall Depth | 42" | 42" |
| Struck Capacity | 17.5 cu. ft | 19.5 cu. ft |
| Heaped Capacity | 21 cu. ft | 23 cu. ft |
| Belt Motors | 4.9 cu. in – Dual Motors | 4.9 cu. in – Dual Motors |
| Flow GPM | 15-20 GPM | 15-20 GPM |
| Belt Speed | Adjustable (Dual Control Valves) | Adjustable (Dual Control Valves) |
| Belt | 5/16″ thick, 2-Ply Asphalt Belt | 5/16″ thick, 2-Ply Asphalt Belt |
| Hydraulic Couplers | Flat Face | Flat Face |
| Hydraulic Hoses | 1/2″ | 1/2″ |
| PSI Min/Max | 2,500 PSI | 2,500 PSI |
| Bearings | 1″ Pillow Block (2) | 1″ Pillow Block (2) |
| Cutting Edge | 5/8″ x 6" | 5/8″ x 6" |
| Mounting Plate | 5/16″ | 5/16″ |
| Tensioners | Manually Adjustable (4 locations) | Manually Adjustable (4 locations) |
| Bucket Thickness | 3/16″ | 3/16″ |
| Wear Bars | 3/8″ | 3/8″ |
| Weight | 1,000 lbs | 1,100 lbs |
