Product Description

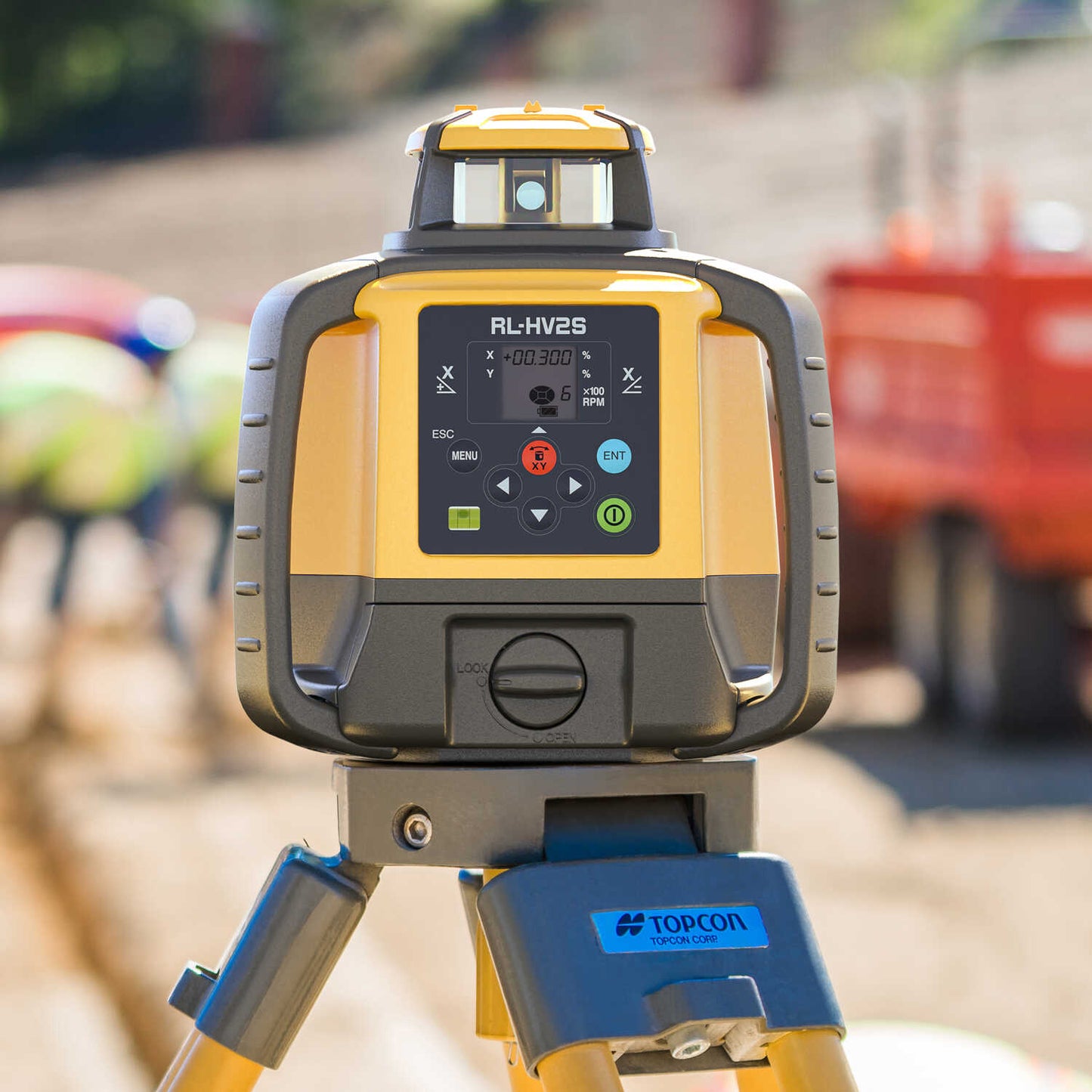

Topcon Laser Level Topcon® RL-HV2S Dual-Slope Laser Level With Alkaline Batteries and LS-80L Laser Sensor
DESCRIPTION
This versatile laser level can be used for horizontal, multi-slope, and vertical laser applications. Turn the RL-HV2S on its side for use in layout and alignment jobs. An operating radius of over 2,600 feet (800 meters) makes the laser perfect for even the biggest projects. The RL-HV2S offers horizontal and vertical accuracy of ±10" and utilizes a 635nm visible laser diode. Use the front control panel with display to easily access the laser level’s functions. In addition, the Bluetooth Laser Manager (App download) allows for convenient wireless remote control using your smartphone to adjust slope and check calibration. The App is compatible with iOS and Android. The laser level features a numeric dual grade setting range of ±5% and a dual handle design. IP66-rated against water and dust. Available with 4 D dry cell alkaline batteries or a rechargeable Ni-MH battery pack. Package includes RL-HV2S laser, laser sensor, sensor holder, battery holder, batteries, charger (if using rechargeable battery pack), and carrying case.
The Topcon RL-HV2S Dual-Slope Laser Level with Alkaline Batteries and LS-80L Laser Sensor is a top-tier choice for professionals working on grading, layout, alignment, and multi-slope applications. Its wide 2,600 ft diameter range and ±10 arc second accuracy make it ideal for even the most demanding projects.
This versatile laser level can be used in horizontal, vertical, or multi-slope configurations, and features a 635 nm visible laser diode for enhanced visibility. The Bluetooth Laser Manager app (compatible with iOS and Android) allows wireless control of slope adjustments and calibration. Additionally, the dual handle design enhances portability, while the IP66-rated housing ensures reliable performance in harsh environments.
With a runtime of 120 hours using 4 D alkaline batteries (or 65 hours with the optional rechargeable battery pack), this laser level is designed to provide extended, uninterrupted operation. The package includes everything needed for immediate use, including the LS-80L Laser Sensor, sensor holder, batteries, and a carrying case.
Key Features
- Multi-Functionality: Horizontal, vertical, and slope configurations for diverse applications.
- Long Range: Operating diameter up to 2,600 ft (800 m).
- High Precision: ±10 arc second accuracy ensures reliable results.
- Bluetooth Connectivity: Wireless control via Laser Manager app for slope adjustments and calibration.
- Durable Construction: IP66-rated housing resists dust and water, ensuring long-term reliability.
- Flexible Power Options: 120 hours with alkaline batteries or 65 hours with a rechargeable battery pack.
Detailed Specifications
| Feature | Details |
|---|---|
| Accuracy | Horizontal ±10˝; Vertical ±10˝ |
| Correction Range | Horizontal ±5°; Vertical ±5° |
| Grade Setting Range | Dual: ±5% |
| Working Range (Diameter) | 2,600 ft (800 m) |
| Rotation Speed | 300/600 RPM (adjustable) |
| Light Source | Visible laser diode, 635 nm |
| Laser Output | 2.4 mW |
| Laser Class | CDRH Class IIIa, IEC Class 3R |
| Operating Time | 120 hours (alkaline batteries); 65 hours (rechargeable battery pack) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 8.5˝H x 7.7˝W x 7˝L |
| Water/Dust Rating | IP66 |
In Package
- Topcon RL-HV2S Dual-Slope Laser Level
- LS-80L Laser Sensor
- Sensor Holder
- Battery Holder
- 4 D Alkaline Batteries
- Carrying Case
