Product Description

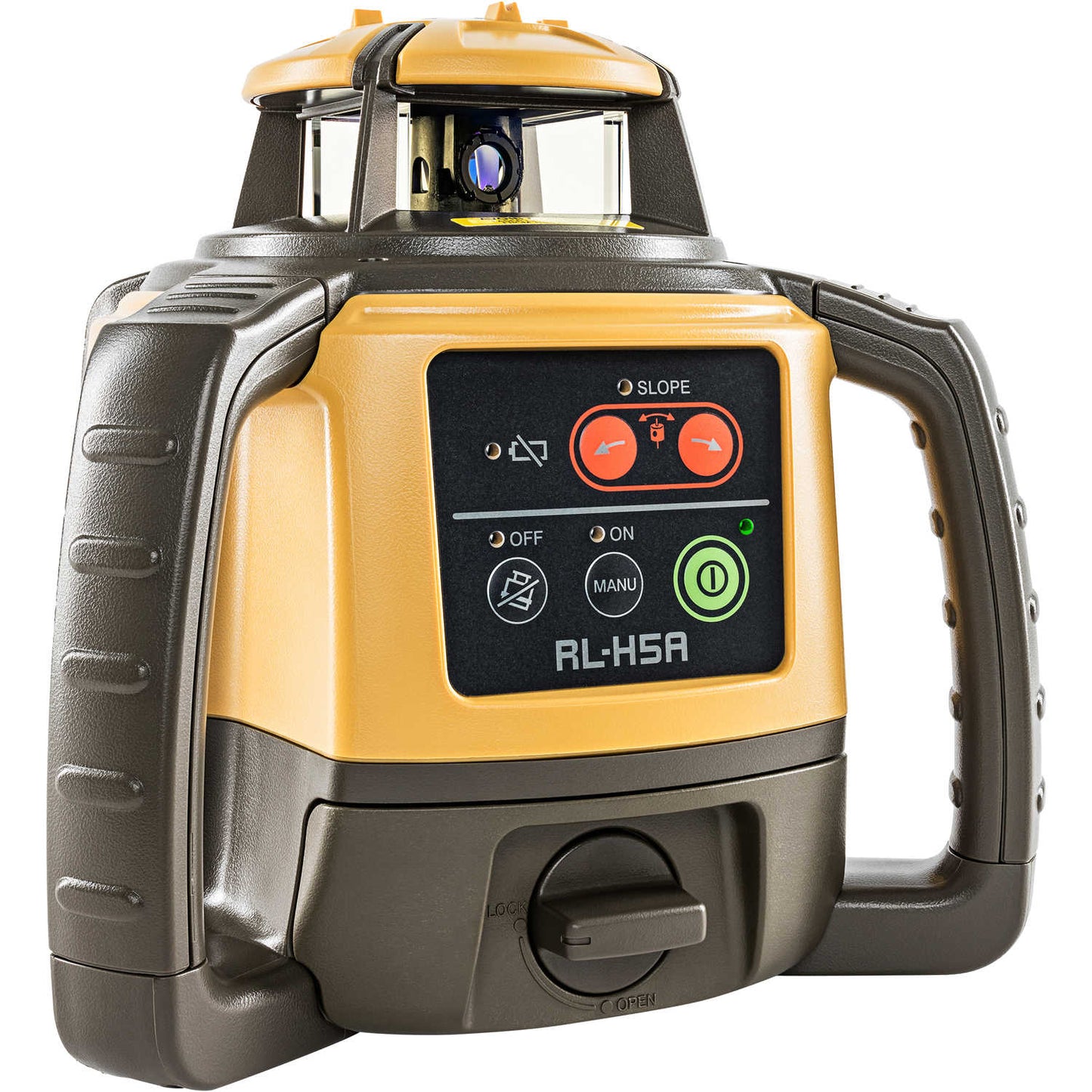

Topcon Laser Level Topcon RL-H5A Self-Leveling Laser Level with Rechargeable Battery and LS-100D Laser Sensor
DESCRIPTION
An excellent choice for use in grading, excavating, and general construction projects, this laser level offers an operating range of 800 meters. Electronic self-leveling lets you press the power button and then start working in just seconds. The RL-H5A also re-levels itself automatically if it gets disturbed on the jobsite. The self-leveling motors are accurate to ±10 arc seconds, and the RL-H5A features simple, intuitive manual slope capability. This rugged instrument features a dual handle design and an IP66 water-resistant housing. Available with 4 D cell dry batteries or a rechargeable battery. Package includes RL-H5A laser, laser sensor, sensor holder, batteries, charger (if using rechargeable battery pack), and carry case. Five-year manufacturer’s warranty.
The Topcon RL-H5A Self-Leveling Laser Level with Rechargeable Battery and LS-100D Laser Sensor is the perfect tool for professionals in grading, excavating, and general construction projects. Its 800-meter operating range and ±10 arc second accuracy make it ideal for large-scale, precision-demanding tasks.
The RL-H5A features electronic self-leveling, allowing users to begin work in seconds with minimal setup. The laser re-levels automatically if disturbed, maintaining accuracy and reducing downtime. Additionally, the manual slope adjustment feature provides intuitive control for sloping applications.
Equipped with the advanced LS-100D Laser Sensor, this package enhances accuracy with a digital offset display for on-grade measurements. The rugged design includes a dual handle for easy transport and an IP66-rated housing for dependable use in any weather condition.
Key Features
- 800-Meter Range: Covers large job sites for grading and leveling.
- Automatic Re-Leveling: Self-leveling motors ensure ±10 arc second accuracy.
- Weather-Resistant Design: IP66-rated housing withstands dust, rain, and tough environments.
- Flexible Power Supply: Runs for 60 hours with rechargeable batteries or 100 hours with D cell batteries.
- Advanced Laser Sensor: LS-100D sensor with digital offset display for enhanced precision.
- Dual Handle Design: Easy to transport and position.
Detailed Specifications
| Feature | Details |
|---|---|
| Accuracy | Horizontal ±10˝ |
| Self-Leveling Range | Horizontal ±5° |
| Working Range (Diameter) | 2m to 800m |
| Rotation Speed | 600 RPM |
| Light Source | LD 635nm |
| Battery Life | 60 hours (Rechargeable); 100 hours (D cell batteries) |
| Dimensions | 8.1˝H x 8.3˝W x 6.8˝L |
| Water/Dust Rating | IP66 |
| Warranty | 5 Years |
In Package
- Topcon RL-H5A Self-Leveling Laser Level
- LS-100D Laser Sensor
- Sensor Holder
- Rechargeable Battery Pack
- Battery Charger
- Carrying Case
