Product Description

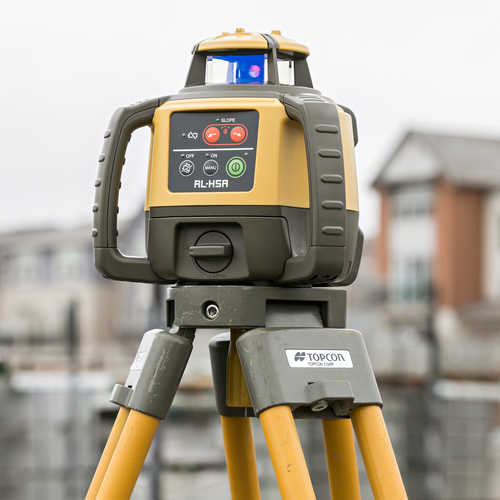

Topcon Laser Level Topcon RL-H5A Self-Leveling Laser Level with Rechargeable Battery and LS-80X Laser Sensor
DESCRIPTION
An excellent choice for use in grading, excavating, and general construction projects, this laser level offers an operating range of 800 meters. Electronic self-leveling lets you press the power button and then start working in just seconds. The RL-H5A also re-levels itself automatically if it gets disturbed on the jobsite. The self-leveling motors are accurate to ±10 arc seconds, and the RL-H5A features simple, intuitive manual slope capability. This rugged instrument features a dual handle design and an IP66 water-resistant housing. Available with 4 D cell dry batteries or a rechargeable battery. Package includes RL-H5A laser, laser sensor, sensor holder, batteries, charger (if using rechargeable battery pack), and carry case. Five-year manufacturer’s warranty.
The Topcon RL-H5A Self-Leveling Laser Level with Rechargeable Battery and LS-80X Laser Sensor is designed for maximum efficiency and reliability in construction projects. Its 800-meter operating range and ±10 arc second accuracy make it perfect for grading, excavating, and general construction applications.
With electronic self-leveling, the RL-H5A allows you to start working in seconds by pressing a single button. If the laser is disturbed, it automatically re-levels itself to maintain accuracy. The laser also features a manual slope capability, allowing intuitive adjustments for sloping applications.
Built to withstand challenging job site conditions, the RL-H5A has an IP66-rated weatherproof housing. It is available with rechargeable batteries for up to 60 hours of operation or 4 D cell batteries for 100 hours of runtime. The package includes an LS-80X laser sensor, a sensor holder, a charger, and a rugged carrying case.
Key Features
- 800-Meter Working Range: Ideal for large-scale construction and grading tasks.
- Automatic Re-Leveling: Self-leveling motors maintain ±10 arc second accuracy.
- Weather-Resistant Housing: IP66-rated for dust and water protection.
- Flexible Power Supply: Operates with 4 D cell batteries (100 hours) or rechargeable batteries (60 hours).
- Manual Slope Capability: Simplifies sloping applications with intuitive controls.
- Dual Handle Design: Provides easy portability and handling.
Detailed Specifications
| Feature | Details |
|---|---|
| Accuracy | Horizontal ±10˝ |
| Self-Leveling Range | Horizontal ±5° |
| Working Range (Diameter) | 2m to 800m |
| Rotation Speed | 600 RPM |
| Light Source | LD 635nm |
| Battery Life | 100 hours (4 D cell batteries); 60 hours (rechargeable pack) |
| Dimensions | 8.1˝H x 8.3˝W x 6.8˝L |
| Water/Dust Rating | IP66 |
| Warranty | 5 Years |
In Package
- Topcon RL-H5A Self-Leveling Laser Level
- LS-80X Laser Sensor
- Sensor Holder
- Rechargeable Battery Pack
- Battery Charger
- Carrying Case
