Product Description
TOSCANO | Folding Compact Disc Harrow | Model 32 to 48 Disc | Work Width 13.12 to 19.69 Feet | HorsePower 130-250 HP | For Tractor
DESCRIPTION

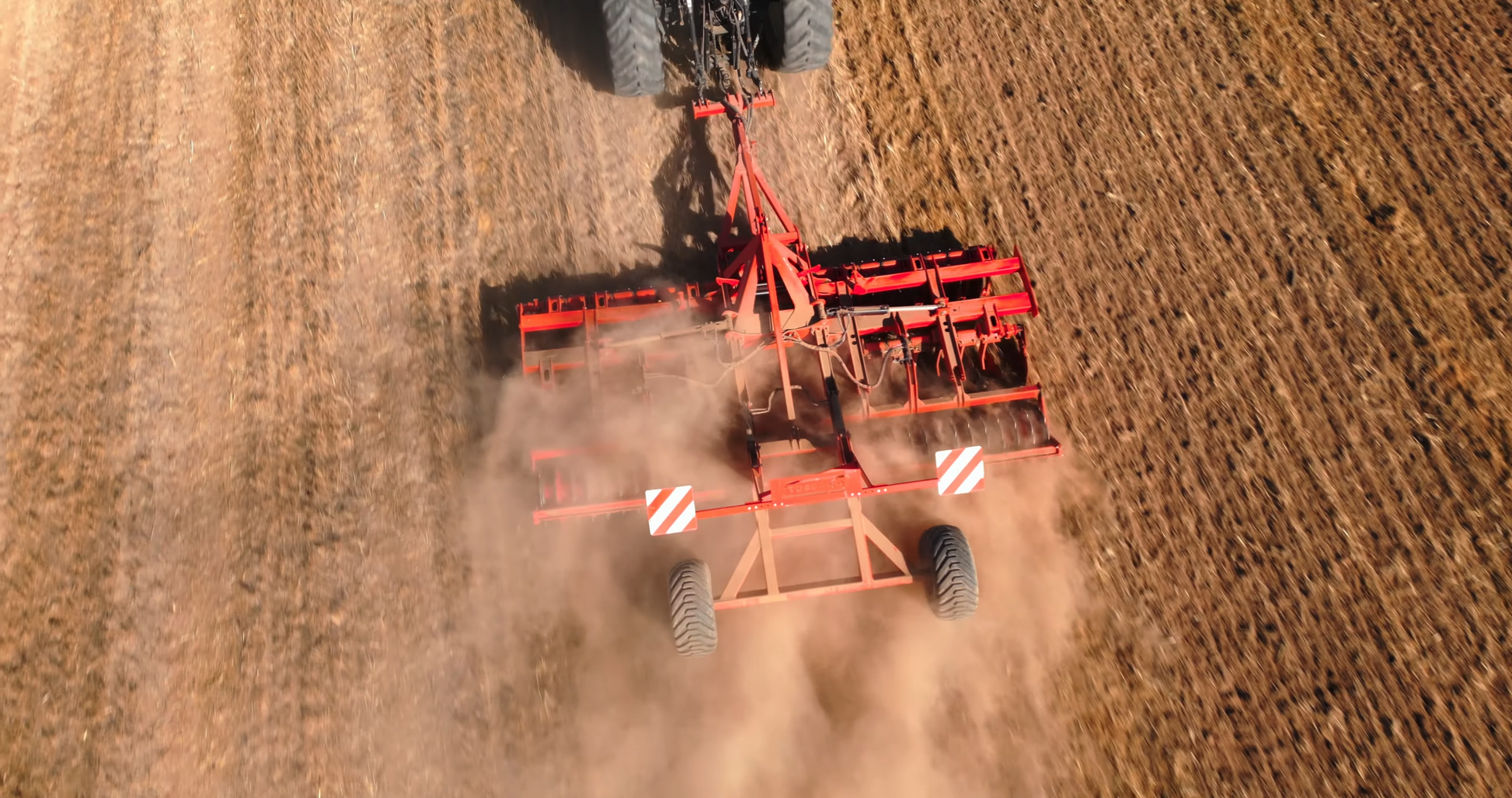

The Toscano Folding Compact Disc Harrow is a high-performing agricultural tool meticulously crafted for surface-level tillage without disturbing deep soil layers. This disc harrow excels in preparing seedbeds with faster working speeds, making it ideal for breaking stubble, weeds, and plant residues after harvest. Additionally, it ensures optimal soil fertilization by thoroughly mixing mineral fertilizers into the soil for enhanced fertility and crop productivity.
Designed for large-scale farming operations, the harrow features foldable capabilities for easy transport, heat-treated steel discs for durability, and hydraulic roller adjustment for adaptability across diverse terrains. Trace covering plates ensure a smooth and uniform finish, while robust linkage points guarantee stability during demanding tasks. With a wide array of optional accessories, such as pneumatic brakes and depth wheels, the Toscano Folding Compact Disc Harrow is the epitome of efficiency and precision.
Key Features
- Power Requirement: Operates seamlessly with tractors requiring 96-184 kW / 130-250 HP, ensuring versatility and reliable performance for extensive farming tasks.
- Surface-Level Efficiency: Prepares seedbeds while preserving soil moisture and structure by avoiding deeper soil disruption.
- Fertilizer Integration: Mixes mineral fertilizers evenly into the soil for improved fertility and crop growth.
- Foldable Design: Compact and transportable, perfect for large-scale operations requiring mobility.
- Durable Steel Discs: Independent, 6 mm thick, heat-treated discs designed for optimal performance and longevity.
- Trace Covering Plates: Ensures smooth, uniform soil surfaces by preventing soil displacement outside the tillage route.
- Hydraulic Roller Adjustment: Allows precise control for effective tillage on varying terrains.
- Optional Accessories: Includes pneumatic braking systems, string bar rollers, discbond packers, depth wheels, and chopper rollers for enhanced functionality and performance.
- Time-Saving Design: Efficiently organizes and prepares the soil in a single pass, reducing operational costs.

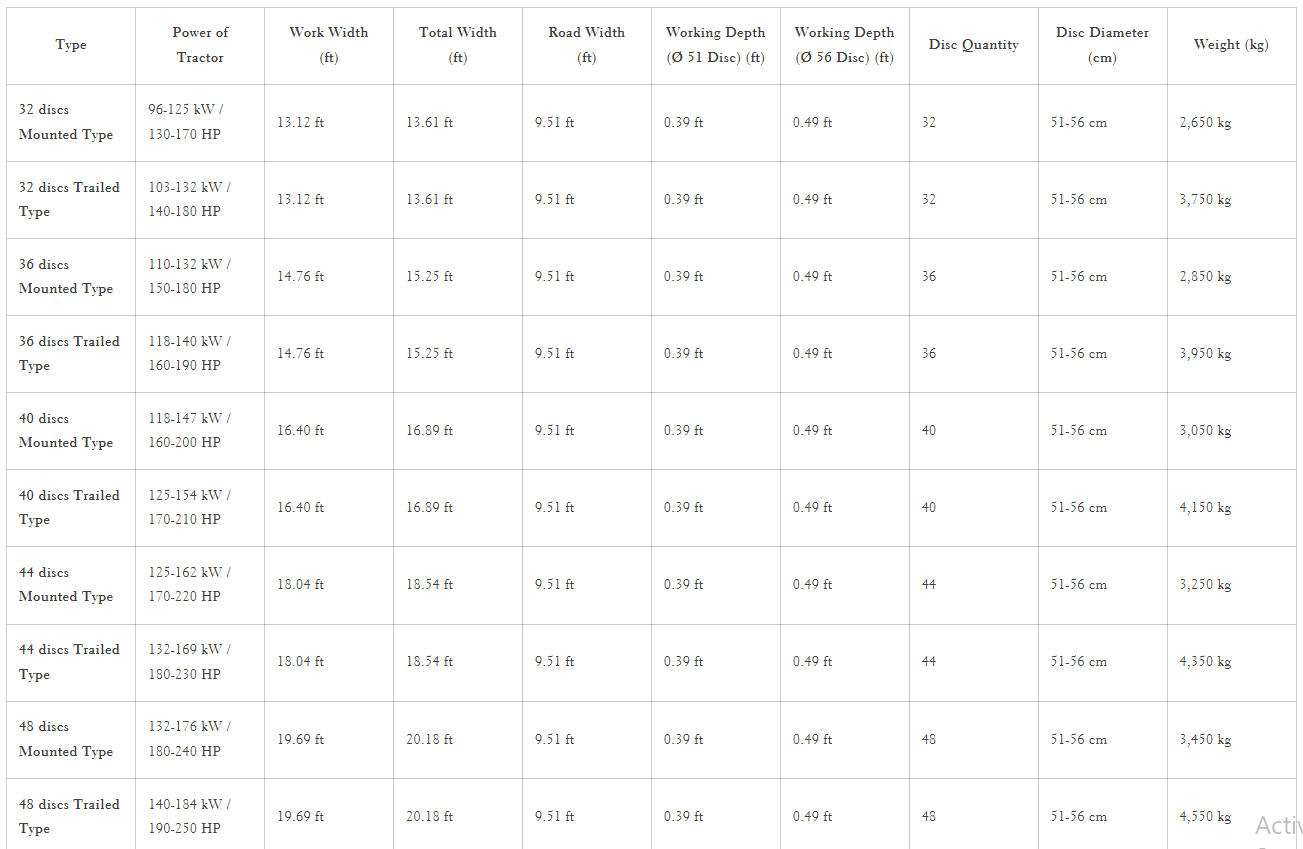

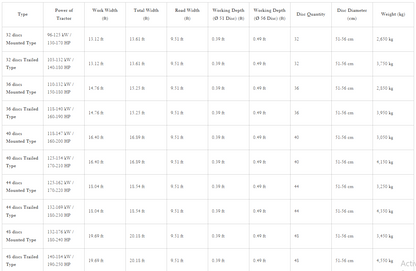

Detailed Specifications
| Type | Power of Tractor | Work Width (ft) | Total Width (ft) | Road Width (ft) | Working Depth (Ø 51 Disc) (ft) | Working Depth (Ø 56 Disc) (ft) | Disc Quantity | Disc Diameter (cm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 32 discs Mounted Type | 96-125 kW / 130-170 HP | 13.12 ft | 13.61 ft | 9.51 ft | 0.39 ft | 0.49 ft | 32 | 51-56 cm | 2,650 kg |
| 32 discs Trailed Type | 103-132 kW / 140-180 HP | 13.12 ft | 13.61 ft | 9.51 ft | 0.39 ft | 0.49 ft | 32 | 51-56 cm | 3,750 kg |
| 36 discs Mounted Type | 110-132 kW / 150-180 HP | 14.76 ft | 15.25 ft | 9.51 ft | 0.39 ft | 0.49 ft | 36 | 51-56 cm | 2,850 kg |
| 36 discs Trailed Type | 118-140 kW / 160-190 HP | 14.76 ft | 15.25 ft | 9.51 ft | 0.39 ft | 0.49 ft | 36 | 51-56 cm | 3,950 kg |
| 40 discs Mounted Type | 118-147 kW / 160-200 HP | 16.40 ft | 16.89 ft | 9.51 ft | 0.39 ft | 0.49 ft | 40 | 51-56 cm | 3,050 kg |
| 40 discs Trailed Type | 125-154 kW / 170-210 HP | 16.40 ft | 16.89 ft | 9.51 ft | 0.39 ft | 0.49 ft | 40 | 51-56 cm | 4,150 kg |
| 44 discs Mounted Type | 125-162 kW / 170-220 HP | 18.04 ft | 18.54 ft | 9.51 ft | 0.39 ft | 0.49 ft | 44 | 51-56 cm | 3,250 kg |
| 44 discs Trailed Type | 132-169 kW / 180-230 HP | 18.04 ft | 18.54 ft | 9.51 ft | 0.39 ft | 0.49 ft | 44 | 51-56 cm | 4,350 kg |
| 48 discs Mounted Type | 132-176 kW / 180-240 HP | 19.69 ft | 20.18 ft | 9.51 ft | 0.39 ft | 0.49 ft | 48 | 51-56 cm | 3,450 kg |
| 48 discs Trailed Type | 140-184 kW / 190-250 HP | 19.69 ft | 20.18 ft | 9.51 ft | 0.39 ft | 0.49 ft | 48 | 51-56 cm | 4,550 kg |
