Product Description
TOSCANO | Subsoiler – Standard | Model 1350/3, 2250/5, 3000/7, 3150/7, 4000/9 & 5000/11 | Work Width 4.43 To 16.24 Feet | HorsePower 70-240 HP | For Tractor
DESCRIPTION

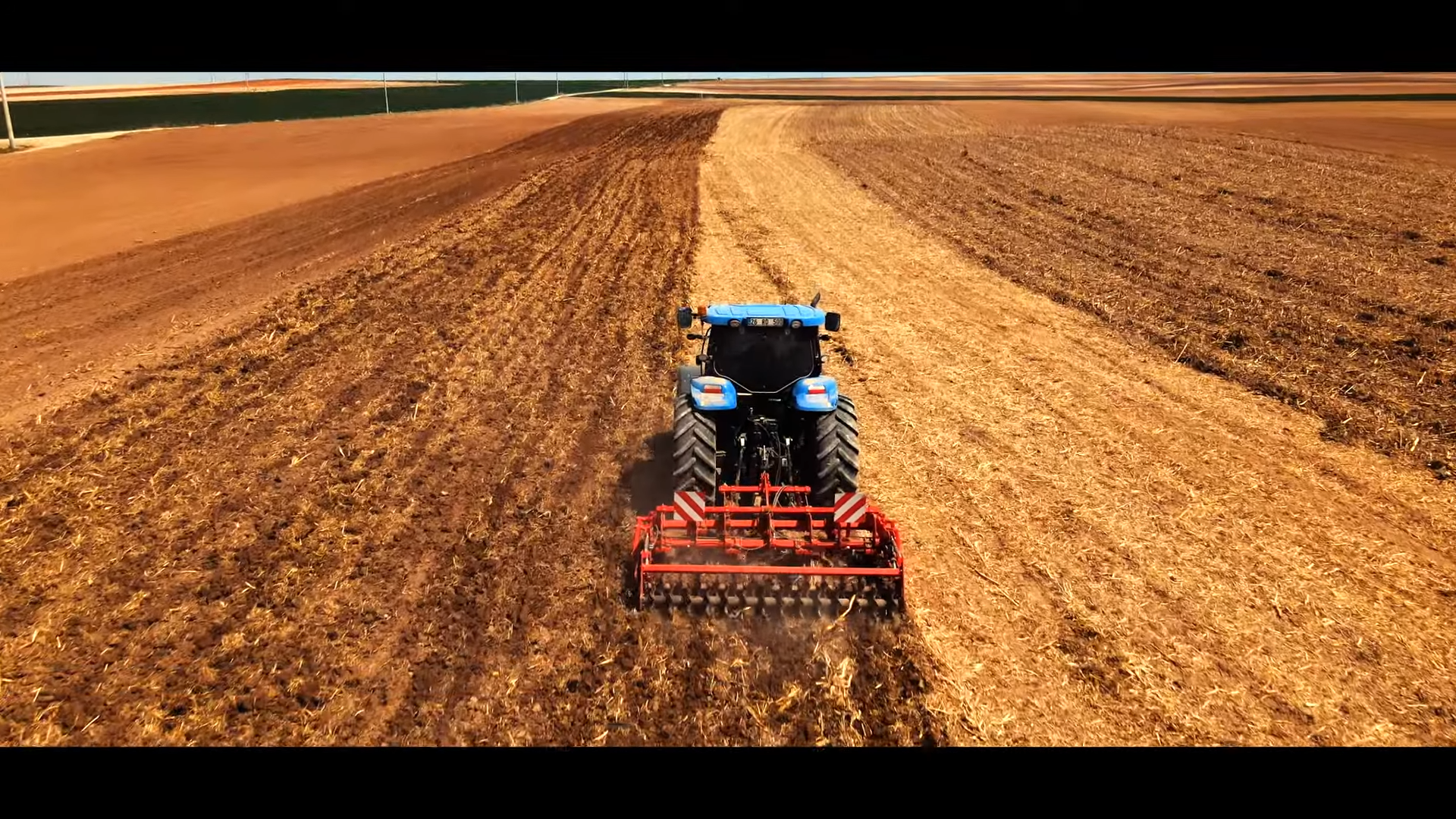

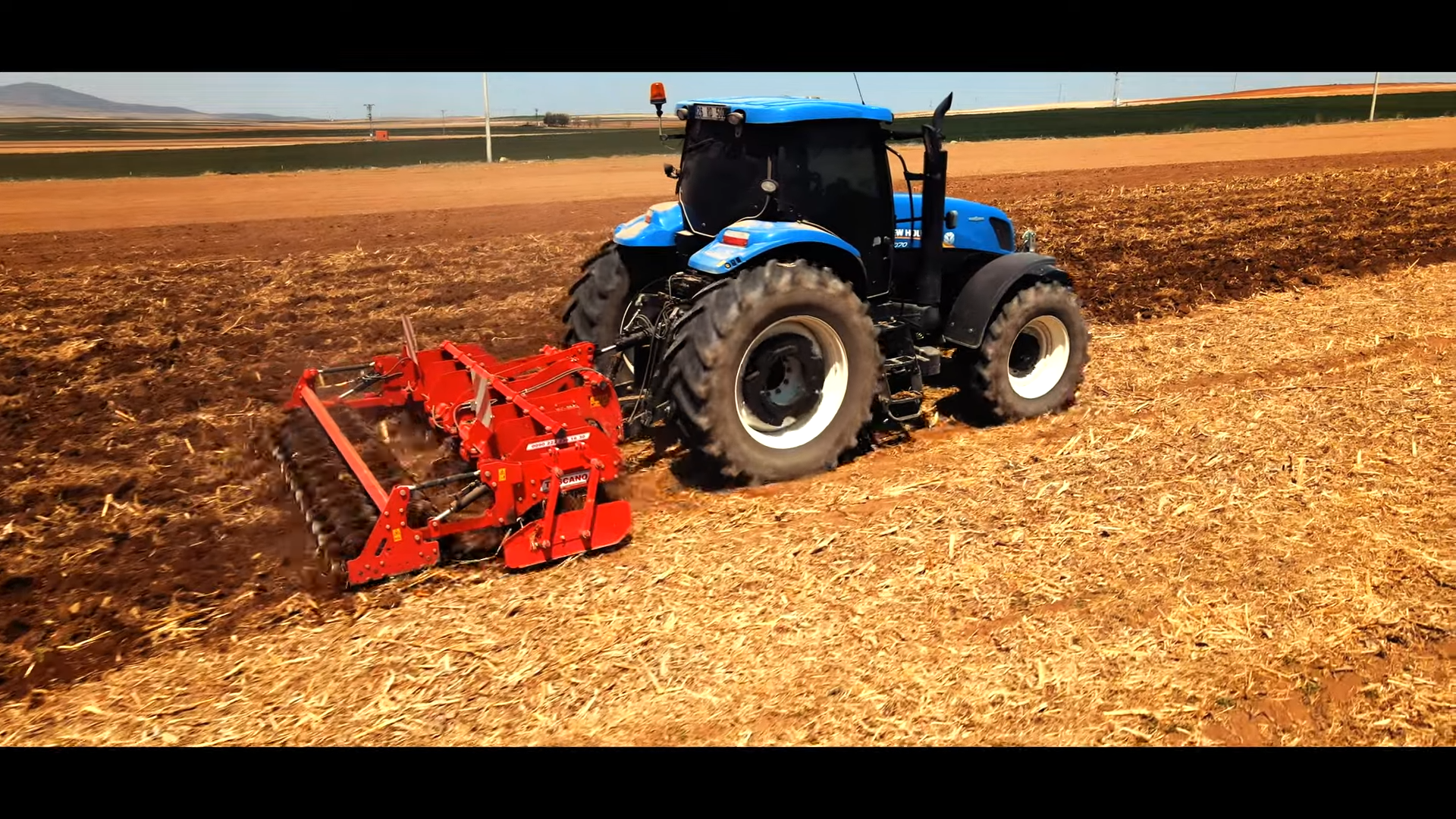

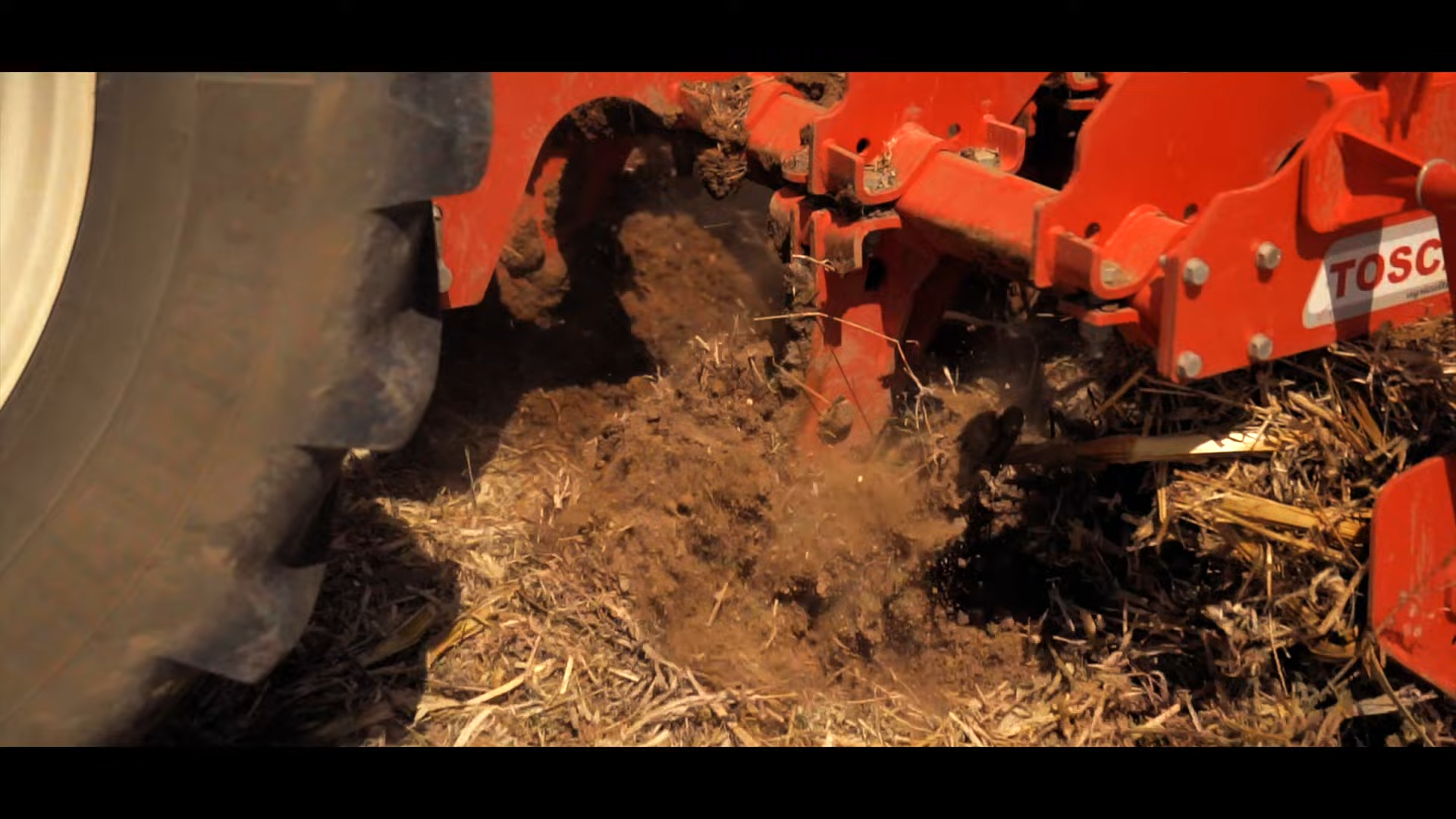

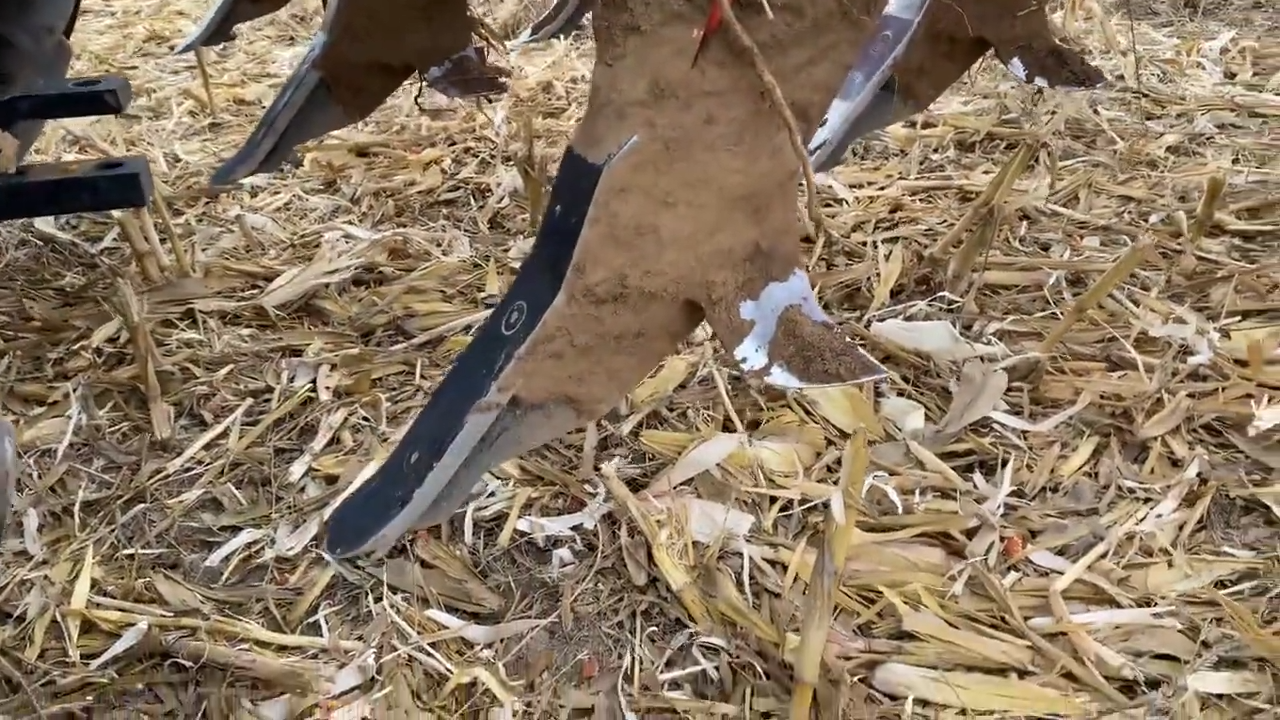

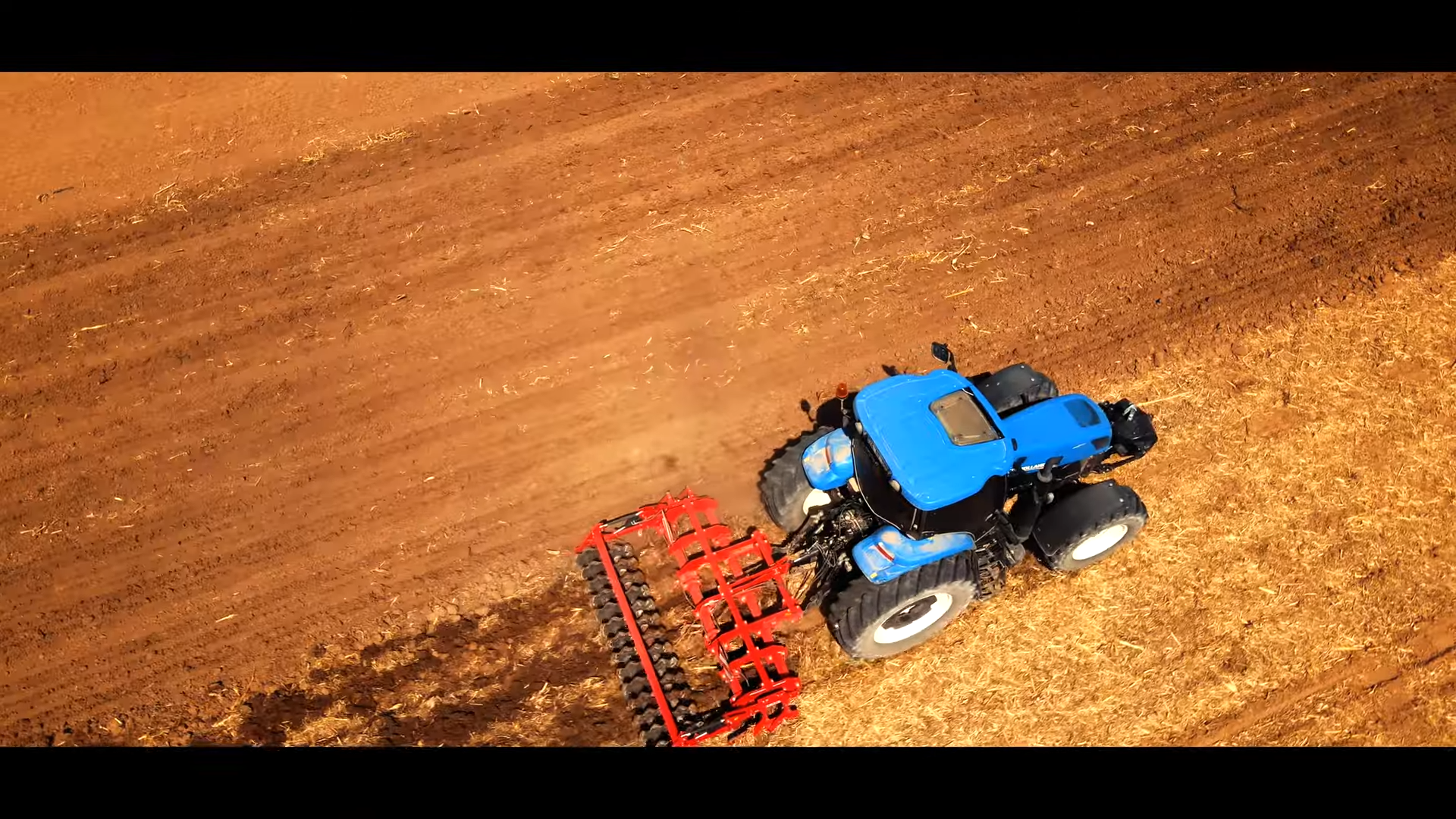

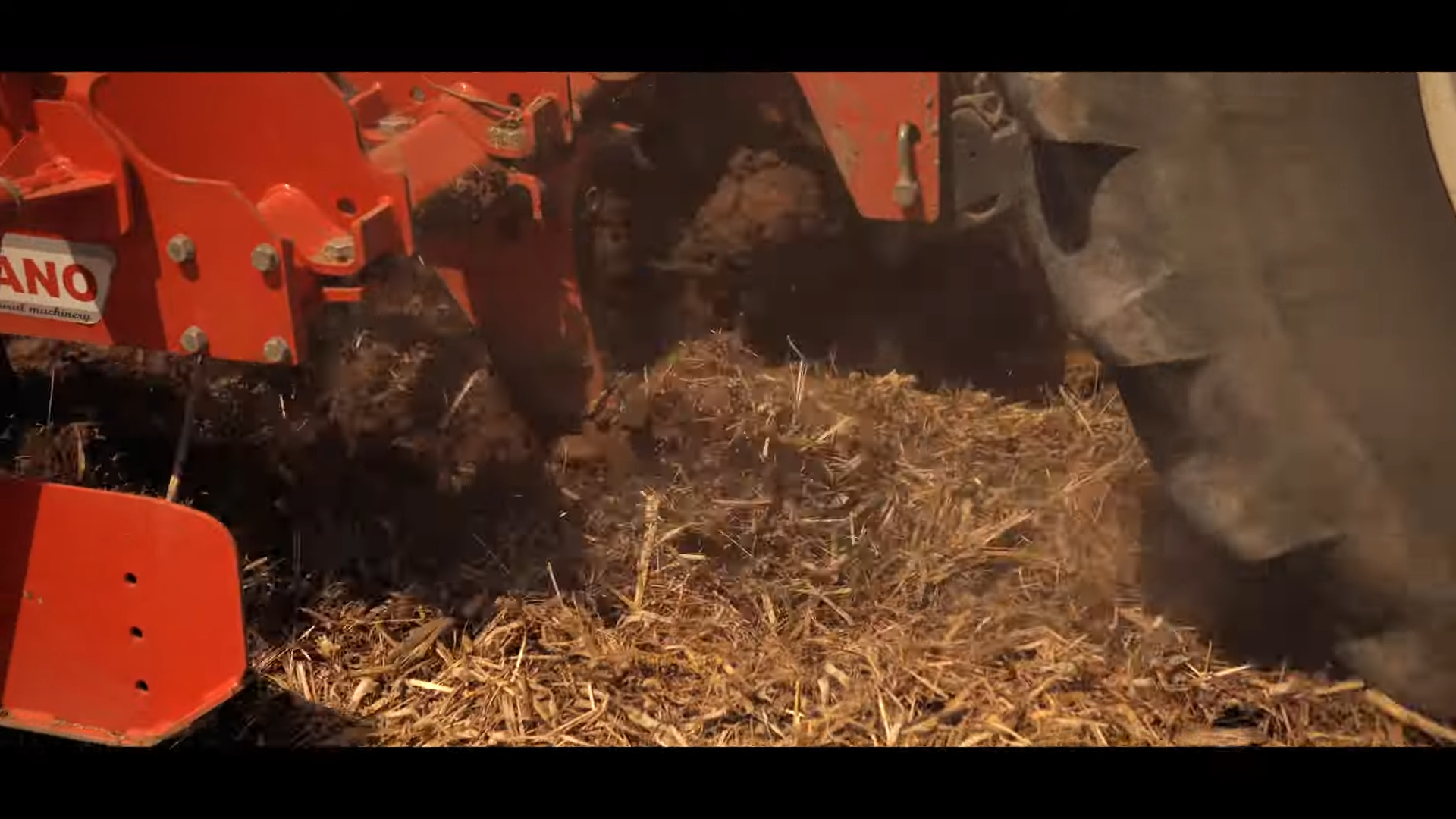

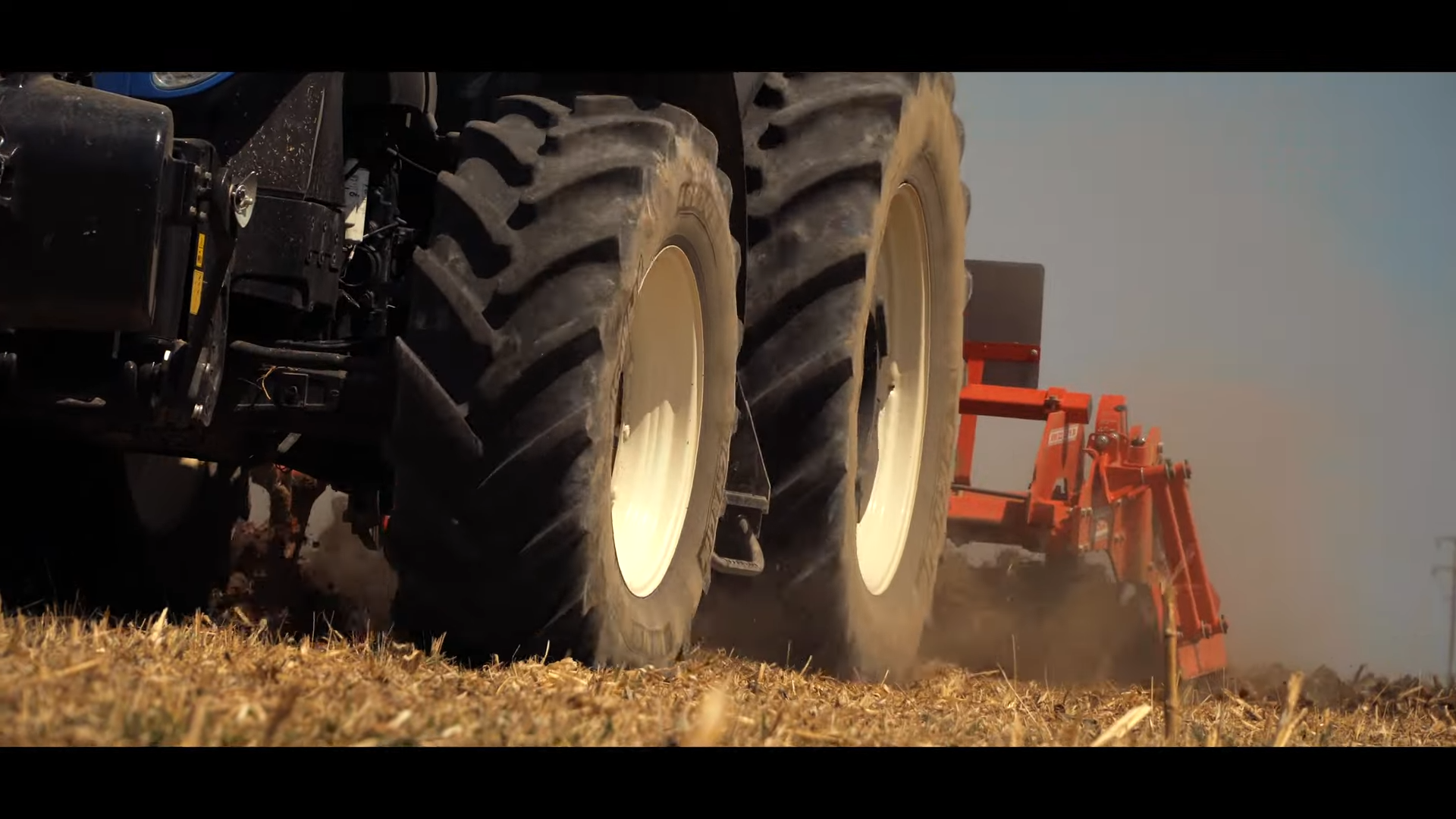

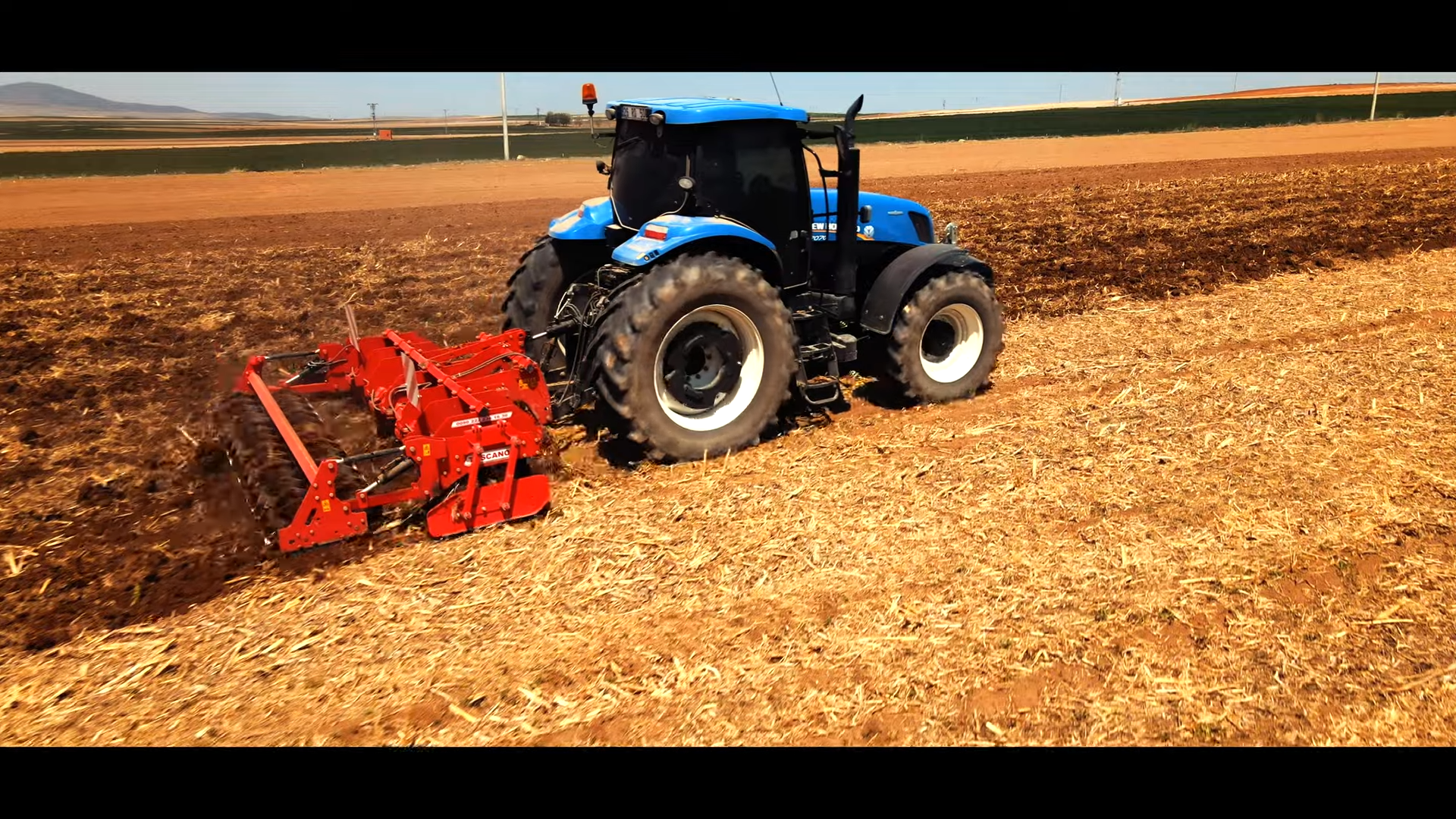

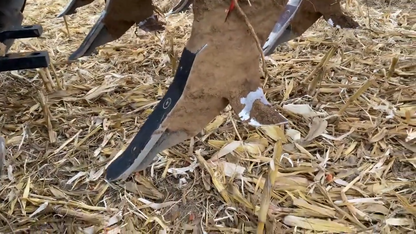

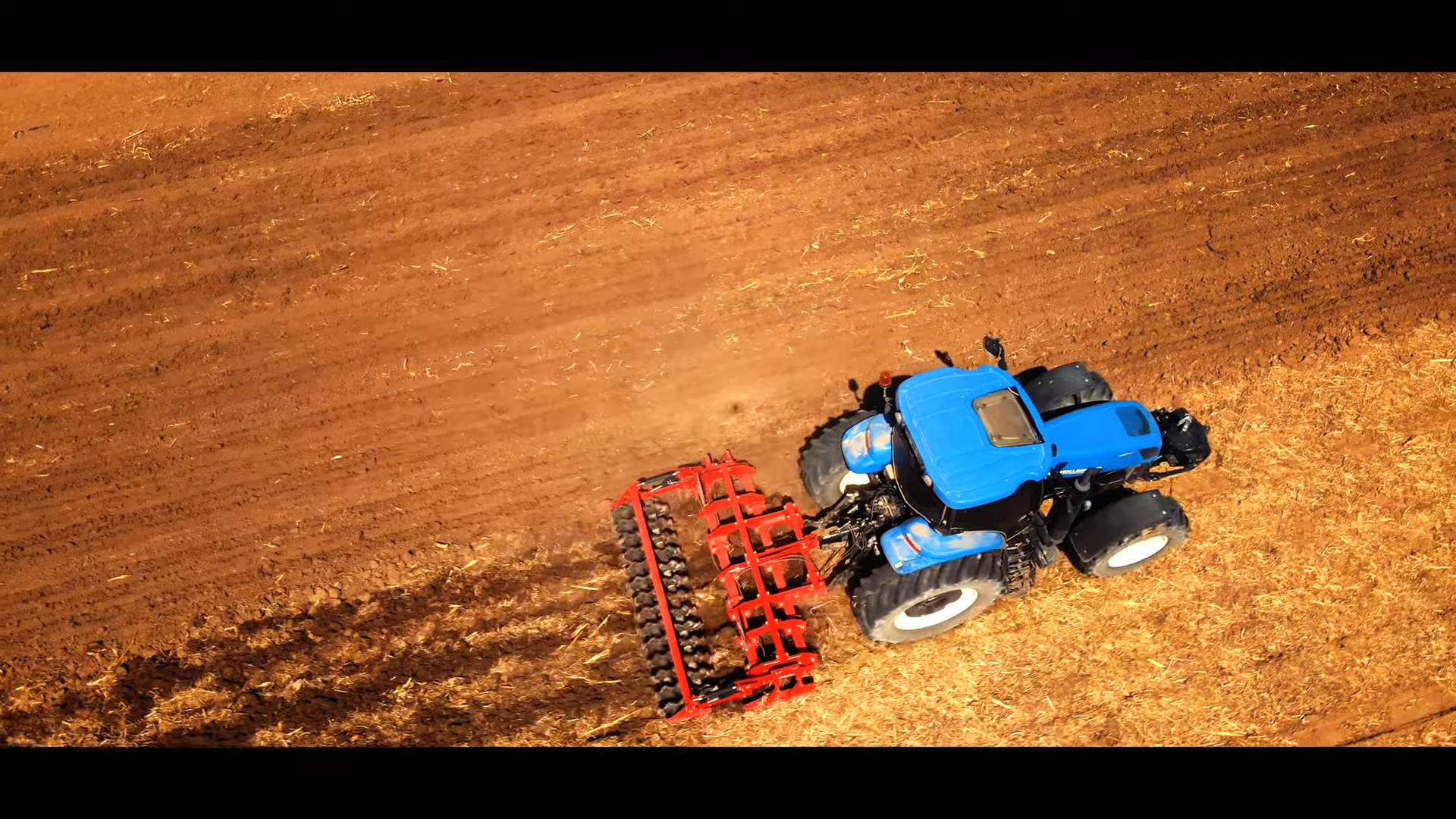

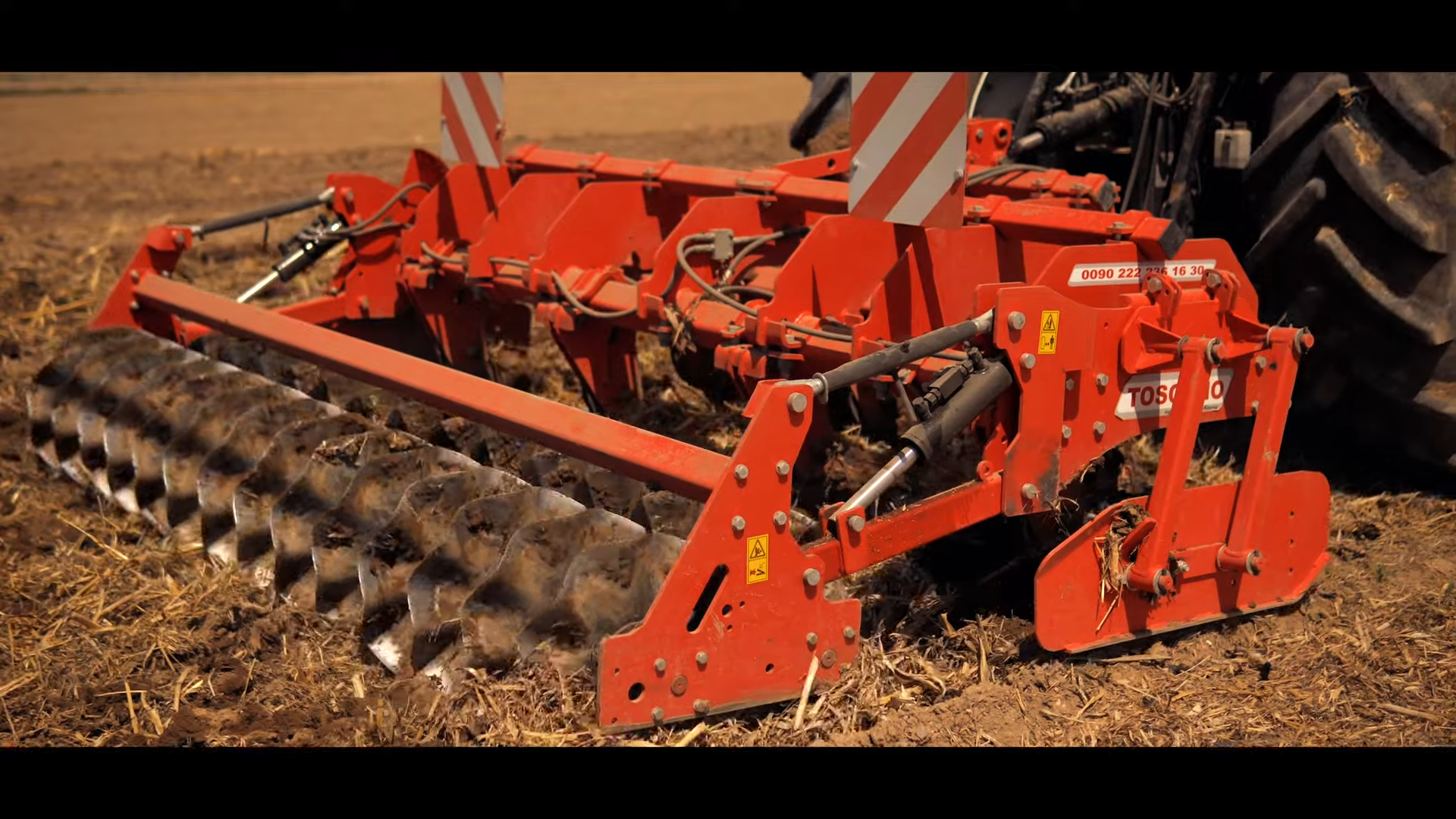

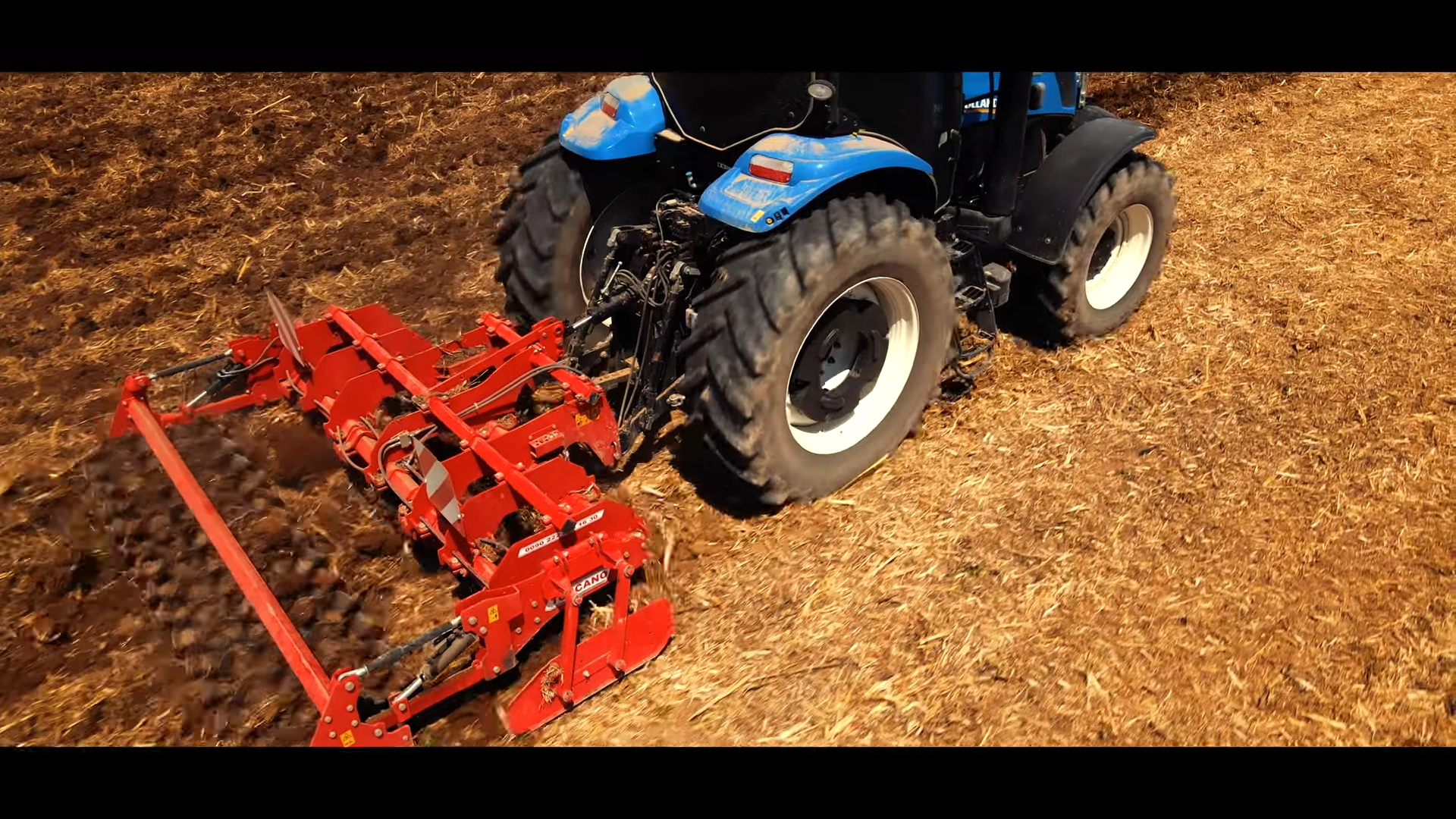

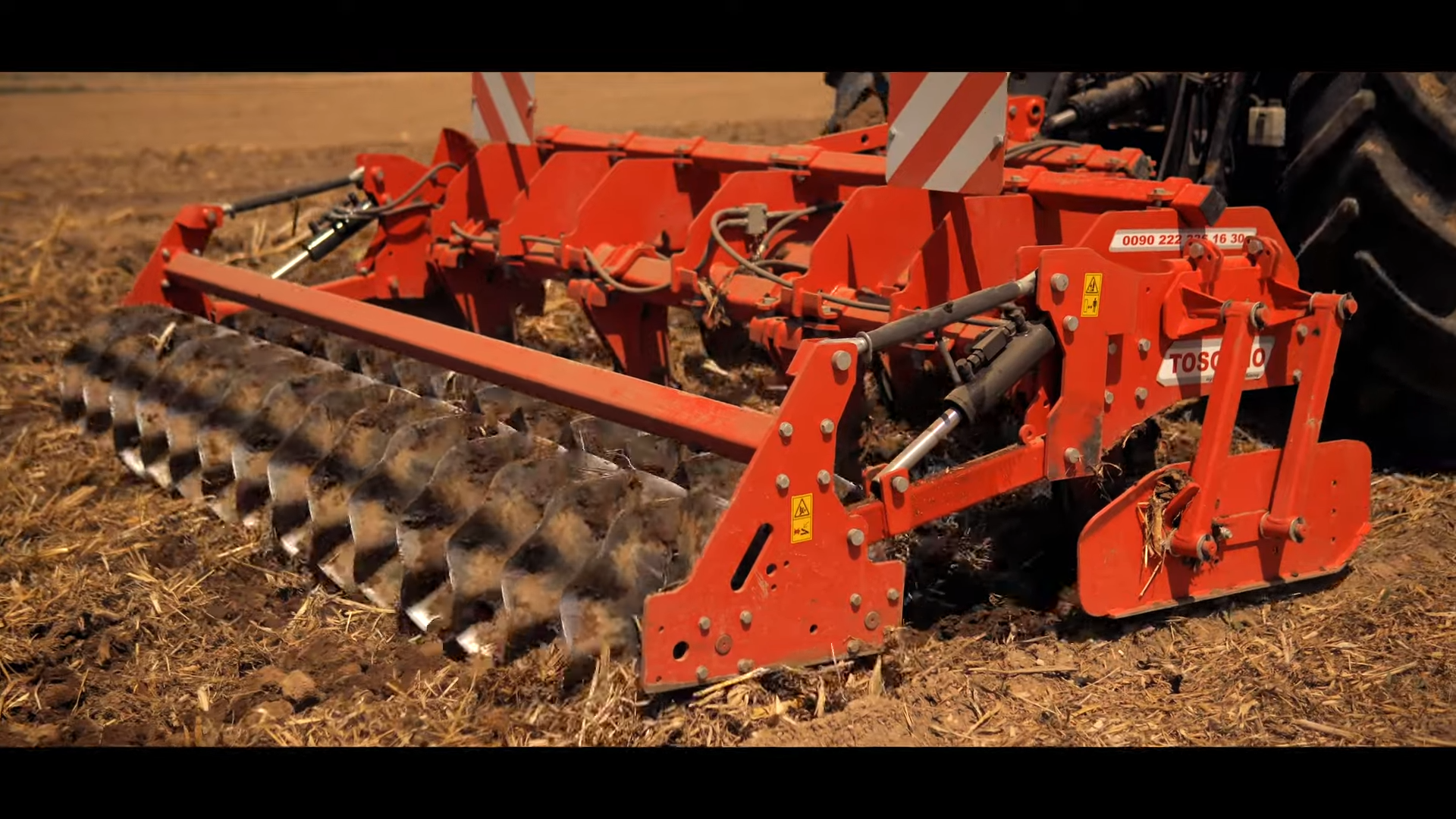

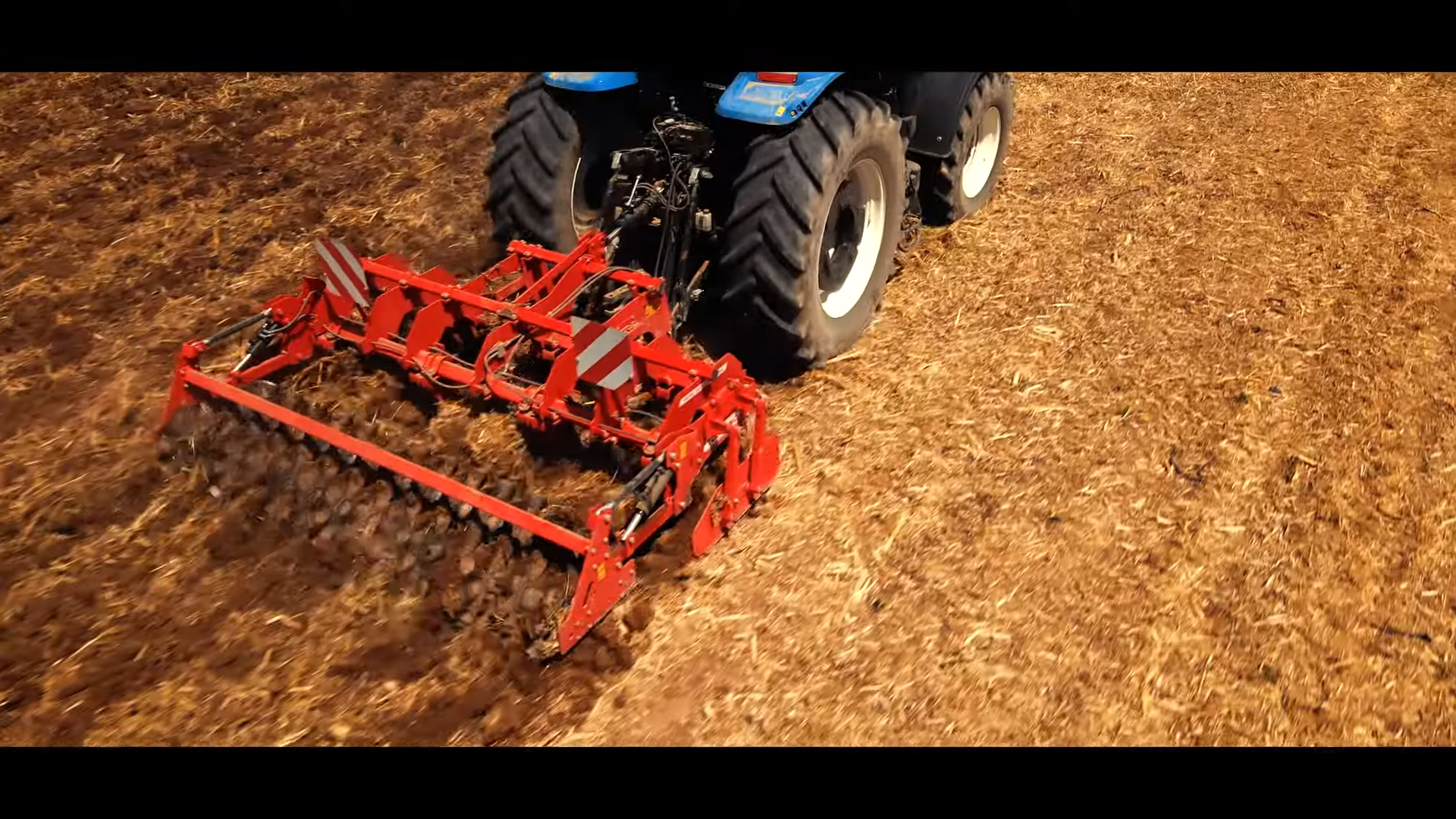

The Toscano Subsoiler – Standard is an advanced tillage machine designed to reach deep into the soil layers without overturning the surface, ensuring moisture retention and healthier soil structure. This heavy-duty subsoiler is ideal for breaking compacted soil layers, improving soil aeration, and facilitating vertical root growth for better water and nutrient absorption. Its ability to create underground water reservoirs makes it a game-changer for long-term agricultural productivity.The Toscano Subsoiler – Standard operates efficiently with tractors requiring 52-176 kW / 70-240 HP, making it versatile and compatible with a wide range of agricultural setups. This power requirement ensures its reliability in tackling hard and cloddy soils while maintaining optimal performance.

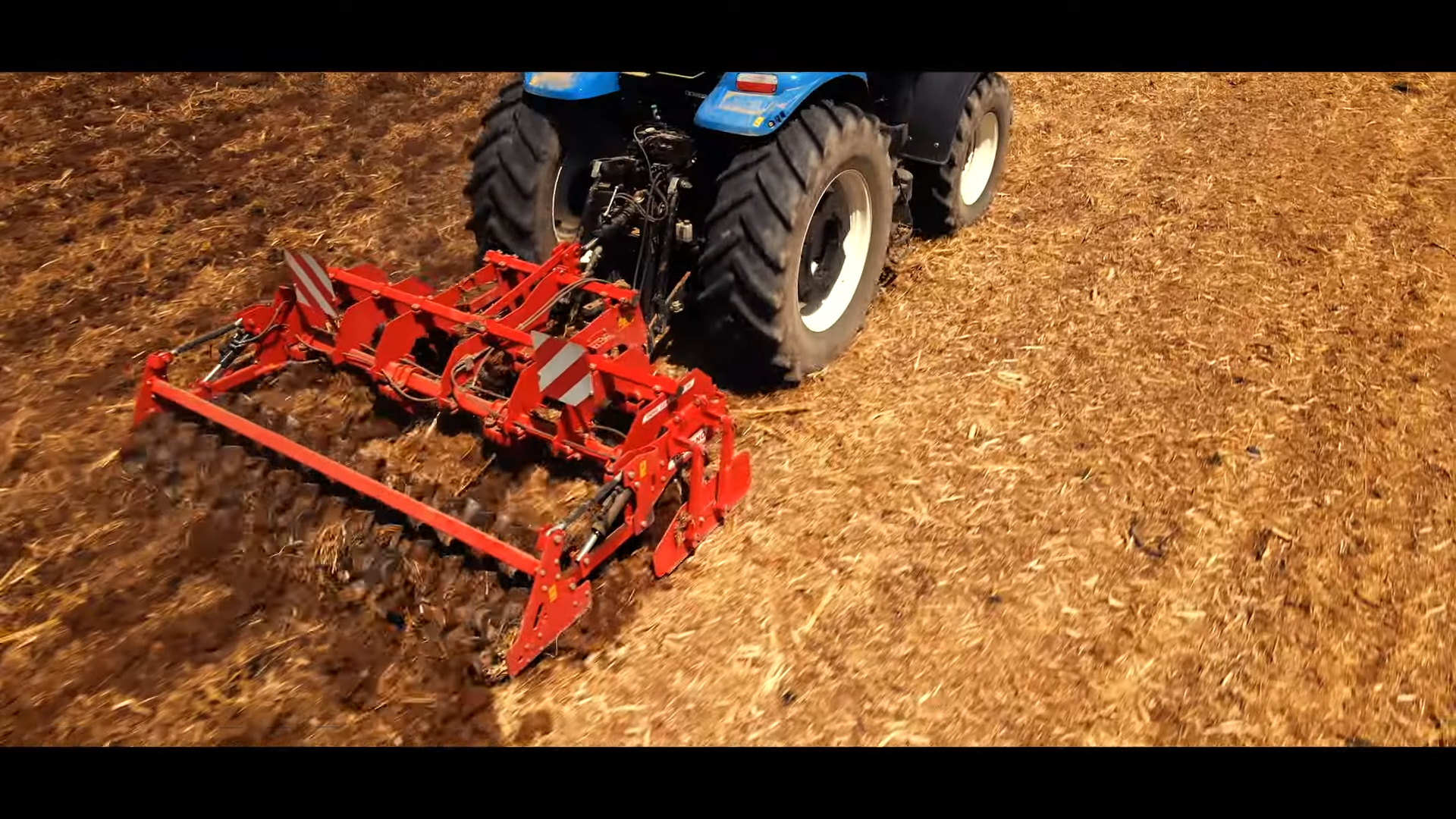

Equipped with pointed rollers, a safety pin system, and hydraulic depth adjustment, this subsoiler is built for precision and durability. Its universal design fits CAT 2 and 3N linkages, making it compatible with a variety of tractors. With optional accessories like side plates and abrasion-resistant blades, the Toscano Subsoiler – Standard is engineered to handle the toughest terrains, delivering superior performance for hard and cloddy soils.
Key Features
- Power Requirement: Operates seamlessly with tractors requiring 52-176 kW / 70-240 HP, ensuring compatibility across various farming setups.
- Deep Tillage Without Overturning: Breaks soil layers while retaining surface moisture for healthier root growth.
- Improves Soil Aeration: Ventilates the soil and creates an underground water reservoir, boosting crop productivity.
- Double Hydraulic Roller: Adjustable roller ensures precision and adaptability for different soil types.
- Safety Pin System: Automatically disengages upon encountering hard obstacles, protecting the machine and tractor.
- Depth Adjustment: Easily adjustable working depth using pin bolts for tailored tillage.

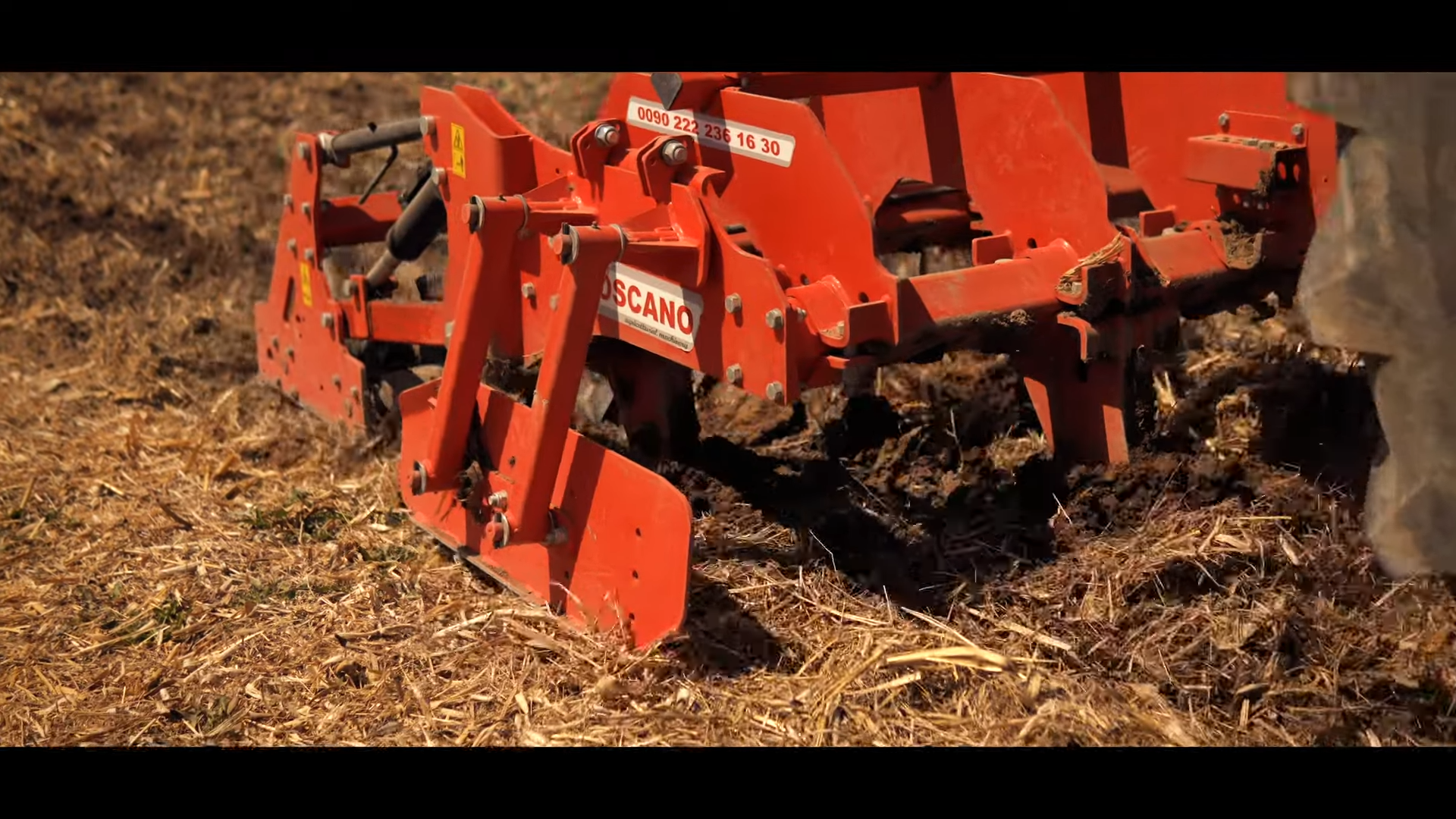

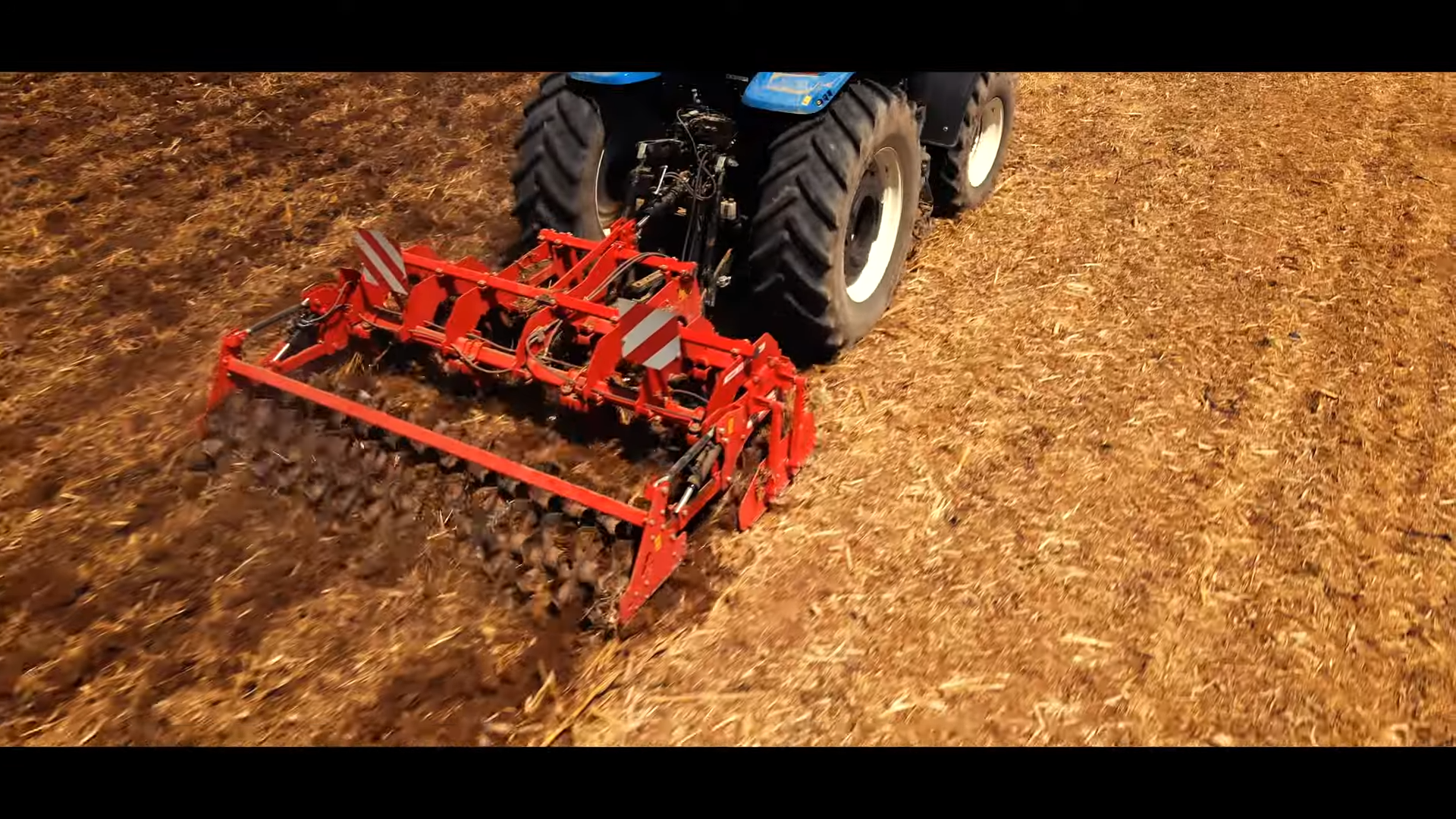

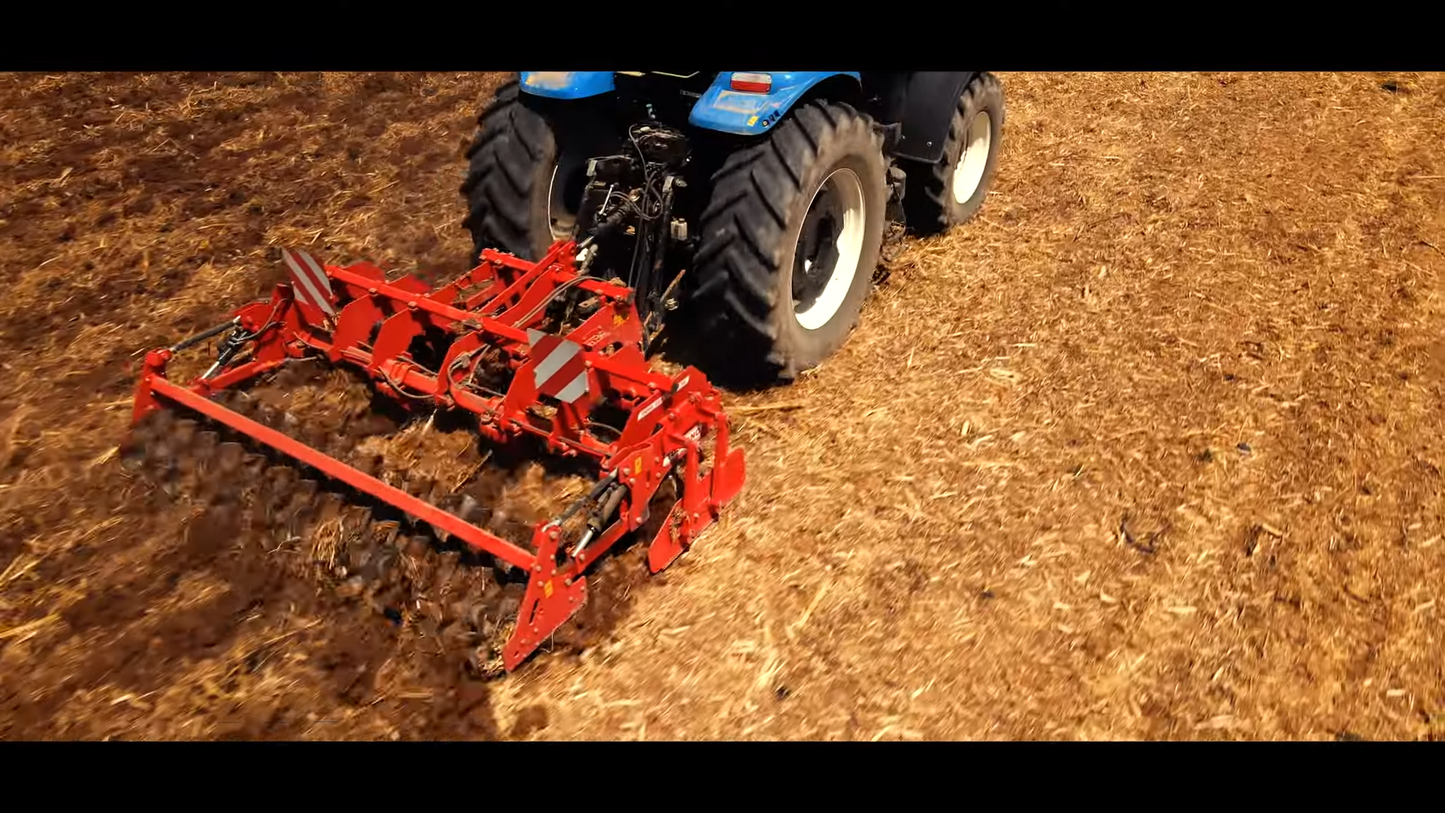

- Pointed Rollers: Ensures smoother field surfaces and efficient operation on varying terrains.
- Universal Compatibility: Fits CAT 2 and 3N linkages, making it versatile for diverse tractor models.
- Optional Accessories: Includes side plates, discbond packers, balancing wheels, and tungsten carbide-coated blasting blades for enhanced performance.

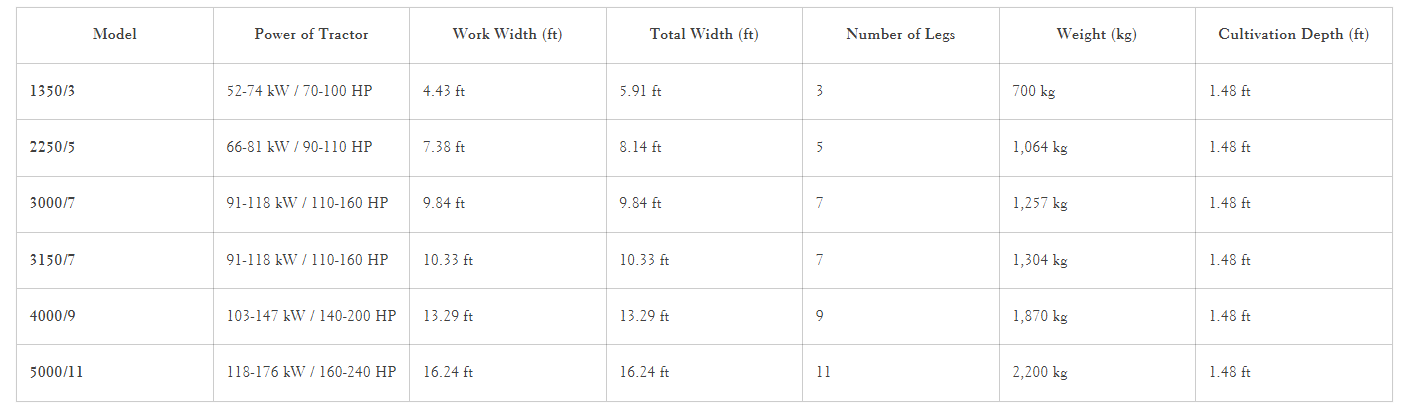

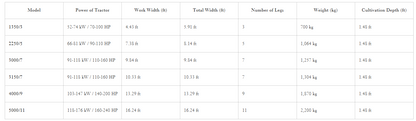

Detailed Specifications
| Model | Power of Tractor | Work Width (ft) | Total Width (ft) | Number of Legs | Weight (kg) | Cultivation Depth (ft) |
|---|---|---|---|---|---|---|
| 1350/3 | 52-74 kW / 70-100 HP | 4.43 ft | 5.91 ft | 3 | 700 kg | 1.48 ft |
| 2250/5 | 66-81 kW / 90-110 HP | 7.38 ft | 8.14 ft | 5 | 1,064 kg | 1.48 ft |
| 3000/7 | 91-118 kW / 110-160 HP | 9.84 ft | 9.84 ft | 7 | 1,257 kg | 1.48 ft |
| 3150/7 | 91-118 kW / 110-160 HP | 10.33 ft | 10.33 ft | 7 | 1,304 kg | 1.48 ft |
| 4000/9 | 103-147 kW / 140-200 HP | 13.29 ft | 13.29 ft | 9 | 1,870 kg | 1.48 ft |
| 5000/11 | 118-176 kW / 160-240 HP | 16.24 ft | 16.24 ft | 11 | 2,200 kg | 1.48 ft |
