Product Description
Trenchit Trencher With Hydraulic Depth Control | Model TCT PRO & Fairway | 40-100HP | For Tractor
DESCRIPTION
The TrenchIt TCT Pro & Fairway Trenchers are engineered for maximum performance, versatility, and durability, making them the ideal choice for demanding sports and turf drainage, irrigation, and landscaping projects. These trenchers are designed to meet the needs of operators requiring precise and clean trenching capabilities, with minimal impact on even the finest turfgrasses.

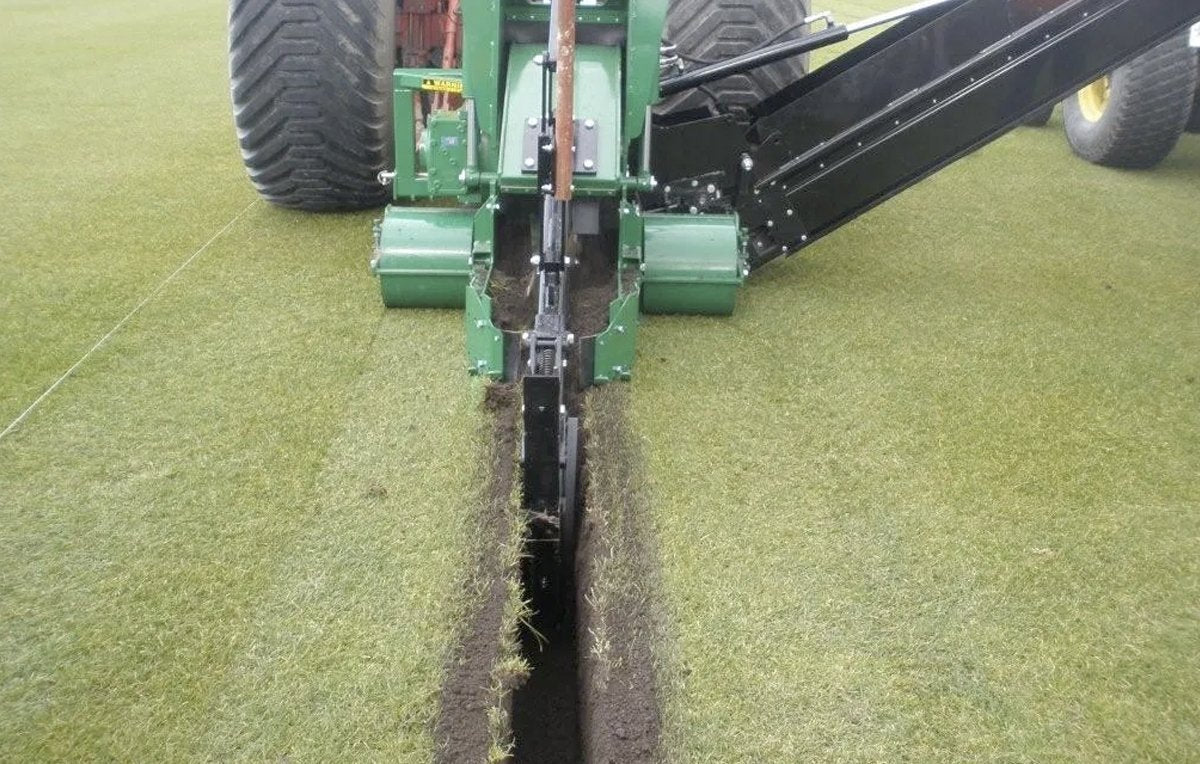

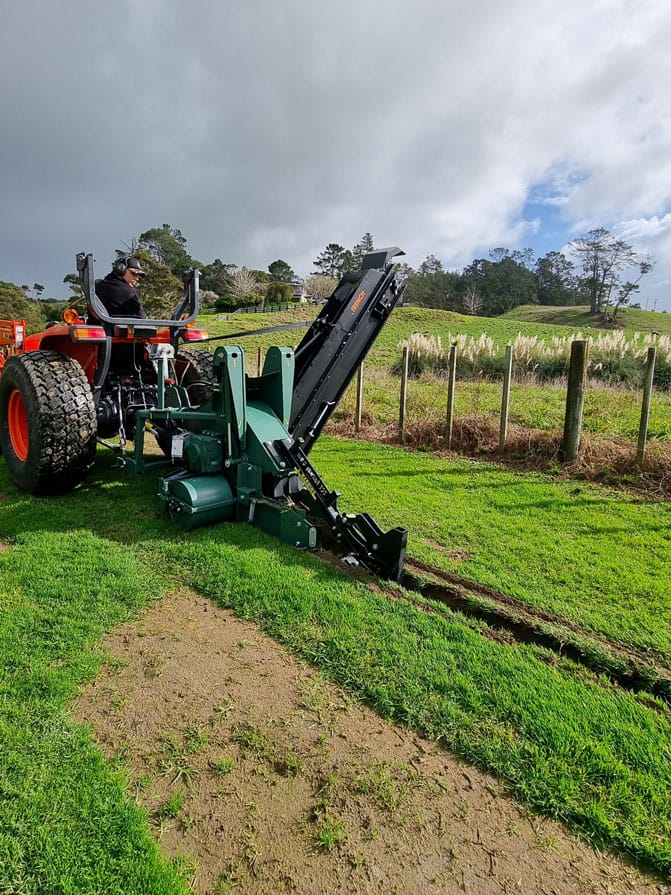

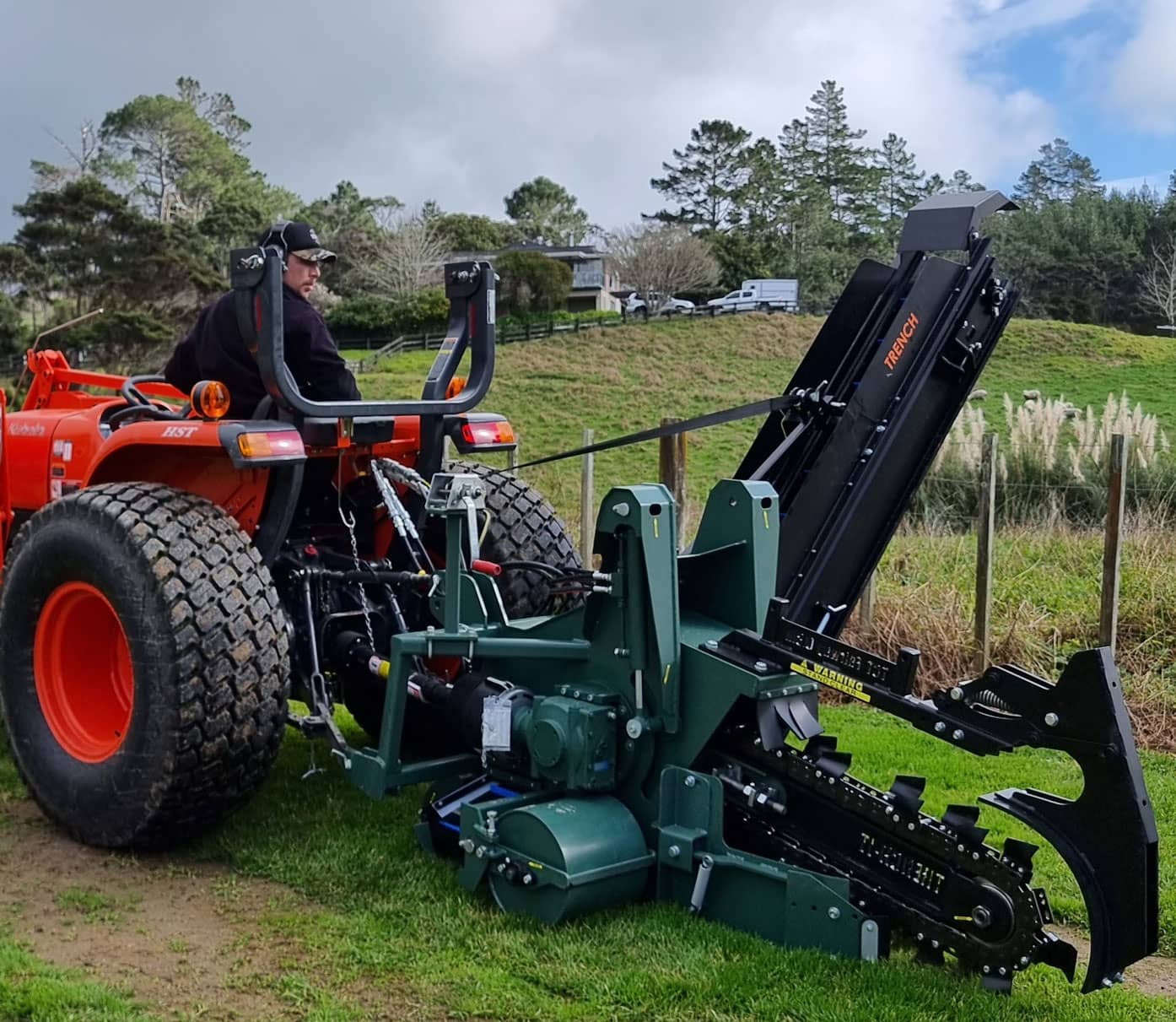

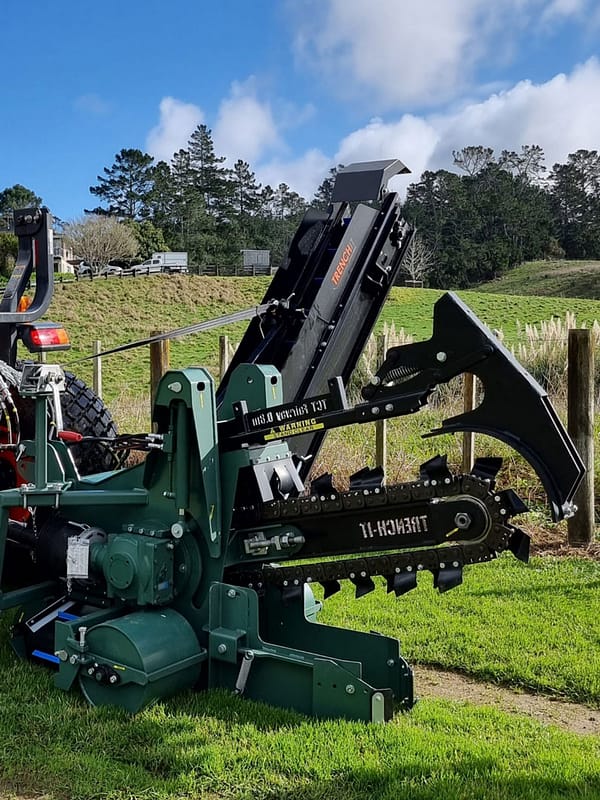

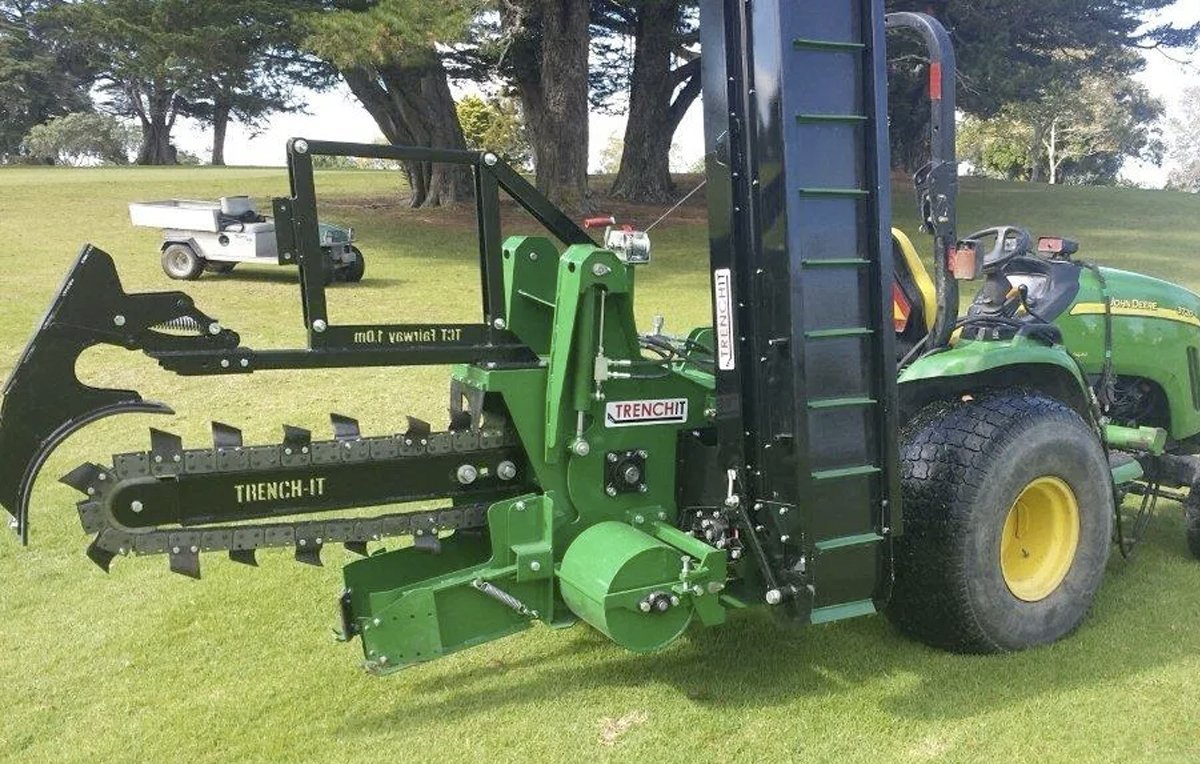

The TCT Fairway Trencher is crafted with an 80 HP-rated gearbox and three weight distribution rollers to evenly balance the machine, reducing ground impact. Multiple chain options are available, including soil blades, terminator teeth, and carbide bullet teeth, making this trencher adaptable to various soil conditions.

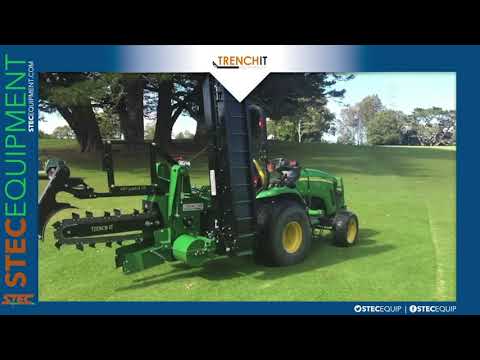

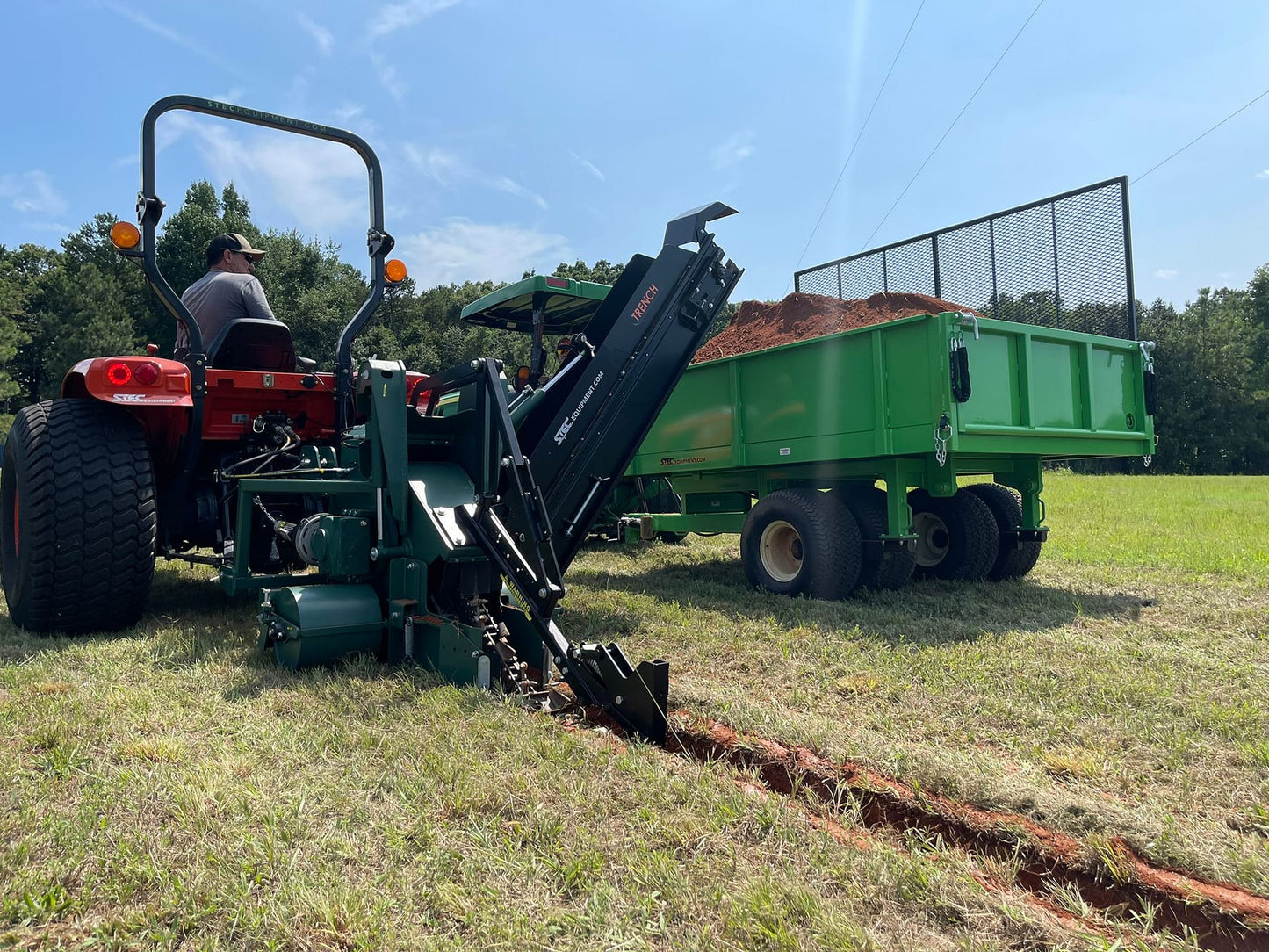

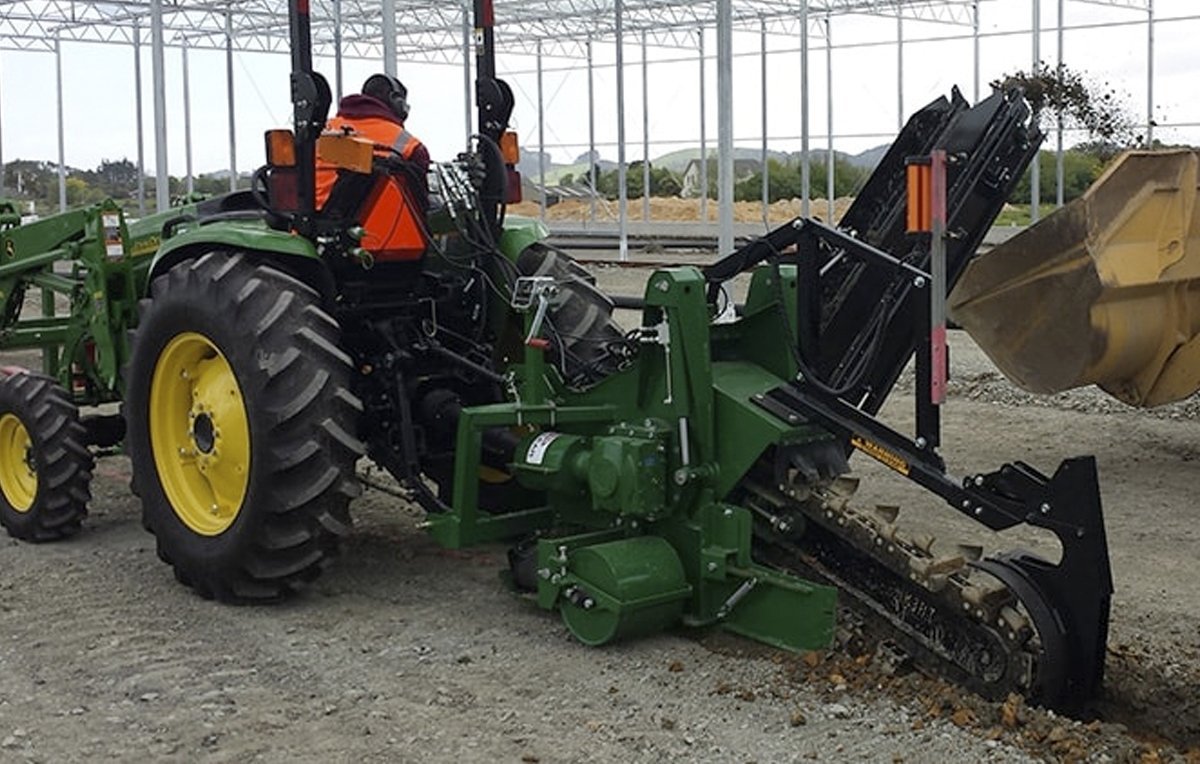

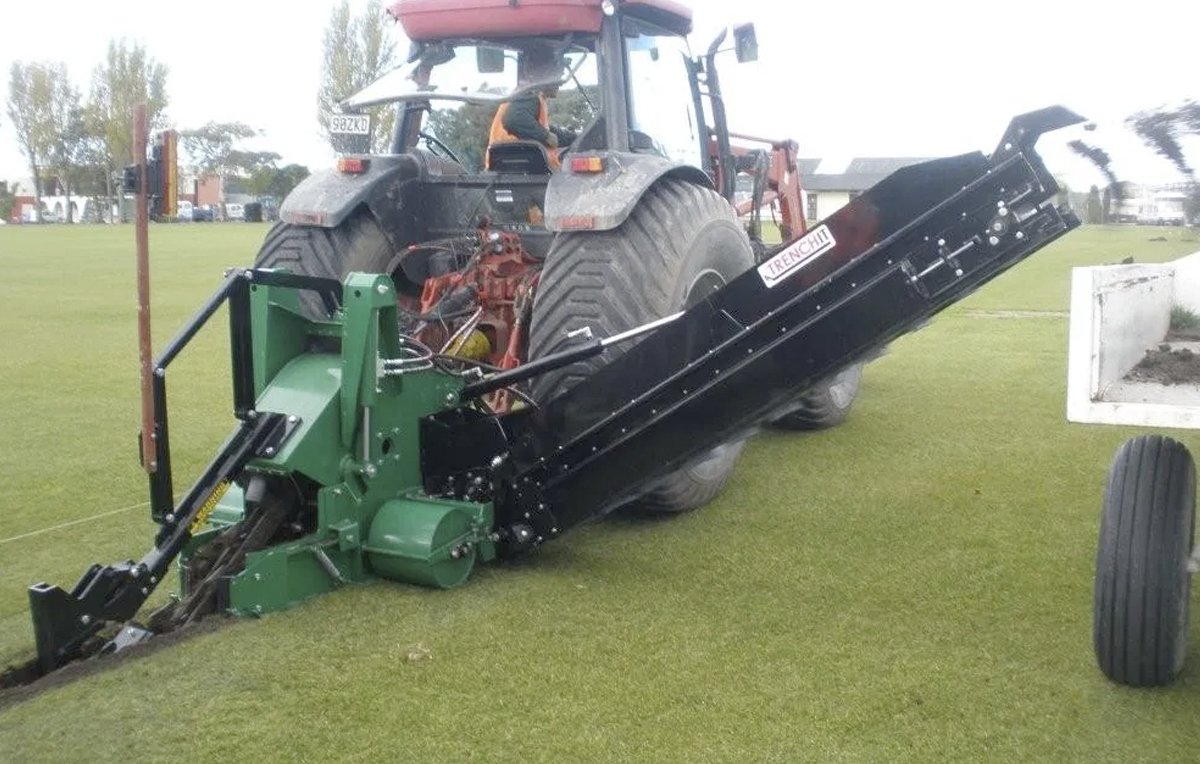

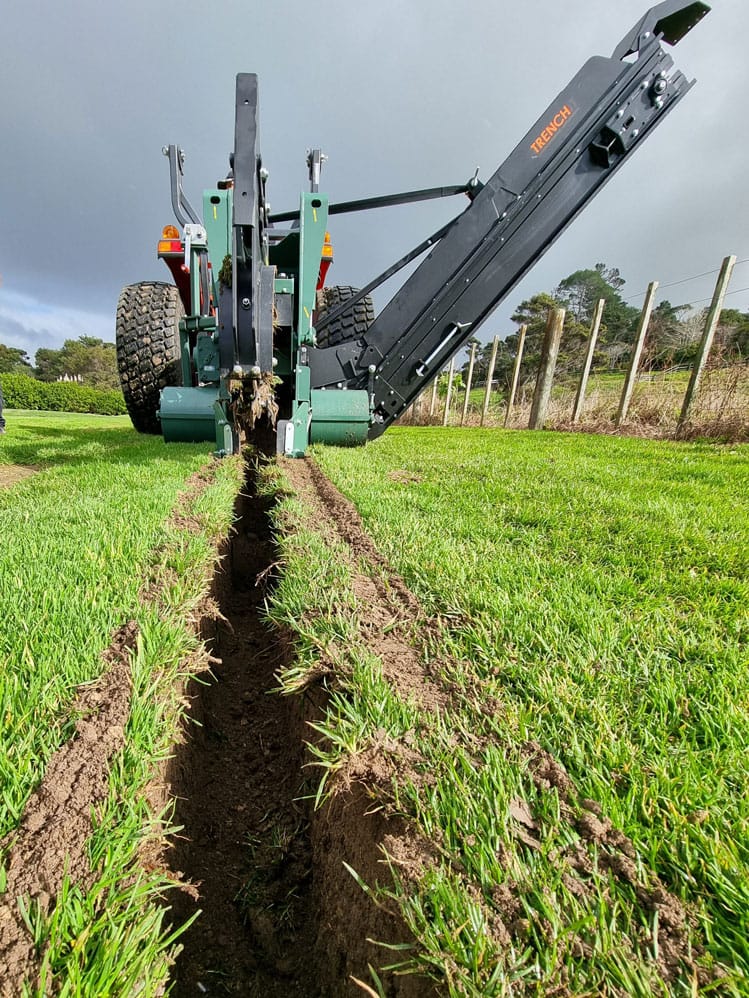

The TCT Pro Trencher is specifically tailored for turf and sports fields, featuring an efficient conveyor system that elevates soil directly onto a running vehicle or trailer, leaving a clean worksite. It can be converted into a conventional trencher by detaching the conveyor system, providing versatility in any work environment.
Both models come equipped with a crumber bar for trench grading, a slip clutch to protect the tractor and trencher from shock loading, and a PTO-driven reduction gearbox for optimal digging speed. Optional laser control systems offer enhanced precision for professional-grade results.
Key Features
- Adjustable Trenching Depth – Capable of trenching up to 1000mm deep with various trench widths available, including 75mm, 100mm, 150mm, 200mm, and 300mm.

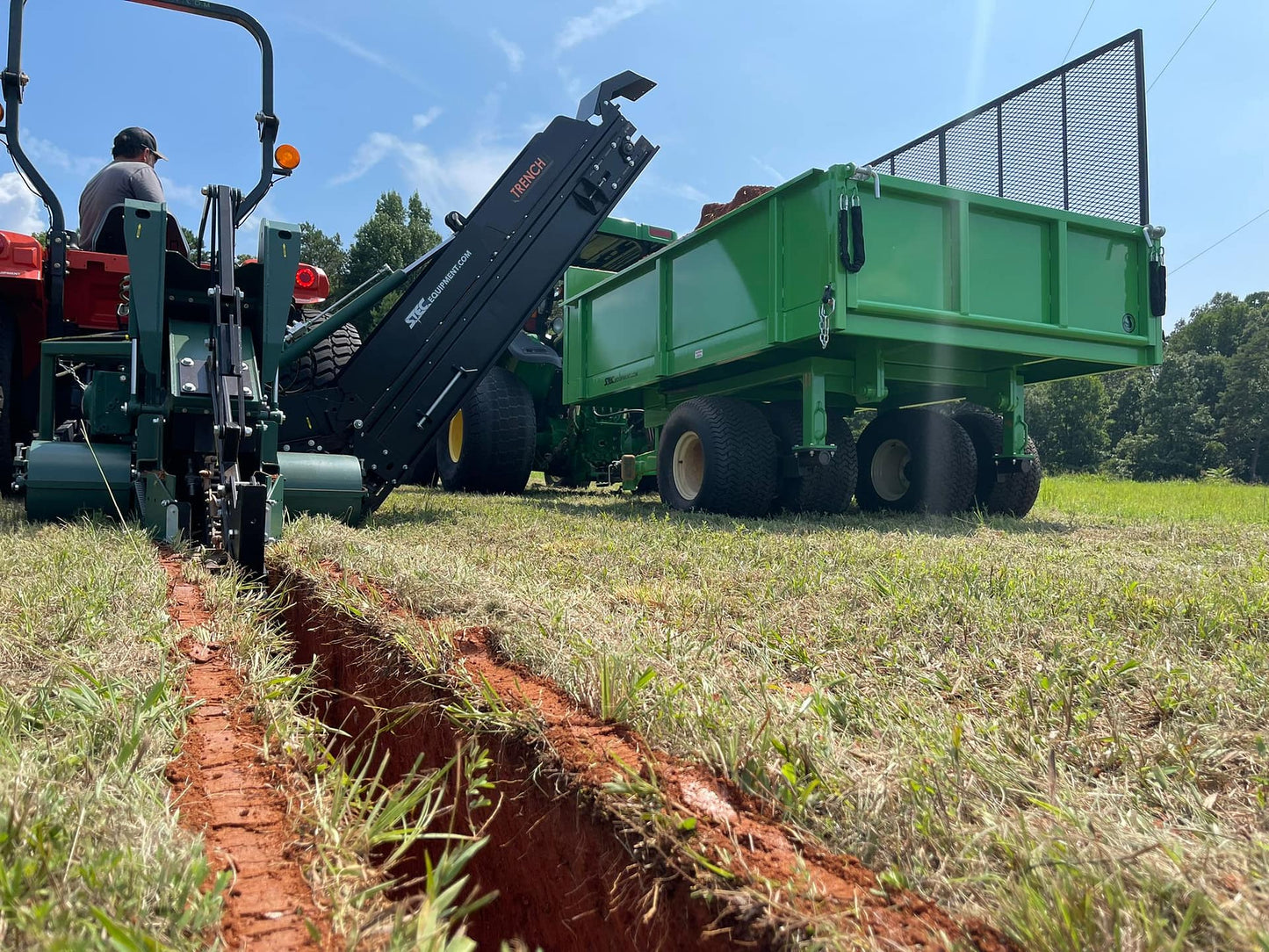

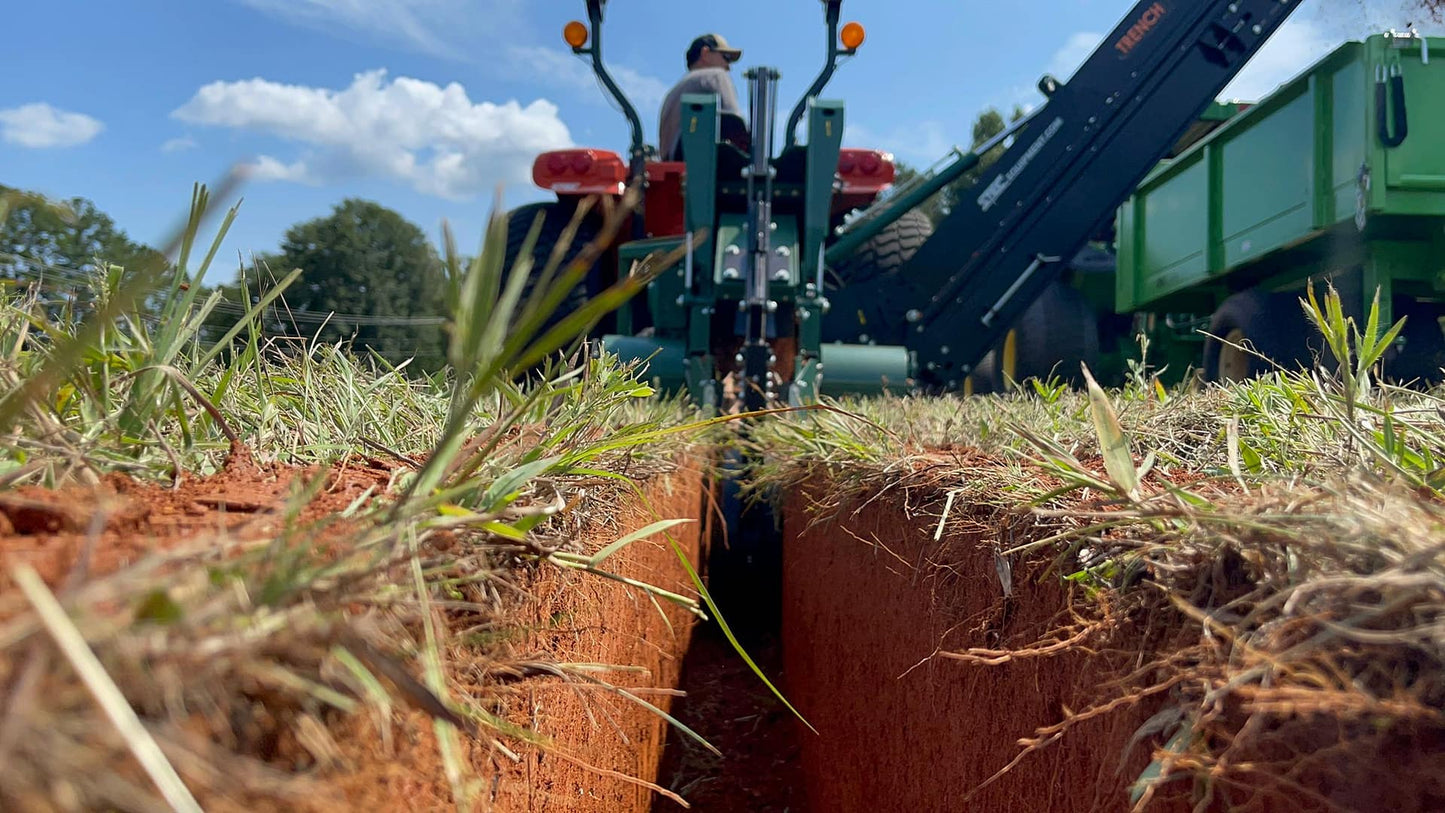

- Efficient Soil Management – Dual conveyor system directs soil onto an adjacent vehicle or trailer, reducing cleanup efforts.
- Durable Build – Constructed with heavy-duty components, including carbide tungsten cutting teeth and USA-made wear parts.
- Conversion Flexibility – Easily switch between conveyor system trenching and conventional side-discharge trenching.
- Laser Control Option – Achieve high-precision trenching with an optional laser control setup.
Detailed Specifications
TCT Fairway Trencher
| Specification | Details |
|---|---|
| Digging Depth | Up to 1000mm |
| Digging Width | 75mm, 100mm, 150mm, 200mm |
| Prime Mover | 40–70 HP tractor |
| PTO | Driven, with slip clutch |
| Weight Distribution | Three rollers for minimal ground impact |
| Optional Teeth Setup | 200mm setup ($429) |
| Optional Laser Control | Complete setup ($9,999) |
TCT Pro Trencher
| Specification | Details |
|---|---|
| Digging Depth | 1000mm standard, 800mm & 1200mm options |
| Digging Width | 100mm standard, up to 300mm available |
| Prime Mover | 50–100 HP tractor |
| PTO | Driven, with slip clutch |
| Conveyor System | Dual conveyor setup |
| Optional Laser Control | C-Top valve and control panel ($6,499), complete setup ($9,999) |
