Product Description

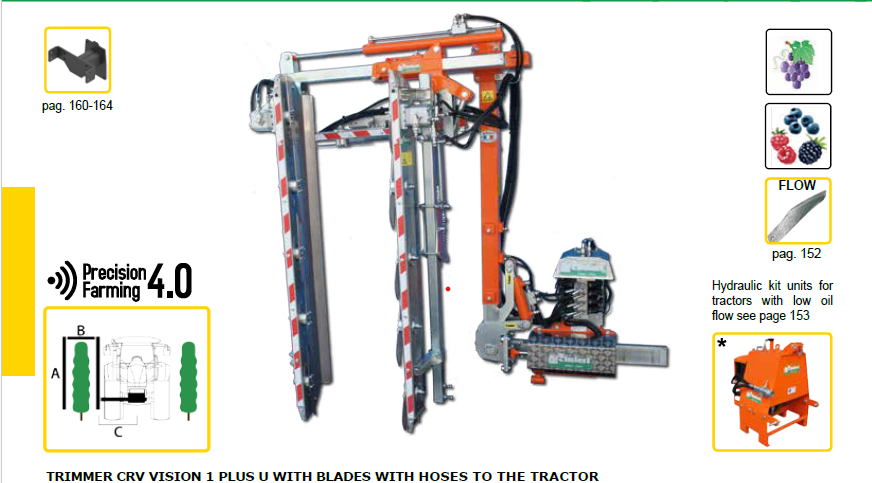

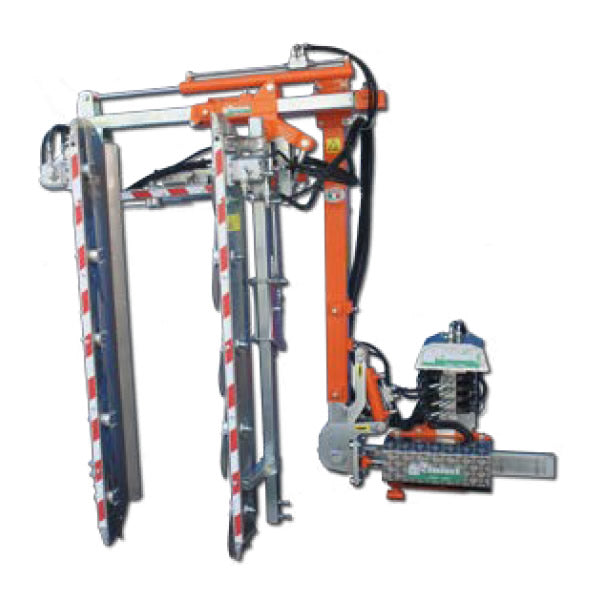

Rinieri Trimmer CRV Vision-1 Plus U with Blades | 41" -83" Cutting Width | Vertical Height 30" for Tractor
DESCRIPTION
The Trimmer CRV Vision-1 Plus U with Blades is designed for precision pruning in vineyards, especially those located on hilly or uneven terrain. This model offers excellent front visibility and advanced cutting performance with multiple blade configurations for optimal results.
Key Features
- Enhanced Front Visibility: Ideal for hilly vineyards, offering clear sightlines for precise pruning.
- Flexible Cutting Bar Options: Available in various models including "I", "L", "U", and "C" cutting bars to meet different vineyard pruning needs.
- Hydraulic Adjustments: Equipped with hydraulic lifting of 23.6 inches and tilting of vertical bars for easy control and efficiency.
- Manual U-Bar Adjustment: Manually open and adjust the U cutting bar for customized pruning.
- Durability & Safety: Spring safety features protect both vertical and topping bars, and a pressure valve ensures motor safety during operation.
Detailed Specifications
| Component | Details |
|---|---|
| Frame | V1 Plus |
| Hydraulic Lifting | 23.6 inches |
| Hydraulic Tilting (Vertical Frame) | +/- 20° |
| Hydraulic Side Shift | 11.8 inches (manual side shift 7.9 inches) |
| Manual U Bar Tilting | +/- 11° |
| Quick Connection System | PLUS |
| Safety Features | Spring safety for vertical and topping bars, maximum pressure valve for motors |
| Hydraulic Stand for Storage | Included |
| On the Tractor Requirements | 3 double-acting hydraulic distributors, 1 single-acting hydraulic distributor, 1 pressure-free return, 25-35 Liters/min oil demand |

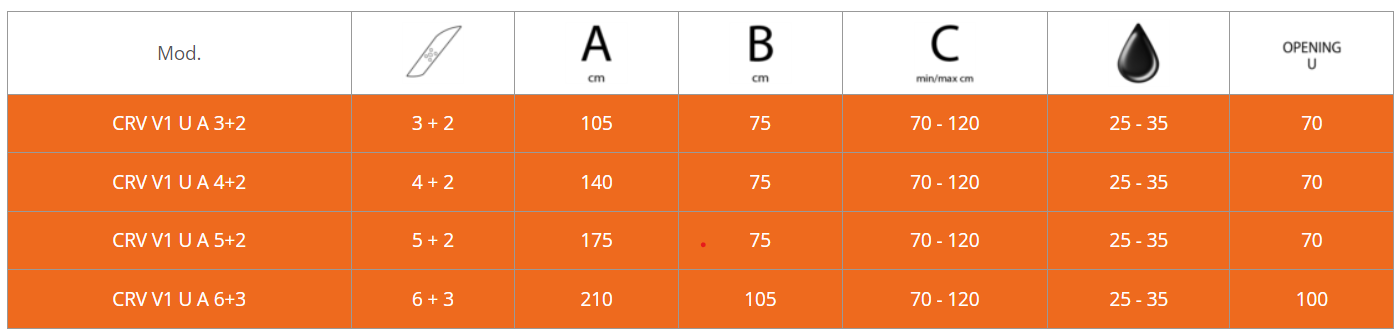

CRV V1 U A 3+2 and CRV V1 U A 4+2

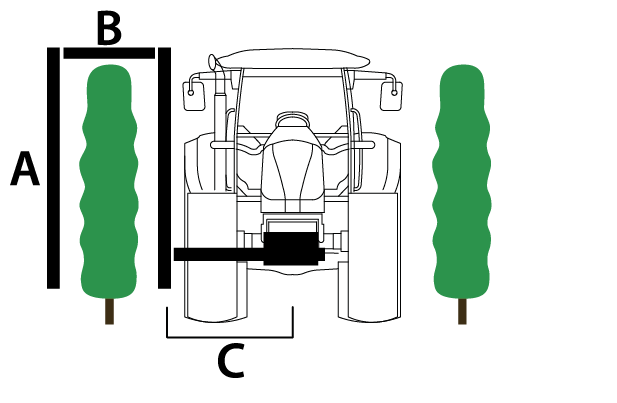

| Specification | CRV V1 U A 3+2 | CRV V1 U A 4+2 |
|---|---|---|
| Model | CRV V1 U A 3+2 | CRV V1 U A 4+2 |
| A (cm) | 105 | 140 |
| B (cm) | 75 | 75 |
| C Min - Max (cm) | 70 - 120 | 70 - 120 |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
| Opening U (cm) | 70 | 70 |
CRV V1 U A 5+2 and CRV V1 U A 6+3
| Specification | CRV V1 U A 5+2 | CRV V1 U A 6+3 |
|---|---|---|
| Model | CRV V1 U A 5+2 | CRV V1 U A 6+3 |
| A (cm) | 175 | 210 |
| B (cm) | 75 | 105 |
| C Min - Max (cm) | 70 - 120 | 70 - 120 |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
| Opening U (cm) | 70 | 100 |
In Package
- CRV Vision-1 Plus U with Blades
- Hydraulic lifting and tilting for maximum flexibility
- Manual and hydraulic controls for cutting precision
- Safety features ensuring secure and smooth operation
- Quick connection PLUS system for fast setup
