Product Description
Rinieri Reversible Shredder With Double Feeder TRR2 150 - 200 Model | 59"-78" Working Width | 80 - 130HP For Tractor
DESCRIPTION

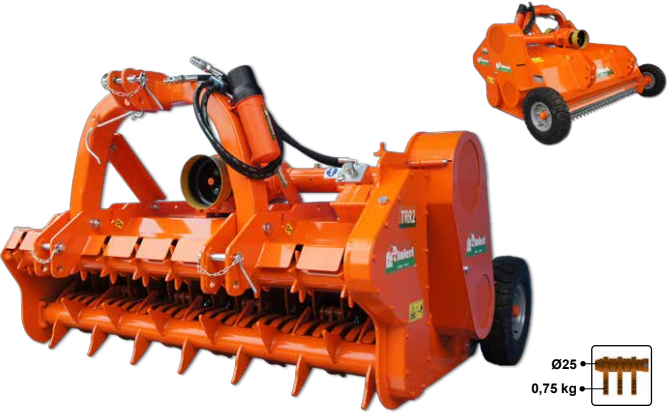

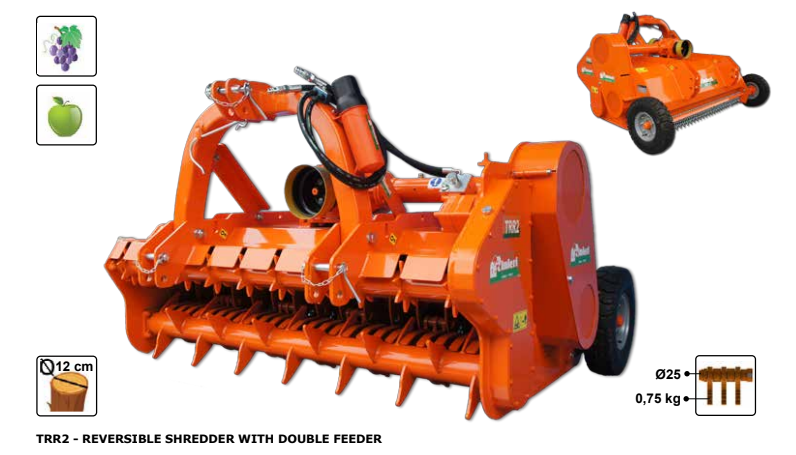

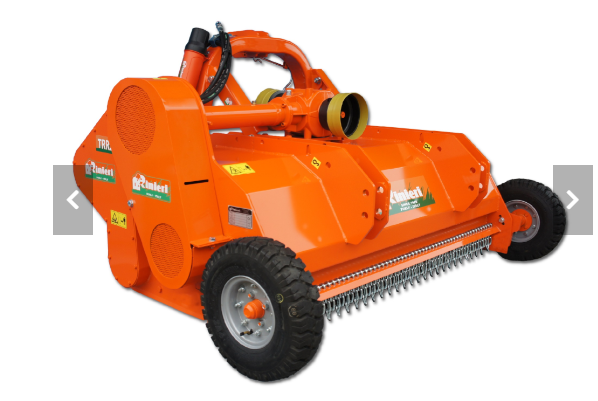

The TRR2 Reversible Shredder with Double Feeder is designed to handle heavy pruning work in vineyards and orchards, with the ability to shred branches up to 12 cm (4.7") in diameter. Featuring a fixed three-point hitch CAT.2 and hydraulic movement with double pick-up inversion, this shredder offers superior control and flexibility during operation.

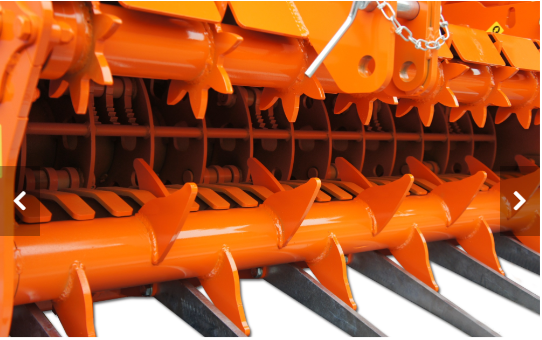

The shredder is equipped with a rotor with retractable knives and a double body with triple counter-knives, ensuring high performance and durability. It also features rear wheels and a Cardan joint for efficient power transfer. For safety, the TRR2 includes a free-wheel gearbox, a maximum pressure valve, and a pick-up rotors speed regulator to ensure smooth and safe operation.
Key Features
- Shredding Capacity: Prunes branches up to 12 cm (4.7") in diameter
- Double Pick-Up Inversion: Hydraulic control for enhanced operational efficiency
- Durable Rotor with Retractable Knives: Provides effective shredding and mulching
- Triple Counter-Knives: Ensures a powerful and consistent cutting performance
- Safety Features: Includes free-wheel gearbox, maximum pressure valve, and rotors speed regulator for secure operation
Detailed Specification
Standard Equipment
| Feature | Specification |
|---|---|
| Hitch Type | Fixed three-point hitch CAT.2 |
| Hydraulic Movement | With double pick-up inversion |
| Rotor | Rotor with retractable knives |
| Counter-Knives | Double body with triple counter-knives |
| Wheels | Rear wheels |
| Drive Component | Cardan joint |
Safety Features
| Feature | Specification |
|---|---|
| Gearbox Protection | Free wheel gearbox |
| System Regulation | Maximum pressure valve and pick-up rotors speed regulator |

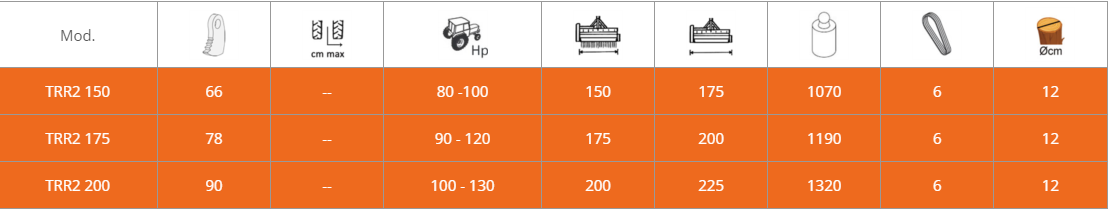

TRR2 150 and TRR2 175
| Attribute | TRR2 150 | TRR2 175 |
|---|---|---|
| Knives (TRR2) | 66 | 78 |
| Displacement from Tractor (in) | -- | -- |
| Required HP | 80 - 100 | 90 - 120 |
| Working Width (in) | 59 | 69 |
| Machine Width (in) | 69 | 79 |
| Machine Weight (lbs) | 2,359 | 2,624 |
| Belt No. | 6 | 6 |
| Cutting Power (in) | 4.7 | 4.7 |
TRR2 200
| Attribute | TRR2 200 |
|---|---|
| Knives (TRR2) | 90 |
| Displacement from Tractor (in) | -- |
| Required HP | 100 - 130 |
| Working Width (in) | 79 |
| Machine Width (in) | 89 |
| Machine Weight (lbs) | 2,910 |
| Belt No. | 6 |
| Cutting Power (in) | 4.7 |
\
