TTA M8FD Heavy Lift Drone | 20KG Payload Capacity | 50-Minute Flight Duration, Dual Flight Controllers | Foldable Design
TTA M8FD Heavy Lift Drone | 20KG Payload Capacity | 50-Minute Flight Duration, Dual Flight Controllers | Foldable Design
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
TTA M8FD Heavy Lift Drone | 20KG Payload Capacity | 50-Minute Flight Duration, Dual Flight Controllers | Foldable Design
DESCRIPTION

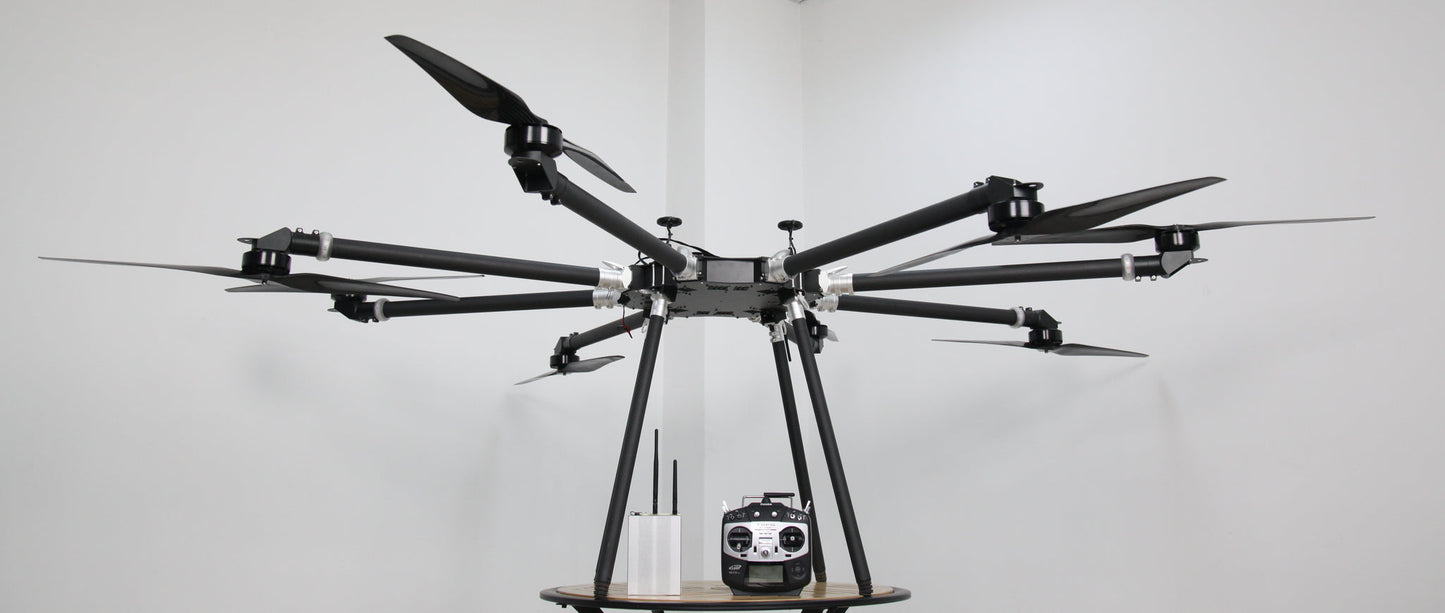

The TTA M8FD Heavy Lift Drone is a robust, high-capacity UAV designed for commercial delivery and logistics applications. Capable of carrying payloads up to 20 kg (44 lbs), this drone is ideal for demanding transport and aerial work, providing up to 50 minutes of flight time based on payload and environmental conditions. Built with carbon fiber and aviation aluminum, the M8FD is both lightweight and resilient, ensuring optimal performance and durability. Its fully foldable design enhances portability, while the patented quick-release payload bay enables rapid payload swaps, reducing downtime and increasing operational efficiency.
Equipped with dual flight controllers, GPS, and an emergency parachute, the M8FD prioritizes safety and reliability. Advanced features such as automatic hover, level 6 wind resistance, and a real-time ground station monitoring system make this UAV easy to operate and maintain. With excellent black box functionality, the drone records all flight data, and low-battery alarms provide timely alerts to ensure safe landings.
Key Features
- High Payload Capacity: Carries up to 20 kg (44 lbs), ideal for heavy-duty applications.
- Extended Flight Duration: Provides up to 50 minutes of flight time depending on payload and conditions.
- Durable Build: Constructed with carbon fiber and aviation-grade aluminum for durability and lightweight performance.
- Portable Design: Fully foldable for easy transport, reducing setup and takedown time.
- Quick-Swap Payload Bay: Patented quick-release bay allows rapid payload exchanges for efficiency.
- Dual Safety System: Includes dual flight controllers, GPS, and an emergency parachute for enhanced safety.
- Black Box Functionality: Automatically records flight data for performance tracking and analysis.
- Automatic Hover & Stability: Maintains position with level 6 wind resistance for stability in various conditions.
- Ground Station Monitoring: Tracks battery status, voltage, and current from the ground station, with low-battery alerts.
- Customizable Load Options: Can accommodate different devices and equipment to meet specific mission needs.
Detailed Specifications
| Feature | Details |
|---|---|
| Payload Capacity | Up to 20 kg (44 lbs) |
| Flight Time | Up to 50 minutes |
| Material | Carbon Fiber & Aviation Aluminum |
| Structure | Fully foldable, portable |
| Wind Resistance | Level 6 |
| Safety Features | Dual flight controllers, GPS redundancy, parachute |
| Ground Station Compatibility | WiFi/Data Communication Module with monitoring |
| Flight Data Recording | Integrated black box functionality |
| Battery Requirement | 6 x 22.2V 22000mAh (batteries not included) |
| Remote Control | Handheld Radio Controller |
| Ground Station Software | Compatible with tablet (not included) |
In Package
- TTA M8FD UAV with autopilot, fully tested
- Handheld Radio Controller
- GPS-Enabled Flight Control System (with redundancy)
- WiFi/Data Communication Module
- Ground Station Software (tablet not included)
- LED Navigation Lights
- Transport Case
- Assembly Tools
- Operator’s E-Manual
Exclusive HSE Benefits
- Limited Warranty
- U.S.-Based Technical Support
- U.S.-Based Warranty Service
- U.S. Import Tariffs & International Freight Coverage
Available Options
- Optional Parachute: Additional safety measure for controlled descent in emergencies.
- Extended Warranty Plans: Additional support and protection beyond the limited warranty.
- Payload Customization: Ability to load specialized equipment and devices to meet varied operational needs.
- Battery & Charger Kits: (6 x 22.2V 22000mAh batteries per flight required; sold separately due to export restrictions).
