Product Description
Turbo Turf Brine Sprayer Conversion System (Power Pack) | 1-Lane & 3-Lane Boom | Skid Size 20.5" × 46" | Honda 5.5 HP
DESCRIPTION

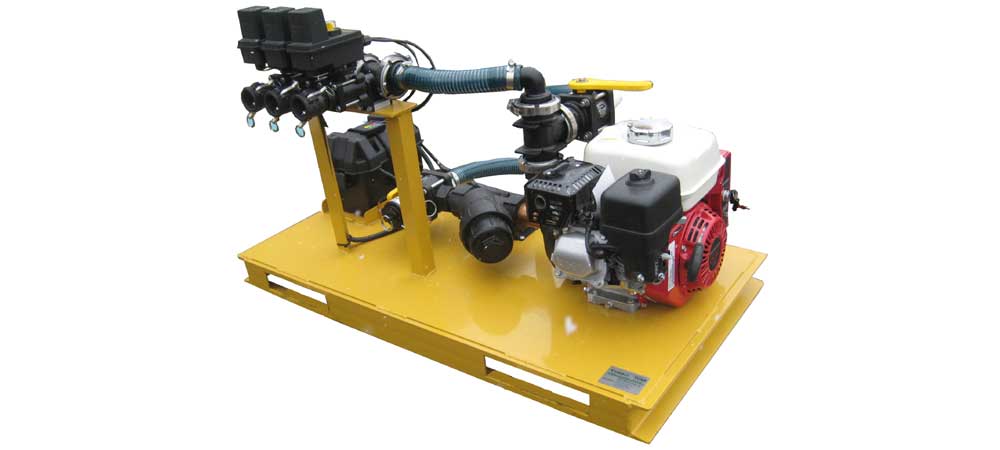

Turbo Turf’s Power Pack is a compact, self-contained ice control conversion system that allows you to turn an existing tank into a fully functional brine or liquid de-icing sprayer. Designed for flexibility and efficiency, the Power Pack mounts on a small skid and connects directly to your current tank—saving cost while delivering professional ice control performance.
Powered by a Honda 5.5 HP electric-start engine and a high-output ACE centrifugal pump, the Power Pack includes valves, fittings, in-cab controller, and spray boom options, giving you everything needed for reliable winter operations. Available in one-lane or three-lane configurations, it’s ideal for contractors, municipalities, and fleet operators who want a fast, economical upgrade.
Key Features
- Tank Conversion System: Instantly transforms any existing tank into a professional brine sprayer, eliminating the need to purchase a complete new unit.
- Compact Skid Design: Mounted on a small skid (20.5″ × 46″) with integrated forklift slots, making loading, unloading, and transport simple and efficient.
- Reliable Engine Power: Equipped with a Honda 5.5 H.P. electric start engine, ensuring dependable performance in demanding winter conditions.
- High‑Performance Pump: Features an Ace centrifugal pump (1½ × 1¼″), delivering up to 120 GPM flow and 110 PSI pressure. E‑Coated for resistance against chemicals used in ice control.
- Flexible Boom Options: Available with either a one‑lane boom (three‑nozzle turret) or a three‑lane boom (center turret plus dual extender nozzles for outer lanes).
- Precision Controller: One‑lane version includes a simple on/off switch. Three‑lane version offers individual lane controls, on‑the‑go pressure adjustment with gauge, and a master on/off switch for full control.
- Durable Fittings: Standard flanged fittings provide chemical resistance and long service life, even with aggressive de‑icing solutions.
- Easy Upgrade Path: Designed for operators who already own tanks, offering a cost‑effective way to expand into brine spraying without replacing existing equipment.
Detailed Specifications
| Specification | Details |
|---|---|
| Product Type | Ice Control Power Pack / Tank Conversion System |
| Mounting Style | Skid-Mounted |
| Skid Size | 20.5″ × 46″ |
| Engine | Honda 5.5 HP Electric Start |
| Pump | ACE Centrifugal Pump |
| Pump Size | 1½″ × 1¼″ |
| Maximum Flow | 120 GPM |
| Maximum Pressure | 110 PSI |
| Pump Coating | E-Coated (Chemical Resistant) |
| Fittings | Flanged fittings (standard) |
| Controller Type | Wired, in-cab |
| Controller Functions | Master on/off, lane control, pressure adjustment w/ gauge |
| Boom Type | Turret nozzle booms |
| Boom Configuration | 1-lane or 3-lane |
| Loading Method | Forklift slots |
| Application | Brine spraying, liquid ice control |
BOOM CONFIGURATION DETAILS
One-Lane Boom
- Three-nozzle turret boom
- On/off control from cab
Three-Lane Boom
- Three-nozzle turret boom (center lane)
- Dual extender nozzles for outer lanes
- Individual lane controls
- Adjustable pressure while operating
