Product Description
Turbo Turf Hydroseeder | Model HS-1000 XPW & HS-1000-XPW-P | Width 82" | Capacity 1000 Gallons | Engine Horsepower 19 HP | For Residential, Commercial & Large-Scale Applications
Lead Times:
- HE & Harve Series - 24 - 26 Week
- The T models 400 and up - 10 - 12 Week
- Small 50-150 to Jet agitated models - 2 - 4 Week
- 300 is - 4-6 Week
DESCRIPTION

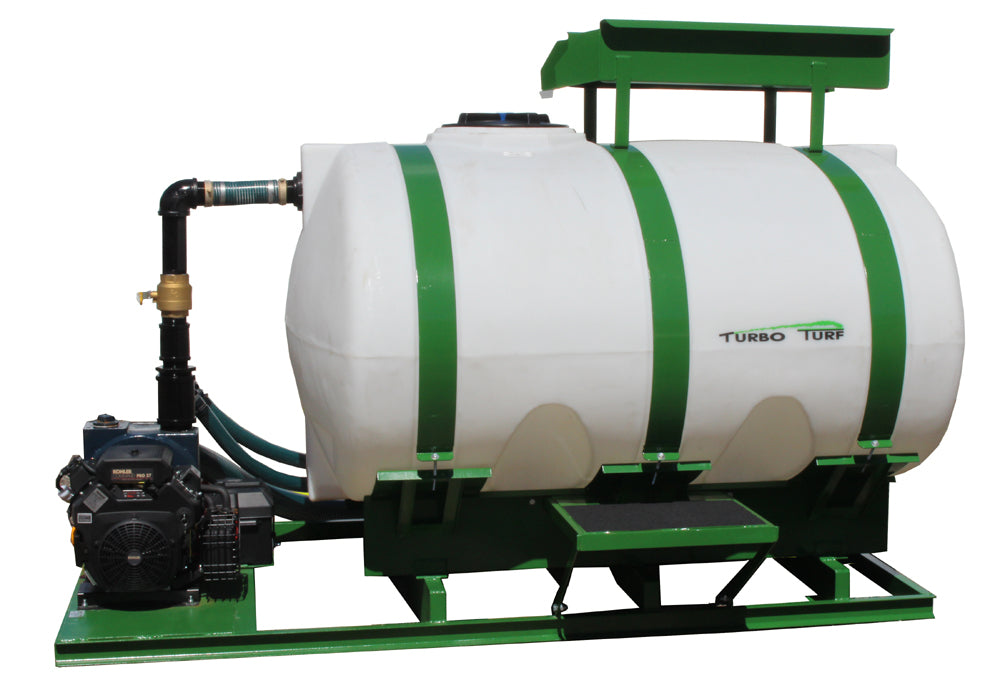

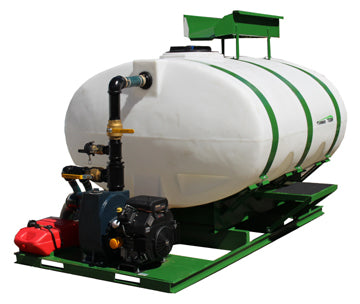

The Turbo Turf HS-1000-XPW is a powerful 1000-gallon skid type hydroseeder designed for residential and commercial seeding projects, offering high efficiency and robust performance.
The HS-1000-XPW from Turbo Turf is designed to meet the rigorous demands of hydroseeding professionals, offering powerful performance, durability, and ease of operation. Whether seeding expansive residential lawns or tackling large commercial projects, this hydroseeder provides the capacity and efficiency needed to get the job done effectively.
Key Features
- Efficient Seeding: Covers 13,000 sq. ft. per load, allowing up to 4 acres to be seeded per day with a good water source.
- Jet Agitation System: Equipped with Bale Buster technology, enabling rapid mixing and easier loading of hydroseeding mulch.
- Pump System: Powered by a 4″ X 4″, 640 GPM high-volume centrifugal pump, delivering 63 PSI of pressure for effective spraying.
- Engine Power: 19 HP Kohler Command Pro engine with electric start, directly coupled for increased reliability.
- Hose & Spray Nozzles: Comes with 100 ft of 1 1/4″ discharge hose, a hydroseeding gun, and three nozzles (wide hydroseeding nozzle, medium nozzle, straight nozzle).
- Clean-Up Efficiency: Few moving parts ensure low maintenance and allow for quick cleanup at the end of the day.
- Flow Control: More pressure control for improved trimming; larger jets for faster mixing and greater spray reach.
- Material Handling: Handles 6–7 bales of hydroseeding mulch, any seed type, and liquid, water-soluble, or granular fertilizers.
- Spray Distance: 55′ with a straight nozzle, 80′ using a 2″ cannon for enhanced coverage.
- Flexible Setup: Can be mounted on a truck or trailer for easy transport.
PUMP |
This unit uses a TP4VE centrifugal pump with 662 gallons a minute of flow and 50 P.S.I. of pressure. This pump was designed specifically for hydro seeding. This pump is very low maintenance. There are no grease fittings and the only maintenance required is to winterize if at the end of the season if it is stored where temperatures go below freezing. The pump impeller mounts on the end of the engine shaft so there is no power loss. Typically it can operate for 5 to 10 years with no maintenance. The only thing to be careful of is to not run it dry. |
ENGINE |
This unit comes with a 16 H.P. Vanguard Briggs & Stratton engine. This has proved to be a very reliable engine with a long life. The engine has a two year warranty and service for the engine is available at any authorized Briggs & Stratton engine dealer. This unit has a self contained fuel tank. |
ENGINE |
This unit comes standard with 100 ft of 1 1/4″ I. D. hose. The hose we use is both strong and light weight. It is made from a poly material with a spiral reinforcement. Additional hose is available in 50 feet or 100 feet sections. The unit will handle up to 200 feet of hose. |
BALE BUSTER |
This unit comes equipped with a bale buster to speed loading. The bale buster allows you to add mulch in larger chunks and will quickly break them up. Dry mulch floats on top of the water. The bale buster takes the full flow of the pump and blows it across the top of the water picking up those chunks of mulch and smashing them against the back of the tank. Users can add mulch in chunks any size that will fit through the 16″ opening. |

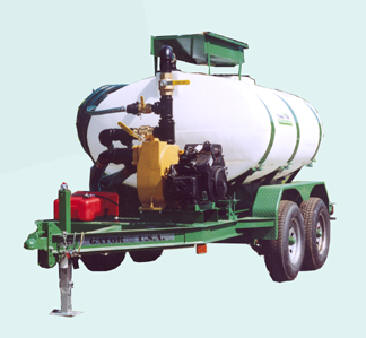

TRAILER |
The HS-750-P is permanently attached to a DOT approved double axle trailer with brakes on both axles, DOT lighting, a breakaway, safety chains and an on-board test box for the breakaway battery. The trailer has a GVW of 9990 pounds and is 15’2″ long an 84″ wide. It is available with either a 2 5/16″ ball hitch or a pintle hitch. |
Detailed Specifications
| Feature | HS-1000-XPW (Skid Type) | HS-1000-XPW-P (W/ Trailer) |
|---|---|---|
| Tank Capacity | 1000 Gallons | 1000 Gallons |
| Engine | 19 HP Kohler Command Pro (Electric Start) | 19 HP Kohler Command Pro (Electric Start) |
| Pump | 4″x 4″ centrifugal, 640 GPM, 63 PSI | 4″x 4″ centrifugal, 640 GPM, 63 PSI |
| Agitation System | Jet agitation with Bale Buster | Jet agitation with Bale Buster |
| Coverage per Load | 13,000 sq. ft. | 13,000 sq. ft. |
| Hose Length | 100 ft (1.25") | 100 ft (1.25") |
| Spray Distance | 55′ (straight nozzle), 80′ (2″ cannon) | 55′ (straight nozzle), 80′ (2″ cannon) |
| Empty Weight | 1,315 lbs | ~1,700 lbs (estimated with trailer) |
| Loaded Weight | 9,400 lbs | ~9,800 lbs (estimated with trailer) |
| Skid Size | 61″ x 115″ | N/A |
| Overall Size | 82″ x 123″ x 78″ | Trailer-mounted, size varies |
| Mounting Type | Skid Mounted (requires truck/trailer for transport) | Pre-mounted on trailer for easy towing |
| Mobility | Requires external transport setup | Built-in trailer for direct mobility |
| Material Handling | Paper mulch, wood mulch, blends | Paper mulch, wood mulch, blends |
Material Cost Breakdown
50-Gallon Hydroseeder
- Mulch: 0.5 bales at $11.95 per bale = $5.98
- Seed: 5 pounds at $2.05 per pound = $10.25
- Fertilizer: 1.33 pounds at $2.19 per pound = $2.91
- Tackifier: 0.67 oz at $1.00 per oz = $0.67
- Total Material Cost for the Load: $19.81
- Coverage: Approximately 667 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
100-Gallon Hydroseeder
- Mulch: 1 bale at $11.95 per bale = $11.95
- Seed: 10 pounds at $2.05 per pound = $20.50
- Fertilizer: 2.67 pounds at $2.19 per pound = $5.85
- Tackifier: 1.33 oz at $1.00 per oz = $1.33
- Total Material Cost for the Load: $39.63
- Coverage: Approximately 1,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
150-Gallon Hydroseeder
- Mulch: 1.5 bales at $11.95 per bale = $17.93
- Seed: 15 pounds at $2.05 per pound = $30.75
- Fertilizer: 4 pounds at $2.19 per pound = $8.76
- Tackifier: 2 oz at $1.00 per oz = $2.00
- Total Material Cost for the Load: $59.44
- Coverage: Approximately 2,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
500-Gallon Hydroseeder
- Mulch: 5 bales at $11.95 per bale = $59.75
- Seed: 50 pounds at $2.05 per pound = $102.50
- Fertilizer: 13 pounds at $2.19 per pound = $28.47
- Tackifier: 6.67 oz at $1.00 per oz = $6.67
- Total Material Cost for the Load: $197.39
- Coverage: Assuming linear scaling, a 500-gallon unit covers approximately 6,667 sq. ft.
- Cost per Sq. Ft.: 2.96 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $296.70; Profit = $703.30.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $296.70; Profit = $1,203.30.
750-Gallon Hydroseeder
- Mulch: 7.5 bales at $11.95 per bale = $89.63
- Seed: 75 pounds at $2.05 per pound = $153.75
- Fertilizer: 20 pounds at $2.19 per pound = $43.80
- Tackifier: 10 oz at $1.00 per oz = $10.00
- Total Material Cost for the Load: $297.18
- Coverage: Approximately 10,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.18; Profit = $702.82.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.18; Profit = $1,202.82.
1000-Gallon Hydroseeder
- Mulch: 10 bales at $11.95 per bale = $119.50
- Seed: 100 pounds at $2.05 per pound = $205.00
- Fertilizer: 26.67 pounds at $2.19 per pound = $58.43
- Tackifier: 13.33 oz at $1.00 per oz = $13.33
- Total Material Cost for the Load: $396.26
- Coverage: Approximately 13,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00 (rounded); Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
General Supply Information for a One Acre Job
Paper Mulch Covering:
- 1000 lbs per acre: 25 40# paper bales, $21.95 per bale, totaling $548.75
- 1200 lbs per acre: 30 40# paper bales, $21.95 per bale, totaling $658.50
- 1500 lbs per acre (steeper slope): 38 40# paper bales, $21.95 per bale, totaling $834.10
Fertilizer:
- 2-4 bags per acre
- For residential use: 4 bags
- For non-residential use: 2 bags
- Cost per bag: $59.95
Trafficker:
- For flat to slight slope: Turbo Tack, covers one acre, $49.95
Tracker:
- For slopes: Witches Brew, covers one acre, $69.96
Wood Blend Mulch or 100% Wood:
- Typical coverage: 2000 lbs per acre
- For steep slopes: Up to 3500 lbs per acre
Seed Costs:
- Reach out to us or check your local seed supplier
How Quickly Can I Do a 10,000sf Hydroseeding Job?
50-Gallon Hydroseeder:
- Coverage per Load: Approximately 667 sq. ft.
- Number of Loads Needed: About 15 loads (10,000 / 667).
- Estimated Time per Load: Assuming approximately 20 minutes per load (including refilling and application).
- Total Time: 15 loads x 20 minutes = 300 minutes or 5 hours.
100-Gallon Hydroseeder:
- Coverage per Load: Approximately 1,333 sq. ft.
- Number of Loads Needed: About 8 loads (10,000 / 1,333).
- Estimated Time per Load: Assuming approximately 25 minutes per load.
- Total Time: 8 loads x 25 minutes = 200 minutes or about 3 hours and 20 minutes.
150-Gallon Hydroseeder:
- Coverage per Load: Approximately 2,000 sq. ft.
- Number of Loads Needed: 5 loads (10,000 / 2,000).
- Estimated Time per Load: Assuming approximately 30 minutes per load.
- Total Time: 5 loads x 30 minutes = 150 minutes or 2.5 hours.
300-Gallon Hydroseeder:
- Coverage per Load: Approximately 4,000 sq. ft.
- Number of Loads Needed: 2.5 loads (10,000 / 4,000).
- Estimated Time per Load: Assuming approximately 40 minutes per load.
- Total Time: 2.5 loads x 40 minutes = 100 minutes or about 1 hour and 40 minutes.
500-Gallon Hydroseeder:
- Coverage per Load: Approximately 6,667 sq. ft.
- Number of Loads Needed: 1.5 loads (10,000 / 6,667).
- Estimated Time per Load: Assuming approximately 45 minutes per load.
- Total Time: 1.5 loads x 45 minutes = 68 minutes or about 1 hour and 8 minutes.
750-Gallon Hydroseeder:
- Coverage per Load: Approximately 10,000 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
1000-Gallon Hydroseeder:
- Coverage per Load: Approximately 13,333 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
