Product Description
TurfTime Topdresser-Material Handler | Model FX650 Material Spreader | Overall Width 101" | Hopper Capacity 6.5 Yard | Horsepower 50-75 HP | For Tractors
DESCRIPTION

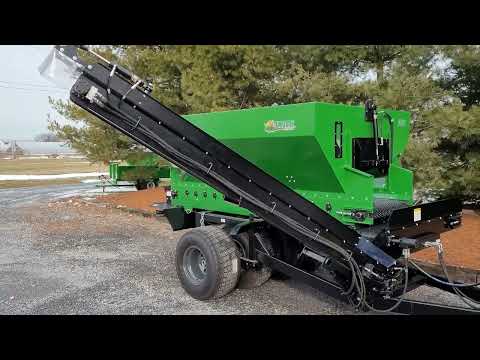

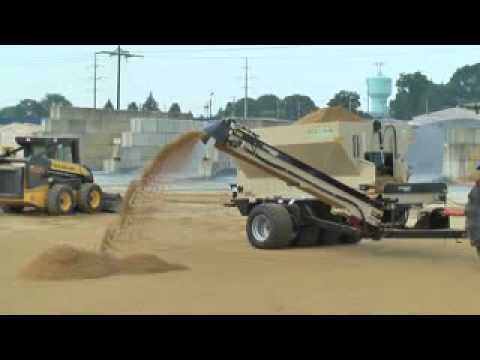

The FX650 Material Handler is a versatile and powerful topdresser designed for efficient material transport and spreading. Built with heavy-duty steel construction, wireless remote controls, and precision hydraulic systems, it ensures smooth operation for bunkers, irrigation projects, and reconstruction work. With a 6.5-yard hopper capacity, twin spinner attachment, and adjustable metering gates, it provides precise material distribution across various terrains.
Key Features
- Heavy Steel Frame: Reinforced 5” x 2” x .187 structural tubing for durability.
- Powder Coat Paint: Rust-resistant finish for long-lasting performance.
- Wireless Remote Controls: Enables easy operation from the tractor seat.
- Twin 23” Spinner Discs: 6 adjustable paddles per disc for controlled spreading.
- Rear Delivery System: 6 ft. to 40 ft. spread width for efficient material distribution.
- Side Conveyor (Right Side): 10 ft. conveyor with 84-inch unloading height.
- Cross Conveyor (Left Side): Left-side trench fill for precise placement.
-
Metering Gates:
- Rear Gate – Manual adjustment from 0” to 15”.
- Front Gate – Hydraulic control with remote operation.
- Conveyor Belt: Crescent top belt with center tracking groove for smooth material flow.
- Heavy-Duty Adjustable Hitch: Ag Pin Hitch for secure attachment.
Detailed Specifications
| Feature | FX650 (Tractor Plug-In Hydraulics) | FX650 (PTO Driven Hydraulics) |
|---|---|---|
| Drive System | Tractor hydraulic (12-15 GPM @ 1,800 PSI required) | PTO-powered hydraulic pump |
| Controls | Wireless remote hydraulic controls | Wireless remote hydraulic controls |
| Hopper Capacity | 6.5 cubic yards (heaped) | 6.5 cubic yards (heaped) |
| Hopper Dimensions | 31” x 120” (bottom), flares to 72” x 120” (top) | 31” x 120” (bottom), flares to 72” x 120” (top) |
| Hopper Construction | 11-gauge welded steel with powder-coat paint | 11-gauge welded steel with powder-coat paint |
| Frame Construction | 5” x 2” x .187 structural tubing | 5” x 2” x .187 structural tubing |
| Loading Height | 86” | 86” |
| Overall Width (including tires) | 101” | 101” |
| Overall Length | 18 ft. 4 in. | 18 ft. 4 in. |
| Tire Size | (4) 33/15.50 x 16.50 turf tires | (4) 33/15.50 x 16.50 turf tires |
| Rear Delivery | Twin spinner attachment (6 ft. to 40 ft. spread width) | Twin spinner attachment (6 ft. to 40 ft. spread width) |
| Side Conveyor (Right Side) | 10 ft. conveyor with 84” unloading height | 10 ft. conveyor with 84” unloading height |
| Cross Conveyor (Left Side) | Left-side trench fill for precise placement | Left-side trench fill for precise placement |
| Metering Gates | Rear gate (manual adjustment from 0” to 15”), front gate (hydraulic control with remote operation) | Rear gate (manual adjustment from 0” to 15”), front gate (hydraulic control with remote operation) |
| Conveyor Belt | Crescent top belt with center tracking groove | Crescent top belt with center tracking groove |
| Top Dressing Speed | 3 to 5 mph depending on conditions | 3 to 5 mph depending on conditions |
| Transport Speed | Up to 20 mph empty | Up to 20 mph empty |
| Horsepower Requirement | 50-75 HP | 50-75 HP |
| Empty Weight | 3,600 lbs | 4,100 lbs |
