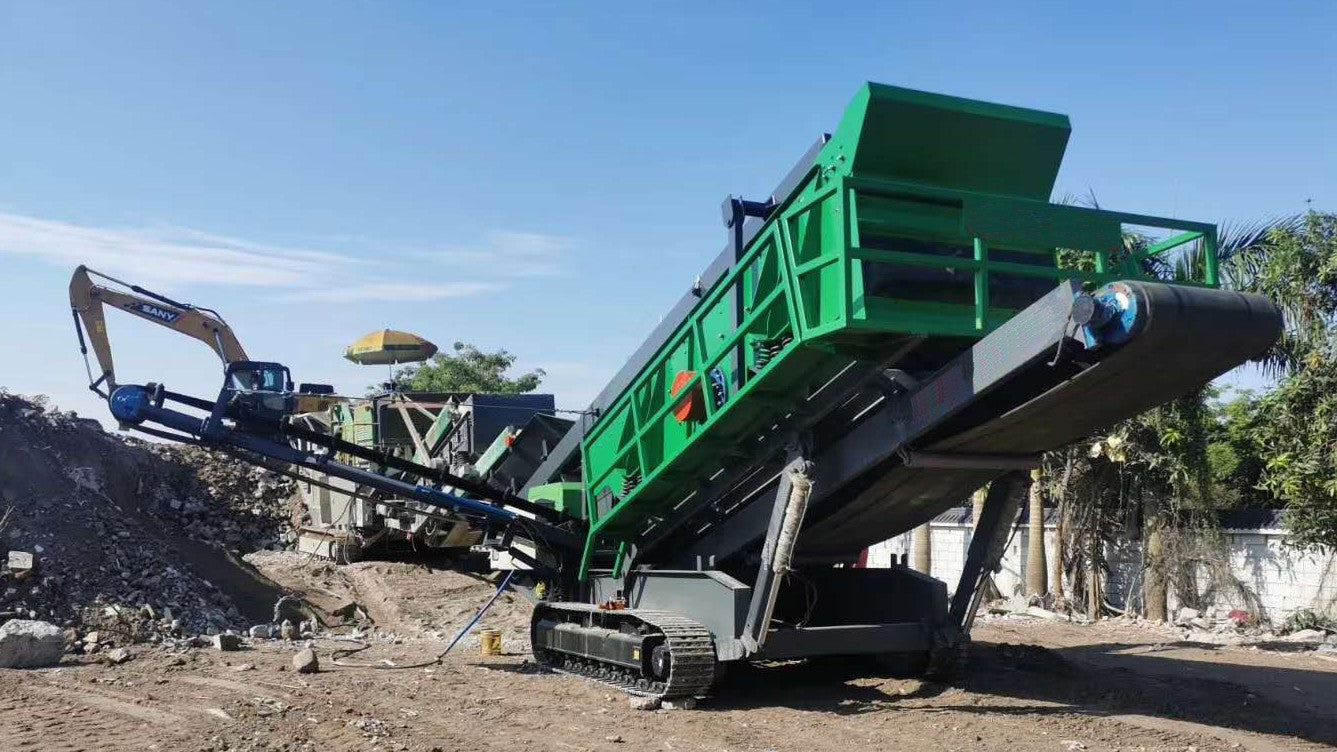

UPSEN Crawler Movable Vibrating Screen | Model U-YK1545 | Stock Bin Volume 1.5 Cubic Meter | Engine Horsepower 83 HP
UPSEN Crawler Movable Vibrating Screen | Model U-YK1545 | Stock Bin Volume 1.5 Cubic Meter | Engine Horsepower 83 HP
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
UPSEN Crawler Movable Vibrating Screen | Model U-YK1545 | Stock Bin Volume 1.5 Cubic Meter | Engine Horsepower 83 HP
DESCRIPTION
The U‑YK1545 is a high‑efficiency, crawler‑mounted vibrating screen designed for multi‑grade material separation in quarrying, aggregates, sand & gravel, and recycling operations. Its 1.5 m³ feed hopper with an 8 m belt feeder delivers a steady material flow to the 3YK1545 triple‑deck screen (1500 × 4500 mm), enabling precise separation into up to three product sizes in a single pass.
With a maximum feed size of 200 mm and throughput of 80–150 t/h, the U‑YK1545 is ideal for medium‑scale operations requiring mobility and versatility. Powered by a Cummins 66 kW (83 HP) diesel engine, it offers reliable performance in demanding environments. The crawler chassis ensures easy repositioning on site, while the compact transport dimensions simplify relocation between projects.
Key Features
- High Capacity: Vibrating screen with throughput of 80-180 t/h for large-scale screening tasks.
- Crawler Mobility: Equipped with a durable track chassis for effective movement across rough terrain.
- Cummins Diesel Engine: Stage IIIA/V 66KW (83HP) engine ensures power and efficiency in operation.
- Large Screen Area: 3YK1545 model with 1500x4500mm screen size and customizable mesh sizes (5/10/40mm).
- Multiple Conveyors: Includes main belt, side, and under-screen conveyors for streamlined material handling.
- Sturdy Construction: Weighing 18 tons with a transport-friendly design, suited for heavy-duty applications.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Stock Bin Volume | 1.5 m³ |
| Feeder Type | Belt feeder — B800 × 8000 mm |
| Screen Model | 3YK1545 |
| Screen Size | 1500 × 4500 mm |
| Screen Layers | 3 |
| Mesh Size | 5 mm / 10 mm / 40 mm (customizable) |
| Max Feed Size | 200 mm |
| Throughput | 80–150 t/h |
| Side Conveyor | B500 × 6500 mm |
| Under‑Screen Conveyor | B1000 × 8000 mm |
| Engine | Cummins — 66 kW (83 HP) |
| Weight | 18,500 kg |
| Working Dimensions | 13,500 × 11,520 × 4,200 mm |
| Transport Dimensions | 11,900 × 3,550 × 3,400 mm |
| Mobility | Crawler‑mounted |
| Applications | Aggregates, sand & gravel, topsoil, recycling |
