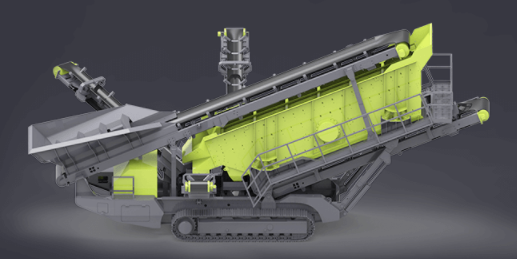

Upsen Crawler Movable Vibrating Screen | Model U-YK1860 | Diesel Engine 125 HP | Stock Bin Volume 1.5 Cubic Meter
Upsen Crawler Movable Vibrating Screen | Model U-YK1860 | Diesel Engine 125 HP | Stock Bin Volume 1.5 Cubic Meter
Regular price
$232,000.00
Regular price
Sale price
$232,000.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Upsen Crawler Movable Vibrating Screen | Model U-YK1860 | Diesel Engine 125 HP | Stock Bin Volume 1.5 Cubic Meter
DESCRIPTION
The UPSEN U‑YK1860 is a heavy‑duty, crawler‑mounted 3‑deck vibrating screener engineered for high‑capacity production in demanding applications. Equipped with a 1.5 m³ feed hopper and a B1000 × 9000 mm belt feeder, it delivers a steady material flow to the 3YK1860 triple‑deck screen (1,800 × 6,000 mm), enabling simultaneous separation into up to four product sizes.
With a throughput of 100–350 t/h, the U‑YK1860 is ideal for quarrying, aggregates, sand & gravel, topsoil, and recycling operations. Its 93 kW (125 HP) Cummins diesel engine provides robust, fuel‑efficient power, while the crawler undercarriage ensures mobility across challenging terrain.
Key Features
- High Capacity: Processes up to 350 TPH, suitable for large-scale applications.
- Crawler Mobility: Self-propelled on tracks for easy movement on rough terrains.
- Large Vibrating Screen: 1800x5400 mm screen with three levels for efficient separation.
- Remote-Controlled Operation: Allows for easy control and maneuverability.
- Durable Build: Designed for processing hard materials and natural stone.
- Cummins Diesel Engine: Powerful 93 kW (125 HP) engine ensures consistent performance.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Stock Bin Volume | 1.5 m³ |
| Feeder Type | Belt feeder — B1000 × 9000 mm |
| Screen Model | 3YK1860 |
| Screen Size | 1,800 × 6,000 mm |
| Screen Layers | 3 |
| Mesh Size | 5 mm / 10 mm / 40 mm (customizable) |
| Max Feed Size | 200 mm |
| Throughput | 100–350 t/h |
| Side Conveyor | B650 × 8000 mm |
| Under‑Screen Conveyor | B1200 × 8500 mm |
| Engine | 93 kW (125 HP) Cummins diesel |
| Weight | 29,500 kg |
| Working Dimensions | 14,500 × 18,520 × 4,500 mm |
| Transport Dimensions | 13,900 × 3,550 × 3,700 mm |
| Applications | Quarrying, aggregates, sand & gravel, topsoil, recycling |
