Upsen Heavy-Duty Screener / Scalping Screen | U-ZS1230 & U-ZS1545 | Hopper Volume 3-7 Cubic Meter | Max Feed Size 500-800 mm

Upsen Heavy-Duty Screener / Scalping Screen | U-ZS1230 & U-ZS1545 | Hopper Volume 3-7 Cubic Meter | Max Feed Size 500-800 mm

Regular price $164,000.00
Regular price Sale price $164,000.00
Sale Sold out
Customizable
Fast
24/7 Support
  • High‑Capacity Double‑Deck Screening: 2YK series vibrating screens with customizable 10 mm / 100 mm mesh; handles feed up to 800 mm with throughput from 100 t/h to 400 t/h depending on model.
  • Optimized Hopper & Feed Systems: U‑ZS1545- 7 m³ chain‑plate feeder (B1000 × 4200 mm) for oversized, abrasive material. U‑ZS1230- 3 m³ belt feeder (B800 × 2100 mm) for versatile feed handling.
  • Efficient Stockpiling: Main and side conveyors with stacking heights up to 3.5 m for continuous load‑out without auxiliary equipment.
  • Mobile, Site‑Ready Power: Crawler chassis for on‑site repositioning; diesel engines matched to scale — Cummins QSF3.9 81 kW (1545) or YANMAR 4TNV98 45 kW (1230).
View full details

Product Description

Upsen Heavy-Duty Screener / Scalping Screen | U-ZS1230 & U-ZS1545 | Hopper Volume 3-7 Cubic Meter | Max Feed Size 500-800 mm

DESCRIPTION

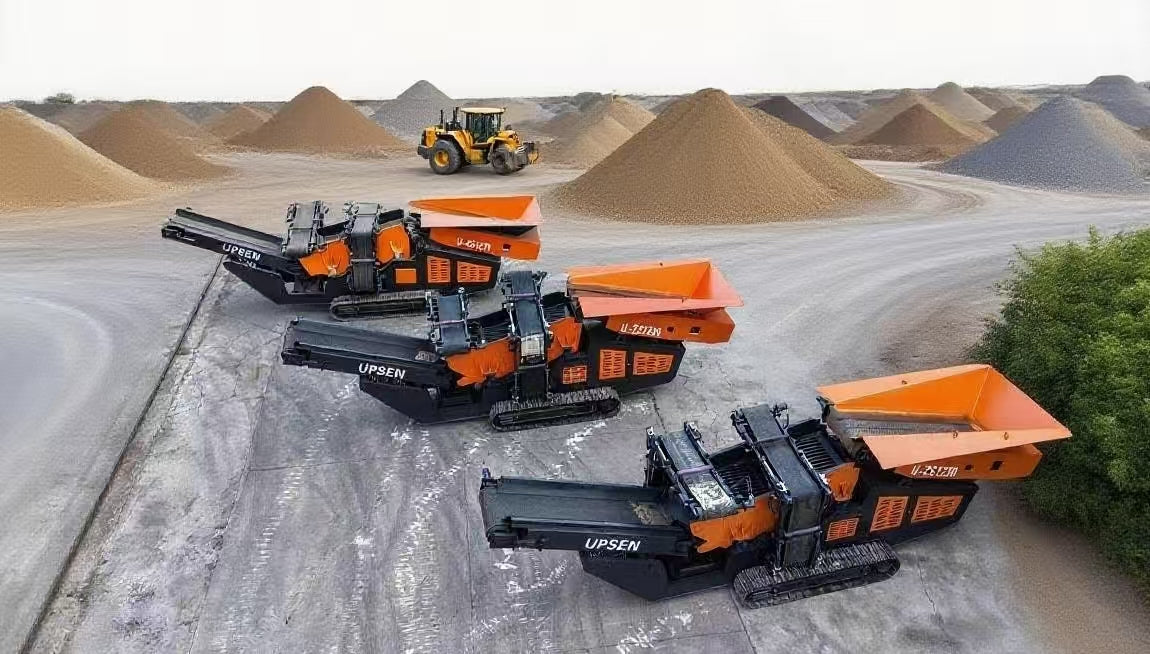

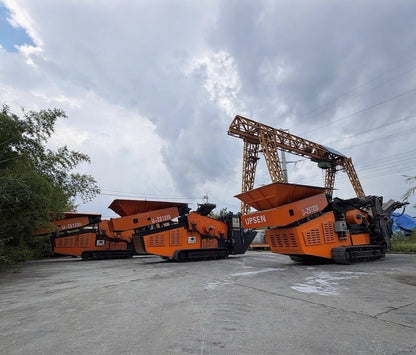

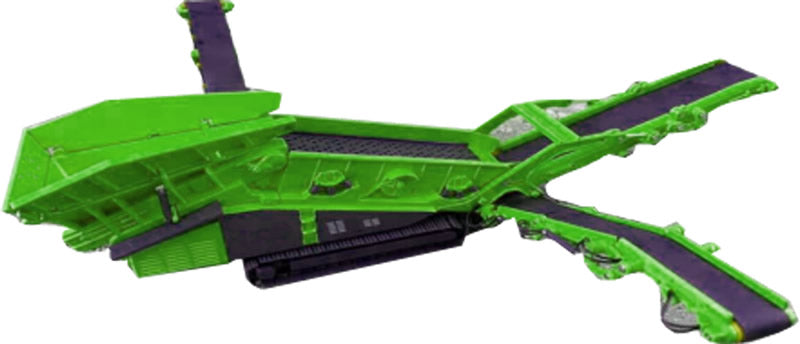

The U‑ZS Series — comprising the U‑ZS1545 and U‑ZS1230 — delivers powerful, mobile scalping and screening performance for a wide range of material processing needs. Built for durability and efficiency, these machines handle everything from aggregates, sand, and gravel to topsoil, construction demolition waste, and large‑scale recycling.

The U‑ZS1545 is the high‑capacity workhorse of the range, with a 7 m³ chain‑plate feeder, 1500 × 4500 mm double‑deck screen, and throughput of 150–400 t/h, making it ideal for large‑volume, heavy‑duty operations.

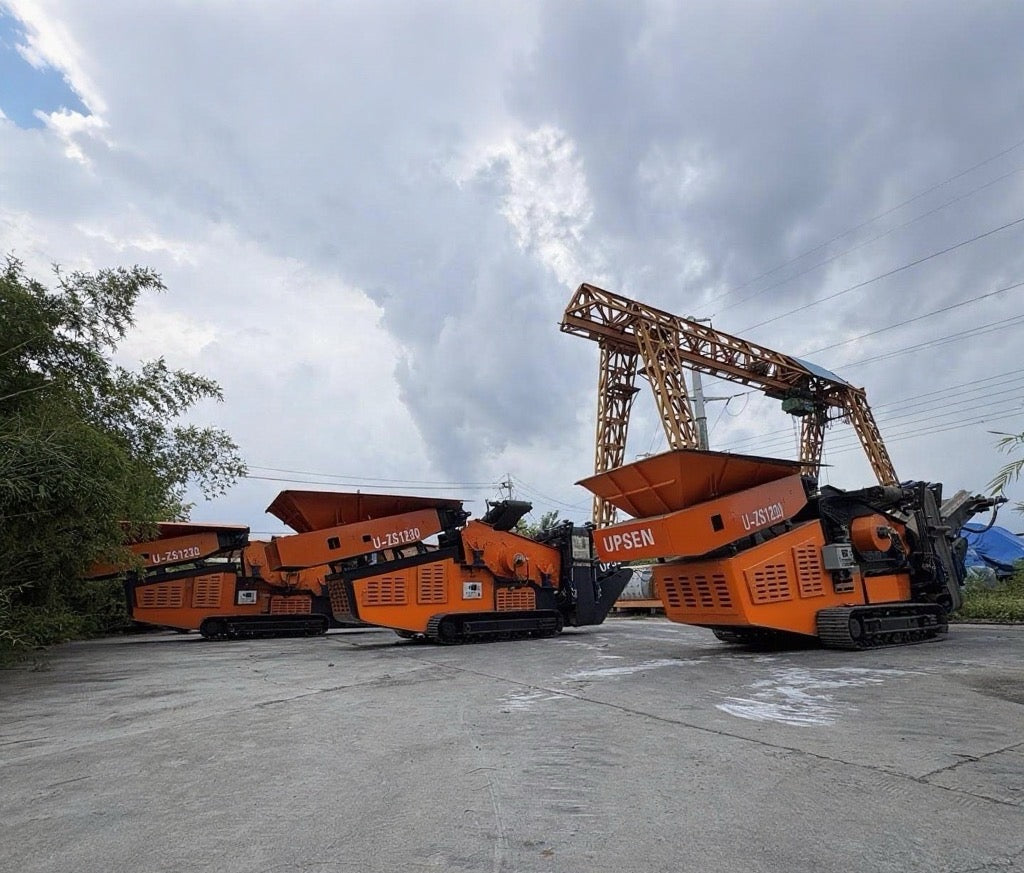

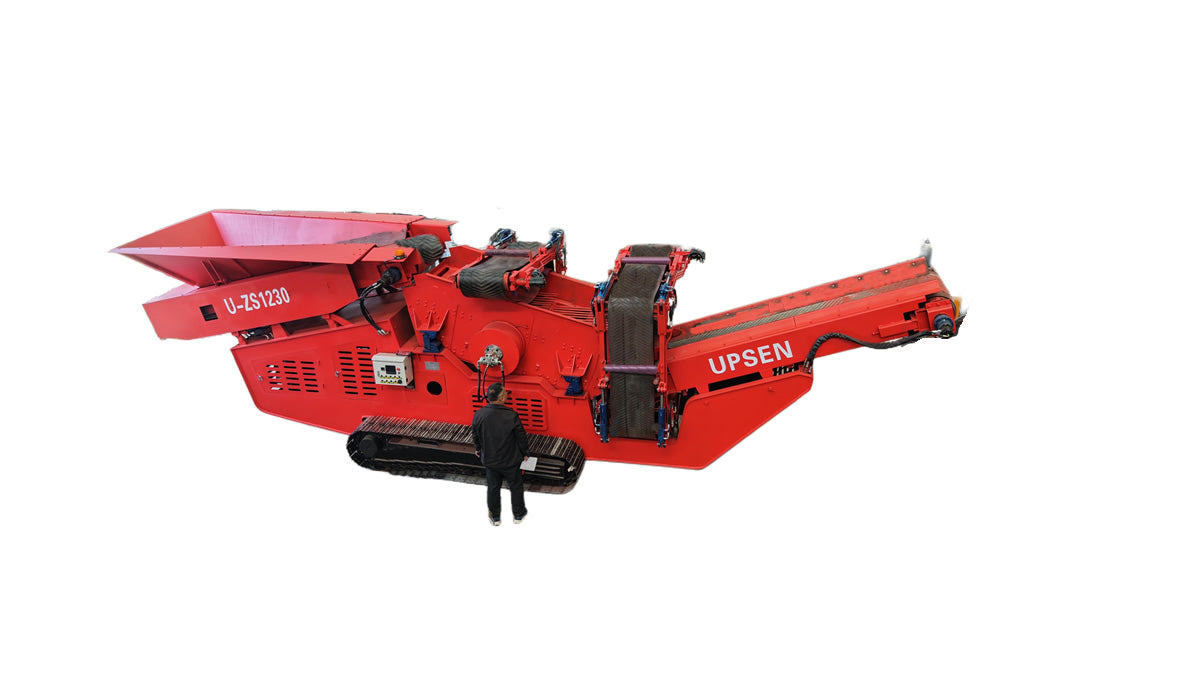

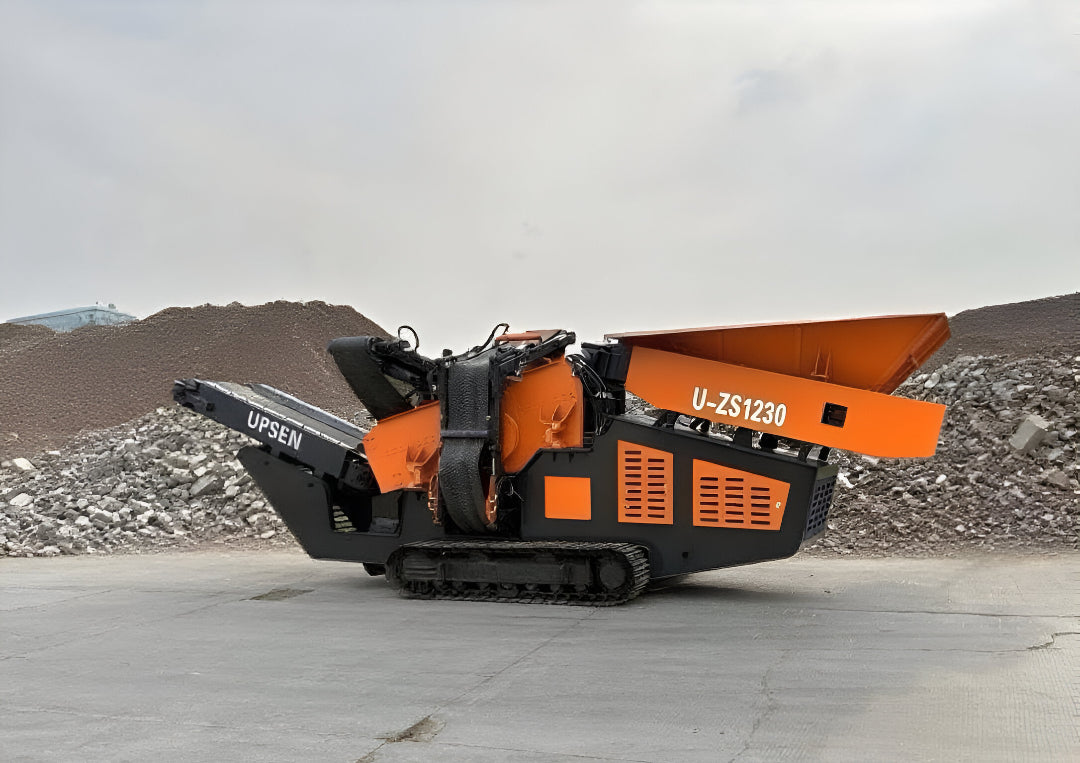

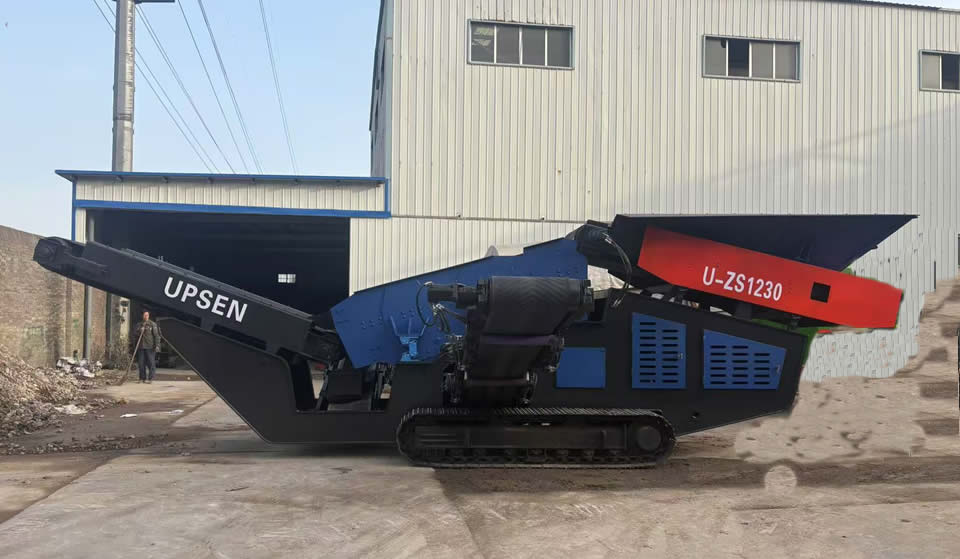

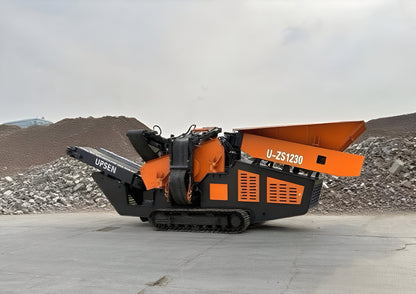

The U‑ZS1230 offers a compact, container‑shippable footprint with a 3 m³ belt feeder, 1200 × 3000 mm double‑deck screen, and throughput of 100–200 t/h, perfect for medium‑scale projects and space‑restricted sites.

Both models feature customizable mesh sizes, crawler mobility, and robust diesel powerplants, ensuring reliable performance in the toughest environments.

Key Features

  • Heavy‑duty scalping performance — Designed for primary separation of large, abrasive materials before secondary processing.
  • Double‑deck vibrating screens — 2YK series with customizable mesh sizes (10 mm / 100 mm standard) for precise material separation.
  • High throughput options —
    • U‑ZS1545: 150–400 t/h, max feed size 800 mm
    • U‑ZS1230: 100–200 t/h, max feed size 500 mm
  • Feeder configurations —
    • U‑ZS1545: Chain‑plate feeder (B1000 × 4200 mm) for heavy, bulky feed
    • U‑ZS1230: Belt feeder (B800 × 2100 mm) for versatile material handling
  • Efficient stockpiling — Main and side conveyors with generous stacking heights (up to 3.5 m) for smooth load‑out.
  • Engine power matched to scale —
    • U‑ZS1545: Cummins QSF3.9, 81 kW (108 hp)
    • U‑ZS1230: YANMAR 4TNV98, 45 kW
  • Mobility & transportability — Crawler chassis for on‑site repositioning; U‑ZS1230 fits inside a standard container for cost‑efficient shipping.
  • Multi‑sector versatility — Suitable for quarrying, aggregates, sand & gravel, topsoil, demolition debris, and recycling applications.
  • Built for tough environments — Rugged construction to withstand continuous operation in demanding conditions.

Detailed Specifications

Feature U‑ZS1545 U‑ZS1230
Hopper Volume 7 m³ 3 m³
Feeder Type Chain‑plate B1000 × 4200 mm Belt B800 × 2100 mm
Screen Size 1500 × 4500 mm 1200 × 3000 mm
Max Feed Size 800 mm 500 mm
Throughput 150–400 t/h 100–200 t/h
Main Conveyor Height 3.5 m 2.8 m
Engine Cummins QSF3.9 — 81 kW YANMAR 4TNV98 — 45 kW
Weight 35,500 kg 11,500 kg
Transport Size (L×W×H) 14.7 × 3.0 × 3.4 m 9.6 × 2.25 × 2.55 m
Best For Large‑scale, high‑volume sites Medium‑scale, space‑limited sites
